ComfyUI-StaticPipeline

ComfyUI-StaticPipeline

English | 中文说明

Static pipeline split for multi-GPU ComfyUI: place DiT blocks across GPUs once, never move weights again.

A drop-in custom node that splits a large DiT across multiple GPUs statically — weights are placed at load time and never move during inference. Includes hybrid residency (resident + CPU-streamed blocks) for long sequences, activation-space LoRA for quantized models, and chunked compute for long-video workloads.

Built and battle-tested on MiniMax H3 video DiT (34 GB int8_convrot) across 2× RTX 3080 20 GB, generating up to 15-second single-segment videos with zero crashes.

---

Why: the problem with dynamic layer sharding

The popular dynamic-sharding approach (ComfyUI-MultiGPU DisTorch) streams weight blocks between devices on demand. On recent ComfyUI forks with DynamicVRAM/aimdo virtual-VRAM internals combined with packed quantized weights (int8_convrot etc.), this is fundamentally unstable — we reproduced deterministic access violation crashes from three different paths:

1. VAE eviction crash — loading the video VAE evicts the DiT → unpatch_model touches dangling quantized qdata → segfault
2. Reload crash — a second prompt re-partially-loads the model → patch_weight_to_device touches freed vbar memory → segfault
3. Block-move crash — even a fresh load crashes when the block-moving dance (dequant→requant through comfy_kitchen) hits a bad page

Our record with dynamic sharding on this stack: 3 successes, 4 hard crashes — every crash left a faulthandler trace pointing at the same root: dangling pointers into the quantized-weight virtual memory after any move.

The killer detail: vbar_free_memory in the aimdo ledger started returning negative garbage values. Python-level guards can't fix a corrupted kernel-side ledger.

The fix: stop moving weights. Ever.

Static placement: split the 50 transformer blocks once at load time (e.g. 23 + 27 across two 20 GB cards), then treat the DiT as load-bearing furniture:

• partially_load → no-op (patches/counters only)
• partially_unload → report freed (lie), so nothing ever evicts it
• unpatch_model → forbidden from moving weights
• free_memory guard → static models are never eviction candidates
• Activations cross the PCIe bus once per step at the block boundary (~140 MB)

Hybrid residency for long sequences

Weights don't grow with video length — activations do (~linear in tokens). For longer clips the node automatically switches profiles:

| Profile | Frames | Layout | Measured (segment 2+ of a chained run) | |---|---|---|---| | short | ≤88f | all-resident 23/27 | 73f: 6.80 s/it (0.093 s/it·frame, zero streamed blocks) | | mid | 110–259f | 22/23 resident + 5 CPU-streamed | 124f: ~27 s/it · 243f: ~62 s/it | | long | ≥260f | 19/21 resident + 9 CPU-streamed | 277f: ~78 · 311f: ~93 · 362f: ~107 s/it |

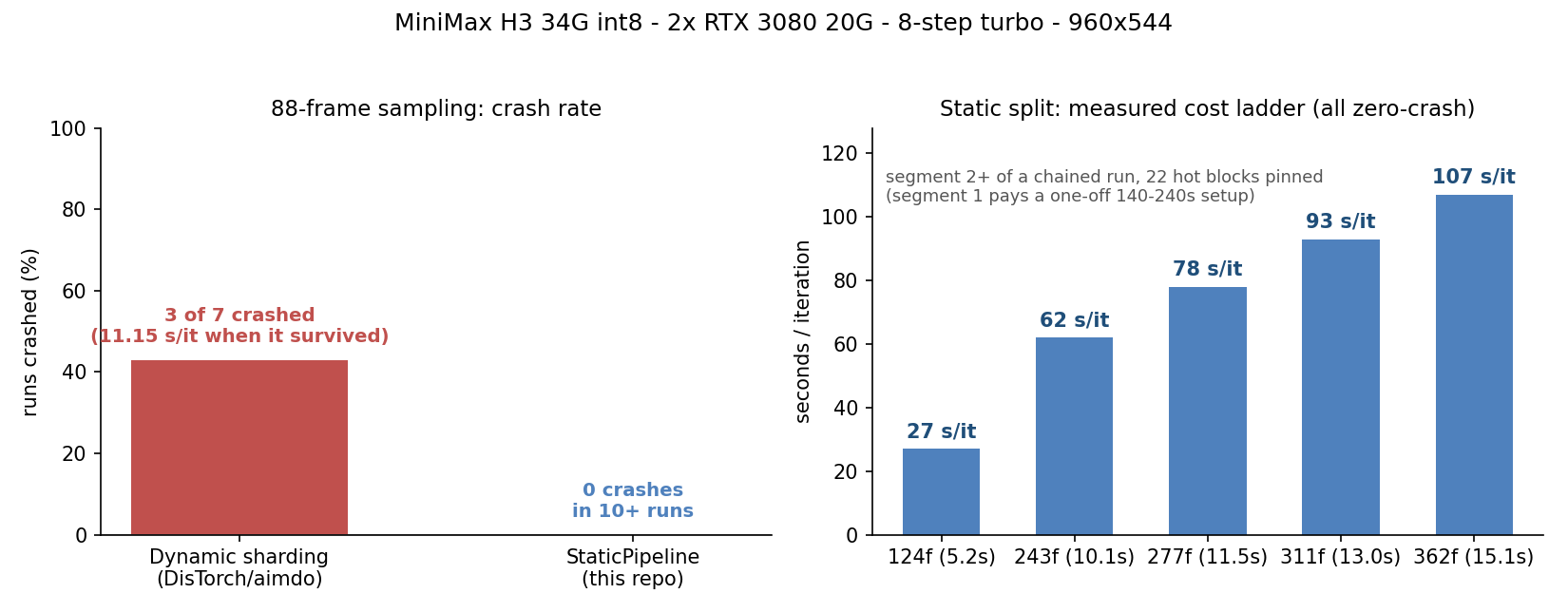

Measured cost curve on a directed chained run (steps=8 + turbo, 960×544, segment 2+): 124f ≈ 27 s/it · 243f ≈ 62 · 277f ≈ 78 · 311f ≈ 93 · 362f ≈ 107. Segment 1 carries a one-off ~140–240 s cost (Triton compile + first LoRA move + static placement).

Two knobs matter for long clips: 22 hot blocks stay pinned resident per card (the rest can stream), and the loaded model survives across prompts (LRU model cache) — the second and later submissions on the same instance skip reload, Triton recompile and the first LoRA move, saving ~5.7 min per clip at the same tier.

(2× RTX 3080 20 GB, MiniMax H3 34 GB int8, 8-step turbo. CPU-streamed blocks are lossless packed-int8 copies; overhead ~1 s/step.)

Four levels of chunking for long sequences

• MLP swiglu: 16k-row chunks (peak transient 2.9 GB → ~250 MB)
• LoRA delta: 1k-row chunks, in-place add_ into the layer output (zero full-size delta allocation)
• Attention qkv/out_proj projections: 4k-row chunks into preallocated buffers
• Attention core: query chunking (k,v stay full — that's the math)

Activation-space LoRA (bypass mode)

Instead of weight_function hooks (which dequantize every layer every step: +5 s/it tax at 208 layers), LoRA is applied in activation space: y = W·x + α·B(A·x). Weights stay packed; the int8 fast path is preserved; the comfy_kitchen requant minefield is never touched. Uses the bypass infrastructure already shipped in ComfyUI's weight_adapter/bypass.py, with three fixes: per-card adapter placement, activation-dtype lazy casting (blind fp32 pre-cast = 448 MB transients), and chunked in-place accumulation.

Bugs found & fixed along the way (highlights)

• Activation-space LoRA cache thrash: the adapter cache was single-slot; on long sequences (x.device flipping cuda:0 ↔ cuda:1 within one step) it missed on every call and re-copied the whole ~1 GB adapter set — a single step took >21 minutes (~8.8 TB moved). Fixed by bucketing the cache per (dtype, device) with ≥2 entries per adapter. Tell-tale signature: PCIe device-1 TX at ~7.8 GB/s (GPU→host flooding). Short clips never trigger it — the key never flips.
• adaln_t_table was cast_to'd every forward call — 9 calls × 496 MB of duplicate tables alive simultaneously (4.46 GB!) on a 360-frame job. Fixed with an instance-level cache.
• comfy_kitchen's cublas workspace is bound to torch.cuda.current_device() — kernels on cuda:1 got cuda:0's workspace → cudaErrorIllegalAddress. Fixed by running every block under torch.cuda.device(its_home).
• ComfyUI-MultiGPU's dlpack guard loads libcudart.so — instant crash on Windows. Patch included (loads cudart64_13.dll from torch/lib).
• Streamed blocks originally did an H2D hop and a D2H hop per forward. The D2H hop was the access-violation site (it reads GPU pages that aimdo may have remapped). Since weights are read-only during forward, the D2H copy is now eliminated entirely — the saved CPU parameter objects are swapped back by reference (one-way transfer).
• TE encoding leaves a fragmented dead-block pool; sampling then OOMs at 16.5 GB allocated with 3 GB "free" per the ceiling. empty_cache() at load completion fixes it.
• WDDM effective VRAM ceiling is ~19.0 GiB on 20 GB cards; PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True is mandatory.

Full gory details: patches/ and the debug methodology (MGPU_STATIC_MEM_DEBUG=1 gives per-block VRAM curves + top-tensor attribution).

---

Installation

cd ComfyUI/custom_nodes
git clone https://github.com/<YOU>/ComfyUI-StaticPipeline.git

Optional but recommended patches (see patches/):

• comfy-core_minimax-model_adaln-cache-embed-free.patch — kills the 496 MB/call table duplication + frees embed intermediates (benefits single-GPU too)
• comfy-core_weight-adapter-bypass_inplace-support.patch — in-place support required by chunked LoRA
• multigpu_p2p-registry_windows-cudart.patch — Windows fix for ComfyUI-MultiGPU (only if you also run that pack)

Usage

Insert the node after your DiT loader:

UNETLoader → StaticPipelineSplit(frames=<your frame count>) → ... → sampler

• frames must be the length of a single sampling pass (max segment length for multi-segment Director chains, not the chain total) — it selects the residency profile (<110 all-resident / 110–259 mid / ≥260 long). Passing a multi-segment chain total over-streams the model and multiplies the kitchen .to() dispatch count per step, which is the same crash-class this node exists to avoid.
• Asymmetric GPU pairs (20 GB + 48 GB, 3090 + 4090, …): set primary_gb / secondary_gb to the weight budget you want on each card (rule of thumb: VRAM minus ~4 GB of activation headroom). The split is byte-budget driven, so the bigger card simply receives more blocks — no other change needed. Leave both at 0 to use the built-in profiles (2× 20 GB). Not yet tested on an asymmetric pair on our side (we only have 2× 20 GB) — the placement logic has no symmetry assumption, but report back if you try it.
• Launch with:

  MGPU_CPU_THRESHOLD_PERCENT=999 PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True


• Restart the instance when switching frame-count tiers — placement is one-shot per loaded model
• The video VAE (7.9 GB) won't fit alongside; it runs lowvram-streamed. That's expected.

Notes & limits

• Requires the ComfyUI fork runtime this was developed against (DynamicVRAM/aimdo builds; tested on torch 2.10.0+cu130). Stock ComfyUI works too — the overrides simply no-op gracefully — but the target use case is packed-quantized DiTs that crash under dynamic sharding.
• Measured segment tiers (current dev0 budget + 22 pinned blocks): chained segments passed every tier we tested — 124 / 243 / 277 / 311 / 362 frames, validated end-to-end. Notes quoting a 226f single-shot / 124f chained ceiling came from the pre-pin dev0 budget and no longer apply. A chained segment still costs ~384 MiB more than the same length as a standalone shot — "the standalone probe passed" does not imply the chain will.
• SageAttention allocates a 513.97 MiB fp32 temporary over the full k (∝ token count, hence ∝ frames) — the largest single OOM trigger on long segments; intrinsic, unrelated to LoRA/streaming/VAE.
• Three ways to free VRAM that we measured and killed: (a) rebalancing weights across cards — streamed blocks hop back onto their home card during their own forward, so the peak is conserved; (b) moving the audio VAE to cuda:1 — aimdo's vbar is only registered on device 0; (c) moving the text encoder to GPU — CUDA-context-level crash.
• Keep the VAEs on the GPU: giving the video VAE ~3 GiB of headroom cut decode from 137 s → 46 s.
• Windows + WDDM: effective ceiling ≈ 19 GiB per 20 GB card. Linux may allow more headroom (untested).
