    Latent Tools for ComfyUI

    A collection of nodes for manipulating latent tensors in ComfyUI. These tools provide various operations for working with latent representations in stable diffusion workflows.

    Made in collaboration with fzayguler

    Installation

    1. Clone this repository into your ComfyUI/custom_nodes/ directory
    2. Restart ComfyUI

    Or use the ComfyUI extension manager.

    Available Nodes

    Preview and Debug

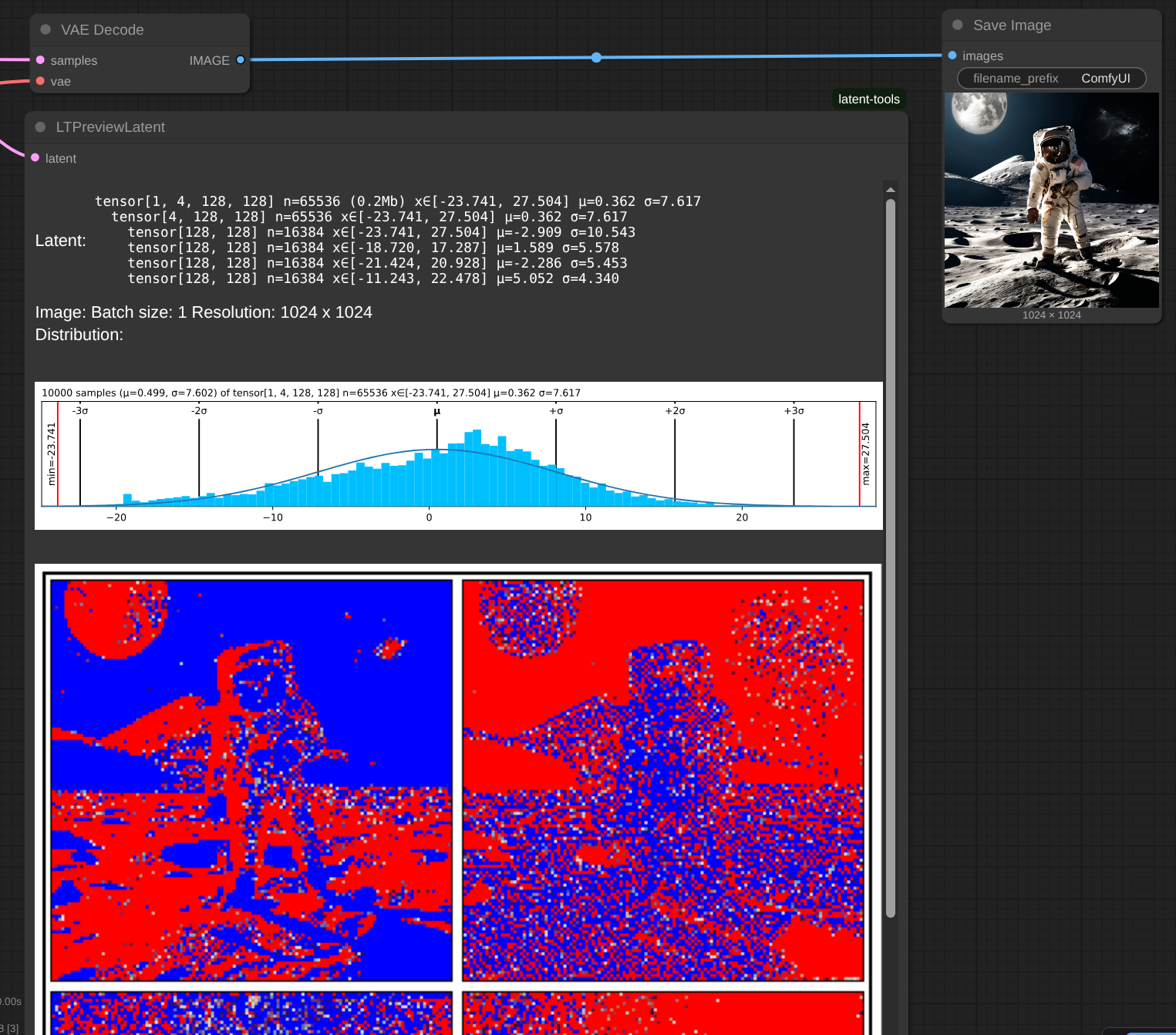

    LTPreviewLatent

    Visualizes latent tensors for debugging and inspection.

    alt text

    KSampler with additional noise input

    LTKSampler

    A KSampler variant that accepts an additional input for starting latent space noise.

    | <img src="assets/KSampler.png" alt="LTKSampler" width="70%"> | |------------| | Inputs | | - model: The model used for denoising | | - extra_seed: See for any other noise used by the sampler | | - steps: Number of steps in the denoising process | | - cfg: Classifier-Free Guidance scale | | - sampler_name: Algorithm used for sampling | | - scheduler: Controls how noise is gradually removed | | - positive: Positive conditioning | | - negative: Negative conditioning | | - latent_image: The latent image to denoise | | - latent_noise: Starting noise for the sampler | | - denoise: Amount of denoising to apply | | Outputs | | - latent: The denoised latent tensor |

    LTGaussianLatent

    Generates latent tensors filled with random values from a normal (Gaussian) distribution.

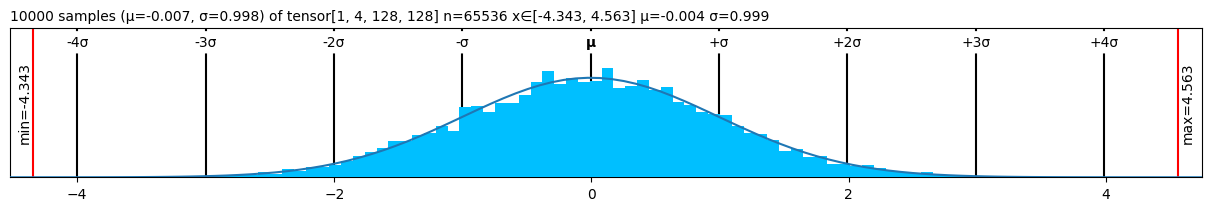

    | <img src="assets/GaussianLatent.png" alt="LTGaussianLatent" width="30%"> | |------------| | Inputs | | - channels: Number of channels (default: 4) | | - width: Width of the latent space (will be divided by 8) | | - height: Height of the latent space (will be divided by 8) | | - batch_size: Number of samples to generate | | - mean: Mean of the normal distribution | | - std: Standard deviation of the normal distribution | | - seed: Random seed | | Outputs | | - latent: Generated latent tensor | | Gaussian Latent Node |

    Example:

    | "quick brown fox", σ=0.9 μ=0 | "quick brown fox", σ=1.05, μ=0 | "quick brown fox", σ=1, μ=0 | "quick brown fox", σ=1, μ=-0.1 | "quick brown fox", σ=1, μ=0.1 | |---|---|---|---|---| Random Range Gaussian Example | Random Range Gaussian Example | Random Range Gaussian Example | Random Range Gaussian Example | Random Range Gaussian Example |

    LTUniformLatent

    Generates latent tensors with values uniformly distributed between min and max.

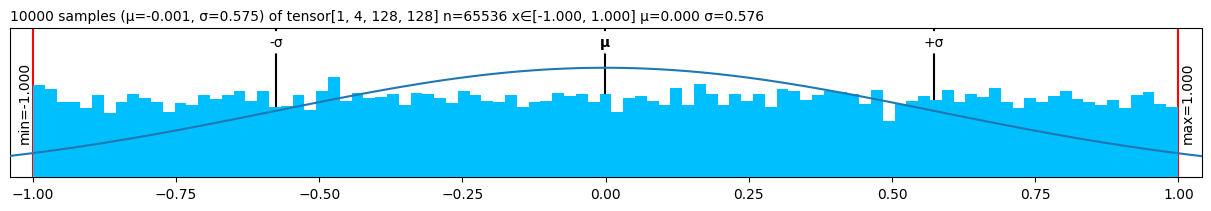

    | <img src="assets/UniformLatent.png" alt="LTUniformLatent" width="30%"> | |------------| | Inputs | | - channels: Number of channels (default: 4) | | - width: Width of the latent space (will be divided by 8) | | - height: Height of the latent space (will be divided by 8) | | - batch_size: Number of samples to generate | | - min: Minimum value | | - max: Maximum value | | - seed: Random seed | | Outputs | | - latent: Generated latent tensor | | Uniform Latent Node |

    Note: Stable Diffusion models are usually trained with Gaussian noise, so the generations from Uniform noise will look unusual.

    Example:

    | "quick brown fox", -1.67 to 1.67 | "quick brown fox", -1.81 to 1.81 | |---|---| Random Range Uniform Example | Random Range Uniform Example |

    Latent Operations

    LTBlendLatent

    Blends two latent tensors using various blending modes.

    | <img src="assets/BlendLatent.png" alt="LTBlendLatent" width="40%"> | |------------| | Inputs | | - latent1: First latent tensor | | - latent2: Second latent tensor | | - mode: Blending mode | | - ratio: Blend ratio (0.0 to 1.0) Only used for mode=sample or mode=interpolate | | - seed: Random seed Only used for mode=sample | | Outputs | | - latent: Blended latent tensor |

    | Blending Modes | Description | |-------------------|-----------------| | interpolate | Linear interpolation between latents | | add | Additive blending | | multiply | Multiplicative blending | | abs_max | Maximum of absolute values | | abs_min | Minimum of absolute values | | max | Element-wise maximum | | min | Element-wise minimum | | sample | Randomly sample from either latent based on ratio |

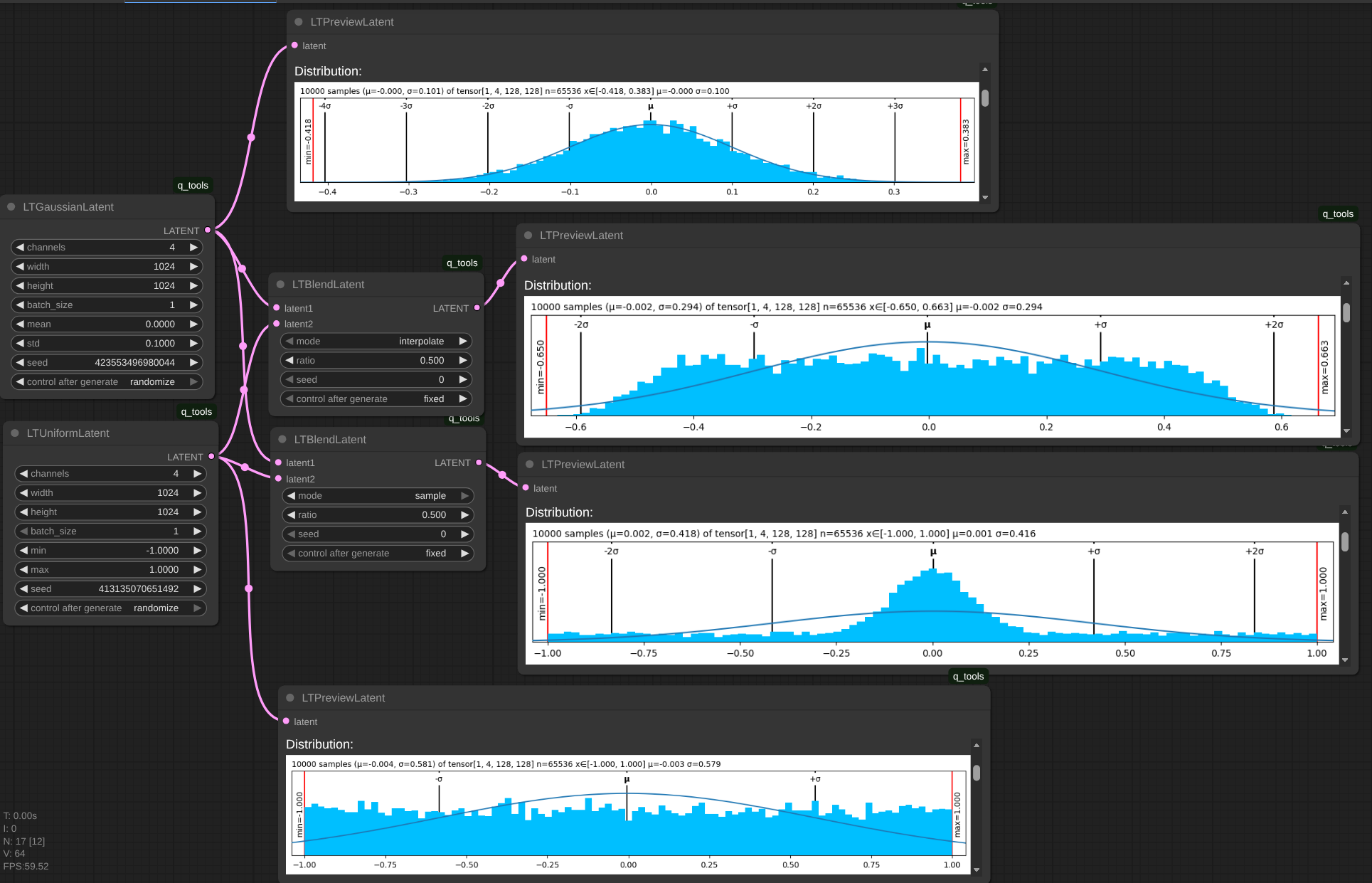

    Example:
    Inputs: Random Gaussian σ=0.1 μ=0 (top) and Random Uniform [-1s, 1] (bottom)
    Blend modes: interpolate (top) and sample (bottom)
    Blend Latent Node

    LTLatentOp

    Applies mathematical operations to a latent tensor.

    | <img src="assets/LatentOp-ops.png" alt="LTLatentOp" width="80%"> | |------------| | Inputs | | - latent: Input latent tensor | | - op: Operation to apply | | - arg: Argument to apply (for operations that require an argument) | | Outputs | | - latent: Resulting latent tensor |

    | Operation | Description | |---------------|-----------------| | add | Add a value | | mul | Multiply by a value | | pow | Raise to a power | | exp | Exponential | | abs | Absolute value | | clamp_bottom | Clamp minimum value | | clamp_top | Clamp maximum value | | norm | Normalize (zero mean, unit variance) | | mean | Set mean to specified value | | std | Set standard deviation to specified value | | sigmoid | Apply sigmoid function | | nop | No operation |

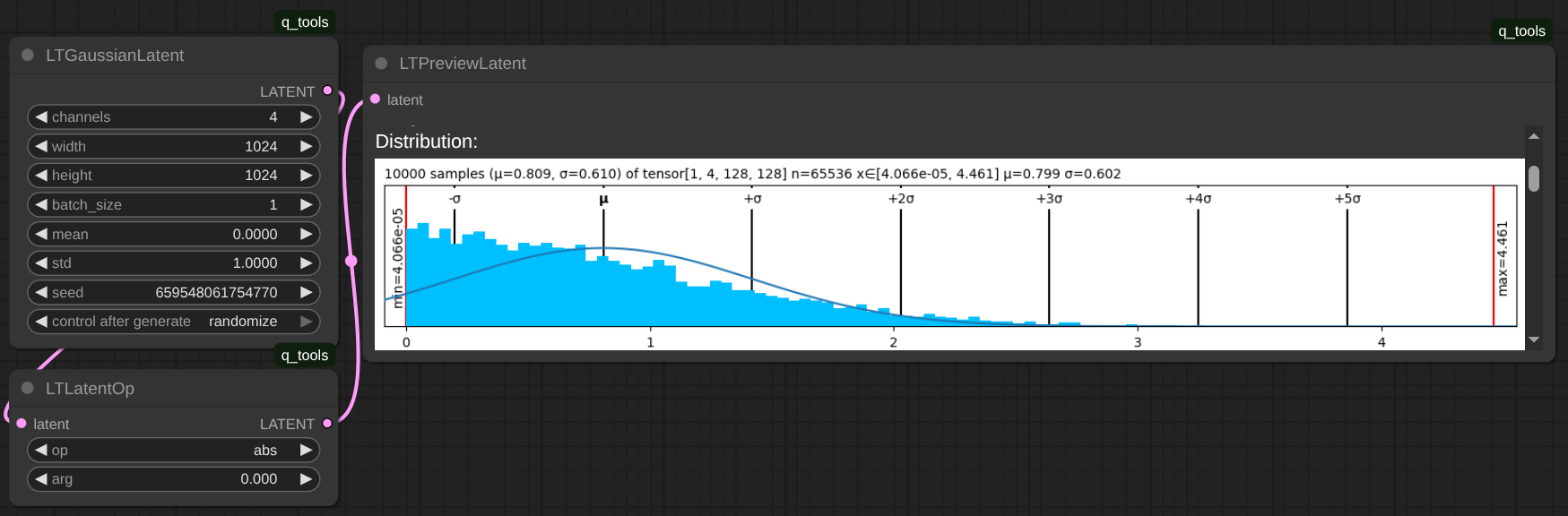

    Example: Inputs: Random Gaussian σ=1 μ=0 Op: abs Latent Op Example

    LTLatentsConcatenate

    Concatenates two latent tensors along a specified dimension.

    | <img src="assets/LatentsConcatenate.png" alt="LTLatentsConcatenate" width="50%"> | |------------| | Inputs | | - latent1: First latent tensor | | - latent2: Second latent tensor | | - dim: Dimension to concatenate along (supports negative indexing) | | Outputs | | - latent: Concatenated latent tensor |

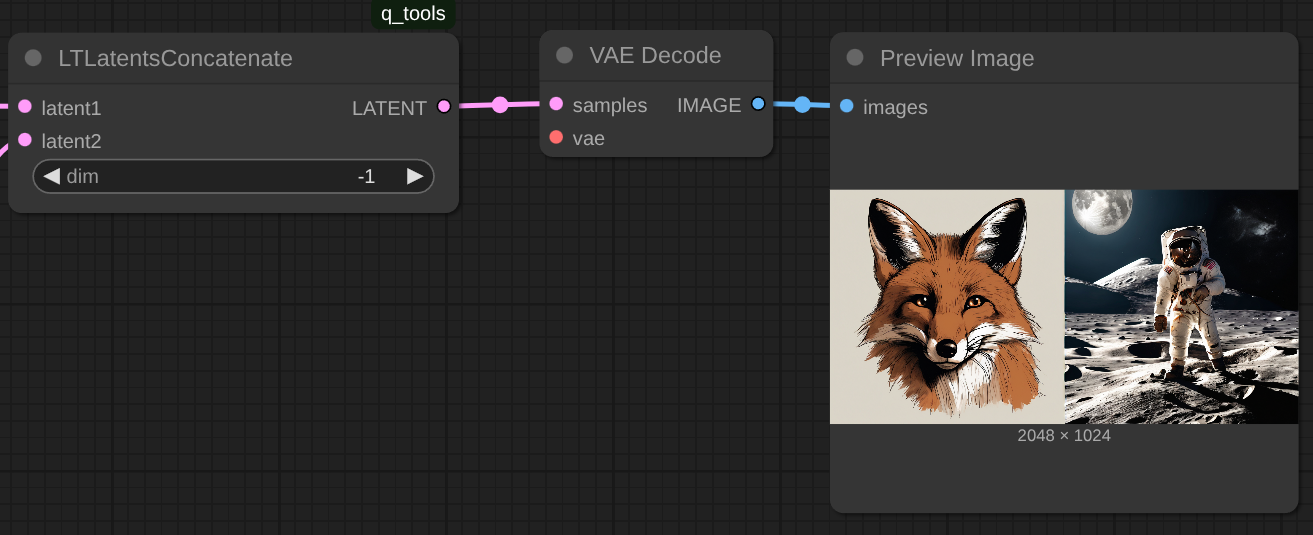

    Example1: 2 images, concatenated along x axis: Latent Concatenate Example1

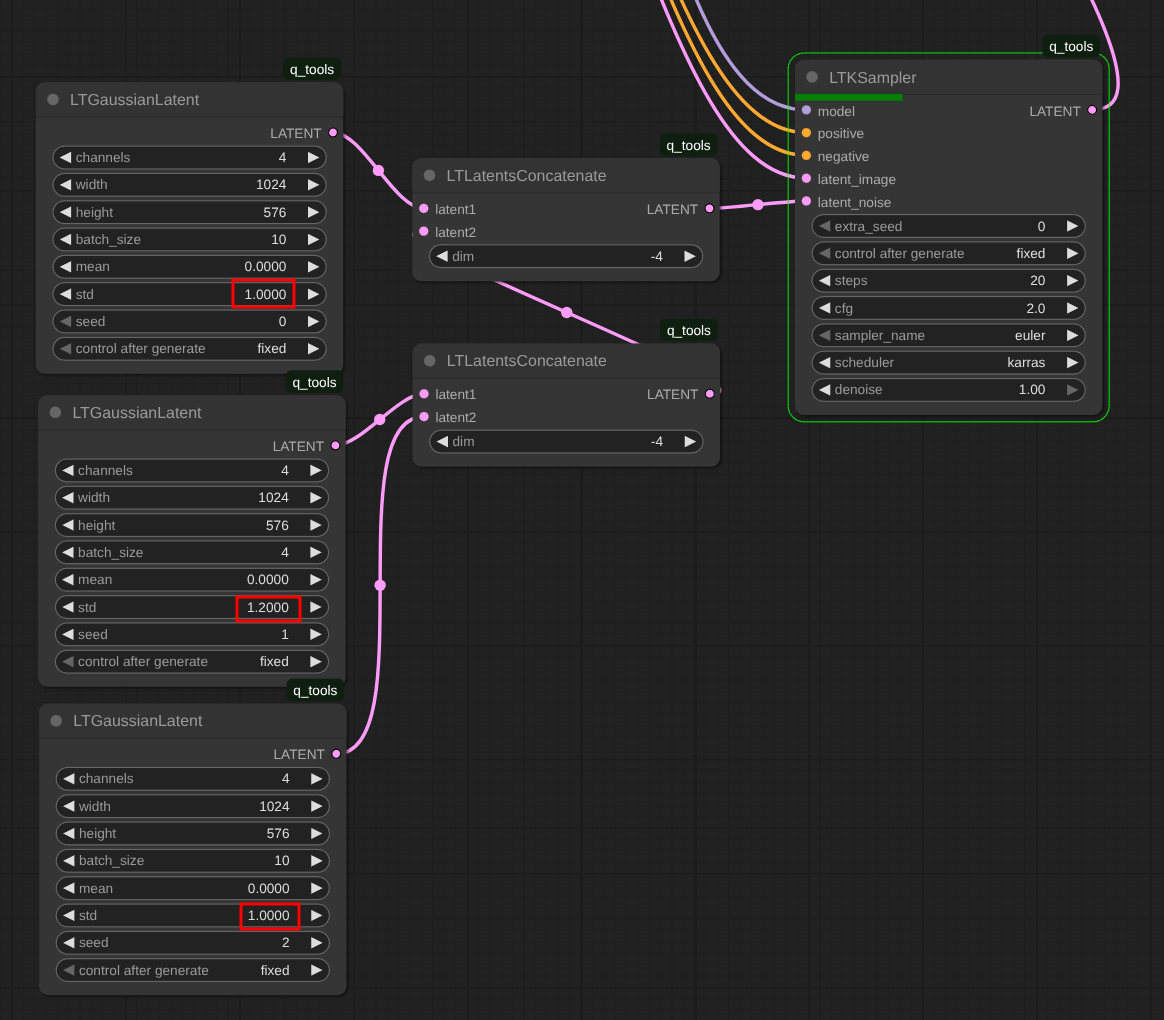

    Example2: Stable Video Diffusion xt (24 frames total), concatenating

    • 10 frames Gaussian noise (σ=1 μ=0)
    • 4 frames Gaussian noise (σ=1.2 μ=0)
    • 10 frames Gaussian noise (σ=1 μ=0) Latent Concatenate Example2

    | 10f (σ=1 μ=0) + 4f (σ=1.2 μ=0) + 10f (σ=1 μ=0) | 24f (σ=1 μ=0) | |---|---| | Latent Concatenate Example2 | Latent Concatenate Example2 |

    LTLatentToShape

    Extracts the shape of a latent tensor.

    | <img src="assets/LatentToShape.png" alt="LTLatentToShape" width="40%"> | |------------| | Inputs | | - input: Input latent tensor | | Outputs: | | - Return 7 dimensions of the input latent shape. Non-existing ones are returned as 0 |

    LTReshapeLatent

    Reshapes a latent tensor to new dimensions.

    | <img src="assets/ReshapeLatent.png" alt="LTReshapeLatent" width="50%"> | |------------| | Inputs | | - input: Input latent tensor | | - strict: If True, requires exact size match | | - dim0-dim6: Target dimensions (0 values are ignored) | | Outputs | | - latent: Reshaped latent tensor |

    Example: Reshape one latent to match another one:

    <img src="assets/ShapeExample.png" alt="LTReshapeLatent" width="70%"> <!-- ![Latent Reshape Example](assets/ShapeExample.png) -->

    Batch helpers

    Parameter Randomization

    LTNumberRangeUniform and LTRandomRangeGaussian are used to randomize inputs to other nodes when scheduling multiple images.

    LTNumberRangeUniform

    Generates random float values from a uniform distribution.

    | <img src="assets/NumberRangeUniform.png" alt="LTNumberRangeUniform" width="50%"> | |------------| | Inputs | | - min: Minimum value | | - max: Maximum value | | - seed: Random seed - randomize it to get different values for each image | | Outputs | | - float: Generated number as float | | - int: Generated number as int |

    LTNumberRangeGaussian

    Generates random values from a Gaussian distribution.

    | <img src="assets/NumberRangeGaussian.png" alt="LTRandomRangeGaussian" width="50%"> | |------------| | Inputs | | - mean: Mean of the normal distribution | | - std: Standard deviation of the normal distribution | | - seed: Random seed - randomize it to get different values for each image | | Outputs | | - float: Generated number as float | | - int: Generated number as int |

    Example:

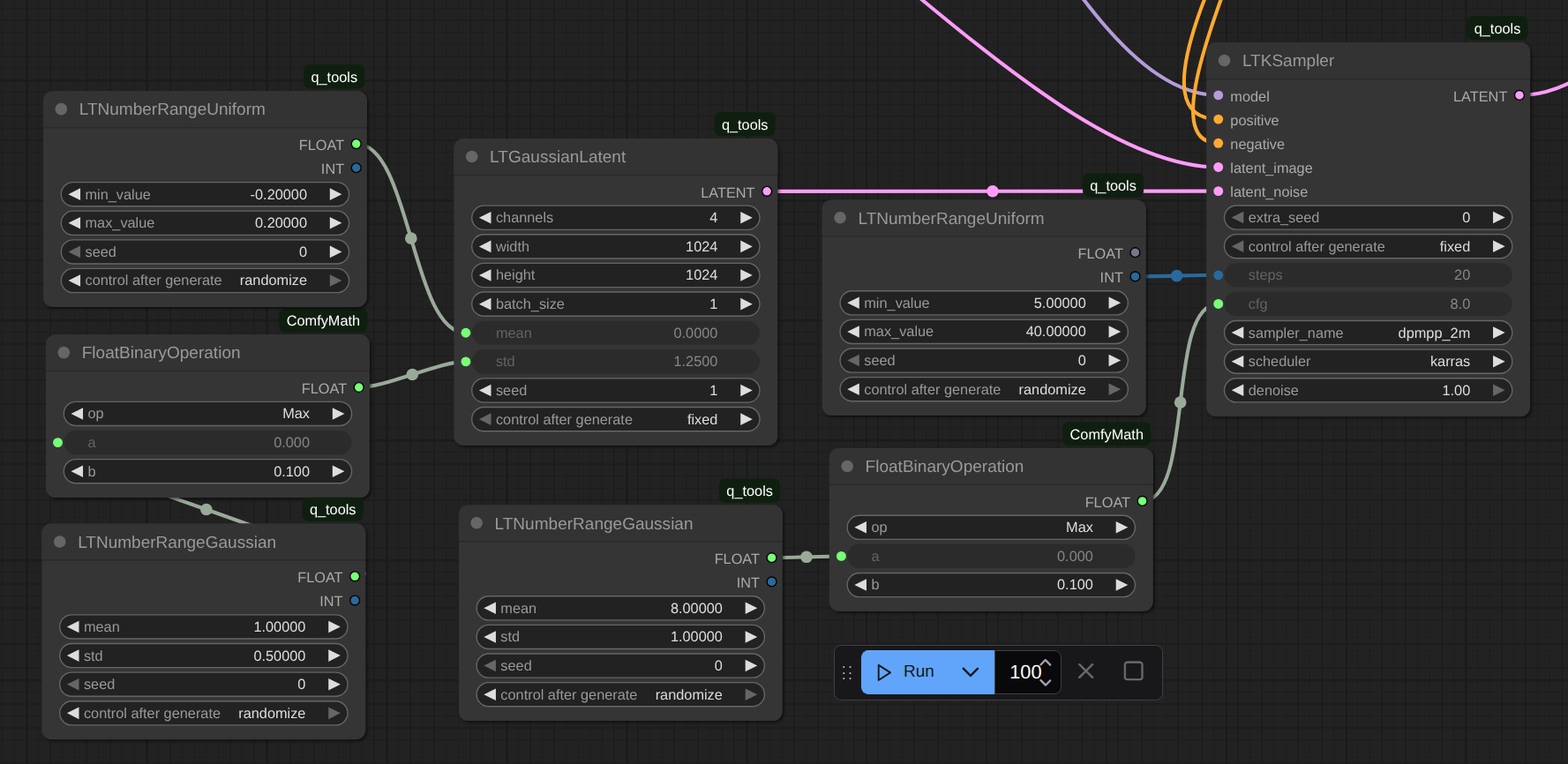

    Let's randomize a bumch of parameters for batch generation:

    • For the Gaussian Noise that is used as input:
      • the mean value will be itself a random uniform value between -0.2 and 0.2.
      • The standard deviation will be itself a random value with mean 1 and std 0.5, clipped to 0.1 at the low end (using a ComfyMath node).
    • The number of diffusion steps is random uniform value betwee 5 and 40.
    • The cfg is random gussian with mean 8 and std 1, clipped to 0.1 at the low end (using a ComfyMath node).

    Using this setup, generate 100 images with different parameters.

    | | | |---|---| | alt text | <img src="assets/random_params.gif" alt="random_params" width="100%"> |

    LTFloat_Steps_0001

    LTFloat_Steps_0001

    LTFloat_Steps_0002

    LTFloat_Steps_0005

    LTFloat_Steps_001

    LTFloat_Steps_002

    LTFloat_Steps_005

    LTFloat_Steps_01

    LTFloat_Steps_02

    LTFloat_Steps_05

    LTFloat_Steps_1

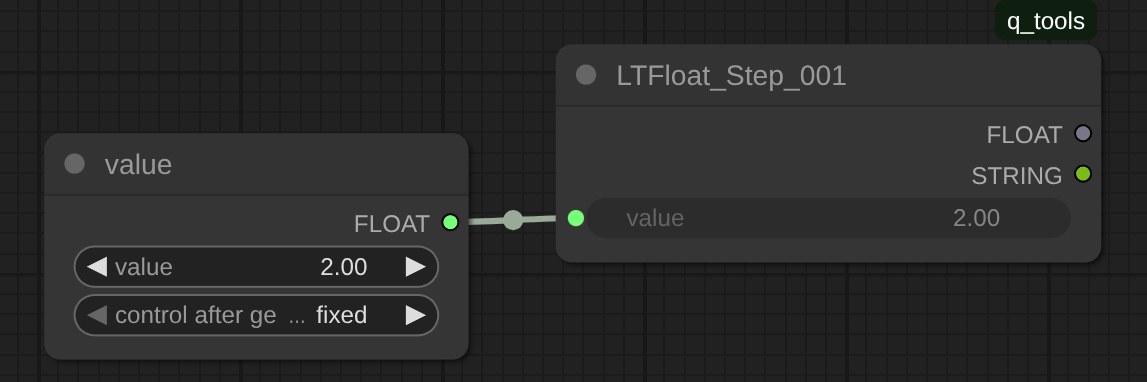

    These nodes are used to increment/decrement a float value by a fixed amount when scheduling multiple images.

    | Float Steps | |------------| | Inputs | | - value: float | | Outputs | | - float: float | | - string: string |

    Example:

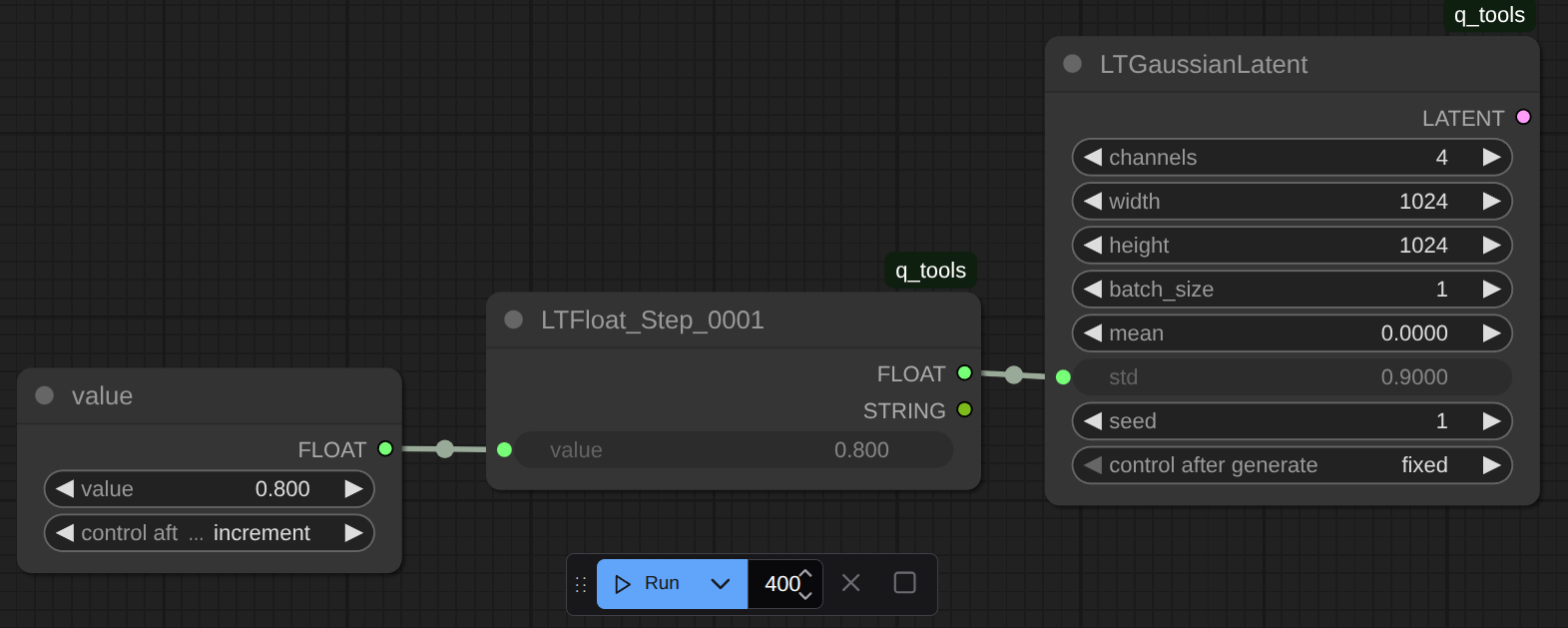

    Generate images with fixed seed Gaussian noise, starting with σ etween 0.8 and 1.2 with 0.001 step increments:

    alt text

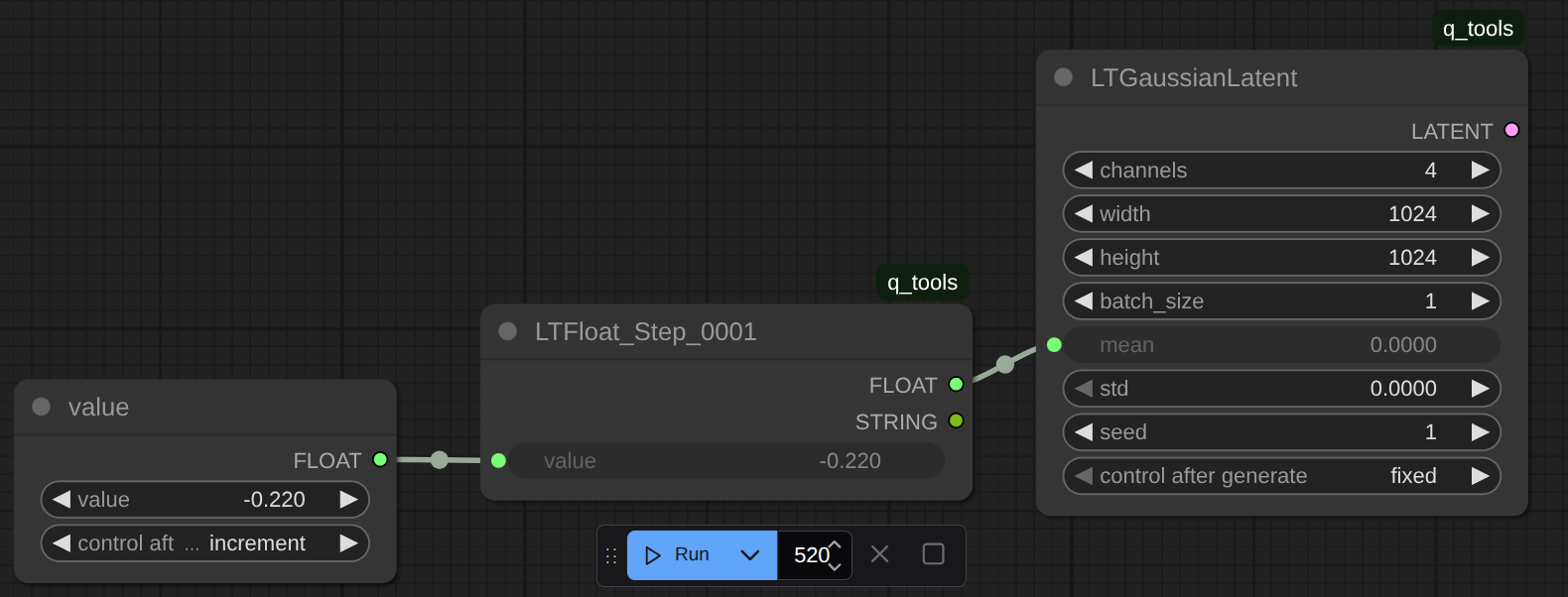

    Generate images with fixed seed Gaussian noise, starting with μ between -0.22 and 0.3 with 0.001 step increments:

    alt text

    Result: | Sweeping Standard Deviation (σ) | Sweeping Mean (μ) | |---|---| | std sweep | mean sweep |
