H3 Continuum

ComfyUI-H3-Continuum 3.8.0

Download workflow: JSON | ZIP — Latest release

<img width="1536" height="1024" alt="exec-55ad0463-8655-409c-b9a6-49d1315cdd78" src="https://github.com/user-attachments/assets/063bb16b-5c25-44f8-9304-031995502b26" />

H3 Continuum is a Production Sampler for generating, reviewing, partially regenerating, and resuming long-form MiniMax H3 video without restarting the entire work. V3.8 has two product layers: Main / Production and Advanced.

Install or update first

For a new Git installation:

cd ComfyUI/custom_nodes
git clone https://github.com/ukr8b3g-cmyk/ComfyUI-H3-Continuum.git

For an existing Git checkout:

cd ComfyUI/custom_nodes/ComfyUI-H3-Continuum
git pull --ff-only origin main

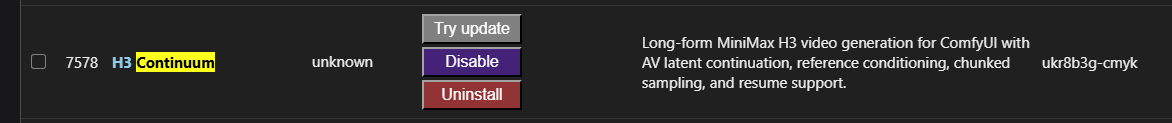

Restart ComfyUI after cloning or pulling. If ComfyUI Manager installed the node, use its Update action instead of mixing Manager updates with a second Git checkout.

Download the current V3.8 workflow: JSON or ZIP containing the same JSON. This is one Spectrum-default graph, also usable with LightX2V Turbo. Install its external Spectrum, rgthree, KJNodes, and ComfyUI-Easy-Use nodes before opening it; switching Spectrum off does not remove those node dependencies. See Spectrum and Turbo setup below.

You can ask an AI to read this manual

This README is intentionally detailed. You do not have to memorize it. Give its GitHub URL to a web-enabled AI and describe what you want to make, your GPU/VRAM, whether you have a First Image or audio, and whether you want to review every chunk. Ask it to answer with the exact V3.8 labels used below.

Example request:

Read the current ComfyUI-H3-Continuum V3.8 README. I have a 16 GB GPU and want
to create a 30-second I2VA video, reviewing every chunk. Tell me exactly which
Continuum inputs and controls to use, what must stay fixed between Queue runs,
and what output length I should expect after each action. Do not use older V3.7 UI.

• ChatGPT Free currently includes web search and file uploads, subject to separate limits. If a repository URL is not read correctly, paste this README or upload it as a file.
• Gemini on desktop has an explicit Add file → More Uploads → Import code path for one GitHub repository, up to 5,000 files and 100 MB. Pasting a GitHub URL into an ordinary prompt is not the same as importing the repository.
• Grok Free currently includes limited real-time web search and connectors. A GitHub-specific full-repository importer is not guaranteed, so paste/upload this README if the URL alone is not enough.

Plans, limits, and web-access behavior can change. Do not send private workflows, local paths, tokens, or credentials to a public AI service. The README and the UI remain the source of truth; an AI summary can still be wrong.

V3.8 supported surface

V3.8 exports exactly seven searchable nodes:

• H3 Continuum Sampler V3.8 — the Main sampler
• H3 Continuum Finalize — decoded Video/Audio assembly with optional seam handling
• H3 Continuum Load Image
• H3 Continuum Load Audio
• H3 Continuum Load Video
• H3 Continuum Second Pass — the Advanced bridge for external latent processing or upscaling
• H3 Continuum Reference Audios — an ordered Reference Audio 1/2/3 bundle helper

The current frontend uses Show Advanced Settings / Hide Advanced Settings to change presentation without changing generation values. Saved drafts that still contain the former frontend-only H3 Continuum View property are migrated to the matching collapsed/expanded view and the legacy property is removed. If the frontend extension is unavailable, the complete Python-defined interface remains visible and executable.

The supported flow is:

H3 Continuum Sampler V3.8
  -> Core Video/Audio Decode
  -> H3 Continuum Finalize
  -> Create Video
  -> Save Video

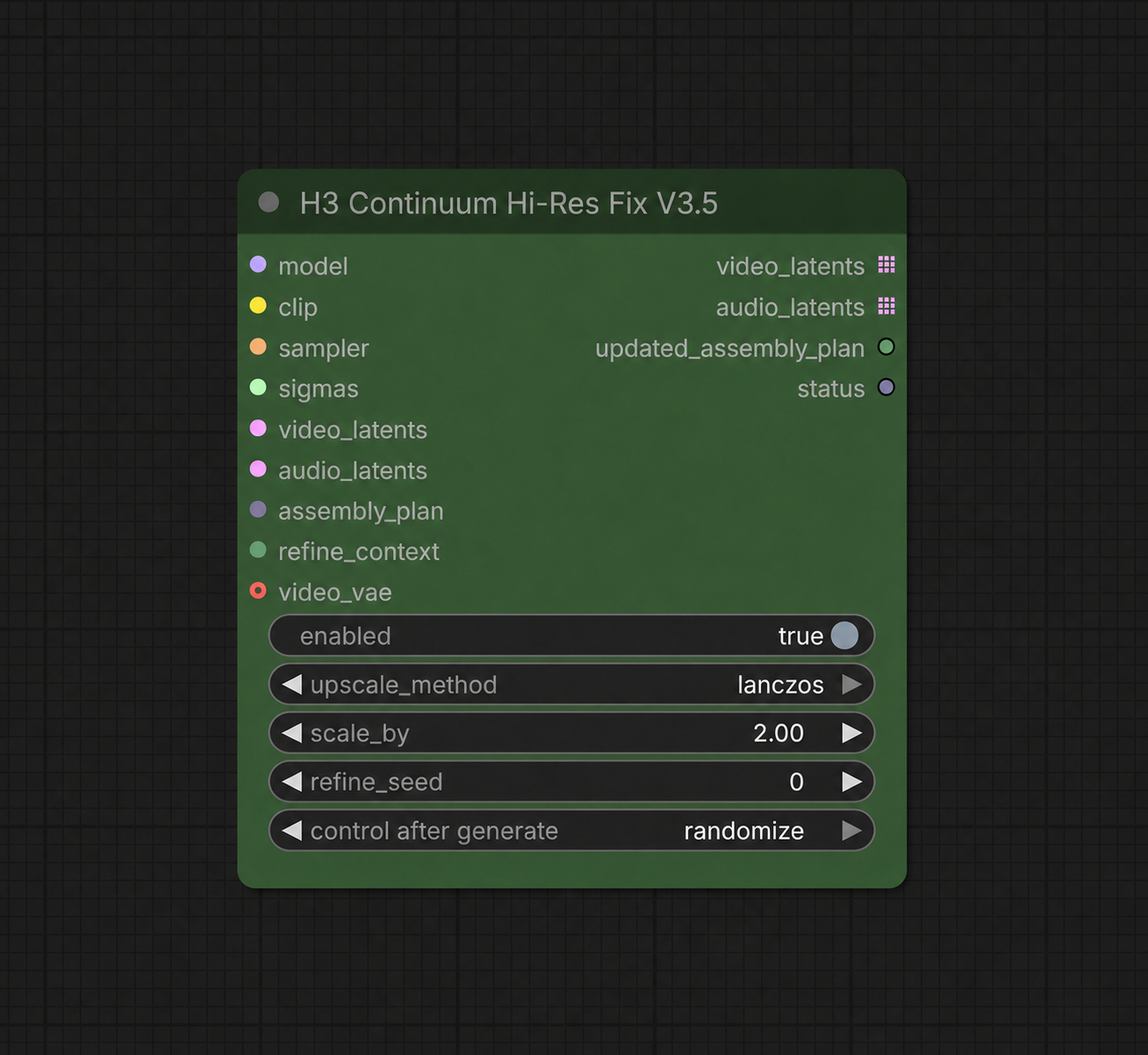

Core Decode, Save, and upscaling remain external. Hi-Res Fix is not part of the V3.8 standard workflow; use Second Pass as the bridge when an external latent processor or upscaler is needed. External processors may change only Video LATENT spatial geometry while preserving physical groups, B/C/T, finite values, first-pass Audio, and the original Assembly Plan. Finalize accepts public IMAGE/AUDIO outputs and does not require a specific decoder class. SageAttention, Sol-Attn, and Spectrum remain external MODEL wrappers. See the V3.8 Open Integration Contract.

Complete V3.8 UI reference

This section covers every user-facing control and socket on the seven public V3.8 nodes. Names such as Power Lora Loader (rgthree), Spectrum, SageAttention, Core VAE Decode, and Core Save Video belong to ComfyUI or another extension. They may be used in a supplied workflow, but they are not Continuum controls.

H3 Continuum Sampler V3.8: required graph inputs

| Input | What it does | Normal use | |---|---|---| | model | MiniMax H3 diffusion model, including any upstream MODEL wrappers or selected LoRA | Required | | clip | MiniMax H3 text encoder | Required | | video_vae | Encodes connected image conditioning; Continuum does not use it for final decoding | Required by the node; unused by pure T2VA | | sampler | ComfyUI sampling algorithm | Required | | sigmas | Noise schedule and effective step count | Required | | Sequence Prompt | Complete text, list, timeline, or JSON sequence prompt | Required |

The Sampler returns six outputs: a list of video_latents, a list of audio_latents, one assembly_plan, a text status, the selected driving_audio when used, and a refine_context for the Advanced Second Pass. Raw latent lists normally go through Core Video/Audio Decode before Finalize.

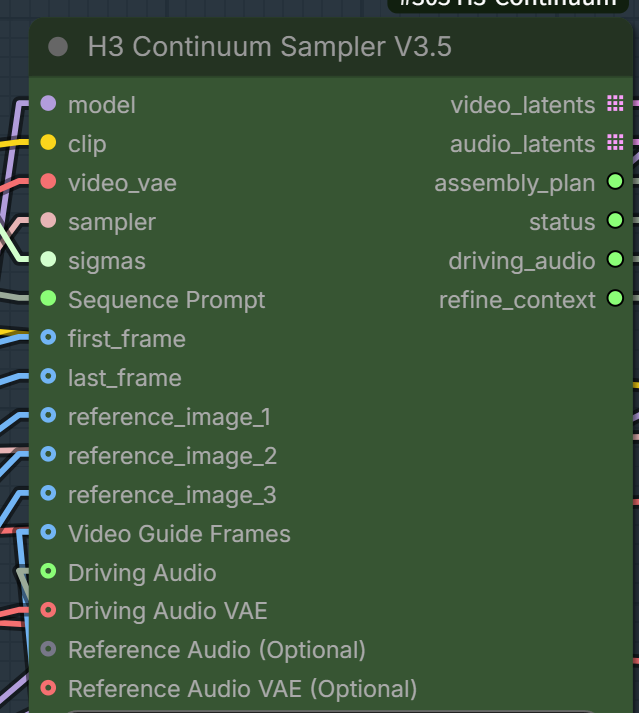

H3 Continuum Sampler V3.8: optional media inputs

| Input | Role | Important distinction | |---|---|---| | first_frame | First Image for I2VA or FL2VA | Can also supply the output aspect ratio when Size Source = First Image | | last_frame | Optional final-image constraint for FL2VA | Can trigger a Long Terminal Merge; the final pair may become one atomic review unit | | reference_image_1–reference_image_3 | Ordered appearance, identity, subject, or scene references | They never become the implicit size source | | Video Guide Frames | A video loader's IMAGE frame batch, applied as a persistent guide | It does not carry the source video's audio; frames are interpreted at 24 fps | | Driving Audio + Driving Audio VAE | Original audio timeline used as native guide conditioning | The selected source audio becomes final audio; generated audio and Audio Seam are bypassed | | Reference Audio (Optional) + Reference Audio VAE (Optional) | Legacy single conditioning-only audio reference | Generated audio remains final audio | | Audio References (Optional) | Ordered bundle from H3 Continuum Reference Audios | Do not connect this together with the legacy single Reference Audio path | | Still Image Guide (Optional) | Compatibility socket inherited from the V3.7 guide contract | Experimental; not part of the seven-node V3.8 standard workflow |

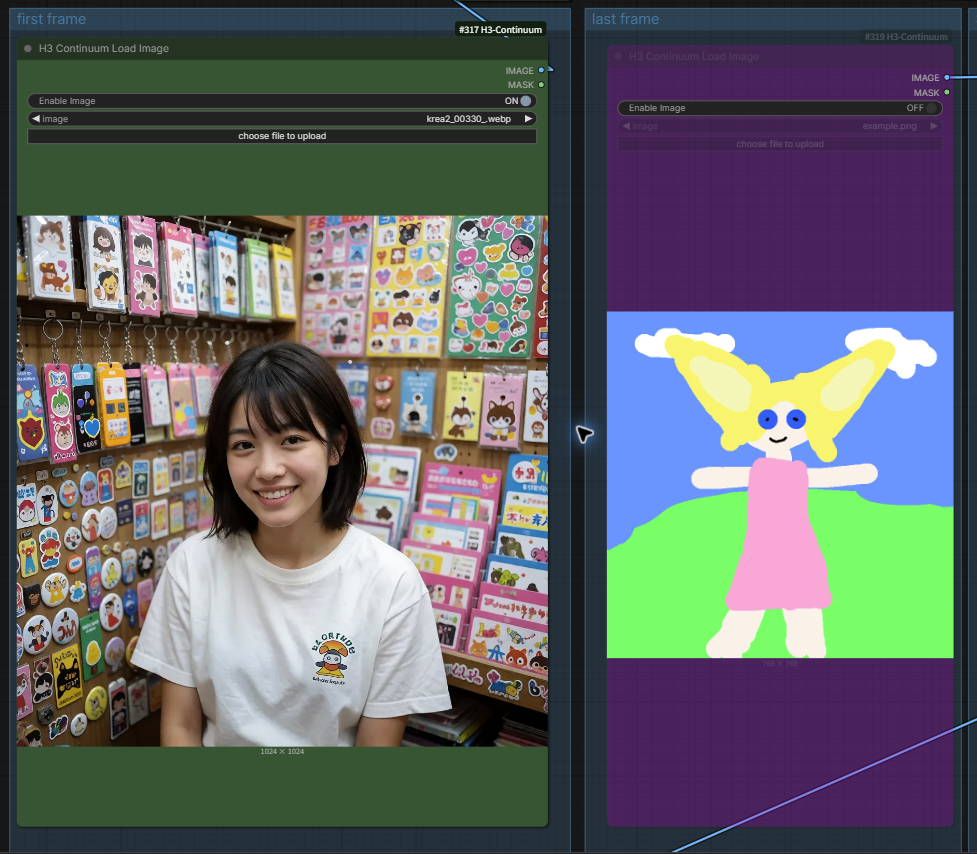

First Image, Last Image, and Reference Images

• First Image establishes the opening image and is the normal visual starting point for I2VA/FL2VA. It is also the only media input that can drive Size Source = First Image.
• Last Image constrains the sequence ending. Leave it OFF for T2VA and ordinary I2VA. With a connected Last Image, extending or regenerating the sequence may rebuild the terminal pair.

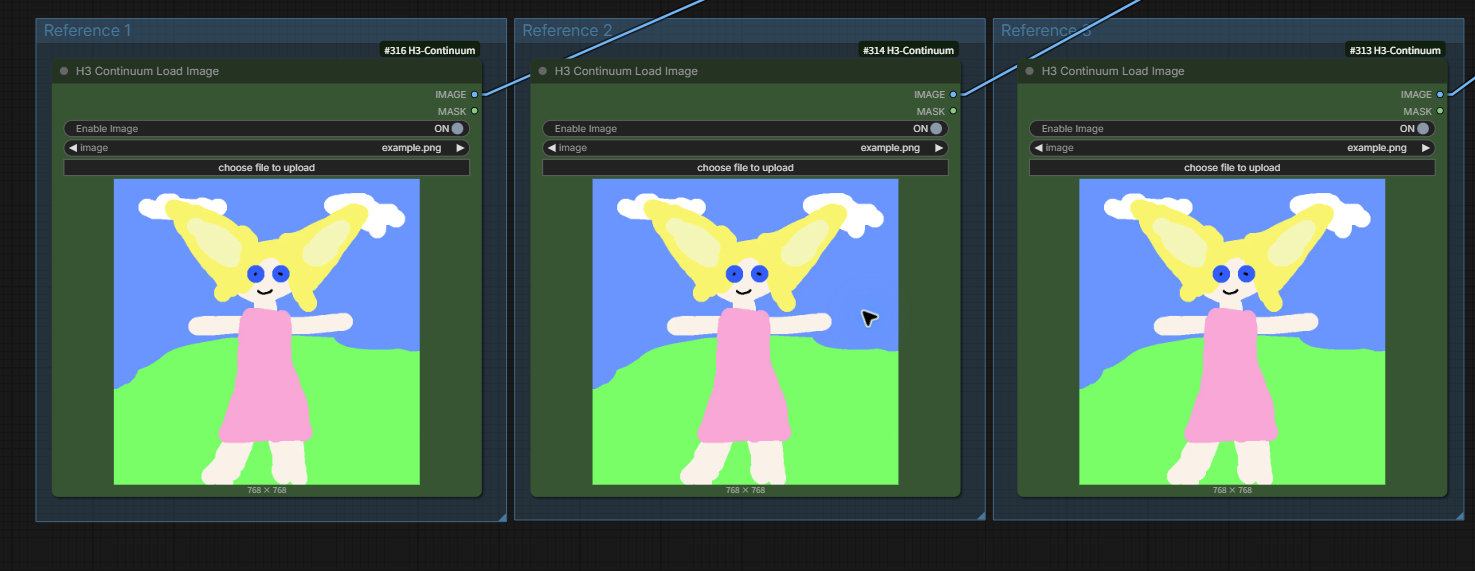

• Reference Images 1–3 guide identity or appearance throughout generation. Their prompt order follows their connected order; they do not replace First Image or Last Image.

Every H3 Continuum Load Image has Enable Image. ON loads through ComfyUI Core. OFF uses native node bypass and makes that optional path behave as unconnected without deleting the node or cable. This is why one reusable workflow can expose First, Last, and three Reference Image slots without forcing every slot to be active.

| Public loader | Controls | Outputs | |---|---|---| | H3 Continuum Load Image | Enable Image, image file | IMAGE, MASK | | H3 Continuum Load Audio | Enable Audio, audio file | AUDIO | | H3 Continuum Load Video | Enable Video, Video file, Force Rate | images, audio |

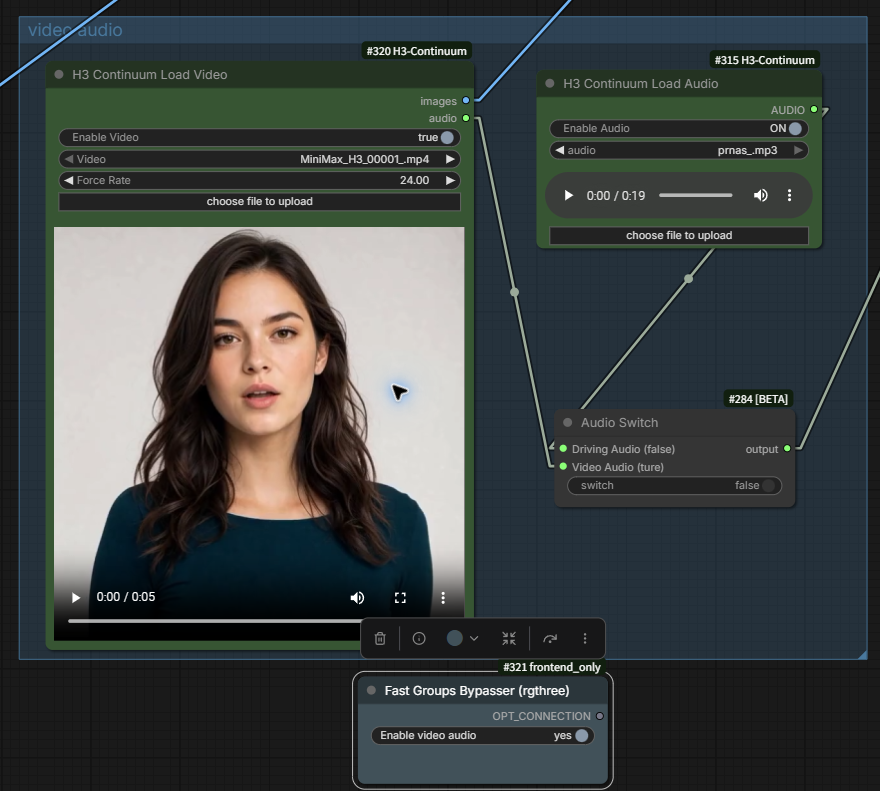

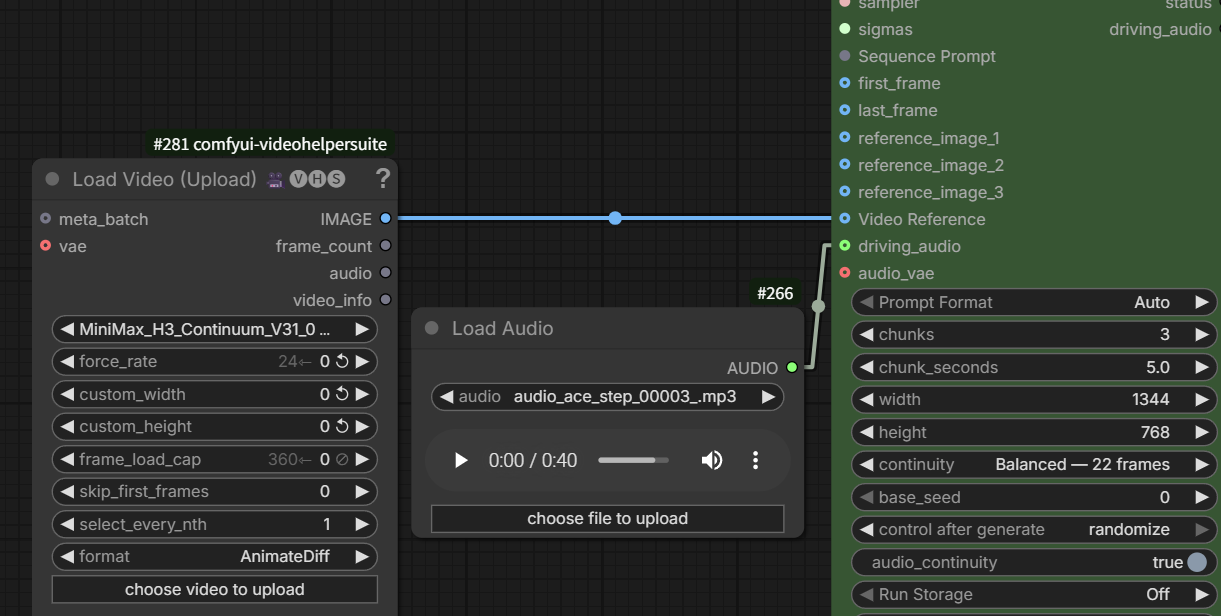

Video, audio, and their bypass switches

• H3 Continuum Load Video: Enable Video, Video, and Force Rate. Force Rate = 0 uses source FPS; a positive value drops/duplicates frames to that rate while preserving nominal duration and audio. Connect images to Video Guide Frames when visual video guidance is wanted. Connect audio to Driving Audio only when the source audio should guide and become the final output.
• H3 Continuum Load Audio: Enable Audio and the audio file. Use it for Driving Audio or Reference Audio according to the socket you connect.
• The node titled Audio Switch in the example image is ComfyUI Core's If/Else Switch (ComfySwitchNode); Fast Groups Bypasser (rgthree) belongs to the rgthree extension. Neither is a Continuum node or a requirement of Continuum. The Continuum loaders already provide their own native ON/OFF controls.

Audio Continuity is different from both audio inputs: it passes the previously generated audio context into the next generated chunk. It does not import a source track. Driving Audio replaces final generated audio; Reference Audio only conditions generation.

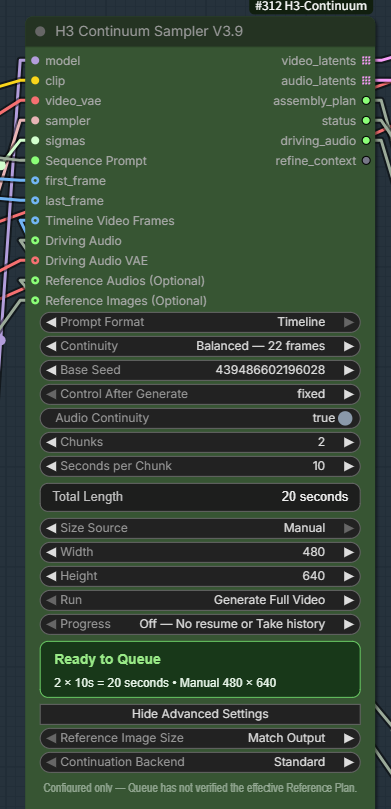

Main Sampler controls

| Displayed control | Meaning | Recommended starting point | |---|---|---| | Prompt Format | Auto, Fixed, List, or Timeline interpretation of Sequence Prompt | Auto unless you need to force one parser | | Continuity | Prior Video context retained at each chunk boundary | Balanced — 22 frames for Standard audiovisual continuation | | Base Seed | Base for deterministic per-chunk seed derivation | Keep the value unchanged when continuing, comparing, or selecting Takes | | Control After Generate | What ComfyUI does to Base Seed after a Queue | fixed for Review Each Chunk, resume, and controlled comparisons | | Audio Continuity | Carries generated-audio context across boundaries | true for normal audiovisual generation | | Chunks | Planned total chunk count, from 1 to 16 | Enter the final total, not the number to add next | | Seconds per Chunk | Duration shared by every chunk | 5–15 seconds is the validated range; see duration notes below | | Total Length | Read-only Chunks × Seconds per Chunk | Check only; it never edits either input | | Size Source | First Image or Manual output geometry | First Image for I2VA/FL2VA; Manual for T2VA or exact dimensions | | Resolution | First-Image sizing preset | Draft — 0.30 MP for tests, Balanced — 0.60 MP for more detail, or Native 768 for the H3-native short edge | | Custom MP | Custom First-Image pixel budget | Visible only when Resolution = Custom | | Width / Height | Exact output canvas in 32-pixel steps | Visible/editable only in Manual mode; 32–16384 is accepted | | Run | Generate Full Video or Review Each Chunk | Use Review when you want a human decision after each physical group | | Progress | Saved raw chunks, safe resume, and Take history | Review turns it On automatically; enable it for resume/regeneration | | Ready to Queue | Plain-language summary of the next Queue | Read it before pressing ComfyUI's top-right blue Run button | | Show Advanced Settings / Hide Advanced Settings | Shows or hides technical controls | Visibility only; it does not change their values |

Continuity = Balanced — 22 frames with Continuation Backend = Standard and Audio Continuity = true uses the current Masked AV route. Fast — 5 frames, Strong — 39 frames (Experimental), and Auto — conservative safely resolve to the older Reference Context route while generated-audio continuity is on. With Audio Continuity off, Standard uses the Video-only masked route.

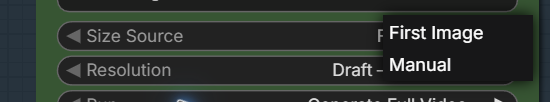

Choose First Image sizing or Manual sizing

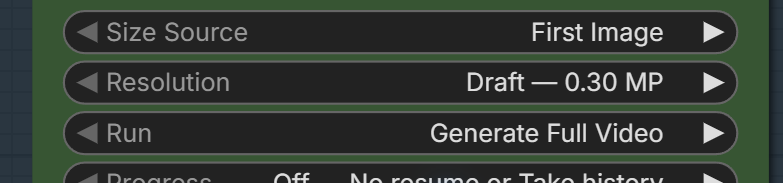

Size Source = First Image preserves the connected First Image aspect ratio. Resolution then chooses its pixel area:

| Preset | Target | |---|---| | Draft — 0.30 MP | Fastest and lowest-memory First Image starting point | | Balanced — 0.60 MP | More detail with greater memory and processing cost | | Native 768 | 768 px short-edge target with a 1344 px long-edge cap | | Custom | Custom MP selected by the user; separate from the Native 768 cap |

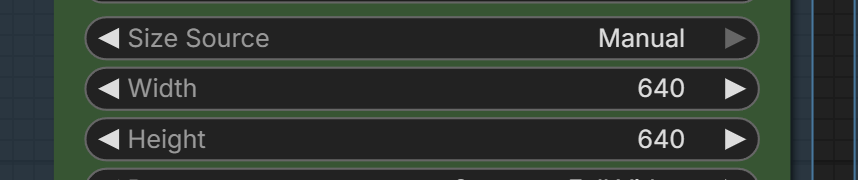

Size Source = Manual ignores the preset and uses exact Width/Height values. Both must be multiples of 32. Manual is the normal choice for T2VA and also supports a 32×32 diagnostic canvas when only generated audio is being checked.

If First Image mode is selected but no usable First Image reaches the Sampler, V3.8 uses the stored Manual Width/Height as a safe fallback and reports the dimensions in status. Select Size Source = Manual to inspect or edit those values; Width/Height are hidden in the First Image facade. Reference Images and Video Guide never become implicit size sources. The historical Auto / Landscape / Portrait / Square values are migration/API compatibility values, not current Main choices.

Size selection is built into the V3.8 Sampler. A separate megapixel, empty-latent, or image-size node is not required for the normal Continuum workflow.

Choose a chunk duration

• 5 seconds is a valid H3 duration and the fastest practical choice for workflow checks, Review UI checks, and quick Takes.
• 8–10 seconds usually reduces the number of handoffs while keeping each Queue easier to review and rerun.
• 15 seconds is the upstream MiniMax H3 native maximum per generation and minimizes the number of boundaries, but it increases per-chunk time and memory. Longer is not automatically higher quality.
• Continuum accepts 4–30 seconds for compatibility and experimentation. Values above 15 seconds are not the same as an upstream native-duration recommendation and can be expensive at high resolution.

For an audio-only listening diagnostic, use T2VA, Size Source = Manual, and a very small canvas such as 32×32, then play the saved video and ignore its picture. This is useful for hearing music or boundary continuity; it is not evidence of normal-resolution video quality.

Advanced Sampler controls

| Control | When it appears | Meaning | |---|---|---| | Continuation Backend | Advanced open | Standard is the V3.8 path; Compatibility restores the older Reference Context route for comparison | | Regenerate From | Advanced open and Progress On | Auto resumes the longest compatible prefix; Chunk N reuses earlier chunks and rebuilds N through the target | | Variation Nonce | Explicit Regenerate From = Chunk N | 0: automatic variation selection with interrupted-run resume; 1 or higher: a fixed variation value. Base Seed and the other generation settings stay unchanged | | Run Name (Optional Override) | Advanced open and Progress On | Stable name for resume and Render History; blank uses the Sampler's automatic identity | | Reference Image Size | Advanced open and a Reference Image connected | Match Output is practical; Max Identity preserves more reference detail and may use more memory | | Video Guide Size | Advanced open and Video Guide connected | Efficient — 0.4 MP, Balanced — 0.6 MP, or Match Output |

Frontend-managed IDs, selected Take IDs, one-shot review actions, diagnostics, preview, and legacy compatibility values are deliberately not editable as ordinary node widgets. The corresponding settings or action buttons below are the supported interface.

Review-state controls

When Run = Review Each Chunk, Progress is On, and a review unit is ready, the settings view changes to this action view:

| Button | What the next top-right ComfyUI Run does | |---|---| | Use it and continue | Accepts the current result, reuses it, and generates one next physical group | | Try this chunk again | Keeps the earlier accepted prefix and creates another Take of the current review unit | | Use it and finish the rest | Accepts the current result and generates every remaining group without further review pauses | | Back to Settings | Shows the normal settings; does not queue, reset, or discard the review | | Return to Review | Returns from settings to the pending review; does not undo edited values | | Render History — N Takes | Opens or closes stored Take browsing; N is Take count, not chunk count | | Previous Take / Next Take | Changes the selected stored Take only | | Use This Take | Makes the selected Take canonical on the next Queue; no new sampling is required | | Continue From Here | Branches from the selected Take and generates the next review unit |

The action button selects intent and gains a ✓; it does not start generation. Press ComfyUI's top-right blue Run button afterward. Full step-by-step examples begin in Review, continue, and revise a chunked video.

H3 Continuum Reference Audios

H3 Continuum Reference Audios bundles up to three standalone audio references behind one Audio References (Optional) Sampler socket. Connect the references without gaps and use <Audio 1>, <Audio 2>, and <Audio 3> in the same order in the prompt. One shared Core Audio VAE encodes each reference independently. This path never replaces generated final audio and does not change the separate Driving Audio contract. Existing workflows may keep using the legacy single Reference Audio (Optional) socket; do not connect the legacy and bundled paths together.

Its complete interface is Reference Audio 1 (Optional), Reference Audio 2 (Optional), Reference Audio 3 (Optional), one shared Reference Audio VAE, and the audio_references output. Leave no gap in the connected order: do not connect Audio 1 and Audio 3 while leaving Audio 2 empty.

The small arrow/triangle seen beside audio_references is ComfyUI's connection direction/cable rendering, not an additional option. Place this helper to the left of the Sampler or use a reroute node if the cable crosses the node body.

H3 Continuum Finalize

Finalize is normally left wired in the workflow rather than operated repeatedly. It assembles the decoded physical groups into the exact requested timeline. Required inputs are decoded images, decoded audio, and the Sampler's assembly_plan; optional driving_audio preserves the selected source track.

| Control | Meaning | Normal choice | |---|---|---| | Audio Seam | Auto corrects decoded audio boundaries only; Off leaves them unchanged | Auto unless diagnosing audio | | Video Seam | Auto, experimental Auto 2, Analyze Only, or Off | Keep the supplied workflow value; use Analyze Only when measuring without altering frames | | Buffer Backend | Auto, RAM, or Disk-backed storage for the assembled IMAGE buffer | Auto |

Exact Total Duration is managed as On and Report Detail is controlled from ComfyUI Settings. Driving Audio bypasses generated audio and Audio Seam, but Video Seam can still apply. Finalize outputs final images, final audio, and a text report for the downstream Save Video node.

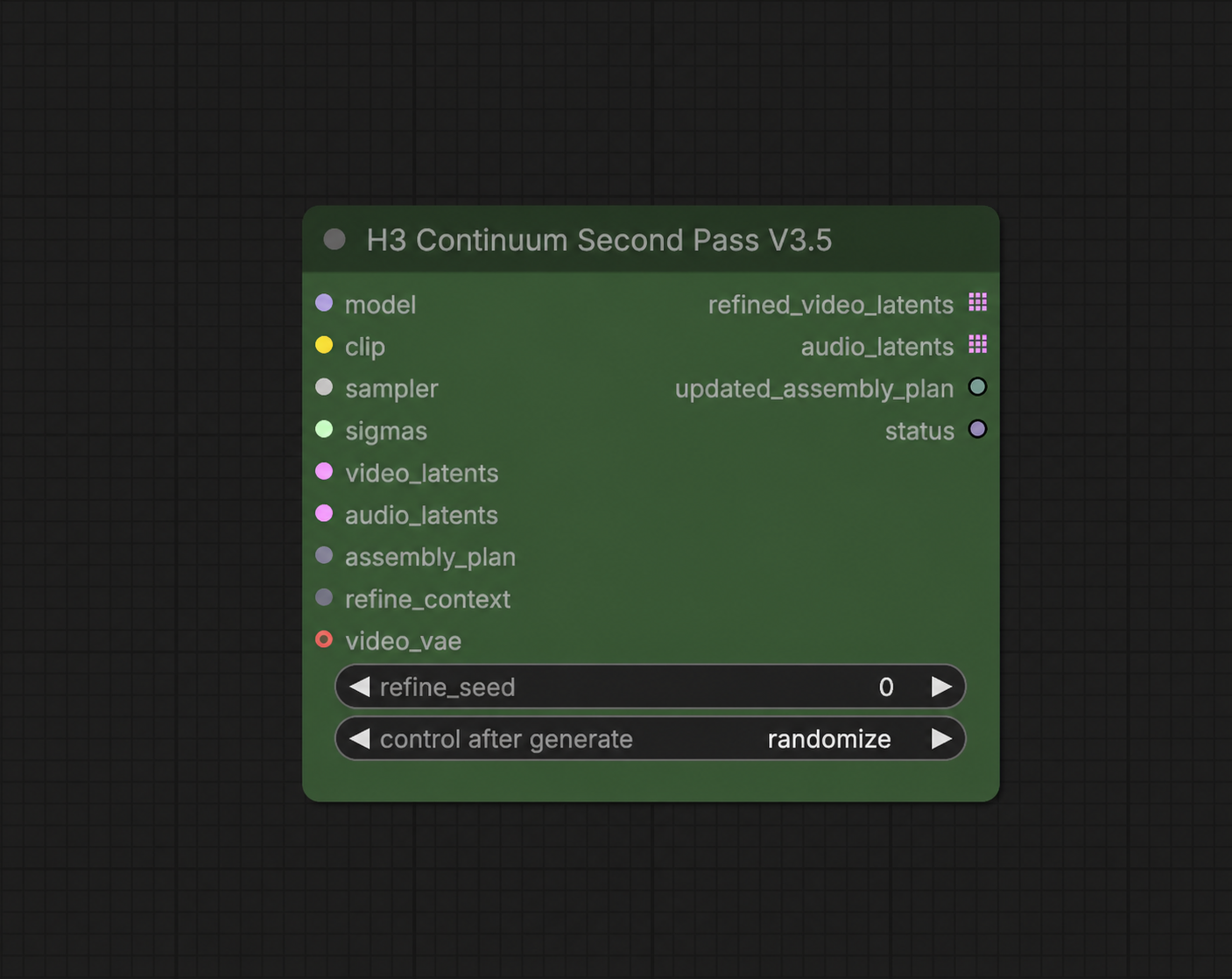

H3 Continuum Second Pass

Second Pass is the Advanced bridge after the complete first pass. It takes model, clip, sampler, low-denoise sigmas, externally processed video_latents, the matching first-pass audio_latents, the original assembly_plan, and a separate refine_seed. Optional refine_context restores the physical group's First/Last/Reference conditioning; optional video_vae is used only when that context requires image re-encoding.

Its outputs are refined_video_latents, bit-exact first-pass audio_latents, an updated_assembly_plan, and status. Complete Review first: Second Pass is not supported on a partial Review sequence. It is not an automatic Hi-Res button and does not include an upscaler.

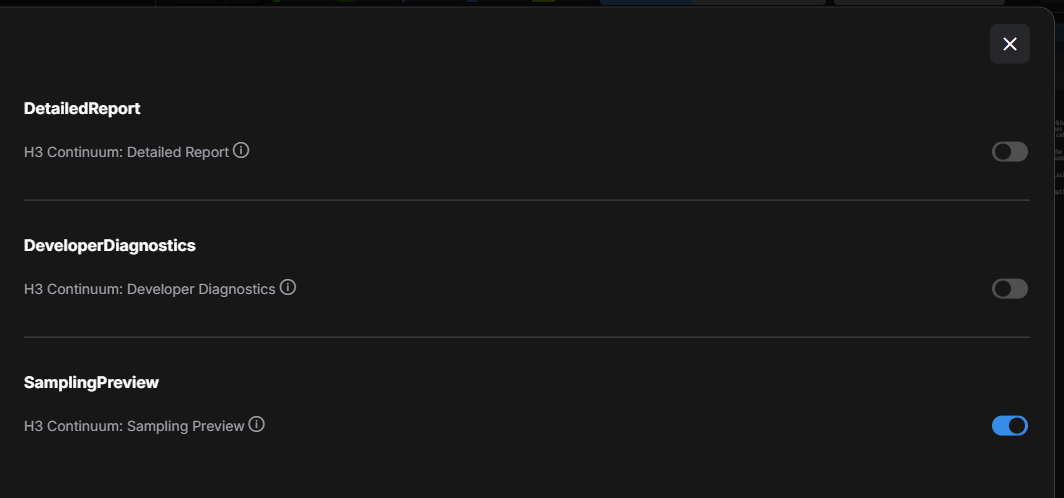

ComfyUI Settings added by Continuum

| Setting | Default | Effect | |---|---:|---| | H3 Continuum: Sampling Preview | On | Shows live sampling previews; Off only reduces preview overhead | | H3 Continuum: Developer Diagnostics | Off | Enables developer-only logging/assertions; leave Off for normal use | | H3 Continuum: Detailed Report | Off | Adds read-only detail to Sampler status and Finalize report; generated tensors are unchanged |

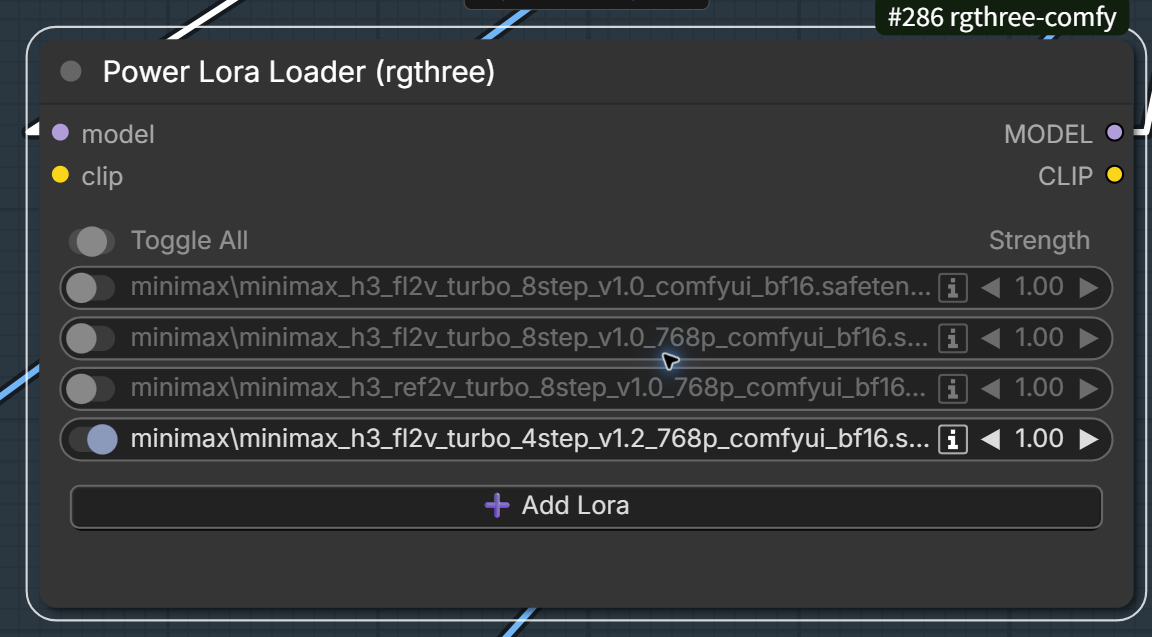

Turbo LoRA and Spectrum in supplied workflows

The four MiniMax H3 Turbo files shown in the example come from the LightX2V MiniMax-H3-Turbo project: GitHub and Hugging Face files. FL2VA files are for T2VA/I2VA/first-last workflows; Ref2VA is for Reference-to-Video. _768p identifies the training-resolution family. Select one LoRA matching the task—do not enable all four together merely because they are listed.

| File shown | Intended path | Distilled target recorded by the file/repository | |---|---|---| | minimax_h3_fl2v_turbo_8step_v1.0_comfyui_bf16.safetensors | FL2VA / T2VA, 544p family | 8-step; the upstream table also lists 4-step inference as an option for this checkpoint | | minimax_h3_fl2v_turbo_8step_v1.0_768p_comfyui_bf16.safetensors | FL2VA / T2VA, 768p family | 8-step | | minimax_h3_ref2v_turbo_8step_v1.0_768p_comfyui_bf16.safetensors | Ref2VA, 768p family | 8-step | | minimax_h3_fl2v_turbo_4step_v1.2_768p_comfyui_bf16.safetensors | FL2VA / T2VA, 768p family | 4-step |

The number in a Turbo filename is its distilled NFE target. Use the matching upstream recommendation unless a provided workflow explicitly documents a tested exception. In particular, using a 4-step LoRA with Steps = 6 is a workflow-specific experiment, not the LightX2V default. Euler/simple, the actual Steps value, and the selected LoRA must be recorded together when comparing results.

Power Lora Loader (rgthree), KJNodes SageAttention, ComfyUI-Easy-Use, and Spectrum are external components. Continuum does not install, enable, or tune them. The V3.8 workflow is the single supplied graph, distributed unchanged as JSON and ZIP. Its saved default is Spectrum enabled, no Turbo LoRA enabled, res_multistep, simple, and Steps = 20. All four custom-node packages are required to open the complete graph, including when switching it to Turbo.

The supplied prompt, media selections, and node titles have deliberately been preserved. Choose files available on your computer, disable unused optional inputs, and enter your own prompt before generating. Models, LoRAs, images, and audio are not included. A custom title such as Save 3x5s Video is only a saved label: actual duration follows the Sampler's Chunks and Seconds per Chunk, not that title.

The same graph can be used as the quick Turbo path: disable Spectrum, enable exactly one task-matched LightX2V Turbo LoRA, then select the sampler and Steps intended for that LoRA or for a separately documented tested variation. The supplied graph lists the FL2VA Turbo 4-step v1.2 768p file but leaves it disabled in the Spectrum default. The previously tested Euler / simple / Steps = 6 setup with that 4-step LoRA is a workflow-specific variation, not the LightX2V upstream default. Do not enable Spectrum and a Turbo LoRA together merely because both controls are present.

Known long-continuation limitation: Issue #13

Issue #13 remains open. Repeated continuation can increase contrast, edge energy, or apparent sharpness on some prompts and trajectories. V3.8 Standard has no active production mitigation for this issue; it preserves the accepted Masked AV behavior.

An experimental prefix-amplitude renormalization produced a strong improvement in one 6 × 5 s run, but a later frozen 4 × 8 s A/B/C gate did not reproduce the target drift and therefore applied gains of 1.0; Standard and the experimental arm were bit-exact. The older Compatibility route did not justify replacing Standard and raised a separate boundary-audio concern. The accurate release statement is therefore: the issue is not proven fixed, the current Standard path is unchanged, and experimental mitigation stays Default Off. Report the first and worst affected chunk, workflow JSON, prompt, seed, model/LoRA, Steps/SIGMAS, size, Continuity, and Audio Continuity when reproducing it.

V3.8 support boundary: V3.8 exports only the seven public nodes listed above. Some retain earlier IDs, including Finalize (H3ContinuumAssembleSeamV35) and Second Pass (H3ContinuumSecondPassV35); this does not make all older workflows compatible. A saved workflow that uses an ID outside the current seven-node surface can load as an unknown node. Use the matching historical GitHub Release/tag for that workflow instead of restoring its unsupported IDs in V3.8. See V3.8 Release and Migration Policy.

The accepted 16GB GPU gates reached about 15.5-15.6 GiB in the most complex cases. Actual use varies by GPU, driver, backend, model precision, resolution, and connected nodes; this is not a universal 16GB guarantee.

Review, continue, and revise a chunked video

Live UI verification: The repaired Review flow was rechecked in ComfyUI on 2026-09-07. The current walkthrough used Turbo4, actual Steps = 4, Euler/simple, Draft — 0.30 MP, and Spectrum Off. Chunk 1 reached the three-action review screen; Use it and continue then reused the accepted first chunk, generated only Chunk 2, and reached Saved sequence is complete. Try this chunk again was also live-validated after the Review repair. Timings below are measurements from that machine, not speed guarantees.

Start here when you already have a working V3.8 workflow and want to keep good chunks, retry a result, or extend a sequence. These instructions use the labels displayed on H3 Continuum Sampler V3.8. The blue Run button at the top right of ComfyUI starts execution. It is different from the Sampler's Run setting (Review Each Chunk or Generate Full Video). Continuum's review messages still say “press Queue”; on the frontend shown here, that means clicking the top-right blue Run button. Older frontends may label that button Queue.

Choose the task you need:

• Prepare the settings for continuation
• Understand the first, shorter output
• Keep the result and generate the next chunk
• Try the current chunk again
• Keep the result and finish everything remaining
• Go back to settings without losing the review
• Choose an earlier Take or branch from it
• Regenerate from a particular chunk
• Add more chunks to a completed sequence
• Understand continuation time and check reuse
• Troubleshoot a missing action or unexpected result

Before you begin: total length is not the next Queue's output length

Chunks is the total number of chunks you want, not the number to add on the next Queue. Seconds per Chunk is the duration of each chunk. Total Length is the planned final duration; it is not a progress counter.

For example, Chunks = 6 and Seconds per Chunk = 5 means a 30-second target. With Run = Review Each Chunk, the first Queue normally creates only Chunk 1: a 5-second video. Continuing produces a 10-second video, then 15 seconds, and so on, until the target is complete. Each saved output contains the completed sequence so far, not just the newest 5 seconds.

The screenshots show two chunks as a small example. The same controls apply to three, four, five, six, or another supported total.

Last Image exception: The examples below assume ordinary, separately generated chunks. When Last Image uses Long Terminal Merge, the final pair is generated and reviewed together. Continuing or retrying that pair operates on both chunks as one unit. Do not expect a separate review stop between them.

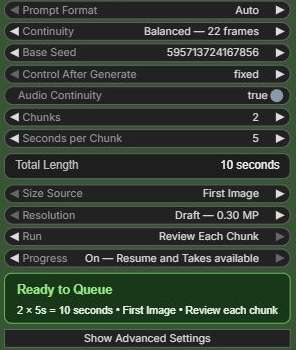

1. Prepare the settings for continuation

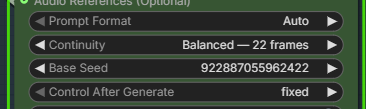

1. Find Base Seed and keep its current number. You do not need to copy the number in the screenshot.
2. Directly below it, set Control After Generate to fixed.

3. Set Chunks to your intended final total. Use 2 for the screenshot's example, or your own total such as 6.
4. Set Seconds per Chunk to the duration you want. The example uses 5.
5. Check Total Length: two chunks of 5 seconds should show 10 seconds; six should show 30 seconds.
6. Set Run to Review Each Chunk.
7. Set Progress to On — Resume and Takes available.
8. If Regenerate From is visible under Show Advanced Settings, leave it at Auto for normal continuation.
9. Check that the green Ready to Queue card describes the total and says Review each chunk.

Keep these settings while continuing: Base Seed, Control After Generate = fixed, Seconds per Chunk, and Progress = On — Resume and Takes available. Keep the same workflow, prompt, input media, model, sampler, step schedule, size, and continuation settings too. Leave Run Name (Optional Override) unchanged. Changing generation inputs can make saved chunks incompatible; keeping the seed alone does not guarantee reuse.

For ordinary continuation, do not increase Chunks after every Queue. If the goal is six chunks, leave it at 6 until those six are complete.

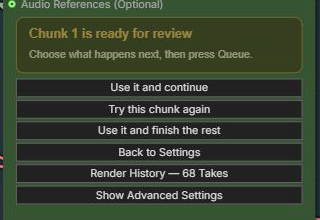

2. Generate and review the first chunk

1. Click the top-right blue Run button once.
2. Wait for the workflow, including video saving, to finish.
3. Play the resulting video. In the 5-second example, the first output is 5 seconds, even though Total Length says 10 or 30 seconds.
4. Look at the Sampler. While more chunks remain, it should show Chunk 1 is ready for review and the actions below.

The shorter output is intentional: Continuum is waiting for your decision before spending time on later chunks. If your total is only one chunk, it is already complete; there is no next chunk within that target.

Render History — 68 Takes in this screenshot is a count of stored Takes from that run's history. It does not mean the target is 68 chunks. Your count will differ.

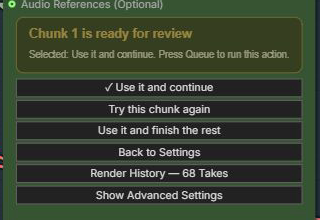

3. Keep the result and generate the next chunk

1. Click Use it and continue on the review panel.
2. Confirm the button now shows ✓ Use it and continue. The card says Selected: Use it and continue. Press Queue to run this action.

3. Click the top-right blue Run button. Clicking the review button alone does not start generation.
4. Wait for completion and play the new output. The accepted chunks are reused; the next chunk is newly generated.
5. If the target is not yet complete, review the new chunk and repeat from step 1.

Example: With Chunks = 6 and three 5-second chunks already completed, this action reuses Chunks 1–3 and generates Chunk 4. The saved video becomes 20 seconds, and you review Chunk 4 next. It does not immediately generate Chunks 5–6.

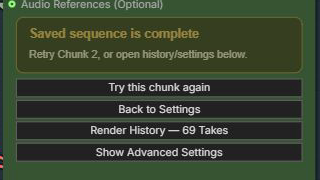

With the screenshot's Chunks = 2, continuing after Chunk 1 completes the target and produces a 10-second video. There is no third chunk unless you increase the target as described in section 9.

At completion, Try this chunk again means “make another Take of the last reviewed chunk,” here Chunk 2. It does not mean that Continuum discarded Chunk 1. Use Back to Settings to change the target or Render History to inspect stored Takes.

4. Try the current chunk again

Use this when the chunk currently being reviewed is the one you want to replace.

1. Keep Base Seed unchanged and Control After Generate = fixed. Do not switch to randomize to get another Take.
2. Click Try this chunk again on the review panel.
3. Confirm that this action has the ✓, then click the top-right blue Run button.
4. Play the new result. Continuum keeps the earlier accepted chunks and creates another Take of the reviewed chunk, with its own variation managed internally.
5. If you like it, use Use it and continue. Otherwise, repeat Try this chunk again and the top-right blue Run button, or select an older Take from Render History.

Example: While reviewing Chunk 3 of a six-chunk target, retrying reuses Chunks 1–2 and generates a new Chunk 3. The output is still 15 seconds, not 20 or 30 seconds. Chunks 4–6 have not been generated on this path yet. The older Take remains in history.

To replace an earlier chunk after moving past it, use Render History or Regenerate From, not the current-chunk retry button.

5. Keep the result and finish everything remaining

1. Play and approve the chunk currently being reviewed.
2. Leave Chunks at the final total you want.
3. Click Use it and finish the rest.
4. Confirm its ✓, then click the top-right blue Run button.
5. Wait for all remaining chunks and the final video to finish. This Queue does not pause for a review after each remaining chunk.

These three buttons are different even though all require Queue:

| While reviewing Chunk 3 of a six-chunk, 5-second-per-chunk target | Reused chunks | Newly generated chunks on the next Queue | Saved duration | |---|---|---|---| | Use it and continue | 1–3 | 4 | 20 seconds | | Try this chunk again | 1–2 | A new Take of 3 | 15 seconds | | Use it and finish the rest | 1–3 | 4–6 | 30 seconds |

For a two-chunk target after Chunk 1, Use it and continue and Use it and finish the rest produce the same remaining amount: only Chunk 2 is left. Their difference becomes clear with a larger target.

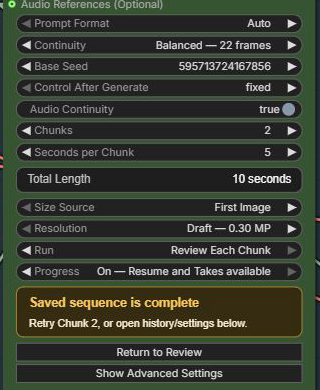

6. Go back to settings without losing the review

1. On the review panel, click Back to Settings.
2. The normal controls appear again. You can inspect Chunks, Run, Progress, and the other settings.
3. Click Show Advanced Settings only if you need controls such as Regenerate From or Run Name (Optional Override).

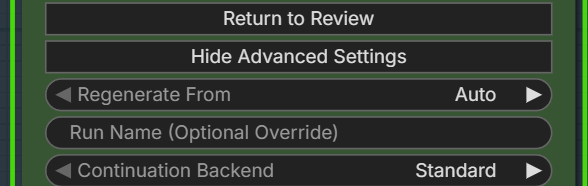

4. To go back without changing the operation, click Return to Review.

Neither navigation button queues work, deletes a Take, resets the run, nor cancels a selected action. Return to Review also does not undo settings you edited. Before the next Queue, select the action you actually want and check its ✓.

Show Advanced Settings and Hide Advanced Settings only show or hide controls; they do not turn those settings on or off. Back to Settings is not a “start over” button.

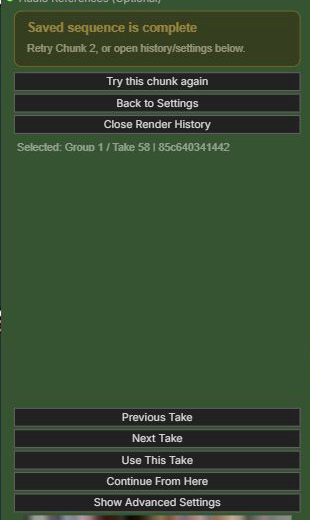

7. Choose an earlier Take or branch from it

A Take is a stored version of a generated result. A branch is an alternative continuation from a chosen result; the old history is retained.

1. On the review panel, click Render History — … Takes.
2. Use Previous Take and Next Take to choose a stored result. Read the displayed chunk and branch information; selecting an entry by itself does not replace your current sequence.

3. Choose one of the following actions, then click the top-right blue Run button:
   • Use This Take: make the selected stored result the active result. This action runs no new sampling; the output path can still decode and save the selected sequence.
   • Continue From Here: keep the sequence through the selected Take and generate the next review unit on a new continuation path.
4. Review the resulting output before continuing again.

Example: To keep an older Chunk 2 and make a new Chunk 3, select that Chunk 2 Take and use Continue From Here, then the top-right blue Run button. Do not select Chunk 3 if Chunk 3 is the part you want replaced. Later chunks from the old path are not automatically attached to the new one.

Keep Regenerate From = Auto when using Take actions. Do not combine an explicit Regenerate From selection with Use This Take or Continue From Here. If the selected Take already completes the configured total, Continue From Here has no next chunk to generate.

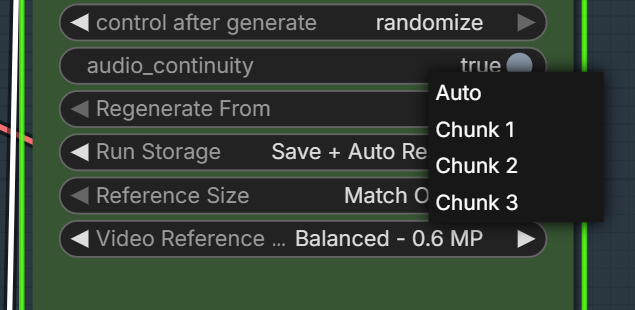

8. Regenerate from a particular chunk

Use this when you know the first chunk that must be redone. Unlike retrying the current review, this can rebuild a longer section of an existing sequence.

1. Click Back to Settings if you are on the review panel.
2. Keep Base Seed, the total Chunks, and Seconds per Chunk unchanged. Keep Control After Generate = fixed and Progress = On — Resume and Takes available.
3. Click Show Advanced Settings.

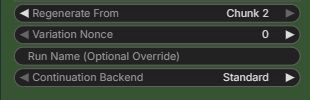

4. Set Regenerate From to the first chunk to redo, such as Chunk 3. Earlier chunks can be reused only if their inputs remain compatible.
5. Set Variation Nonce, which appears for explicit regeneration. Keep Base Seed fixed. 0 selects a new variation automatically after a completed regeneration; a compatible interrupted regeneration resumes its existing variation instead. A value of 1 or higher fixes the variation: keep it to reproduce/resume that variation, or change it to request another. Repeating the same positive value with identical inputs does not request a different result. This is separate from Try this chunk again, which advances the review variation automatically.

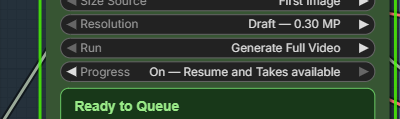

6. Set Run to Generate Full Video to rebuild everything from the selected chunk through your target in one Queue.

7. Click the top-right blue Run button, wait for completion, and check the new full-length output.
8. Before ordinary continuation or review actions, set Regenerate From back to Auto so that the next Queue is not another explicit request to redo that section.

Example: With a completed six-chunk sequence, Regenerate From = Chunk 3 and Run = Generate Full Video reuse compatible Chunks 1–2 and regenerate Chunks 3–6. This is four newly generated chunks, not only Chunk 3. Later chunks depend on the changed continuation and must follow the new path.

If you want a review pause instead, choose Run = Review Each Chunk in step 6. The next Queue generates the first requested review unit, not the whole remaining section. After reviewing it, select Use it and continue to proceed one unit at a time, or Use it and finish the rest to complete the section. Keep earlier-chunk inputs unchanged if you want those chunks reused.

9. Add more chunks to a completed sequence

For a compatible saved run without a Last Image constraint, increasing the target can reuse completed chunks. This requires saved progress, not just an existing MP4 file.

1. Keep the same Sampler/workflow and Run Name (Optional Override). Do not create a new run identity.
2. Keep Base Seed unchanged and Control After Generate = fixed.
3. Keep Progress = On — Resume and Takes available, and keep the saved progress files available.
4. Keep Seconds per Chunk and the generation inputs unchanged.
5. Set Regenerate From = Auto.
6. Change only the target count in Chunks: for example, change 3 to 5 to add two chunks. Do not set it to 2.
7. Choose Run = Review Each Chunk for one new review unit per Queue, or Run = Generate Full Video to finish all missing chunks.
8. Check Total Length, then click the top-right blue Run button and check the reuse report described below.

With compatible progress for three 5-second chunks, the new target is 25 seconds. Review mode should first produce Chunk 4 and a 20-second output; continuing again completes Chunk 5. Full-video mode should produce Chunks 4–5 and the 25-second output in one Queue.

Do not assume append-only reuse with Last Image. Extending a sequence changes where its final-image constraint belongs. The former last chunk, or a terminal pair, may need regeneration. Likewise, changing the model, prompt, media, dimensions, schedule, or continuation settings can invalidate saved progress. Progress = On enables compatibility checking; it does not force incompatible chunks to be reused.

The extension path is covered by CPU compatibility tests, including two-to-three chunks and Last Image invalidation. It is not the same GPU test as the two-chunk review timing example below; arbitrary extensions and media combinations have not all been GPU-verified.

10. Understand continuation time and check reuse

Continuing does not mean saving only the new segment. With compatible saved progress, the normal workflow:

1. Reuses the accepted chunks' stored Video/Audio latents without sampling them again.
2. Samples the requested new chunk or remaining section.
3. Decodes the completed sequence so far, runs H3 Continuum Finalize, and saves the combined video again.

The full-output work grows as the sequence gets longer. Consequently, the next Queue can take as long as the first, or longer, even though earlier chunks are not being sampled again. Loading, preparation, decoding, assembly, saving, and other workflow overhead all contribute to total time.

The latest live GPU check used Turbo4, Euler/simple, actual Steps = 4, Spectrum Off, and Draft — 0.30 MP with Chunks = 2, Seconds per Chunk = 5, and Review enabled:

| Queue | Sampler work | H3 Continuum Sampler node time | Saved video | |---|---|---:|---:| | First | Generate Chunk 1 | 103.802 s | 5 seconds | | After Use it and continue | Reuse Chunk 1; generate Chunk 2 | 43.738 s | 10 seconds |

Each Queue sampled one chunk with four steps. The second Queue did not sample Chunk 1 again; it sampled only the requested next chunk, then decoded, finalized, and saved the combined 10-second sequence. The first Queue also included cold-start/model preparation effects, so the difference must not be treated as a general speed ratio. Full-sequence decode and save work still occurs on continuation.

To inspect your own run:

1. Open ComfyUI Settings and search for H3 Continuum: Detailed Report.
2. Enable that setting before the Queue you want to inspect.
3. After completion, inspect the Sampler's status output through a text-display node in your workflow.
4. In the two-chunk example's second Queue, look for 1 reused, 1 generated, 2 total. Detailed fields should show sampled_physical_groups=1 and, with four steps, sampling_steps_total=4, not 8.

The report field names are diagnostic text, not controls you need to set. For a larger target, use the reported reused/generated counts rather than timing alone. Terminal Merge can combine two chunks into one sampled group, so its group count differs from its chunk count.

11. Troubleshoot a missing action or unexpected result

| What you see | What to check or do | |---|---| | A 5-second video despite a longer Total Length | In Review Each Chunk, this is the expected first output. Review it, select an action, then click the top-right blue Run button. | | No next-chunk action | Check whether the configured total is already complete. Otherwise, wait for Queue completion and verify Run = Review Each Chunk and Progress = On — Resume and Takes available. If you opened settings, click Return to Review. | | No review panel even though an incomplete Review run finished successfully | Inspect the Sampler's status and any ComfyUI error. This is not a reason to assume all chunks finished or to change Base Seed; the frontend must receive the saved review state. | | Clicking an action appears to do nothing | Check its ✓, then click ComfyUI's top-right blue Run button. The action button only selects what Queue will do. | | Set Control After Generate to fixed | Set that exact control to fixed and retain the original Base Seed used for the saved chunks. | | Settings disappeared behind the review panel | Click Back to Settings. Use Return to Review to come back; neither navigation button resets the run. | | The next Queue takes as long as the first | Check reused/generated counts. Full-sequence decoding and saving still run; elapsed time alone cannot tell you whether chunks were resampled. | | Earlier chunks are generated again | Check Progress, saved files, run identity, Base Seed, and changed generation inputs. Check that Regenerate From is Auto unless you intentionally requested regeneration. | | Retrying changed more than one chunk | A terminal pair is one review unit. Also distinguish Try this chunk again from Regenerate From, which rebuilds the chosen chunk and its following section. | | You want to stop choosing an action after every chunk | At the review panel, select Use it and finish the rest, then click the top-right blue Run button. Keep Chunks at your intended final total. |

Driving Audio can be used with Review and Smart Regenerate. The Continuum Image, Audio, and Video loaders support native bypass for optional media paths.

Second Pass limitation: Finish the reviewed sequence before running Second Pass. Second Pass / refine_context is not supported on a partial Review sequence.

Historical implementation notes (pre-V3.8; not the standard workflow)

The version-labelled sections below document earlier releases and compatibility work. Their node-registration and saved-workflow guarantees apply to those historical packages, not to V3.8. They do not change the current seven-node surface or the V3.8 standard path described above. Open historical workflows with their matching Release/tag.

V3.7 High-Resolution Refinement Foundation

V3.7 adds H3 Continuum Sampler V3.7 and completes two foundations for resolution-changing Second Pass workflows without changing V3.6 Production defaults or the existing SIGMAS socket.

Conditioning survives a resolution change

The Conditioning Adapter rebuilds First/Last images, continuation context, and an owned Still Image Guide at the target latent geometry. Physical-group ownership, Long Terminal Merge, Core PackedLayout/RoPE reconstruction, and first-pass Audio passthrough are preserved. Correctness gates passed at 704×704 and 1152×1152; larger canvases still require substantially more memory and processing time.

RefineSchedule gives refinement ranges explicit meaning

The internal, versioned RefineSchedule contract supports External, Full, Tail, and Partial. External preserves the incoming SIGMAS tensor exactly, while Tail and Partial select exact ranges from the same source schedule. The accepted internal Tail 6 gate reproduced the six-evaluation suffix and preserved decoded Audio PCM bit-exact. This contract is an implementation foundation rather than a new public widget, and Production defaults remain unchanged.

Tail 6 cuts Second Pass time by about one third

The largest practical benefit in V3.7 is a shorter high-resolution Second Pass when the internal schedule uses Tail 6. Instead of evaluating all ten points, Tail 6 runs the exact low-sigma suffix that performs the final refinement work.

| Second Pass range | Sampling time | |---|---:| | Tail 10 | 100.27 s | | Tail 6 | 64.18 s | | Saved | 36.09 s / 36.0% |

In this gate, Tail 6 finished in about 64% of the Tail 10 time: roughly 1 minute 4 seconds instead of 1 minute 40 seconds. A separate Learned Latent Upscaler gate measured 121.17 s -> 66.32 s for Tail 10 versus Tail 6, about 45% lower, while API total changed from 170.70 s to 119.61 s, about 30% lower. These measurements are configuration-specific and are not universal speed guarantees.

RefineSchedule does not make each model evaluation faster. It gives Continuum an exact, versioned way to manage and execute the Tail 6 range; the speedup comes from running six evaluations instead of ten. Tail 6 is not enabled automatically, and V3.7 does not change Production defaults.

Still Image Guide remains Experimental

V3.7 can map one Still Image Guide from an absolute frame to its owning physical group and rebuild it from the original image during a high-resolution Second Pass. Its positioning, Terminal Merge ownership, Run Storage identity, and non-owner isolation passed correctness testing. Core Add Guide uses hard-anchor semantics, however, so a Guide can cause an abrupt trajectory change at the anchor and can redirect later motion. Still Image Guide is Experimental and remains on Production HOLD. It should not be treated as a smooth transition control.

V3.6.1 Maintenance Hotfix

V3.6.1 fixes focused fail-open/compatibility issues without changing the accepted Balanced 22 Masked AV path. Mixed Timeline/List prompts now report H3C-P105; Timeline parsing ignores only standalone --- lines, keeps existing uncovered-chunk fallback, and never stops generation because of prompt syntax.

With Continuation Backend = Standard and Audio Continuity enabled, Balanced — 22 frames continues to use Masked AV. Fast — 5 frames, Strong — 39 frames, and Auto — conservative now resolve to the accepted Reference Context transport before Run Storage identity is created. The selected UI values are not rewritten, and the status report states the resolved transport and reason. Standard with Audio Continuity disabled remains Masked Video; Compatibility remains Reference Context.

Run Storage now treats every absent Last Frame spelling as the same empty identity. A normal no-Last-Frame run can therefore extend from two to three chunks as 2 reused, 1 generated, including narrowly compatible V3.6.1 caches whose former final chunk stored none. A real connected Last Frame and the Long Terminal Merge atomic pair remain strict. Turning Run Storage Off also resets the hidden Regenerate From and Variation Nonce values to Auto and 0 before queueing.

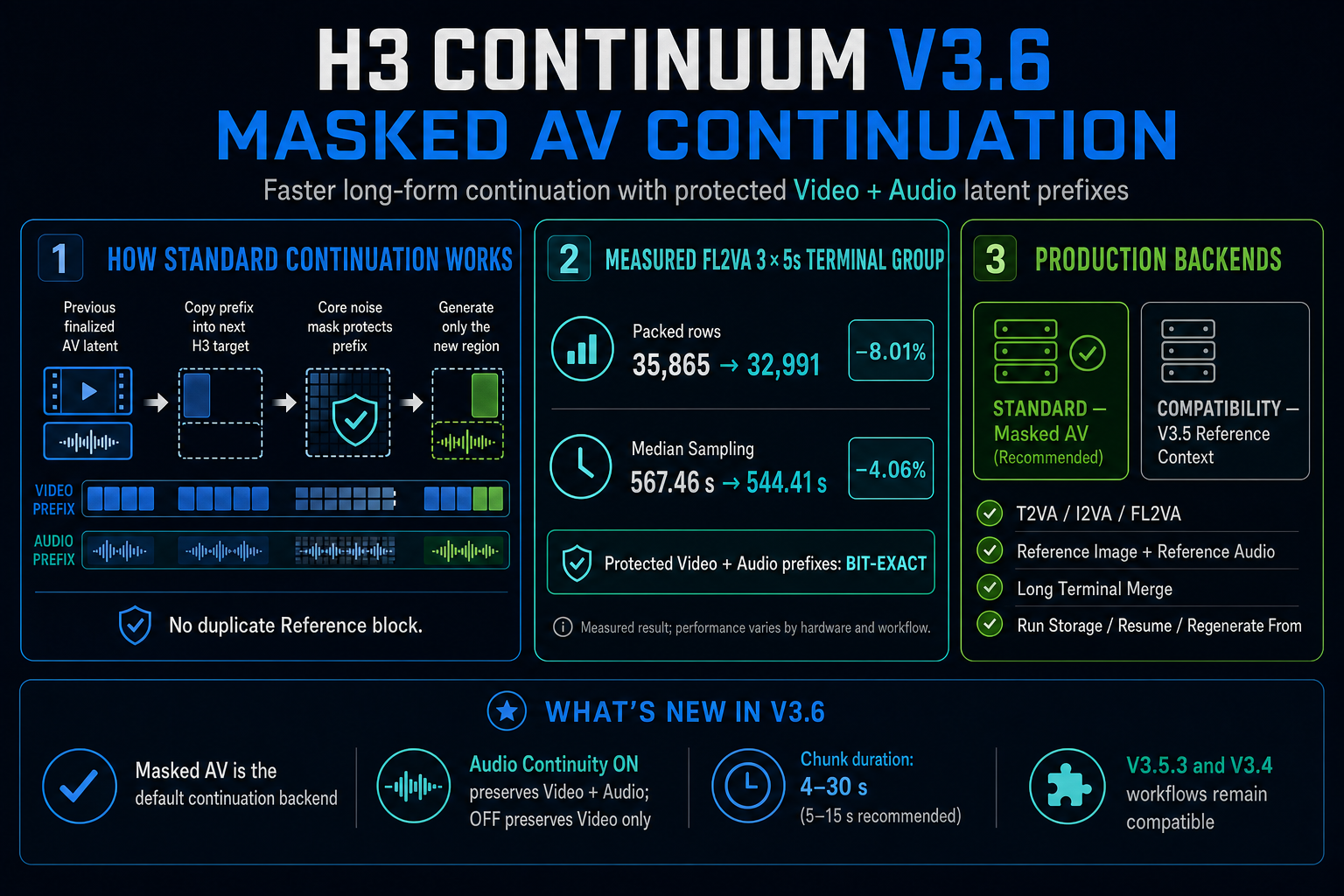

V3.6 Masked AV Continuation

V3.6 adds H3 Continuum Sampler V3.6. Its Standard continuation backend places the previous finalized Video and Audio latent prefixes directly inside the next H3 target and protects them with Core noise masks. Unlike the V3.5 Reference Context route, it does not append the same prior frames as a separate Reference block, reducing the packed sequence processed by H3.

| Continuation Backend | Purpose | |---|---| | Standard | Recommended V3.6 path. Balanced 22 + Audio Continuity uses Masked AV; Fast 5, Strong 39, and Auto safely fall back to Reference Context. When Audio Continuity is off, Masked Video is used. | | Compatibility | Advanced fallback using the accepted V3.5 Reference Context behavior. |

Internal transport identifiers are not exposed in the UI. Run Storage identity follows the resolved transport: Balanced 22 Masked AV stays separate from Reference Context, while a non-Balanced Standard fallback safely shares the identical accepted Reference contract. Regenerate From treats the Long Terminal Merge logical pair [2,3] as one atomic physical sample.

Accepted behavior

• T2VA, I2VA, Reference Image + Reference Audio, Balanced 22-frame Joint AV, and 3×5-second FL2VA Long Terminal Merge GPU gates passed.
• Protected Video and Audio prefixes finalize bit-exact; generated regions remain owned by the sampler.
• The accepted Reference Image + Reference Audio output passed subjective audio listening with no reported click, dropout, or stereo-positioning defect.
• In the tested FL2VA Terminal Group 2 pairs, Standard removed 2,874 packed rows (8.01%) and reduced median Sampling time by 4.06% versus Compatibility. Performance varies by model, hardware, and workflow.
• chunk_seconds now accepts 4.0–30.0 seconds with a 5.0-second default and 0.1-second step. The 5–15 second range remains recommended and validated; longer high-resolution chunks can substantially increase VRAM use and runtime.

In the historical V3.6 package, V3.5.3, V3.5, and V3.4 Node IDs remained registered for saved workflows. V3.5.3 retained its original Reference Context behavior rather than being silently redirected to the V3.6 backend. This is not a V3.8 registration guarantee.

V3.5.3 Maintenance Hotfix

V3.5.3 is a distribution-integrity maintenance release. It repairs the public Conditioning Bridge workflow's Width/Height links, removes stale orphan link IDs from the published V3.4/V3.5 templates, corrects Hybrid <Picture N> warning numbering, and repairs one legacy PNG for strict image decoders.

There are no changes to generation behavior, nodes, sockets, Sampling, Conditioning payloads, Terminal Merge, Assembly, Seam, Run Storage, Prompt/CLIP caching, Video Guide optimization, or V3.4 compatibility. Existing V3.5.x workflows continue to load unchanged.

V3.5.2 Stabilization & Optimization Update

V3.5.2 adds no new generation mode. It stabilizes the V3.5.x release, removes repeated Prompt/CLIP work when safe, and lowers temporary memory for long Video Guide inputs while preserving existing workflow and generation contracts.

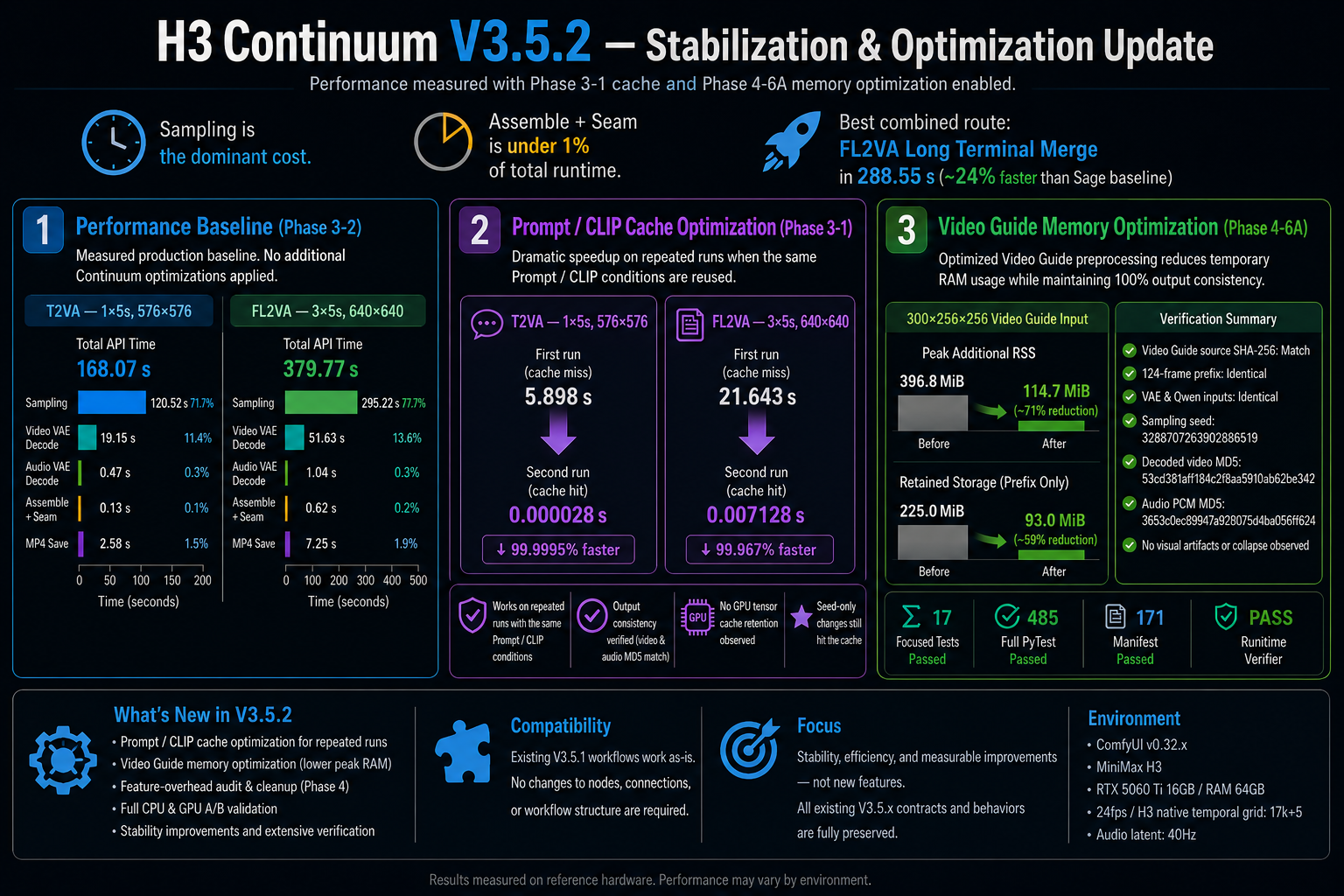

The figure records the accepted optimization measurements. The final packaging gate additionally passed on ComfyUI 0.33.3 with a 172-entry Manifest, including this image.

What changed

1. Repeated-run Prompt/CLIP cache — unchanged T2VA, I2VA, and FL2VA conditioning can reuse CPU-cached Prompt/CLIP results. Reference, scheduled, tokenizer-option, and hook-modified CLIP paths conservatively bypass the cache. Sampling still runs normally.
2. Video Guide memory optimization — the complete source remains part of finite validation and SHA-256 identity, but only the required prefix remains stored for VAE/conditioning work.
3. Stabilization audit — measured Sampling, Decode, Assembly, saving, optional-feature tax, and retained memory. No speculative Sampling, Driving Audio, Audio hash, Assembly, Seam, Session, or V3.4 optimization was adopted.

Measured results

| Area | Before | V3.5.2 | Result | |---|---:|---:|---:| | T2VA repeated Prompt/CLIP | 5.898398 s | 0.000028 s | Cache HIT, encode_calls=0 | | FL2VA repeated Prompt/CLIP | 21.642687 s | 0.007128 s | Cache HIT, encode_calls=0 | | Video Guide peak additional RSS | 396.8 MiB | 114.7 MiB | About 71% lower | | Video Guide retained storage | 225 MiB | 93 MiB | About 59% lower |

Prompt/CLIP figures measure only the conditioning subphase, not total generation time. The Video Guide memory benchmark uses deterministic 300×256×256 RGB input with a 124-frame required prefix. A separate GPU A/B used an actual 15-second / 360-frame Video Guide and produced identical decoded video and audio PCM.

The measured Sage-only production baselines on the tested RTX 5060 Ti 16 GB / 64 GB system were 168.069 seconds for 1×5-second 576×576 T2VA and 379.765 seconds for 3×5-second 640×640 FL2VA Long Terminal Merge. These are configuration-specific baselines, not universal speed guarantees. Sampling remained the dominant cost; Continuum Assemble + Seam stayed below 1%.

V3.8.0 is the current release candidate. Historical implementation modules remain in source because V3.8 reuses them internally. Only the seven current public nodes are exported, including the earlier IDs retained for those nodes. Use the matching historical Release/tag for workflows requiring other IDs. Still Image Guide remains Experimental.

V3.5.1 Reference Audio & Compatibility Update

V3.5.1 added two focused features without changing the V3.4 Sampling, Conditioning, Terminal Merge, Assembly, Seam, or Run Storage contracts:

1. Optional Reference Audio — native H3 audio conditioning that does not replace the generated final audio.
2. Conditioning Bridge V3.5 — one complete Core-compatible MODEL and CONDITIONING object per Continuum physical group for external sampler workflows.

The Reference Audio sockets are permanently defined by Python INPUT_TYPES. Dynamic socket changes and the UI-only Hidden / Show control were removed to prevent workflow save/reload value shifts. Node IDs, backend keys, Sampling, Conditioning, standard Seed handling, and other widgets are unchanged.

In the historical V3.5.1 package, V3.4 node IDs and backend socket keys remained registered for saved-workflow compatibility. V3.4/V3.5 workflows continued to load there; V3.5.1 clarified the displayed input names without rewriting saved links. V3.8 instead uses the seven-node support boundary above.

Reference inputs at a glance

The displayed names intentionally describe different jobs. They are not interchangeable pairs:

| Displayed input | Connect from | Purpose | Final audio behavior | |---|---|---|---| | reference_image_1–reference_image_3 | Still-image IMAGE | Persistent identity, subject, or appearance references | No audio | | Video Guide Frames | Video loader IMAGE frame batch | Persistent motion, framing, timing, and appearance guidance across chunks | Does not carry the video's audio | | Driving Audio + Driving Audio VAE | Audio loader, or video loader AUDIO, plus the matching audio VAE | Audio guidance whose effective source stream is preserved for final output | Replaces generated final audio with the selected source stream | | Reference Audio (Optional) + Reference Audio VAE (Optional) | Standalone audio plus the matching audio VAE | Native H3 conditioning only | Does not copy or replace the generated final audio |

For the common video-with-sound case, connect the loader's IMAGE output to Video Guide Frames and its AUDIO output to Driving Audio. Do not connect that audio to Reference Audio (Optional) unless conditioning-only behavior is specifically intended.

Reference Audio (Optional) and Reference Audio VAE (Optional) are always present exactly as defined by the node's Python input schema. V3.5.1 no longer adds or removes these sockets dynamically and has no frontend-only Hidden/Show widget. This keeps positional widget values aligned when workflows are saved and reloaded; backend input keys and existing workflow links are unchanged.

Conditioning Bridge V3.5

H3 Continuum Conditioning Bridge V3.5 is the Advanced connection point for external sampling. Connect model, clip, the externally processed video_latents, assembly_plan, and refine_context; connect video_vae only when the selected conditioning path requires it. The node returns parallel group_models and conditioning lists whose length equals the physical-group count. Each list item remains a complete ComfyUI object—conditioning entries are never flattened into the physical-group list.

H3 Continuum Sampler V3.5.video_latents
  -> external H3 latent processor (for example LBH)
  -> H3 Continuum Conditioning Bridge V3.5
  -> Core BasicGuider + external sampler
  -> Core Video / Audio VAE Decode
  -> H3 Continuum Assemble + Seam V3.5

The external workflow owns AV LATENT pairing, noise, SIGMAS, Audio Lock, sampling, and audio passthrough. The Bridge only exposes the prepared MODEL and CONDITIONING objects plus the updated Assembly Plan.

Download the complete connection example: V3.5.1 LBH + Conditioning Bridge workflow.

The example keeps the standard Core titles BasicGuider, BasicScheduler, and SamplerCustomAdvanced. Public examples do not rename Core nodes, so they remain immediately distinguishable from Continuum and third-party nodes. The workflow also uses external nodes for LBH latent upscaling, AV LATENT concatenation/separation, loading/saving, and optional acceleration; install or replace those nodes according to your ComfyUI environment.

LBH changes latent geometry only. It has no Continuum denoise-strength control: use the external BasicScheduler SIGMAS to decide how strongly the resized latent is regenerated. A larger LBH scale such as 1.5x may still be fast, but memory, decode, and sampling costs increase with the target canvas.

What's new in V3.5

V3.5 has two major additions:

1. Continuum-aware Second Pass / Hi-Res Fix — refine externally processed H3 latents or use the integrated pixel/VAE 2x path without changing V3.4 sampling.
2. Low-memory Assemble + Seam — write the final video IMAGE directly to RAM or a Windows-safe mapped file while preserving Exact Duration, Seam, Terminal Merge order, and audio behavior.

1. Second Pass and Hi-Res Fix

H3 Continuum Hi-Res Fix V3.5 is the one-node Main path. It performs Video VAE Decode, bounded pixel resize, Video VAE Encode, and one low-denoise Second Pass. The integrated Main path remains Experimental because long 2x runs can exceed GPU memory.

Normal Hi-Res Fix wiring:

H3 Continuum Sampler V3.5
  -> H3 Continuum Hi-Res Fix V3.5
  -> Core Video / Audio VAE Decode
  -> H3 Continuum Assemble + Seam V3.5

H3 Continuum Second Pass V3.5 is the stable Advanced bridge requested in Issue #8. It accepts an externally processed H3 video latent and samples each Continuum physical group once while preserving prompt policy, seed reporting, group order, and the original first-pass audio LATENT object.

External latent processor wiring, such as LBH:

H3 Continuum Sampler V3.5.video_latents
  -> external H3 latent processor
  -> H3 Continuum Second Pass V3.5
  -> Core Video / Audio VAE Decode
  -> H3 Continuum Assemble + Seam V3.5

Connect the original audio_latents, assembly_plan, and refine_context from Sampler V3.5 to the Hi-Res Fix or Second Pass node. Use the same final MODEL and CLIP, plus a separate sampler and workflow-side SIGMAS for the refinement pass. The nodes do not contain an internal denoise value.

The BasicScheduler is deliberately omitted from the screenshots. It is still required to create the Second Pass SIGMAS. The GPU-tested baseline is:

sampler:   res_multistep
scheduler: simple
steps:     10
denoise:   0.35

Do not chain Hi-Res Fix and another Second Pass in the standard path: Hi-Res Fix already performs one Second Pass internally. H3 Continuum Latent Resize V3.5 is an advanced utility, not the recommended Main 2x path; direct high-ratio interpolation of the 24-channel H3 latent produced persistent artifacts in testing.

If Hi-Res Fix is not connected, V3.4 sampling remains on its original path. V3.5 does not add a forced CPU-offload or low-VRAM sampler mode. Hi-Res Fix enabled=false is a lazy exact passthrough and does not evaluate its resize, VAE, or Second Pass dependencies.

See V3.5 Hi-Res Fix and Second Pass workflow guide for exact sockets, bypass behavior, external-upscaler wiring, and limits.

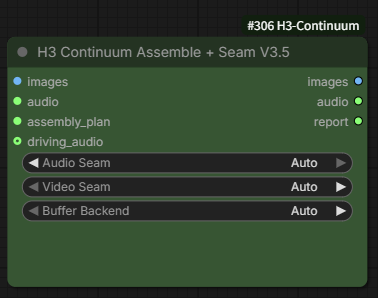

2. Low-memory Assemble + Seam

H3 Continuum Assemble + Seam V3.5 adds manual RAM / Disk-backed selection and a conservative Auto policy. Disk-backed mode writes the final video IMAGE directly to a mapped file instead of rebuilding the entire completed video in anonymous RAM. Audio remains in RAM.

| Backend | Behavior | |---|---| | Auto | Uses RAM only when the final IMAGE is at most 4 GiB and physical-memory reserve is sufficient; otherwise selects Disk-backed. Missing memory counters fail safely to Disk-backed. | | RAM | Existing in-memory output behavior. | | Disk-backed | Maps the final video IMAGE to a temporary file; video only. Audio remains in RAM. |

Disk-backed mode preserves the backing file while ComfyUI still references the returned Tensor. Downstream nodes can still allocate a full RAM copy, so Continuum's low-memory guarantee applies to its own assembly stage, not arbitrary downstream implementations.

Measured memory reduction

The validated stress case assembled a deterministic 1536 x 1536, 360-frame float32 IMAGE with a final size of 9.49 GiB. RAM and Disk-backed outputs were video/audio hash-identical.

| Windows process metric | RAM backend | Disk-backed | Reduction | |---|---:|---:|---:| | Private memory | 12.41 GiB | 2.91 GiB | 9.50 GiB | | USS | 10.29 GiB | 0.80 GiB | 9.49 GiB |

This is a system-RAM/private-commitment reduction during Continuum Assembly, not a claim that sampler GPU VRAM is reduced. Windows RSS includes resident mapped-file pages and was therefore similar between the two backends; private memory and USS are the relevant measurements. Disk-backed I/O can make final assembly slower, but it does not slow the preceding model sampling path.

Optional Windows tip: disable pinned memory

For MiniMax H3 on Windows, starting ComfyUI with --disable-pinned-memory can substantially reduce host-RAM pressure. In one local RTX 5060 Ti 16 GB / RAM 64 GB check, a 0.4 MP (640 x 640), 2 x 5s run completed in 5m 23s, with about 6.1 GB sampler RSS and 8.6 GB after assembly, while showing little practical speed difference from normal startup.

--disable-pinned-memory

This is an environment-specific tip, not a default requirement or a universal crash fix. Compare the same workflow and seed with only this option changed, and keep it only when memory use improves without a meaningful speed or stability regression. It disables ComfyUI's pinned host-memory path; it does not guarantee that Windows Shared GPU Memory will never be used.

GPU acceptance at a glance

| Path | Tested condition | Result | |---|---|---| | Main Hi-Res Fix | FL2VA 1 x 5s, 576 -> 1152 | PASS | | Main Hi-Res Fix | Hybrid FL2VA + Reference 1 x 5s, 576 -> 1152 | PASS | | Advanced Second Pass | Hybrid/Reference 1 x 5s, 576 x 576 | PASS | | Main Hi-Res Fix | FL2VA 3 x 5s, 576 -> 1152, RTX 5060 Ti 16 GiB | CUDA OOM at terminal 77T group |

For the failed 3 x 5s case, First Pass and the 37T Second Pass group completed. The final logical chunks [2,3] remained one 77T Long Terminal Merge physical group and exceeded the tested 16 GiB GPU at its first 1152x1152 Second Pass inference. This is a documented resource limit; the Continuum grouping contract did not change.

V3.4 compatibility baseline

The historical V3.5 package retained V3.4 nodes for saved workflows; it did not replace their Node IDs, public sockets, Sampling, Conditioning, Terminal Merge, Assembly, Seam, or Run Storage behavior. Those historical workflows remain available through the corresponding Release/tag. V3.8 does not export IDs outside its current seven public nodes, even when their implementation modules remain in source.

V3.4 focuses on the two reference workflows that are most useful in normal production:

• Driving Audio: use an existing audio source as the preserved final audio while it guides the H3 generation across chunks.
• Video Guide Frames: use a video loader's IMAGE frame batch as persistent guidance for appearance, motion, framing, and timing without treating it as a frame-by-frame copy.
• Hybrid FLF + Reference: use First Frame, Last Frame, and persistent Reference Images together without adding a separate mode or model allowlist.
• FL2VA Terminal Merge: keep the final two 5-second FL2VA chunks as one physical 10-second sampling and decode unit for Core-equivalent Last Frame handling.
• Restartable chunks: reuse completed chunks with Run Storage and regenerate only the selected part when the generation contract remains compatible.
• Core compatibility: remove Continuum-only rejection of unknown upstream/custom nodes and remove the obsolete strict_compatibility control.
• Spectrum interoperability: use the official H3 Continuum Interop API v1 when Spectrum is installed; Spectrum remains optional.
• Simpler public interface: Timeline Video and the earlier timeline-audio paths are hidden from the V3.4 public sampler interface rather than being presented as stable production features.

Direction change: from timeline generation to preserved references

Earlier development explored Timeline Video and timeline-audio conditioning. Those paths can be useful for experiments, but they are not the default production behavior: chunk boundaries can change visual content, and generated audio can diverge from a supplied song, dialogue, or effects track.

V3.4 therefore prioritizes:

1. Driving Audio for cases where the supplied audio should remain the final audio stream.
2. Video Guide Frames for cases where a supplied video should guide the generated result without requiring exact frame reproduction.
3. Chunked generation and Run Storage for practical retries and long-form work.

This is a usability and reliability decision, not a claim that the experimental timeline paths are impossible. They are hidden from the stable interface while the public workflow stays focused on predictable user-controlled inputs.

Example workflow

• V3.8 workflow JSON — Spectrum enabled by default; switch the same graph to LightX2V Turbo as described above
• V3.8 workflow ZIP — contains exactly the same JSON, not another variant or a custom-node installer

The declared Registry payload includes this one graph in both formats; it is not dependency-free. Spectrum, rgthree, KJNodes, and ComfyUI-Easy-Use must be installed separately. Historical workflow files remain in GitHub source but are excluded from the Registry payload. For an older saved workflow, use its matching historical Release/tag as described in the migration policy. Registry packaging validation/publication is separate from this GitHub source update.

V3.4 feature details

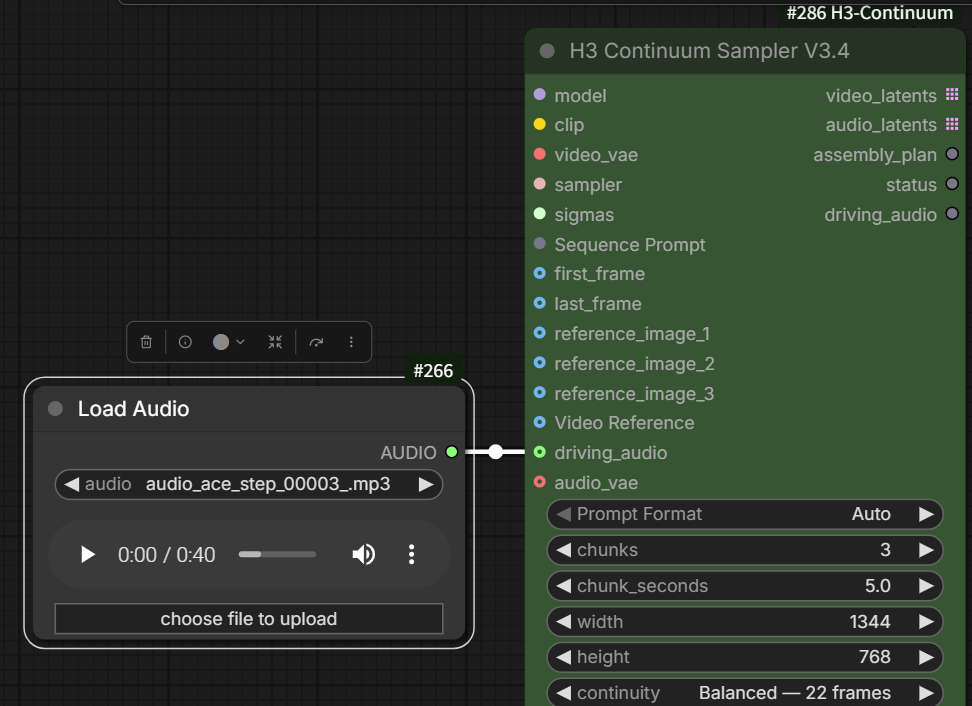

Driving Audio

Driving Audio is the primary V3.4 audio path.

• Source audio guides each chunk at its absolute sequence position.
• The original effective stream is preserved for final output.
• Generated audio and Audio Seam processing are bypassed while Driving Audio is active.
• Audio is not independently rewritten at every chunk boundary.
• Perfect lip sync is not guaranteed; results still depend on H3, source material, prompts, and sampling.

Video Guide Frames

Video Guide Frames provides a persistent native H3 video guide across all chunks. Despite its ComfyUI IMAGE socket color, it expects the frame batch produced by a video loader rather than one ordinary still-image reference.

• It guides motion, framing, timing, and appearance.
• It is not a direct pixel-copy or deterministic identity-transfer system.
• Video and audio are independent. Route a loader's IMAGE output to Video Guide Frames and AUDIO output to Driving Audio.
• Source decoding and frame-rate conversion remain loader responsibilities. Continuum does not impose an unnecessary forced 24 fps conversion.

| Video Guide Size | Purpose | |---|---| | Efficient - 0.4 MP | Default; lower token cost and faster iteration. | | Balanced - 0.6 MP | More detail at a higher compute cost. | | Match Output | Largest reference input; potentially much slower and heavier. |

Conditional size controls and internal resize

The compact V3.5 UI shows each size control only when its corresponding input is connected:

• Connect any of reference_image_1 through reference_image_3 to reveal Reference Size.
• Connect Video Guide Frames to reveal Video Guide Size. Earlier workflows and reports may call this control Video Reference Size; V3.5.1 uses the clearer display name Video Guide Size while preserving the existing backend key and saved-workflow compatibility.

These controls are therefore not missing from a newly created node; they are hidden until relevant. Reference Images and Video Guide Frames are resized internally before VAE encoding. Video Guide Frames preserve their aspect ratio, align to the H3 canvas, and use Lanczos when reduction is needed. Smaller sources are not enlarged automatically. An external resize node is normally unnecessary, but remains useful for deliberate cropping, forced upscaling of a small source, or a custom resize/upscale algorithm. Video decoding and frame-rate conversion remain the loader's responsibility.

Hybrid First/Last Frame + Reference Images

You need an hybrid version of MiniMax-H3 to make both I2V and reference images work:

https://huggingface.co/smhfacct/Minimax-H3-fl2va-ref2va-hybrid-models

https://www.reddit.com/r/StableDiffusion/comments/1vm62pj/i_tested_out_the_b2049_hybrid_variant_for_r2v/

V3.4 supports First Frame, Last Frame, and persistent Reference Images in the same Continuum run. The public sockets and controls are unchanged: connect the inputs that the selected H3 model supports.

• Pure FL2VA and pure Ref2VA identity contracts remain unchanged.
• The combined path receives a distinct hybrid identity so Run Storage does not reuse incompatible chunks.
• Prompt/reference mismatches produce guidance warnings rather than a Continuum-only execution stop.
• No model-name allowlist or automatic model replacement is used.

Local checks passed with the B2049 hybrid variant. FL-only models could run, but showed less reliable transitions when FLF and Reference Images were combined; a hybrid-capable model is therefore recommended for this path.

FL2VA Terminal Merge

For 5-second FL2VA workflows, Continuum keeps the final two logical chunks together as one physical sampling and VAE decode unit.

• 2 x 5s: one 243-frame physical sample, decoded once, then adjusted to the requested 240-frame output.
• 3 x 5s and longer: earlier chunks use normal Continuation; the final two chunks use one 260-frame physical sample containing the 22-frame continuation context.
• After the terminal physical decode, the 22-frame context prefix is removed. For 3 x 5s, this gives 124 + 238 = 362 frames before exact-duration adjustment to 360 frames.
• If the final two prompt sections differ, they are rebased internally to a local [0-5s] / [5-10s] timeline. Identical prompts retain the accepted shared-prompt path.
• The terminal pair uses one physical seed and one physical decode while Run Storage continues to preserve normal logical chunk entries.

Local GPU comparison confirmed that 2 x 5s matches Core 10-second FL2VA sampling and terminal decode behavior. A 3 x 5s Timeline run also passed with three logical chunks, two physical sampling passes, two physical decode groups, and a 15.000-second output. The short still period near the supplied Last Frame was also present in the equivalent Core result and is treated as normal FL2VA convergence rather than a Continuum-specific failure.

Core-first, permissive execution

V3.4 removes or relaxes Continuum-only rejection rules that blocked otherwise runnable Core H3 experiments.

• Prompt problems prefer warnings and fallback behavior instead of stopping.
• Unknown upstream/custom wrapper classes are not blanket-rejected.
• There is no model allowlist and no automatic model replacement.
• The obsolete strict_compatibility control is removed from the V3.4 interface.
• Current Core PackedLayout behavior is supported without requiring the removed legacy frame_count argument.

Hard stops remain only for states that cannot execute safely, including corrupt latent topology, incompatible assembly data, invalid persisted revisions, or unusable mandatory payloads.

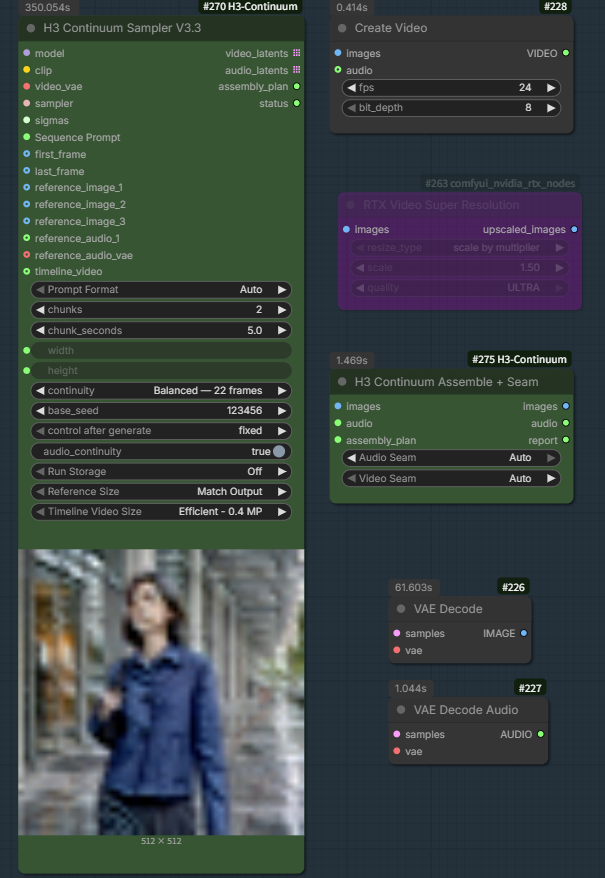

Cleaner interface

The public nodes focus on normal production controls. Developer diagnostics and detailed reports are available through ComfyUI settings. The current release path uses H3 Continuum Sampler V3.8; older sampler and assembler notes below are retained for historical compatibility context.

<img width="389" alt="H3 Continuum Sampler V3.7 with optional Guide input" src="docs/images/v37-sampler-node.png" />

Timeline paths

Experimental Timeline Video and earlier timeline-audio paths remain in historical implementation code but are not exported by V3.8. Open V3.3 workflows with their historical package; new V3.8 workflows should use Driving Audio and Video Guide Frames.

Installation

V3.8 is verified against ComfyUI 0.34.2. Historical acceptance records below may mention older ComfyUI versions; they are not the current installation target.

Updating an existing installation

For a Git checkout, run the update from the custom-node directory:

cd ComfyUI/custom_nodes/ComfyUI-H3-Continuum
git pull --ff-only origin main

Restart ComfyUI after the update. If the node was installed with ComfyUI Manager, use its Update action instead of running git pull manually. Do not mix Manager updates and a separate Git checkout for the same installation.

After the backend restart, search for H3 Continuum Sampler V3.8. The complete V3.8 search surface contains the seven nodes listed above. If they are missing, check the startup console for the H3 Continuum 3.8.0 loaded message and any ComfyUI-H3-Continuum import error.

Search for H3 Continuum or Continuum in ComfyUI Manager, or install manually:

cd ComfyUI/custom_nodes
git clone https://github.com/ukr8b3g-cmyk/ComfyUI-H3-Continuum.git

Restart ComfyUI after installation or update.

V3.5 nodes

H3 Continuum Sampler V3.5

The V3.5 sampler preserves V3.4 generation behavior and adds refine_context as the sixth output. Connect it to V3.5 Hi-Res Fix, Second Pass, or Conditioning Bridge paths that need the original conditioning context. V3.5.1 also provides permanently visible optional Reference Audio sockets.

H3 Continuum Conditioning Bridge V3.5

Advanced external-sampler bridge. It returns aligned group_models and complete conditioning objects per physical group together with the updated Assembly Plan. It does not create AV LATENT pairs, noise, SIGMAS, Audio Lock, or external sampling policy.

H3 Continuum Hi-Res Fix V3.5 (Experimental)

Main convenience node. When enabled, it performs the Video VAE pixel-resize round trip and Second Pass internally. When disabled, video/audio LATENT objects and the Assembly Plan pass through unchanged and the sampling/VAE dependencies remain lazy.

H3 Continuum Second Pass V3.5

Advanced Issue #8 bridge for an externally processed video latent. It samples once per physical group, reads the physical prompt contract from the Assembly Plan, and returns the original first-pass audio LATENT objects.

H3 Continuum Latent Resize V3.5

Utility that changes only video-latent H/W. It does not sample. Direct 2x interpolation at large square targets is not the accepted Main Hi-Res Fix method.

H3 Continuum Assemble + Seam V3.5

V3.4-compatible assembly with Auto, RAM, and Disk-backed video-buffer backends. Exact Duration and seam corrections write directly to the selected target buffer.

V3.4 nodes

H3 Continuum Sampler V3.4

Main inputs:

• model, clip, video_vae, sampler, sigmas
• Sequence Prompt
• first_frame, last_frame
• reference_image_1 through reference_image_3
• Video Guide Frames
• driving_audio, audio_vae

Outputs:

• video_latents, audio_latents
• assembly_plan, status
• driving_audio

Visible controls:

• Prompt Format, chunks, chunk_seconds
• width, height, continuity
• base_seed, control after generate
• audio_continuity
• Run Storage
• Reference Size
• Video Guide Size

chunk_seconds uses one shared duration for every chunk. The default is 5.0 seconds; 5–15 seconds remains the recommended and validated range. Durations up to 30.0 seconds are supported, but values above 15 seconds can substantially increase VRAM use and processing time, especially at high resolution. Per-chunk variable durations are not supported.

H3 Continuum Assemble + Seam V3.4

Inputs: images, audio, assembly_plan, and driving_audio.

Controls: Audio Seam and Video Seam.

When Driving Audio is connected, preserved source audio is selected for final output and generated audio seam processing is bypassed.

Connection order

H3 model / CLIP / Video VAE / sampler / sigmas
                         |
                         v
              H3 Continuum Sampler V3.4
                 |       |        |
          video_latents  |   assembly_plan
                         |
                  audio_latents

video_latents -> Core VAE Decode ------- images --+
audio_latents -> Core VAE Decode Audio -- audio  --+--> H3 Continuum Assemble + Seam V3.4
assembly_plan -------------------------------------+
driving_audio -------------------------------------+

For a source video with sound:

Video loader IMAGE -> Video Guide Frames
Video loader AUDIO -> driving_audio

The supplied templates use Video Helper Suite for this split. Any compatible IMAGE/AUDIO loader may be substituted.

Prompt formats

Timeline

For Timeline mode, each time-range header must be written on its own line. Write the scene description on the following line or lines.

Recommended format:

[0-5s]
First section: action, camera movement, and scene progression.

[5-10s]
Continue from the exact final state of the previous section.

[10-15s]
Continue naturally without resetting the scene.

For 10-second chunks:

[0-10s]
Describe the first scene.

[10-20s]
Describe the next scene.

[20-30s]
Continue the sequence.

[30-40s]
Describe the final section.

Important: do not place the prompt text on the same line as the time header.

Correct:

[0-5s]
Describe the scene.

Not recommended:

[0-5s] Describe the scene.

The second form is not recognized as a Timeline header. When Prompt Format = Auto, it may therefore be interpreted as a Fixed prompt instead, causing the complete text to be reused across chunks.

The time ranges should normally match the configured chunk_seconds.

• chunk_seconds = 5 → [0-5s], [5-10s], [10-15s] ...
• chunk_seconds = 10 → [0-10s], [10-20s], [20-30s] ...
• chunk_seconds = 15 → [0-15s], [15-30s], [30-45s] ...
• chunk_seconds = 30 → [0-30s], [30-60s], [60-90s] ...

Global preamble and per-chunk prompting

Text placed before the first Timeline header is treated as a global preamble and is automatically included in every chunk prompt. This is a good place for information that should apply throughout the sequence, such as subject definitions, overall style, persistent environment details, or other global instructions.

However, the Timeline sections do not need to contain only the changing action or scene description. For complex scenes, multiple characters, or longer chunks such as 10–15 seconds, it can be useful to repeat important details about the subjects, appearance, location, camera, and current scene state inside each section. More self-contained chunk prompts may sometimes give H3 stronger continuity and reduce cut-like transitions or drift.

Continuum carries visual/audio context from the previous chunk, but that does not guarantee that H3 will preserve every semantic detail automatically. Instead of relying only on phrases such as "continue from the previous chunk," describe the intended next action and important continuity details explicitly.

For example:

Subject: A woman in a red jacket.
Style: cinematic nighttime photography.

[0-15s]
A woman in a red jacket stands at the nightclub bar, speaking with two people beside her. Medium shot, slow handheld camera movement, crowded dance floor visible behind them.

[15-30s]
The same woman in the same red jacket continues the conversation at the same bar with the same two people. The camera remains close and slowly moves around the group as one person replies.

[30-45s]
The woman turns toward the dance floor while remaining beside the bar. Keep the same clothing, nightclub environment, nearby characters, and continuous camera style.

The global preamble is optional. If fully self-contained prompts inside every Timeline section give better continuity for a particular model or scene, that is also a valid approach.

Other prompt formats

List prompts use --- separators.

Fixed reuses one prompt for every chunk.

Auto detects Timeline, List, or Fixed formatting from the supplied text.

If Timeline syntax cannot be parsed, V3.4 reports a warning and falls back to an applicable prompt mode rather than rejecting an otherwise runnable workflow.

Run Storage

Run Storage preserves completed chunks and can reuse them after restarting ComfyUI. Regenerate From selects the first chunk to regenerate; earlier compatible chunks remain unchanged.

Keep the first part and regenerate the second part

For a normal T2VA or I2VA run configured as 2 chunks x 5 seconds, Chunk 1 is the first five seconds and Chunk 2 is the second five seconds.

Before the first generation:

1. Set Run Storage to Save + Auto Resume.
2. Choose a fixed Run Name and keep the Base Seed fixed.
3. Generate the complete ten-second video once. Continuum stores the raw Video/Audio latent for each completed chunk.

To generate a different second part while keeping the first part:

1. Keep the same Run Name, Base Seed, model, LoRA, resolution, sampler, SIGMAS/steps, references, and Continuation settings.
2. Set Regenerate From to Chunk 2.
3. Leave Variation Nonce = 0 for automatic new variations after completed regenerations, or choose a different positive value for an explicit variation. A compatible interrupted regeneration at 0 resumes its existing variation; reusing the same positive value does not request a different result.
4. Queue the workflow again.

Continuum loads the stored Chunk 1 instead of Sampling it again, uses its finalized end as the continuation context, and Samples a new Chunk 2. The report should show 1 reused, 1 generated. The complete output is then decoded and assembled again; the saved first chunk is reused, while boundary Seam processing is evaluated during the new assembly.

If the two parts need different instructions, define them with List or Timeline Prompt syntax before the first generation. Changing the Prompt Plan or other generation-contract inputs after a stored run can create a new revision, in which case the previous Chunk 1 may not be reusable. A run originally generated with Run Storage = Off cannot be reused retroactively. Regenerate From works at chunk boundaries; it does not edit an arbitrary region inside one chunk.

FL2VA Long Terminal Merge is an important exception: its final two logical chunks are one atomic physical Sampling unit, so those two chunks are regenerated together.

• Use a fixed seed for reproducible resume.
• Changing persistent models, LoRAs, references, prompts, resolution, or sampling settings can create a new revision.
• Unknown upstream node classes no longer cause rejection by themselves; reuse still depends on compatible observable contracts and hashes.

Spectrum interoperability

Spectrum is optional. Current Spectrum releases officially support H3 Continuum Interop API v1.

• Chunk 1 uses the normal initial path.
• Chunk 2 and later request Actual Prefix 2.
• Successful continuation logs accepted H3 Continuum API v1, actual prefix=2.
• Unsupported Spectrum versions fall back without a private patch.

See Spectrum v0.2.15 H3 Continuum interoperability.

Turbo LoRA and Spectrum are not mutually exclusive. Quality and speed remain workflow-dependent.

Issue and pull-request response

Issue #3

V3.4 removes blanket rejection of unknown upstream/custom class names. Run Storage evaluates the observable generation contract instead of treating an unfamiliar wrapper as automatically incompatible.

See Issue #3.

Issue #4

V3.4 follows the current Core H3 layout contract and no longer requires the legacy frame_count parameter. The old strict-compatibility toggle is not part of the public interface.

See Issue #4.

Issue #7

V3.4 allows First Frame, Last Frame, and Reference Images to be used together without requiring the separate BigStationW node or introducing a model allowlist. Hybrid presentation ordering and Run Storage identity are handled by Continuum while pure FL2VA and pure Ref2VA behavior remain unchanged.

The combined path was exercised locally with the B2049 hybrid variant. FL-only models were less consistent for this specific combination, so the README recommends a hybrid-capable model rather than rejecting other models in code.

See Issue #7.

Pull request #1 and #2

These older partial pull requests were superseded by the consolidated Pull request #5. V3.4 selectively includes the compatibility direction needed for the current Core H3 contract, while the broader upstream synchronization and release-automation scope remains a separate upstream review.

The older pull requests are not represented as merged V3.4 changes.

Pull request #5

PR #5 is the consolidated upstream-to-fork proposal covering current H3 compatibility, reference-input handling, assembly memory behavior, exact-duration handling, continuation-reference interoperability, and CI/release automation. V3.4 already contains the user-facing stability decisions described above; the PR remains an upstream review item and is not claimed as merged here.

V3.4 input connection patterns

V3.4 separates the video-guide frame input from the driving-audio input. Choose the connection pattern that matches your source material.

1. Audio only

Connect Load Audio to Driving Audio. Use this when an existing song, dialogue track, or sound effect should remain the final audio. Video Guide Frames is not required.

2. Video with its own audio

Connect Load Video (Upload) IMAGE to Video Guide Frames. If the uploaded video contains the audio you want to preserve, connect its AUDIO output to Driving Audio as well.

3. Video and audio from separate sources

Connect Load Video (Upload) IMAGE to Video Guide Frames, then connect a separate Load Audio node to Driving Audio. Use this when the video guide and the final audio source are different files.

Both inputs are optional. Connect Video Guide Frames when video guidance is needed, and connect Driving Audio when the supplied audio should be preserved in the final output.

Video Guide Frames frame rate

Use a 24 fps source for Video Guide Frames. Load Video (Upload) may accept files recorded at 25 fps or another frame rate, but acceptance alone does not guarantee correct temporal alignment with H3. For a non-24 fps source, set force_rate to 24 in Load Video (Upload), or convert the file to 24 fps before loading it. If the source is already 24 fps, leave force_rate at its default and do not resample it.

Current validation status

The current V3.8 public-surface suite verifies the exact seven-ID export, the single supplied Spectrum graph and its identical ZIP payload, declared external dependencies, Registry exclusions, preserved legacy V3.8 widget/socket order with the AUDIO-R1 socket appended, and presentation-only Show Advanced Settings / Hide Advanced Settings behavior, including migration of the former H3 Continuum View property. Registry payload hashes are recorded in REGISTRY_MANIFEST.sha256; source-only files are also covered by MANIFEST.sha256. Git preserves exact bytes to avoid platform-dependent hash changes. Historical implementation paths remain covered by module-local regression tests without exporting additional V3.8 nodes.

CPU launch audit — 2026-09-07, before the final distribution rename: the full guarded suite passed 1,154/1,154 tests, with no failures, errors, skips, or recorded CUDA initialization requests. Isolated ComfyUI Core 0.34.5 CPU checks passed seven-node registration and native PackedLayout; both the former Core-only template and the supplied Spectrum graph passed graph/schema checks. CUDA remained uninitialized. The final distribution uses the unchanged Spectrum graph under the generic V38 filename. These are CPU/software-contract results, not a new GPU-quality acceptance or proof that a running installed backend has loaded the latest source.

Historical V3.6 acceptance: the V3.6 release gate included PIG-0 through PIG-5 Production Integration acceptance: backend-scoped Run Storage, real-cache Save/Resume/Regenerate From, atomic Terminal Merge reuse, Reference Image/Audio retention, bit-exact protected prefixes, GPU workflow output, numeric Audio Seam analysis, and subjective Audio PASS. Its automated validation result was 527 passed; this is a historical count, not the current V3.8 CPU total. The package checklist and historical acceptance records are in PACKAGE_VALIDATION.txt. Regression coverage also includes source/runtime registration, native PackedLayout, Fixed 3x5 prompt planning, JavaScript UI harnesses, Prompt/CLIP cache equality, Video Guide bit-exact A/B, V3.5 Second Pass/Hi-Res, and V3.5.3 distribution-integrity checks.

V3.4 compatibility paths have been exercised locally with:

• 1, 2, and 3 chunks
• standard and Turbo paths
• Spectrum enabled and disabled
• I2VA, Reference, and selected FL2VA configurations
• Hybrid FLF + Reference with the B2049 hybrid variant
• Core-equivalent 2 x 5s FL2VA Terminal Merge
• 3 x 5s FL2VA with the final two logical chunks merged into one 260-frame physical sample and decode group
• Driving Audio with short, exact-length, and longer sources
• Video Guide Frames with source audio routed separately to Driving Audio
• 0.4 MP and 0.6 MP reference sizing
• Run Storage reuse and selected-chunk regeneration
• Core VAE Decode and final assembly

Additional V3.5 acceptance includes:

• Advanced Second Pass Bridge for 1x5 T2VA, 3x5 T2VA, and 3x5 FL2VA Long Terminal Merge
• first-pass audio LATENT object passthrough through Second Pass
• RAM / Disk-backed bit-exact assembly, cache/requeue, Preview, Save, VHS, interrupt, stale cleanup, and a 9.49 GiB mapped IMAGE stress
• Auto backend selection in both the real 1.65 GiB Long Terminal Merge case and the 9.49 GiB stress case
• Experimental integrated Main Hi-Res Fix for FL2VA 1x5, 576x576 to 1152x1152
• Hybrid FL2VA + Reference 1x5 through both the integrated 576-to-1152 Main Hi-Res Fix and the direct 576x576 Advanced Second Pass node

No OOM was observed in the cited recent local V3.4 checks, including two-chunk 800 x 800 runs. This is not a universal memory guarantee. Model precision, LoRAs, source resolution, optional nodes, GPU, and RAM affect memory use.

Limits

• Second Pass / refine_context is not supported while a Review sequence is partial. Finish Review before starting Second Pass.
• The 16GB GPU Gate passed with small VRAM headroom; memory use depends on the complete environment and workflow.
• Continuation does not guarantee frame-perfect identity or motion.
• Video Guide Frames guides H3; it does not reproduce every source frame.
• Driving Audio preserves selected audio, but visual lip synchronization remains model-dependent.
• FL2VA may settle on the supplied Last Frame before the requested duration ends; equivalent Core runs can show the same behavior.
• Long, high-resolution sequences may exceed system RAM during final decode and assembly even when chunk sampling succeeds.
• Disk-backed assembly lowers anonymous/private memory commitment for the final Continuum IMAGE, but Core Decode and downstream nodes may still allocate large RAM copies.
• Main Hi-Res Fix 3x5 2x is not accepted on the tested RTX 5060 Ti 16 GiB: the 37T group completed at 1152x1152, but the terminal 77T group failed at its first Second Pass inference with CUDA OOM. Reference/Hybrid-specific 1x5 acceptance passed; longer Hybrid/Reference cases remain unverified.
• Direct high-ratio interpolation with Latent Resize can create persistent H3 artifacts; use the Pixel/VAE Main path or an appropriate external H3 latent processor.
• Match Output can be substantially slower than 0.4 MP or 0.6 MP.
• Seam correction may keep the native boundary when a proposed correction is not safer.
• Optional template nodes must be installed, replaced, or bypassed by the user.

License

See LICENSE.
