llm_comfy_multimodal

Local-first multimodal reasoning inside ComfyUI.

What makes this powerful:

• Graph-native VLM: use an LLM/VLM as a node that can read up to 3 images, write text, and drive the rest of your workflow.
• Closed-loop pipelines: describe → write prompt → generate → QC → edit (consistency-locked) without copy/paste.
• Preset prompts as files: drop a .md into presets/system/ or presets/context/ and it becomes selectable in the UI.
• Runs on your machine: GGUF + mmproj (llama.cpp) first, with transformers as an optional fallback.

Custom nodes for ComfyUI that run text + vision models inside ComfyUI (same Python process). You can use:

• GGUF + mmproj (llama.cpp via llama-cpp-python) for local VLMs like Qwen / Gemma3
• Transformers (HF id or local snapshot folder) for text-only or VLMs

All nodes show up under the llm/multimodal menu (search “Multimodal”).

---

Requirements (read this first)

• ComfyUI installed and running.
• Python deps installed into the same Python environment ComfyUI uses.
• For GGUF runs: a working llama-cpp-python build (CUDA wheel if you want GPU speed).
• Your models live in ComfyUI’s model folder:
  • GGUF + mmproj: ComfyUI/models/llm/<your_model>/
  • Transformers snapshots (optional): ComfyUI/models/llm/<your_transformers_model>/

---

Install

1. Copy this folder to:

ComfyUI/custom_nodes/llm_comfy_multimodal/

2. Install deps (from ComfyUI’s Python):

pip install -r ComfyUI/custom_nodes/llm_comfy_multimodal/requirements.txt

3. (GGUF) Install a CUDA-capable llama-cpp-python wheel that matches your system.

   • Use node “Multimodal — CUDA / Python report” to see your pip_wheel_cuda_tag_hint (e.g. cu124).
   • Use node “Multimodal — llama-cpp wheel pick (GitHub)” (internet required) or CLI:
     • python -m llm_comfy_multimodal.install_llama_wheel

4. Restart ComfyUI.

---

Where to put GGUF + mmproj

Put both files in a subfolder under ComfyUI/models/llm/:

ComfyUI/models/llm/MyModel/
  MyModel-Q8_0.gguf
  mmproj-MyModel-BF16.gguf

Rules:

• You need two different files: main weights + mmproj*.gguf
• Download main + mmproj from the same release family (don’t mix mmproj across models)

---

Main node (Multimodal — LLM)

Vision run

• use_vision = True
• connect image (or image2 / image3)
• set both GGUF fields (main + mmproj) or use combined_model for transformers VLM

Text-only run

• use_vision = False (linked images are ignored)
• if GGUF main+mmproj are set → llama.cpp text-only chat on that stack
• otherwise → text-only transformers using combined_model

Notes:

• keep_models_loaded controls this extension’s cache only (HF pipelines / llama-cpp instances). It does not unload SD checkpoints.
• Seed controls sampling randomness; it does not create a separate “chat session”.

---

GGUF handler choices

Set gguf_vlm_handler to match your GGUF family:

• qwen3-vl: Qwen3-VL GGUF + mmproj (requires a wheel that exports Qwen3VLChatHandler)
• qwen2.5-vl: Qwen2.5-VL
• gemma3: Gemma 3 GGUF + mmproj
• llava-1.6 / llava-1.5: LLaVA families

If you pick the wrong handler, you’ll usually get “can’t see the image” or empty/odd output.

---

Helper nodes

• Multimodal — System prompter: picks a system prompt preset (presets/system/*.md) and outputs system_prompt + a preview.
• Multimodal — Context handler: builds extra_context from toggle-able blocks (text/file/preset), plus a preview.
• Multimodal — GGUF settings sorter: heuristic defaults from GGUF filenames (handler/n_ctx/etc.).
• Multimodal — Context schema builder / parser: prompt contracts + <context>...</context> extraction.
• Bonus: LLM text → image intent: routes an LLM reply into KSampler-style prompt fields.

---

Workflow example (included)

This repo includes a ready-to-import ComfyUI workflow:

• workflow/multimodal - LLM.json

And two reference images:

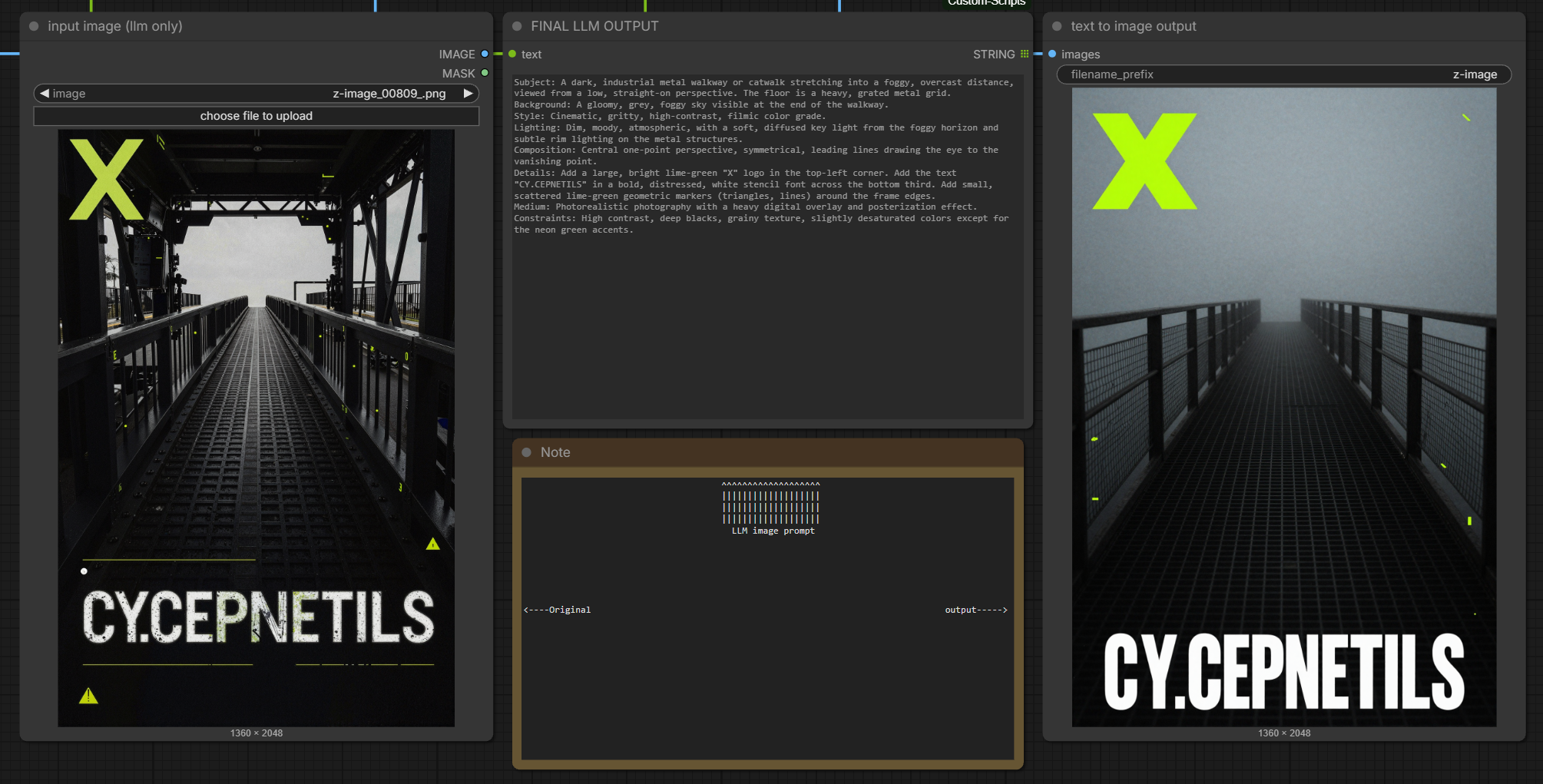

• workflow/preview(not workflow).png (this README header image)
• workflow/workflow.png (full graph screenshot)

How to use:

1. In ComfyUI, load the workflow JSON (drag/drop it onto the canvas, or use ComfyUI’s workflow load menu).
2. The graph demonstrates the typical pattern:
   • LoadImage → Multimodal — Context handler + Multimodal — System prompter → Multimodal — LLM
   • LLM output → prompt routing → CLIP encodes → KSampler (example “text to image output”)

---

Presets (system + context)

You can add your own .md files:

• System presets: presets/system/
• Context presets: presets/context/

Restart ComfyUI to refresh the dropdowns.

---

Troubleshooting

GGUF is slow / OOM / thrashing VRAM

• Don’t run two ComfyUI instances on one GPU if you can avoid it (each loads its own models).
• Lower gguf_n_ctx, lower max_new_tokens, turn off streaming to isolate issues.
• Ensure main+mmproj are a matched pair; wrong mmproj often causes failures or silent degradation.

“cannot import name Qwen3VLChatHandler” / vision doesn’t work for Qwen3

• You’re using a llama-cpp-python build without Qwen3-VL support.
• Use the wheel picker node or install a Qwen3-capable build.

Handler mismatch (Gemma/Qwen/LLaVA)

• Try the correct gguf_vlm_handler for your weights.
• Gemma 3 vision needs gemma3.

Dropdown shows weird values / node inputs feel scrambled

• Delete and re-add the node (old workflows can have socket order drift).

Unsure what branch actually ran

• Keep log_load_details = True and read the ComfyUI console:
  • branch (combined+GGUF+VLM, combined+GGUF+text, combined+HF+VLM_pipeline, combined+causal_LM)
  • resolved model paths and handler tag

---

Repo layout (quick)

• nodes.py: ComfyUI nodes
• gguf_multimodal.py: GGUF + mmproj backend (llama-cpp-python)
• presets/system/: system prompt presets
• presets/context/: context blocks / schemas
• requirements.txt: python deps
