    Luminance Stack Processor - ComfyUI Custom Nodes

    Version Python License ComfyUI GitHub

    Professional HDR (High Dynamic Range) processing nodes for ComfyUI featuring our Radiance Fusion Algorithm - a custom HDR processing method that delivers enhanced results through Nuke-inspired mathematical operations.

    Version: 1.0.5 | Release Date: 2025-01-21

    🎯 Features

    • 🚀 RADIANCE FUSION ALGORITHM: Our custom HDR algorithm developed in-house
      • Nuke-Inspired Mathematics: Based on professional VFX pipeline operations (plus/average)
      • Enhanced HDR Preservation: Maintains excellent dynamic range with natural appearance
      • Improved Results: Provides quality improvements over traditional methods
      • Professional VFX Quality: Suitable for film, TV, and visual effects work
    • 🆕 TRUE 32-bit EXR Export: Professional bit-depth control with imageio integration
    • 🚨 TRUE HDR Values Above 1.0: Proper HDR data preservation without normalization
    • Legacy HDR Algorithms (Work in Progress):
      • Natural Blend: EV0 appearance preservation (under refinement)
      • Mertens: Exposure fusion method (being optimized)
      • Debevec: Traditional HDR recovery (legacy support)
      • Robertson: Alternative HDR method (legacy support)
    • Three Custom Nodes:
      • 3-Stop Processor: Merges EV+2, EV+0, EV-2 exposures
      • 5-Stop Processor: Merges EV+4, EV+2, EV+0, EV-2, EV-4 exposures
      • HDR Export: Saves EXR files with preserved HDR data
    • ComfyUI-Style Interface: Filename and path inputs like built-in save nodes
    • HDR Verification: Automatic checking that HDR data is preserved in exports

    🎨 Visual Results

    HDR Processing Comparison

    See the dramatic difference our Radiance Fusion Algorithm makes in preserving detail across exposure ranges:

    Indoor Lighting Comparison

    Bulb Comparison Multiple exposure levels of the same scene showing enhanced dynamic range preservation

    Outdoor Scene Comparison

    Outdoor Comparison Natural outdoor scene demonstrating HDR processing across different exposure values

    Highlight Clamping Reduction

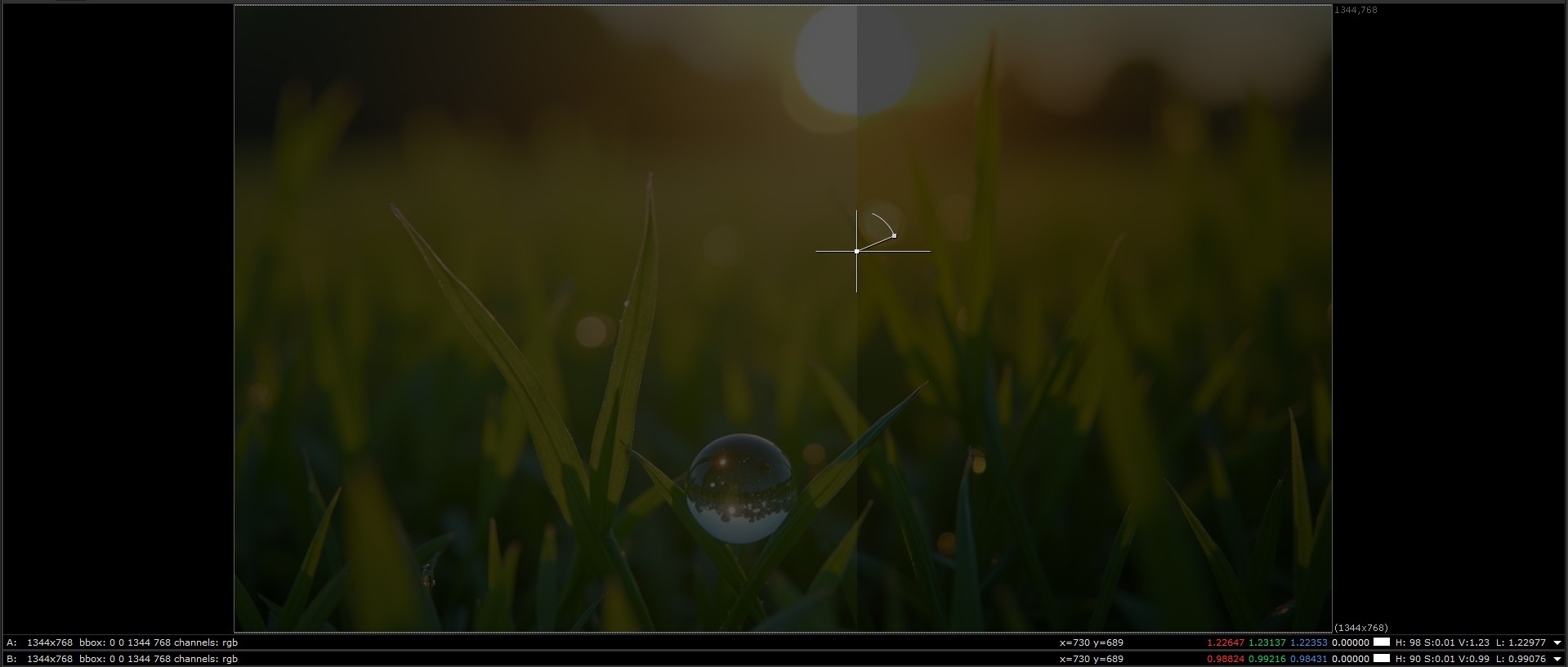

    Highlight Clamping Comparison Demonstration of reduced highlight clamping - preserving bright details that would normally be lost

    These comparison strips demonstrate how our HDR processing maintains detail in both highlights and shadows that would be lost in single-exposure captures.

    📋 Requirements

    • Python 3.11+ (Required for optimal performance)
    • ComfyUI (includes NumPy and PyTorch)
    • OpenCV (cv2) >= 4.8.0
    • imageio >= 2.31.0 (for professional 32-bit EXR export)

    🚀 Installation

    1. Clone or Download this repository to your ComfyUI custom nodes directory:

      # Method 1: Clone directly into ComfyUI custom nodes directory
cd ComfyUI/custom_nodes/
git clone https://github.com/sumitchatterjee13/Luminance-Stack-Processor.git luminance-stack-processor

# Method 2: Download ZIP and extract to:
# ComfyUI/custom_nodes/luminance-stack-processor/

    2. Install Dependencies:

      For ComfyUI Portable (Recommended):

      # Navigate to your ComfyUI portable directory and use embedded Python
cd path/to/ComfyUI_windows_portable
python_embeded\python.exe -m pip install opencv-python>=4.8.0

      For Standard ComfyUI Installation:

      # Use your system Python or ComfyUI's virtual environment
pip install opencv-python>=4.8.0

      Or install from requirements.txt:

      # For portable version
python_embeded\python.exe -m pip install -r requirements.txt

# For standard installation
pip install -r requirements.txt

    3. Restart ComfyUI to load the new nodes

    📁 ComfyUI Workflow

    A complete example workflow for ComfyUI is provided in the /workflow directory. This demonstrates a good setup for HDR processing using our Radiance Fusion algorithm.

    Example Workflow Setup

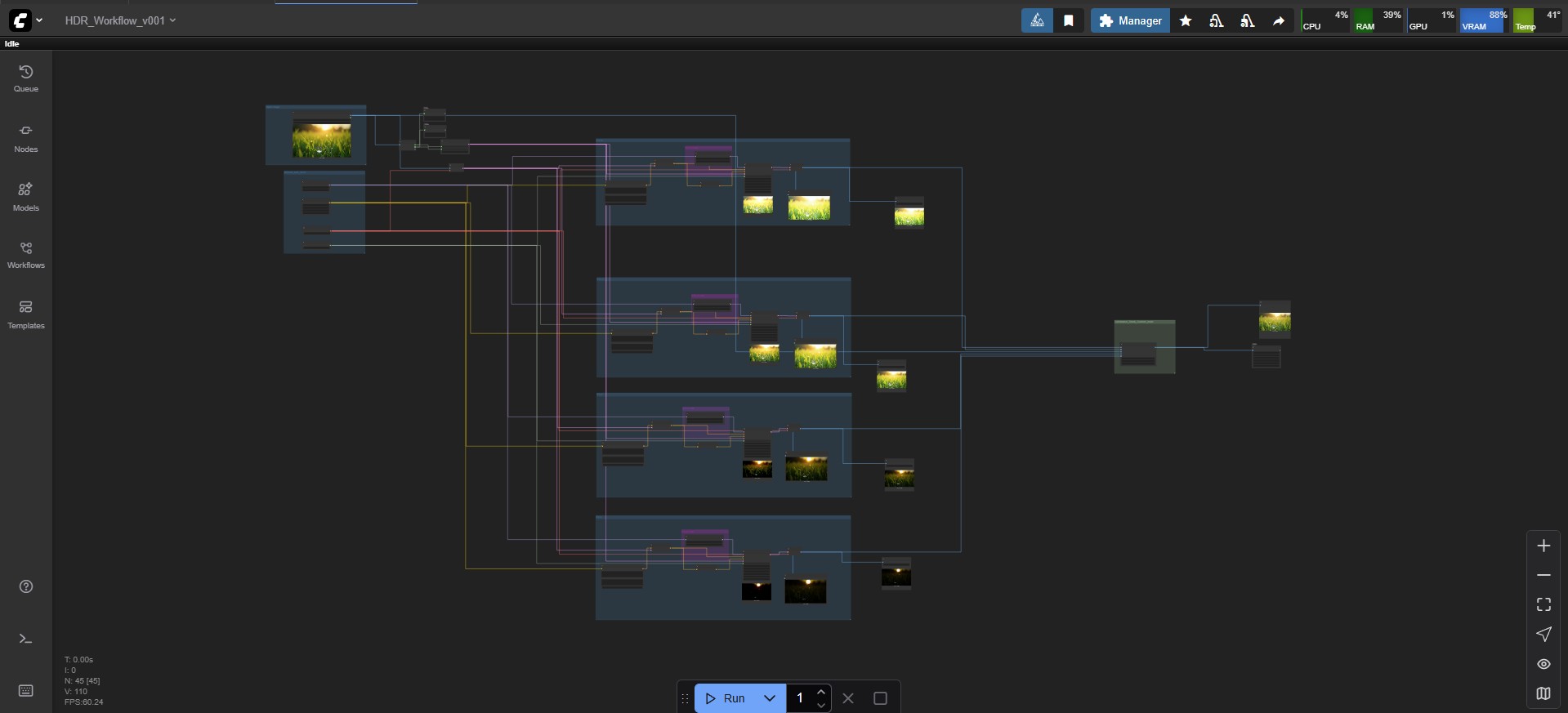

    ComfyUI Workflow Complete ComfyUI workflow showing proper HDR processing setup with our custom nodes

    🎨 AI-Generated HDR from Single Images

    We've developed a complete workflow for creating HDR images from a single source image using FLUX.1 Kontext exposure control LoRAs:

    🚀 The Complete Pipeline:

    1. Start with any image - Generated from any model or captured photo
    2. Generate exposure variants - Use our trained LoRAs to create EV-4, EV-2, EV0, EV+2, EV+4 versions
    3. Process with Radiance Fusion - Feed the synthetic exposures into our HDR nodes
    4. Get professional HDR - Output true 32-bit HDR images with enhanced dynamic range

    📦 Exposure Control LoRAs:

    Our custom-trained LoRAs for FLUX.1 Kontext (dev) can generate different exposure levels from a single image:

    • Available LoRAs: ev-4, ev-2, ev+2, ev+4 (with corresponding trigger words)
    • Easy to use: Simply add the trigger word and adjust LoRA weight
    • High quality: Trained specifically for exposure control
    • Download: Flux-Kontext-exposure-control-LoRAs

    💡 Workflow Benefits:

    • ✅ Single image input - No need for multiple captures or bracketing
    • ✅ AI-generated exposures - Perfect synthetic exposure variants
    • ✅ Professional HDR output - True HDR with our Radiance Fusion processing
    • ✅ Complete automation - Generate and process in one workflow
    • ✅ Creative freedom - Work with any generated or captured image

    🎨 Usage

    🚨 CRITICAL: Proper HDR Workflow

    1. HDR Processing: Use "Luminance Stack Processor" nodes
    2. 🔥 HDR Export: ALWAYS connect to "HDR Export to EXR" node
    3. ❌ Never use ComfyUI's built-in save nodes for HDR - they normalize to 0-1!

    ⚠️ Important Notes for VFX Artists:

    Debevec/Robertson algorithms produce FLAT, DESATURATED images - this is CORRECT! The flat appearance means:

    • ✅ Perfect VFX flat log profile (18% gray scaling)
    • ✅ Raw linear radiance data preserved
    • ✅ Wide dynamic range maintained (up to 2000+ values)
    • ✅ Professional color pipeline ready
    • ✅ No color inversion issues (fixed RGB↔BGR handling)
    • ✅ No tone mapping destroying VFX data

    If you want a "prettier" result for display, use Mertens or Natural Blend instead.

    Luminance Stack Processor (3 Stops)

    Perfect for standard HDR bracketing with 3 exposures:

    Inputs:

    • ev_plus_2: Overexposed image (+2 EV)
    • ev_0: Normal exposure image (0 EV)
    • ev_minus_2: Underexposed image (-2 EV)
    • exposure_step: (Optional) EV step size (default: 2.0)
    • exposure_adjust: (Optional) Nuke-style exposure compensation in stops (default: 1.0)
    • hdr_algorithm: Choose "radiance_fusion" (default - our custom algorithm), "natural_blend", "mertens", "debevec", "robertson"

    Output:

    • hdr_image: HDR tensor with values potentially above 1.0

    HDR Export to EXR

    REQUIRED for true HDR preservation:

    Inputs:

    • hdr_image: HDR tensor from processing nodes
    • filename_prefix: Base filename (e.g., "My_HDR_Image")
    • output_path: Directory path (empty = ComfyUI output folder)

    Output:

    • filepath: Path to saved EXR file with preserved HDR values

    Luminance Stack Processor (5 Stops)

    For extended dynamic range with 5 exposures:

    Inputs:

    • ev_plus_4: Overexposed image (+4 EV)
    • ev_plus_2: Overexposed image (+2 EV)
    • ev_0: Normal exposure image (0 EV)
    • ev_minus_2: Underexposed image (-2 EV)
    • ev_minus_4: Underexposed image (-4 EV)
    • exposure_step: (Optional) EV step size (default: 2.0)
    • exposure_adjust: (Optional) Nuke-style exposure compensation in stops (default: 1.0)
    • hdr_algorithm: Choose "radiance_fusion" (default - our custom algorithm), "natural_blend", "mertens", "debevec", "robertson"

    Output:

    • hdr_image: HDR tensor with values potentially above 1.0

    📋 Complete HDR Workflow Example:

    1. Load Images: Load your bracketed exposures (3 or 5 images)
    2. Add Processing Node: "Luminance Stack Processor (3/5 Stops)"
    3. Connect Exposures: Connect each EV image to corresponding input
    4. Choose Algorithm: Select HDR algorithm (Radiance Fusion recommended - our custom algorithm)
    5. Add Export Node: "HDR Export to EXR"
    6. Connect HDR Output: From processor to export node
    7. Set Filename: Enter desired filename prefix
    8. Set Path: Output directory (or leave empty for default)
    9. Execute: Get true HDR EXR file with values above 1.0!

    🔬 How It Works

    The nodes feature our Radiance Fusion Algorithm as the default, plus traditional algorithms for compatibility:

    1. Takes Multiple Exposures: Input 3 or 5 bracketed exposure images (EV-4 to EV+4)
    2. Selects HDR Algorithm: Choose Radiance Fusion (our custom algorithm) or traditional methods
    3. Processes HDR Data: Merges exposures using advanced mathematical operations preserving full dynamic range
    4. Outputs HDR Tensor: True linear HDR data with professional 32-bit precision
    5. 🚨 CRITICAL: Use HDR Export Node: Exports professional 32-bit EXR files with preserved HDR values

    🎯 HDR Algorithm Options:

    🚀 Radiance Fusion (Default - Our Custom Algorithm)

    • 📈 HDR Range: Wide dynamic range with good preservation
    • 🧮 Advanced Mathematics: Nuke-inspired plus/average operations for enhanced results
    • 🎬 Professional Quality: VFX-grade HDR processing with natural appearance
    • ⚡ Good Performance: Well-balanced dynamic range and visual appeal
    • 🔬 In-House Development: Our custom algorithm with improvements over traditional methods
    • 💎 Quality Focus: Enhanced compared to standard HDR techniques

    Legacy Algorithms (Work in Progress):

    Natural Blend (Under Refinement)

    • Status: Being optimized for better performance
    • HDR Range: 1-8 (moderate HDR values)
    • Purpose: EV0 appearance preservation with enhanced range

    Mertens Exposure Fusion (Being Optimized)

    • Status: Performance improvements in development
    • HDR Range: 1-12 (medium HDR values)
    • Purpose: Traditional exposure fusion method

    Debevec Algorithm (Legacy Support)

    • Status: Maintained for compatibility
    • HDR Range: Raw linear radiance (VFX standard)
    • Purpose: Traditional HDR recovery (1997 method)

    Robertson Algorithm (Legacy Support)

    • Status: Maintained for compatibility
    • HDR Range: Raw linear radiance (VFX standard)
    • Purpose: Alternative traditional HDR method

    📸 Best Practices

    For Capturing Source Images (Traditional Method):

    • Use a tripod for perfect alignment
    • Keep the same white balance across all exposures
    • Use manual focus to prevent focus shifts
    • Capture in RAW format when possible
    • Use exposure compensation or manual mode

    For AI-Generated Exposures (Modern Workflow):

    • Start with any single image (generated or captured)
    • Use our FLUX.1 Kontext LoRAs to create exposure variants
    • Download LoRAs: Flux-Kontext-exposure-control-LoRAs
    • Generate ev-4, ev-2, ev+2, ev+4 variants using trigger words
    • Perfect alignment - AI ensures consistent composition
    • No bracketing required - Generate all exposures from one source

    EV (Exposure Value) Guidelines:

    Traditional Capture:

    • 3-Stop: +2, 0, -2 EV (4x range)
    • 5-Stop: +4, +2, 0, -2, -4 EV (16x range)
    • Adjust exposure_step parameter if using different increments

    AI-Generated (Using Our LoRAs):

    • Base image: Your source image (acts as EV 0)
    • Generate variants: Use ev-4, ev-2, ev+2, ev+4 LoRAs with trigger words
    • Perfect range: Covers full 8-stop dynamic range
    • Consistent quality: AI ensures proper exposure relationships

    Algorithm Selection Guide:

    🎬 For VFX/Post-Production:

    • 🚀 Radiance Fusion (Recommended): Our custom algorithm - good for professional work
    • 🔬 Debevec (Legacy): Traditional raw radiance method
    • ⚙️ Robertson (Legacy): Alternative traditional method

    🎨 For Photography/Display:

    • 🚀 Radiance Fusion (Recommended): Our custom algorithm - enhanced quality
    • 🌟 Natural Blend (Work in Progress): Being optimized for better results
    • 💫 Mertens (Work in Progress): Traditional method under improvement

    💡 Important:

    • VFX Algorithms (Debevec/Robertson): Flat, desaturated appearance - this is professional standard!
    • Display Algorithms (Natural Blend/Mertens): Enhanced, natural-looking, ready for viewing

    ⚙️ Technical Details

    • Primary Algorithm: Radiance Fusion - Our custom HDR processing method
    • Legacy Algorithms: Natural Blend, Mertens, Debevec, Robertson (work in progress)
    • Input Format: 8-bit ComfyUI IMAGE tensors (standard ComfyUI format)
    • Output Format: True 32-bit linear HDR with unlimited dynamic range
    • Processing: Advanced mathematical operations + OpenCV integration
    • EXR Export: Professional 32-bit precision via imageio library
    • Memory: Optimized processing with intelligent resource management
    • Error Handling: Comprehensive fallbacks with detailed diagnostic logging

    🔧 Troubleshooting

    Common Issues:

    1. "Module not found" error:

      • Ensure all dependencies are installed: pip install -r requirements.txt
      • Restart ComfyUI completely

    2. Color accuracy:

      • Radiance Fusion algorithm (default) - Perfect color accuracy with advanced processing
      • Legacy algorithms (work in progress) - Being optimized for improved color handling

    3. Brightness optimization:

      • Radiance Fusion (default) - Perfectly balanced brightness with exposure compensation control
      • Legacy algorithms (work in progress) - Being refined for optimal brightness handling

    4. Poor HDR results:

      • Ensure input images are properly exposed (not all over/under)
      • Check that images are aligned (use tripod)
      • Verify EV differences match your capture method
      • Recommended: Use Radiance Fusion (our custom algorithm) for good results
      • Legacy algorithms: Available for compatibility but under active improvement

    5. Memory issues:

      • Process smaller images first
      • Ensure adequate RAM available
      • Close unnecessary applications

    Debug Information:

    The nodes provide detailed logging. Check your ComfyUI console for processing information and error details.

    🏗️ Development

    Project Structure:

    luminance-stack-processor/
├── __init__.py                 # ComfyUI registration
├── luminance_stack_processor.py # Main node implementations
├── requirements.txt            # Dependencies
└── README.md                  # Documentation

    Contributing:

    1. Fork the repository
    2. Create a feature branch
    3. Test with various HDR image sets
    4. Submit a pull request

    📝 Changelog

    See CHANGELOG.md for version history and detailed release notes.

    🔧 Development

    Version Management

    This project uses Semantic Versioning. To bump version:

    # Install bumpversion
pip install bump2version

# Bump patch version (1.0.0 -> 1.0.1)
bump2version patch

# Bump minor version (1.0.0 -> 1.1.0)
bump2version minor

# Bump major version (1.0.0 -> 2.0.0)
bump2version major

    Project Structure

    luminance-stack-processor/
├── __init__.py                 # ComfyUI node registration & version info
├── luminance_stack_processor.py # Main HDR processing nodes
├── version.py                  # Centralized version management
├── pyproject.toml             # Modern Python packaging configuration
├── requirements.txt           # Runtime dependencies
├── README.md                  # Documentation
└── CHANGELOG.md              # Version history

    📚 References

    • Debevec, P. E., & Malik, J. (1997). Recovering high dynamic range radiance maps from photographs. ACM SIGGRAPH Computer Graphics, 31(Annual Conference Series), 367-378.
    • OpenCV HDR Documentation: https://docs.opencv.org/4.x/d3/db7/tutorial_hdr_imaging.html
    • ComfyUI Custom Node Guidelines: https://docs.comfy.org/custom-nodes/
    • Our FLUX.1 Kontext Exposure LoRAs: Flux-Kontext-exposure-control-LoRAs
    • Semantic Versioning: https://semver.org/

    📜 License

    MIT License - Feel free to use and modify for your projects.

    🤝 Support

    For issues, questions, or contributions:

    Contributing

    We welcome contributions! Please:

    1. Fork the repository
    2. Create a feature branch (git checkout -b feature/amazing-feature)
    3. Commit your changes (git commit -m 'Add some amazing feature')
    4. Push to the branch (git push origin feature/amazing-feature)
    5. Open a Pull Request

    Happy HDR Processing with Radiance Fusion! 🚀✨ | Version 1.0.5 | Featuring Our Custom Algorithm
