ComfyUI Extension: ComfyUI-Flux-Inpainting

Authored by rubi-du

Created

Updated

14 stars

This node wraps the flux fill model as ComfyUI nodes. Use NF4 flux fill model, support for inpainting and outpainting image. Compared to the flux fill dev model, these nodes can use the flux fill model to perform inpainting and outpainting work under lower VRM conditions.

Custom Nodes (0)

    README

    <h1 align="center">ComfyUI-Flux-Inpainting</h1>

    Introduction

    This repository wraps the flux fill model as ComfyUI nodes. Use NF4 flux fill model, support for inpainting and outpainting image. Compared to the flux fill dev model, these nodes can use the flux fill model to perform inpainting and outpainting work under lower VRM conditions<br>

    News

    • Dec 26, 2024: Add FluxGuffInpainting node to support loading gguf models<br>
    • Dec 11, 2024: Add FluxSimpleInpainting, FluxTransformerInpainting, FluxVAELoader nodes can be used to split pipelines and comfyui clip and vae loader can be used instead<br>

    Installation

    Method 1:

    1. Navigate to the node directory, ComfyUI/custom_nodes/
    2. git clone https://github.com/rubi-du/ComfyUI-Flux-Inpainting.git
    3. cd ComfyUI-Flux-Inpainting
    4. pip install -r requirements.txt
    5. Restart ComfyUI

    Method 2:

    Directly download the node source code package, unzip it into the custom_nodes directory, and then restart ComfyUI.

    Method 3:

    Install via ComfyUI-Manager by searching for "ComfyUI-Flux-Inpainting".

    Usage

    Nodes

    • FluxInpainting
    • FluxSimpleInpainting
    • FluxTransformerInpainting
    • FluxVAELoader
    • FluxGuffInpainting

    FluxGuffInpainting special Instruction

    The FluxGuffInpainting node only need to load the guff model and put them into the ComfyUI/models/unet folder and don't need load other submodels from FLUX.1-Fil-dev vae model download links: https://hf-mirror.com/YarvixPA/FLUX.1-Fill-dev-gguf/tree/main

    FluxTransformerInpainting special instruction

    The FluxTransformerInpainting node only need to load the transformer submodel from the FLUX.1-Fil-dev-nf4 model and don't need load other submodels from FLUX.1-Fil-dev

    FluxVAELoader special instruction

    The FluxVAELoader node need to load the flux fill vae model from the ComfyUI/models/vae directory, so you need to download the model and place it in the ComfyUI/models/vae directory vae model download links: https://huggingface.co/black-forest-labs/FLUX.1-Fill-dev/tree/main/vae<br/>

    Models

    The node needs to load the transformer and text_decoder_2 submodels from the FLUX.1-Fil-dev-nf4 model and load other submodels from FLUX.1-Fil-dev, so these two models need to be placed in the models folder <br/> Model download links:<br/>
    FLUX.1-Fil-dev: https://huggingface.co/black-forest-labs/FLUX.1-Fill-dev<br/>
    FLUX.1-Fil-dev-nf4: https://huggingface.co/sayakpaul/FLUX.1-Fill-dev-nf4<br/> FLUX.1-Fill-dev-gguf: https://hf-mirror.com/YarvixPA/FLUX.1-Fill-dev-gguf/tree/main<br/> The directory structure is as follows:<br/>

    ComfyUI/models/
└── FLUX.1-Fill-dev
    ├── vae
    └── scheduler
    └── text_encoder
    └── ...
└── FLUX.1-Fill-dev-nf4
    ├── transformer
    └── text_decoder_2

    Workflows

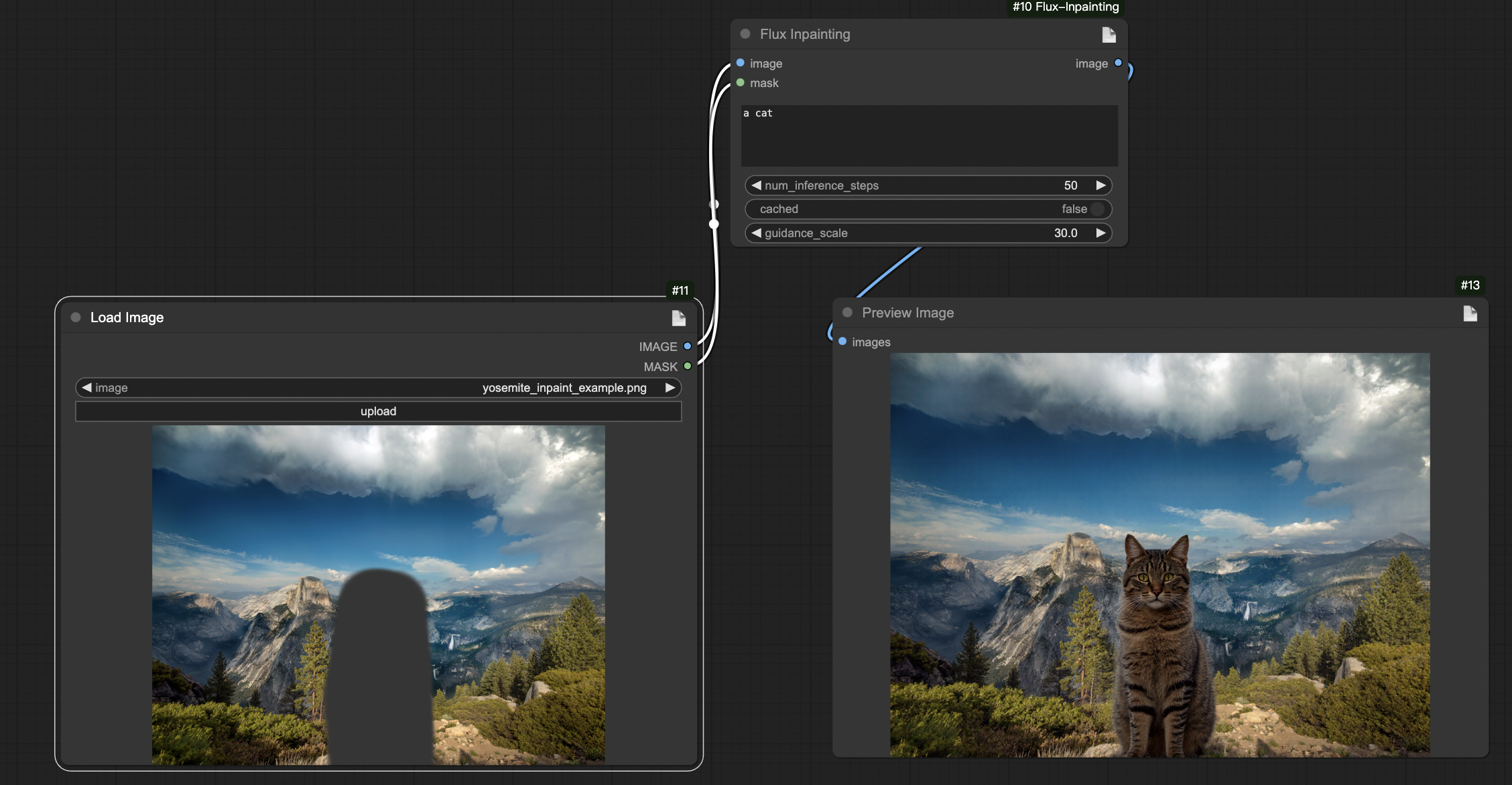

    Usage of inpainting workflow<br/>
    Workflow Address
    plot

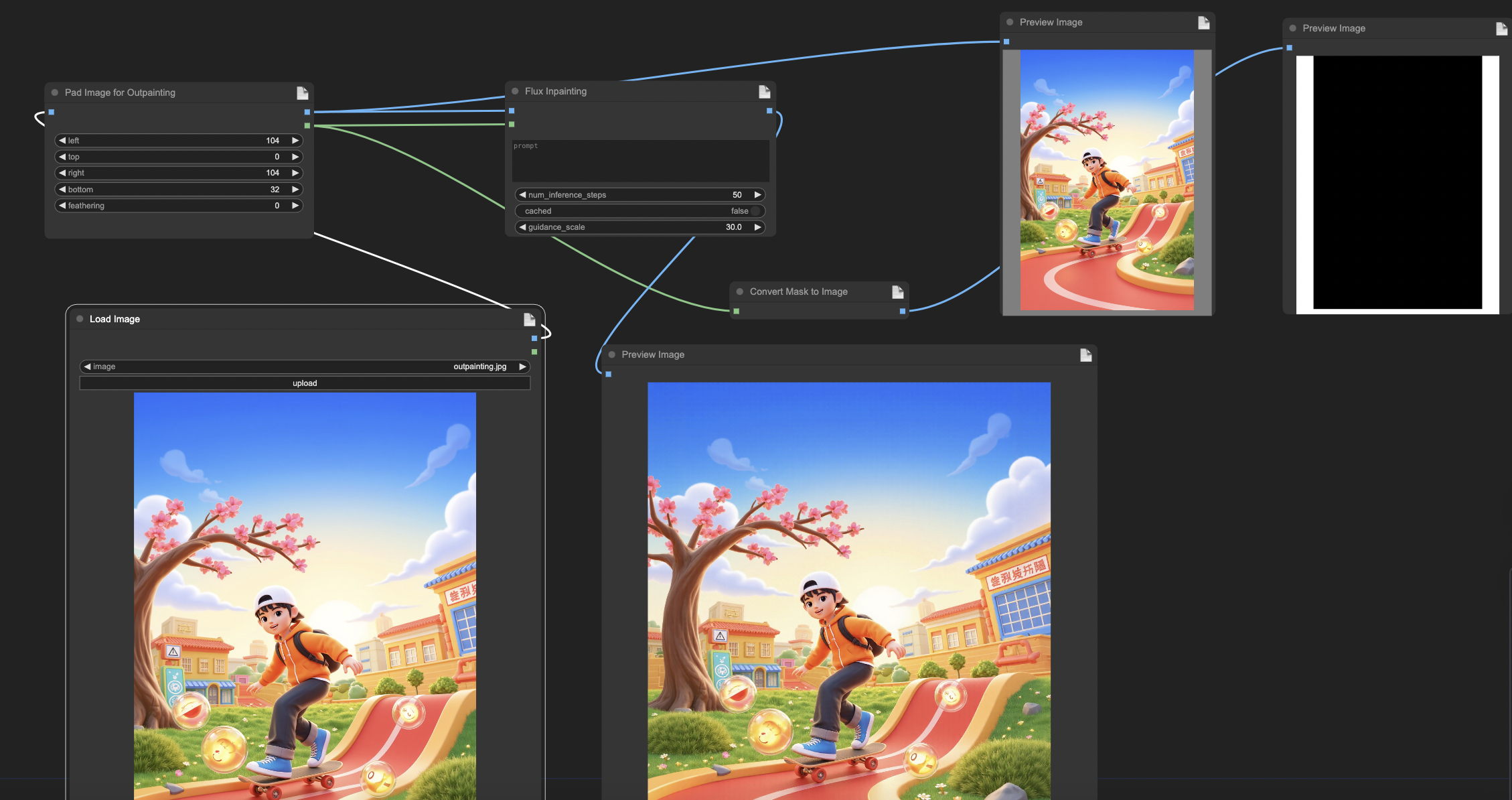

    Usage of outpainting workflow<br/>
    Workflow Address
    plot

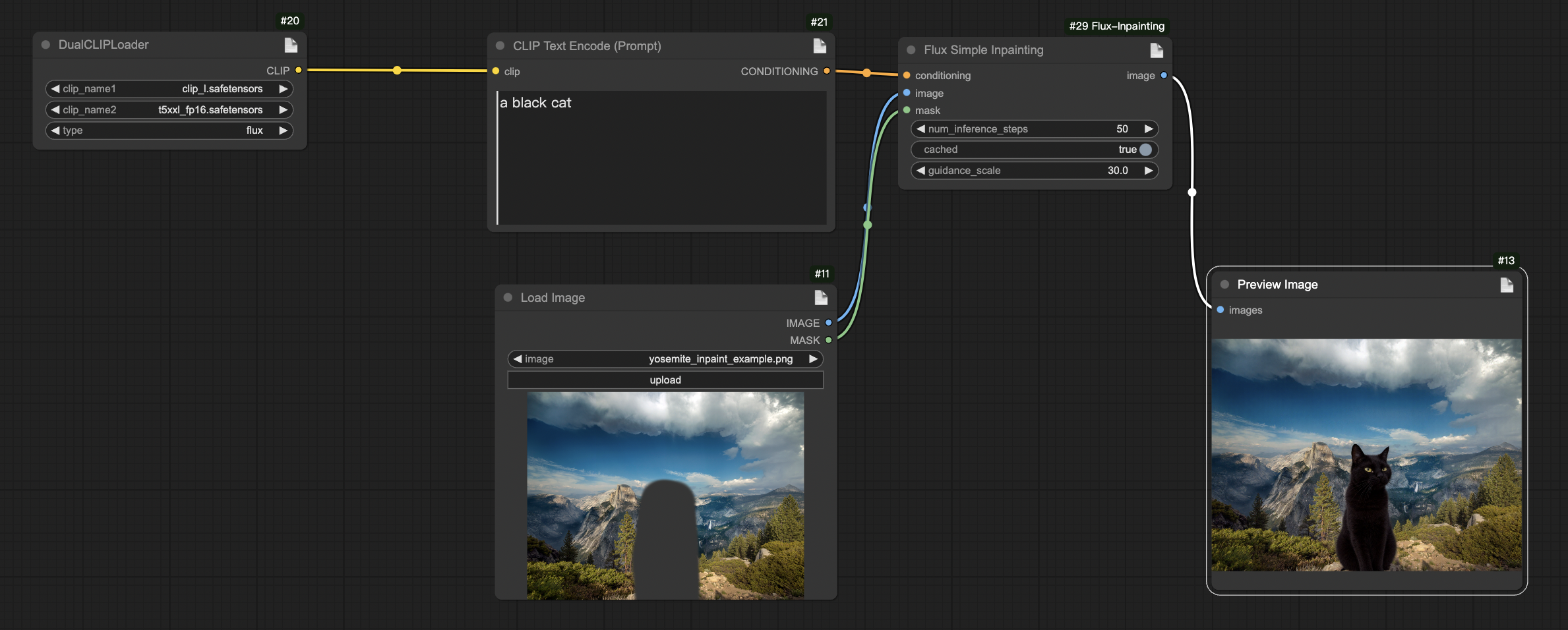

    Usage of FluxSimpleInpainting workflow<br/>
    Workflow Address
    plot

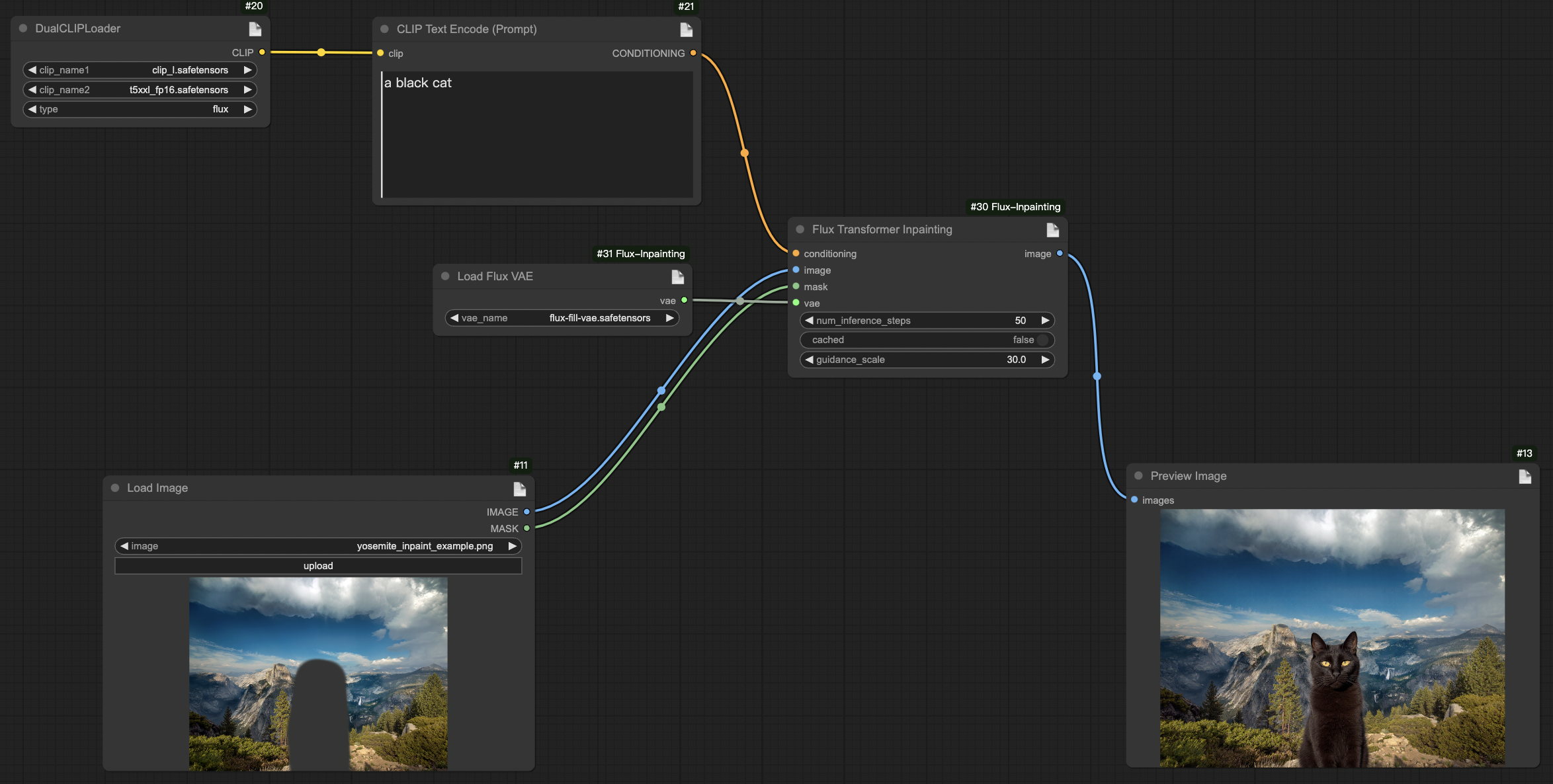

    Usage of FluxTransformerInpainting workflow<br/>
    Workflow Address
    plot

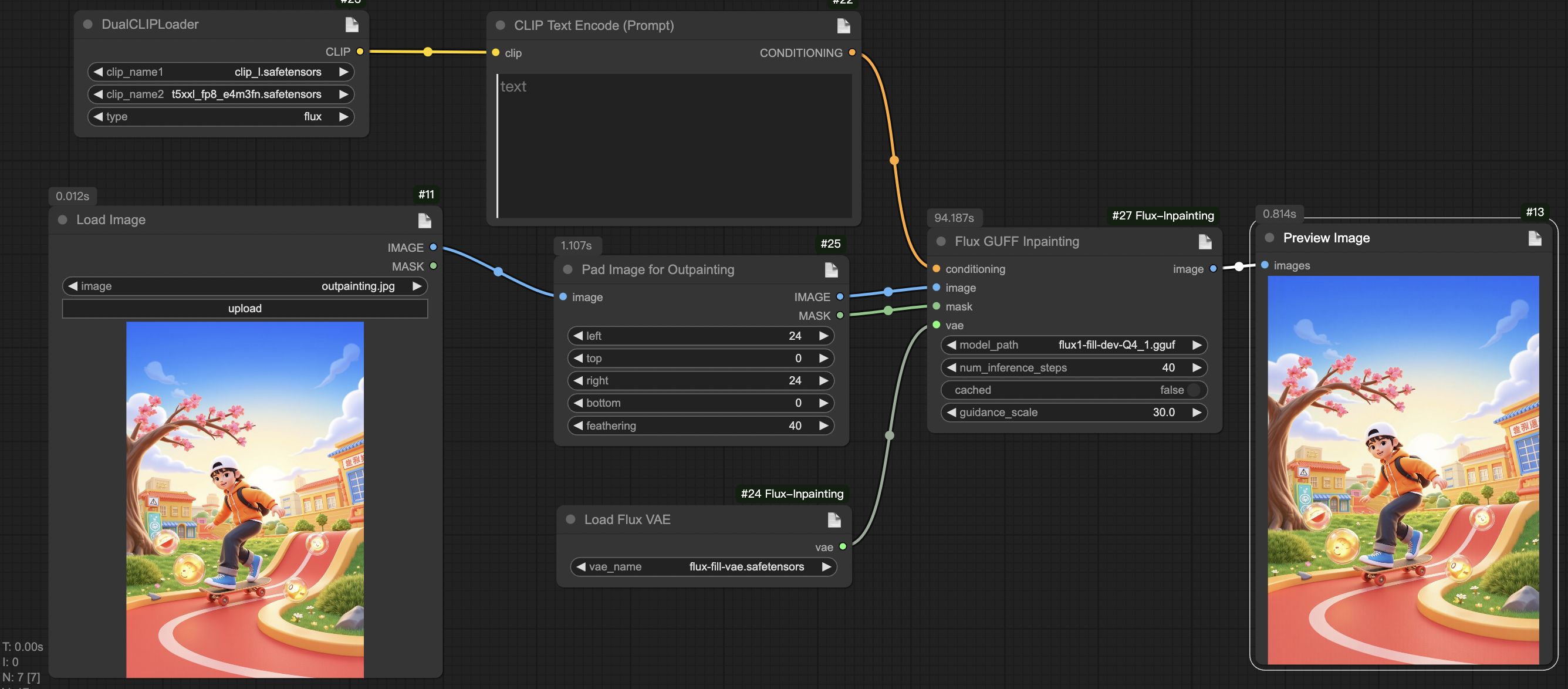

    Usage of FluxGuffInpainting workflow<br/>
    Workflow Address
    plot
