Extensions/ComfyUI-Sigmax
ComfyUI Extension

ComfyUI-Sigmax

Model-aware sigma schedules, sampler compatibility validation, and versioned inference profiles for ComfyUI

By rookiestar28·Created 27 days ago·Updated 3 days ago· 9
rookiestar28/ComfyUI-Sigmax
Nodes24
On cloudLocal install
CategorySigmax/scheduling, Sigmax/inspection
Stars9
Updated3 days ago

Nodes (24)

Advanced FlowMatch Scheduler
Sigmax/scheduling
Anima Sigma Scheduler
Sigmax/scheduling
AuraFlow Sigma Scheduler
Sigmax/scheduling
Checkpoint Evidence Inspector
Sigmax/inspection
FLUX.1-schnell Sigma Scheduler
Sigmax/scheduling
HunyuanImage 2.1 Sigma Scheduler
Sigmax/scheduling
Krea 2 Conditioning Rebalance
Sigmax/conditioning
Krea 2 Sigma Scheduler
Sigmax/scheduling
LTX Sigma Scheduler
Sigmax/scheduling
Lumina-Image 2.0 Sigma Scheduler
Sigmax/scheduling
MiniMax H3 Sigma Scheduler
Sigmax/scheduling
Model-Aware Sigma Scheduler
Sigmax/scheduling
Profile Inspector
Sigmax/inspection
Qwen Image Sigma Scheduler
Sigmax/scheduling
RAW Workflow Output
Sigmax/workflows
Schedule Comparison
Sigmax/inspection
Schedule Concatenate
Sigmax/scheduling
Schedule Inspector
Sigmax/inspection
Schedule Resample
Sigmax/scheduling
Schedule Slice
Sigmax/scheduling
Stable Diffusion 3 Sigma Scheduler
Sigmax/scheduling
Turbo Workflow Output
Sigmax/workflows
Wan Sigma Scheduler
Sigmax/scheduling
Z-Image Sigma Scheduler
Sigmax/scheduling
Readme

ComfyUI-Sigmax

ComfyUI-Sigmax provides model-aware sigma schedules for ComfyUI, with supported Krea 2, Z-Image, FLUX.1-schnell, Qwen Image, SD3, AuraFlow v0.2, Lumina-Image 2.0, HunyuanImage 2.1, MiniMax H3 Base FL2VA/Ref2VA plus experimental community Turbo recipes, Anima, Wan 2.1/2.2, Wan Animate 2, and LTX profiles plus editing tools.

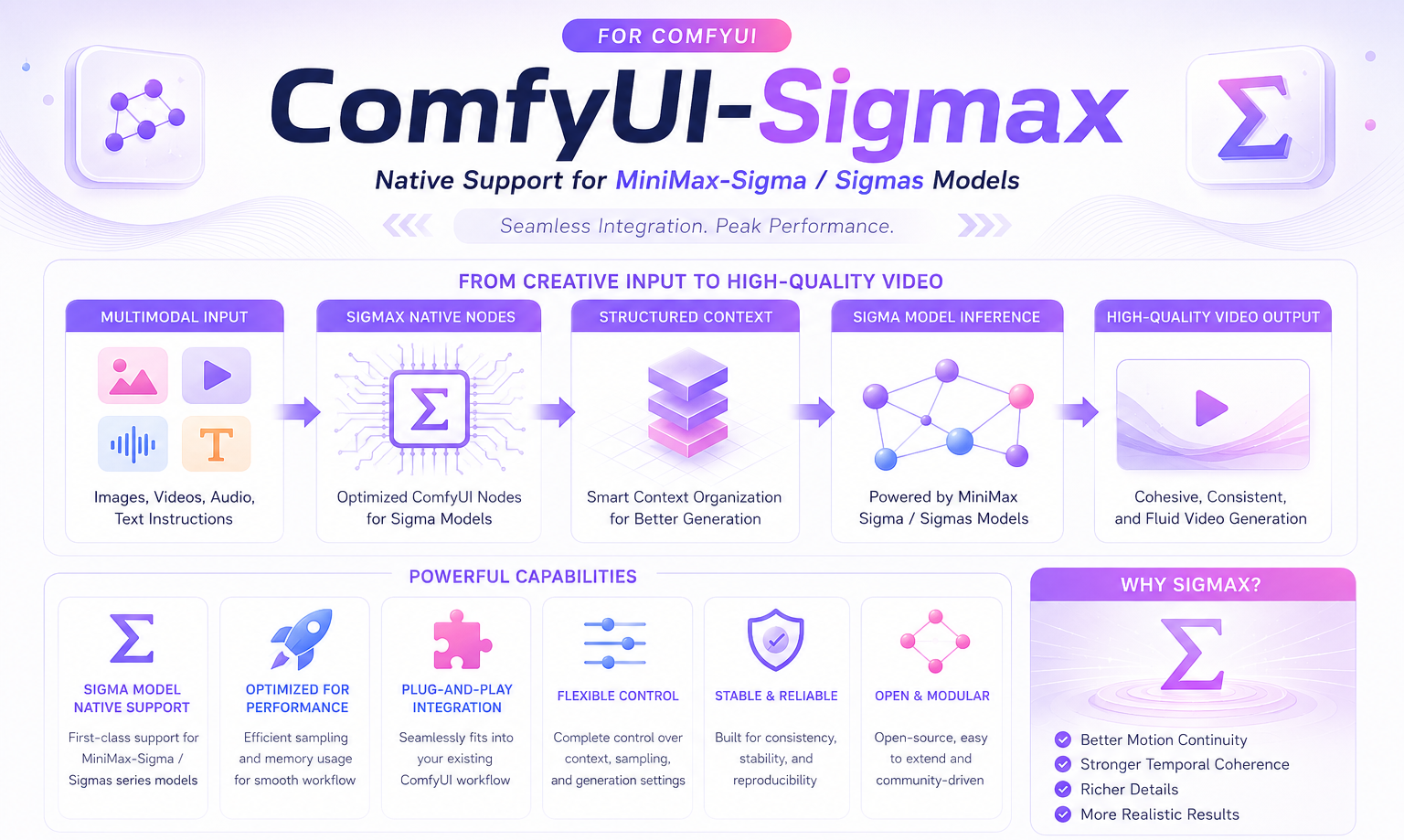

Model-aware sigma schedules, sampler compatibility validation, and versioned inference profiles for ComfyUI.

Last Update

  • Added a ComfyUI-optimized Wan Animate 2 14B profile for the matching Comfy-hosted model and step-distilled LoRA: 480P, LCM sampler, Simple schedule, 6 steps, CFG 1.0, and shift 5.0.
  • Expanded the public Wan scheduler with explicit FLF2V, VACE, S2V, Animate, and Wan Animate 2 task profiles while keeping source, resolution, and schedule ownership visible.
  • Added source-qualified experimental MiniMax H3 Turbo recipes and a ten-choice scheduler menu; native scheduler choices require an already-shifted H3 model and remain compatibility options.
  • Strengthened deterministic and stochastic Flow Euler research contracts and current/pinned-host validation without registering a replacement public sampler.

Table of contents

Features

  • Explicit model and variant selection with no silent generic fallback.
  • Supported Krea 2, Z-Image, FLUX.1-schnell, Qwen Image, SD3, AuraFlow v0.2, Lumina-Image 2.0, HunyuanImage 2.1, MiniMax H3 Base FL2VA/Ref2VA, Anima, Wan 2.1/2.2, Wan Animate 2, and LTX recipes.
  • Twenty-four namespaced nodes for schedule construction, model-aware selection, inspection, comparison, editing, checkpoint evidence, and experimental Krea 2 conditioning.
  • Schedule slicing, concatenation, resampling, inspection, and comparison.
  • Experimental Krea 2 CONDITIONING tap rebalancing for explicitly selected RAW or Turbo workflows, with fixed RMS preservation and no scheduler/model patching.
  • MiniMax H3 Base workflow construction with explicit FL2VA/Ref2VA selection, upstream model-shift integration, and model-free /object_info schema preflight.
  • Experimental MiniMax H3 Turbo recipe selection for source-qualified community lanes. The selector constructs recipe-owned sigmas and receipts only; it does not load or patch a LoRA, attention backend, or model.
  • A BasicScheduler-style MiniMax H3 scheduler menu with one dependency-free h3_endpoint default and nine experimental ComfyUI-native choices that require an already-shifted H3 MODEL.
  • Internal, dependency-free sampler-state and Flow Euler contracts for deterministic/stochastic research; they are not registered public sampler nodes and do not replace ComfyUI's sampler.
  • Checkpoint header inspection without loading model weights.
  • Versioned schedule information and fingerprints for reproducible workflows.
  • No mandatory third-party runtime dependencies beyond the libraries provided by ComfyUI.

Sigmax builds SIGMAS for ComfyUI custom sampling. It does not replace the sampler and does not download models.

Installation

ComfyUI Manager

Search for ComfyUI-Sigmax in ComfyUI Manager, install it, and restart ComfyUI. If it is not available in Manager, use the Git installation below.

Git

Stop ComfyUI, open a terminal in ComfyUI/custom_nodes, and run:

git clone https://github.com/rookiestar28/ComfyUI-Sigmax comfyui-sigmax

Restart ComfyUI. The expected package entry point is:

ComfyUI/custom_nodes/comfyui-sigmax/__init__.py

Python 3.10 or newer and ComfyUI 0.29.0 or newer are required. Do not install the repository's development or parity dependencies into ComfyUI just to use the nodes.

Use in ComfyUI

Search the node menu for Sigmax. The package registers 24 namespaced nodes.

Build a model schedule

Image model families

| Model | Node | Recommended settings | | --- | --- | --- | | Krea 2 Turbo | Sigmax.Krea2SigmaScheduler | Turbo, 8 steps, Euler, CFG 1.0 | | Krea 2 RAW | Sigmax.Krea2SigmaScheduler | RAW, 52 steps with CFG 4.5, or 28 steps with CFG 5.5 | | Krea 2 RAW + RAW-to-Turbo LoRA | Sigmax.Krea2SigmaScheduler | Experimental RAW/Turbo mu; user-selected steps; community starting point: 12 steps, Euler, CFG 1.0 | | Z-Image Base | Sigmax.ZImageSigmaScheduler | Base, 28-50 steps, default 50, CFG 4.0 | | Z-Image Turbo | Sigmax.ZImageSigmaScheduler | Turbo, 8 steps, CFG 1.0 | | FLUX.1-schnell | Sigmax.Flux1SchnellSigmaScheduler | 1-4 steps, default 4, CFG 1.0 | | Original Qwen Image | Sigmax.QwenImageSigmaScheduler | Comfy Fixed, 50 steps, or Diffusers Dynamic with explicit image_seq_len; host true CFG 4.0 | | Original Stable Diffusion 3 | Sigmax.SD3SigmaScheduler | Select Publisher Reference (1.0) at 50 steps or Comfy/Diffusers Fixed (3.0) at 28 steps; source mode is required | | Original AuraFlow v0.2 | Sigmax.AuraFlowSigmaScheduler | Official Fixed (1.73), 50 steps, CFG 3.5; source mode is explicit | | Lumina-Image 2.0 | Sigmax.Lumina2SigmaScheduler | Official Fixed (6.0), 50 steps, CFG 4.0; source mode is explicit | | HunyuanImage 2.1 | Sigmax.HunyuanImage21SigmaScheduler | Base (5.0), 50 steps, CFG 3.5, or Distilled (4.0), 8 steps, CFG 3.25; variant is explicit | | Anima Base v1.0 / Aesthetic / Turbo | Sigmax.AnimaSigmaScheduler | Base, 30-50 steps, default 50, CFG 4.5; Aesthetic uses the same recipe; Turbo, 8-12 steps, CFG 1.0; fixed shift 3.0 |

Connect an image scheduler's SIGMAS directly to a custom-sampling path that accepts external sigmas. Keep strict_official enabled for official variants and use schedule_info to confirm the recipe, dimensions, step range, and warnings. Do not pass the result through another scheduler or apply another time shift.

  • Krea 2: Select Turbo or RAW explicitly and enter the actual output width/height. Sigmax.ModelAwareSigmaScheduler may identify only the family, so resolve an ambiguous Auto result manually. Sigmax.Krea2ConditioningRebalance is an optional experimental CONDITIONING transform with identity at strength 0; select RAW/Turbo and its profile explicitly. The RAW-to-Turbo LoRA schedule modes force strict_official off, do not load or scale a LoRA, and are only for a compatible LoRA applied to RAW.
  • Z-Image: Select Base or Turbo explicitly; the node supplies the validated schedule only and does not load a checkpoint or choose a sampler.
  • FLUX.1-schnell: Use the dedicated 1-4-step schedule for the schnell family; other FLUX variants are not implied.
  • Qwen Image: Only the original text-to-image family is covered. Comfy Fixed mirrors 1.15; Diffusers Dynamic requires explicit image_seq_len. Later variants and image-quality parity are outside scope.
  • Stable Diffusion 3: Only original SD3 Medium is covered. Choose the publisher 1.0 or pinned ComfyUI/Diffusers 3.0 source mode explicitly; SD3.5, Turbo, ControlNet, execution, and quality claims are excluded.
  • AuraFlow: Support is limited to original fal AuraFlow v0.2 with fixed ratio 1.73 and 50 steps; other versions, finetunes, dynamic shifts, execution, and quality claims are excluded.
  • Lumina-Image 2.0: Support is limited to the original Alpha-VLLM text-to-image schedule with fixed ratio 6.0 and 50 steps; video, mGPT, editing paths, dynamic shifts, execution, and quality claims are excluded.
  • HunyuanImage 2.1: Base and Distilled use explicit direct-ratio paths (5.0/4.0). Base is the pinned ComfyUI-compatible lane; Distilled remains publisher-schedule-only. Refiner, encoders, conditioning, weights, and quality claims are excluded.
  • Anima: Select Base, Aesthetic, or Turbo explicitly. Aesthetic shares the Base recipe; all three paths construct schedules only and do not load model components.

Video and audio-video model families

| Model | Node | Recommended settings | | --- | --- | --- | | MiniMax H3 Base / experimental Turbo | Sigmax.MiniMaxH3SigmaScheduler | Select FL2VA or Ref2VA explicitly. h3_endpoint remains the default pure schedule; nine additional ComfyUI-native scheduler choices are experimental and require the already-shifted H3 MODEL. The optional Turbo selector exposes source-qualified community recipes and is readiness-only. | | Wan 2.1 T2V / I2V | Sigmax.WanSigmaScheduler | Select generation, task, source, and resolution explicitly; official T2V 50 steps (5.0), official I2V 480P/720P 40 steps (3.0/5.0) | | Wan 2.1 FLF2V / VACE | Sigmax.WanSigmaScheduler | Official-native FLF2V 14B 720P uses 50 steps (16.0); VACE 1.3B/14B use 50 steps (16.0) | | Wan 2.2 TI2V 5B / A14B T2V/I2V | Sigmax.WanSigmaScheduler | Native or Diffusers-reference source lanes; TI2V 5B uses 5.0; A14B T2V/I2V use 12.0/5.0 with caller-owned boundary metadata | | Wan 2.2 S2V / Animate | Sigmax.WanSigmaScheduler | Official-native S2V 14B uses 40 steps (3.0); Animate 14B uses 20 steps (5.0) | | Wan Animate 2 Base / Distilled | Sigmax.WanSigmaScheduler | Official-native Base uses 40 steps (5.0); Distilled uses 10 steps (5.0); select the task explicitly | | Wan Animate 2 Comfy optimized | Sigmax.WanSigmaScheduler | Select Animate Optimized, ComfyUI native, and 480P; use the matching model and step-distilled LoRA with LCM, the supplied Simple sigmas, 6 steps, CFG 1.0, and shift 5.0 | | LTXV 0.9.8 / LTX-2 19B / LTX-2.3 22B | Sigmax.LTXSigmaScheduler | Dev adaptive token shift (20/40/30 default steps) or explicit LTX-2/LTX-2.3 distilled Stage 1/2 vectors; generation and stage are explicit |

Connect a video scheduler's SIGMAS directly to the matching custom-sampling path. Do not add another scheduler or time shift, and inspect schedule_info for the selected generation mode, stage, resolution, boundary ownership, and warnings.

  • MiniMax H3: Select Base FL2VA or Ref2VA explicitly. The scheduler menu contains h3_endpoint, simple, sgm_uniform, karras, exponential, ddim_uniform, beta, normal, linear_quadratic, and kl_optimal. The default h3_endpoint path is the existing pure endpoint-inclusive schedule and needs no MODEL. Every other choice is an experimental ComfyUI-native lane: connect the MODEL after upstream MiniMaxH3SigmaShift (the native node may be displayed as ModelSamplingMiniMaxH3), keep its video/audio shifts aligned with the selected Base or Turbo recipe, and do not add a separate BasicScheduler or another time shift. These native choices are functional compatibility options, not MiniMax recommendations or quality, speed, memory, NFE, or acceleration claims. The complete nine-scheduler/two-host validation matrix is tracked separately.

    On current ComfyUI versions that recognize the H3 checkpoint, the native model registration supplies the Base defaults video_shift=12.0 and audio_shift=3.0; an explicit ModelSamplingMiniMaxH3 node is therefore normally unnecessary for the official Base path and 544p recipes that also use 12.0/3.0. Connect it after the final model branch (after any LoraLoaderModelOnly or model switch) and before BasicGuider/BasicScheduler when the host does not provide the H3 defaults, when a recipe requires a non-default shift, or when using one of Sigmax's nine native scheduler choices. The 768p FL2VA 4-step recipe requires 6.0/3.0. The node changes model sampling metadata; it does not load a Turbo LoRA or an attention backend. See ComfyUI's H3 model registration and native H3 sampling node for the host-owned behavior.

    The optional turbo selector exposes four source-qualified community recipes. The selector only constructs recipe-owned sigmas and readiness receipts; it does not load or patch a LoRA, attention backend, or model. Load the matching LoRA separately and keep the workflow's task, resolution, step count, and shifts aligned with this table:

    | Recipe | Steps | Video/audio shift | Task / resolution | | --- | ---: | --- | --- | | h3.fl2va.lightx2v-turbo-4-v0.1-544p | 4 | 12.0 / 3.0 | FL2VA, 544p | | h3.fl2va.lightx2v-turbo-8-v1.0-544p | 8 | 12.0 / 3.0 | FL2VA, 544p | | h3.fl2va.lightx2v-turbo-4-v1.0-768p | 4 | 6.0 / 3.0 | FL2VA, 1344×768 | | h3.ref2va.lightx2v-turbo-4-v0.1-544p | 4 | 12.0 / 3.0 | Ref2VA, 544p |

    These Turbo recipes are experimental community compatibility lanes. They make no official-method, quality, speed, memory, NFE, or acceleration claim. For an official current BasicScheduler workflow, the model path is normally UNETLoader -> (optional) LoraLoaderModelOnly -> (optional, only when needed) ModelSamplingMiniMaxH3 -> BasicGuider/BasicScheduler. When using Sigmax's scheduler node, connect its SIGMAS output directly to the custom-sampling path; do not add a second scheduler or shift.

  • Wan 2.1/2.2 and Wan Animate 2: Select generation, task, source, and resolution explicitly. Wan 2.1 I2V requires 480P or 720P; Wan 2.2 A14B boundaries are caller-owned metadata and never route experts. FLF2V, VACE, S2V, Animate, and Wan Animate 2 Base/Distilled rows are official-native schedule math only; Diffusers-reference lanes describe scheduler construction only. The separate Comfy optimized lane reproduces the first-party 480P LCM + simple + 6 recipe for its exact model and LoRA. Its 81-frame value is tested chunk guidance, not a hard host-node maximum or automatic chunking feature. Execution, weight loading, expert routing, conditioning, and video-quality parity are excluded.

  • LTX: Select LTXV 0.9.8, LTX-2 19B, or LTX-2.3 22B plus generation/stage explicitly. Dev mode derives one token-count shift; distilled modes use immutable publisher vectors. Sigmax does not load video weights, run encoders, or claim video-quality parity.

Inspect or modify a schedule

  • Sigmax.ProfileInspector and Sigmax.ScheduleInspector show profile and schedule details.
  • Sigmax.ScheduleComparison compares two schedules.
  • Sigmax.ScheduleSlice, Sigmax.ScheduleConcatenate, and Sigmax.ScheduleResample create a modified schedule while retaining traceable schedule information.
  • Sigmax.CheckpointEvidenceInspector reads only the bounded header of a local .safetensors file. Its suggested variant is advisory, not confirmation.
  • Sigmax.AdvancedFlowMatchScheduler is an experimental schedule constructor, not a universal model profile or sampler.

Update or remove

For a Git installation:

cd ComfyUI/custom_nodes/comfyui-sigmax
git pull --ff-only

Restart ComfyUI after updating. Back up important workflows before changing versions. To remove Sigmax, stop ComfyUI, remove or move only the comfyui-sigmax directory, and restart ComfyUI.

Troubleshooting

| Problem | Resolution | | --- | --- | | Nodes do not appear | Restart ComfyUI, inspect the startup log, and confirm there is only one direct comfyui-sigmax folder under custom_nodes. | | Import fails | Confirm Python 3.10+ and ComfyUI 0.29.0+, then remove duplicate or nested installations. | | Auto rejects Krea 2 | Select Turbo or RAW explicitly. Do not rely on the filename alone. | | The schedule appears shifted twice | Remove the second scheduler or model time shift; use the Sigmax SIGMAS output once. | | Krea 2 RAW dimensions differ | Check the requested and effective dimensions in schedule_info; RAW dimensions are normalized to the supported grid. | | MiniMax H3 native scheduler asks for MODEL or reports a shift mismatch | Connect the H3 model after MiniMaxH3SigmaShift. Use 12.0/3.0 for Base or the exact selected experimental Turbo recipe values; do not add a separate BasicScheduler or second shift. | | A newer ComfyUI release behaves differently | Review the supported boundary in Compatibility. |

ComfyUI custom nodes execute Python code inside the host process. Install reviewed sources only. Model weights are not included. A bounded local Krea 2 H4 lane verified execution and artifact provenance, but blind scoring was waived; it does not establish image-quality parity or general GPU compatibility. Stochastic sampling, resume behavior, and arbitrary-model compatibility are not claimed.
