One ComfyUI node that mattes one chosen person with generative-quality edges. Click the subject on the plate: SAM3 tracks it, LTX-2.5 alpha-gen draws the hair, and you get a 16-bit alpha plus a clean premultiplied comp. Native 4K, EXR in and out, plate frame numbers kept, 12 GB VRAM.

Quick start

Install. ComfyUI Manager > Install via Git URL > https://github.com/rik-python/ComfyUI-Comfy-Pro-Alpha-Generator.git, plus ComfyUI-SAM3 and ComfyUI-LTXVideo. Restart ComfyUI.
Models. Accept the two Lightricks licenses on Hugging Face and download the models (list and folders).
Matte. Open example_workflow.json, click Load plate, click your subject, then Preview 49 frames.

Already installed? Update to v0.5.2 from the ComfyUI Manager.

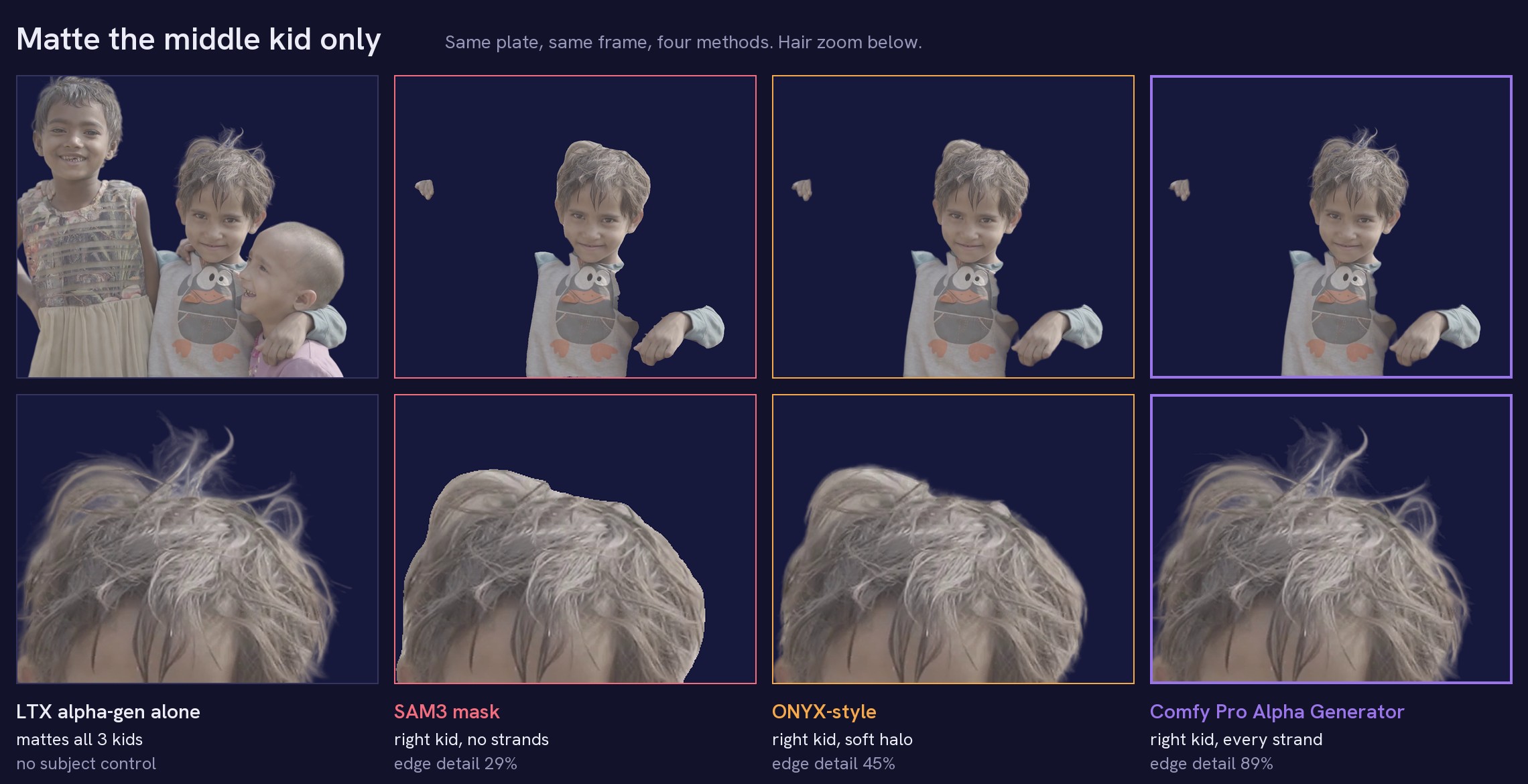

LTX alone vs SAM3 vs ONYX-style vs Comfy Pro Alpha Generator on the same frame

Task: matte the middle kid only. LTX alpha-gen alone has perfect hair but mattes all three kids, and there is no way to tell it which one. SAM3 and ONYX-style pick the right kid but lose the strands. Comfy Pro Alpha Generator does both. Every matte comped over navy with the same edge colour, so only the matte differs.

<code>// 01 · problem</code>

The problem

Pulling one person out of a busy plate is still one of the most manual jobs in compositing. The AI tools I tried fall into two groups, and each gets half of it right:

| | Picks which subject | Edge quality | Why | |---|:---:|:---:|---| | LTX-2.5 alpha-gen (generative) | no | hair-level | Renders the matte jointly over the whole clip, but mattes every main subject and can't be told which one. | | SAM3 / ONYX-style (discriminative) | yes | soft, per-frame | Tracks any object you point at, then measures the edge frame by frame with ViTMatte. Strands get lost; edges chatter. | | Comfy Pro Alpha Generator | yes | hair-level | SAM3 picks the subject, LTX draws the edge. |

<code>// 02 · results</code>

Results

Measured on a 247-frame plate (three kids, arms around each other), matting only the middle kid. Every method gets the same SAM3 selection.

| Method | Selects one subject | Edge detail match | Hair outside the SAM3 outline | Flicker vs LTX alone | |---|:---:|:---:|:---:|:---:| | LTX alpha-gen alone | no (mattes everyone) | 100% (reference) | 100% | 1.0x | | SAM3 mask | yes | 29.4% | 0% | 2.6x | | ONYX-style: SAM3 + ViTMatte | yes | 45.0% | 31.3% | 1.7x | | ONYX-style + temporal stabilizer | yes | 46.1% | 31.8% | 0.5x | | Comfy Pro Alpha Generator | yes | 88.7% | 88.7% | 1.2x | | Comfy Pro Alpha Generator, overlap mode (v13) | yes | 90.3% | 88.7% | 1.9x |

The edge matches LTX's generative hair at 88.7%, and only the middle kid is matted. The ViTMatte route gets to 45%: you get a soft halo around the head, but the strands are gone (compare the zoom at the top). A plain SAM3 mask gets 29%.

Against the background, the node flickers about as much as LTX alone (0.0112 vs 0.0109 mean error per pixel). The extra 0.2x comes from the few pixels where the kid touches someone else.

Overlap mode (v13) is for people crossing the subject; see Settings guide for what it fixes and why it moves more.

The one row this node doesn't win: a stabilized ViTMatte matte is steadier than LTX itself (0.5x), because it is smooth and has no strands left to move. That's the trade. I'll take a little more movement for real hair.

<details> <summary>Methodology</summary>

Flicker is motion compensated: each frame is predicted from its neighbours warped by DIS optical flow on the plate, and only the subject's outline band where the flow explains the plate (no occlusion) is scored. Plain frame-to-frame differences punish sharp edges that move, so they are not used.
Edge detail match compares each matte with LTX's soft alpha (0.02 to 0.9) on the pixels nearer the subject than any other person: 1 - sum|matte - LTX| / sum(LTX). Filling in the gaps between strands and missing strands both count as error. Hair outside the SAM3 outline is the share of LTX's soft alpha beyond the SAM3 mask that a method recovers (a hard mask scores 0% by definition). Both use LTX as the reference, so they favour LTX-based methods; the hair zoom shows the same difference visually.
An earlier version of this table used "hair kept", the plain sum of each matte over those pixels (SAM3 85.2%, ONYX-style 90.8%, this node 97.8%). It gave a solid mask credit for filling the gaps between strands, so it hid most of the difference and was replaced.
ONYX-style is an emulation of ONYX Ai Matte v3's published pipeline (SAM3, then a trimap with erode 10 / dilate 15, then ViTMatte, per frame), plus this node's optical-flow stabilizer for the "+ stabilizer" row. The commercial ONYX plugin itself was not tested.
Script: measure_matte.py logic, also built into the node as the QC badges.

</details>

True 4K strand detail (v14)

UHD 4K plate, matte over navy. Left of the line: the 1080p matte scaled up to 4K. Right: native 4K edges. More single strands, each thinner, and no grass baked into them.

Plates bigger than 1920x1088 are now matted at their own resolution. The node mattes a 1080p proxy exactly as before (that pass decides what the subject is), then runs LTX alpha-gen again on native-resolution 1920x1088 tiles along the subject's edge and merges them in. Fine hair, flyaways and fur keep single 4K strands instead of a soft 1080p band scaled up. Tested on UHD 4K (3840x2160), DCI 4K (4096x2160) and 2K (2048x1080) plates.

| UHD 4K plate, long fine hair, RTX 5090 | 1080p scaled up (switch off) | Native 4K edges (on, default) | |---|:---:|:---:| | Edge flicker, frame to frame (lower = steadier) | 183 | 177 | | Holes inside the subject | 0% | 0% | | 49-frame preview | about 4 min, 20 GB RAM | about 9 min, 24 GB RAM | | 242-frame shot | 19 min, 73 GB RAM | 58 min, 97 GB RAM |

It helps most on single strands, flyaways and fur against the background. Thick hair (braids) gains little. Where the subject touches another person, the 1080p result is kept on purpose: a tile only sees part of the frame and decides worse there. RAM grows with shot length (see Hardware).

Clean edge colour (v15)

UHD 4K plate, matte over navy, the same shot as above. Left of the line: the plate's own colour in her flyaways (the grass behind her shows through each strand). Right: v0.5.1 quick edge colour, the alpha unchanged.

Subject comped over navy, 2x zoom. Off: the plate's own colour stays in the soft edge, so the sky behind the hat shows as a bright white rim around the brim, and the grass as a lime line down the shirt. Quick and perfect rebuild the subject's colour there.

The alpha was right, but every soft edge still carried the background it was shot against: sky in the strands, grass along the shirt. Over a new background that shows as a halo. v15 rebuilds the subject's own colour in the edge and outputs a clean premultiplied comp, saved next to the alpha as rgba_ files. The alpha itself does not change.

| Curls shot, 49 frames | Off (v0.4) | Quick (default) | Perfect | |---|:---:|:---:|:---:| | Background left in the edge (lower = cleaner) | 0.159 | 0.056 | 0.062 | | Edge colour flicker (lower = steadier) | 0.064 | 0.021 | 0.028 |

On the 4K shot above (v0.5.1 quick, 25 frames across the shot), the background left in the edge drops from 0.113 to 0.067 (41% less).

Quick works like an eroded EdgeExtend in Nuke: the colour comes from 2 px inside the subject and is pushed outward over the soft edge; the plate's brightness is kept for texture (stripes, strands), limited to the brightness range inside the subject so a white sky can't leak in. LTX edges often run a pixel wide, so even "solid" alpha there still holds background; quick cleans that rim too. Only pixels near the real background are rebuilt: fuzzy props LTX leaves semi-solid deep inside the subject (a bouquet) keep the plate colour.
Perfect also runs LTX-2.5 Clean Plate, which removes the people and rebuilds the background behind them, then subtracts that background from the edge (F = (I - (1 - a) B) / a). It is checked against the real plate and falls back to quick wherever the clean plate can't be trusted: next to other people, and on shots where the subjects fill the frame (Clean Plate then re-renders them instead of removing them). On a wide shot it gives a slightly tighter, more physical soft edge; on a close-up it gives the same result as quick, at the cost of one more LTX pass.

Any subject

Type a word (dog, red car, bike) or click anything in the frame. The others are excluded automatically, including the same class: the white dog out of four, the bike without its rider.

New in v0.5

| | What you get | |---|---| | Clean edge colour | The sky and grass the hair was shot against no longer come along into your comp. Saves a clean premultiplied comp (rgba_ EXR or PNG) next to the alpha. On by default. More | | Native 4K alpha | 4K plates are matted at 4K: native 1920x1088 tiles along the subject's edge, not a 1080p matte scaled up. More | | Overlap mode | When someone's hand or hair crosses your subject, every finger and curl gets its own generative edge. More |

<code>// 03 · method</code>

How it works

flowchart LR
    P([Plate]) --> S["SAM3 tracks<br/>subject, others, cuts, adds"]
    S --> R["ViTMatte refine<br/>+ optical-flow stabilize"]
    P --> L1["LTX-2.5 alpha-gen<br/>pass 1: full plate"]
    S --> I["Isolated plate<br/>others inpainted out"]
    P --> I
    I --> L2["LTX-2.5 alpha-gen<br/>pass 2: subject alone"]
    S -.->|overlap mode| O["v13 overlap passes<br/>real plate, one mask per person<br/>+ depth for who is in front"]
    L1 --> B{"v12 blend<br/>+ coverage fallback"}
    L2 --> B
    R --> B
    O -.-> B
    B --> N["v14 native 4K tiles<br/>LTX on 1920x1088 tiles<br/>plates over 1080p only"]
    N --> E["v15 edge colour<br/>quick: colour pushed out from inside<br/>perfect: LTX Clean Plate, then unmix"]
    E --> A([16-bit alpha + QC<br/>+ clean premultiplied comp])
    style B fill:#12122a,stroke:#9a75ea,color:#ececf6
    style L1 stroke:#63b3ed
    style L2 stroke:#63b3ed
    style S stroke:#f6a94a
    style O stroke:#63b3ed,stroke-dasharray: 5 5
    style N stroke:#63b3ed,stroke-dasharray: 5 5
    style E stroke:#6edca0
    style A fill:#9a75ea,stroke:#9a75ea,color:#12122a

How it gets there

LTX can't be told which subject to matte, so the node changes what LTX sees. SAM3 finds every other subject, and they get painted out of a copy of the plate with an inpainted background. (A flat colour fill doesn't work: LTX reads it as a half-transparent object.) LTX then mattes the subject on its own and draws all of its edges, including parts SAM3 missed.
Where the subject overlaps another person, LTX outputs 1.0 on both sides, so there is no edge to take from it. Within about 15 px of other subjects the node uses the stabilized ViTMatte edge instead. Everywhere else the edge is LTX's.
LTX only mattes what it reads as a main subject. A coverage map (1/8 res, smoothed over time) finds the parts of the selection LTX left empty, like a parked car or a table, and fills only those with ViTMatte.
LTX renders 49 frames at once, so its edges hold still. SAM3 and ViTMatte decide frame by frame, so their output is smoothed with optical-flow-warped neighbours before the blend. Long shots render in overlapping chunks that are cross-faded, and the joins measure steadier than the rest of the shot.
On Queue, the node expands into a full ComfyUI graph of SAM3, ViTMatte and LTX stages. Each stage is cached, so switching Fast/Best, or running the full shot after a preview, reuses whatever already finished.

Overlap mode (v13) handles people crossing the subject, where step 2 can only give a ViTMatte edge. It keeps the real plate and steers LTX with each SAM3 mask (the IC-LoRA guide's attention mask): one pass for the subject, one for everyone else, then subtracts the others wherever SAM3 and a depth pass say they are in front. Their fingers and curls get a generative edge too. Details in the Settings guide.

Native-resolution edges (v14) handle plates bigger than 1920x1088. Everything above runs on a 1080p proxy of the plate. Then the plate is cut into native-resolution 1920x1088 tiles (half-overlapping), and only the tiles that touch the subject's edge get their own LTX pass, with the other subjects painted out at full resolution. The merge keeps the proxy result inside the subject, near other people, and wherever a tile disagrees with it over an area (a tile only sees part of the subject, so its big decisions are worse); everywhere else the tiles supply the strands. Which tiles are needed is only known once SAM3 has tracked the subject, so that stage expands into its LTX passes at run time.

Clean edge colour (v15) runs last, on the finished alpha. Every soft edge pixel still holds some of the background it was shot against, so it rebuilds the subject's own colour there. Quick pushes the colour from the solid inside outward over the soft edge (only near the real background) and keeps the plate's brightness for texture. Perfect also runs LTX-2.5 Clean Plate to rebuild the background, then subtracts it (F = (I - (1 - a) B) / a) wherever that clean plate checks out. The alpha is never changed; the result is saved as rgba_ files.

<details> <summary>Engineering notes</summary>

LTX runs with Comfy Kitchen int8 attention. Sampling drops from 5.09 to 3.25 s/step (36% faster) and the edge moves by 0.004, seven times less than changing the seed does. I also tried Sage attention (same speed, but it needs a wheel built for each machine), Flash attention (no gain), block-sparse attention (changed the matte as much as a new seed) and torch.compile (crashes on the int8 weights).
Alpha-gen uses an empty prompt, so the pack ships that conditioning (24 KB, captured inside ComfyUI so it is bit-identical). Nobody has to download the 13 GB text encoder or hold it in RAM.
uint8 plates, float16 masks, an alpha-only VAE decode and per-frame blending took peak RAM from 48.5 to 39.9 GB. Disk streaming halves it again (see Hardware).
I diffed every memory change against the previous output. One of them rounded the isolated plate's colours by a single 8-bit level, and LTX turned that into a visibly different sample (0.012 edge difference). Anything that feeds the generative pass now stays at full precision, and the mattes are identical again.

</details>

<code>// 04 · usage</code>

Using it

The node walks you through three steps (Plate → Subject → Render) and only shows the next action.

Open example_workflow.json (video) or example_sequence_workflow.json (image sequence), or wire it yourself:

| Plate | Wiring | |---|---| | Video | Load Video → Get Video Components → images + fps | | Image sequence | Load Plate Sequence → images + fps + first_frame |

Load Plate Sequence reads a folder (D:/plates/sh010) or a pattern (plate.####.exr or plate.%04d.exr). PNG, JPG, TIF and EXR (scene-linear, converted to sRGB). first / last set the range, and output frames keep the plate's numbers: plate.1001 gives alpha_01001.

Any nodes can sit in between (crop, resize, colour). Best quality at 1920x1088 (1920x1080 is padded automatically): LTX alpha-gen is tuned for that size. Bigger plates (4K, DCI, 2K) need nothing extra: the node mattes a 1080p proxy and renders the edges again at native resolution (True 4K strand detail).
Plate. Click the big Load plate button. It runs the nodes feeding images and fills the scrubber.
Subject. Scrub to a frame where the subject is fully visible and click it. It turns orange; every other person or object the click finds is excluded. Shift-click more objects to add them: the man, his glass and the table give one matte. Hard to click? Type it in Find (top right of the viewer):

| Type | Finds | |---|---| | person (default) | every person | | dog, red car, bike, woman | any SAM3 concept | | dog, person | both: also paints out the people near a dog |
Fix parts if needed, on the first frame the part appears (tracking runs forward):

| Action | What it does | |---|---| | Alt-click | Cut a part: someone else's hand on the subject | | Shift-click | Add a part: the subject's own hand that SAM3 missed | | Ctrl-click | Remove a cut or add marker |
Render. Preview 49 frames first (a few minutes). The result opens on the alpha; drag to wipe it against the plate, Show comp for the comp.
Render full shot. The alpha is saved to ComfyUI/output/<filename_prefix>/alpha_00001.png …, 16-bit PNG by default or half-float EXR.

| Mode | What it does | |---|---| | Best (v12) | 2 LTX passes, the second on the isolated plate. | | Fast (v7) | 1 LTX pass. About half the time; edges against other subjects are a little weaker. | | handle overlapping people (v13) | Switch below the models. 3 LTX passes plus depth, for hands, arms and hair crossing the subject. Replaces quality while on. |

QC badges (after each run)

| Badge | Meaning | Green when | |---|---|---| | flicker | Motion-compensated flicker vs LTX alone | ≤ 1.3x | | detail match | How closely the edge matches LTX's hair, fur and dust | ≥ 80% | | LTX cover | How much of the subject LTX matted (the rest uses ViTMatte) | ≥ 90% |

⚙ Advanced: frames per chunk, overlap frames, seed, temporal smoothing, trimap erode/dilate, the zone near other subjects, SAM3 threshold, fast_attention, the optional text encoder and the v13 tuning. The Settings guide covers every one, with when to change it. Hover any model selector for the recommended file and folder; press R after adding models. A missing model shows as MISSING: <file>, and the run stops with the download link instead of failing halfway.

<code>// 05 · settings</code>

Settings guide

Every setting, what it changes, and when to touch it. The defaults are the values that measured best on the test shots, so start with the defaults and change one thing at a time. Re-rendering is cheap after the first run: each stage is cached, so changing a late setting (format, the v13 options, temporal smoothing) reuses the LTX passes.

Pick your mode first

| Your shot | Mode | Why | |---|---|---| | One person, nobody else near them | Best (v12) | Nothing to separate. Fast gives almost the same matte. | | Several people, nobody touching or crossing the subject | Best (v12) | The others are painted out and LTX mattes the subject alone. | | Look-dev, timing tests, lots of shots to triage | Fast (v7) | About half the time. Edges against other people are a little weaker. | | Someone's hand, arm or hair crosses in front of the subject | handle overlapping people (v13) | Their fingers and curls get their own generative edge instead of a soft ViTMatte line. | | The subject's arm is around someone, hands on shoulders, a hug | v13, plus an add click on the hand (see below) | v13 keeps the arm crisp over the other person. | | A crowd behind the subject, nobody crossing them | Best (v12) | v13 costs a third LTX pass and only helps where people overlap. | | A plate bigger than 1080p (4K, DCI, 2K) with fine hair, fur or flyaways | any mode, native-resolution edges on (default) | The strands are rendered at the plate's own resolution. Switch it off for a quick pass: the 1080p matte scaled up, 2 to 3x faster. |

Overlap mode (v13)

Matte the man in the striped shirt, comped over navy with v15 edge colour on both sides. Left of the line is Best (v12), right is Overlap mode (v13). Fingers: his friend's waving hand crosses his chest; v12 gives a soft blob with the shirt showing through the fingertips, v13 cuts each finger out cleanly. Hair: her curls fall over his shoulder; v12 cuts his shoulder off along a smooth line, v13 cuts her curls out of his shirt and keeps the shoulder underneath.

What it does. v12 paints the other people out and mattes the subject alone, so where someone crosses the subject there is no generative edge, only a ViTMatte one. v13 keeps the real plate and runs three LTX passes:

| Pass | LTX is steered to | Gives | |---|---|---| | 1 | the whole plate | everyone together, used to clip the other two | | 2 | the subject (its SAM3 mask as LTX's attention mask) | the subject, including the parts others hide | | 3 | everyone else at once (their masks combined) | one matte of all the other people |

Then it subtracts pass 3 from pass 2 wherever the others are in front. SAM3 decides that where it sees only one person; a depth pass decides where SAM3 gives a pixel to both people or to neither. The cost stays at 3 passes however many people are in the shot (one pass per person measured the same).

Measured.

| Test | Best (v12) | Overlap mode (v13) | |---|:---:|:---:| | Overlap error on a synthetic clip with exact ground truth (her hair moved across his collar) | 105.6 | 21.5 (5x lower) | | Kids shot, 247 frames: edge detail match | 88.7% | 90.3% | | Kids shot: flicker vs LTX alone (motion compensated) | 1.2x | 1.9x | | 49-frame preview, RTX 5090 | about 4 min | about 4.7 min | | 247-frame shot, RTX 5090 | about 25 min | about 26.5 min |

The flicker rise comes from the overlap edges: sharp fingers and curls that move score as more movement than a soft line that doesn't. Check it in motion on your shot. The synthetic ground truth was built from LTX mattes, so it favours LTX-like edges.

<img src="docs/images/settings_overlap.png" width="880" alt="overlap mode settings: what each slider does at each end"> <details> <summary>Full table: overlap mode settings and their Advanced tuning</summary>

v13 settings (always listed, greyed out until the switch is on):

| Setting | Default | What it does | Turn it... | |---|:---:|---|---| | handle overlapping people (v13) | off | Switches to the 3-pass overlap mode above and greys out quality. Needs at least one other person picked (they are found automatically when you click the subject); with nobody else it runs Best (v12). | On when anyone crosses the subject. | | use depth for front/back | on | A small depth model (Depth Anything V2 Small, 99 MB, downloads itself) settles who is in front where SAM3 is unsure: thin, fast fingers over a chest, where SAM3's coarse masks give the pixels to both people. The answer is voted over about 25 px, so the palm carries the fingertips. | Off only to save a few seconds, or if you see a wrong front/back flip where SAM3's masks are clean. With it off, fast fingers in front of the subject can ghost. | | sharpen hair over subject | off | Re-fits the other person's hair matte to the plate's own edges (a guided filter, plate brightness as the guide): more single strands, cleaner gaps between curls. | On for dark hair over a lighter subject (or the reverse) when the curls look soft or the gaps between them look grey. Off if the subject wears stripes, checks or a busy print: the filter can read dark stripes as hair and cut thin lines into the subject. | | sharpen hair radius (px) | 4 | How far the filter looks for edges. Greyed out until sharpen is on. | Lower (2 to 3) for fine, separated strands. Higher (6 to 8) for thick curls or a noisy, compressed plate. Higher also picks up more clothing pattern. |

Under ⚙ Advanced (v13 tuning, also greyed out until the switch is on). These were swept on the test shots; change them only to fix a specific problem:

| Setting | Default | What it does | When to change it | |---|:---:|---|---| | v13 attention grow (px) | 20 | Grows each SAM3 mask before it steers LTX, so hair beyond the SAM3 outline still gets matted. | Raise to 30 to 40 if long or wild hair beyond the SAM3 outline is cut off. Lower to 10 if the subject's matte picks up the edge of a person standing right next to them. | | v13 attention feather | 10 | Softens that mask's edge. 0 = hard edge, which cut the hair (about 1.5x the error). | Leave at 10. Higher (15 to 20) only for very soft, flyaway hair. | | v13 attention strength | 1.0 | How strictly LTX follows the mask. 0.7 measured about 1.3x the error. | Leave at 1.0. | | v13 occluder reach (px) | 20 | How far past the overlap the subtraction reaches, to catch the soft edge of whoever is in front: strand tips, motion-blurred fingertips. | Raise to 30 to 40 if the tips of someone's fingers or hair still show as a faint ghost over the subject. Lower to 10 if the subject's own thin parts lying next to someone (fingers on a shoulder) get nibbled. | | v13 invented-limb cap (px) | 90 | LTX draws parts of the subject it can't see; that's how it fills in behind others. Anything further than this from the subject's SAM3 mask is removed, fading over the last 40 px. Stops invented arms. | Raise (150 to 250) if real edges far from the SAM3 mask get cut: big hair, a scarf, a raised hand SAM3 missed (an add click is the better fix). Lower (60) if a faint extra limb or ghost appears beside the subject. | | v13 front/back smoothing (frames) | 3 | Averages the front/behind decision over this many frames so it can't pop. | Raise to 5 if an overlap edge flickers between in front and behind. 1 for very fast action where 3 frames lag behind a quick hand. |

</details> <details> <summary>Troubleshooting: overlap mode and 4K plates</summary>

When something is wrong in v13:

| You see | Cause | Fix | |---|---|---| | The subject's own hand or arm is missing where it rests on someone (an arm round a friend's neck) | SAM3 gave that limb to the other person, so v13 treats it as theirs and subtracts it. Depth can't help: the hand really is at the friend's depth. | Shift-click (add) the hand on a frame where it touches. One click fixed the hand in the kids test. | | Someone else's hand appears inside the subject's matte | SAM3 gave their hand to the subject. | Alt-click (cut) their hand on the first frame it appears. | | Ghosted, half-transparent fingers over the subject | The other person's fingertips aren't fully subtracted. | Keep use depth on, then raise occluder reach to 30. | | Grey gaps between someone's curls over the subject | LTX draws their hair soft over a light background. | Sharpen hair on. | | Thin dark lines cut into a striped or checked shirt | Sharpen hair is reading the stripes as hair. | Sharpen hair off, or radius down to 2. | | A faint extra arm or blob next to the subject | A limb LTX invented. | Lower invented-limb cap to 60. | | An overlap edge pops between frames | The front/behind decision flips. | Front/back smoothing to 5. |

When something is wrong on a 4K plate:

| You see | Cause | Fix | |---|---|---| | ComfyUI runs out of RAM on a long 4K shot | Every 4K frame is held in memory (97 GB at 242 frames with native edges, 73 GB without). | Split the shot into runs of about 100 frames (first / last on Load Plate Sequence, or trim the video), disconnect the node's comp output, or switch native edges off. | | Edges against another person look 1080p-soft | By design: near other people the proxy result is kept. | Nothing to fix; those edges come from the proxy pass. | | Thick hair looks the same on and off | Its edge is already resolved at 1080p. | Switch native edges off on that shot to save time. |

</details>

All other settings

<img src="docs/images/settings_advanced.png" width="880" alt="advanced settings: what each slider does at each end"> <details> <summary>Full table: all other settings</summary>

Main

| Setting | Default | What it does | When to change it | |---|:---:|---|---| | images | | The plate. Any chain works (crop, resize, colour). | Feed the plate at its own resolution. Up to 1920x1088 it is matted directly; bigger plates are matted on a 1080p proxy with native-resolution edges. Don't downscale a 4K plate yourself. | | fps | 24 | Plate frame rate, passed to LTX. | Wire it from Get Video Components or Load Plate Sequence. Set it by hand only for loose images. | | first_frame | 1 | Frame number of the first image; output files use it. | 1001 (or your plate's start) for VFX numbering. Load Plate Sequence sets it for you. | | quality | Best (v12) | 2 LTX passes (Best) or 1 (Fast). Greyed out in v13. | Fast for look-dev and triage, Best for finals. | | native-resolution edges (v14) | on | Plates bigger than 1920x1088: LTX renders the subject's edges again on native 1920x1088 tiles and merges them into the proxy matte. Works with every mode. Greyed out for plates of 1080p or less. | Off for a fast first look, when RAM is short on a long 4K shot, or on plates only a little over 1080p (2K): little extra detail there for the full tile cost. Off gives the 1080p matte scaled up, 2 to 3x faster. Leave it on for finals with fine hair, fur or flyaways. | | edge colour (v15) | quick | Rebuilds the subject's colour in the soft edges so the background doesn't show through, and saves rgba_ files (clean premultiplied comp) next to the alpha. quick: classical, a few seconds per frame. perfect: adds an LTX Clean Plate pass and subtracts the real background (needs the Clean Plate IC-LoRA). off: the raw plate in the edges, as v0.4. The alpha is identical in all three. | perfect for finals on wide shots where background shows around the subject. off only to reproduce a v0.4 render exactly. | | filename_prefix | comfy_pro_alpha/shot | Output folder under ComfyUI/output/. | One per shot (show/sh010_hero) so renders don't overwrite each other. | | format | png16 | 16-bit PNG or half-float EXR. | exr for a Nuke/EXR pipeline. Both hold the full soft edge. | | model selectors | the recommended files | LTX model, alpha-gen IC-LoRA, Clean Plate IC-LoRA (perfect edge colour only; greyed out otherwise), video VAE (must be the conv VAE), audio VAE, ViTMatte. | Only to pick a GGUF (see Hardware) or a file in another folder. MISSING: means the file isn't found. |

⚙ Advanced

| Setting | Default | What it does | When to change it | |---|:---:|---|---| | text encoder | built-in | The empty-prompt conditioning alpha-gen uses. | Never. The built-in one is bit-identical to running the 13 GB encoder. | | frames per chunk | 49 | LTX renders the shot in chunks of this many frames (8n+1). | Keep 49 at 1080p (it fits a 32 GB GPU). Lower (33 or 25) if you run out of memory: more chunks means more joins and a slower render. | | overlap frames | 9 | Frames shared by neighbouring chunks and cross-faded. | Raise (17) if you can see a jump where two chunks meet (every 40 frames at the defaults). Lower to save time on very long shots. | | seed | 42 | LTX's noise seed. | Try another seed if one stretch shows a strange edge. It is a cheap second opinion: a new seed moves the edge about 0.03 on average. | | erode / dilate | 10 / 15 | The ViTMatte trimap: how far inside / outside the SAM3 edge the "unknown" band reaches. Used where LTX leaves the selection empty (props, background objects) and, in v12, against other people. | Raise dilate (25 to 30) if ViTMatte cuts frizzy edges short. Lower both (5 / 8) if ViTMatte bleeds into the background on a hard-edged object. | | near_px | 15 | v12 and Fast: how close to another person the ViTMatte edge takes over from LTX. Not used in v13. | Raise (25) if the matte grows a halo of the neighbour where two people touch. Lower (8) to keep more LTX edge near them. | | temporal smoothing (frames) | 2 | Smooths the SAM3/ViTMatte parts over 2 frames each side, warped by optical flow. LTX edges are already steady. | Raise to 3 or 4 if ViTMatte edges (props, the v12 zone between people) chatter. 0 for very fast motion if those edges lag or ghost. | | sam3_threshold | 0.3 | How confident SAM3 must be to keep tracking a pick through the shot. | Lower (0.2) if the subject or a part drops out of the matte in dark, blurred or small frames. Raise (0.4 to 0.5) if the track jumps onto something else. | | fast_attention | on | Comfy Kitchen int8 attention: about 36% faster, edge difference 0.004. | Leave on. The node falls back to PyTorch attention by itself when Comfy Kitchen is unavailable. |

</details> <img src="docs/images/settings_pick.png" width="880" alt="picking the subject, a real Shift-click add, and the output settings">

Picker actions (in the viewer)

| Action | Use it when | |---|---| | Click | Pick the subject on a frame where it is fully visible. Everyone else it finds is excluded. | | Shift-click | Add: a part SAM3 missed (a hand, a held prop), or another object to stack into the same matte. In v13, add the subject's limb that rests on someone. | | Alt-click | Cut: someone else's part inside the subject's mask (a hand on the shoulder). | | Ctrl-click | Remove an add or cut marker. | | Find | Hard to click? Type a concept: person, dog, red car, dog, person. |

Add and cut on the first frame the part appears: tracking runs forward from the click.

<code>// 06 · hardware</code>

Hardware

Which setup do I need? Same example workflow for everyone; only these change:

| Your machine | What to do | |---|---| | 24 GB+ VRAM, 64 GB+ RAM | Nothing. Use the defaults. | | 12 to 24 GB VRAM | Nothing. ComfyUI streams the model to the GPU (tested with 12 GB free, about 5% slower on the same card). | | 16 to 48 GB RAM | Keep the models on an NVMe SSD (ComfyUI then streams them from disk by itself), or add --fast-disk to ComfyUI's launch arguments. Split very long shots. | | Short on disk space | Optional: pick LTX-2.5-Distilled-Q4_K_M.gguf (15 GB) in LTX-2.5 model. Needs ComfyUI-GGUF; uses more RAM and is about 30% slower. |

12 GB+ VRAM, 16 GB+ RAM. ComfyUI 0.38+ streams the 22B LTX weights to the GPU as needed (dynamic VRAM), so small GPUs work. The weights then wait in system RAM, about 24 GB, unless ComfyUI also streams them from disk.

Disk streaming is the low-RAM switch. It turns on by itself when the model sits on a fast NVMe SSD; on other drives add --fast-disk to ComfyUI's launch arguments. The log line Model storage policy: fast_disk=True confirms it.

<details> <summary>Measured: RAM and time per setup, 4K plates, edge colour cost, GGUF</summary>

| Setup (dogs preview, 49 frames, Best, RTX 5090) | Peak RAM | Time | Matte | |---|---|---|---| | Model in RAM | 40 GB | | reference | | Disk streaming | 21 GB | 272 s | identical | | Disk streaming, machine squeezed to 16 GB | fits | 333 s | identical | | 12 GB of VRAM free (simulated) | | about 5% slower | identical |

Times from a fresh start, model loading included. The 16 GB test locked the rest of a 128 GB machine's RAM so the OS could not use it. A real 12 GB card is slower from compute, not memory. Long shots need more working memory and were not squeeze-tested.

4K plates need more RAM. ComfyUI holds every frame of the plate in memory, and a 4K frame is four times a 1080p one. Measured on the RTX 5090 machine (disk streaming on), UHD 4K, Best:

| 4K shot | Native edges off | Native edges on | |---|---|---| | 49-frame preview | 20 GB | 24 GB | | 242-frame shot | 73 GB | 97 GB |

RAM grows with shot length. On a 64 GB machine, split long 4K shots into runs of about 100 frames (estimated from the two measurements), or preview first and render the full shot in parts. These numbers are with the node's comp output unconnected: wiring comp on a 4K plate adds about 0.1 GB per frame (24 GB on the 242-frame shot; computed from the frame size, not measured). The alpha files on disk don't need it. Measured on v0.4.0; since v0.4.1 the 4K alpha output is full 32-bit like the 1080p one, which adds about 4 GB at 242 frames with native edges off (computed, not measured). With native edges on it evens out: the tile coverage map is now stored once instead of per frame.

Edge colour (v15) cost, RTX 5090, on top of the matte:

| Shot | Quick | Perfect | |---|---|---| | 1080p, 49-frame preview | +1.4 min (4.7 to 6.1 min) | +2.8 min (4.7 to 7.5 min) | | UHD 4K, 49-frame preview | about +4.5 min (from the 242-frame run) | +8 min (about 9 to 17 min) | | UHD 4K, 242-frame shot | +23 min (58 to 81 min) | not measured |

Quick works one frame at a time and keeps only 5 frames in memory, so it adds little RAM (about 1 GB at 4K, computed: 5 frames of colour, grey plate and flow). Perfect's clean plate is rendered on the 1080p proxy and scaled up: the edge only needs its colour, and LTX invents the background's fine texture anyway.

**GGUF (optional). With ComfyUI-GGUF installed, .gguf files appear in the model list, e.g. LTX-2.5-Distilled-Q4_K_M.gguf (15 GB, realrebelai/LTX-2.5_GGUFs). Use it only to save disk space: GGUF can't be streamed from disk, so it needs more RAM (27 vs 21 GB) and runs about 30% slower. Edge difference 0.05; it looks the same.

</details>

<code>// 07 · install</code>

Install

Requirements

| | | |---|---| | ComfyUI | 0.38 or newer | | GPU | NVIDIA, 12 GB+ VRAM (developed on an RTX 5090) | | RAM | 16 GB+ with the models on an NVMe SSD, otherwise 64 GB (see Hardware) | | Disk | about 28 GB for the models | | Node packs | ComfyUI-SAM3, ComfyUI-LTXVideo | | Python packages | opencv-python-headless, transformers, huggingface_hub, av (installed by step 1) | | Account | free Hugging Face account, to accept the LTX model license |

1. Install this node pack. Easiest: ComfyUI Manager > Install via Git URL > paste https://github.com/rik-python/ComfyUI-Comfy-Pro-Alpha-Generator.git (it installs the Python packages too). Or by hand, from a terminal inside ComfyUI/custom_nodes (ComfyUI's own Python environment active):

cd ComfyUI/custom_nodes
git clone https://github.com/rik-python/ComfyUI-Comfy-Pro-Alpha-Generator.git
pip install -r ComfyUI-Comfy-Pro-Alpha-Generator/requirements.txt

Restart ComfyUI afterwards.

2. Required node packs (ComfyUI Manager can install both):

3. Get access to the LTX models. The two Lightricks repos are gated:

Make a free Hugging Face account.
Open Lightricks/LTX-2.5 and Lightricks/LTX-2.5-22b-IC-LoRA-Alpha-Gen, and accept the terms on each page.
Download in the browser while logged in, or log in once for the command line: hf auth login. (The Lightricks file links below show an access error until you are logged in and have accepted the terms.)

4. Download the models.

| # | File | Size | Download | Put it in | |:-:|---|--:|---|---| | 1 | ltx-2.5-22b-distilled-transformer-comfy-int8-convrot.safetensors | 21.5 GB | Lightricks/LTX-2.5 | models/diffusion_models/ | | 2 | ltx-2.5-22b-ic-lora-alpha-gen-0.9.safetensors | 1.3 GB | Lightricks/LTX-2.5-22b-IC-LoRA-Alpha-Gen | models/loras/ | | 3 | ltx-2.5-video-vae-conv-bf16.safetensors | 1.5 GB | Lightricks/LTX-2.5 | models/vae/ | | 4 | ltx-2.5-audio-vae-bf16.safetensors | 0.4 GB | Lightricks/LTX-2.5 | models/vae/ | | 5 | sam3.safetensors | 3.5 GB | automatic on first run (apozz/sam3-safetensors) | models/sam3/ | | 6 | ViTMatte vitmatte-base-composition-1k | 0.4 GB | automatic on first run (hustvl/vitmatte-base-composition-1k) | models/vitmatte/vitmatte-base-composition-1k/ | | 7 | Depth Anything V2 Small | 0.1 GB | automatic on the first overlap-mode (v13) run (depth-anything/Depth-Anything-V2-Small-hf) | models/depthanything/Depth-Anything-V2-Small-hf/ |

Use the conv video VAE (#3), ...-video-vae-conv-bf16, not ...-video-vae-bf16: only the conv VAE can encode the plate that guides alpha-gen. No text encoder needed: the pack ships the empty-prompt conditioning (the option sits under ⚙ Advanced; leave it on built-in).

<details> <summary>Optional files</summary>

| File | Size | Download | Put it in | When | |---|--:|---|---|---| | LTX-2.5-Distilled-Q4_K_M.gguf | 15.1 GB | realrebelai/LTX-2.5_GGUFs | models/diffusion_models/ | Short on disk space (needs ComfyUI-GGUF) | | ltx-2.5-22b-ic-lora-clean-plate-1.0.safetensors | 0.3 GB | Lightricks/LTX-2.5-22b-IC-LoRA-Clean-Plate (gated: accept the terms on that page first) | models/loras/ | Only for edge colour = perfect. Without it, perfect runs as quick and the badge says so | | gemma4-12b-with-proj-ltx-2.5-comfy-int8-convrot.safetensors | 15.4 GB | Lightricks/LTX-2.5 | models/text_encoders/ | Never required (built-in prompt gives the same result) |

</details>

Folder structure when done:

ComfyUI/
├── custom_nodes/
│   ├── ComfyUI-Comfy-Pro-Alpha-Generator/   <- this repo
│   ├── ComfyUI-SAM3/
│   └── ComfyUI-LTXVideo/
└── models/
    ├── diffusion_models/
    │   └── ltx-2.5-22b-distilled-transformer-comfy-int8-convrot.safetensors
    ├── loras/
    │   └── ltx-2.5-22b-ic-lora-alpha-gen-0.9.safetensors
    ├── vae/
    │   ├── ltx-2.5-video-vae-conv-bf16.safetensors
    │   └── ltx-2.5-audio-vae-bf16.safetensors
    ├── sam3/
    │   └── sam3.safetensors                 (downloads itself)
    ├── vitmatte/
    │   └── vitmatte-base-composition-1k/    (downloads itself)
    └── depthanything/
        └── Depth-Anything-V2-Small-hf/      (downloads itself, overlap mode only)

<details> <summary>Download everything from the command line</summary>

Run inside ComfyUI/models after hf auth login. --local-dir keeps the repo's subfolders, so the files land in the right folders:

hf download Lightricks/LTX-2.5 diffusion_models/ltx-2.5-22b-distilled-transformer-comfy-int8-convrot.safetensors vae/ltx-2.5-video-vae-conv-bf16.safetensors vae/ltx-2.5-audio-vae-bf16.safetensors --local-dir .
hf download Lightricks/LTX-2.5-22b-IC-LoRA-Alpha-Gen ltx-2.5-22b-ic-lora-alpha-gen-0.9.safetensors --local-dir loras

</details>

Models already in a subfolder (models/diffusion_models/LTX/...) work too: the node finds them by file name. Press R in ComfyUI after adding files. Low-RAM tip: keep models/ on an NVMe SSD (see Hardware).

Updating

With ComfyUI Manager (easiest, also for packs installed via Git URL):

Manager > Custom Nodes Manager.
Search Comfy Pro Alpha, click Update (or use Update All on the Manager's main page).
Restart ComfyUI.

By hand, from a terminal (ComfyUI's own Python environment active):

cd ComfyUI/custom_nodes/ComfyUI-Comfy-Pro-Alpha-Generator
git pull
pip install -r requirements.txt

Then restart ComfyUI.

After either route:

Reload the browser tab (Ctrl+R; in Comfy Desktop, reload the window the same way). The node's panel is a web script, and the browser keeps the old one until you reload.
Check the version on the node: the small tag next to the title (for example v0.3.0) should match the version on GitHub.
Saved workflows keep their settings. New settings arrive with their defaults. One exception since v0.5.0: edge colour defaults to quick, so an old workflow's comp output becomes the clean premultiplied comp and rgba_ files are written next to the alpha. The alpha files are unchanged. Set edge colour to off to get a v0.4 render exactly.
New models download themselves the first time a feature needs them (Depth Anything V2 Small for overlap mode).

If git pull refuses with "your local changes would be overwritten", you edited files in the pack. Keep a copy of anything you changed, then run git stash and git pull again (git stash pop brings your edits back, if you still want them).

If the node shows red or "IMPORT FAILED" after an update, something it depends on is missing or out of date. Run the pip install -r requirements.txt line above, update ComfyUI-SAM3, ComfyUI-LTXVideo and ComfyUI itself the same way, then restart. The console line starting with Cannot import names the cause.

<code>// 08 · limits</code>

What it can and can't do

| Spec | Value | |---|---| | Best resolution | 1920x1088 (a 1920x1080 plate is padded automatically). LTX alpha-gen is tuned for this size. | | Smaller plates | Work, but edges get softer; at half resolution the subject's alpha visibly drops. | | Bigger plates | Matted at their own resolution: a 1080p proxy decides the subject, native 1920x1088 tiles draw the edges (v14). Tested on UHD 4K, DCI 4K and 2K; 6K and 8K untested. | | Shot length | Up to 24 chunks, about 960 frames at the default settings. Split longer shots. | | Frame range | From the frame you pick on to the end of the plate; earlier frames come out empty. | | Speed (RTX 5090, Best) | 49-frame preview about 4 min; a 247-frame shot about 25 min. Overlap mode (v13): about 4.7 and 26.5 min. UHD 4K with native edges: about 9 min and 58 min (242 frames); off: about 4 and 19 min. | | Output | Alpha as 16-bit PNG or half-float EXR, plate frame numbers kept (plate.1001 gives alpha_01001). Since v15 also the clean colour as rgba_01001: EXR is scene-linear and premultiplied (the Nuke convention), PNG is sRGB with straight alpha (the PNG convention). | | Subjects | One matte per run; it can stack several objects (a man, his glass and the table). |

| Works well | Works with care | Doesn't work (yet) | |---|---|---| | People, hair, animals with fur, vehicles with dust, props | A hand, arm or hair crossing the subject: turn on overlap mode (v13). If the subject's own limb rests on someone and goes missing, add a click on it | Frames before the pick frame | | Busy shots with several people (the others are painted out) | Background objects (a parked car): LTX mattes what it reads as the main subject; the LTX cover badge goes red and ViTMatte takes over | A subject fully hidden mid-shot (a car driving in front): SAM3 can lose the track. Pick after the occlusion or split the shot | | Video files and EXR/PNG/TIF sequences | More than 8 other subjects near the target: only the nearest 8 are painted out (each costs about 14 s) | Despill of light the subject really reflects (green bounce on skin from grass): edge colour only removes the background seen through soft edges. Despill in comp | | 12 GB VRAM, 16 GB RAM machines (slower) | | |

Not tested yet: plates smaller than 1080p, vertical video, heavy motion blur, AMD and Apple GPUs.

<code>// 09 · credits</code>

Credits

Built on LTX-2.5, the IC-LoRA Alpha-Gen and Clean Plate by Lightricks, SAM3 by Meta, ViTMatte by HUST Vision Lab, Depth Anything V2 (Small) by its authors at HKU and TikTok, ComfyUI-SAM3 and ComfyUI. ONYX Ai Matte is a product of its respective owner; it is referenced here only as a design comparison.

Author: Rikin Patel, VFX compositor (Nuke) and ComfyUI educator at Comfy Compositing. I built this for the shots I actually get: one person out of a busy plate, VFX frame numbers kept, 16-bit or EXR out, and a QC number I can check before anything goes to comp.

<code>// 10 · license</code>

License

Free for personal and non-commercial use under the PolyForm Noncommercial License 1.0.0. Commercial use (paid client work, studio or company use, or inside a commercial product or service) needs a commercial license: comfycompositing.com/contact.

This license covers this node pack's code only. The models and node packs it runs on have their own licenses, and you accept those when you download them from their original pages:

| Component | By | License | |---|---|---| | LTX-2.5, the alpha-gen and Clean Plate IC-LoRAs | Lightricks | LTX-2.x Community License (copy: LICENSE-LTX-2.x): companies with $10M+ annual revenue need a paid commercial license from Lightricks | | ComfyUI-LTXVideo nodes | Lightricks | LTX-2 Community License | | SAM3 | Meta | SAM License | | ComfyUI-SAM3 nodes | Andrea Pozzetti | GPL-3.0 (wrapper code; SAM3 itself stays under the SAM License) | | ViTMatte | HUST Vision Lab | MIT (code), Apache-2.0 (weights) | | Depth Anything V2 Small (overlap mode only) | Depth Anything V2 authors | Apache-2.0 (the Base and Large models are non-commercial and are not used) | | ComfyUI | Comfy Org | GPL-3.0 |

A commercial license for this node pack does not include rights to these models. For commercial work, check each license above as well, in particular the LTX revenue threshold.

LTX-2.x notice. This pack runs Lightricks' LTX-2.x model and its alpha-gen and Clean Plate IC-LoRAs; it does not include them. Your use of LTX-2.x, its derivatives and their outputs through this pack is subject to the LTX-2.x Community License in full, including the use-based restrictions in Section 4 and Attachment A and the LTX Acceptable Use Policy. A complete copy of the license (license date August 11, 2026) is in LICENSE-LTX-2.x. Entities with annual revenue of $10M or more need a paid license from Lightricks for any use other than non-commercial use ([email protected]).
