ComfyUI SmartLLM

ComfyUI SmartLLM

One adaptive interface for vision-language models, text models, WD14 taggers, Florence grounding, and YOLO detection—plus a registry manager that keeps model identity, acquisition, and trust decisions explicit.

Version 1.0.4 provides three Nodes 2.0-ready nodes. ComfyUI Eclipse is optional.

Why use it?

• One language-model node adapts to vision, text, and tagger families instead of exposing every backend control at once.
• One detection node covers Florence and Qwen grounding tasks alongside YOLO bounding-box and segmentation models.
• A matching postprocessor converts structured detections into selectable masks and SAM2-compatible bounding boxes without requiring Eclipse.
• Several execution backends share one registry-driven model selector, including Transformers, GGUF, Ollama, vLLM, SGLang, and llama.cpp.
• Verified acquisition records model source, immutable revision, integrity, and provenance before committing local files.
• Workflow compatibility preserves the historical [Eclipse] node IDs, so existing workflows load without node replacement.

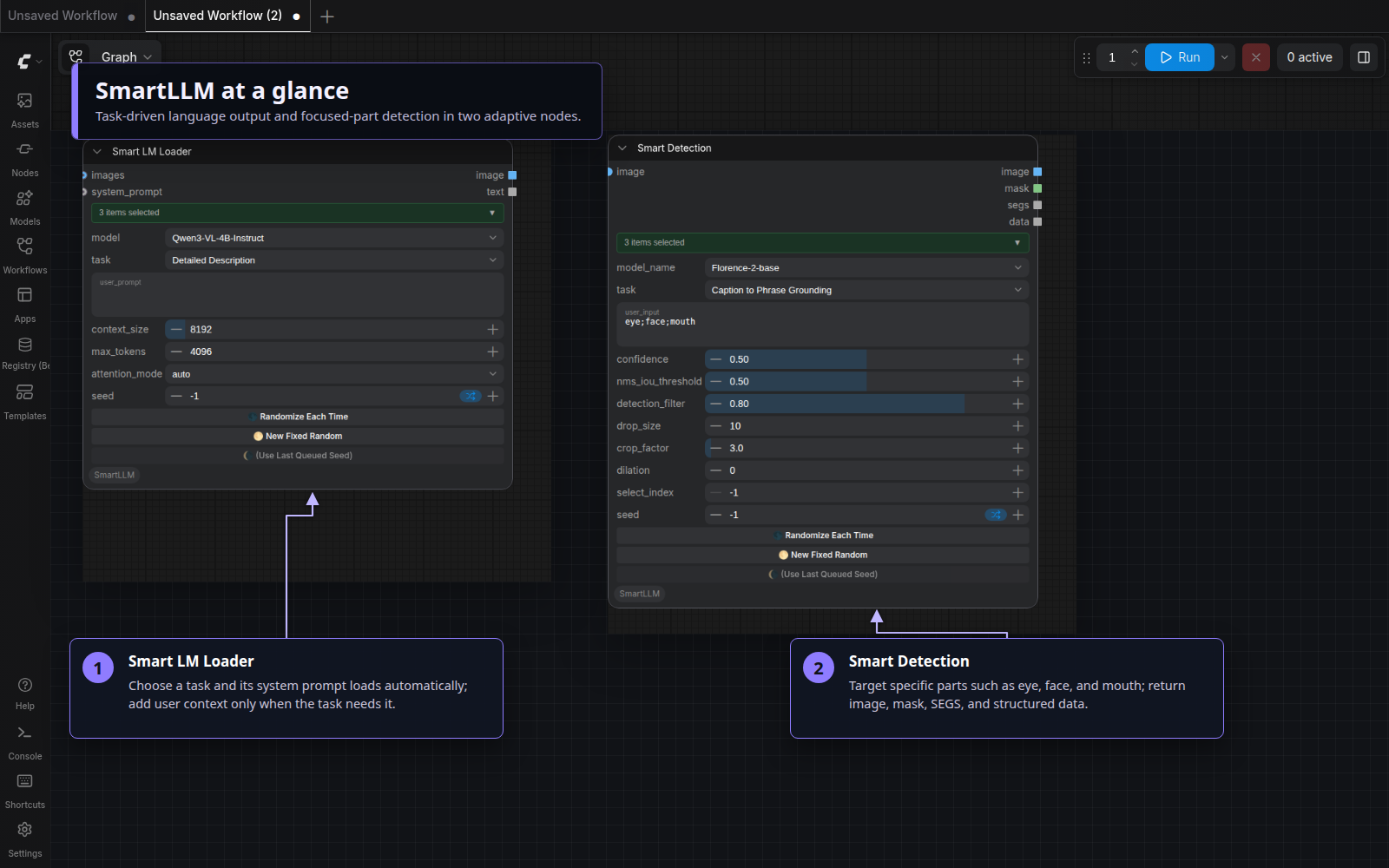

Visual tour

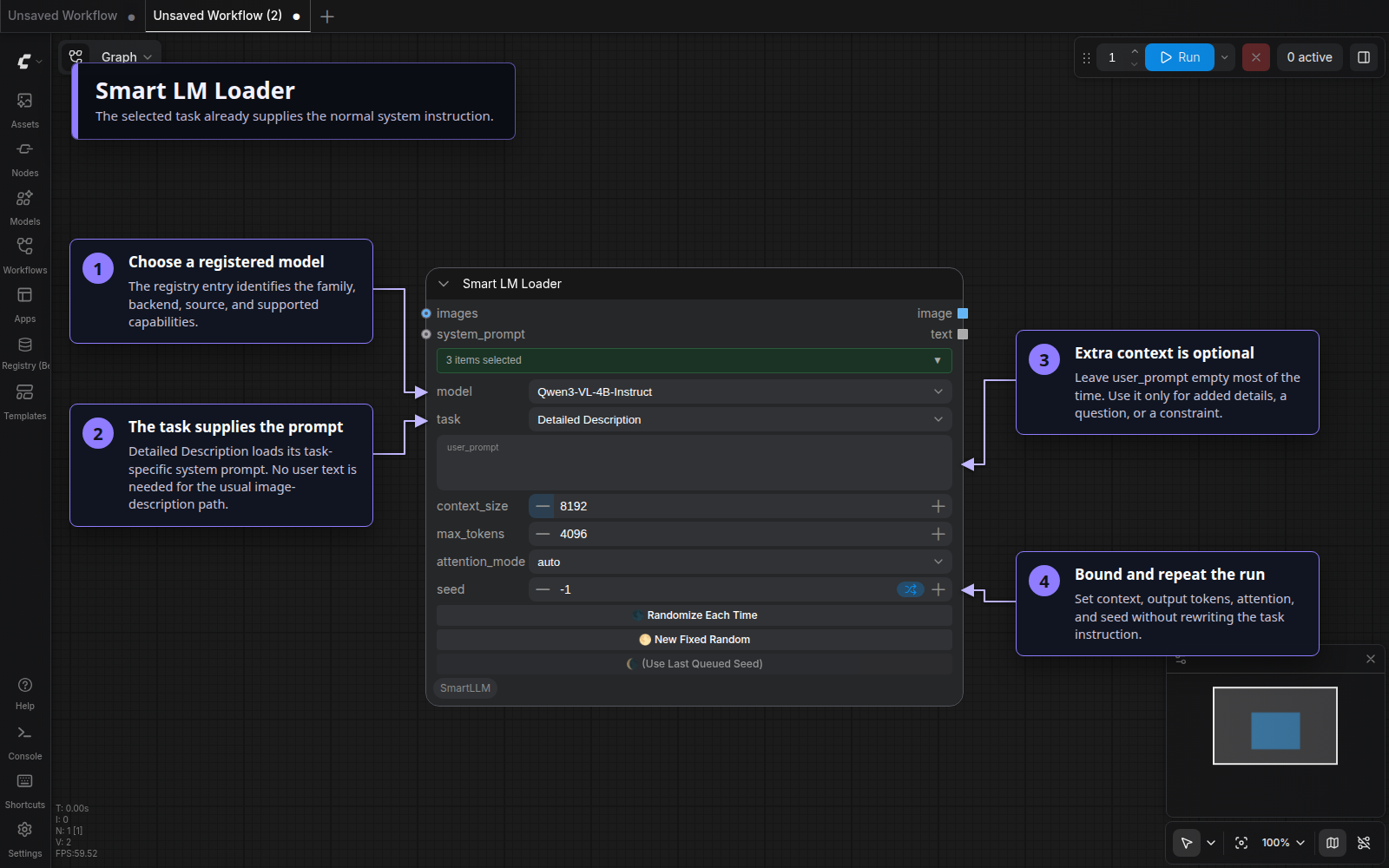

Start with Smart LM Loader

Search for Smart LM Loader [Eclipse] in Add Node. Choose a registered model, then select the task it should perform. The interface responds to the model family: a vision model exposes image-aware tasks, while text-only and tagger models show their relevant inputs.

The selected task loads its task-specific system prompt automatically, so user_prompt is normally empty for tasks such as Detailed Description. Use it only for additional information, a question, or constraints that are not already expressed by the task. Connecting system_prompt is an explicit override: it switches the node to Direct Chat and bypasses the default task prompt templates. The connected text becomes the complete system instruction, so it must contain every important role, objective, constraint, and output-format requirement. user_prompt then supplies the user message or source material for that custom instruction.

The image input is optional for text-only tasks. Output sockets return generated text plus an image when the selected task supports one.

Some generative tasks intentionally use user_prompt as their source material:

• For a Wan or LTX image-to-video task, connect the starting image and describe the intended motion, action, dialogue, style, or camera behavior in user_prompt.
• For MiniMax H3, choose the T2VA, I2VA, FL2VA, or L2VA timeline task matching zero, one first-frame, one first-frame plus an optional last-frame reference, or one last-frame image. The explicit FL2VA task accepts the first frame alone because the downstream H3 encoder can enforce its separately connected last frame; attaching both frames also lets the VLM reason about endpoint differences. The compact, duration-neutral MiniMax H3 Scene task infers T2VA/I2VA/FL2VA from zero/one/two images. Leave user_prompt empty to have SmartLLM create an original one-shot story, grounding it in one image or connecting two endpoint images when supplied. This automatic story mode adds suitable sound and music, and uses dialogue only when the scene supports it. You can instead provide a short description of what should happen and SmartLLM generates the required H3 format. You can request a shot count and views in natural language—for example, “tell this in 3 shots: side, POV, then overhead”—or ask for a Tracking Shot by naming the person or object to follow. For image-based H3 modes, the VLM uses the actual reference image as visual ground truth. A one-image FL2VA response briefly grounds the visible source state and then continues into the complete requested shot timeline; it does not stop at a caption or add exhaustive clothing, lighting, or scenery details. The image controls the subjects and available scene; a nonempty user_prompt controls what happens and prevents unrelated invention. Every H3 task returns the same three generator-ready fields. If you request no background music, no score, or no soundtrack, non_diegetic_music is set to N/A while dialogue, ambience, and action sounds remain in overall_soundscape unless you also request silence. Timeline task labels are duration-neutral; their prompt writer uses H3's 15-second maximum as its shot-planning range unless user_prompt asks for a shorter duration.
• For Song Lyrics, enter a short story, theme, mood, or song concept in user_prompt. Genre, language, tempo, or structural preferences can be added when they matter. The result is a structured lyric sheet that can be copied into Suno, Mureka, or another music-generation tool.

These cases do not require a custom system_prompt; selecting the task still loads the appropriate instructions automatically.

H3 images connected here are visual references for the VLM that writes the prompt. They do not configure the downstream MiniMax H3 encoder. Connect the actual first/last keyframes to that encoder separately, in the order its workflow requires; the FL2VA prompt-writing task does not require its optional last-frame reference when the encoder already receives that frame.

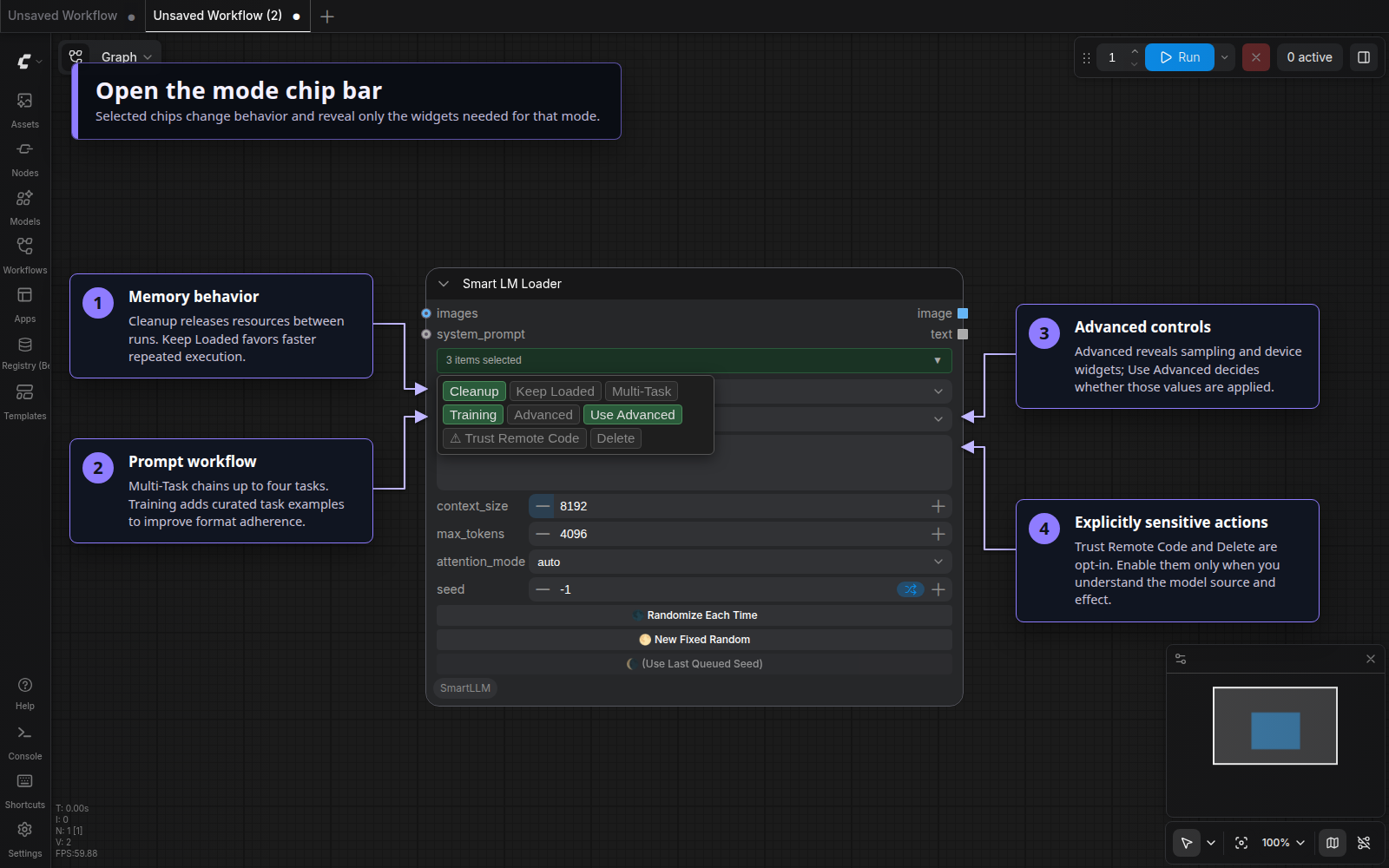

Open the mode chip bar

Click the green mode bar to change memory, prompt, advanced-runtime, and model-maintenance behavior. Selected chips are serialized with the workflow; inactive sections stay hidden.

Available Smart LM modes are Cleanup, Keep Loaded, Multi-Task, Training, Advanced, Use Advanced, and Delete.

• Cleanup and Keep Loaded control the model lifecycle between executions.
• Multi-Task exposes a sequential task chain; Training adds curated task-specific examples to the prompt.
• Advanced reveals sampling, device, and compile controls. Use Advanced decides whether the advanced sampling values are applied.
• Delete reveals the separately confirmed local-file deletion action.

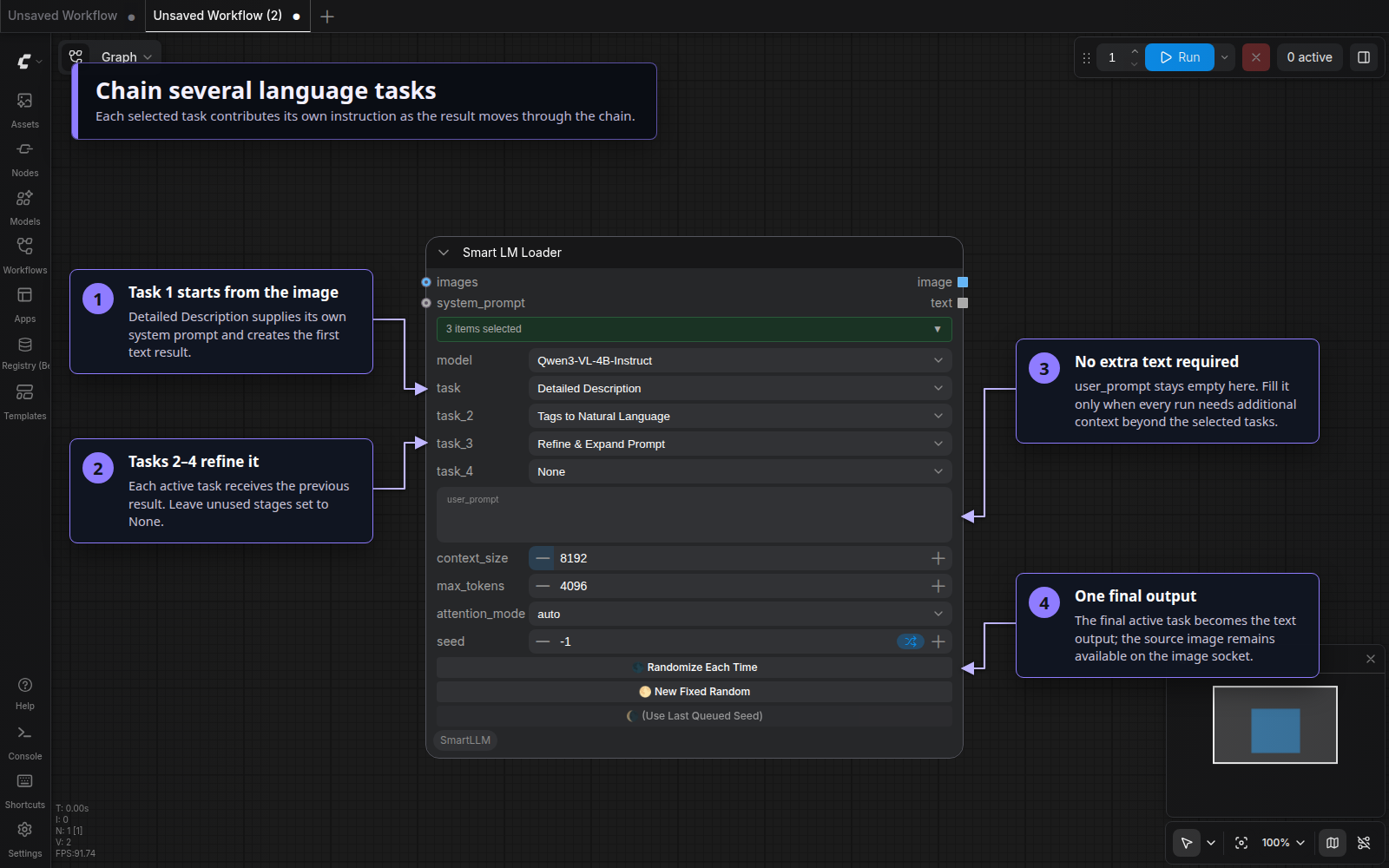

Chain tasks in one execution

Enable Multi-Task to expose Task 2 through Task 4. Each active stage receives the previous stage's text and passes its result forward. This is useful for a visual description → prose conversion → prompt refinement sequence without adding several model nodes.

Set unused stages to None. The final active stage becomes the node's text output, while the image output remains available for compatible workflows.

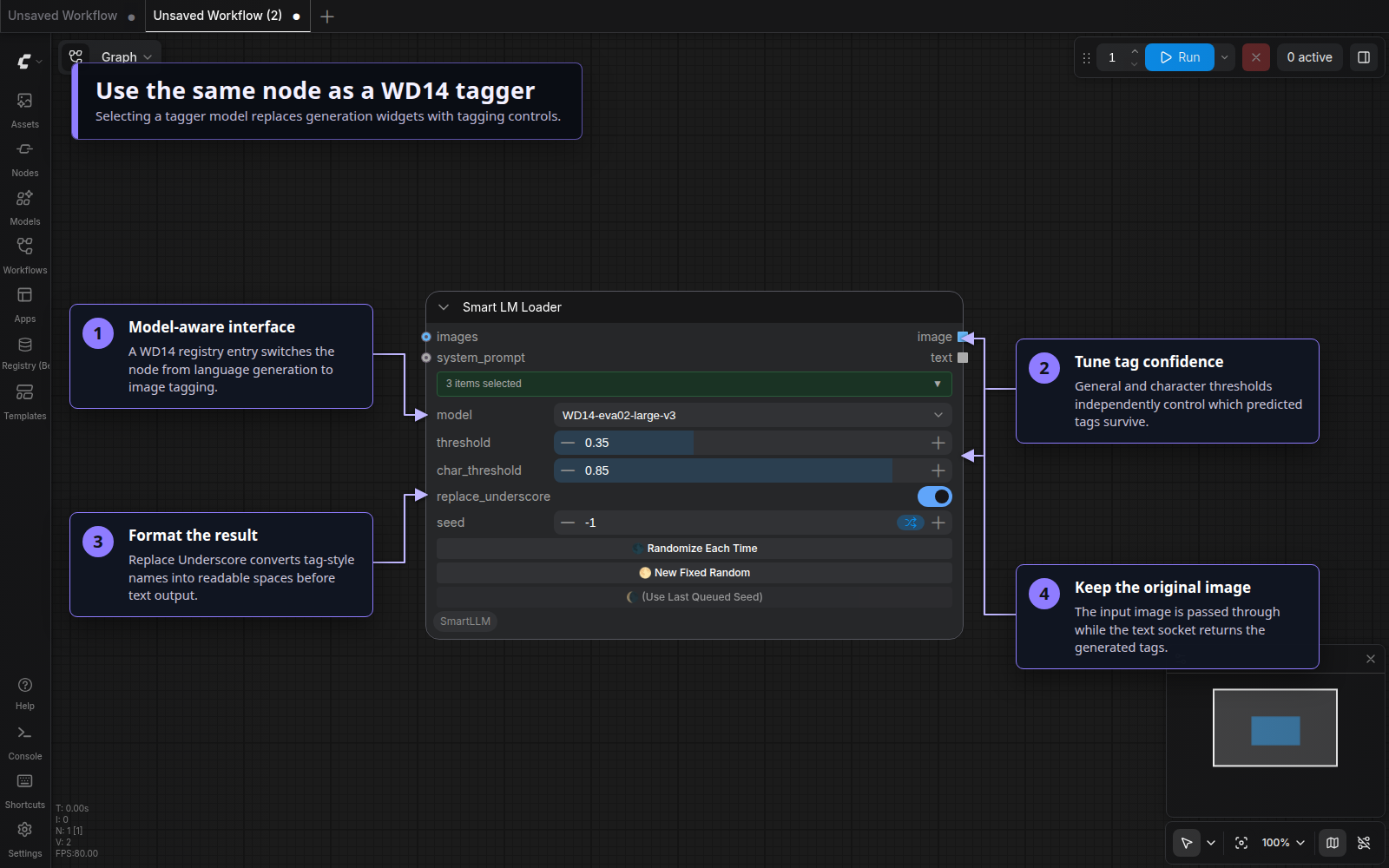

Switch to WD14 tagging

Selecting a WD14 registry entry replaces language-generation widgets with the tagger's general threshold, character threshold, and underscore-formatting controls.

Connect an image and consume the generated tags from the text socket. The image socket passes the source image through for downstream routing.

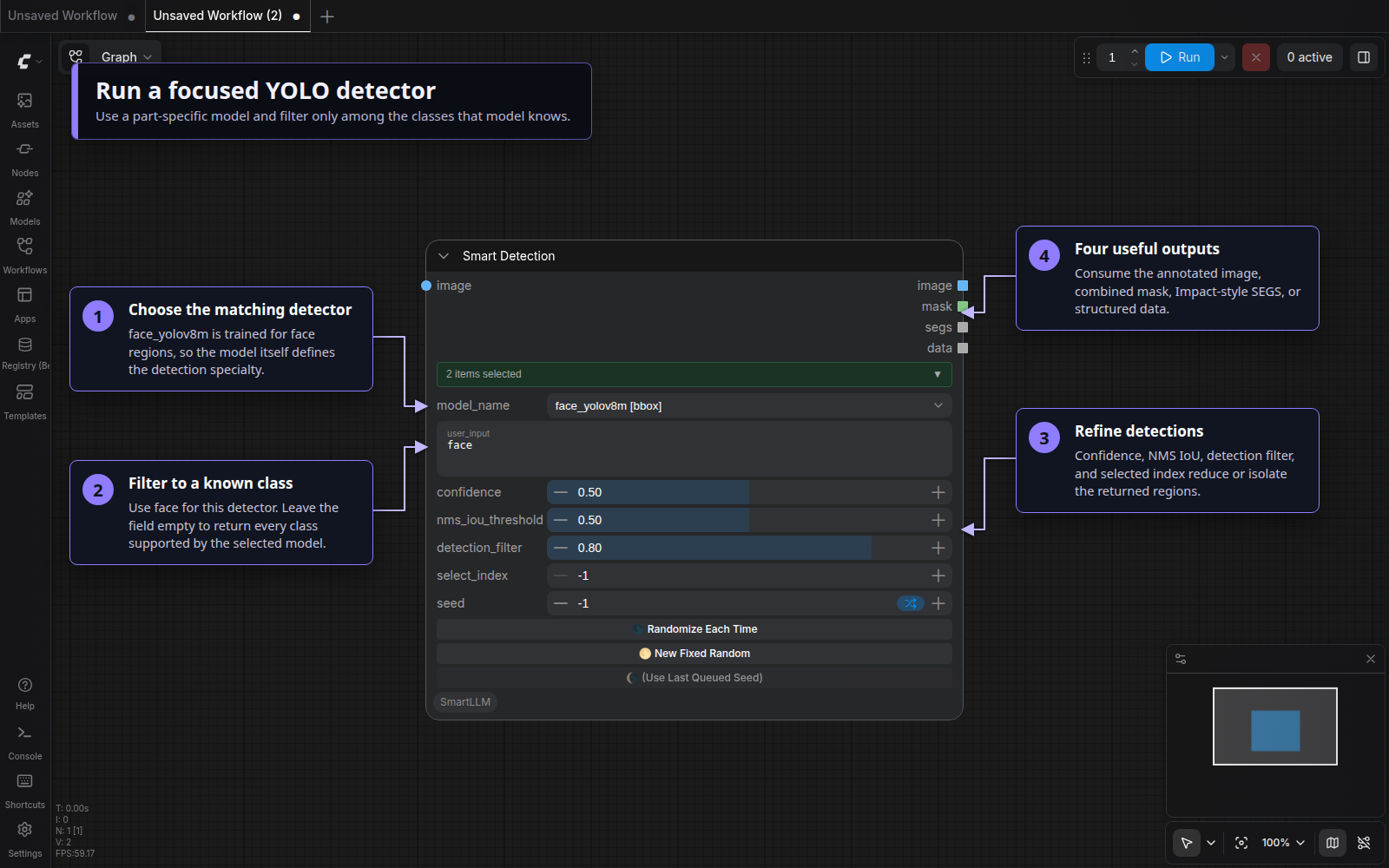

Run YOLO detection

Search for Smart Detection [Eclipse], select a YOLO registry model, and optionally filter among the classes that specific detector knows. For example, the face-specific face_yolov8m model can use face; other registered models specialize in regions such as eyes, faces, hands, or people. Detector-specific confidence, NMS, filtering, and region-selection controls appear automatically.

The node returns an annotated image, a combined mask, Impact-compatible SEGS, and structured detection data.

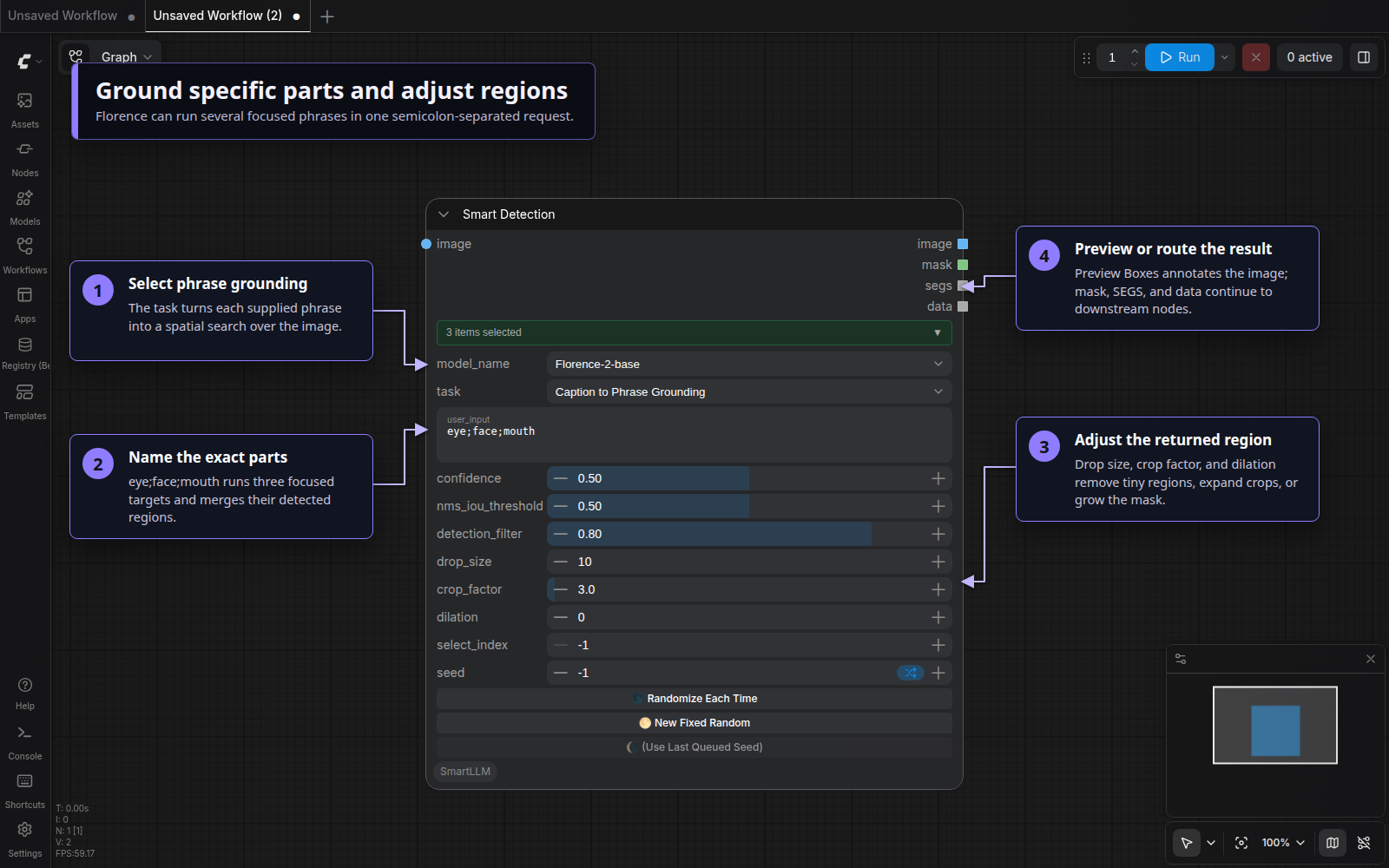

Ground phrases and adjust regions

Florence and compatible Qwen models expose language-directed tasks such as Caption to Phrase Grounding. Enter focused parts such as eye;face;mouth; the semicolon-separated phrases are run as individual targets and their regions are merged. Enable Preview Boxes to annotate the result and Adjust to reveal drop-size, crop-factor, and dilation controls.

Smart Detection modes are Cleanup, Keep Loaded, Preview Boxes, Adjust, Advanced, and Delete. The selected model and task determine which controls are meaningful.

Convert detection data to masks and boxes

Connect Smart Detection's image and data outputs to Detection to Bboxes [Eclipse]. The converter accepts regular boxes, OCR quad boxes, and polygons; it can combine them into one mask or return selected regions separately, with optional inversion, grow/shrink, and blur processing. Its bbox output uses the established BBOXES structure for downstream tools such as SAM2 Ultra.

The converter also has an independent image-analysis mode. Enable get_mask_from_image to detect bright or color-channel regions directly with threshold and minimum-area controls instead of consuming JSON data.

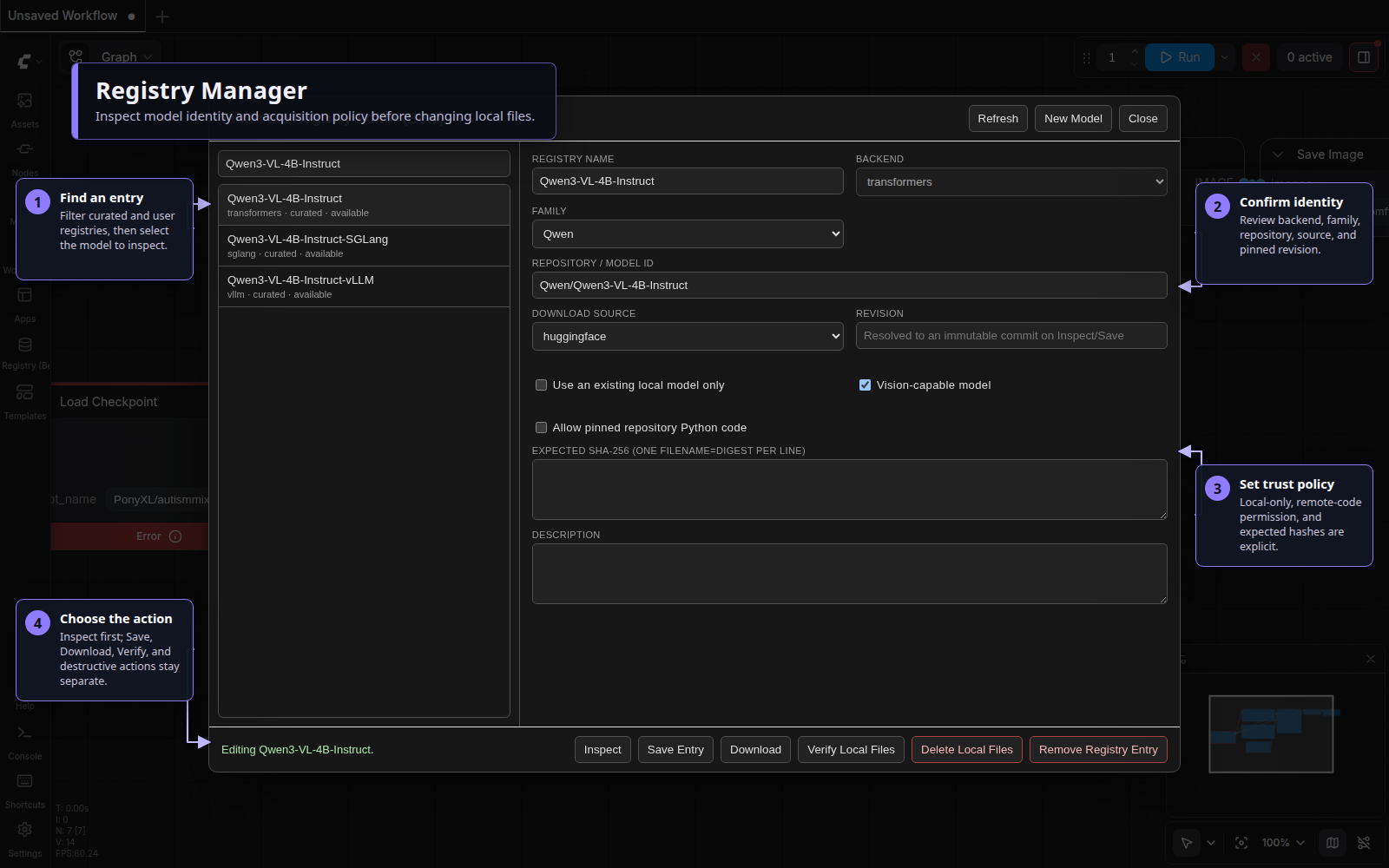

Inspect and acquire models

Open SmartLLM → Open Smart LM Manager (Beta), use the Smart LM Manager left-toolbar launcher, or use the classic-menu button. The Models tab separates model identity from each action you may take.

A registry entry can define its display name, backend, model family, repository or model ID, source, immutable revision, vision capability, local-only policy, expected SHA-256 digests, and description.

Use Inspect before Save Entry or Download. Verify Local Files does not download anything. Delete Local Files and Remove Registry Entry are separate confirmed operations: removing an entry does not delete its local model files.

The Docker Images tab reports Docker Engine, daemon-access, user-group, and GPU runtime readiness, then lists the qualified backend images for the selected platform. Linux users can copy the included terminal installer command or open the installation guide; SmartLLM never requests sudo credentials in the browser. Managed images can be installed, updated, removed, or have their SmartLLM-managed containers stopped from this tab. Stop and removal are refused while a SmartLLM model execution is active, so a running prompt is never interrupted; image removal is also refused while any container still references the selected image. Image operations report start, completion, and failure milestones in the ComfyUI console; select debug under SmartLLM's Log Level setting to also see filtered Docker pull progress and command output. The Ollama card also offers qualified runtime versions: use 0.33.1 for current models or the pinned 0.20.2 legacy compatibility runtime when testing an older model artifact. Install & Select changes the global Ollama runtime, not an individual registry entry. The existing managed container is recreated on its next start while the persistent Ollama model store is preserved.

Included nodes

| Node | Inputs | Outputs | Purpose | | --- | --- | --- | --- | | Smart LM Loader [Eclipse] | optional images, optional system prompt, adaptive widgets | image, text | Run registered vision-language, text, or WD14 models | | Smart Detection [Eclipse] | image, adaptive widgets | image, mask, SEGS, data | Run Florence/Qwen grounding or YOLO detection | | Detection to Bboxes [Eclipse] | image, optional detection data, mask controls | mask, BBOXES | Convert Smart Detection data or image regions into masks and boxes |

The [Eclipse] suffixes are compatibility identifiers. SmartLLM owns all three implementations and does not require Eclipse at runtime. The two model nodes appear under Smart LM Loader → Loader, while the converter appears under Smart LM Loader → Conversion. Their historical IDs remain unchanged so saved workflows continue to resolve without node replacement.

Supported backends and model families

| Path | Typical use | | --- | --- | | Transformers | Local Hugging Face vision-language and text models, including Qwen, Florence, Mistral, and LLaVA-family models | | GGUF / llama.cpp | Quantized local language and vision-language execution | | Ollama | Models served by an Ollama runtime | | vLLM / native vLLM | High-throughput model serving, locally or through the managed Docker path | | SGLang | Structured high-throughput model serving | | WD14 | Image tagging with independent general and character thresholds | | YOLO | Bounding-box and segmentation detection |

Backend availability depends on the optional packages or services installed in your ComfyUI environment. The base installation does not force every compiled runtime onto the user.

Installation

ComfyUI Manager

Search for ComfyUI SmartLLM, install it, and restart ComfyUI.

Manual

From your ComfyUI installation:

cd custom_nodes
git clone https://github.com/r-vage/ComfyUI_SmartLLM.git
cd ComfyUI_SmartLLM
python -m pip install -r requirements.txt

Restart ComfyUI, then search Add Node for any included node. User-facing settings appear under Smart LM Loader → Configuration and retain stable SmartLLM.* IDs.

Install compiled or backend-specific integrations only when needed:

python -m pip install -e ".[sml]"

Docker backends require Docker separately. See the general Docker guide or Linux Docker guide.

Compatibility and ownership

• SmartLLM registers exactly the three nodes listed above and owns the /smartlml/... API namespace, registries, Registry Manager, model-acquisition state, Docker configuration, and private config.json.
• Its model path, retry policy, log level, Hugging Face and ModelScope credentials, and SmartLLM.* settings are independent from Eclipse and Smart Model Loader.
• On first startup, existing standalone data wins, followed by current Eclipse data, legacy ComfyUI_SmartLML data, and bundled defaults. Migration never moves or deletes model artifacts, partial downloads, provenance sidecars, locks, or caches.
• SmartLLM refuses to register beside an active legacy SmartLML provider or when /smartlml/... routes are already registered. Inert SmartLLM source files left in Eclipse by an overlay update do not block startup and remain available to the user-data migration described above.
• Optional Eclipse utilities can consume the unchanged SmartLLM IDs and image, text, mask, SEGS, and data outputs.

Security defaults

Mutation routes are POST-only, same-origin protected, limited to bounded JSON objects, and loopback-only in ComfyUI multi-user mode. Credentials are write-only and stored with private permissions. Remote model acquisition resolves immutable revisions, verifies integrity, commits atomically, and writes provenance records. YOLO uses restricted loading, while managed Docker reuse is tied to immutable image and container-spec identity.

Repository-supplied Python model code is unsupported. Transformers Auto-class loads explicitly deny remote code, vLLM is never launched with its remote-code flag, and Florence uses SmartLLM's local vendored implementation. Read Security and model integrity before adding an untrusted model source.

Guides

• Smart LM Loader guide
• Smart Detection guide
• Registry Manager
• Model repository reference
• Copy-paste model registry reference
• Security and model integrity
• Migration details
• Third-party notices

For bugs and feature requests, use the GitHub issue tracker.

Licensed under Apache-2.0. See LICENSE and THIRD_PARTY_NOTICES.md.
