ComfyUI — Ideogram4 Bbox Editor

A ComfyUI custom node that renders a visual bounding-box / caption editor on the node itself and outputs the assembled Ideogram-4 caption (v15 format) as a JSON string.

Features

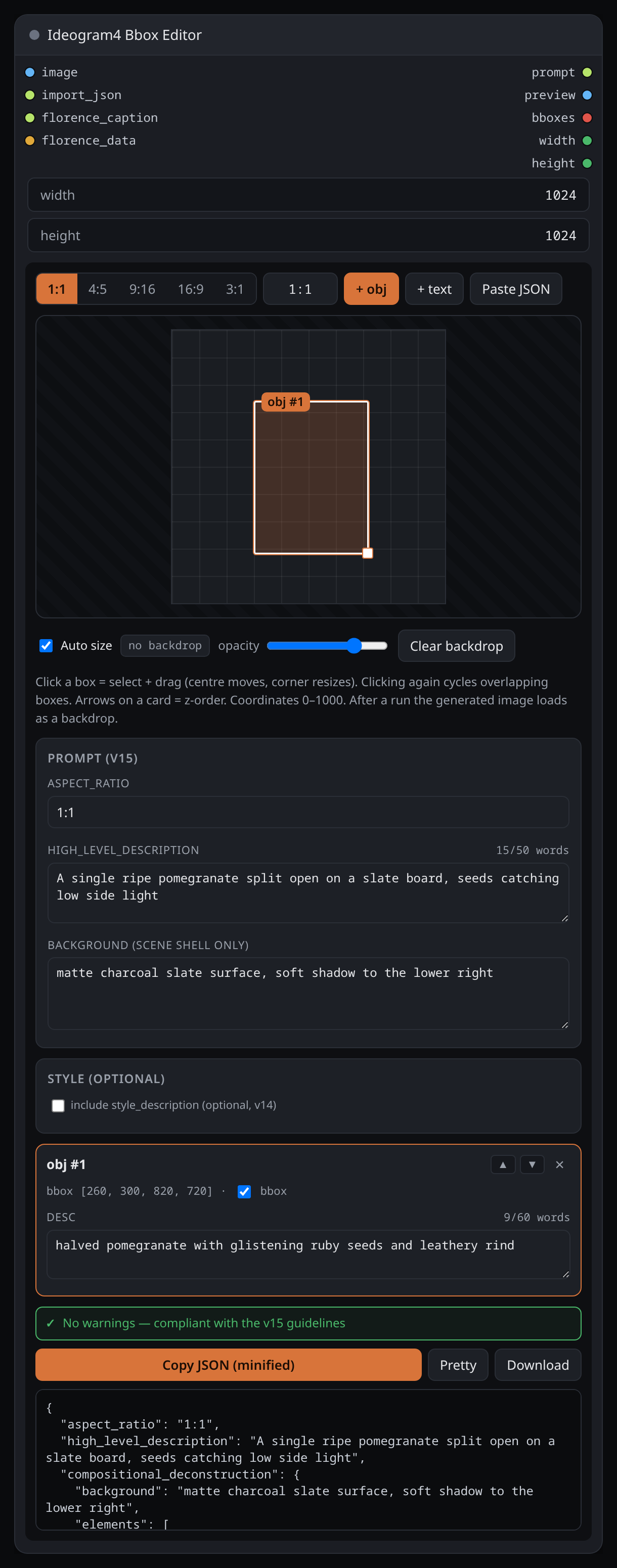

• On-node visual editor — draw, move and resize regions directly on the node (corner handle resizes, centre drags; click cycles through overlapping boxes).
• Aspect-ratio presets — 1:1 / 4:5 / 9:16 / 16:9 / 3:1 plus a free custom W:H field. The ratio drives default bbox shapes.
• 0–1000 grid — bboxes as [ymin, xmin, ymax, xmax], independent of pixels.
• Per-element controls — obj / text type, optional bbox (toggle per element), literal multi-line text for text regions, desc, and z-order (▲/▼ choose what sits on top).
• Caption-level fields — aspect_ratio, high_level_description, background (scene shell only).
• Optional style_description (v14) — off by default (v15 has no style_description). Toggle it on to add a style block with a photo / art_style kind, aesthetics / lighting / medium, and a color_palette (comma-separated #hex). Emitted with the canonical key order; validation stays silent about it. Importing a caption that has style_description loads it back into these fields.
• Live validation panel — flags v15 guideline issues as you type: word caps (HLD ≤ 50, desc ≤ 60), camera/shadow language in desc, floor/ground as an element, "warm" grading, post-processing in background, furniture/people smuggled into background, missing text in built environments, bad bbox, etc.
• Word counters on HLD and each desc.
• Smart import — paste any caption JSON, or wire one into the import_json input; it unwraps caption/data/result wrappers, doubly-encoded JSON, derives the ratio from size, and loads style_description into the style fields. The output always reflects the editor, never the raw input.
• Persistent prompt — the caption is saved with the workflow and reloaded into the editor on reopen / page reload, and it also appears when you drop a saved image whose embedded workflow contains it (e.g. one written by Save Image (Rich Metadata) with embed_workflow on).
• Copy minified / Pretty / Download.
• Optional width / height inputs — set the actual target size. When both are > 0 the editor canvas and the output's aspect_ratio follow W:H (e.g. right-click → convert to input and wire a resolution node). 0 = use the aspect ratio chosen in the editor.

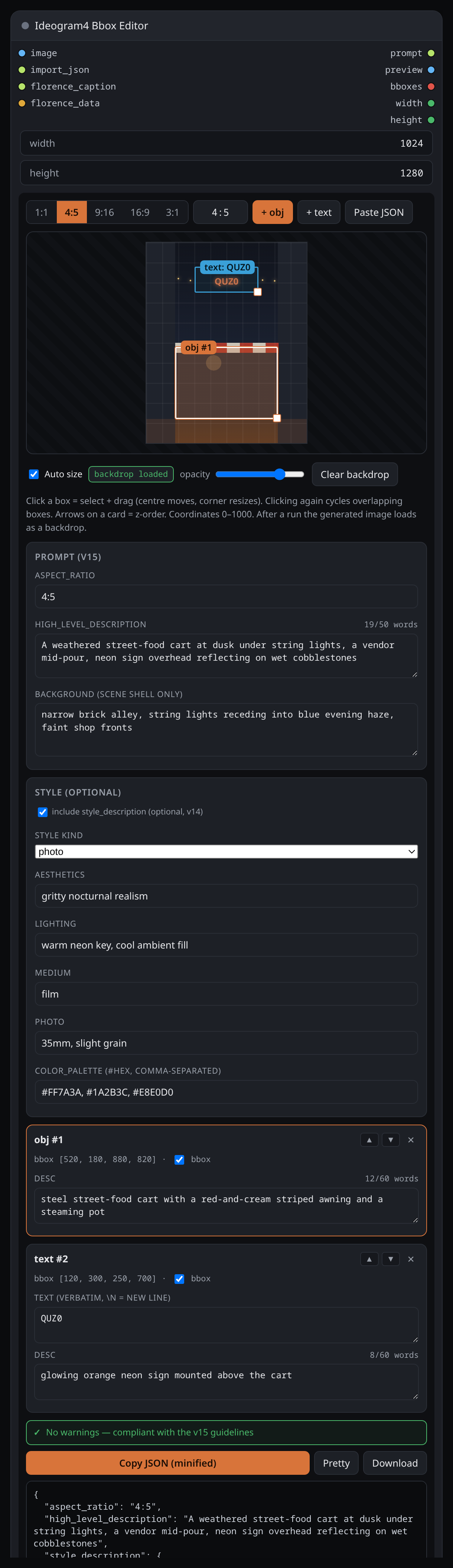

• Generated-image backdrop — after each run the latest generated image is captured from the frontend and shown, scaled to fit, behind the boxes so you can see where to nudge them before regenerating (no wiring — a real IMAGE input would create a graph loop). Controls: Auto size (grid/aspect ratio follow the image, else the connected width/height), a backdrop opacity slider, and Clear backdrop. Picking a preset / custom W:H switches Auto off.
• Optional image input — a reference image (e.g. LoadImage): dimmed behind the preview output and shown as the editor backdrop (loads on run).
• Florence-2 auto-fill — seed the editor from an image without embedding the model: wire comfyui-florence2's Florence2Run outputs into florence_caption (→ high_level_description) and florence_data (→ region/OCR boxes as elements; needs image connected so the pixel boxes can be normalized). Auto-fill re-applies only when the Florence output changes, so re-runs don't clobber your edits.
  • For labeled boxes + a prose HLD, wire a caption task (detailed_caption — more_detailed_caption runs ~150 words and trips the 50-word HLD warning) → florence_caption, and a region task's raw caption (dense_region_caption) → florence_regions (parsed into elements with desc = label). See examples/florence2_autofill.json.
  • florence_regions recovers the per-region labels that kijai's data drops for OD / dense_region_caption (<loc_> is normalized, so no image needed).
  • florence_data (JSON) is still accepted for boxes without labels and for OCR; it needs image connected (pixel-space).
• Outputs:
  • prompt (STRING) — the live caption JSON.
  • preview (IMAGE) — boxes + numbered tags + desc/text rendered over the canvas (or the dimmed reference image).
  • bboxes (BOUNDING_BOX) — pixel-space, nested [[{x,y,width,height}]], ready for SAM3 / crop / mask nodes.
  • width / height (INT) — the resolved canvas size (passthrough).

v15 output format

{
  "aspect_ratio": "4:5",
  "high_level_description": "…",
  "compositional_deconstruction": {
    "background": "…",
    "elements": [
      { "type": "obj",  "bbox": [40, 240, 1000, 760], "desc": "…" },
      { "type": "text", "bbox": [110, 300, 250, 700], "text": "QUZ0", "desc": "…" }
    ]
  }
}

bbox is [ymin, xmin, ymax, xmax] on a 0–1000 grid and is optional per element. v15 has no style_description and no color_palette — describe style as prose inside high_level_description / background.

Example workflow

examples/florence2_autofill.json — LoadImage → Florence2Run ×2 (a detailed_caption for the HLD and a dense_region_caption's raw caption for the labeled boxes) → Ideogram4 Bbox Editor → PreviewImage. Drag it onto the ComfyUI canvas, point LoadImage at an image, run once to auto-fill the editor, then tweak and generate. Requires comfyui-florence2.

Install

Clone into ComfyUI/custom_nodes/ and restart ComfyUI:

git clone https://github.com/quzopl/comfyui-ideogram4-bbox-editor.git

Usage

Add Ideogram4 Bbox Editor (category Ideogram4). Pick a ratio, add obj / text regions, fill desc / text, write high_level_description and background, and watch the validation panel. Wire the prompt output into a text encoder (e.g. CLIPTextEncode) or any string consumer. Pairs naturally with the AI Gallery metadata stack.

After you run the graph, the latest generated image appears as a backdrop and the grid snaps to its proportions, so you can see exactly where to nudge the boxes before the next run.

Development

python -m pytest tests/ -v

License

MIT
