ComfyUI Extension: LoRA Visualizer

Authored by oliverswitzer

Created

Updated

1 stars

A ComfyUI custom node that parses prompt text for LoRA tags and visualizes their metadata, including trigger words, strength values, thumbnail previews, and example images.

Custom Nodes (0)

    README

    LoRA Tools Suite - ComfyUI Custom Nodes

    A comprehensive ComfyUI custom node package for LoRA management and intelligent prompt composition. Includes three powerful nodes for parsing, visualizing, and composing prompts with LoRA tags.

    ๐Ÿ“‹ Prerequisites

    Required for all functionality: Install ComfyUI-Lora-Manager first. This provides the essential LoRA metadata that powers our visualization and discovery features.

    Included Nodes

    ๐Ÿ” LoRA Visualizer

    Parses and visualizes LoRAo tags with rich metadata display

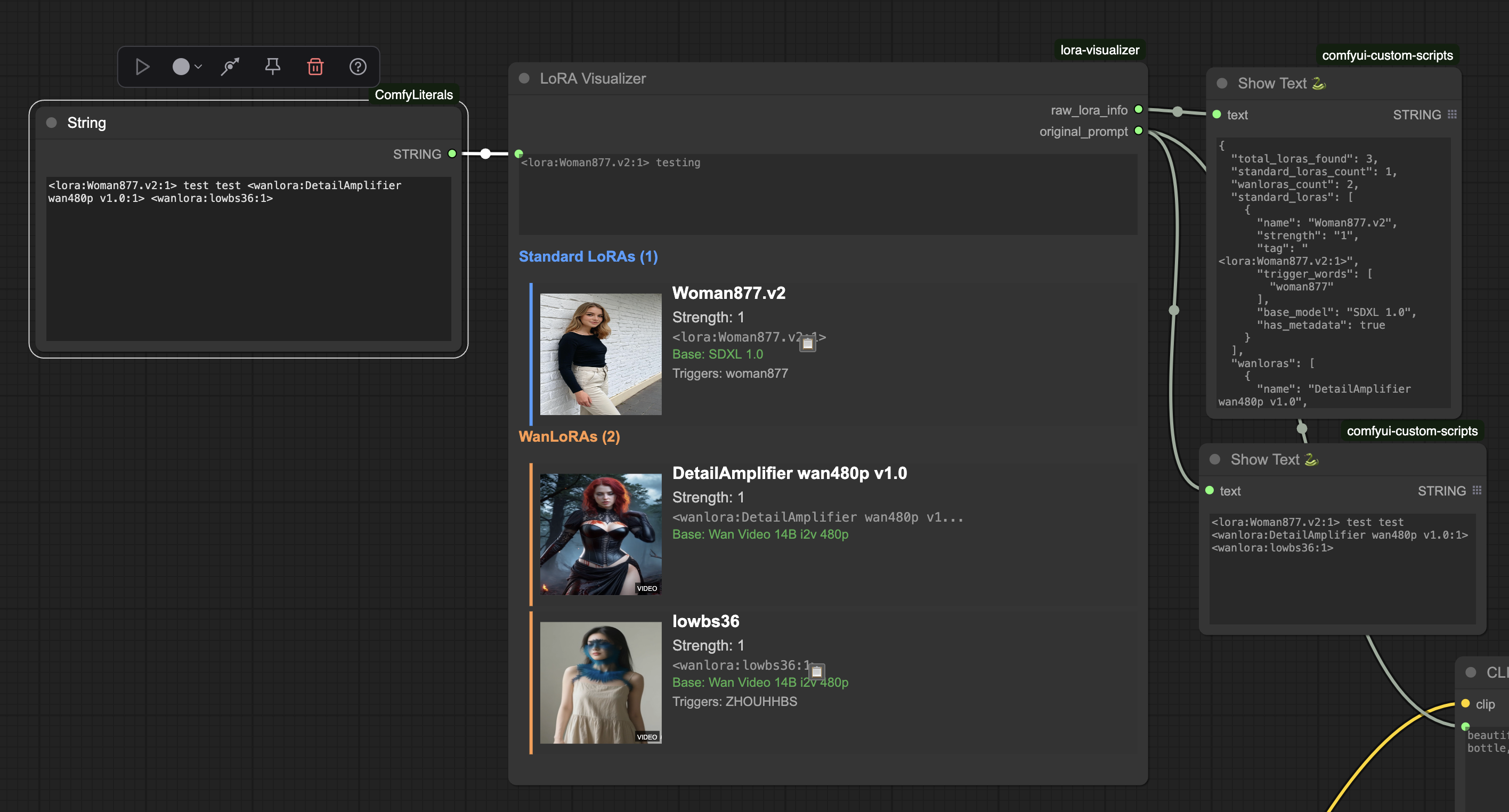

    LoRA Visualizer node in workflow

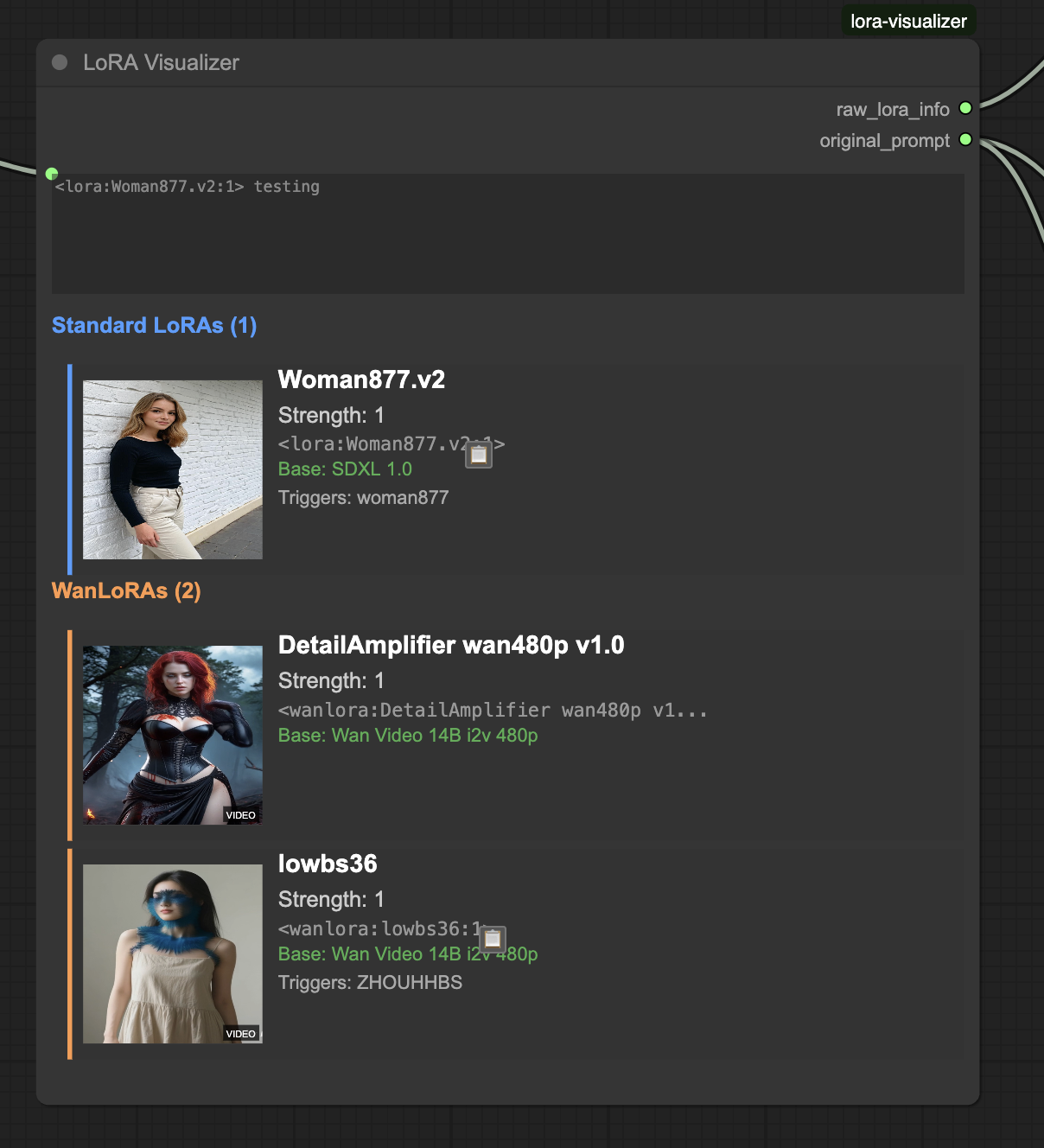

    LoRA Visualizer node interface

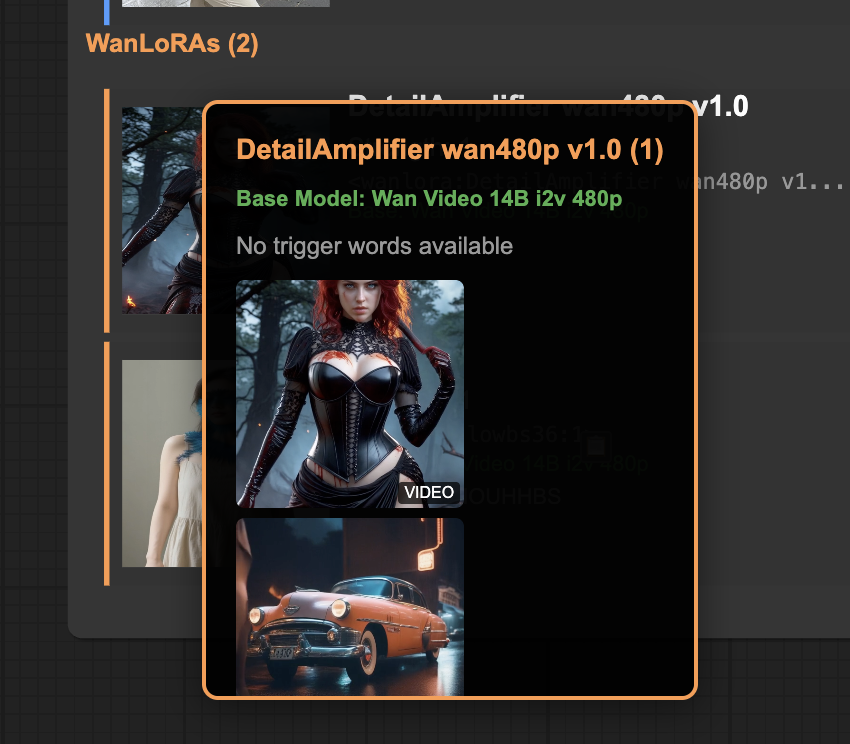

    LoRA Visualizer hover interaction

    • โœ… Consistent LoRA Parsing: Backend Python parsing handles both standard <lora:name:strength> and custom <wanlora:name:strength> tags with identical logic
    • โœ… Complex Name Support: Handles LoRA names with spaces, colons, and special characters (e.g., <lora:Detail Enhancer v2.0: Professional Edition:0.8>)
    • โœ… Visual Thumbnails: Displays actual LoRA preview images loaded from metadata files
    • โœ… Metadata Integration: Shows trigger words, model information, and base model details from ComfyUI LoRA Manager
    • โœ… Separate Visual Lists: Standard LoRAs (blue theme) and WanLoRAs (orange theme) displayed in distinct, color-coded sections
    • โœ… Canvas-based Rendering: Properly integrated with ComfyUI's node system using custom widget drawing
    • โœ… Hover Gallery: Hover over thumbnails to see trigger words and example images

    ๐ŸŽฏ Prompt Composer

    Looks at your installed Wan and SD lora, and intelligently discovers and composes LoRA tags using semantic matching

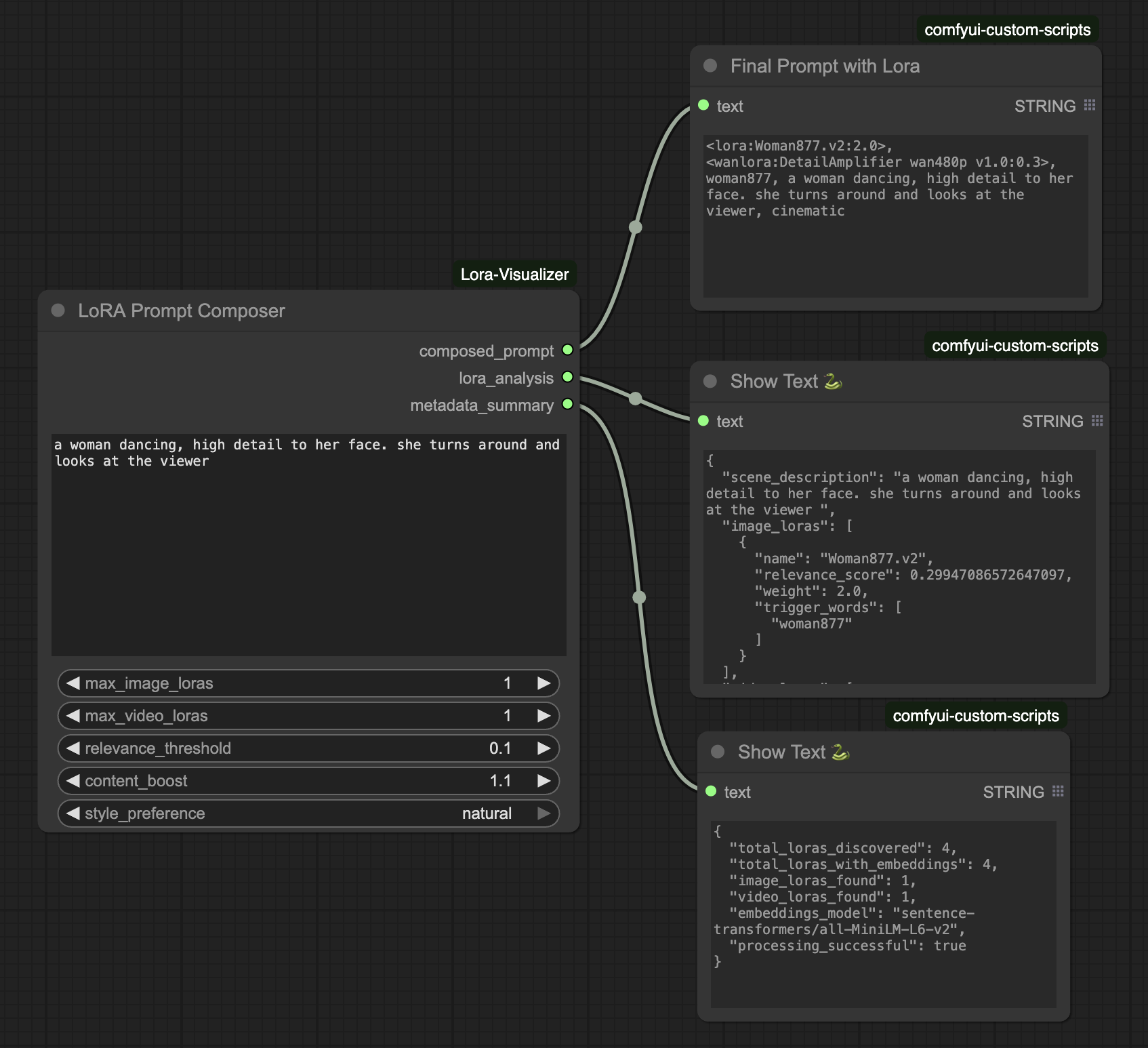

    Lora prompt composer

    • โœ… Semantic LoRA Discovery: Uses sentence-transformers to find relevant LoRAs based on scene descriptions
    • โœ… Natural Language Input: Describe your scene in plain English, get optimized LoRA suggestions
    • โœ… Intelligent Weight Optimization: Automatically determines optimal LoRA strengths from metadata analysis
    • โœ… Content-Aware Matching: Understands all content types without censorship
    • โœ… Image & Video LoRA Support: Separate limits and handling for image vs video LoRAs
    • โœ… Trigger Word Integration: Automatically includes relevant trigger words in output
    • โœ… Style Mimicry: Learns from example prompts to match artistic styles

    NOTE: If you aren't having any lora show up, try to reduce the threshold parameter! This adjusts the semantic matching threshold.

    โœ‚๏ธ Prompt Splitter (AI-Powered)

    Intelligently splits prompts for image/video workflows using local LLM, while preserving lora/wanlora tags

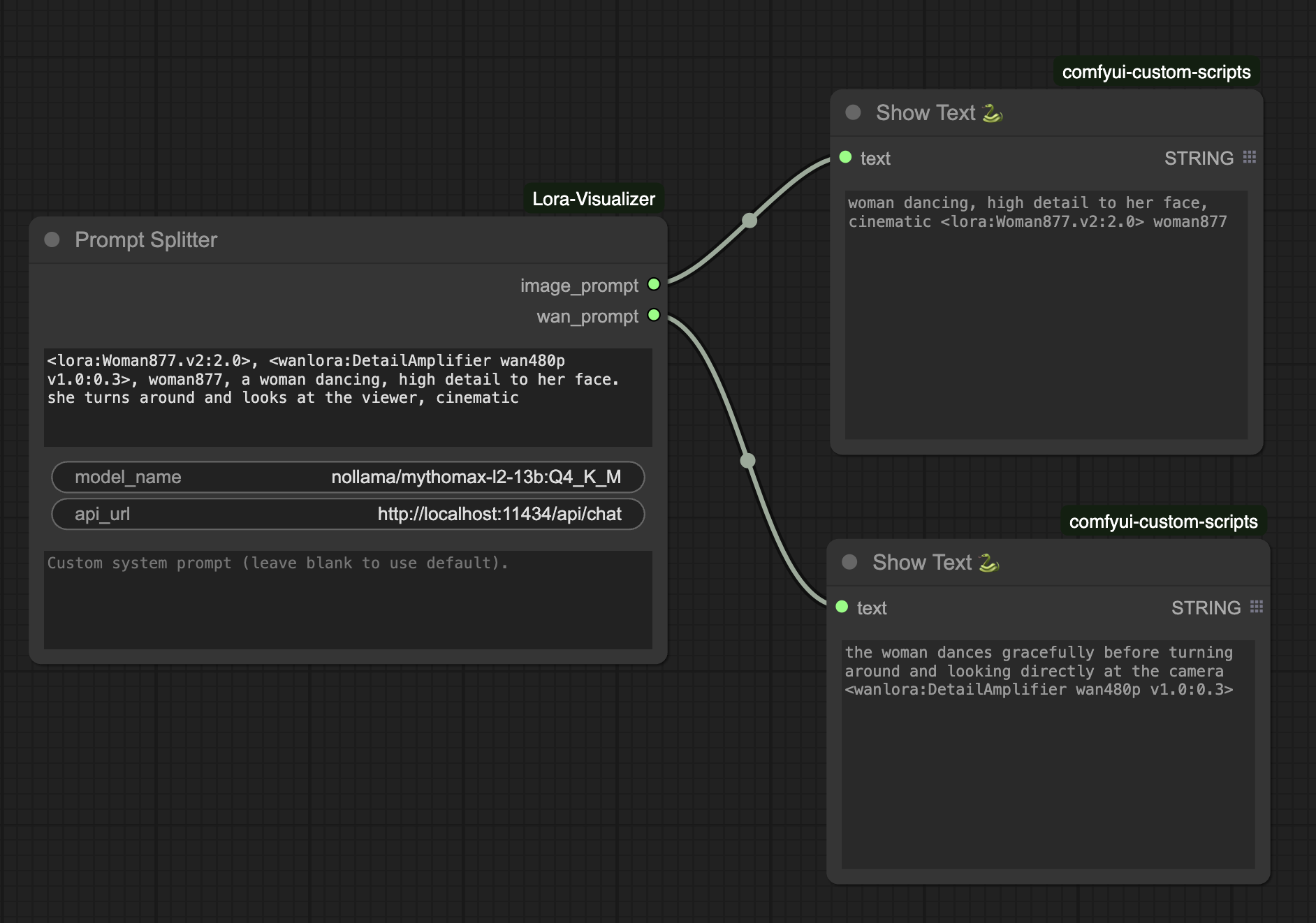

    LoRA Prompt Splitter Node

    • โœ… AI-Powered Analysis: Uses local Ollama LLM for intelligent prompt processing informed by best prompting practices for SD vs. Wan
    • โœ… Dual Output Generation: Creates separate optimized prompts for image and video generation
    • โœ… Content Preservation: Maintains all descriptive elements while optimizing for each medium
    • โœ… Local Processing: No external API calls, complete privacy
    • โœ… Flexible Model Support: Works with any Ollama-compatible model
    • โœ… Structured Output: Clean, consistent formatting for downstream nodes

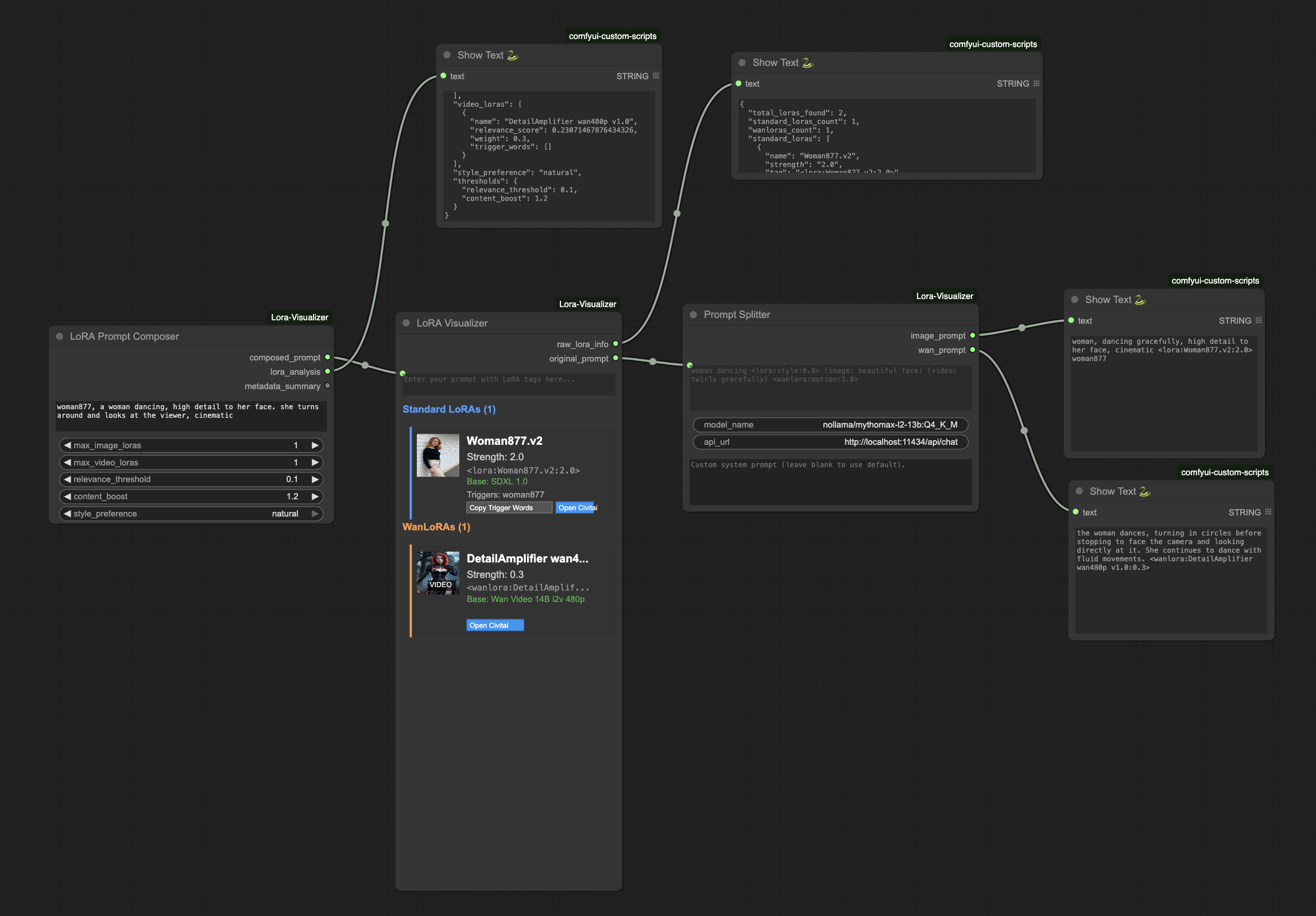

    Example: Integration Composer -> Visualizer -> Prompt Splitter

    Integration Composer -> Visualizer -> Prompt Splitter

    1. Node 1: We generate a new prompt based on the lora installed on our machine using the LoRA Prompt Composer, providing it an initial prompt without lora references

    2. Node 2: We visualize the lora and wanlora that were referenced via the LoRA Visualizer

    3. Node 3: We split that prompt out into a Wan prompt and a SD prompt with the Prompt Splitter node. You would then pass these prompts as positive conditioning into SD generation and Wan generation workflows.

    Shared Features

    • โœ… Backend-Frontend Architecture: Python handles parsing and logic, JavaScript handles visualization
    • โœ… Comprehensive Testing: Unit tests cover edge cases and complex name parsing

    Installation

    Option 1: ComfyUI Manager (Recommended)

    1. Install via ComfyUI Manager: Search for "LoRA Visualizer" in ComfyUI Manager
    2. Restart ComfyUI: All Python dependencies install automatically
    3. Install external dependencies: See Requirements section below

    Option 2: Manual Installation

    1. Clone repository to your ComfyUI custom_nodes directory:

      cd ComfyUI/custom_nodes
      git clone https://github.com/oliverswitzer/ComfyUI-Lora-Visualizer.git

    2. Install Python dependencies (if not auto-installed):

      cd ComfyUI-Lora-Visualizer
      pip install -r requirements.txt

    3. Restart ComfyUI to load the custom node

    4. Install external dependencies: See Requirements section below

    Post-Installation

    The nodes will appear in ComfyUI under:

    • conditioning โ†’ LoRA Visualizer
    • conditioning โ†’ Prompt Composer
    • conditioning โ†’ Prompt Splitter

    Requirements & Dependencies

    Node Prerequisites Matrix

    | Node | LoRA Visualizer | Prompt Composer | Prompt Splitter | |------|----------------|-----------------|-----------------| | External Dependencies | None | None | Ollama (Local LLM) | | Python Dependencies | None | โœ… sentence-transformers<br/>โœ… scikit-learn | None | | ComfyUI Dependencies | ComfyUI LoRA Manager | ComfyUI LoRA Manager | None | | Automatic Installation | โœ… All included | โœ… All included | โœ… All included |

    External Dependencies Setup

    For Prompt Splitter Node Only

    Ollama Installation (Required for AI-powered prompt splitting):

    1. Install Ollama: Download from ollama.ai
    2. Install the default model: Run ollama pull nollama/mythomax-l2-13b:Q4_K_M
    3. Verify installation: Run ollama list to see installed models
    4. Start Ollama service: Ollama runs automatically on most systems

    Supported Ollama Models:

    • nollama/mythomax-l2-13b:Q4_K_M (default, ~7GB)
    • llama3.2:3b (alternative, ~2GB)
    • llama3.2:1b (lightweight, ~1GB)
    • qwen2.5:3b (alternative, ~2GB)
    • Any other Ollama-compatible model

    For LoRA Visualizer & Prompt Composer Nodes

    ComfyUI LoRA Manager (Required for metadata):

    • Install the ComfyUI LoRA Manager custom node
    • Ensures LoRA metadata files are downloaded and maintained
    • Required for both visualization and intelligent LoRA discovery features

    Python Dependencies (Auto-Installed)

    All Python dependencies are automatically installed when you install this node:

    • sentence-transformers: For semantic LoRA matching (Prompt Composer)
    • scikit-learn: For similarity calculations (Prompt Composer)
    • pytest, black, pylint: Development tools

    Note: The node ships with all Python dependencies pre-configured. ComfyUI will automatically install sentence-transformers and scikit-learn when you first load the Prompt Composer node. No manual Python package installation is required!

    Usage

    1. Add the LoRA Visualizer node to your workflow
    2. Enter a prompt containing LoRA tags in the prompt_text input field
    3. The node will automatically parse and display information about each LoRA found

    Supported LoRA Tag Formats

    • Standard LoRAs: <lora:model_name:strength>
      • Example: <lora:landscape_v1:0.8>
    • WanLoRAs: <wanlora:model_name:strength>
      • Example: <wanlora:Woman877.v2:1.0>

    Example Prompt

    A beautiful portrait <lora:realistic_skin:0.7> of <wanlora:Woman877.v2:0.8> woman standing in a garden, highly detailed


    This will display:

    • Standard LoRAs: realistic_skin (strength: 0.7)
    • WanLoRAs: Woman877.v2 (strength: 0.8)

    Output

    The node provides two outputs:

    1. lora_info (STRING): A formatted text report with detailed information about all found LoRAs
    2. processed_prompt (STRING): The original prompt text (can be modified in future versions)

    Features in Development

    • Image Gallery: Full implementation of hover-to-view example images
    • Interactive Controls: Click to copy trigger words, adjust strengths
    • Filtering Options: Filter by base model, content level, etc.
    • Export Options: Export LoRA information in various formats

    Testing

    Run the test suite to verify functionality:

    ./run_tests.sh


    File Structure

    lora-visualizer/
    โ”œโ”€โ”€ __init__.py                     # Node registration
    โ”œโ”€โ”€ README.md                       # This file
    โ”œโ”€โ”€ nodes/
    โ”‚   โ””โ”€โ”€ lora_visualizer_node.py     # Main node implementation
    โ”œโ”€โ”€ web/
    โ”‚   โ””โ”€โ”€ lora_visualizer.js          # Frontend visualization
    โ””โ”€โ”€ tests/
        โ””โ”€โ”€ test_lora_parsing.py        # Unit tests


    Contributing

    1. Fork the repository
    2. Create a feature branch
    3. Add tests for new functionality
    4. Ensure all tests pass
    5. Submit a pull request

    Publishing to ComfyUI Registry

    This node can be published to the ComfyUI Registry for easy installation by users.

    Setup for Publishing

    1. Create a Publisher Account: Go to Comfy Registry and create a publisher account
    2. Get Your Publisher ID: Find your publisher ID (after the @ symbol) on your profile page
    3. Update pyproject.toml: Add your Publisher ID to the PublisherId field in pyproject.toml
    4. Create API Key: Generate an API key for your publisher in the registry
    5. Set GitHub Secret: Add your API key as REGISTRY_ACCESS_TOKEN in your GitHub repository secrets (Settings โ†’ Secrets and Variables โ†’ Actions โ†’ New Repository Secret)

    Automated Release Workflow

    The project uses conventional commits for automatic semantic versioning. The "Release and Publish" GitHub Action automatically determines the next version based on your commit messages:

    Commit Message Format:

    • fix: description โ†’ patch version bump (1.0.0 โ†’ 1.0.1)
    • feat: description โ†’ minor version bump (1.0.0 โ†’ 1.1.0)
    • BREAKING CHANGE: in commit body โ†’ major version bump (1.0.0 โ†’ 2.0.0)

    Release Process:

    1. Make commits using conventional format
    2. Go to Actions โ†’ "Release and Publish to ComfyUI Registry"
    3. Click "Run workflow"
    4. Add changelog (optional)
    5. Choose dry run to preview without releasing

    This workflow automatically:

    • โœ… Analyzes commit messages since last release
    • โœ… Calculates appropriate version bump
    • โœ… Updates version in pyproject.toml
    • โœ… Creates git tag (e.g., v1.1.0)
    • โœ… Creates GitHub release with changelog
    • โœ… Publishes to ComfyUI Registry

    Example Commit Messages:

    git commit -m "fix: resolve parsing issue with special characters"
    git commit -m "feat: add support for custom LoRA tags"
    git commit -m "feat: new visualization mode

    BREAKING CHANGE: removes old API methods"


    Manual Publishing

    For quick republishing without version changes:

    1. Go to Actions โ†’ "Release and Publish to ComfyUI Registry"
    2. Click "Run workflow"
    3. Select "publish_only" from the action type dropdown
    4. Click "Run workflow"

    Alternatively, use the ComfyUI CLI: comfy node publish

    For more details, see the ComfyUI Registry Publishing Guide.

    ๐Ÿ› Debugging and Troubleshooting

    Enable Debug Logging

    By default, the LoRA Tools Suite shows only high-level progress messages. For detailed debugging information (similarity scores, boost calculations, metadata processing), enable debug logging:

    Windows (Command Prompt):

    set COMFYUI_LORA_DEBUG=1


    Windows (PowerShell):

    $env:COMFYUI_LORA_DEBUG = "1"


    macOS/Linux:

    export COMFYUI_LORA_DEBUG=1


    Then start ComfyUI. You'll see detailed debug messages like:

    [ComfyUI-Lora-Visualizer] Finding relevant image LoRAs...
    [ComfyUI-Lora-Visualizer] DEBUG: ๐Ÿงน Cleaned scene for embedding: 'cyberpunk woman in neon-lit alley'
    [ComfyUI-Lora-Visualizer] DEBUG: ๐Ÿ“Š DetailAmplifier similarity: 0.7243
    [ComfyUI-Lora-Visualizer] DEBUG: ๐Ÿš€ DetailAmplifier content boost applied: 0.7243 โ†’ 0.8692
    [ComfyUI-Lora-Visualizer] Found 3 image LoRAs: ['DetailAmplifier', 'CyberPunkAI', 'NeonStyle']


    Debug logging helps troubleshoot:

    • LoRA discovery and similarity matching
    • Keyword boost calculations
    • Prompt composition steps
    • Metadata processing details

    To disable: Remove the environment variable or set it to an empty value.

    Development

    Prerequisites

    • PDM for dependency management
    • Python 3.8+ (same as ComfyUI requirement)

    Setup Development Environment

    1. Clone the repository:

      git clone https://github.com/oliverswitzer/ComfyUI-Lora-Visualizer.git
      cd ComfyUI-Lora-Visualizer

    2. Install development dependencies:

      pdm install


      This creates a virtual environment and installs pytest, black, and pylint.

    Running Tests

    pdm run test

    Code Quality

    Format code with Black:

    pdm run format


    Lint with Pylint:

    pdm run lint


    Run all checks (format + lint + test):

    pdm run check


    Test Structure

    • tests/test_lora_parsing.py: Main test suite
    • tests/fixtures/: Sample metadata files for testing
    • conftest.py: Test configuration and ComfyUI mocking

    Tests cover:

    • LoRA tag parsing (standard and WanLoRA formats)
    • Metadata extraction and processing
    • Civitai URL generation
    • Edge cases and error handling

    Available PDM Scripts

    | Command | Description | |---------|-------------| | pdm run format | Format code with Black | | pdm run lint | Lint code with Pylint | | pdm run check | Run format + lint (tests via ./run_tests.sh) |

    Note: For tests, use ./run_tests.sh due to import complexities with ComfyUI's module structure.

    Adding New Tests

    1. Add test methods to TestLoRAVisualizerNode class
    2. Use fixture files in tests/fixtures/ for realistic data
    3. Mock ComfyUI dependencies (already set up in conftest.py)
    4. Run tests to ensure everything passes

    Example test:

    def test_new_feature(self):
        """Test description."""
        # Setup
        test_data = {...}

        # Execute
        result = self.node.some_method(test_data)

        # Assert
        self.assertEqual(result, expected_value)


    License

    MIT License - see LICENSE file for details.
