ComfyUI-WhisperXX

ComfyUI-WhisperCPP

ComfyUI custom node for speech-to-text using whisper.cpp (C API via ctypes).
Full pipeline: ASR → Vocal Separation → VAD → Alignment → Diarization — zero whisperx.

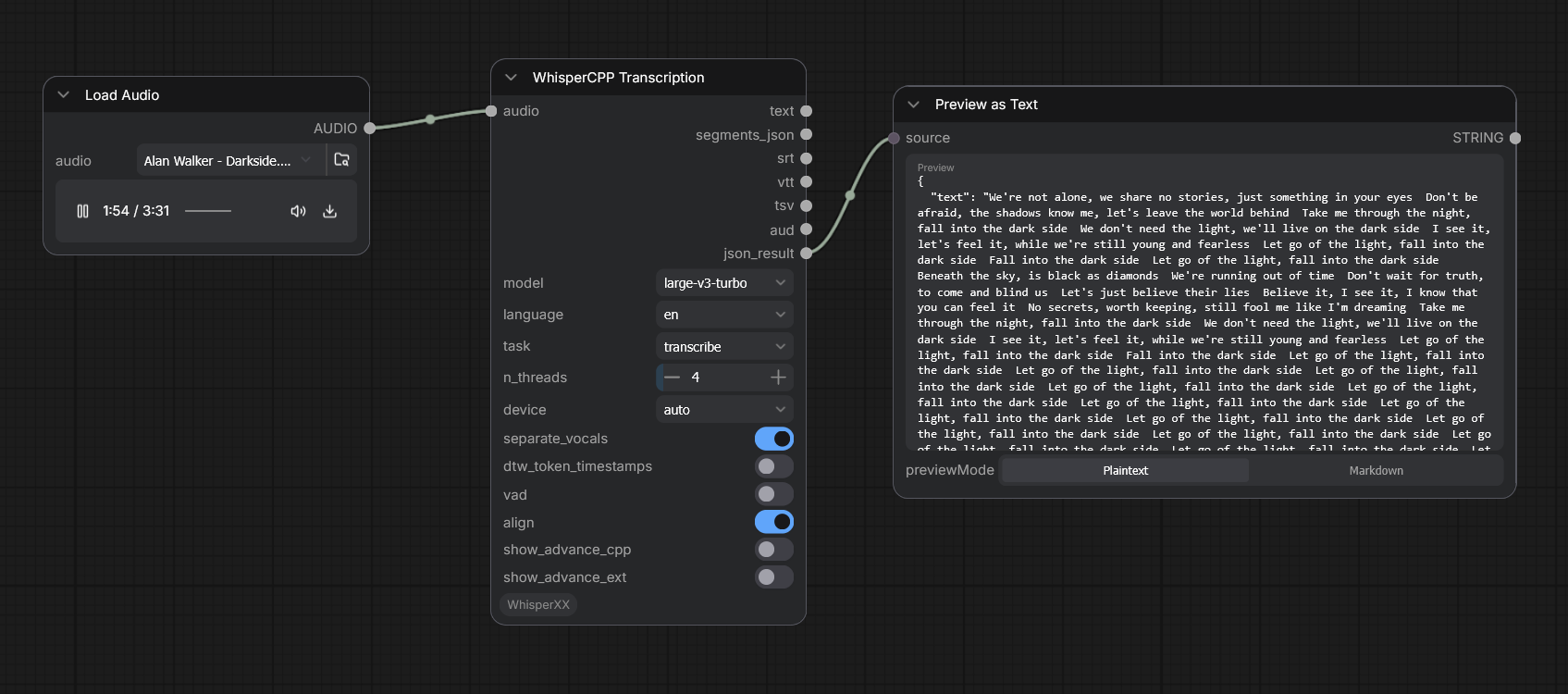

Screenshots

Features

• whisper.cpp native — DLL + ctypes binding directly to C API, no Python wrapper
• All whisper_full_params — every parameter exposed as a node widget

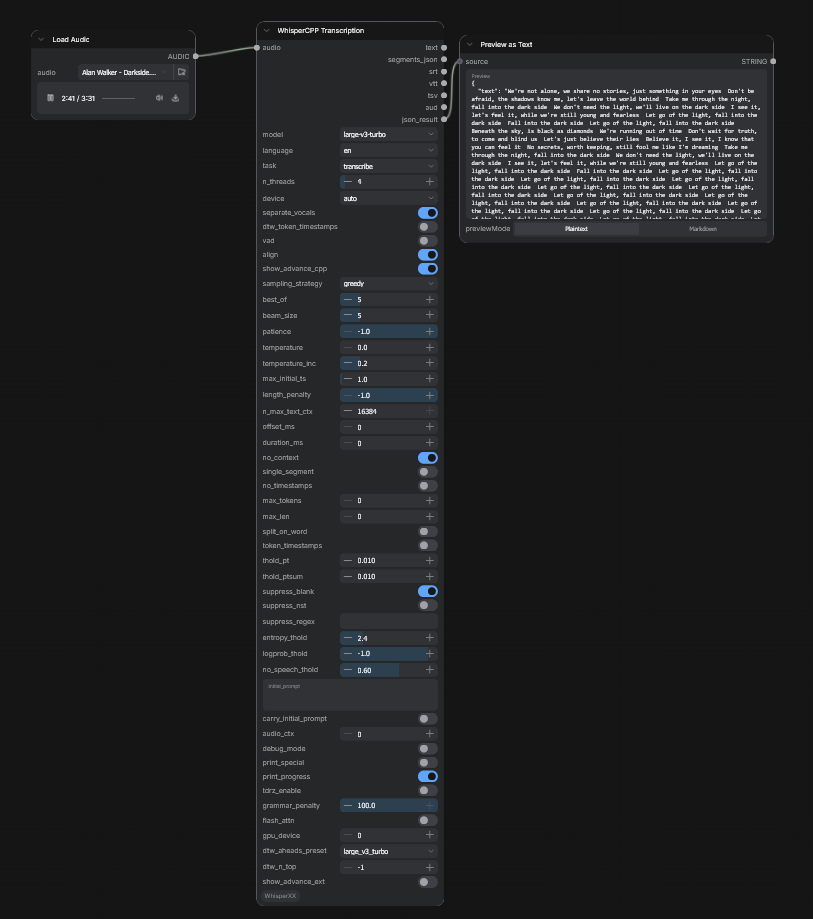

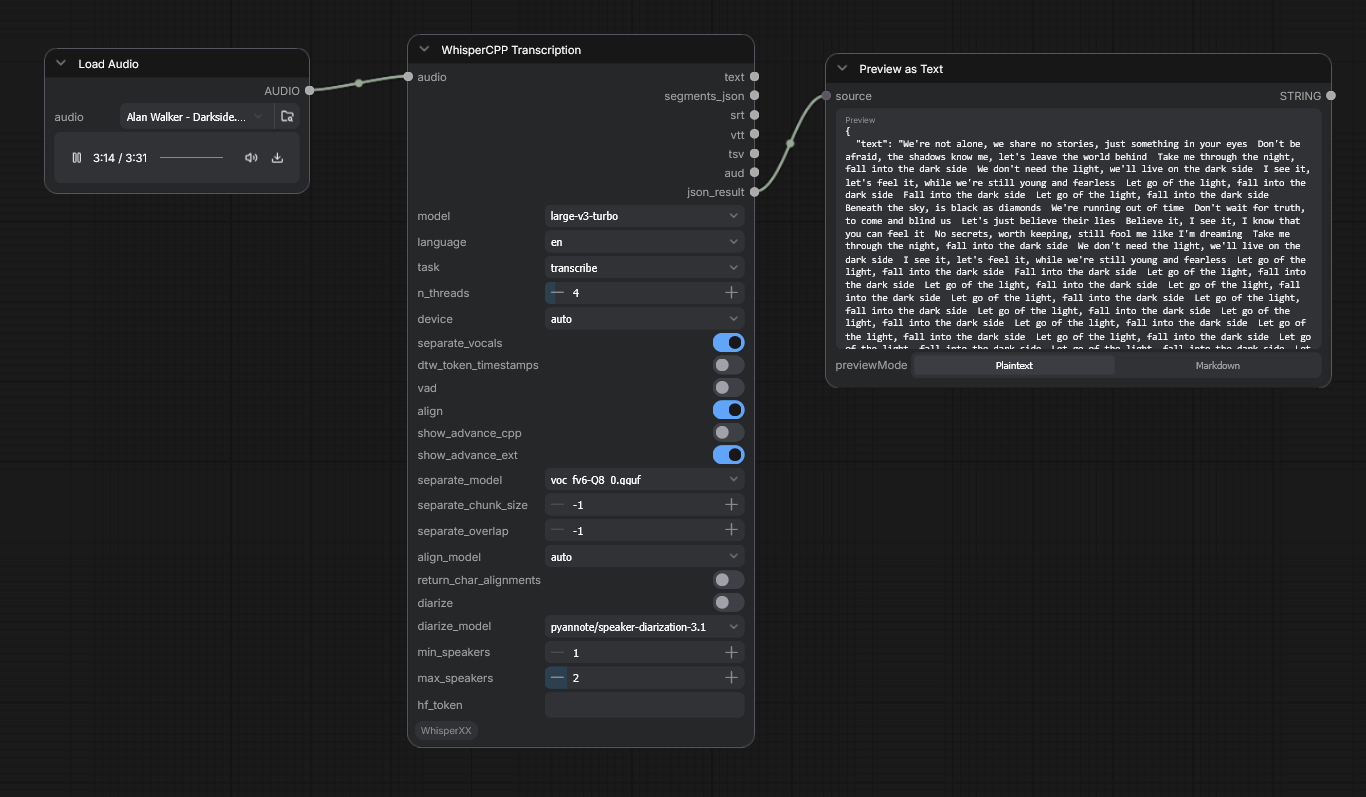

• Two advance toggles — show_advance_cpp (core whisper params) + show_advance_ext (UVR/alignment/diarization detail)
• 7 output sockets — text, segments_json, srt, vtt, tsv, aud, json_result (no file I/O)
• Auto-download — DLLs downloaded from GitHub Releases on first use (no manual build needed)
• GPU acceleration — Vulkan, OpenCL, CUDA, Metal (auto-detected at runtime)
• UVR vocal separation — BSRoformer.cpp DLL (GGUF model, no temp files)
• VAD — cpp-annote (community-1 segmentation model, DLL + onnxruntime)
• Pre-filter — RMS-based energy filter to prevent hallucinations on silence
• Alignment — sherpa-onnx CTC (zipformer, word-level timestamps)
• Diarization — cpp-annote DLL (no Python dependencies)
• Cross-platform — Windows/MSVC, Linux/GCC, macOS/Clang (DLL/so/dylib)

Quick Start

cd ComfyUI/custom_nodes/
git clone --recurse-submodules https://github.com/obvirm/ComfyUI-WhisperCPP
cd ComfyUI-WhisperCPP
pip install -r requirements.txt

That's it! DLLs are automatically downloaded from GitHub Releases on first use. No build step required.

Build from Source (Optional)

If you want to build the DLLs yourself (e.g., for GPU-specific optimizations):

# whisper.cpp — auto-detect GPU backends
python build_whisper_cpp.py

# BSRoformer DLL
python build_bs_roformer.py

# cpp-annote DLL
python build_cpp_annote.py

Build Options

# whisper.cpp
python build_whisper_cpp.py --gpu vulkan   # Force Vulkan
python build_whisper_cpp.py --gpu cuda     # Force CUDA
python build_whisper_cpp.py --gpu cpu      # CPU only

# BSRoformer
python build_bs_roformer.py --gpu          # Auto-detect GPU
python build_bs_roformer.py                # CPU only

# cpp-annote
python build_cpp_annote.py --cuda          # CUDA ONNX Runtime
python build_cpp_annote.py --gpu           # Auto-detect GPU
python build_cpp_annote.py                 # CPU only

Modules

| Module | Purpose | Binding | File | |---|---|---|---| | whisper.cpp | ASR (speech-to-text) | whisper_lib.py | whisper.dll + ggml DLLs | | BSRoformer.cpp | UVR vocal separation | bs_roformer_lib.py | bs_roformer.dll | | cpp-annote | VAD + Diarization | cpp_annote_lib.py | cpp_annote.dll + onnxruntime.dll |

All modules follow the same pattern: C API header → shared library → ctypes binding.

Pipeline

Audio Input
  │
  ├─ [UVR] BSRoformer.dll → vocal separation (optional)
  │    16kHz → Resample(44100) → DLL → mono → Resample(16000)
  │
  ├─ [Pre-filter] RMS energy → speech detection (optional)
  │    Only transcribe sections with audio energy > threshold
  │
  ├─ [VAD] cpp-annote.dll → speech segmentation (optional)
  │
  ├─ whisper.dll → transcribe (per-segment if VAD/pre-filter on)
  │
  ├─ [Alignment] sherpa-onnx CTC → word timestamps (default ON)
  │
  └─ [Diarization] cpp-annote DLL → speaker labels (optional)
       │
       └─ 7 output sockets

Auto-Download

On first use, each module automatically downloads its DLLs from GitHub Releases:

1. _find_library() → DLL not found
2. gpu_detect.detect_gpu() → NVIDIA/Vulkan/OpenCL/CPU
3. auto_download.download_module("whisper", dir, has_gpu)
   → Download whisper.dll, ggml-base.dll, ggml-cpu.dll, ggml.dll
   → (GPU) also download ggml-vulkan.dll
4. _find_library() → found!

• Version is dynamic — reads from pyproject.toml (no manual updates)
• GPU-aware — downloads Vulkan/OpenCL DLLs when GPU is detected
• Skip existing — won't re-download if DLLs are already present
• All platforms — Windows (.dll), Linux (.so), macOS (.dylib)

Usage

1. Add WhisperCPPNode
2. Connect audio source to audio socket
3. Select model (auto-downloads on first use)
4. Set language (or None for auto-detect)
5. Enable hallu_filter (default ON) for RMS-based pre-filter
6. Set vad=true for active speech detection
7. Set separate_vocals=true for vocal separation
8. Enable show_advance_cpp / show_advance_ext for full parameter access

Output Sockets

| Socket | Format | Content | |---|---|---| | text | STRING | Full transcript | | segments_json | STRING (JSON) | Segments with timestamps | | srt | STRING | SubRip subtitle | | vtt | STRING | WebVTT subtitle | | tsv | STRING | Tab-separated values | | aud | STRING | Speaker-labeled transcript | | json_result | STRING (JSON) | Full result metadata |

Models

| Model | Location | Size | Auto-Download | |---|---|---|---| | Whisper GGML | ComfyUI/models/whispercpp/ | 1.6 GB | ✅ | | UVR GGUF | ComfyUI/models/uvr/ | 251 MB | ✅ | | Alignment CTC | ComfyUI/models/alignment/sherpa/ | 383 MB | ✅ | | cpp-annote ONNX | cpp-annote/artifacts/ | 32 MB | In repo |

GPU Backends

| Backend | Windows | Linux | macOS | |---------|---------|-------|-------| | Vulkan | ✅ | ✅ | ✅ | | OpenCL | ✅ | ✅ | - | | CUDA | ✅* | ✅ | - | | Metal | - | - | ✅ |

*CUDA requires CUDA Toolkit installed.

Architecture

ComfyUI-WhisperCPP/
├── __init__.py                 # Register node
├── whispercpp_node.py          # Class WhisperCPPNode
├── js/whispercpp_node.js       # Frontend toggle (advance sections)
│
├── whispercpp/
│   ├── whisper_lib.py          # ctypes → whisper.dll
│   ├── gpu_detect.py           # GPU detection (NVIDIA/Vulkan/OpenCL)
│   ├── auto_download.py        # Download DLLs from GitHub Releases
│   ├── model.py                # Model download manager
│   ├── audio.py                # Audio processor
│   └── ext/
│       ├── uvr.py              # Vocal separation (BSRoformer DLL)
│       ├── bs_roformer_lib.py  # ctypes → bs_roformer.dll
│       ├── alignment_sherpa.py # CTC alignment
│       ├── cpp_annote_lib.py   # ctypes → cpp_annote.dll
│       └── cppannote.py        # VAD + diarization wrapper
│
├── whisper.cpp/                # git submodule
├── bs_roformer.cpp/            # git submodule
├── cpp-annote/                 # git submodule
│
├── build_whisper_cpp.py        # Cross-platform build
├── build_bs_roformer.py        # Cross-platform build
├── build_cpp_annote.py         # Cross-platform build
│
├── AGENTS.md                   # AI agent rules
├── ROADMAP.md                  # Future plans
└── MEMD.md                     # Project memory

License

Apache 2.0
