ComfyUI Extension: Olm Curve Editor for ComfyUI

Authored by o-l-l-i

Created

Updated

30 stars

A single-purpose, multi-channel curve editor for ComfyUI, providing precise color control over R, G, B, and Luma channels directly within the node graph. It’s a focused, lightweight, and standalone solution built specifically for one task: applying color curves cleanly and efficiently.

Custom Nodes (0)

    README

    Olm Curve Editor for ComfyUI

    A single-purpose, multi-channel curve editor for ComfyUI, providing precise color control over R, G, B, and Luma channels directly within the node graph.

    It’s a focused, lightweight, and standalone solution built specifically for one task: applying color curves cleanly and efficiently.

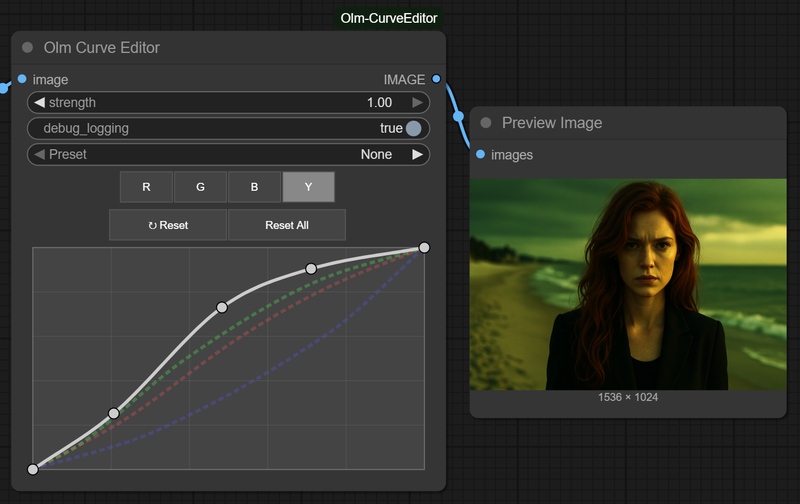

    Olm Curve Editor image


    ✨ What Is This?

    This is a custom node for ComfyUI that adds interactive, curve-based color adjustment. It’s designed for fast, responsive fine-tuning of image tones via an intuitive interface, much like traditional color grading tools in photo editors.

    You can switch between RGB and Luma channels, edit their curves independently, and immediately preview the results in your ComfyUI workflow by evaluating the graph. The curve adjustment effects are applied to images relatively fast (within seconds) so you can use this on 4k+ images.


    πŸ”§ Features

    • 🎚️ Editable Curve Graph
      • Realtime editing and visualization of the curves.
      • Responsive scaling curve editor area.
      • Enforces clamping of endpoints at 0 and 1.
      • Custom curve type which avoids overshoots.
    • πŸ–±οΈ Smooth UX
      • Click to add, drag to move, shift-click to remove points.
    • 🎨 Channel Tabs
      • R, G, B, and Luma curves with independent data.
    • πŸ” Reset Buttons
      • Reset all channels.
      • Per-channel reset to default linear curve.
    • πŸ–ΌοΈ Presets
      • Comes with 20 presets, you can also create your own.
      • loaded from curve_presets folder within the node's folder.

    Installation

    1. Clone this repository to your ComfyUI/custom_nodes folder.
    git clone https://github.com/o-l-l-i/ComfyUI-Olm-CurveEditor.git


    Your folder structure should look like:

    ComfyUI/
    └── custom_nodes/
    └──── ComfyUI-Olm-CurveEditor/
    β”œβ”€β”€β”€β”€ __init__.py
    β”œβ”€β”€β”€β”€ olm_curve_editor.py
    └──── curve_presets
    └────── <presets are here>


    Restart ComfyUI to load the new node.

    βœ… No extra dependencies β€” works out of the box.


    πŸ§ͺ Basic Usage

    1. Add the Olm Curve Editor from the node or search node menu in ComfyUI.
    2. Click tabs to switch between R, G, B, and Luma channels.
    3. Left-click to add a new point on the curve.
    4. Drag existing points to reshape the curve.
    5. Shift-click to remove a point (minimum of 2 points always remain).
    6. Use the Reset button to restore the selected channel's default.
    7. Evaluate graph to test the effects of curve adjustment.

    🧠 How to Create Presets

    • Presets are in curve_presets folder within this custom node's folder.
    • You can easily create your own presets:
      • Adjust curves to your liking.
      • Enable debugging mode in the UI to get printouts to the console.
      • Copy the printed JSON data to a <filename>.json file, and put the file to curve_presets within the node's folder.
      • Refresh ComfyUI's frontend, and the new preset you created should appear to the dropdown.

    πŸ“Œ Known Limitations

    • No built-in undo/redo support (yet, but ComfyUI's undo works quite OK).
    • Max points per curve is limited (to prevent chaos).
    • Curves are linear-interpolated in the backend (I will implement a matching curve later).

    Notes

    This is a personal learning project (v1), created to explore custom node development in ComfyUI. While I took care to ensure it functions properly and it has functioned fine in my own use, there may still be bugs, rough edges, or unexpected behavior - so use with caution.

    Feedback is welcome! Feel free to open an issue if you encounter a problem or have suggestions or ideas to improve the node.


    License & Usage Terms

    Copyright (c) 2025 Olli Sorjonen

    This project is source-available, but not open-source under a standard open-source license, and not freeware. You may use and experiment with it freely, and any results you create with it are yours to use however you like.

    However:

    Redistribution, resale, rebranding, or claiming authorship of this code or extension is strictly prohibited without explicit written permission.

    Use at your own risk. No warranties or guarantees are provided.

    The only official repository for this project is: πŸ‘‰ https://github.com/o-l-l-i/ComfyUI-Olm-CurveEditor


    Author

    Created by @o-l-l-i
