ComfyUI-dynamicvramstats

ComfyUI-dynamicvramstats

A ComfyUI plugin that visualizes dynamic VRAM page residency in real-time.

Features

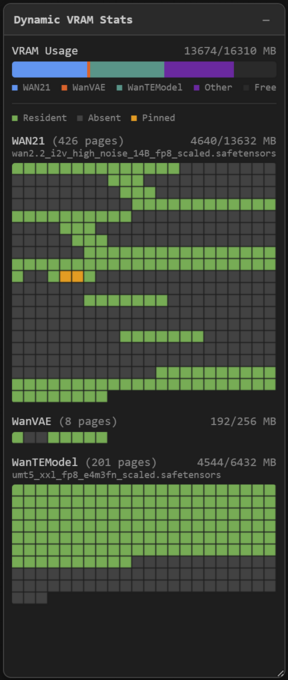

• VRAM usage bar: Stacked horizontal bar showing per-model VRAM usage, other usage, and free VRAM
• Page grids: 2D grid of VRAM pages for each loaded model, color-coded by status:
  • Resident (green): page is currently loaded in VRAM
  • Absent (dark gray): page is not in VRAM, will be loaded on demand
  • Pinned (orange): page is in VRAM and locked for active use
• Draggable and resizable panel with collapse toggle
• Auto-detection: plugin disables itself if required aimdo functions are not available
• Configurable poll interval via ComfyUI settings (default: 1 second)

Requirements

Available only on Windows and Linux with NVIDIA CUDA GPUs.

Use the latest ComfyUI. It requires comfy-aimdo with per-page residency introspection API (merged to master in 39016c9). This is integrated to ComfyUI v0.17.0 as comfy-aimdo 0.2.9.

Installation

Clone this repository into your ComfyUI custom_nodes directory:

cd ComfyUI/custom_nodes
git clone https://github.com/metehan/ComfyUI-dynamicvramstats.git

Restart ComfyUI. The panel will appear in the bottom-right corner when dynamic VRAM is active.

Known Issues

• Missing filenames for some model types: The source filename is only available for diffusion models and CLIP models. VAE and some other model types don't store their filename on the model patcher object, so they are displayed by class name only. This is a ComfyUI core limitation.

License

This project is licensed under the GNU General Public License v3.0.
