ComfyUI Extension: Thought Bubble

Authored by matthewfriedrichs

Created

Updated

11 stars

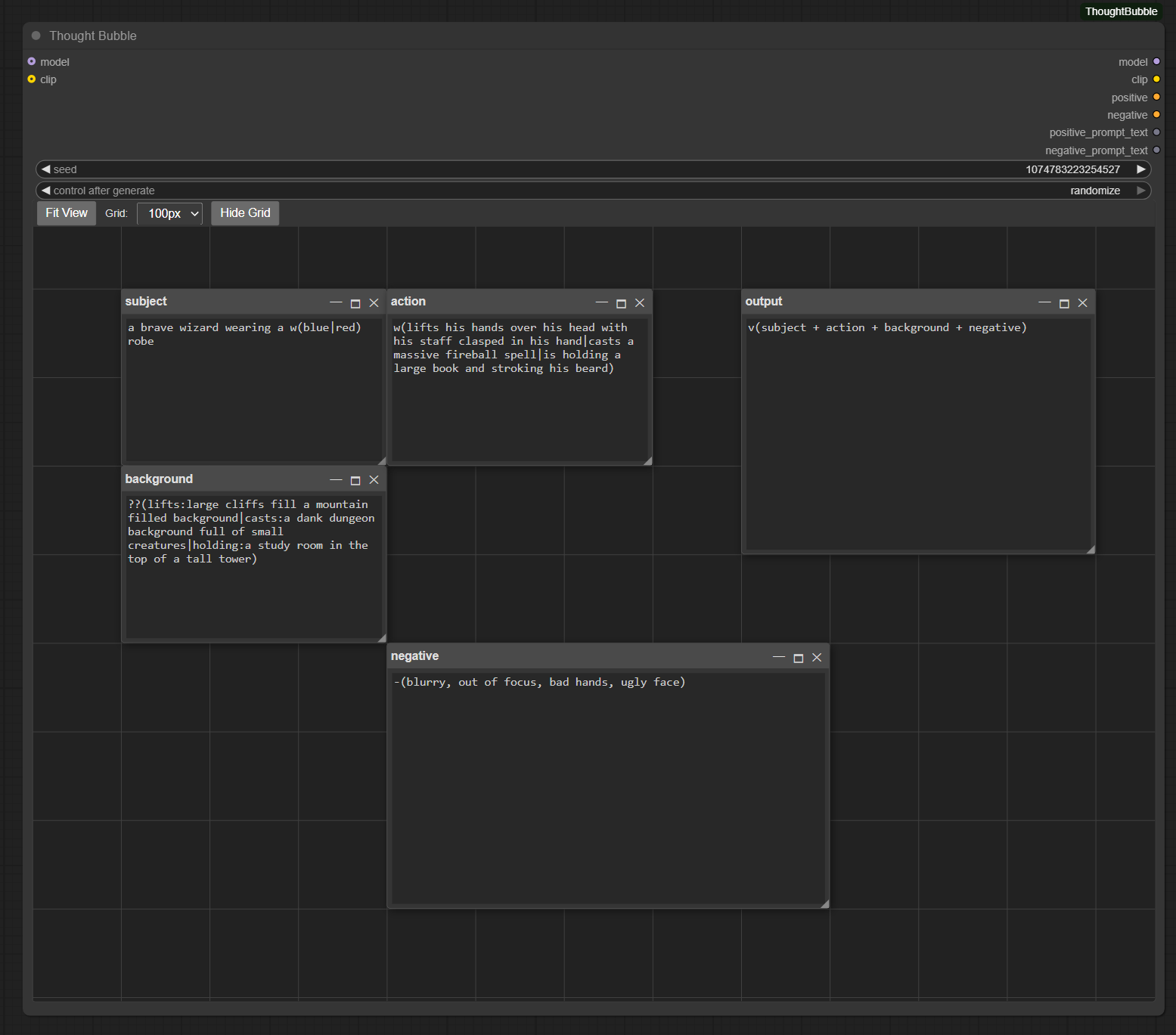

ThoughtBubble is a custom node for ComfyUI that provides an interactive canvas to build and manage your prompts in a more visual and organized way. Think of it as a whiteboard for your ideas, allowing you to link different concepts, create conditional logic, and dynamically generate prompts using a powerful set of commands.

Custom Nodes (0)

    README

    ThoughtBubble for ComfyUI

    ThoughtBubble is a custom node for ComfyUI that provides an interactive canvas to build and manage your prompts in a more visual and organized way. Think of it as a whiteboard for your ideas, allowing you to link different concepts, create conditional logic, and dynamically generate prompts using a powerful set of commands.

    Features

    • Visual Prompting: Ditch the single text box. Create, move, and resize "thought bubbles" on an infinite canvas.
    • Dynamic Commands: Use a simple yet powerful command syntax to reference other boxes, create negative prompts, use wildcards, and even implement conditional logic.
    • Theming: Customize the look and feel of the ThoughtBubble canvas to your liking. Save, load, and share your themes.
    • Custom Variables & Controls: Create "Controls" boxes to define your own stateful variables. Set their behavior (increment, decrement, randomize, fixed value) and link them to commands for advanced sequential and conditional prompting.
    • Sequential Iteration: Step through lists sequentially across multiple generations using the run counter or a variable from a control box.
    • LoRA and Text File Autocomplete: The editor will automatically suggest LoRA names as you type lora(...) and text file names from your user folder when you type o(...).
    • Wildcard Support: Integrates with a user/wildcards directory to pull random lines from your own text files.
    • Seedable Randomness: The seed input on the node ensures that any random choices (from wildcards or random number generation) are repeatable.
    • Area Conditioning: Create special "area" boxes to apply prompts to specific regions of your image, giving you fine-grained control over your composition.

    Thought Bubble Basic Example

    The above example image uses a 2D array to loop through 9 possible prompts. Conditional commands are use to parse the selected prompt from the text array to further control the output.

    Installation

    1. Navigate to your ComfyUI/custom_nodes/ directory.
    2. Clone this repository: git clone https://github.com/matthewfriedrichs/ComfyUI-ThoughtBubble.git
    3. Restart ComfyUI.

    How to Use

    1. Add the ThoughtBubble node to your workflow (it can be found in the "Workflow Efficiency" category).
    2. Note the seed and iterator widgets on the node. The main iterator is designed to change value on each run (e.g., increment), allowing you to use the i() command for sequential prompting.
    3. The node provides a large canvas widget. You can:
      • Create a box: Left-click and drag on an empty area of the canvas, or double-click to open a creation menu.
      • Move a box: Click and drag the header of any box.
      • Resize a box: Click and drag the bottom-right corner of any box.
      • Pan the canvas: Middle-click (or scroll-wheel click) and drag.
      • Zoom: Use the scroll wheel.
    4. By default, the content of the box titled "output" will be used to generate the final prompt. You can also maximize any other box to use its content as the source instead.
    5. Use the Controls Box for Advanced Logic:
      • Create a "Controls" box from the creation menu (double-click on the canvas).
      • Click "+ Add Variable" to create a new variable. Give it a unique name, set its behavior (e.g., "Increment"), and provide a starting value.
      • In any text box, type i() or w(). A dropdown menu will appear, allowing you to link the command to one of your custom variables. The variable's behavior will now control the output of that command on each generation.

    Commands (The Core Feature)

    The power of ThoughtBubble comes from its command parser. You can type these commands into any text box to dynamically generate parts of your prompt.

    v(...) - Variable/Box Operations

    This is the most fundamental command. It can be used to define variables or reference boxes and variables.

    • Define a variable: v(variable_name|variable text)
    • Reference a box or variable: v(name)
    • Combine boxes: v(box1 + box2)

    o(...) - Open Text File

    Loads the content of an external text file from the user/textfiles directory. This is useful for reusing snippets of prompts. As you type, an autocomplete dropdown will show you the available .txt files.

    • Syntax: o(filename_without_extension)

    -(text) - Negative Prompt

    This command moves text from the positive prompt to the negative prompt.

    • Syntax: -(text to make negative)
    • Example: beautiful painting -(ugly, deformed)

    w(wildcard) - Wildcard (Random)

    Selects a random line from either an inline list or a file in your ComfyUI/user/wildcards folder. By default, this is controlled by the main seed widget on the node.

    • Syntax (Inline List): w(option1 | option2 | option3)
    • Syntax (File): w(filename_without_extension)

    Linking Variables: You can override the default random seed behavior by linking this command to a variable from a "Controls" box. Simply type w( and a dropdown will appear, listing all available variables. If you link a variable with "Randomize" behavior, a new random seed will be generated for this command on each run. You can also link variables with "Fixed", "Increment", or "Decrement" behavior to select items from the list by a specific index.

    i(wildcard) - Iterator (Sequential)

    Selects an item from a list sequentially. By default, it uses the node's main iterator widget, which increments on each run. It loops back to the start automatically. This is perfect for "prompt traveling" or creating animations.

    1D Iteration (Simple Lists)

    • Syntax (Inline List): i(option1 | option2 | option3)
    • Syntax (File): i(filename_without_extension)
    • Example: With i(cat|dog|bird), the output will be "cat" on the first run, "dog" on the second, "bird" on the third, and then loop back to "cat".

    N-Dimensional Iteration & Templating (Combinations)

    You can define multiple dimensions of lists to generate every possible combination. Each dimension can be a simple list (a|b|c) or a template string that mixes text with sub-lists with (green|blue) fur.

    • Syntax: i( (dim1_a|dim1_b) | a (red|blue) car | ...)
    • Example: i( (a cat|a dog) | with (green|orange) fur )
    • How it works: The parser expands the template with (green|orange) fur into a full list ['with green fur', 'with orange fur']. It then generates every combination:
      • Iterator 0: "a cat, with green fur"
      • Iterator 1: "a cat, with orange fur"
      • Iterator 2: "a dog, with green fur"
      • Iterator 3: "a dog, with orange fur"
      • Iterator 4: Loops back to the beginning.

    Linking Variables: You can override the default iterator behavior by linking this command to a variable from a "Controls" box. Type i( and a dropdown will appear, listing all available variables. This allows you to have multiple, independent iterators in your prompt, each with its own state (e.g., one variable increments, another decrements, and a third stays fixed).

    r(min|max) or r(max) - Random Number

    Generates a random integer or float within a specified range.

    • Syntax: r(max) or r(min|max)
    • Example: A stack of r(10) books

    lora(name:model_strength:clip_strength) - Apply LoRA

    Loads a LoRA with a specific strength. An autocomplete dropdown will appear as you type to help you find your LoRA files.

    • Syntax: lora(lora_name:strength) or lora(lora_name:model_strength:clip_strength)

    a(box_title) - Area Conditioning

    Applies the prompt from a special "area" box to a specific region of the generated image.

    • Syntax: a(title_of_area_box)

    ?(keywords|text_if_true|text_if_false) - Conditional

    This command acts like a weighted "if" statement. It checks the text that comes before it in the prompt for a list of keywords. Each keyword can be assigned a weight, and the command sums the weights of all the keywords it finds. If the total weight is 1.0 or greater, it will output the text_if_true. Otherwise, it will output the text_if_false.

    • Syntax: ?(keyword1:weight, keyword2:weight | text if true | text if false)
      • Keywords without a specified weight default to a weight of 1.0.
      • Weights can be decimals (e.g., 0.5) or integer percentages (e.g., 50 for 0.5).
    • Example: ?(pointy ears:0.5, whiskers:0.5 | It's probably a cat | Not a cat)
      • If both "pointy ears" and "whiskers" are found, the total weight is 0.5 + 0.5 = 1.0, and the output is It's probably a cat.
      • If only "whiskers" is found, the total weight is 0.5, which is less than 1.0, so the output is Not a cat.

    ??(keywords1:output1|keywords2:output2) - Multi-Conditional

    A more advanced conditional that allows for multiple checks. It checks each weighted keyword group in order and outputs the text for the first group that has a total weight of 1.0 or more.

    • Syntax: ??(key1:w1,key2:w2:output_if_true | key3:w3:another_output | ...)

    Advanced Commands

    • h(text) - Hidden Text: The text inside h() is processed for commands but is hidden from the final output.
    • c(text) - Clean Text: Sanitizes, tokenizes, and cleans a messy text string according to specific rules, including removing redundant parentheses and handling special characters.
    • f(...) - Force Resolution: This command is used for complex replacements with fuzzy matching and conditions.
      • Syntax: f((find_word:threshold) & (condition_word) | replacement_text)
      • Example: f((cat:80) & (animal) | dog) would replace "cat" with "dog" only if the word "animal" is also present in the prompt and the similarity is at least 80%.
