sg-comfyui

Flow Production Tracking for ComfyUI

Two ComfyUI nodes that record a generation in Flow Production Tracking, formerly ShotGrid.

• SG Publish creates a Version from an IMAGE or a VIDEO, uploads the media, and attaches the model, prompt, seed, sampler and workflow that made it.
• SG Load reads a Version's media back into a graph as image, video and mask.
• Nothing here generates, encodes or decodes. ComfyUI writes and reads the pixels.

What it provides

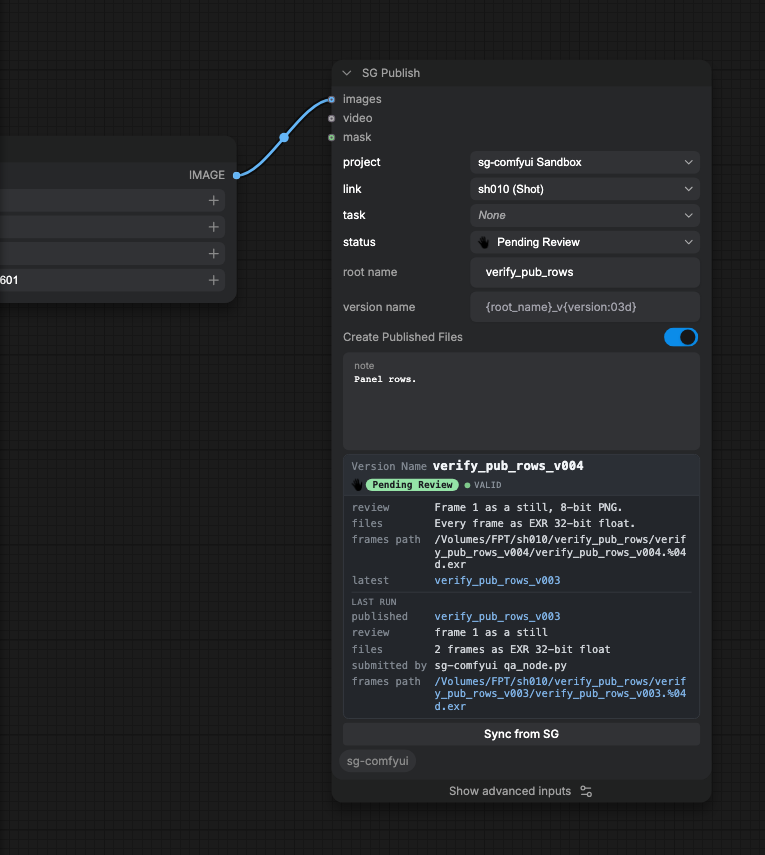

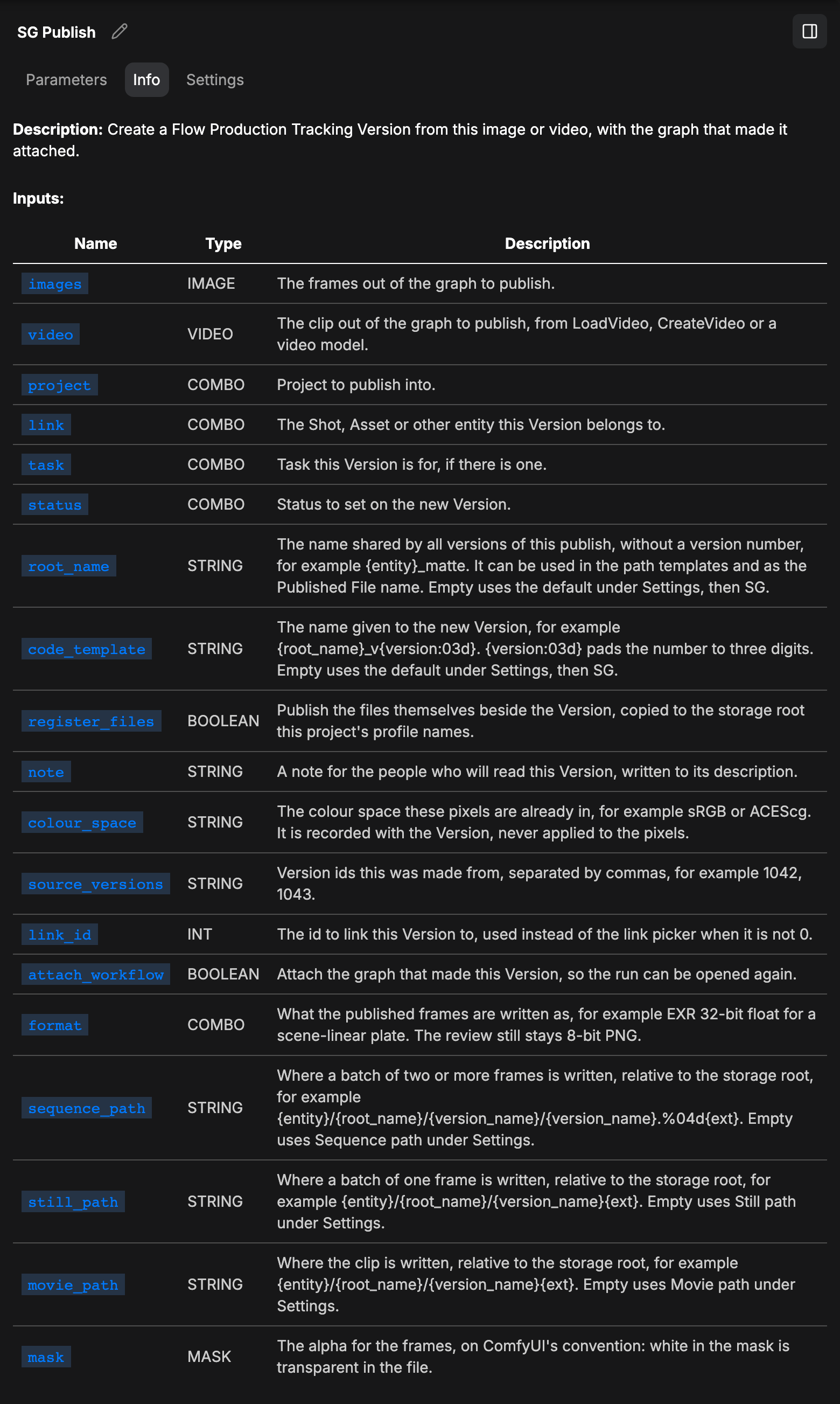

SG Publish

• Creates a Version linked to a Shot, an Asset, or whatever your site links Versions to.
• Reads project, link, Task and status live from your site.
• Writes nine typed fields: generator, model, prompt, negative prompt, seed, sampler, steps, CFG, lineage.
• Attaches the workflow and a .provenance.json record.
• Uploads review media that plays in a browser.
• Registers the frames or the movie as PublishedFiles when Create Published Files is ticked.
• Writes frames as 8-bit PNG, 16-bit PNG or EXR 32-bit float, picked on the format widget.
• Writes a wired mask as the frames' alpha, on ComfyUI's convention: white in the mask is transparent in the file.

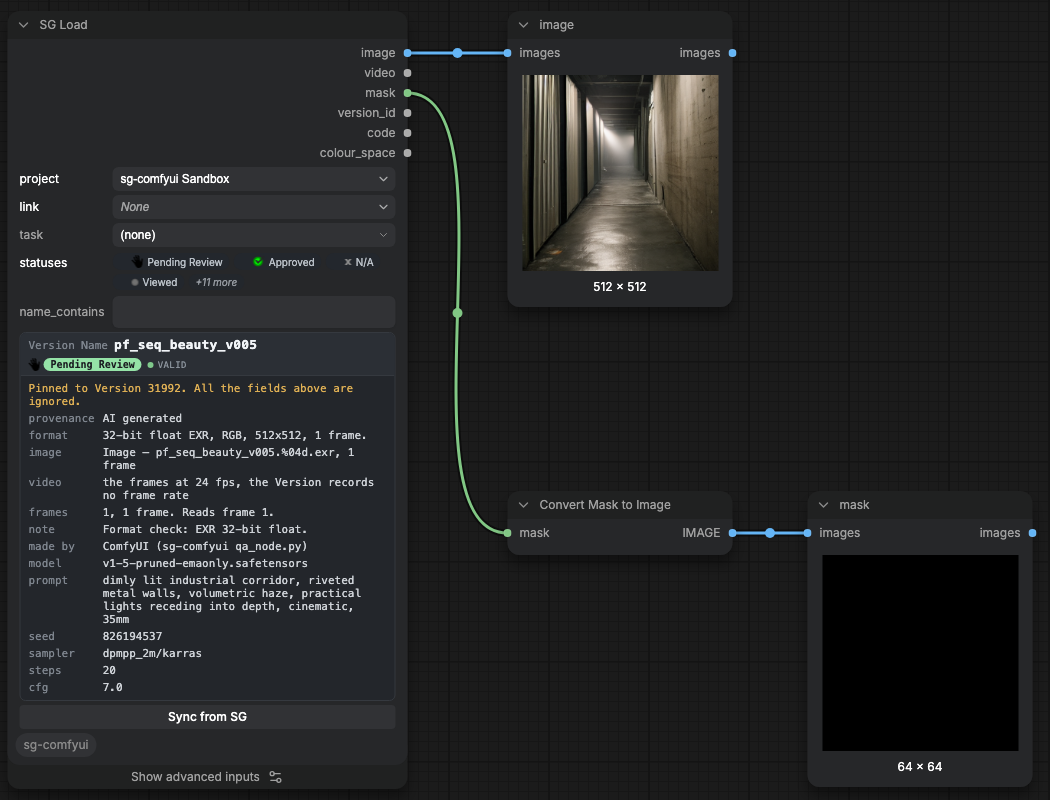

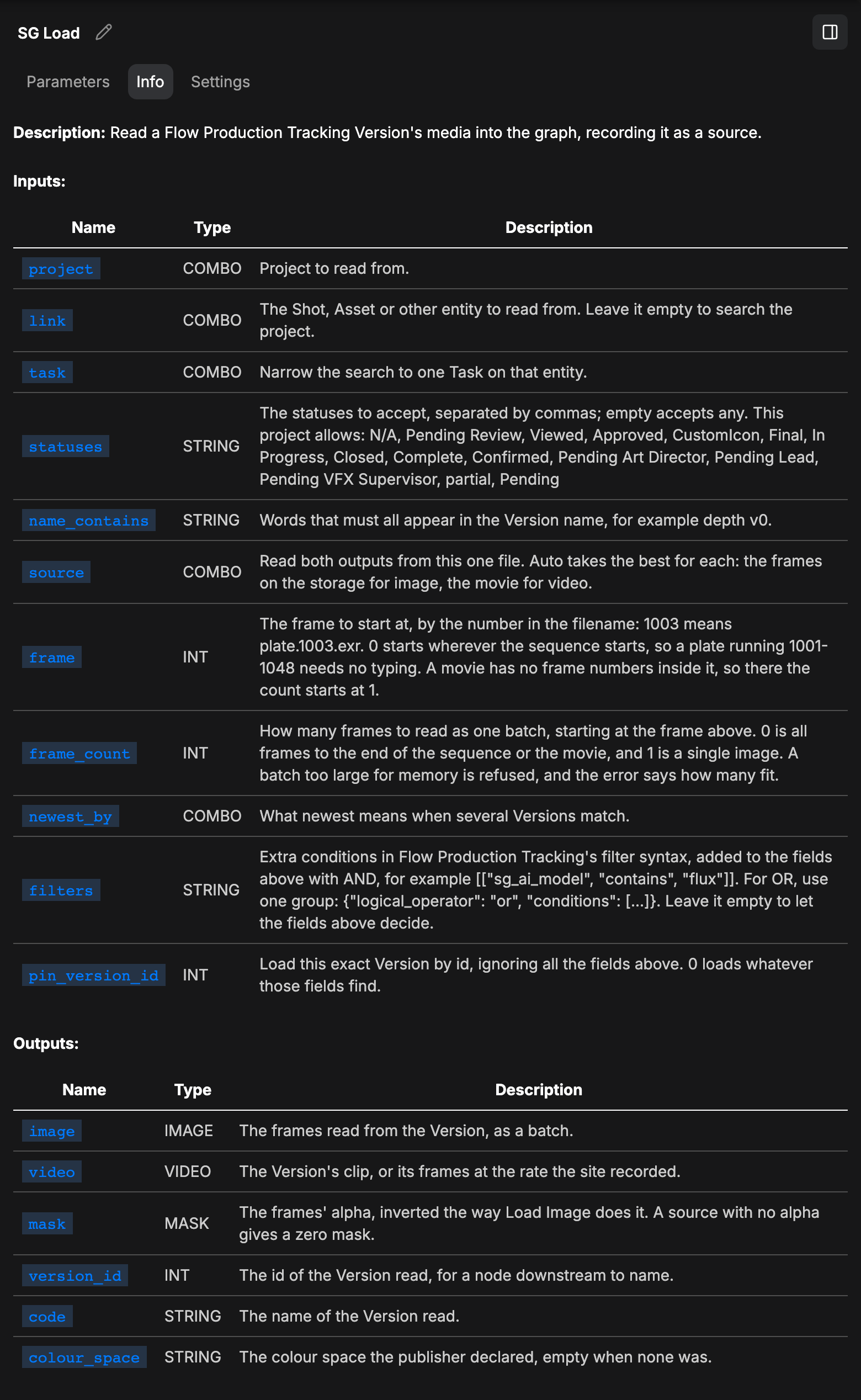

SG Load

• Finds a Version by project, link, Task, status and name. pin_version_id takes an id instead.
• Outputs image, video, mask, version_id, code, colour_space.
• Reads 16-bit PNG and EXR at full precision.
• Records the Version it read on anything published downstream.

In the editor

• Settings, then SG: site address, sign-in, project, publish defaults.
• SG Site Setup, in that group: counts the nine provenance fields on the site, creates the missing ones.

Install

| requirement | value | |---|---| | ComfyUI | 0.34.0 or newer | | Python | 3.11 | | Site | a Flow Production Tracking site you can log into |

1. From the Registry

Pick this to use the nodes. Manager updates the pack, and Settings and the profile keep your configuration across updates: project, templates, storage, the provenance mapping, which inputs are advanced. The pack is in alpha. What is missing is under What's next.

Open Manager, then Custom Nodes Manager. Search for Flow Production Tracking. Press Install. Restart ComfyUI.

With the Comfy CLI, the pack is sg-comfyui at https://registry.comfy.org/nodes/sg-comfyui:

comfy node install sg-comfyui

Restart ComfyUI.

The commands /setup, /task and /track-workflow are in the pack, at ComfyUI/custom_nodes/sg-comfyui. Start your agent in that directory to use them.

2. From the repo

Pick this to change the nodes. The checkout has the tests, the harness and the history an agent works with, and your change survives git pull. It is also where /inspect-site runs, since it needs the sg-groundtruth checkout beside it.

cd ComfyUI/custom_nodes
git clone https://github.com/ksallee/sg-comfyui.git
cd sg-comfyui
<comfy-python> -m pip install -r requirements.txt

Restart ComfyUI.

<comfy-python> is the interpreter ComfyUI runs on. Check the install with it:

<comfy-python> tools/doctor.py

Start your agent in the checkout. The four commands are there, /inspect-site included.

Paths, the command-line tools, the profile key by key and the fixes are in INSTALL.md.

First run

1. Open Settings, then SG.
2. Enter your site address under Connection.
3. Press Log in, then approve the request in the browser tab.
4. Press Test.
5. Pick the project under SG Defaults.

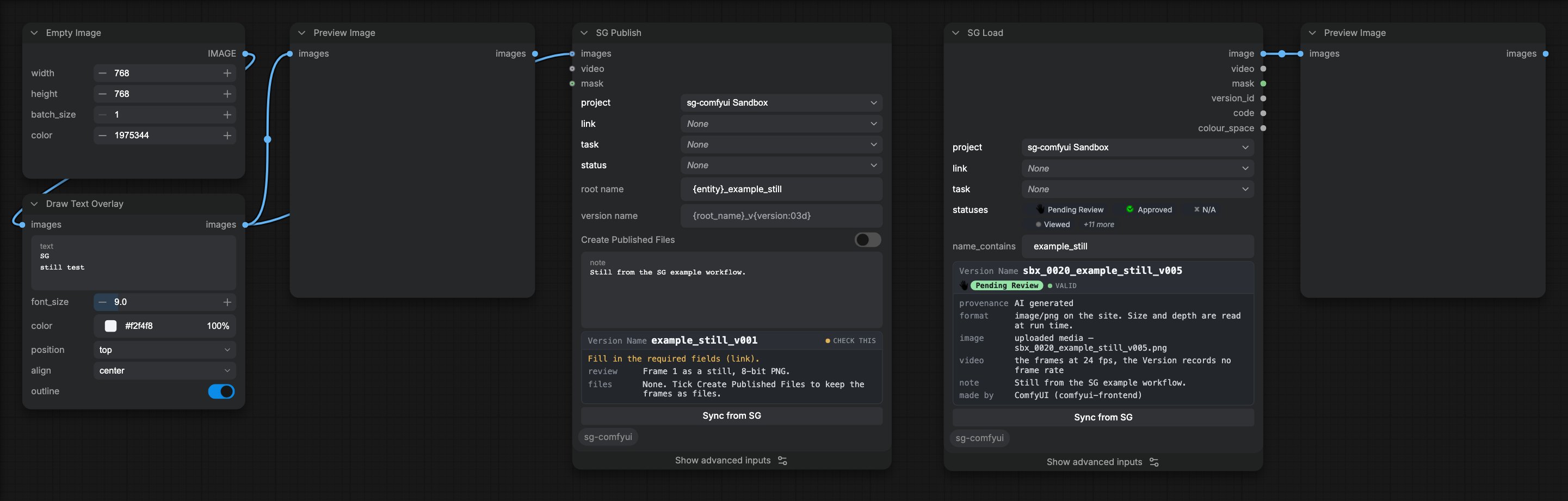

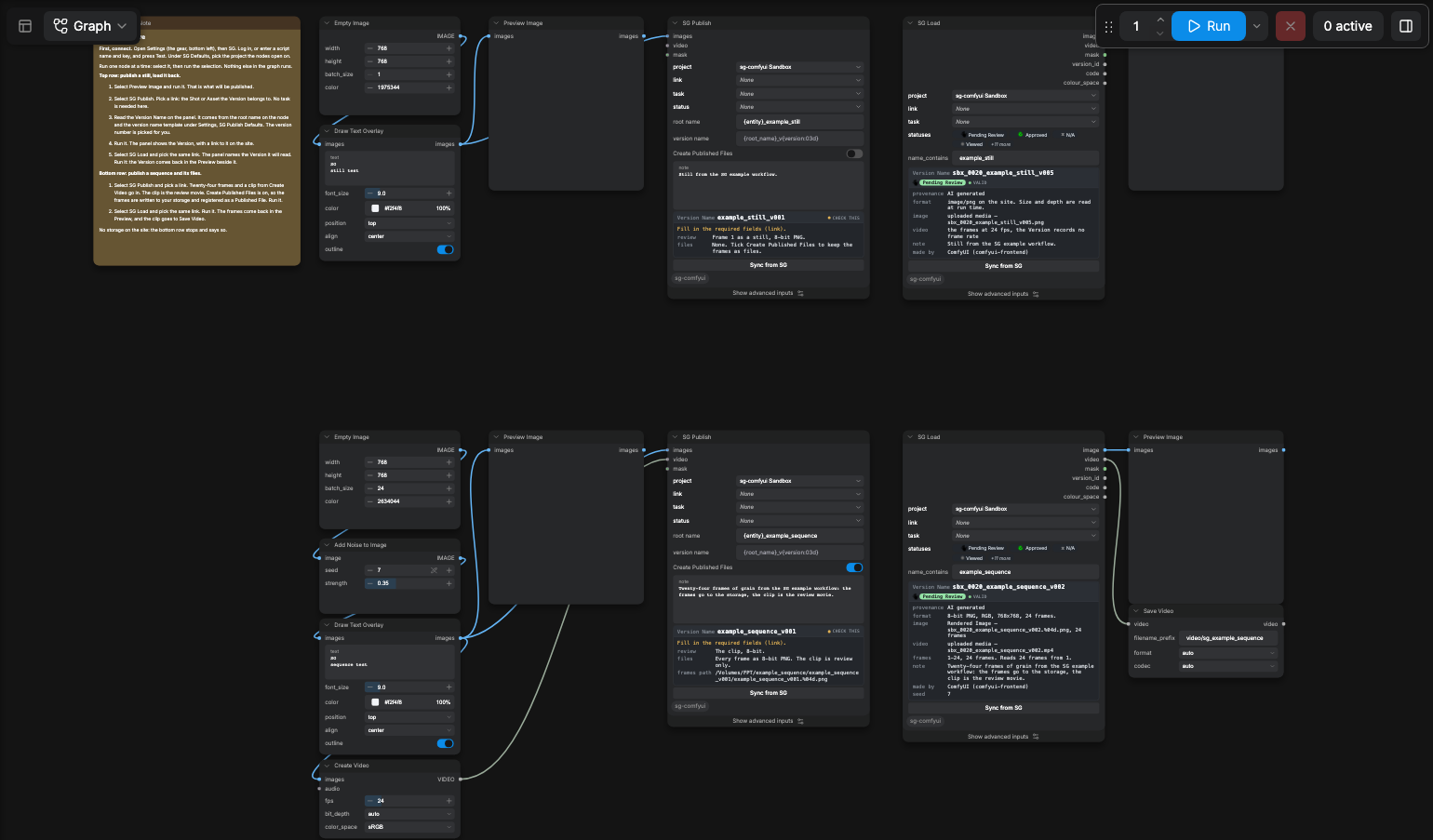

6. Open the Templates browser, category sg-comfyui, and open 00_example.
7. Pick a link on each node.
8. Press Run.

A farm enters a Script name and Application key under Script Authentication instead of step 3. An agent follows the same steps with /setup.

Restart ComfyUI only to install or upgrade the pack. A profile edit is read on a browser refresh.

How it works

Where provenance is written

Nine typed fields on Version, created under Settings, then SG, SG Site Setup.

| field | programmatic name | from | |---|---|---| | AI Generator | sg_ai_generator | ComfyUI, and the name the submitting client gave itself | | AI Model | sg_ai_model | the checkpoints the graph loaded | | AI Prompt | sg_ai_prompt | positive conditioning on this branch | | AI Negative Prompt | sg_ai_negative_prompt | negative conditioning on this branch | | AI Seed | sg_ai_seed | text, not a number: seeds reach 2**64-1 (probe 019) | | AI Sampler | sg_ai_sampler | sampler and scheduler | | AI Steps | sg_ai_steps | the last sampler on the branch | | AI CFG | sg_ai_cfg | the last sampler on the branch | | AI Generated From | sg_ai_generated_from | the Versions this was made from |

• A site with none of these fields records the facts in the Version's description.
• Where some of them exist, those take their values. The description records the rest.
• The record is attached as .provenance.json.
• The workflow is attached when the submitting client sent one.
• Provenance is scoped per branch. The node walks back through its own inputs.

The frames and the storage root

• A Version has one uploaded media file (probe 022). sg_path_to_frames and sg_path_to_movie are path references, and RV reads them to switch between the transcode and the source. The only out-of-the-box way to register an image sequence is a PublishedFile linked to the Version.
• A PublishedFile's path is under one of your site's Local File Storage roots. The server refuses any other path.
• ComfyUI writes the frames to its own output directory. The node copies them under the root.
• Originals are never moved. A publish that fails after the copy names the copies it left.
• Sequence path, Still path and Movie path are the three templates, under Settings, then SG, SG Publish Defaults.
• The same three are advanced inputs on SG Publish. A filled one applies to that publish. An empty one shows the Settings template greyed inside the field.
• A batch of one frame is written by Still path, beside the folder a sequence takes.
• {version} is the publish revision. %04d, #### and @@@@ are the frame number.
• The extension follows the files, not the template.

Formats and colour space

• A VIDEO read from a file is uploaded as that file, byte for byte.
• Anything else is written by ComfyUI's VideoInput.save_to(), with its colour space, bit depth and audio.
• Review media is 8-bit.
• Colour space is recorded, never applied.
• The declared value goes in the PublishedFile's description. SG Load returns it as an output.
• Core ComfyUI has no colour management. INSTALL.md says what to install.

What it does not do

• No encoder, no decoder, no generation.
• No charts, no dashboards, no scheduled reports, no automations.

Customize

profile.local.json sets what a Version links to, what it is called, and which field each provenance fact is written to. It is plain JSON. Edit it by hand.

| to do this | use | |---|---| | Measure one project and write the profile | /inspect-site | | Set the name templates, status, storage and paths per project | Settings, then SG, SG Publish Defaults | | Put a Settings template on a node | type { in root name or version name, then pick Default | | Map provenance onto Version fields you already have | the profile's provenance.map | | Add the nodes to a graph you already use | /track-workflow |

Without a measured profile the pickers run on the site's own defaults, which suit a Shot-linked show. The procedures are in .claude/commands/, in either install, as plain markdown. 01_concept_and_style and 02_style_from_a_reference are worked graphs.

What's next

The order is not decided. Open an issue for the one you need, whether or not it is on this list.

• Registering files another node wrote, such as Save Image (Advanced) or an OCIO Write.
• Publishing where there is no shared storage, by uploading a zip.
• Publishing on someone's behalf, and naming the artist on a farm.
• Newest per stream, rather than newest on the link.
• Version fields and linked fields as inputs on SG Publish: a field search in Settings, a re-orderable list, each field a normal or advanced input.
• A colour-managed template.
• Publishing from a Windows machine is untested. You can contribute.

Known limits

• A loader inside a ComfyUI subgraph is replaced there, not promoted to the top level.
• A zip uploaded to a Version is not unpacked. SG Load returns it unchanged.
• pyproject.toml has no Icon.

Where to read next

| file | what it is | |---|---| | INSTALL.md | the interpreter, the local files, the command-line tools, the profile, the fixes | | DESIGN.md | why each decision was made | | AGENTS.md | the entry point for an agent |
