ComfyUI Pulse MeshAudit

A ComfyUI custom node for auditing 3D mesh files by rendering them with a headless renderer and displaying an interactive carousel of renders with detailed mesh statistics.

Features

✨ 16-Render Carousel

• 4 camera angles (Perspective, Front, Right, Left)
• 4 shading modes (Path Trace, Wireframe, Geometry Analysis, Sliver Triangles)
• Auto-resizing grid layout with intuitive modal viewer

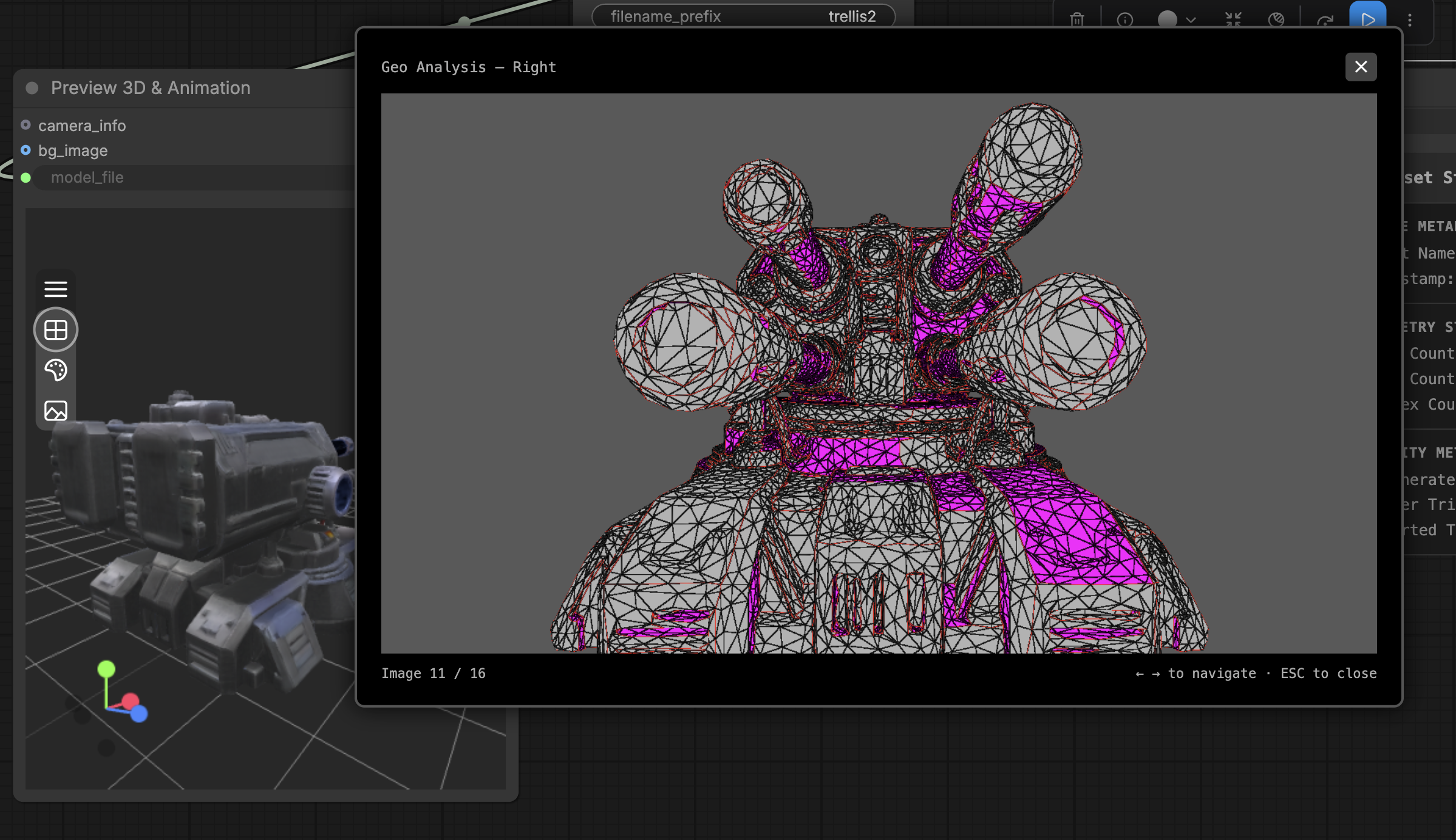

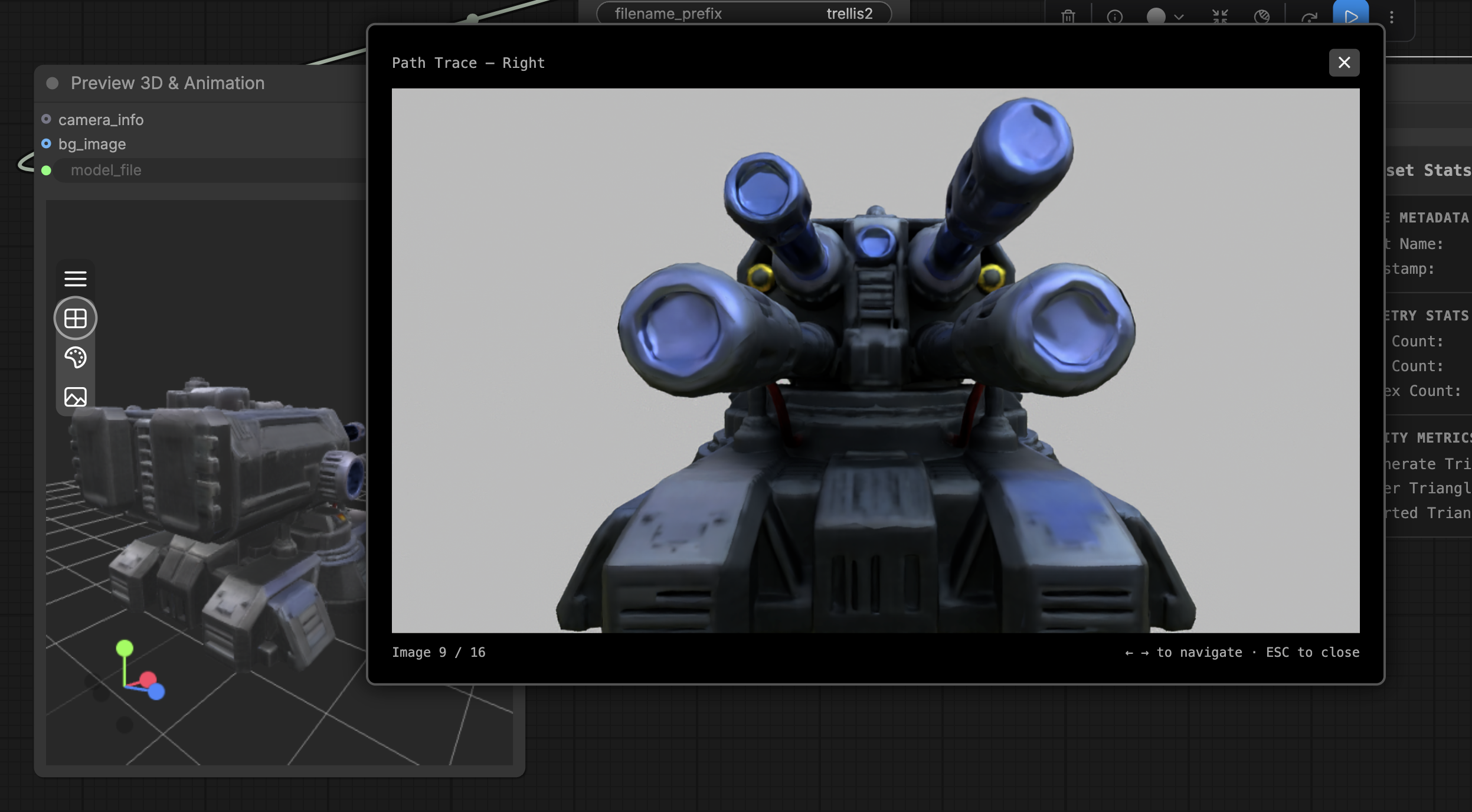

🖼️ Interactive Image Viewer

• Click any render to view fullscreen in centered modal
• Navigate with ← → arrow keys to explore different views
• ESC key or ✕ button to close

📊 Asset Statistics Panel

• Collapsible accordion with three categories:
  • Scene Metadata: Asset name, timestamp
  • Geometry Stats: Edge count, face count, vertex count
  • Quality Metrics: Degenerate/sliver/inverted triangle percentages
• Dark-themed UI matching carousel design
• Responsive layout that adapts to node size

🔍 Pathtracer Integration

• Uses bundled headless renderer binary
• Generates 16 PNG renders per execution

Platform Support

| Platform | Status | GPU Requirement | |----------|--------|----------------| | Linux x64 (Ubuntu/Debian) | Supported | Vulkan-capable GPU | | Windows x64 | Supported | Vulkan-capable GPU |

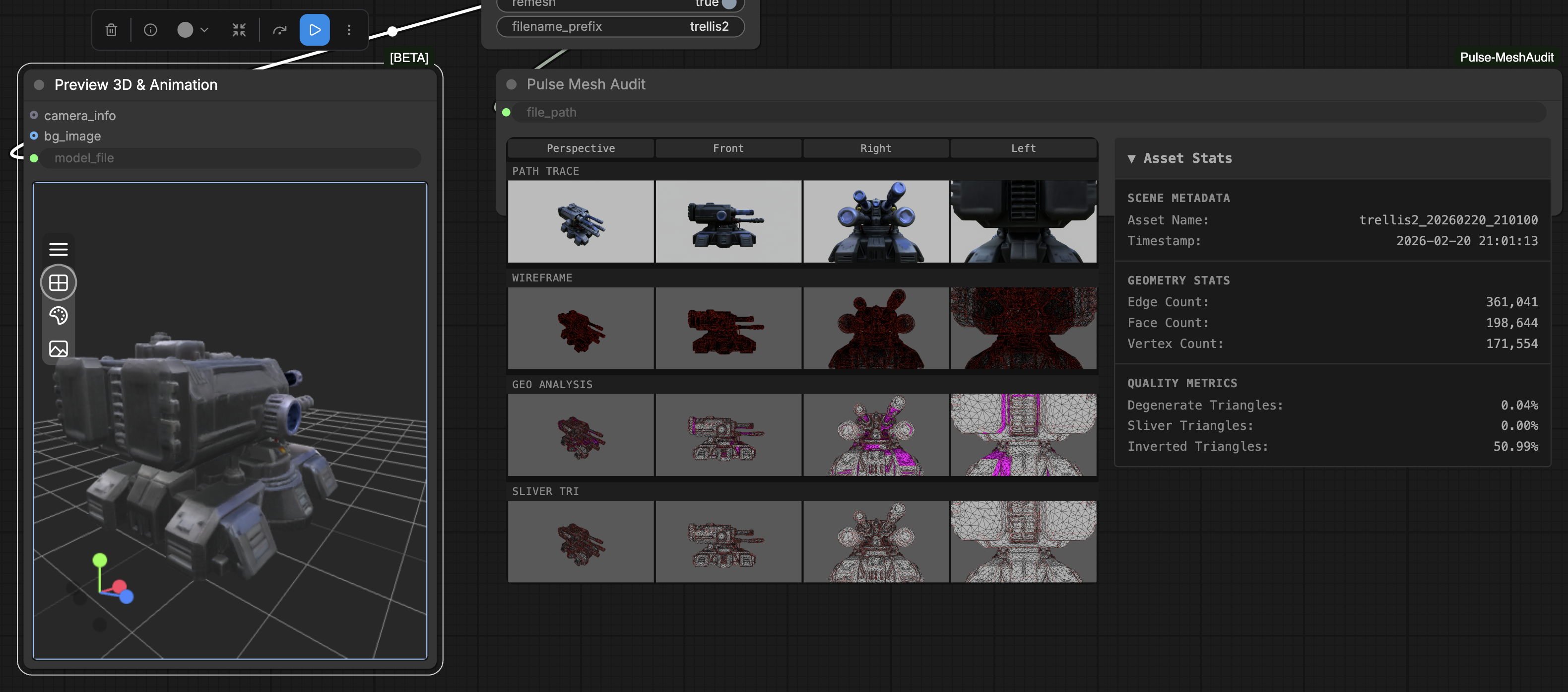

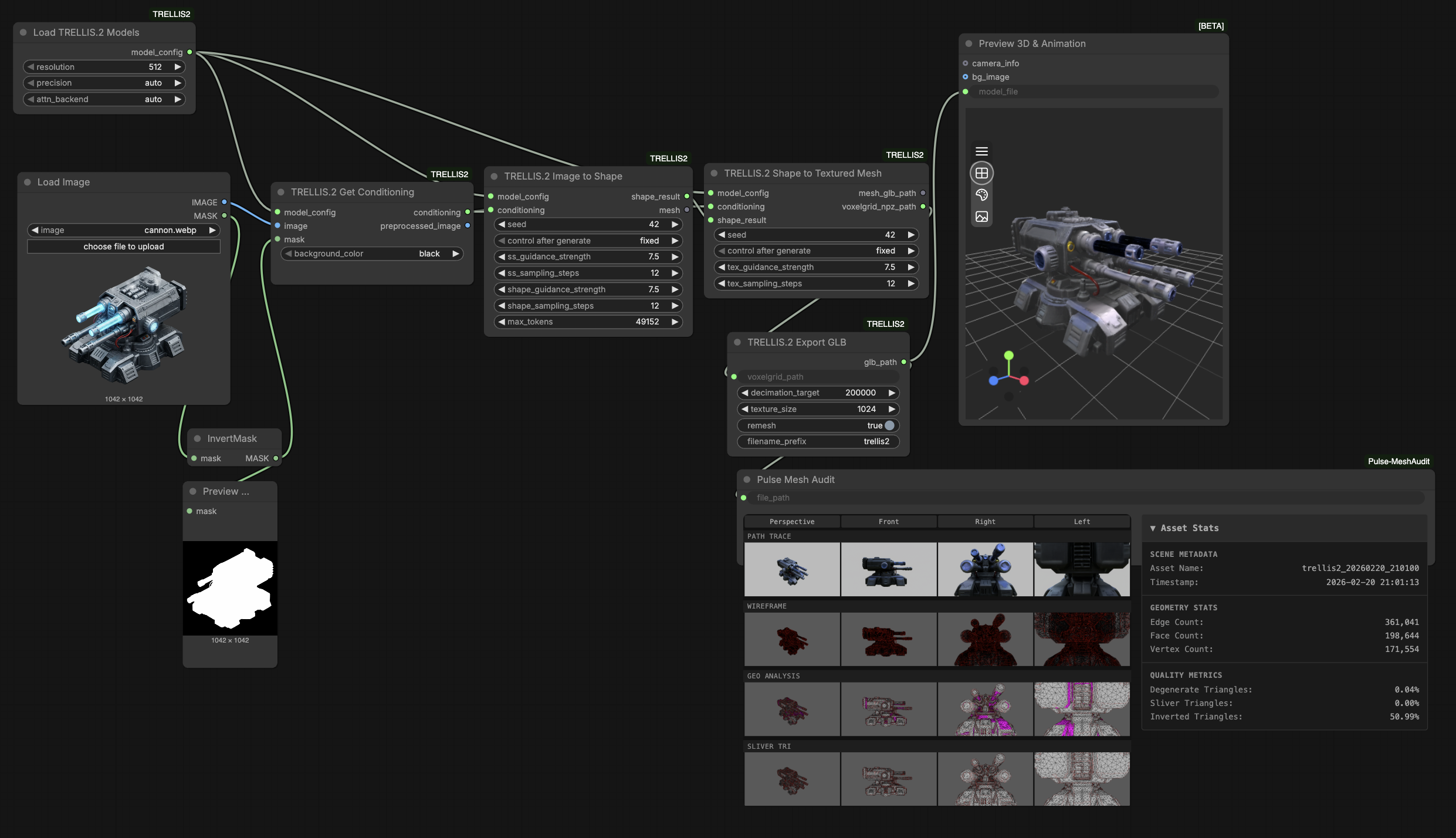

Screenshots

Installation

Requirements

• ComfyUI (latest)
• Python 3.8+
• Vulkan-capable GPU (NVIDIA, AMD, or Intel) with up-to-date drivers
• ~500MB disk space for binary and assets
• Windows only: Visual C++ 2015-2022 Redistributable (usually pre-installed)
• Linux only: libvulkan1 — see manual install steps below

Via ComfyUI Manager

1. Open ComfyUI Manager
2. Search for "Pulse MeshAudit"
3. Click Install

ComfyUI Manager automatically installs libvulkan1 on Linux via comfy-env.toml. No extra steps needed on Windows.

Manual Install

1. Clone into ComfyUI custom_nodes:

cd /path/to/ComfyUI/custom_nodes
git clone https://github.com/krishnancr/ComfyUI-Pulse-MeshAudit.git
cd ComfyUI-Pulse-MeshAudit

2. Install Vulkan runtime (Linux only):

sudo apt install libvulkan1

Windows: Vulkan is provided by your GPU drivers — no extra install needed. If you see a missing DLL error on launch, install the VC++ 2015-2022 Redistributable.

3. Restart ComfyUI:

# From ComfyUI root
python3 main.py

4. Verify installation:
   • In ComfyUI, search for "PulseMeshAudit" node
   • Node should appear under Pulse/MeshAudit category

Usage

Basic Workflow

1. Add PulseMeshAudit node to canvas
2. Set file_path to your mesh file:
   • Supported: .glb, .obj, .gltf
3. Execute node (Ctrl+Enter or click execute button)
4. View renders:
   • Hover over images for outline highlight
   • Click any image to view fullscreen
   • Use arrow keys to navigate between views
5. Inspect stats:
   • Click "Asset Stats" header to expand/collapse
   • View scene metadata, geometry counts, quality metrics

Example Mesh Files

Test with assets/ArmoredWarrior_00005_.glb Example workflow file here : workflows/mesh_audit.json

Contributing

Contributions welcome! Please:

1. Fork the repository
2. Create a feature branch: git checkout -b feature/your-feature
3. Commit changes: git commit -m "feat: describe your change"
4. Push to branch: git push origin feature/your-feature
5. Open a Pull Request

See LICENSE file for full details.

Citing this Work

If you use this node in your YouTube videos or commercial workflows, please include a link to this repo and credit it as: "Pulse - MeshAudit by Krishnan Ramachandran"
