ComfyUI Audio Waveform Visualizer

A collection of custom nodes for ComfyUI designed to generate audio waveform visualizations. This package provides several methods to visualize audio, ranging from real-time workspace previews to high-resolution images for video synthesis.

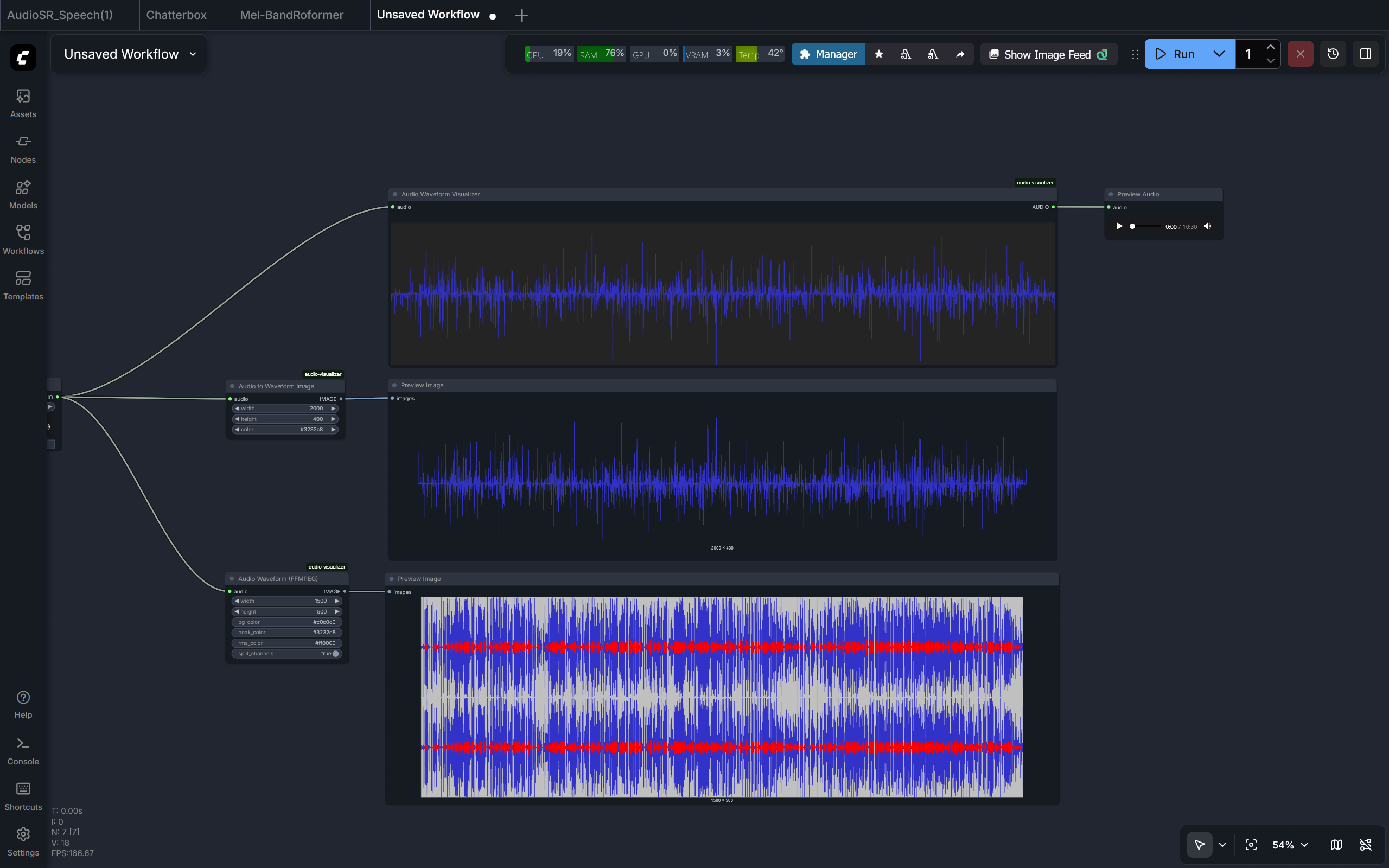

Preview

Preview

Features

  • Real-time Visualization: Waveform rendering directly on the ComfyUI canvas using JavaScript.
  • Image Generation: Detailed waveform images using Matplotlib or FFmpeg.
  • Customization: Control over dimensions, colors (hex supported), and mono/stereo channel handling.
  • Performance Optimization: Audio decimation (downsampling) and offscreen buffering for handling long audio files.

Installation

1. Prerequisites

FFmpeg (Required for FFMPEG Node)

  • Windows: Download from gyan.dev, extract, and add the bin folder to your System PATH.
  • Linux: sudo apt install ffmpeg
  • macOS: brew install ffmpeg

Python Dependencies

Install the required libraries:

pip install -r requirements.txt

2. Manual Installation

  1. Navigate to your ComfyUI custom nodes directory:
    cd ComfyUI/custom_nodes/
  2. Clone this repository:
    git clone https://github.com/kaushiknishchay/ComfyUI-Audio-Waveform-Visualizer audio-visualizer
  3. Restart ComfyUI.

Visualization Methods

This suite provides three specialized nodes for different use cases.

1. Audio Waveform Visualizer (Frontend Canvas)

Renders a waveform directly on the node's UI using a JavaScript canvas.

  • Usage: Quick inspection and real-time feedback during workflow development.
  • Pros: Fast; minimal impact on generation time; responsive to resizing.
  • Cons: No image output; visualization is lost on UI refresh.

2. Audio to Waveform Image (Matplotlib)

Generates a waveform image using the Matplotlib engine.

  • Usage: Creating clean overlays for composites.
  • Pros: Supports transparency (RGBA); generates a standard IMAGE tensor.
  • Parameters: width, height, color (supports hex codes).

3. Audio Waveform (FFMPEG)

Uses the FFmpeg showwavespic filter to create a detailed visualization.

  • Usage: Video production and accurate audio representation.
  • Pros: Displays both Peak and RMS levels; supports stereo channel splitting.
  • Parameters: bg_color, peak_color, rms_color, split_channels (stereo/mono).

Workflow Examples

An example workflow is available in the workflows/ directory:

To use it: Drag and drop the JSON file into your ComfyUI workspace.

Usage Notes

  • Input: All nodes accept the standard ComfyUI AUDIO type.
  • Output: Image-based nodes output a standard IMAGE tensor compatible with nodes like Preview Image or Save Image.
  • Large Files: Automatic decimation is applied to manage memory and performance when processing long audio recordings.

License

Distributed under the MIT License.
