Extensions/ComfyUI-Flow-Hub
ComfyUI Extension

ComfyUI-Flow-Hub

A collaboration-first workflow management tool for ComfyUI

By junopark00·Created 4 months ago·Updated 4 months ago· 1
junopark00/ComfyUI-Flow-Hub
Nodes—
On cloudLocal install
Stars1
Updated4 months ago
Readme

ComfyUI-Flow-Hub

A collaboration-first workflow management tool for ComfyUI. Manage personal workflows, publish to published libraries, and load workflows quickly with SQLite-backed metadata.

License Python Node.js React

<p align="center"> <img src="docs/images/hero.png" alt="Hero overview image for ComfyUI-Flow-Hub"> </p>

Features

  • Personal Workspace (ComfyUI Workflows Replacement) — Designed to improve and replace inconvenient parts of ComfyUI's built-in Workflows management with practical file-based operations (folder creation, drag-and-drop move, quick load/save, and bookmarks)
  • Published Library & Search — Grid and list views with thumbnails, tag filtering, category filtering, full-text search, and sort options
  • Publish Workflows for Collaboration — From the Personal tab, publish selected work into the shared Published workspace so teammates can browse, search, import, and reuse workflows consistently
  • Import to Personal — Copy any published workflow back into your Personal workspace directly from the Detail view
  • Missing Node Detection — Before loading a workflow onto the canvas, warns about any node types not currently installed
  • Edit Metadata — Update workflow details, tags, category, and thumbnail in place
  • SQLite Metadata — All metadata is stored in a local SQLite database co-located with your workflow folder
  • Auto-refresh — Detects external changes to the workflow folder and refreshes the view
  • Settings UI — Configure the workflow folder and default author from the in-app Settings tab
  • Environment Overrides — Lock the publish/personal folders and author via Flow Hub environment variables for managed deployments
<div align="center">

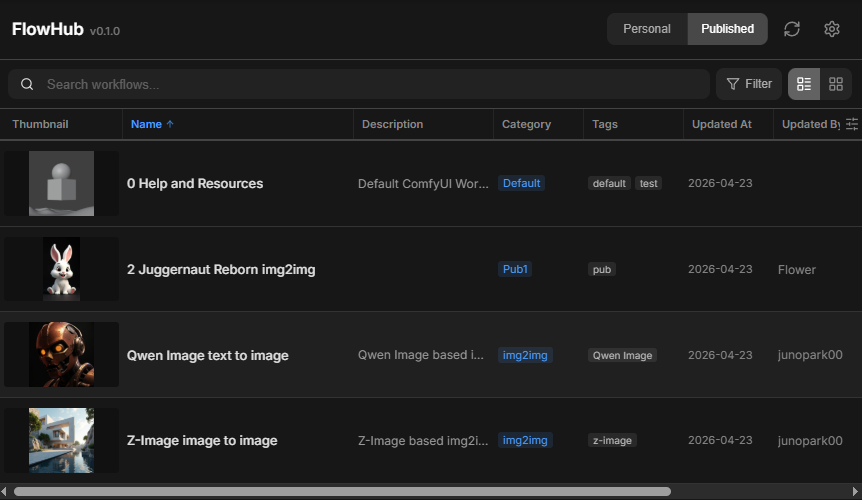

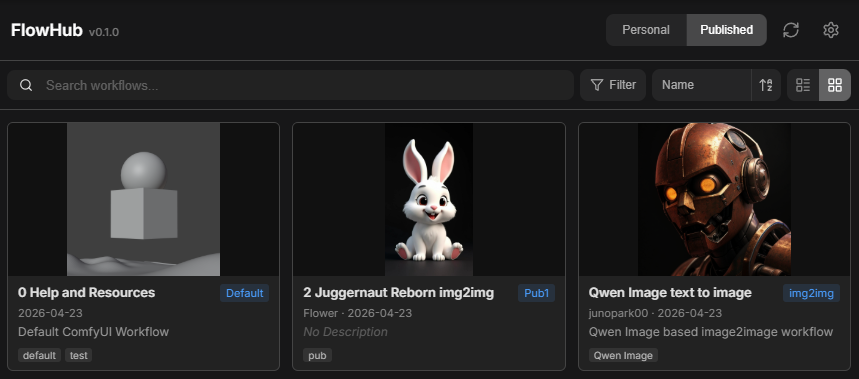

| Grid view | List view | | --- | --- | | Published tab - Grid view | Published tab - List view |

</div>

Release Notes

<details> <summary><b>v0.1.2</b> — Manager install fix (sidebar panel rendering)</summary>

Bug fixes

  • Fixed the sidebar panel showing only the loading state when installed via ComfyUI-Manager. The previously published dist/ was missing the lazily-imported App-*.js chunk, which caused React.lazy() to fail with a 404 on first open.
  • Restored the missing chunk and removed dist/ from .gitignore so build artifacts are tracked deterministically instead of relying on git add -f in CI.

CI / Publishing

  • Expanded the Build & Publish to Comfy Registry workflow triggers to also run on changes under ui/src/**, ui/package.json, ui/package-lock.json, ui/public/**, ui/vite.config.ts, and ui/tsconfig*.json, so UI-only changes are no longer silently skipped.
</details> <details> <summary><b>v0.1.1</b> — Personal Workspace DnD &amp; context menu fixes</summary>

Personal Workspace — Drag & Drop

  • Fixed drops on the empty area below the tree being captured by the ComfyUI canvas (workflow no longer loads onto the canvas by accident).
  • Drop highlight is now unified across the tree rows and the empty area within the panel.
  • Dragging a workflow within the same folder is now a no-op instead of being moved to the root.

Personal Workspace — Context Menu

  • Right-click context menu (Rename / Load / Publish / Duplicate) is now reliably visible and reacts to clicks instead of being intercepted by ComfyUI's own listeners.
  • Added Duplicate action for personal files and folders.

Internal

  • Sidebar panel now fills its container (position: relative; height: 100%), so DnD hit-testing matches the visible area.
  • DnD and contextmenu use window-capture native listeners to bypass ComfyUI's capture-phase handlers.
  • Repaired malformed CSS in PersonalWorkspaceView.css that was silently dropping later rules (including the context menu styling).
</details> <details> <summary><b>v0.1.0</b> — Initial release</summary>
  • Initial release.
</details>

Installation

Via ComfyUI-Manager

Search for ComfyUI-Flow-Hub in ComfyUI-Manager and install.

Manual

cd ComfyUI/custom_nodes
git clone https://github.com/junopark00/ComfyUI-Flow-Hub.git

Restart ComfyUI. The ComfyUI-Flow-Hub tab appears in the sidebar.

Usage

Flow Hub is organized around two workspaces:

  • Personal tab: Your day-to-day workspace, intended to improve and effectively replace the limited default ComfyUI Workflows experience. Manage folders/files directly and prepare workflows before sharing.
  • Published tab: Team-facing workspace for collaboration. Workflows published from Personal are collected here with metadata for discovery and reuse.

Typical flow:

  1. Organize and iterate in Personal.
  2. Publish important workflows from Personal to Published.
  3. Team members browse/search in Published, then import or load as needed.

Walkthrough

1. First-time setup

Open ComfyUI in your browser and click the ComfyUI-Flow-Hub tab in the sidebar. On the first run, a setup prompt asks for the publish folder. Choose the directory where published .json workflow files should be stored. The folder is scanned recursively and a workflows.db SQLite file is created in the .flow_hub metadata directory.

<p align="center"> <img src="docs/images/setup.png" alt="First-time setup prompt (publish folder selection)"> </p>

2. Personal workspace

The Personal tab mirrors your local workflow folder as an interactive file tree. You can:

  • Create subfolders and drag-and-drop workflows between them.
  • Toggle the Bookmark star on any workflow for quick access.
  • Save the current ComfyUI canvas directly into any folder, or Load a workflow from the tree onto the canvas.
<p align="center"> <img src="docs/images/personal-workspace-flow.gif" alt="Personal workspace flow (create folder -> move workflow -> bookmark -> load/save)"> </p>

3. Publish for collaboration

  1. Build or open a graph in ComfyUI.
  2. Open the Publish dialog from the Personal workspace.
  3. Fill in:
    • Name (required) — used as the filename (name.json).
    • Category (required) — folder-like grouping. Typing a new name prompts to create it.
    • Author, Tags (comma-separated), Description, Thumbnail (drag & drop or click to upload).
  4. Click Publish Workflow. If a file with the same name exists in that category, you'll be asked to overwrite.
<p align="center"> <img src="docs/images/publish-collaboration-flow.gif" alt="Publish from Personal to Published"> </p>

4. Published discovery and reuse

The Published tab lists every published workflow found in the folder.

  • View toggle — Switch between Grid (thumbnails) and List (compact table).
  • Search — Match against name, description, tags, and author.
  • Filter — Narrow by category, tags, or author. Multiple tags act as OR.
  • Sort — Sort by updated, created, or name (asc/desc).
  • Refresh — Auto-detects file changes; click the icon to force a rescan.

Click a card (Grid) or row (List) to open the Detail view, then click Load Workflow to replace the current canvas. If the workflow uses node types not currently installed, a warning lists the missing nodes before loading. Use Import to Personal to copy the workflow file into your Personal workspace.

<p align="center"> <img src="docs/images/published-discovery-flow.gif" alt="Published browse and reuse flow"> </p>

5. Edit metadata and thumbnails

In the Detail view, edit name, description, author, tags, category, and thumbnail. Save Changes activates as soon as anything is modified (including thumbnail upload/replace/remove). Renaming the category to a new name prompts for confirmation.

<p align="center"> <img src="docs/images/detail-edit-flow.gif" alt="Detail metadata and thumbnail edit"> </p>

6. Delete

Click Delete in the Detail view to remove the workflow from the browser. Tick "Also delete the original .json file from disk" to remove the underlying file as well; otherwise only the metadata entry is dropped and the file remains on disk.

Configuration

Open the Settings tab inside ComfyUI-Flow-Hub to set:

  • Personal workspace folder — Directory used for your personal workflow tree and file management
  • Publish workspace folder — Directory scanned for published .json workflow files
  • Default author — Pre-filled in the Publish / Edit dialogs
<p align="center"> <img src="docs/images/settings.png" alt="Settings tab (personal/publish folder and default author)"> </p>

Environment variables (optional)

| Variable | Effect | | --- | --- | | FLOW_HUB_PUBLISH_PATH | Locks the publish workflow folder. Accepts os.pathsep-separated list; the first valid path is used. | | FLOW_HUB_PERSONAL_PATH | Locks the personal workspace folder. Accepts os.pathsep-separated list; the first valid path is used. | | FLOW_HUB_AUTHOR | Locks the default author name. |

When set, the corresponding fields in the Settings UI are disabled and the server enforces the value on every write.

<p align="center"> <img src="docs/images/settings-locked.png" alt="Settings with env-locked fields"> </p>

Project Structure

ComfyUI-Flow-Hub/
├── __init__.py            # ComfyUI entry point, registers routes & static assets
├── server.py              # aiohttp REST API
├── db.py                  # SQLite WorkflowDB
├── pyproject.toml         # Registry metadata
├── ui/                    # React 18 + Vite + TypeScript frontend
└── dist/flow_hub/         # Built assets (generated)

License

GPL-3.0 © junopark00
