ComfyUI-Rect

Interactive rectangle tools for ComfyUI.

Includes an interactive Rect / Select (marching-ants popup) plus Rect / Crop, Rect / Mask, and Rect / Fill.
Outputs a reusable RECT object ({x,y,w,h}) and the four scalar values for compatibility with existing nodes.

---

Screenshots

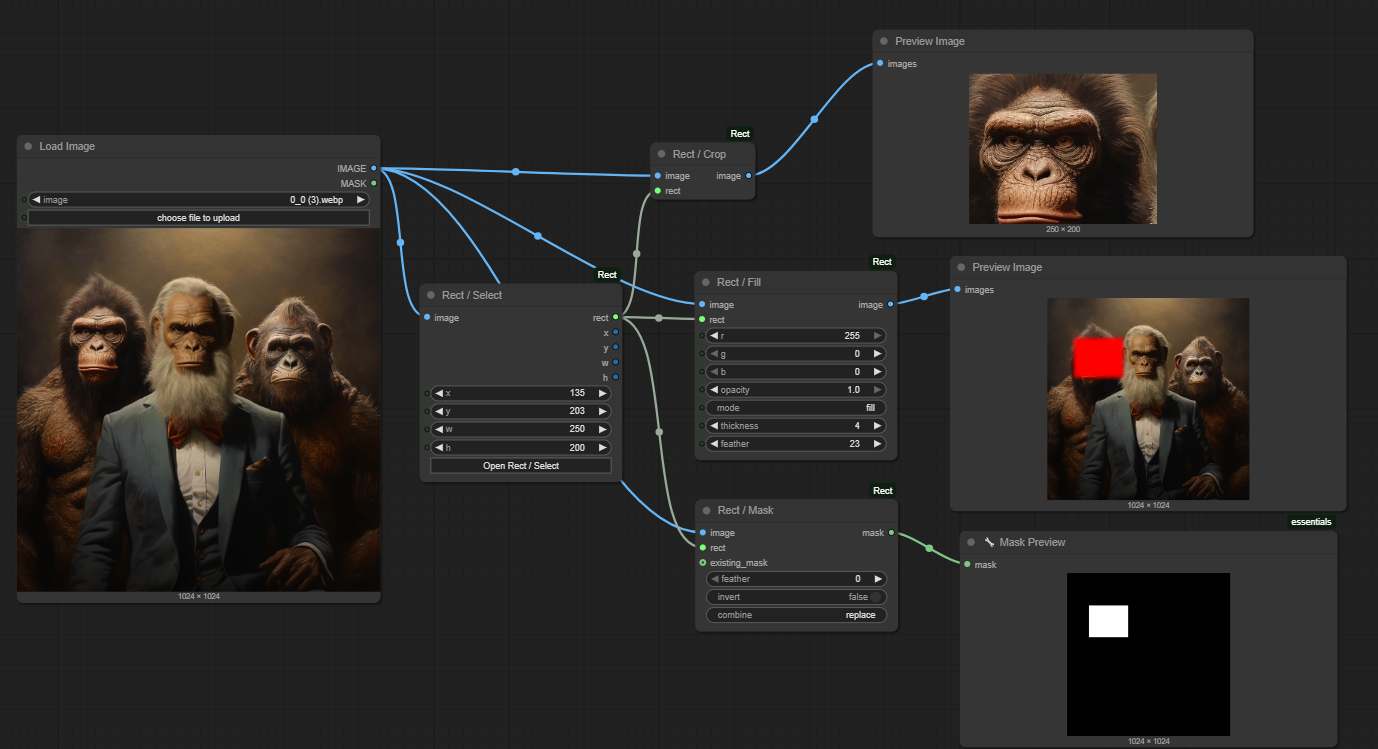

Example Workflow

Load this workflow: assets/demo-workflow.json

Features

• 🖱️ Interactive selector: draw/refine a box over your input image
• 🧱 Clean RECT type + x/y/w/h ints
• ✂️ Crop, 🧪 Mask (feather/invert/combine), 🟩 Fill/Outline (color + opacity)
• Bounds-safe, batch-safe, GPU/CPU friendly
• Modular pack layout (easy to extend)

---

Install

1. Copy the folder ComfyUI-Rect into:

   ComfyUI/custom_nodes/


2. Restart ComfyUI.

If the “Open Rect / Select” button doesn’t appear, it’s almost always cache—use ?nocache=1.

---

Nodes

Rect / Select

Inputs

• image: IMAGE (required)

Outputs

• rect: RECT (object with x,y,w,h)
• x: INT, y: INT, w: INT, h: INT

UI

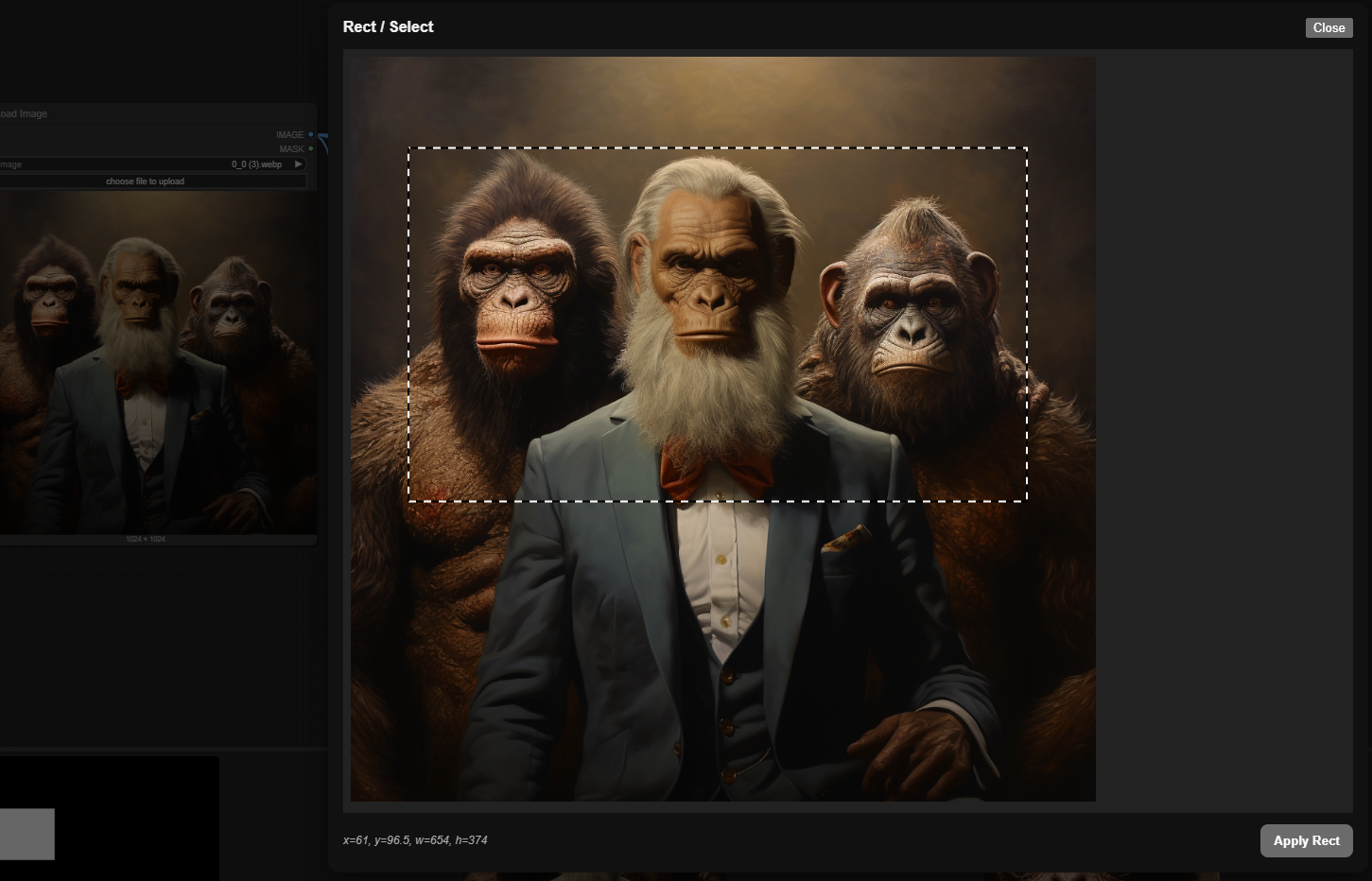

• Button Open Rect / Select opens an overlay where you drag a rectangle over the input image. Values sync back to the node.

Rect / Crop

• Inputs: image: IMAGE, rect: RECT
• Output: image: IMAGE (cropped)

Rect / Mask

• Inputs: image: IMAGE, rect: RECT
• Options: feather (px), invert, combine (replace/union/intersect/subtract/multiply)
• Optional: existing_mask: MASK
• Output: mask: MASK (0..1)

Rect / Fill

• Inputs: image: IMAGE, rect: RECT
• Color: r,g,b (0–255), opacity (0..1)
• Mode: fill or outline, thickness (outline), feather
• Output: image: IMAGE (blended)

---

Quickstart

1. Load Image → Rect / Select (click Open Rect / Select, draw a box)
2. Feed rect to:
   • Rect / Crop → get a cropped image, or
   • Rect / Mask → build a mask (then drive any mask-aware node), or
   • Rect / Fill → draw a solid block or outline for redactions/callouts.

---

RECT type

A simple JSON-like object:

{"x": 100, "y": 80, "w": 256, "h": 256}

All coordinates are in image pixel space. Values are clamped to the image bounds for safety.

---

Troubleshooting

• Button missing (“Open Rect / Select”) → open with ?nocache=1.
• No image in selector → ensure the node’s image input is connected.
• JS not loading → verify the folder path is exactly ComfyUI/custom_nodes/ComfyUI-Rect/ and restart ComfyUI.

---

Roadmap

• Rect / Transform (offset/expand/scale-around-center)
• Helper: Mask → Rect (BBox) (in companion MaskTools pack)

---

License

MIT
