ComfyUI-Qwen-TTS-5x

ComfyUI-Qwen-TTS-5x

English | 中文版

✅ transformers 5.x support (this fork)

This fork adapts the plugin to transformers 5.x, verified on transformers 5.14.1 / ComfyUI 0.37.0 / torch 2.13.0. The upstream v1.0.7 declares transformers>=4.57.0,<5.0.0; if you need the original 4.x behaviour, use the upstream release pinned to 4.57.3.

---

About this fork

This repository is a fork of flybirdxx/ComfyUI-Qwen-TTS (Apache-2.0), adapted for the transformers 5.x environment.

Why

Upstream v1.0.7 declares transformers>=4.57.0,<5.0.0. Downgrading the shared ComfyUI environment was not an option, so the four affected files were adapted in place. Every fix was verified by measurement, not by inspection.

Fixes

| # | Issue | Impact | |---|---|---| | 1 | pad_token_id no longer copied onto PretrainedConfig in 5.x | AttributeError on load | | 2 | ROPE_INIT_FUNCTIONS["default"] removed in 5.14 | replaced with a local unscaled implementation (mapping it to "linear" would be wrong) | | 3 | create_causal_mask signature change (input_embeds -> inputs_embeds, cache_position dropped) | call-time signature adaptation | | 4 | cache_position arrives as None on decode | crash: mat1 and mat2 shapes cannot be multiplied (1x55296 and 2048x2048) | | 5 | inv_freq left as uninitialised meta memory | silent failure: audio is produced but the voice is completely wrong, no exception | | 6 | layer_type_validation deprecation shim logs on every call | 59 identical log lines per model load | | 7 | ProgressBar(total) defaults to node_id=None | progress never displayed in the panel | | 8 | generate() is one blocking call | progress bar frozen for the whole generation | | 9 | step counter went negative (input_ids excludes prefill) | bar jumped straight to 100% | | 10 | ComfyUI 0.37 registers no CLIProgressHandler | added a self-contained stderr console bar |

Fix 5 is the one worth highlighting: it raises nothing and logs nothing. The model just emits meaningless acoustic frames, which is easy to mistake for a bad reference audio.

Installing

Pick whichever suits you. All four end up with the same thing: a folder called ComfyUI-Qwen-TTS-5x inside ComfyUI/custom_nodes/.

1. ComfyUI Manager (easiest)

1. Open ComfyUI, click Manager
2. Custom Nodes Manager -> Install Custom Nodes
3. Paste this into the search / URL box:

   https://github.com/jesse890423/ComfyUI-Qwen-TTS-5x


4. Click Install, then restart ComfyUI when prompted

Manager handles the clone and the dependencies for you.

2. git clone

cd ComfyUI/custom_nodes
git clone https://github.com/jesse890423/ComfyUI-Qwen-TTS-5x.git
cd ComfyUI-Qwen-TTS-5x
..\..\..\python_embeded\python.exe -m pip install -r requirements.txt

Adjust the python_embeded path if your ComfyUI is not the portable build.

3. Download the zip

1. On the repository page: Code -> Download ZIP
2. Unzip it. The zip contains a folder called ComfyUI-Qwen-TTS-5x-main -- rename it to ComfyUI-Qwen-TTS-5x (drop the -main suffix). The name matters: ComfyUI derives the node identity from the folder name, and this name is also what lets Manager update the plugin later.
3. Move the renamed folder into ComfyUI/custom_nodes/, so you end up with

   ComfyUI/custom_nodes/ComfyUI-Qwen-TTS-5x/


   Do not end up with ComfyUI/custom_nodes/ComfyUI-Qwen-TTS-5x-main/, and do not put the contents loose directly into custom_nodes/.
4. Install the dependencies:

   cd ComfyUI/custom_nodes/ComfyUI-Qwen-TTS-5x
   ..\..\..\python_embeded\python.exe -m pip install -r requirements.txt


5. Restart ComfyUI

4. Manual copy

Copy the contents of this repository into a new folder ComfyUI/custom_nodes/ComfyUI-Qwen-TTS-5x, install requirements.txt, and restart ComfyUI.

Then get the models

This node pack downloads nothing on its own. Model weights go where the Model Directory Structure section below describes.

If the nodes do not appear

1. Check the ComfyUI console for an error mentioning this plugin
2. Confirm the folder path is exactly ComfyUI/custom_nodes/ComfyUI-Qwen-TTS-5x/__init__.py
3. Confirm transformers is installed: pip show transformers
4. Restart ComfyUI fully (not just the browser tab)

Do not install both packages

This fork keeps the upstream node class names (FB_Qwen3TTS*) so existing workflows keep working. Upstream and this fork therefore register the same class names, and enabling both at once makes the nodes clash.

Pick one:

| | transformers | Folder | |---|---|---| | This fork | 4.57+ and 5.x | ComfyUI-Qwen-TTS-5x | | Upstream | 4.57.x only | ComfyUI-Qwen-TTS |

To switch, disable or delete the other one (rename its folder to <name>.disabled, or use Manager's Disable button).

Verified environment

ComfyUI        0.37.0
transformers   5.14.1
torch          2.13.0+cu130
plugin         ComfyUI-Qwen-TTS v1.0.7

License

Apache License 2.0 -- see LICENSE and NOTICE.

This fork only changes the plugin's own code. Model weights are not included and remain governed by the Qwen3-TTS License Agreement from Alibaba Cloud.

ComfyUI custom nodes for speech synthesis, voice cloning, and voice design, based on the open-source Qwen3-TTS project by the Alibaba Qwen team.

📋 Changelog

• 2026-04-12 (v1.0.7): Removed QwenTTSConfigNode due to voice inconsistency; fixed MPS precision bug & CustomVoice channel mismatch; code cleanup (update.md)
• 2026-02-04: Added extra_model_paths.yaml support (update.md)
• 2026-01-29: Feature Update: Support for loading custom fine-tuned models & speakers (update.md)
  • Note: Fine-tuning is currently experimental; zero-shot cloning is recommended for best results.
• 2026-01-27: UI Optimization: Sleek LoadSpeaker UI; fixed PyTorch 2.6+ compatibility (update.md)
• 2026-01-26: Functional Update: New voice persistence system (SaveVoice / LoadSpeaker) (update.md)
• 2026-01-24: Added attention mechanism selection & model memory management features (update.md)
• 2026-01-24: Added generation parameters (top_p, top_k, temperature, repetition_penalty) to all TTS nodes (update.md)
• 2026-01-23: Dependency compatibility & Mac (MPS) support, New nodes: VoiceClonePromptNode, DialogueInferenceNode (update.md)

Example workflows

Ready-to-use workflows are in example/:

| File | What it shows | |---|---| | example.json | Basic synthesis | | Custom Save Voice.json | Saving a voice for reuse | | Multi-character dialogue.json | Multi-role dialogue | | Model Fine-Tuning and Workflow Usage.json | Fine-tuning setup |

Key Features

• 🎵 Speech Synthesis: High-quality text-to-speech conversion.
• 🎭 Voice Cloning: Zero-shot voice cloning from short reference audio.
• 🎨 Voice Design: Create custom voice characteristics based on natural language descriptions.
• 🚀 Efficient Inference: Supports both 12Hz and 25Hz speech tokenizer architectures.
• 🎯 Multilingual: Native support for 10 languages (Chinese, English, Japanese, Korean, German, French, Russian, Portuguese, Spanish, and Italian).
• ⚡ Integrated Loading: No separate loader nodes required; model loading is managed on-demand with global caching.
• ⏱️ Ultra-Low Latency: Supports high-fidelity speech reconstruction with low-latency streaming.
• 🧠 Attention Mechanism Selection: Choose from multiple attention implementations (sage_attn, flash_attn, sdpa, eager) with auto-detection and graceful fallback.
• 💾 Memory Management: Optional model unloading after generation to free GPU memory for users with limited VRAM.

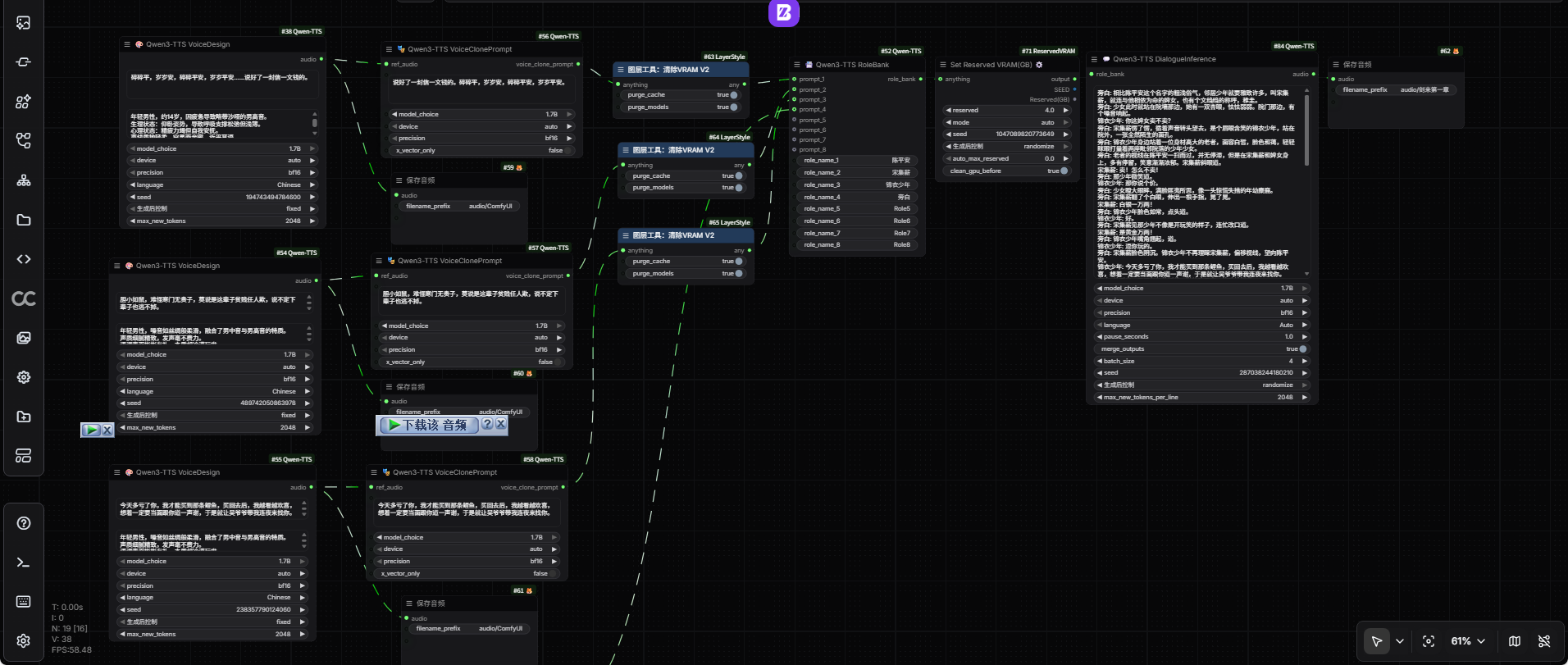

Nodes List

1. Qwen3-TTS Voice Design (VoiceDesignNode)

Generate unique voices based on text descriptions.

• Inputs:
  • text: Target text to synthesize.
  • instruct: Description of the voice (e.g., "A gentle female voice with a high pitch").
  • model_choice: Currently locked to 1.7B for VoiceDesign features.
  • attention: Attention mechanism (auto, sage_attn, flash_attn, sdpa, eager).
  • unload_model_after_generate: Unload model from memory after generation to free GPU memory.
• Capabilities: Best for creating "imaginary" voices or specific character archetypes.

2. Qwen3-TTS Voice Clone (VoiceCloneNode)

Clone a voice from a reference audio clip.

• Inputs:
  • ref_audio: A short (5-15s) audio clip to clone.
  • ref_text: Text spoken in the ref_audio (helps improve quality).
  • target_text: The new text you want the cloned voice to say.
  • model_choice: Choose between 0.6B (fast) or 1.7B (high quality).
  • attention: Attention mechanism (auto, sage_attn, flash_attn, sdpa, eager).
  • unload_model_after_generate: Unload model from memory after generation to free GPU memory.

3. Qwen3-TTS Custom Voice (CustomVoiceNode)

Standard TTS using preset speakers.

• Inputs:
  • text: Target text.
  • speaker: Selection from preset voices (Aiden, Eric, Serena, etc.).
  • instruct: Optional style instructions.
  • attention: Attention mechanism (auto, sage_attn, flash_attn, sdpa, eager).
  • unload_model_after_generate: Unload model from memory after generation to free GPU memory.

4. Qwen3-TTS Role Bank (RoleBankNode) [New]

Collect and manage multiple voice prompts for dialogue generation.

• Inputs:
  • Up to 8 roles, each with:
    • role_name_N: Name of the role (e.g., "Alice", "Bob", "Narrator")
    • prompt_N: Voice clone prompt from VoiceClonePromptNode
• Capabilities: Create named voice registry for use in DialogueInferenceNode. Supports up to 8 different voices per bank.

5. Qwen3-TTS Voice Clone Prompt (VoiceClonePromptNode) [New]

Extract and reuse voice features from reference audio.

• Inputs:
  • ref_audio: A short (5-15s) audio clip to extract features from.
  • ref_text: Text spoken in the ref_audio (highly recommended for better quality).
  • model_choice: Choose between 0.6B (fast) or 1.7B (high quality).
  • attention: Attention mechanism (auto, sage_attn, flash_attn, sdpa, eager).
  • unload_model_after_generate: Unload model from memory after generation to free GPU memory.
• Capabilities: Extract a "prompt item" once and use it multiple times across different VoiceCloneNode instances for faster and more consistent generation.

6. Qwen3-TTS Multi-role Dialogue (DialogueInferenceNode) [New]

Synthesize complex dialogues with multiple speakers.

• Inputs:
  • script: Dialogue script in format "RoleName: Text".
  • role_bank: Role bank from RoleBankNode containing voice prompts.
  • model_choice: Choose between 0.6B (fast) or 1.7B (high quality).
  • attention: Attention mechanism (auto, sage_attn, flash_attn, sdpa, eager).
  • unload_model_after_generate: Unload model from memory after generation to free GPU memory.
  • pause_seconds: Silence duration between sentences.
  • merge_outputs: Merge all dialogue segments into a single long audio.
  • batch_size: Number of lines to process in parallel (larger = faster but more VRAM).
• Capabilities: Handles multi-role speech synthesis in a single node, ideal for audiobook narration or roleplay scenarios.

7. Qwen3-TTS Load Speaker (LoadSpeakerNode) [New]

Load saved voice features and metadata with zero configuration.

• Capabilities: Enables a "Select & Play" experience by auto-loading pre-computed features and metadata.

8. Qwen3-TTS Save Voice (SaveVoiceNode) [New]

Persist extracted voice features and metadata to disk for future use.

• Capabilities: Build a permanent voice library for reuse via LoadSpeakerNode.

Attention Mechanisms

All nodes support multiple attention implementations with automatic detection and graceful fallback:

| Mechanism | Description | Speed | Installation | |-----------|-------------|-------|--------------| | sage_attn | SAGE attention implementation | ⚡⚡⚡ Fastest | pip install sage_attn | | flash_attn | Flash Attention 2 | ⚡⚡ Fast | pip install flash_attn | | sdpa | Scaled Dot Product Attention (PyTorch built-in) | ⚡ Medium | Built-in (no installation) | | eager | Standard attention (fallback) | 🐢 Slowest | Built-in (no installation) | | auto | Automatically selects best available option | Varies | N/A |

Auto-Detection Priority

When attention: "auto" is selected, the system checks in this order:

1. sage_attn → If installed, use SAGE attention (fastest)
2. flash_attn → If installed, use Flash Attention 2
3. sdpa → Always available (PyTorch built-in)
4. eager → Always available (fallback, slowest)

The selected mechanism is logged to the console for transparency.

Graceful Fallback

If you select an attention mechanism that's not available:

• Falls back to sdpa (if available)
• Falls back to eager (as last resort)
• Logs the fallback decision with a warning message

Model Caching

• Models are cached with attention-specific keys
• Changing attention mechanism automatically clears cache and reloads model
• Same model with different attention mechanisms coexists in cache

Memory Management

Model Unloading After Generation

The unload_model_after_generate toggle is available on all nodes:

• Enabled: Clears model cache, GPU memory, and runs garbage collection after generation
• Disabled: Model remains in cache for faster subsequent generations (default)

When to use:

• ✅ Enable if you have limited VRAM (< 8GB)
• ✅ Enable if you need to run multiple different models sequentially
• ✅ Enable if you're done with generation and want to free memory
• ❌ Disable if you're generating multiple clips with the same model (faster)

Console Output:

🗑️ [Qwen3-TTS] Unloading 1 cached model(s)...
✅ [Qwen3-TTS] Model cache and GPU memory cleared

Installation

Ensure you have the required dependencies:

pip install torch torchaudio transformers librosa accelerate

Model Directory Structure

ComfyUI-Qwen-TTS-5x automatically searches for models in the following priority:

ComfyUI/
├── models/
│   └── qwen-tts/
│       ├── Qwen/Qwen3-TTS-12Hz-1.7B-Base/
│       ├── Qwen/Qwen3-TTS-12Hz-0.6B-Base/
│       ├── Qwen/Qwen3-TTS-12Hz-1.7B-VoiceDesign/
│       ├── Qwen/Qwen3-TTS-Tokenizer-12Hz/
│       └── voices/ (Saved presets .wav/.qvp)

Note: You can also use extra_model_paths.yaml to define a custom model path:

qwen-tts: D:\MyModels\Qwen

Loading a Fine-Tuned Model (custom_model_path)

VoiceCloneNode and CustomVoiceNode accept a custom_model_path value, which is stored inside the workflow file. Because workflows are shared, this value is only ever interpreted as a folder name relative to one of these fixed bases:

| Base | Typical content | |---|---| | models/qwen-tts/ (and any extra_model_paths.yaml entry for qwen-tts / TTS) | models you placed there yourself | | output/qwen3tts_finetune/ | checkpoints produced by the Train node |

Examples: my_lora, nested/my_lora, checkpoint-epoch-9.

Absolute paths (D:\models\my_lora), network shares (\\server\share\my_lora) and anything that escapes one of those bases are refused before the path is touched — on Windows even a plain existence check on a share path opens an SMB session and leaks the current user's credentials to that machine.

The Train node therefore reports its checkpoint as a relative folder name (the absolute location is printed in the console), so it can be pasted straight into custom_model_path.

Tips for Best Results

Audio Quality

• Cloning: Use clean, noise-free reference audio (5-15 seconds).
• Reference Text: Providing text spoken in reference audio significantly improves quality.
• Language: Select the correct language for best pronunciation and prosody.

Performance & Memory

• VRAM: Use bf16 precision to save significant memory with minimal quality loss.
• Attention: Use attention: "auto" for automatic selection of fastest available mechanism.
• Model Unloading: Enable unload_model_after_generate if you have limited VRAM (< 8GB) or need to run multiple different models.
• Local Models: Pre-download weights to models/qwen-tts/ to prioritize local loading and avoid HuggingFace timeouts.

Attention Mechanisms

• Best Performance: Install sage_attn or flash_attn for 2-3x speedup over sdpa.
• Compatibility: Use sdpa (default) for maximum compatibility - no installation required.
• Low VRAM: Use eager with smaller models (0.6B) if other mechanisms cause OOM errors.

Dialogue Generation

• Batch Size: Increase batch_size for faster generation (more VRAM usage).
• Pauses: Adjust pause_seconds to control timing between dialogue segments.
• Merge: Enable merge_outputs for continuous dialogue; disable for separate clips.

Acknowledgments

• Qwen3-TTS: Official open-source repository by Alibaba Qwen team.

License

• This project is licensed under the Apache License 2.0.
• Model weights are subject to the Qwen3-TTS License Agreement.

Credits

This project exists thanks to the original author:

• flybirdxx/ComfyUI-Qwen-TTS -- original implementation, Apache-2.0. This repository is a fork of it.
• Qwen3-TTS -- the model itself, by the Alibaba Qwen team. Model weights come from there and are not included here.

Follow the upstream projects for updates to the original node pack and to the model.
