ComfyUI-AceStep_SFT

ComfyUI-AceStep SFT

A modular node suite for ComfyUI that implements AceStep 1.5 SFT (Supervised Fine-Tuning), a state-of-the-art music generation model. It starts from the official AceStep workflow and extends it with stronger conditioning control and practical ComfyUI-oriented quality options.

SFT = Supervised Fine-Tuning: A specialized version of AceStep optimized for generating superior quality audio through supervised training.

📋 Overview

Pure SFT quality experiments

Three generation changes are available without additional waveform processing:

• Generate timbre_cls_token=true restores the learned summary token omitted by this ComfyUI core's timbre encoder. It is prepended before audio and RoPE positions, as in official XL. ModelPatcher limits the correction to this execution; disable it to compare the previous behavior.
• Generate guidance_mode=apg_denoised applies APG momentum, norm clipping and projection to clean predictions x0, following the prediction-type analysis in the APG paper. apg retains velocity guidance. Both retain ACE-Step's temporal projection axes, rather than fully reproducing the paper's dimension aggregation. The norm threshold measures clean-latent units in the new mode. It also works in jkass_quality predictor and corrector evaluations.
• TextEncode lm_codes_strength=0.75 uses LM codes for the first 75% of main steps and switches to separately encoded, code-free text2music conditioning for the remainder. 1 preserves full conditioning; 0 skips the LM. Corrector evaluations follow their sigma's conditioning branch too. Partial strength adds one text encoding, without generating LM codes twice. Native Cover/Repaint retain their own controls.

Restart ComfyUI and refresh the browser to load the controls. Keep caption, lyrics, both seeds, duration, sampler, scheduler, steps, CFG and shift fixed:

| Test | timbre_cls_token | guidance_mode | lm_codes_strength | |------|--------------------|-----------------|---------------------| | Previous behavior | false | apg | 1 | | Timbre correction only | true | apg | 1 | | Clean-prediction APG | true | apg_denoised | 1 | | Late code release | true | apg_denoised | 0.75 |

Start with the current remaining values, including apg_norm_threshold=2.5. Omitting the new parameters retains existing APG/code behavior while enabling the timbre correction. The missing token was verified in code; musical improvements from the two experiments require listening comparisons. Automated checks verify math, conditioning, compatibility and patch restoration, not perceptual quality.

Generate also offers guidance_rescale, disabled by default (0). After CFG/APG/ADG, it moves the guided velocity's standard deviation toward the conditional prediction's, independently per batch sample, following EzAudio's rescale formula. This adaptation operates during sampling, including jkass_quality predictor and corrector evaluations, without extra model calls. APG still projects in x0 when apg_denoised is selected; the subsequent rescale acts on velocity rather than directly on clean latents. Statistics use FP32; constant predictions use a neutral scale.

Keep apg_denoised, timbre_cls_token=true and lm_codes_strength=1, with identical seeds and remaining parameters. Compare only guidance_rescale: 0 → 0.25 → 0.50. 1 applies the full correction. Musical improvement in ACE-Step requires listening comparisons. Restart ComfyUI and refresh the browser to load the widget, appended after existing Generate controls to preserve their order.

Generate now builds the ace_step schedule in FP32 by default (schedule_precision=float32), without changing weight or noise precision. Building it in BF16 and converting afterward has already lost precision: CPU checks at shift=3 found 3/13/35 repeated-sigma intervals for 50/100/200 steps, where the integrator did not advance. schedule_precision=model reproduces the previous precision for comparison. Other schedulers and native Cover's fallback schedule for a non-ace_step scheduler retain their precision. The control is appended after existing widgets; restart ComfyUI once running generations finish.

Experimental guidance_mode=apg_denoised_joint projects clean predictions jointly across channels and time, separately per batch sample. This follows the geometry of the APG algorithm and the Stable Audio 3 audio implementation. Existing apg_denoised retains per-channel projection. Joint projection removes one parallel direction instead of one per channel; retaining more variation may help, but ACE-Step perceptual improvement is unverified. To avoid eight-times stricter global clipping, its radius is apg_norm_threshold * sqrt(channels): 2.5 becomes 20 for 64 channels. This is an adaptation to the previous aggregate budget, not a paper-recommended setting. Momentum and rescale remain available, without additional model calls.

First compare schedule_precision=model and float32 while retaining apg_denoised. Then fix float32 and compare apg_denoised against apg_denoised_joint. Keep full LM codes, timbre correction, seeds and all other settings identical; start with guidance_rescale=0 to isolate projection. Judge instruments/rhythm and sung words separately.

New clarity experiments using pure SFT

Generate adds apg_norm_rms as the last widget. 0 preserves the fixed L2 cap from apg_norm_threshold. A positive value replaces it with an APG update RMS cap, before projection and CFG, independent of duration. This is not audio RMS or volume. With 180 seconds, 64 channels and 4,500 frames, joint APG threshold 2.5 caps update RMS at 0.0373; at 30 seconds the same cap permits 0.0913. Duration dependence is mathematical; its audible effect remains unverified. The APG paper warns against excessive clipping, but RMS normalization for audio is our adaptation.

First retain the configuration you prefer, including apg_denoised_joint, and change only apg_norm_rms: 0, 0.05, 0.075. At 180 seconds, the positive values yield radii 26.83 and 40.25 instead of 20. Other APG modes apply the cap in their own prediction space; ADG/CFG ignore it. Restart ComfyUI after ongoing generations finish to load the appended widget.

Audio clarity: optional VAE comparison

ScragVAE retrains the decoder to improve upper-frequency and transient reconstruction. Published gains are author-reported and require listening comparisons on your audio. Use the ComfyUI conversion, ace_1.5_scrag_vae.safetensors, in ComfyUI/models/vae, then select it in Model Loader vae_name. Renaming the original Diffusers checkpoint does not make it loadable here.

First change only the VAE, keeping the seed and all other settings. To isolate decoding completely, connect Generate's latent output to two VAE Decode Audio nodes, each using a separate Load VAE, and compare their previews. Keep latent_shift=0, latent_rescale=1, and fades/voice boost disabled for this comparison. This changes reconstruction within generation without waveform equalization. Sampling, including jkass_quality, remains identical; guidance settings do not need to change.

The two local checkpoints have different encoder weights. The encoder is not used for text2music without reference audio; swapping the VAE for Cover/Remix with an audio reference can also change encoding. Comparing the same latent isolates the decoder.

Current sampling defaults and Gradio alignment

Reference: ACE-Step 1.5 at ca1e85f, checked against both Gradio controls and SFT generate_audio.

Use sampler_name=jkass_quality, scheduler=ace_step, noise_source=official, steps=50, cfg=7, shift=3, infer_method=ode, guidance_mode=apg. New nodes/widgets use these defaults; saved workflows retain their existing selections. Keep TextEncode/Generate duration equal, or use Generate duration=0 to inherit encoded duration when no source audio/latent is connected.

• ace_step supplies the shifted linear schedule in FP32 by default; schedule_precision=model retains the previous dtype. CFG interval bounds are diffusion timesteps (1 down to 0); other schedulers retain elapsed-step fractions. guidance_interval can further restrict the centered interval.
• jkass_quality is bundled from JK-AceStep-Nodes. It preserves the original second-order Heun updates and callbacks; the JK pack does not need to be installed. With a schedule ending at zero, N steps use 2N−1 model evaluations (99 for 50 steps). The last step returns the clean prediction.
• Gradio noise uses model device/dtype and BTC layout. Comfy noise preserves CPU sampling. Batch seeds are seed + index, rather than Gradio's randomly chosen additional seeds.
• Output retains the existing anti-clipping safeguard, without target-level normalization. The sampler displays console progress through ComfyUI.
• The default LM prompt and sampling remain CFG 2, temperature 0.85, top-p 0.9, top-k 0. APG/ADG and null conditioning follow SFT math.
• APG re-evaluations at the same consecutive timestep (as in Heun/jkass_quality) reuse the preceding momentum history while recomputing the current prediction. This avoids advancing momentum twice at that timestep; Euler keeps the original recurrence.
• The local core also propagates layer_types and sliding_window to the lyric and timbre encoders, matching the official model. They alternate local attention with a 128-token window and global attention, instead of using global attention throughout. This fix lives in comfy/ldm/ace/ace_step15.py and requires restarting ComfyUI.

Local stability fixes: native LM sampling computes CFG and probabilities in FP32, following the official PyTorch backend, and lm_top_p=0 disables the filter. The code budget uses int(duration * 5) without first rounding duration to whole seconds. Generate warns when its duration differs by more than one second from the LM duration. Over-range input audio is scaled proportionally, preserving waveform shape and stereo balance. Native forward also keeps a separate timbre reference for each batch sample. The two ComfyUI core fixes live in comfy/text_encoders/ace15.py and comfy/ldm/ace/ace_step15.py; updating ComfyUI may overwrite them.

Gradio SFT uses constant CFG (guidance_schedule=normal). Select decay and min_guidance_scale=1 for CFG 7 → 1, or ramp_up for 1 → 7. Checkpoint filenames never override the requested CFG, since merged weights cannot be identified reliably by name.

Equivalence is limited by ComfyUI's LM, attention, integration precision and VAE. jkass_quality always uses ODE integration. infer_method=sde only remaps the supported ComfyUI Euler/Heun choices to their SDE alternatives; it does not turn JKASS into SDE. The bundled sampler is not Gradio's Euler solver. Automatic metadata/caption CoT, DCW, retake and flow-edit were not ported; Gradio disables DCW by default for SFT. Matching parameters does not guarantee identical audio.

Run python -m unittest discover -s tests -v. Set ACESTEP_REFERENCE_DIR to the pinned upstream checkout to enable direct noise/APG/ADG comparisons.

This package provides twelve nodes under audio/AceStep SFT:

| Node | Purpose | |------|---------| | AceStep 1.5 SFT Model Loader | Loads the diffusion model, CLIP text encoders, and VAE | | AceStep 1.5 SFT Lora Loader | Applies a LoRA to MODEL + CLIP (chainable) | | AceStep 1.5 SFT TextEncode | Encodes caption, lyrics, and metadata into conditioning | | AceStep 1.5 SFT Generate | Diffusion sampler + optional VAE decode | | AceStep 1.5 SFT Generate Advanced | Explicit noise and step-range controls for staged sampling | | AceStep 1.5 SFT Cover / Remix | Native structural cover/remix conditioning from source audio | | AceStep 1.5 SFT Inpaint / Repaint | Native time-range regeneration with source preservation | | AceStep 1.5 SFT Preview Audio | Audio playback with waveform spectrum visualizer | | AceStep 1.5 SFT Save Audio | Save audio (FLAC/MP3/Opus) with waveform visualizer | | AceStep 1.5 SFT Audio Duration | Returns the audio duration as an integer number of seconds | | AceStep 1.5 SFT Get Music Infos | Native transcription with ACE-Step-formatted lyrics, tags, BPM, and key/scale | | AceStep 1.5 SFT Turbo Tag Adapter | Rewrites Turbo-oriented tags into SFT-friendly tags (BETA) |

Sampler migration

ace_step_euler has been removed. In saved workflows that used it, select jkass_quality in Generate. The ace_step scheduler remains available. Restart ComfyUI and refresh the page to reload the choices. The local copy does not modify the global sampler registry or the JK pack; even with JK installed, Generate uses the bundled implementation and shows only one jkass_quality entry.

CFG 7 → 1 remains available with guidance_schedule=decay and min_guidance_scale=1; ramp_up reverses it. Scheduling follows actual timesteps without counting Heun corrector evaluations as additional steps. The enable_normalization, normalization_db, velocity_norm_threshold and velocity_ema_factor controls have been removed; output peak protection remains.

Modular Architecture

The workflow is split into dedicated nodes for maximum flexibility:

Model Loader → (model, clip, vae)
       │            │        │
       │   Lora Loader (optional, chainable)
       │     │    │          │
       │     │  TextEncode   │
       │     │   │    │      │
       ▼     ▼   ▼    ▼      ▼
      Generate (model, positive, negative, vae)
         │         │
    Preview Audio  Save Audio

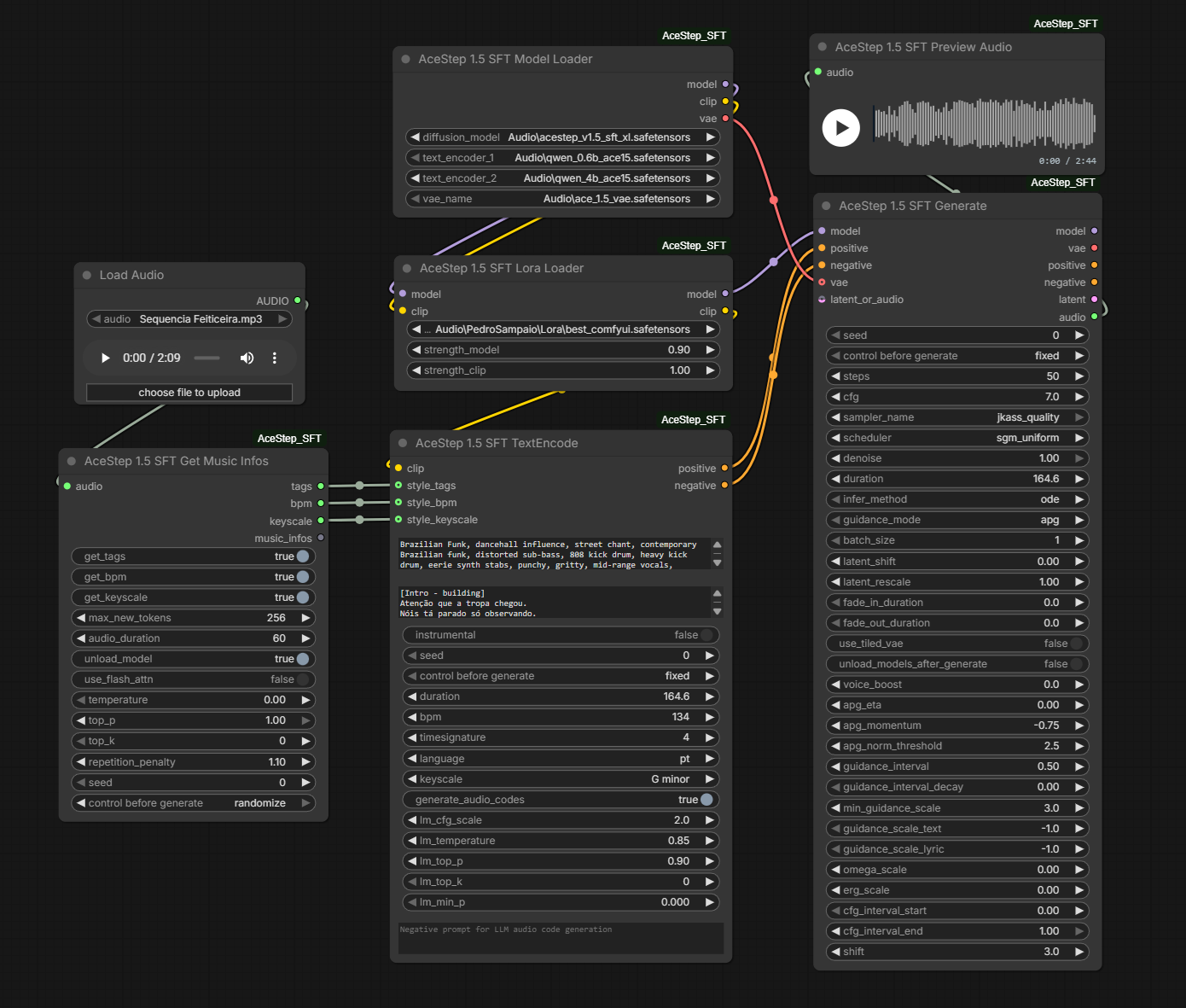

Example Configuration

🎯 Key Features

✨ Advanced Guidance

The node supports four classifier-free guidance modes:

• APG (Adaptive Projected Guidance) ⭐ Recommended

  • Dynamic adaptation via momentum buffering
  • Gradient clipping with adaptive thresholds
  • Orthogonal projection to eliminate unwanted noise
  • AceStep SFT Default - best quality and stability balance

• Clean-prediction APG (apg_denoised)

  • Experimental APG on x0, with the same momentum and norm controls
  • See the pure SFT quality experiments above

• ADG (Angle-based Dynamic Guidance)

  • Angle-based guidance between conditions
  • Operates in velocity space (flow matching)
  • Ideal for aggressive style distortion

• Standard CFG

  • Traditional Classifier-Free Guidance
  • Simple and predictable implementation
  • Useful as a comparison baseline

🎵 Intelligent Metadata Processing

• Auto-Duration: Automatically estimates music duration by analyzing lyric structure
• LLM Encoding: Use Qwen LLM (0.6B or 1.7B/4B) to generate semantic audio codes
• Auto Values: BPM, Time Signature, and Key/Scale automatic (model decides)
• Multilingual Support: Over 23 languages supported

🎧 AI Music Analyzer

• Audio Tag Extraction: Derives lyric, vocal, and song-structure tags from the selected transcription model
• Formatted Lyrics Output: Returns a lyrics STRING with ACE-Step section markers for direct connection to TextEncode; Whisper output uses bounded [Verse N] blocks, while the native model preserves its own detected sections
• BPM Detection: Automatic tempo detection via librosa
• Key/Scale Detection: Detects musical key and scale (e.g. "G minor")
• JSON Output: Structured music_infos output with all analysis results

🔊 Audio Preview & Save with Waveform Visualizer

Both Preview Audio and Save Audio nodes feature:

• Interactive waveform spectrum display directly on the node (dark background with amplitude bars)
• Play/Pause button with click-to-seek on the waveform
• Time display showing current position and total duration

Save Audio additionally supports:

• Multiple formats: FLAC (lossless), MP3, and Opus
• Quality options: V0, 64k, 96k, 128k, 192k, 320k
• Auto-incrementing filenames with configurable prefix

🔄 Audio Refinement (img2img)

• Latent-based Refinement: Use denoise < 1.0 with latent_or_audio connected to refine existing audio
• Accepts AUDIO or LATENT: Connect any audio or latent output for img2img-style editing
• Batch Generation: Generate multiple variations in parallel

🎛️ Native Cover, Remix, and Inpaint

These operations use the ACE-Step 1.5 conditioning paths on which the model was trained. They are separate from latent_or_audio; the existing img2img-style audio-to-audio flow remains unchanged.

Connect a task node's output to both TextEncode.task and Generate.task:

Load Audio/Latent → Cover / Remix ─┬→ TextEncode.task
                                   └→ Generate.task

Load Audio/Latent → Inpaint / Repaint ─┬→ TextEncode.task
                                       └→ Generate.task

• Cover / Remix: Receives the complete source song and regenerates a complete result—both the vocal performance and the instrumentation—in the requested style. In upstream ACE-Step, Remix is the UI name for the same cover task.
• Semantic FSQ: Recommended mode; extracts 5 Hz semantic codes and reconstructs 25 Hz structural hints, allowing a stronger style/timbre change while following the source composition.
• Raw no-FSQ: Advanced mode that conditions on the acoustic latent directly and therefore retains more of the source sound.
• Remix strength: remix_strength = 0.4 is the default and recommended starting point here. The official guide suggests approximately 0.3–0.5 for a dramatic genre change; this value is the fraction of sampling steps that use Cover conditioning.
• Singer identity (best effort): With preserve_singer_identity enabled, the source song is also used as reference_audio by default. This guides vocal timbre but is not exact voice cloning because Cover regenerates the full waveform. An explicit reference_audio replaces the automatic source reference.
• Lyrics are explicit: To retain the original words, paste the original lyrics into TextEncode. Native Cover does not infer or preserve lyrics from an empty lyrics field, and generate_audio_codes is disabled for the task.
• Model presets: Use CFG 1, 8 steps, ODE, and shift 3 for Turbo. Use CFG 7 for Base/SFT.
• Inpaint / Repaint: Regenerates only start_seconds:end_seconds using the native repaint instruction, source latent with a silenced edit region, and a 64-channel ACE chunk mask.
• Source preservation: Reinjects the appropriately noised source during sampling, blends latent boundaries, then restores the original waveform outside the edit range with a short crossfade.

For native tasks, source duration and batch size come from the task. Audio-code generation is disabled automatically. The legacy img2img-style latent_or_audio path is unchanged and must remain disconnected in this flow.

🧠 Extended Conditioning Control

• Split Text/Lyric Guidance: Independent guidance_scale_text and guidance_scale_lyric
• Omega Scale: Mean-preserving output reweighting to approximate AceStep scheduler behavior
• ERG Approximation: Node-local prompt energy reweighting via erg_scale
• Guidance Interval Decay: Smoothly decay guidance inside the active interval

🎚️ AceStep LoRA Workflow

• Direct LoRA Application: The Lora Loader takes MODEL + CLIP, applies the LoRA via comfy.sd.load_lora_for_models(), and outputs the modified MODEL + CLIP
• Chainable: Stack multiple Lora Loaders in sequence
• Separate strengths: Independent strength_model and strength_clip
• DoRA support: Full DoRA (Weight-Decomposed Low-Rank Adaptation) support with automatic dora_scale dimension fix
• Local Loras/ folder: Drop LoRA files directly into the node's Loras/ folder — they are automatically registered at startup
• Auto PEFT/DoRA conversion: PEFT-format LoRAs (adapter_config.json + adapter_model.safetensors) placed in Loras/ are automatically converted to ComfyUI format on first startup

🛠️ Latent Post-processing

• Latent Shift: Optional additive latent offset (default 0)
• Latent Rescale: Multiplicative scaling for dynamic control

📦 Installation

Prerequisites

• ComfyUI installed and functional
• CUDA/GPU or equivalent (modern processors)
• Recommended for better output quality (based on practical testing): use the merged SFT+Turbo model.
• Required model files:
  • Diffusion model (DiT): acestep_v1.5_sft.safetensors
  • Text Encoders: qwen_0.6b_ace15.safetensors, qwen_1.7b_ace15.safetensors (or 4B)
  • VAE: ace_1.5_vae.safetensors

Download Model Files

Download the required models from HuggingFace:

1. Diffusion Model (Recommended: merged SFT+Turbo):

• AceStep 1.5 Merged SFT+Turbo Model

2. Alternative Diffusion Model (official SFT):

   • AceStep 1.5 SFT Model

3. Text Encoders (choose any versions):

   • Text Encoders Collection
     • qwen_0.6b_ace15.safetensors (caption processing)
     • qwen_1.7b_ace15.safetensors or qwen_4b_ace15.safetensors (audio code generation)

4. VAE (Audio codec):

   • AceStep 1.5 VAE

Installation Steps

1. Clone the repository to your custom nodes folder:

cd ComfyUI/custom_nodes
git clone https://github.com/jeankassio/ComfyUI-AceStep_SFT.git

2. Place model files in the appropriate directories:

ComfyUI/models/diffusion_models/     # AceStep 1.5 SFT model
ComfyUI/models/text_encoders/        # Qwen encoders
ComfyUI/models/vae/                  # VAE
ComfyUI/models/loras/                # Optional AceStep 1.5 LoRAs

3. (Optional) Place LoRAs in the local folder:

ComfyUI/custom_nodes/ComfyUI-AceStep_SFT/Loras/   # Local LoRA folder

You can place LoRAs here in any of these formats:

• ComfyUI format: Single .safetensors file (ready to use)
• PEFT/DoRA format: A folder containing adapter_config.json + adapter_model.safetensors (auto-converted on startup)
• Nested zip artifact: If your zip extracted a folder-inside-folder, the node detects this and fixes it automatically

4. Install requirements.txt using the same Python environment that runs ComfyUI. For Windows portable, from its root:

.\python_embeded\python.exe -m pip install -r .\ComfyUI\custom_nodes\ComfyUI-AceStep_SFT\requirements.txt

5. Restart ComfyUI - the nodes will appear under audio/AceStep SFT. Use a ComfyUI version with native ACE-Step 1.5 support. The local core fixes described above are separate from this custom-node repository.

🧩 Available Nodes

AceStep 1.5 SFT Model Loader

Loads the AceStep 1.5 diffusion model, dual CLIP text encoders, and audio VAE.

Inputs:

• diffusion_model: AceStep 1.5 diffusion model (.safetensors)
• text_encoder_1: Qwen3-0.6B encoder (caption processing)
• text_encoder_2: Qwen3 LLM (1.7B or 4B, audio code generation)
• vae_name: AceStep 1.5 audio VAE

Outputs:

• model: MODEL — connect to Lora Loader or Generate
• clip: CLIP — connect to Lora Loader or TextEncode
• vae: VAE — connect to Generate

AceStep 1.5 SFT Lora Loader

Applies a LoRA directly to the MODEL and CLIP. Multiple Lora Loaders can be chained.

Inputs:

• model: MODEL from Model Loader or previous Lora Loader
• clip: CLIP from Model Loader or previous Lora Loader
• lora_name: LoRA file from ComfyUI/models/loras or the local Loras/ folder
• strength_model: strength applied to the diffusion model
• strength_clip: strength applied to the text encoder stack

Outputs:

• model: MODEL — connect to next Lora Loader or Generate
• clip: CLIP — connect to next Lora Loader or TextEncode

Supported LoRA Formats

| Format | What to place in Loras/ | Action | |--------|--------------------------|--------| | ComfyUI .safetensors | Single file | Used directly | | PEFT/DoRA directory | Folder with adapter_config.json + adapter_model.safetensors | Auto-converted to *_comfyui.safetensors on startup | | Nested zip artifact | Folder containing a .safetensors inside | Auto-extracted to root on startup |

AceStep 1.5 SFT Cover / Remix

Creates a native full-song cover/remix task. Connect the complete song to source, then branch the task output to the task inputs on both TextEncode and Generate. Generate returns a newly synthesized complete mix: the singer performs in the target style and the instruments are regenerated with it.

Inputs:

• source: AUDIO or LATENT that supplies melody, rhythm, and structure
• source_conditioning: semantic_fsq (recommended) or raw_no_fsq
• remix_strength: fraction of sampling that uses Cover conditioning; default 0.4. The official guide recommends approximately 0.3–0.5 for a dramatic genre change
• cover_noise_strength: default 0.2; 0 starts from pure noise, while higher values initialize closer to the source
• preserve_singer_identity: enabled by default; also uses the source song as reference_audio to guide the regenerated singer's timbre. Disable it for a freely generated voice
• Optional reference_audio: explicit AUDIO or LATENT timbre/voice reference; when connected, it replaces the automatic source reference

Singer identity is best effort, not exact voice cloning: Cover/Remix regenerates the complete waveform, including the vocal performance. Keep source_conditioning = semantic_fsq for the normal remix path. Paste the original lyrics explicitly into TextEncode if the cover must sing the same words; an empty lyrics input does not transcribe the source. Native tasks disable generate_audio_codes because the real source audio supplies the native conditioning.

For Turbo, use CFG 1, 8 steps, ODE, and shift 3. Native Cover uses ACE-Step's shifted-linear timesteps and peak-normalizes decoded audio instead of hard clipping it. For Base/SFT, use CFG 7. The legacy img2img-style latent_or_audio input remains unchanged and disconnected from this workflow.

AceStep 1.5 SFT Inpaint / Repaint

Creates a native time-range repaint task. Its task output must be branched to the task inputs on both TextEncode and Generate.

Inputs:

• source: AUDIO or LATENT to edit
• start_seconds, end_seconds: regenerated interval (-1 means source end)
• repaint_mode: conservative, balanced, or aggressive
• repaint_strength: preservation/freedom balance used by balanced mode
• Optional reference_audio: independent timbre/style reference for the regenerated region

AceStep 1.5 SFT TextEncode

Encodes caption, lyrics, and metadata into positive and negative conditioning for the Generate node.

Inputs:

• clip: CLIP from Model Loader or Lora Loader
• caption: Text description of the music (genre, mood, instruments)
• lyrics: Song lyrics or [Instrumental]
• instrumental: Force instrumental mode
• seed, duration, bpm, timesignature, language, keyscale
• Optional: task, generate_audio_codes, lm_cfg_scale, lm_temperature, lm_top_p, lm_top_k, lm_min_p, lm_negative_prompt
• Optional style overrides: style_tags, style_bpm, style_keyscale (from Music Analyzer)

Outputs:

• positive: CONDITIONING — connect to Generate
• negative: CONDITIONING — connect to Generate

AceStep 1.5 SFT Generate

Diffusion sampler + optional VAE decoder. Requires MODEL and conditioning inputs.

Inputs:

• model: MODEL from Model Loader or Lora Loader
• positive: CONDITIONING from TextEncode
• negative: CONDITIONING from TextEncode
• Sampling: seed, steps, cfg, sampler_name, scheduler, denoise, duration, infer_method, guidance_mode
• Optional: vae (for audio output), latent_or_audio (for existing img2img), task (for native editing), batch_size
• Optional post-processing: latent_shift, latent_rescale, fade_in_duration, fade_out_duration, voice_boost, use_tiled_vae
• Optional guidance: apg_eta, apg_momentum, apg_norm_threshold, guidance_interval, guidance_schedule, min_guidance_scale, guidance_scale_text, guidance_scale_lyric, omega_scale, erg_scale, cfg_interval_start, cfg_interval_end, shift

Outputs:

• model: MODEL (passthrough for chaining)
• vae: VAE (passthrough for chaining)
• positive: CONDITIONING (passthrough)
• negative: CONDITIONING (passthrough)
• latent: LATENT (raw diffusion output)
• audio: AUDIO (decoded audio, only when VAE is connected)

AceStep 1.5 SFT Generate Advanced

Adds KSampler Advanced-style controls while retaining Generate's sampler choices (including jkass_quality), guidance controls and outputs. The regular Generate is unchanged. Advanced uses noise_seed instead of seed, omits denoise, and adds:

| Control | Default | Behavior | |---------|---------|----------| | add_noise | enable | disable continues an existing noisy latent without adding fresh noise | | start_at_step | 0 | First step to execute on the full steps schedule | | end_at_step | 10000 | Stop boundary, capped at the full schedule's final step | | return_with_leftover_noise | disable | enable preserves the noise level at an intermediate boundary; disable finishes at zero noise |

For two stages with steps=50, use the same sampler, scheduler, shift and noise_seed in both nodes:

| Stage | add_noise | start_at_step | end_at_step | return_with_leftover_noise | |-------|-------------|-----------------|---------------|------------------------------| | First | enable | 0 | 25 | enable | | Final | disable | 25 | 50 | disable |

Connect the first node's latent output to the second node's latent_or_audio. Connect VAE only to the final stage: unfinished ranges and ranges that execute no steps skip AUDIO decoding, even with a VAE connected. Other optional inputs remain available, except native task; use regular Generate for native Cover/Repaint.

guidance_schedule and the LM-code handoff use the full schedule instead of restarting in each stage. Splitting stages adds control, not a guaranteed quality gain. APG momentum, multistep solver history and SDE noise state may reset between nodes, so not every configuration matches a single uninterrupted run. Deterministic standard_cfg with the Heun-based jkass_quality supports continuation. No ComfyUI core changes or additional dependencies are required.

AceStep 1.5 SFT Preview Audio

Previews audio with an interactive waveform spectrum visualizer directly on the node.

Inputs:

• audio: AUDIO to preview

Features:

• Interactive waveform display with play/pause button
• Click-to-seek on the waveform
• Current time / total duration display

AceStep 1.5 SFT Save Audio

Saves audio to disk with an interactive waveform spectrum visualizer.

Inputs:

• audio: AUDIO to save
• filename_prefix: Filename prefix (supports subfolder paths, e.g. audio/AceStep)
• format: FLAC, MP3, or Opus
• quality (optional): V0, 64k, 96k, 128k, 192k, 320k (for MP3/Opus)

Features:

• Auto-incrementing filenames (e.g. AceStep_00001_.flac, AceStep_00002_.flac)
• Waveform visualizer with play/pause and seek
• Metadata embedding (prompt, workflow)

AceStep 1.5 SFT Audio Duration

Receives a ComfyUI AUDIO value and returns duration_seconds as an INT, rounded to the nearest whole second. It reads the in-memory waveform directly and does not load any model.

AceStep 1.5 SFT Get Music Infos

AI-powered audio analysis node that extracts descriptive tags, ACE-Step-formatted lyrics, BPM, and key/scale from audio input. Whisper large-v3 is the accurate lyrics default; long songs are transcribed in bounded segments and merged before tags and lyrics are returned.

Inputs:

• audio: Audio input to analyze
• get_tags / get_lyrics / get_bpm / get_keyscale: Enable/disable each analysis
• max_new_tokens: Maximum token ceiling for each transcription segment
• audio_duration: Max seconds of audio to analyze
• transcription_chunk_seconds: Segment length for long-song transcription; default 30 prevents a decoder loop in one passage from consuming the complete output
• lyrics_model: Whisper-large-v3-transcription (accurate default), Whisper Turbo (faster), or the native ACE-Step Transcriber
• lyrics_language: Optional language hint; auto by default, or use pt for Brazilian Portuguese when vocals are heavily processed
• temperature, top_p, top_k, repetition_penalty, seed: Generation parameters
• unload_model: Free VRAM after analysis
• use_flash_attn: Enable Flash Attention 2 (if compatible)
• free_vram_before: Unload ComfyUI generation models before loading the selected transcription model

Outputs:

• tags: Comma-separated descriptive tags (STRING)
• bpm: Detected BPM (INT)
• keyscale: Key and scale e.g. "G minor" (STRING)
• music_infos: JSON with all results (STRING)
• lyrics: Lyrics ready for TextEncode, with ACE-Step section markers preserved (STRING)

AceStep 1.5 SFT Turbo Tag Adapter

Rewrites Turbo-oriented music tags into shorter SFT-friendly prompt tags.

Inputs:

• turbo_tags: Turbo-style tags or caption
• adaptation_strength: conservative / balanced / aggressive
• keep_unknown_tags: Keep tags that were not explicitly mapped
• add_sft_bias_tags: Add extra SFT-oriented anchor tags

Outputs:

• sft_tags: Adapted comma-separated tags (STRING)
• notes: Conversion notes (STRING)
• suggested_cfg: Suggested CFG value (FLOAT)
• suggested_steps: Suggested steps value (INT)

🎛️ Node Parameters

Generate - Required Parameters

| Parameter | Range | Description | |-----------|-------|-------------| | model | MODEL | AceStep 1.5 diffusion model from Model Loader or Lora Loader | | positive | CONDITIONING | Positive conditioning from TextEncode | | negative | CONDITIONING | Negative conditioning from TextEncode | | seed | 0 - 2^64 | Seed for reproducibility | | steps | 1 - 200 | Diffusion inference steps (default: 50) | | cfg | 1.0 - 20.0 | Classifier-free guidance scale (default: 7.0) | | sampler_name | jkass_quality / ComfyUI | Heun JKASS local (default) | | scheduler | ace_step | ACE-Step shifted-linear / schedulers ComfyUI | | denoise | 0.0 - 1.0 | Denoising strength (1.0 = fresh, < 1.0 = editing) | | duration | 0.0 - 600.0 | Duration in seconds (0 = auto) | | infer_method | ode/sde | SDE remaps supported ComfyUI samplers; JKASS remains ODE | | guidance_mode | apg/adg/standard_cfg/apg_denoised | Guidance type (default: apg) |

Generate - Optional Parameters

Batch Generation

• batch_size (1-16): Number of audios to generate in parallel

Execution controls

• noise_source (official/comfy, default: official): Model-device/dtype noise or ComfyUI CPU noise
• unload_models_after_generate (default: False): Unloads models after generation

Audio Input

• vae: VAE from Model Loader (required for audio output)
• latent_or_audio: Base input for refinement (img2img). Accepts AUDIO or LATENT. denoise=0 preserves the source latent; denoise<1 starts at the requested noise fraction
• task: Native Cover/Remix or Inpaint/Repaint task, connected to TextEncode as well. Mutually exclusive with latent_or_audio

Latent Post-processing

• latent_shift (-0.2-0.2, default: 0.0): Additive latent shift; keep 0 unless intentionally altering the decode
• latent_rescale (0.5-1.5, default: 1.0): Multiplicative scaling
• fade_in_duration / fade_out_duration (0.0-10.0, default: 0.0): Optional linear fades
• use_tiled_vae (default: True): Decodes 1D audio in context-padded chunks and discards boundary predictions; reduces peak VRAM
• voice_boost (-12.0-12.0, default: 0.0): Whole-mix gain in dB before peak protection; does not isolate vocals

APG Configuration

• apg_eta (-10.0-10.0, default: 0.0): Parallel component retention
• apg_momentum (-1.0-1.0, default: -0.75): Momentum buffer coefficient
• apg_norm_threshold (0.0-15.0, default: 2.5): Norm threshold for gradient clipping

Extended Guidance Controls

• guidance_interval (-1.0-1.0, default: 1.0): Centered guidance interval width; 1.0 covers the complete official schedule
• guidance_schedule (normal, decay, ramp_up; default: normal): normal keeps CFG constant, decay ramps CFG → minimum, and ramp_up ramps minimum → CFG. Ramps are linear inside the active guidance interval and also apply to jkass_quality. After upgrading an older workflow, select the desired mode in Generate.
• min_guidance_scale (0.0-30.0, default: 3.0): Final CFG for decay or initial CFG for ramp_up; unused by normal.
• guidance_scale_text (-1.0-30.0, default: -1.0): Text-only guidance (split)
• guidance_scale_lyric (-1.0-30.0, default: -1.0): Lyric-only guidance (split)
• omega_scale (-8.0-8.0, default: 0.0): Mean-preserving reweighting
• erg_scale (-0.9-2.0, default: 0.0): Prompt energy reweighting
• cfg_interval_start / cfg_interval_end (0.0-1.0): Diffusion timestep bounds with ace_step; elapsed-step fractions with other schedulers
• shift (0.1-5.0, default: 3.0): Timestep schedule shift

TextEncode - Parameters

| Parameter | Range | Description | |-----------|-------|-------------| | clip | CLIP | CLIP from Model Loader or Lora Loader | | caption | text | Music description (genre, mood, instruments) | | lyrics | text | Song lyrics or [Instrumental] | | instrumental | boolean | Force instrumental mode | | seed | 0 - 2^64 | Seed | | duration | 0.0 - 600.0 | Duration in seconds (0 = auto from lyrics) | | bpm | 0 - 300 | Beats per minute (0 = auto) | | timesignature | auto/2/3/4/6 | Time signature numerator | | language | - | Lyric language (en, ja, zh, es, pt, etc.) | | keyscale | auto/... | Key and scale (e.g. "C major") |

TextEncode - Optional LLM Configuration

• generate_audio_codes (default: True): Enable LLM audio code generation
• lm_cfg_scale (0.0-100.0, default: 2.0): LLM CFG scale
• lm_temperature (0.0-2.0, default: 0.85): LLM sampling temperature
• lm_top_p (0.0-1.0, default: 0.9): Nucleus sampling; 0 or 1 disables filtering
• lm_top_k (0-100, default: 0): Top-k sampling
• lm_min_p (0.0-1.0, default: 0.0): Minimum probability
• lm_negative_prompt: Negative prompt for LLM CFG

TextEncode - Style Overrides (from Music Analyzer)

• style_tags: Appended to caption when connected
• style_bpm: Overrides bpm when > 0
• style_keyscale: Overrides keyscale when not empty

🎨 Workflow Examples

Example 1: Basic Generation

Model Loader:
  diffusion_model: "acestep_v1.5_sft.safetensors"
  text_encoder_1: "qwen_0.6b_ace15.safetensors"
  text_encoder_2: "qwen_1.7b_ace15.safetensors"
  vae_name: "ace_1.5_vae.safetensors"
  → model, clip, vae

TextEncode:
  clip: (from Model Loader)
  caption: "upbeat electronic dance music with synthesizers"
  lyrics: [Instrumental]
  instrumental: True
  duration: 60.0
  → positive, negative

Generate:
  model: (from Model Loader)
  positive: (from TextEncode)
  negative: (from TextEncode)
  vae: (from Model Loader)
  cfg: 7.0, steps: 50, guidance_mode: "apg"
  sampler_name: "jkass_quality", scheduler: "ace_step"
  noise_source: "official", infer_method: "ode", shift: 3.0
  → audio

Preview Audio:
  audio: (from Generate)

Example 2: With LoRA

Model Loader → model, clip, vae
  ↓ model, clip
Lora Loader:
  lora_name: "ace-step15-style1.safetensors"
  strength_model: 0.7
  strength_clip: 0.0
  → model, clip
  ↓ model, clip
Lora Loader:
  lora_name: "Ace-Step1.5-TechnoRain.safetensors"
  strength_model: 0.35
  strength_clip: 0.0
  → model, clip

TextEncode (clip from last Lora Loader) → positive, negative
Generate (model from last Lora Loader, vae from Model Loader) → audio
Save Audio (format: mp3, quality: 320k)

Example 3: Audio Refinement (img2img)

Generate:
  latent_or_audio: (existing audio)
  denoise: 0.7 (initial noise fraction; not a guarantee of 30% musical preservation)
  duration: 0 (uses input duration)
  → Refines audio while preserving original characteristics

Example 4: Music Analysis → Generation

Music Analyzer:
  audio: (input audio file)
  → tags, bpm, keyscale

TextEncode:
  style_tags: (from Music Analyzer)
  style_bpm: (from Music Analyzer)
  style_keyscale: (from Music Analyzer)
  → positive, negative

Generate → Save Audio (format: flac)

🐛 Troubleshooting

Audio Distortion/Clipping

Generate scales peaks above 1 proportionally without hard clipping. Keep latent_shift=0 and latent_rescale=1: changing latents is not a volume adjustment. With use_tiled_vae=true, the 1D VAE decodes chunks with 64 context frames on each side and discards their boundaries, following ACE-Step's overlap-discard policy. This avoids mixing predictions at seams; syllable repetition already present in the latents still depends on generation.

High Variance Results

Start with apg_eta=0, apg_momentum=-0.75 and apg_norm_threshold=2.5. A lower threshold limits the APG update more; increasing it allows larger updates. For unstable vocals, compare with sampler jkass_quality and scheduler ace_step, holding the seed and other parameters constant. Generate rejects values outside the widget ranges; check that older workflows restored values into the correct fields.

Lower Than Expected Quality

Solution:

1. Use guidance_mode: "apg" (recommended)
2. Start from steps: 50, cfg: 7.0, sampler_name: "jkass_quality", scheduler: "ace_step", infer_method: "ode"

LoRA Sounds Deformed or Overcooked

Solution:

1. Lower strength_model first, e.g. 0.2 to 0.6
2. Set strength_clip to 0.0 unless the LoRA explicitly targets the text encoders
3. Compare guidance_mode: "standard_cfg" vs "apg" for that LoRA
4. Avoid stacking multiple strong LoRAs at full strength

LoRA Dimension Mismatch Error (The size of tensor a must match...)

Cause: DoRA LoRAs store dora_scale as a 1D tensor [N]. ComfyUI's weight_decompose expects [N,1].

Solution: This is automatically fixed by the Lora Loader — all dora_scale tensors are unsqueezed to 2D [N,1] at load time.

PEFT/DoRA LoRA Not Showing in Dropdown

Solution:

1. Place the PEFT folder (containing adapter_config.json + adapter_model.safetensors) inside ComfyUI-AceStep_SFT/Loras/
2. Restart ComfyUI — the conversion runs automatically on startup
3. Check the console for [AceStep SFT] Converted PEFT/DoRA → ComfyUI: ... message
4. The converted file appears as *_comfyui.safetensors in the dropdown

Slow Generation

Solution: Reduce batch_size, lower steps to ~20, or use "karras" scheduler

📊 Guidance Modes Comparison

| Aspect | APG | ADG | Standard CFG | |--------|-----|-----|----------| | Quality | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ | | Stability | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐ | | Dynamics | Natural | Aggressive | Predictable | | Computation | Normal | Normal | Minimal | | Recommended | ✅ Yes | For extreme styles | Baseline |

🎚️ Quality Tips

• Use guidance_mode=apg with steps=50 to 64 for best quality
• For img2img refinement, start with denoise=0.5 to 0.7 to preserve the original character
• Mild vocal hiss is usually a generation artifact; APG and slightly higher step counts generally help more than raw cfg
• Simplify overly dense or contradictory tags for cleaner results

📚 Implementation references

• ACE-Step 1.5 reference
• ComfyUI
• JK-AceStep-Nodes: py/jkass_sampler.py, sample_jkass_quality; MIT attribution.

📝 License

MIT License - Feel free to use in personal or commercial projects

🤝 Contributing

Issues and PRs are welcome! Please:

1. Fork the repository
2. Create a feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m 'Add some AmazingFeature')
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

⚠️ Important Notes

• Recommended maximum duration: 240 seconds (GPU memory)
• Maximum batch size: Depends on your GPU (start with 1-2)
• SFT models: These models are specific to Supervised Fine-Tuning - not tested with non-SFT models
• Rights and attribution: Respect model and dataset usage rights

---

Built on the AceStep SFT workflow and extended with modular nodes, advanced guidance, waveform visualization, and quality controls for ComfyUI.

For bugs, questions, or suggestions: open an issue on the repository! 🎵
