ComfyUI-VoxLock

VoxLock Voice Isolation for ComfyUI

Keep one voice and remove the other voices in a recording, inside ComfyUI, with the official VoxLock models (arbazsiddiqui/voxlock, model card). VoxLock is a small target-speaker isolation model: it takes a few seconds of the voice to keep (or finds them itself) and removes other people talking over it. It runs on the CPU through ONNX Runtime, about 12 times faster than real time here. The nodes call the official voxlock package and never download anything.

Unofficial. This node pack is an independent integration. It is not affiliated with or endorsed by the VoxLock author or by Comfy Org.

日本語の概要は README.ja.md にあります。

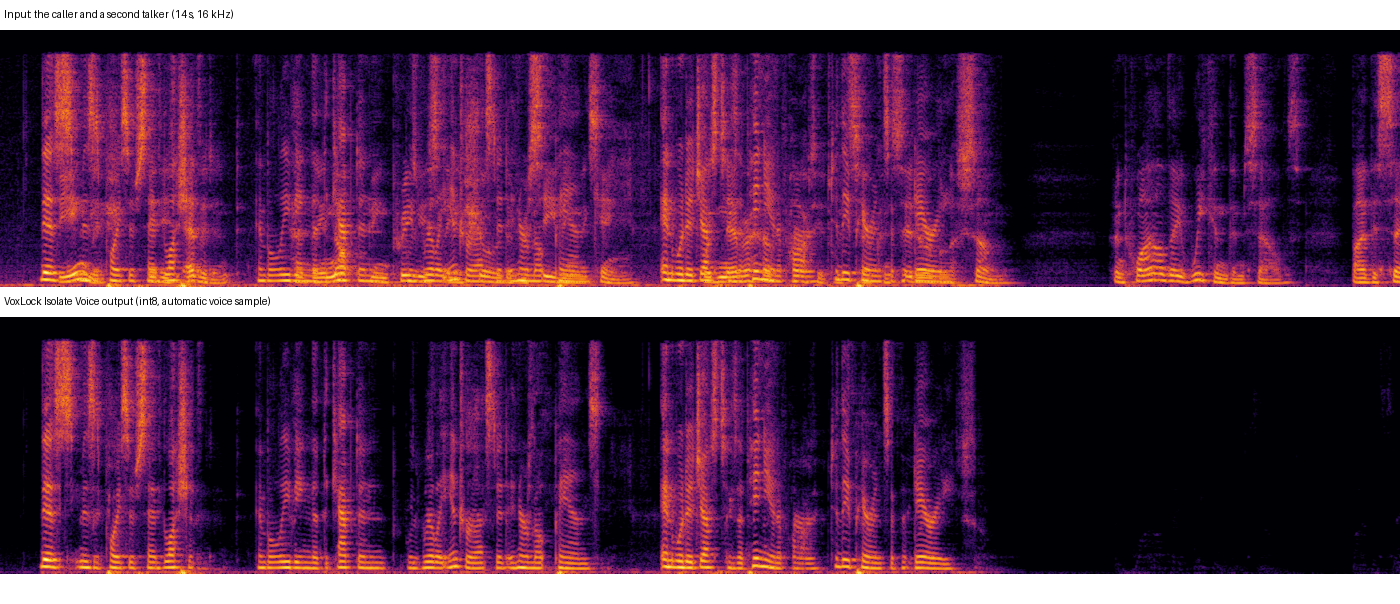

A demo mixture from the VoxLock repository: two LibriSpeech test-clean speakers (CC BY 4.0) in a simulated room, the second one talking over the first and alone at the end. Bottom: this pack's output (int8, automatic voice sample), which is bit for bit the official package's output for the same file.

What it does

| Node | Purpose | | --- | --- | | VoxLock Loader | Picks the model precision (int8, int8-full, fp16, fp32) and the CPU thread count | | VoxLock Isolate Voice | AUDIO in → AUDIO with only the kept voice, plus a JSON report. Optional voice_sample input: a few seconds of the voice to keep |

Connect ComfyUI's Load Audio in front and Save Audio / Preview Audio behind; the shipped workflows do that.

• Without a voice sample, the node keeps the voice of the loudest 3 s in the first 15 s of the input, as the official command line does. Give a sample when another voice is louder at the start.
• The model works on 16 kHz mono speech. Inputs of any rate and channel count are mixed to mono and resampled exactly as the official voxlock.load_audio does. The output is 16 kHz (output_sample_rate = 16000) or resampled back to the input's rate (input; the content stays 16 kHz band-limited).
• The output is in phase with the input and at about its level, so it can be mixed back with other tracks.
• Batches: every item is isolated on its own; one voice sample for all items, or one per item.

How far it was checked

Windows 11, ComfyUI v0.38.0, CPU (Intel Core Ultra 9 285K); details and raw numbers in docs/VERIFICATION.md:

• Bit-identical to the official package. On real speech (three demo mixtures from the VoxLock repository, all four precisions, a 48 kHz stereo copy, a given voice sample) the pack's output equals the official voxlock 1.1.1 output for the same file, byte for byte (SHA-256 of the float samples), 8 of 8. The official side ran in a separate environment with only pip install voxlock==1.1.1.
• Real ComfyUI queue: Load Audio → VoxLock → Save Audio (FLAC) gives the official output to within half a 16-bit step (the rounding of the 16-bit FLAC) in 5 of 5 jobs, including the voice-sample workflow and output at 48 kHz.
• Clean install: fresh ComfyUI v0.38.0, fresh Python 3.12 environment, git clone of this repository, pip install -r requirements.txt (adds only new packages), the models downloaded with tools/download_model.py (SHA-256 verified), and the real-queue check against the installed pack.
• CI (GitHub Actions; Ubuntu and Windows, Python 3.12 / torch 2.14.1 and Python 3.10 / torch 2.8.0): the real models on synthetic two-voice audio, the pack compared with the official steps for every precision, ComfyUI's own validation of the workflows, and a real ComfyUI queue.

Not checked: Linux and macOS outside CI, other ComfyUI versions with the real model (the CPU tests and the real-queue check also run against ComfyUI v0.41.0 in CI), music or singing (VoxLock is trained for speech), and the isolation quality itself (the pack reproduces the official outputs; it does not re-evaluate the model).

Install

1. ComfyUI with the V3 node API (v0.38.0 was used) and Python 3.10+. No GPU is needed.

2. Clone this repository into ComfyUI/custom_nodes/ and install its requirements into ComfyUI's Python:

   git clone https://github.com/hiroki-abe-58/ComfyUI-VoxLock custom_nodes/ComfyUI-VoxLock
   python -m pip install -r custom_nodes/ComfyUI-VoxLock/requirements.txt


   This installs voxlock==1.1.1, which brings onnxruntime, soundfile and soxr.

3. Download the models (about 275 MB for all four precisions, or pick some with --precisions int8). The script pins the revision the voxlock 1.1.1 package itself uses and verifies every file's SHA-256:

   python custom_nodes/ComfyUI-VoxLock/tools/download_model.py --models-dir models/voxlock


   Result: models/voxlock/onnx/ with enroll.onnx, enroll_fp16.onnx, chunk.onnx, chunk_fp16.onnx, chunk_int8.onnx, chunk_int8_full.onnx (and config.yaml, LICENSE). Another location works through extra_model_paths.yaml with the key voxlock.

4. Restart ComfyUI and open workflows/gui/isolate_voice.json or workflows/gui/isolate_with_sample.json; choose your own recording in Load Audio (the workflows name voice_mix.wav and voice_sample.wav).

Precisions and speed

10 minutes of 16 kHz speech, CPU (24 threads, ONNX Runtime 1.31.0), model loaded:

| Precision | Files | Time | Speed | | --- | --- | --- | --- | | int8 (default) | 79 MB | 49.1 s | 12x real time | | int8-full | 70 MB | 45.9 s | 13x real time | | fp16 | 51 MB | 73.9 s | 8x real time | | fp32 (the model the author benchmarks) | 100 MB | 72.6 s | 8x real time |

Memory: about 0.1 GB on top of ComfyUI for a 10-minute input. The author reports 5.11 % word error rate for int8 and 4.95 % for fp32 on the Krisp benchmark (not measured here).

threads = 0 (the default, as in the official package) lets ONNX Runtime choose. The thread count changes the int8 output slightly: on the 14 s demo clip, 1, 4 or 8 threads instead of the automatic choice changed samples by up to 0.0025 (about -52 dBFS); fp32 changed by at most 2.4e-7 with 1 thread and not at all with 4 or 8. The same settings on the same machine give the same output every time; another machine with another core count can give slightly different int8 output with threads = 0.

Notes and limits

• Speech only, one voice kept. If the loudest voice in the first 15 s is not the one you want, give a voice_sample.
• The output is 16 kHz content; output_sample_rate = input resamples it, it does not restore the high frequencies.
• Interrupt stops between two model runs (one per 0.8 s of audio).
• The upstream repository's demo clips of the isolated voice have the opposite polarity to the package's 1.1.1 output (they are otherwise the same signal); the package's output is the one in phase with the input.

Licenses

• This node pack's code: MIT (LICENSE).
• voxlock package (installed from PyPI) and the VoxLock model files (downloaded only by tools/download_model.py): Apache-2.0, by Arbaz Siddiqui (NOTICE).

Development

python -m pip install pytest ruff
python tools/download_model.py --models-dir <dir>/voxlock
VOXLOCK_MODELS_DIR=<dir>/voxlock VOXLOCK_COMFYUI_DIR=<ComfyUI checkout> python -m pytest tests
python scripts/ci_queue_check.py --comfyui <ComfyUI checkout> --models-dir <dir>/voxlock   # real queue on the CPU

scripts/run_jobs.py runs the pack's runtime on files and records hashes comparable with the official package.
