👁️ ComfyUI Watch Point

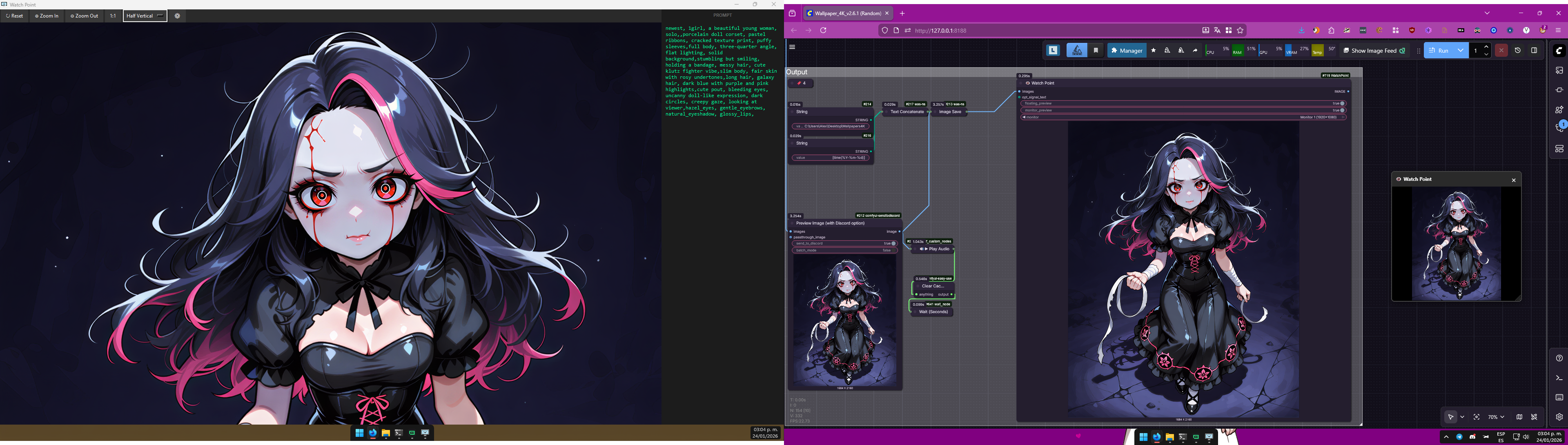

node preview

Dual preview system for ComfyUI workflows

About This Project

This node was developed by a creator with limited Python experience, using AI tools like Claude, Gemini, and Kimi. While fully functional, it may not strictly adhere to all Python best practices.

We warmly invite you to fork, improve, and adapt this code—collaboration is what makes open-source thrive!

Watch Point provides two simultaneous preview methods:

Monitor Preview: External Tkinter window on any monitor
Floating Preview: ComfyUI's built-in preview system

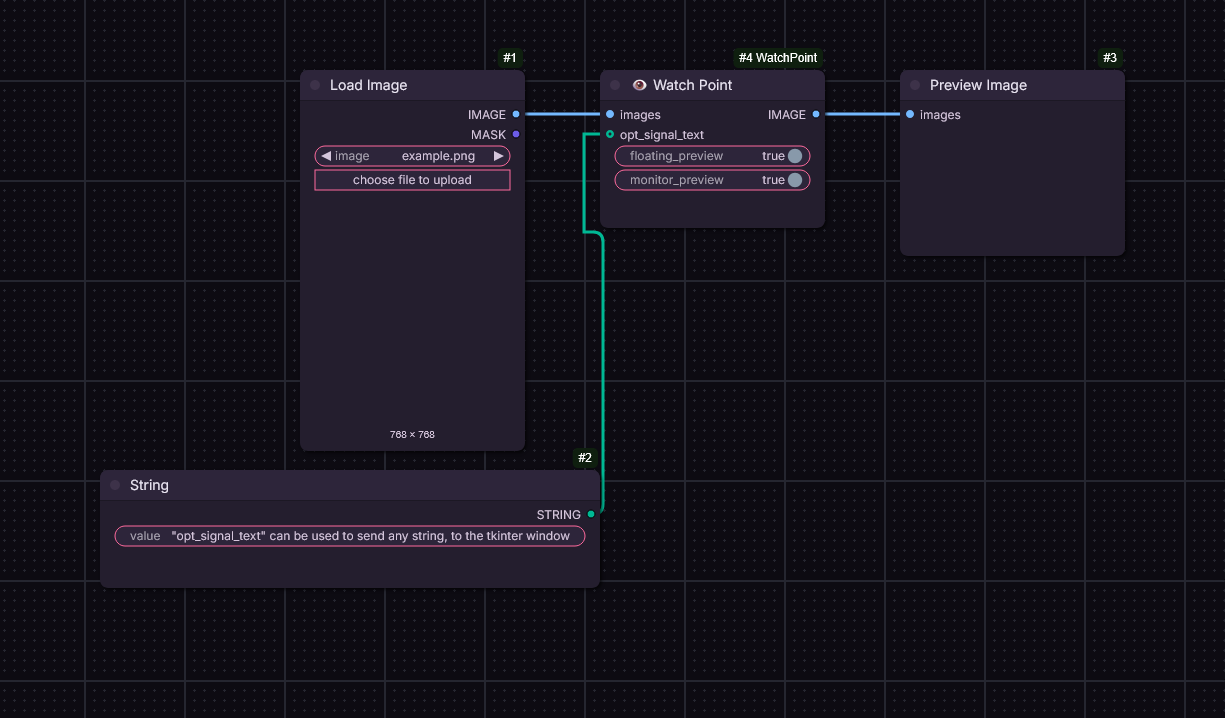

node preview

🔧 Features

Monitor Preview (Tkinter)

Display on any connected monitor
Zoom/Pan controls with mouse
Keyboard shortcuts
Save images directly from preview
Copy to clipboard
Customizable settings
Thread Safety: Windows minimize instead of closing to prevent ComfyUI crashes

Floating Preview (JavaScript)

Uses ComfyUI's native preview system
Works with existing preview extensions
Auto-updates during workflow execution
Configurable via browser localStorage (no file editing)
Customizable keyboard shortcuts
Snap-to-grid positioning
Adjustable opacity levels

🛡️ Thread Safety & Window Protection

WatchPoint includes built-in protection against threading issues that can crash ComfyUI:

Window Minimization Protection

Close Button Behavior: Clicking the Windows close button minimizes the window instead of closing it
Thread Safety: Prevents Tcl_AsyncDelete errors and threading conflicts
ComfyUI Stability: Ensures ComfyUI continues running even if windows are "minimized"
Window Recovery: Minimized windows can be restored from the taskbar

Technical Details

Uses thread-safe Tkinter operations
Implements proper cleanup procedures
Prevents memory leaks and threading deadlocks
Global window management for consistent behavior

📦 Installation

Clone into your ComfyUI custom_nodes directory:

cd ComfyUI/custom_nodes
git clone [https://github.com/gmorks/ComfyUI-WatchPoint.git](https://github.com/gmorks/ComfyUI-WatchPoint.git)

Install dependencies (if needed):

pip install pillow screeninfo

Restart ComfyUI

👁️ Nodes

Watch Point

The main preview node.

Add Watch Point to your workflow.
Connect an IMAGE input.
Enable/disable previews:

floating_preview: Enable ComfyUI's built-in preview.
monitor_preview: Enable or pause the external monitor window (window stays alive, image updates only when True).

Configure the target monitor via the ⚙ Settings dialog or by editing watchpoint_settings.json (monitor_index).
The node acts as a pass-through for the IMAGE output.

Optional string input

Connect any STRING input.
The text will appear in the side panel of the external window.

🎮 Controls (Monitor Preview)

Mouse

Scroll wheel: Zoom in/out
Left click + drag: Pan image
Right click: Context menu

Keyboard

R: Reset zoom and pan
T: Toggle toolbar
P: Toggle Text panel
1: Zoom 1:1 (100% actual size)

Window Close Behavior

Important: The Windows close button (❌) minimizes the window instead of closing it. This prevents threading errors and keeps ComfyUI stable. To "close" the window:

Click the close button → Window minimizes to taskbar
Right-click taskbar icon → "Close window" for forced closure

Toolbar Buttons

↻ Reset: Reset zoom and pan
⊕ Zoom In: Increase zoom level
⊖ Zoom Out: Decrease zoom level
1:1 (100%): View image at actual size
Window Size: Quick resize presets
⛶ Fullscreen: Toggle fullscreen mode
⚙ Settings: Open settings dialog

⚙️ Settings

Access settings via the ⚙ Settings button in the toolbar.

Save Options

Default format: PNG or JPEG
JPEG quality slider (10-100)

Monitor Options

Select the target monitor from the Monitor dropdown in the Settings dialog.
Persist the monitor selection globally via monitor_index in watchpoint_settings.json.

UI Options

Show/hide toolbar by default

All settings are saved to watchpoint_settings.json.

🔧 Configuration Files

Monitor Preview Settings

Edit watchpoint_settings.json to customize defaults for the external Tkinter window:

{
  "window_width": 800,
  "window_height": 600,
  "window_x": null,
  "window_y": null,
  "window_size_mode": "fixed",
  "show_toolbar": true,
  "save_format": "png",
  "jpeg_quality": 90,
  "monitor_index": 0
}

Settings Explained

window_x, window_y: Window position (null = auto)
window_size_mode: "fixed", "Half Vertical", "Half Horizontal", or "Quarter"
show_toolbar: Show toolbar on startup
save_format: Default save format ("png" or "jpeg")
jpeg_quality: JPEG compression quality (10-100)
monitor_index: Index of the monitor used for the external preview (0 = first monitor).

Floating Preview Configuration

The floating preview window is configured via browser localStorage. No file editing required!

Quick Start

View Current Configuration

Open browser console (F12) and run:

WatchPointFloating.getConfig()

Change Configuration

WatchPointFloating.setConfig({
    window: {
        defaultWidth: 500,
        defaultHeight: 500,
        defaultPosition: "top-right",
        defaultOpacity: 80
    },
    shortcuts: {
        toggle: "Ctrl+Alt+KeyP"  // Change toggle shortcut
    }
})

Reset to Defaults

WatchPointFloating.resetConfig()

Show Help

WatchPointFloating.showHelp()

Note: Reload the page after changing config to apply changes.

Available Configuration Options

Window Settings

{
    window: {
        defaultWidth: 320,           // Width in pixels
        defaultHeight: 320,          // Height in pixels
        defaultPosition: "middle-right", // Initial position
        defaultOpacity: 100          // 0-100 (percentage)
    }
}

Available Positions:

"top-left", "top-center", "top-right"
"middle-left", "middle-center", "middle-right"
"bottom-left", "bottom-center", "bottom-right"

Opacity Settings

{
    opacity: {
        levels: [20, 40, 60, 80, 100],  // Available opacity levels (%)
        showIndicator: true,             // Show opacity % when changing
        indicatorDuration: 1000          // How long indicator shows (ms)
    }
}

UI Settings

{
    ui: {
        showHeader: true,          // Show title bar
        showTitle: true,           // Show "👁️ Watch Point" title
        showCloseButton: true,     // Show X button
        dragFromAnywhere: false    // Drag from image area (only if header=false)
    }
}

Keyboard Shortcuts

{
    shortcuts: {
        // Main controls
        toggle: "Ctrl+Alt+KeyW",
        increaseOpacity: "Ctrl+Alt+Equal",    // or Ctrl+Alt++
        decreaseOpacity: "Ctrl+Alt+Minus",    // or Ctrl+Alt+-

        // Arrow navigation (relative)
        snapUp: "Ctrl+Alt+ArrowUp",
        snapDown: "Ctrl+Alt+ArrowDown",
        snapLeft: "Ctrl+Alt+ArrowLeft",
        snapRight: "Ctrl+Alt+ArrowRight",

        // Numpad navigation (absolute positions)
        snapToPosition7: "Ctrl+Alt+Numpad7",  // Top-left
        snapToPosition8: "Ctrl+Alt+Numpad8",  // Top-center
        snapToPosition9: "Ctrl+Alt+Numpad9",  // Top-right
        snapToPosition4: "Ctrl+Alt+Numpad4",  // Middle-left
        snapToPosition5: "Ctrl+Alt+Numpad5",  // Middle-center
        snapToPosition6: "Ctrl+Alt+Numpad6",  // Middle-right
        snapToPosition1: "Ctrl+Alt+Numpad1",  // Bottom-left
        snapToPosition2: "Ctrl+Alt+Numpad2",  // Bottom-center
        snapToPosition3: "Ctrl+Alt+Numpad3"   // Bottom-right
    }
}

Default Keyboard Shortcuts

| Action | Shortcut | Description | | --- | --- | --- | | Toggle window | Ctrl+Alt+W | Show/hide floating preview | | Increase opacity | Ctrl+Alt++ | Make more opaque | | Decrease opacity | Ctrl+Alt+- | Make more transparent | | Move up | Ctrl+Alt+↑ | Snap to position above | | Move down | Ctrl+Alt+↓ | Snap to position below | | Move left | Ctrl+Alt+← | Snap to position left | | Move right | Ctrl+Alt+→ | Snap to position right | | Snap to corner | Ctrl+Alt+Numpad[1-9] | Jump to specific position |

Storage Location

Configuration is stored in browser localStorage under the key:

watchpoint-floating-config

Use Cases

Dual Monitor Setup

Perfect for users with multiple monitors:

Work on ComfyUI on main monitor
View live preview on secondary monitor
No need to switch windows or tabs

Quality Control

Use 1:1 zoom to inspect:

Image quality at pixel level
Upscaling artifacts
Detail preservation

Live Monitoring

Watch your workflow progress in real-time:

Both previews update simultaneously
Choose the view that works best for your setup
Keep an eye on intermediate results

Requirements

Python 3.7+
tkinter (usually included with Python)
PIL/Pillow
screeninfo (optional, for multi-monitor detection)

Optional Dependencies

For clipboard support (Windows):

pip install pywin32

🛠️ Troubleshooting

Window doesn't appear

Check if monitor_preview is enabled (True).
Open the ⚙ Settings dialog and verify that a valid monitor is selected.
Alternatively, check that monitor_index in watchpoint_settings.json points to an existing monitor.
Check console for error messages.

Window appears in wrong location

Set explicit X, Y coordinates in settings
Use window_x: 0, window_y: 0 for top-left

Image not updating

Ensure workflow is executing.
Check that image is connected to Watch Point input.
Verify that monitor_preview is enabled (True); when False, the window stays open but the image will not refresh.
Try disabling/re-enabling monitor preview.

Window snapping (Win + Arrows) doesn't work in Fullscreen

Reason: To guarantee that fullscreen mode activates on the correct monitor (avoiding a Windows bug that forces it to Monitor 0), we use a custom "borderless window" approach.
Solution: To move the window to another monitor, exit fullscreen (F11 or toolbar button), drag the window to the desired monitor, and re-enable fullscreen. Alternatively, use the Monitor selector in Settings.

Floating preview not working

Ensure floating_preview is enabled (True)
Check if other preview extensions are conflicting
Restart ComfyUI

Credits

Vibe Coded for ComfyUI by gmorks using AI.

License

MIT License - Feel free to use and modify!

🚧 Development Status

Note: This extension is not yet compatible with ComfyUI Nodes 2.0. Support for the new node system is on our to-do list and will be implemented in a future update.

Known Issues

Fullscreen Mode: Currently, toggling fullscreen (F11) may default to the primary monitor (Monitor 0) regardless of the window's current position. We are actively working on a fix to ensure fullscreen activates on the correct monitor. [WIP]
