FXI Frame Chain for ComfyUI: seamless AI video, one clip into the next

Three ComfyUI nodes that turn separate image-to-video generations into one continuous shot. Every clip starts on the exact last frame of the clip before it, so the camera never cuts. Works with any image-to-video model you already run in ComfyUI. No extra dependencies.

Don't want to wire it up? Frame chaining runs fully hosted on FXI Studio, from storyboard to continuous shot. See the full frame-chaining walkthrough →

---

Why frame chaining

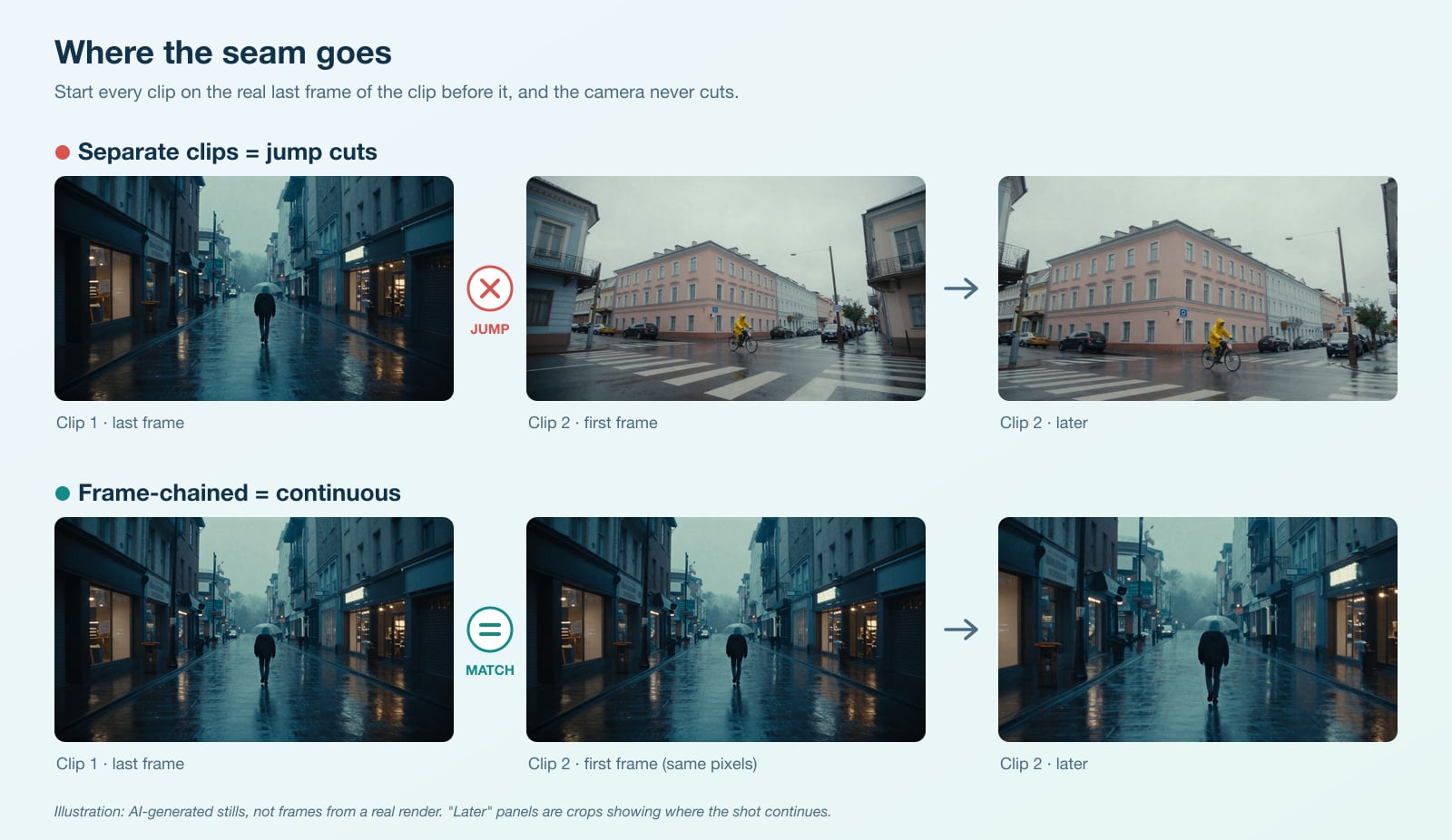

Image-to-video models generate a few seconds at a time and forget everything in between. Put three generations side by side and you get three shots that jump at every cut: the light shifts, the camera snaps to a new position, objects move.

Frame chaining fixes that with one rule: start the next clip from the real last frame of the previous clip. The model continues from exactly the pixels the last clip ended on. That lets you build shots longer than any single generation and direct a camera path across scenes: push through a window, walk down a hall, drift from exterior to interior.

How it works

flowchart LR
    S[Start image] --> G1[Image-to-video<br/>clip 1]
    G1 --> F1[Frame Chain Step 1]
    F1 -- next_start_image --> G2[Image-to-video<br/>clip 2]
    G2 --> F2[Frame Chain Step 2]
    F1 -- chain --> F2
    F2 -- next_start_image --> G3[... clip 3]
    F2 -- chain --> ST[Stitch Clips]
    ST --> V[Create Video /<br/>Save Animated WEBP]

Each Frame Chain Step does two things: it adds the clip it receives to the chain, and it hands the clip's last frame to the next generation's start image. Stitch Clips joins the whole chain into one frame batch and drops the duplicated frame at each seam.

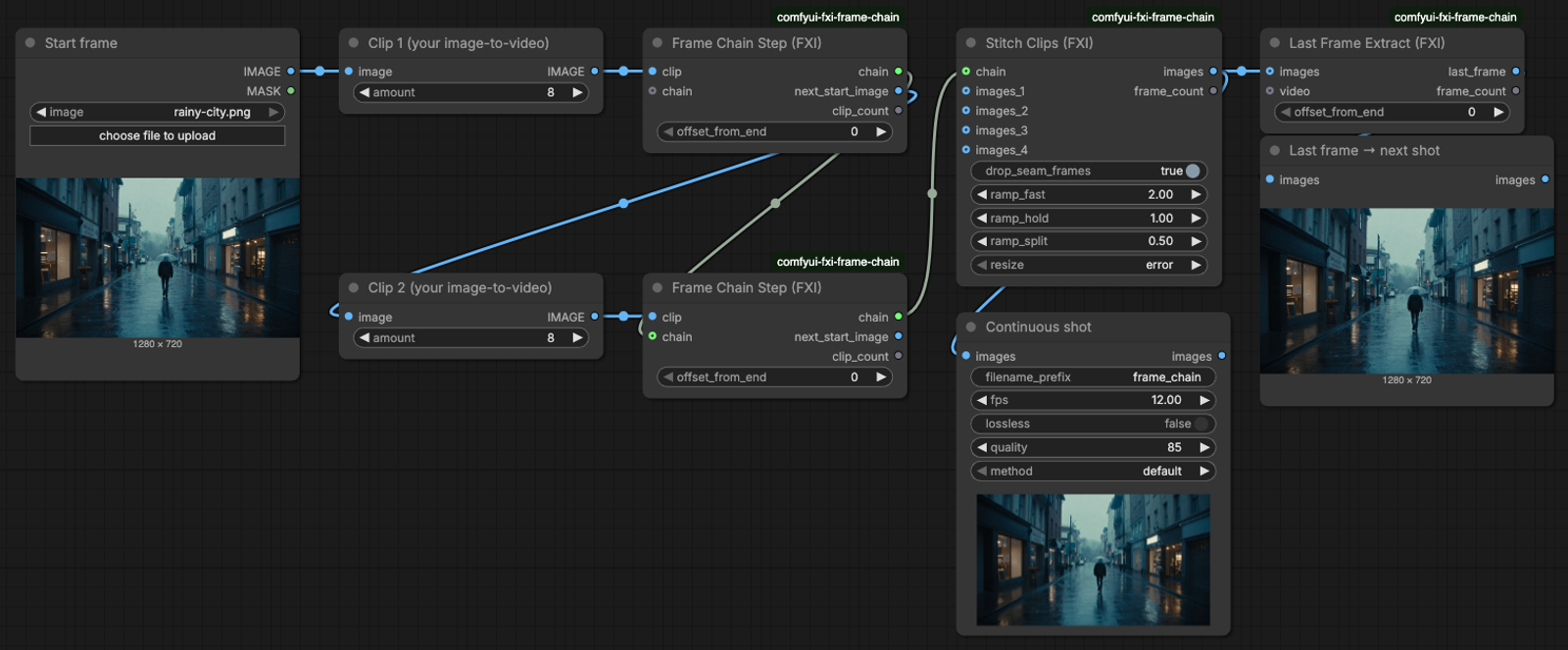

The nodes

All three are under FXI/frame chain in the node menu (double-click the canvas and search "FXI").

| Node | Inputs | Outputs | What it does | |---|---|---|---| | Last Frame Extract (FXI) | images (IMAGE) or video (VIDEO), offset_from_end | last_frame (IMAGE), frame_count (INT) | Pulls one frame from the end of a clip. offset_from_end = 0 is the very last frame; raise it to skip a soft or blurred final frame. | | Frame Chain Step (FXI) | clip (IMAGE), chain (optional), offset_from_end | chain, next_start_image (IMAGE), clip_count (INT) | One link of the chain. Collects the clip and outputs its last frame as the next start image. | | Stitch Clips (FXI) | chain and/or images_1…images_4, drop_seam_frames, ramp_fast, ramp_hold, ramp_split, resize | images (IMAGE), frame_count (INT) | Joins clips head-to-tail. Optional two-speed ramp per clip. |

Details worth knowing:

• Seam frames. Clip N+1 starts on clip N's last frame, so that frame appears twice and playback stutters for one frame. drop_seam_frames (on by default) removes the first frame of every clip after the first.
• Speed ramp. ramp_fast = 2, ramp_hold = 1, ramp_split = 0.5 plays the first half of each clip at 2x (the camera travel) and the rest at normal speed (the detail hold). Retiming works by dropping or repeating frames. ramp_fast = ramp_hold = 1 (the default) leaves timing alone.
• Mismatched sizes. Stitching clips of different sizes stops with a clear error by default. Set resize to resize to first clip to scale them instead.
• Stateless. The Step node never mutates its input chain, so ComfyUI's caching stays correct and it also works inside loop nodes from other packs.

Install

ComfyUI Manager: open Manager → Custom Nodes Manager, search FXI Frame Chain, install, restart ComfyUI.

comfy-cli:

comfy node install fxi-frame-chain

git clone:

cd ComfyUI/custom_nodes
git clone https://github.com/fueledximagination/comfyui-fxi-frame-chain.git
# restart ComfyUI

There is nothing to pip install: the nodes use only torch, which ComfyUI already ships with.

Usage

1. Smoke test (no models needed)

Drag examples/frame-chain-smoke-test.api.json onto the ComfyUI canvas and queue it. It fakes two "clips" from ComfyUI's bundled example.png, chains them, and stitches 15 frames (8 from clip 1, then clip 2 minus its duplicated seam frame) into an animated WEBP. It confirms the nodes are installed and wired correctly in a few seconds.

2. A real two-clip chain

examples/wan22-two-clip-chain.api.json chains two image-to-video generations using only core ComfyUI nodes and the Wan 2.2 5B model files from ComfyUI's own examples:

• diffusion_models/wan2.2_ti2v_5B_fp16.safetensors
• text_encoders/umt5_xxl_fp8_e4m3fn_scaled.safetensors
• vae/wan2.2_vae.safetensors

Load it, pick your start image in Load Image, edit the two scene prompts, and queue. The settings are generic starting points, not tuned values. To use a different model, swap the loader, latent, and sampler nodes for your own image-to-video setup; the three FXI nodes don't change.

3. Add it to your own workflow

1. After your first clip's VAE Decode, add Frame Chain Step. Leave its chain input empty.
2. Connect its next_start_image to the start image of your second generation.
3. After the second clip's VAE Decode, add another Frame Chain Step and connect the first step's chain to it.
4. Repeat for as many clips as you want. Connect the last step's chain to Stitch Clips, and Stitch Clips to Create Video (then Save Video) or Save Animated WEBP.

Keep every clip at the same resolution, and describe each clip's camera move as one clear sentence. The fxi-camera-moves dataset has 43 ready-to-paste camera move recipes that chain well.

Prefer a script over a graph?

fxi-frame-chain is the same technique as a small Node.js tool: it drives a local ComfyUI over its API, extracts last frames with ffmpeg, resumes failed chains, and stitches and speed-ramps the result from the command line.

Development

pip install torch pytest ruff   # CPU torch is enough
pytest                          # tensor logic + node wiring, no GPU, no ComfyUI needed
ruff check . && ruff format --check .

The tensor logic lives in fxi_frame_chain/core.py with no ComfyUI imports; fxi_frame_chain/nodes.py is the thin node layer. Issues and pull requests are welcome; see CONTRIBUTING.md. Security reports: SECURITY.md.

---
