ComfyUI-Feixue-UniversalMonitor

Cross-platform hardware monitor for ComfyUI, optimized for AMD & NVIDIA GPUs, with A real-time hardware monitor and system VRAM/RAM/GPU/CPU tracker for ComfyUI.

By feixue-ai·Created 3 months ago·Updated 2 months ago· 3
feixue-ai/ComfyUI-Feixue-UniversalMonitor
Nodes—
On cloudLocal install
Stars3
Updated2 months ago
Readme

ComfyUI-Feixue-UniversalMonitor — ComfyUI Hardware Monitor / ComfyUI Monitor

<p align="center"> <strong>Feixue Universal Monitor</strong> — AMD-focused · Cross-platform · 5 Colors × 5 Styles · Real-time Hardware Monitor for ComfyUI </p> <p align="center"> <img src="https://img.shields.io/badge/ComfyUI-Compatible-brightgreen" alt="ComfyUI Compatible" /> <img src="https://img.shields.io/badge/Platform-Windows%20%7C%20Linux-blue" alt="Platform" /> <img src="https://img.shields.io/badge/GPU-AMD_Optimized-orange" alt="GPU Support" /> <img src="https://img.shields.io/badge/Version-3.40.8-red" alt="Version" /> <img src="https://img.shields.io/badge/Styles-5_Colors_%C3%97_5_Styles-blueviolet" alt="25 Combinations" /> </p> <p align="center"> <a href="https://feixue-ai.github.io/ComfyUI-Feixue-UniversalMonitor/?demo">🖥️ Live Preview (Live Demo)</a> </p> <p align="center"> <strong>English:</strong> A real-time ComfyUI hardware monitor widget. Track GPU utilization, VRAM, CPU, RAM, swap, temperature, disk I/O, and network speed right inside ComfyUI. Zero pip dependency on Windows; zero ROCm dependency on Linux AMD. If this project helps your workflow, please consider giving us a ⭐ — it means a lot! </p> <p align="center"> <strong>中文：</strong>飞雪监测器是一款 ComfyUI 实时硬件监测插件，在 ComfyUI 界面内悬浮显示 GPU/显存/CPU/内存/SWAP/温度/磁盘/网络。Windows 零 pip 依赖，Linux AMD 零 ROCm 依赖。如果觉得有用，欢迎 <a href="https://github.com/feixue-ai/ComfyUI-Feixue-UniversalMonitor">点个 ⭐</a> 支持我们！ </p>

Preview

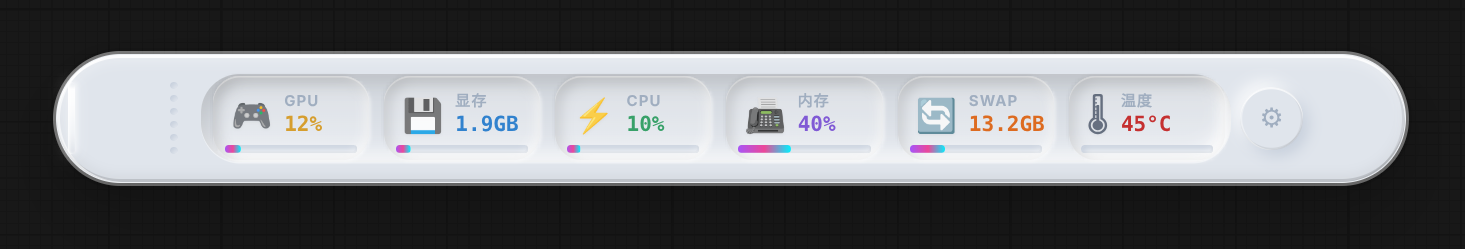

Feixue Universal Monitor Premium UI v3.40.8

The screenshot above shows the Premium UI Neu style monitor bar — a white neumorphic design with medical-instrument-style recessed windows, precise groove bases, and soft embossed shadows. It displays six real-time metrics: GPU / VRAM / CPU / RAM / SWAP / TEMP.

The plugin supports 5 color schemes × 5 visual styles, for a total of 25 combinations, switchable with one click in the settings panel.

Live demo (early design prototype, not the actual ComfyUI UI): Live Demo

5 Visual Styles

| Style | Name | Design Highlights | |------|--------|-------------------| | Neu | Neu | White neumorphism, medical-instrument recessed windows, precise groove base, soft embossed shadows | | Jade Bamboo | Jade Bamboo | Horizontal jade bamboo monitor bar with 8 naturally connected segments, jade cylindrical gloss, and a bamboo-slip settings panel | | Retro Terminal | Retro | CRT phosphor screen effect, LED segment bars, scanlines and glow, supports 5 phosphor colors | | Luxury Cabinet | Lux | Black-gold luxury showcase, gold trim with gemstone tones, high-contrast data cards | | Quantum Core | Cyber | Heavy titanium frame + neon tubes, HUD numbers, futuristic sci-fi aesthetic |

5 Color Schemes

Aurora Ceramic / Deep Sea Blue / Sunset Warm / Forest Green / Midnight Black (each style maps these to corresponding material or phosphor colors).

Features

  • Real-time hardware monitoring — GPU utilization, VRAM (displayed in GB), CPU load, physical RAM, virtual memory (Swap), GPU temperature, disk I/O, network speed — 8 metrics in total
  • 5 colors × 5 styles independently combinable — color and visual style are fully decoupled, 25 combinations switchable with one click
  • Auto Chinese/English adaptation — labels automatically display in Chinese or English based on browser language, avoiding translation software and layout overflow
  • Workflow sound alerts — plays a sound when a ComfyUI workflow completes or errors; toggle state persists and syncs across themes
  • Drag-to-position — enable drag mode to move the monitor bar freely; disable to automatically return to top-center; auto-repositions after theme switching
  • Collapsible floating panel — click the gear icon to open the settings panel with expandable/collapsible sections
  • Neu medical instrument windows — monitor bars use precisely inset instrument windows + continuous groove bases for a premium feel
  • Jade Bamboo monitor bar — horizontal jade bamboo shape with 8 naturally connected segments, jade cylindrical gloss, and a bamboo-slip settings panel that strongly contrasts with Neu
  • Cross-platform AMD optimization — Windows (AMD ADLX C++ Bridge DLL first, native driver-level) and Linux (libamd_smi.so ctypes first for accuracy, then sysfs direct kernel-driver read as zero-dependency fallback, plus rocm_smi / NVIDIA NVML) with clean source priority
  • WebSocket real-time push — data pushed with sub-100ms latency, with an HTTP API fallback mode
  • Zero external frontend dependencies — single extension.js file contains all UI, CSS, events, and data logic

Installation

Method 1: ComfyUI Manager (Recommended)

  1. Open ComfyUI → Manager → Install Custom Nodes
  2. Search for: ComfyUI-Feixue-UniversalMonitor
  3. Click Install → Restart ComfyUI

The install script will automatically detect the operating system and GPU vendor, then install dependencies only when necessary:

  • Windows AMD: ADLX C++ Bridge DLL (libs/feixue_adlx_bridge.dll) provides full GPU metrics directly from the AMD driver — zero pip dependencies
  • Windows NVIDIA: Uses native driver nvml.dll directly — zero pip dependencies
  • Windows fallback: System PDH counters + DXGI if no native driver interface is available
  • Linux AMD: Reads GPU metrics directly from the AMDGPU kernel driver via sysfs (/sys/class/drm) — zero pip dependencies and zero ROCm dependency; falls back to system libamd_smi.so (ctypes) / rocm_smi / NVIDIA NVML
  • Linux NVIDIA: Uses the driver's native libnvidia-ml.so — no extra pip dependencies
  • Base dependency: psutil only

Method 2: Manual Installation

cd ComfyUI/custom_nodes
git clone https://github.com/feixue-ai/ComfyUI-Feixue-UniversalMonitor.git

Then restart ComfyUI. The plugin will automatically start the backend monitoring service.

Usage

After installation, the monitor bar automatically appears at the top of the ComfyUI interface:

  • 6 core metrics: GPU Utilization | VRAM | CPU Load | Physical RAM | Virtual Memory (Swap) | GPU Temperature
  • 2 auxiliary metrics: Disk I/O | Network Speed (viewable in the floating panel)
  • Theme switching: Click the ⚙️ gear button on the right side of the monitor bar to open the settings panel, then switch between "Style" and "Color"
  • Sound alerts: Enable/disable in the settings panel; the state is automatically saved and synced across all themes
  • Drag positioning: Enable "Drag Mode" to drag the monitor bar; disable to return it to top-center
  • Real-time updates: Default refresh interval is 2 seconds; data is pushed in real time via WebSocket

Project Structure

ComfyUI-Feixue-UniversalMonitor/
├── __init__.py              # Plugin entry & HTTP API routes
├── pyproject.toml           # Package metadata & ComfyUI registry info
├── install.py               # Cross-platform automatic dependency installation
├── requirements.txt         # Base dependency declaration
├── core/
│   ├── monitor.py           # Core hardware collection engine (FeixueHardwareInfo)
│   ├── websocket_service.py # WebSocket real-time push service
│   └── data_models.py       # Data model definitions
├── collectors/              # Data collectors (CPU, Memory, GPU providers)
│   └── gpu_providers/       # AMD/NVIDIA GPU data providers
├── config/                  # Configuration management
├── fxm_utils/               # Platform detection, thread safety, performance optimization
├── web/
│   └── extension.js         # Frontend UI (Premium UI v3.40.8)
├── docs/
│   └── index.html           # Online appearance demo (GitHub Pages)
└── tests/                   # Unit tests

Technical Details

| Layer | Tech Stack | |------|--------| | Backend Data Collection | Python (psutil, ctypes native libraries on Windows/Linux) | | Frontend UI | Vanilla JavaScript (zero external dependencies, single self-contained file) | | Data Channel | WebSocket (feixue.monitor event) + HTTP REST API | | Compatibility | ComfyUI (Windows / Linux Ubuntu), AMD / NVIDIA GPU |

Data Collection Strategy

GPU data source priority:
  Windows: AMD ADLX C++ Bridge DLL → AMD ADL (atiadlxx.dll) → NVIDIA NVML (nvml.dll) → PDH counters + DXGI field-level fallback
  Linux:   libamd_smi.so (ctypes) → sysfs (/sys/class/drm amdgpu kernel driver) → rocm_smi → NVIDIA NVML

CPU/RAM/Swap: psutil (unified cross-platform)

All collection operations have timeout protection (≤8s). On exceptions, the system automatically falls back to cached data or safe default values, ensuring the ComfyUI main workflow is not affected. Inaccurate legacy methods (WMI / pynvml-amd-windows) have been removed; fan monitoring has also been removed to reduce complexity.

Field-level fallback (Windows): when the primary provider returns an invalid individual metric, DXGI fills missing VRAM and PDH fills missing GPU utilization, so each value is independently sourced from the most reliable interface available.

Changelog

v3.40.8 — Dock Size Controls + Position Hardening (Current)

  • Dock width & height adjustment: Added per-theme width slider and height scale slider in the settings panel. Each of the 5 styles can be resized independently; values are saved to localStorage and restored on restart
  • Position persistence hardening: Added fxm_panel_version migration. When upgrading to v3.40.8, stale fxm_drag_pos_* entries from older builds are automatically cleared, preventing the Jade Bamboo / Luxury Cabinet themes from appearing off-center after a theme switch
  • Dock default centering preserved: All themes still default to horizontally centered, below the ComfyUI workflow tab bar (top: 46px; left: 50%; transform: translateX(-50%)). User-dragged positions continue to be saved per theme and restored while drag mode is enabled
  • UI text polish: README now includes an English introduction and a friendlier call-to-action for users who find the plugin helpful
  • Version unification: All code, UI panel, package metadata, and snapshot format unified to v3.40.8

v3.40.7 — Linux AMD SMI Accuracy + Field-Level Fallback

  • Linux GPU priority changed to amdsmi first: After an accuracy comparison against rocm-smi and direct sysfs reads, AmdSmiProvider (ctypes direct call to libamd_smi.so) is now the primary Linux AMD source. It provides the most accurate GPU utilization, VRAM, temperature, and power readings under both idle and load. sysfs remains as the zero-dependency fallback, and rocm_smi is kept for legacy ROCm 5.x compatibility
  • Zero pip dependency preserved: AmdSmiProvider still does not require the amdsmi Python package; it binds libamd_smi.so via ctypes and searches /opt/rocm, /opt/rocm-6.x, LD_LIBRARY_PATH, and FEIXUE_AMD_SMI_PATH. If the library is unavailable, monitoring automatically falls back to sysfs
  • Linux field-level fallback (数值分段降级): When the primary provider (amdsmi/rocm_smi) returns 0 or missing values for individual fields — common across different ROCm versions or GPU models — the same field is independently filled from sysfs. Each field is evaluated once and cached, so valid fields incur zero fallback overhead
  • Temperature aligned with rocm-smi: All Linux temperature reads now prefer junction/hotspot sensors (temp2_input for sysfs, AMDSMI_TEMPERATURE_TYPE_HOTSPOT for amdsmi) before falling back to edge temperature, matching the values shown by rocm-smi and vitals tools
  • Sysfs cache TTL reduced: BatchSysfsReader default cache TTL lowered from 0.5s to 0.1s to reduce VRAM lag during rapid workload changes
  • Field-level tiered fallback (Windows): Each metric field is supplemented independently — DXGI fills missing VRAM, PDH fills missing utilization (same data source as Windows Task Manager). First-invalid detection is cached for zero overhead on subsequent calls
  • AmdSmiProvider rewritten with ctypes + multi-version ROCm discovery: Directly calls the system libamd_smi.so without importing the amdsmi Python package. Function bindings are fault-tolerant so older/newer ROCm versions degrade gracefully instead of crashing
  • ADLX C++ Bridge DLL (Windows first priority): Compiled feixue_adlx_bridge.dll wraps AMD ADLX SDK via extern "C" — provides full GPU metrics (utilization / VRAM used / VRAM total / temperature) directly from the AMD driver. Zero pip dependency, ships as a prebuilt DLL in libs/
  • 503 fix / monitor stays alive when GPU source fails: _MonitorWrapper no longer sets is_running = False just because the GPU provider failed; CPU/RAM monitoring continues and the HTTP/WebSocket APIs remain available
  • Module shadowing protection: __init__.py now cleans non-plugin core modules from sys.modules and moves the plugin root to the front of sys.path, preventing other custom nodes from shadowing core.monitor
  • Theme switch no blank window: Switching UI styles now immediately renders the latest cached snapshot into the newly visible theme, removing the ~0.5s empty-data gap
  • Responsive layout fix: Dock and Panel now adapt to narrow viewports (Trae CN side panel / mobile remote control) without overlapping or text wrapping artifacts
  • Version unification: All code, UI panel, package metadata, and snapshot format unified to v3.40.7

v3.30 — PDH VRAM Fix + Capsule Bounce Fix

  • VRAM display fix (Windows AMD): Fixed PDH counter enumeration bug — PdhEnumObjectItemsW first call returns PDH_MORE_DATA which was incorrectly treated as failure, causing VRAM to always show 0. Now correctly handles the two-call enumeration pattern
  • Unicode buffer parsing fix: Replaced instance_buf.raw (not available on create_unicode_buffer) with character-by-character iteration for proper instance name parsing
  • Capsule bounce fix: Changed .fx-capsule-dock CSS transition from all 0.4s ease to box-shadow, border-color to prevent container size animation during high-load data updates
  • Version unification: All code, panel, package metadata, and snapshot format unified to v3.30

v3.29.2 — Zero-Dependency Native Monitoring Refactor

  • Zero pip dependency on Windows: GPU monitoring now uses native driver DLLs — atiadlxx.dll for AMD, nvml.dll for NVIDIA, and pdh.dll as a system-level fallback
  • Removed inaccurate legacy methods: WMI and pynvml-amd-windows fallbacks have been completely removed
  • On-demand Linux dependency installation: amdsmi Python bindings are installed only when the system-level libamd_smi.so library is present; otherwise sysfs is used
  • Removed fan monitoring: Fan speed collection removed from backend to reduce complexity and bug risk (UI already hid this metric)
  • Data source quality indicator: Added data_source_quality field (full / limited / minimal) and one-time log warnings when running in fallback mode
  • WebSocket delta crash fix: Fixed KeyError: 'percent' in _dict_delta caused by missing fan-speed data
  • Icon refresh: Updated ComfyUI registry icon and added promotional poster asset
  • Version unification: All code, panel, package metadata, and snapshot format unified to v3.29.2

v3.28 — Smart Memory Cleanup + Stability Hardening

  • Smart memory cleanup: Added a 3-mode switch in the settings panel (Off / RAM Defrag / Deep Clean) with user-controllable RAM threshold and idle confirmation delay
  • Safe deep clean: Deep clean uses ComfyUI's native /free queue flags instead of direct unload_all_models(), preventing mosaic/corruption artifacts during workflow execution
  • RAM-only mode: RAM defrag only runs gc.collect() + Linux malloc_trim(0) without touching models or VRAM, eliminating the risk of interrupting generation
  • Adaptive idle delay: Auto-detects segmented/continuous workflows and extends the idle delay from 2s to 8s; falls back after 10 minutes of normal usage
  • Dynamic cooldown: Normal single-image users get a 5s minimum cooldown; segmented/continuous workflows get a 30s cooldown to avoid repeated cleanups
  • Manual cleanup always available: The "Deep Free Now" button works regardless of the auto-cleanup mode switch and shows a non-blocking toast instead of a blocking confirm dialog
  • Cyber style VRAM fix: VRAM unit now correctly displays "GB" in the Quantum Core style
  • Version unification: All code, panel, and package metadata unified to v3.28

v3.26 — Premium UI 5 Colors × 5 Styles Refactor + Stability Fixes

  • 5 new visual styles: Neu, Jade Bamboo, Retro, Lux, Cyber
  • 5 independently switchable color schemes: Aurora Ceramic / Deep Sea Blue / Sunset Warm / Forest Green / Midnight Black
  • Chinese/English auto adaptation: Displays Chinese or English based on system language; key labels stay short to avoid UI overflow
  • VRAM uniformly displayed in GB: VRAM shown as used/total capacity (GB) in all dock styles and panels
  • Persistent sound alert sync: Fixed inconsistent sound alert toggle state after theme switching; supports cross-theme memory
  • Auto reposition on theme switch: Monitor bar automatically returns to top-center after style switch, avoiding stale positions
  • Lux temperature display fix: Added GPU temperature rendering for the Lux style
  • Cyber collapsible panel fix: Fixed expand/collapse failure in the Cyber style settings panel
  • Neu medical instrument windows redo: Chips changed to precisely inset instrument windows with aligned groove bases, evoking high-end medical equipment
  • Jade Bamboo theme redo: Horizontal jade bamboo monitor bar with 8 naturally connected segments, jade cylindrical gloss, and a bamboo-slip settings panel that strongly contrasts with Neu
  • Jade Bamboo high-contrast adaptive metrics: Text/progress bar colors automatically switch with theme, avoiding being overwhelmed by orange/purple backgrounds
  • Retro dark LED bar fix: Restored dark inactive background bars to keep the monitor bar visually full
  • Frontend stability fixes: Fixed drag listener leaks, Retro font loading, theme body background overlay, fetch timeout timer leaks, localStorage privacy mode exceptions
  • Backend stability fixes: WebSocket monitor loop exception protection, amdsmi init failure resource release, BatchSysfsReader thread safety, thread pool shutdown exception handling, refresh-rate API boundary validation
  • Version unification: Code, panel, and package metadata all unified to v3.26
  • Legacy code cleanup: Removed dead code and DEBUG logs from the old Emerald Capsule / v13 theme system

v3.1.0 — Obsidian Glass Refactor + Full 5-Style Isolation

  • Floating panel fully refactored: semi-transparent frosted glass + multi-layer diffuse shadows + glass edge highlights
  • 5 styles fully visually isolated
  • Added disk I/O and network speed monitoring
  • All metrics available cross-platform

v3.0.1 — Emerald Capsule

  • Complete UI rewrite: pill/capsule design + 3D cylindrical cross-section stereo effect
  • Added 5-color theme system
  • Added drag-to-position feature
  • Added Swap virtual memory monitoring

v2.5.0

  • First public release
  • Basic monitoring functions (GPU/CPU/RAM)
  • WebSocket real-time push

License

MIT License

Author

Feixue Team
