ComfyUI Video Frame Extractor 🎞️

A ComfyUI custom node that brings a DAW-style interactive video timeline directly into the node graph. Upload any video, scrub through it in real time, drag a loop region to define your extraction window, and pipe the resulting frame batch into any downstream node.

---

Features

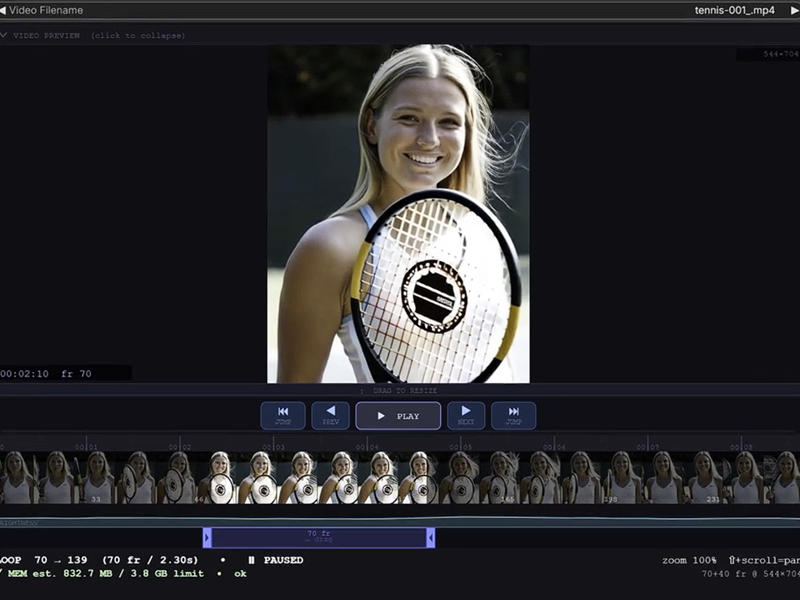

• Interactive timeline — filmstrip thumbnails with correct aspect ratio (including portrait video), brightness waveform, and a zoomable timecode ruler all rendered directly inside the node
• Loop region selection — drag the in/out handles or the region body to define start and end frames; the video preview seeks live as you drag
• Resizable video preview — drag the resize handle to make the preview pane as large as you need
• Collapsible preview section — hide the video preview to save canvas space while keeping the timeline accessible
• Transport controls — Play / Pause toggle, frame-step ◀ ▶ buttons, and ⏮ ⏭ Jump buttons that advance the loop window by its own span for stepping through non-overlapping clips
• Live loading status — progress bar, buffering percentage, elapsed time, and health indicators (stalled / error / timeout) shown while a video loads
• Memory-safe execution — live peak-memory estimate in the info bar updates as you adjust the loop region and target_fps; the backend refuses to run clips that would exceed available RAM, so ComfyUI never freezes on an oversized extraction
• Zoom and pan — scroll wheel to zoom the timeline, Shift + scroll to pan horizontally
• Full outputs — 10 output pins: forward frames, reversed frames, first and last frame, filename prefix, dimensions, original FPS, custom-FPS resampled frame batch, and target FPS passthrough

---

Installation

Via ComfyUI Manager (recommended)

1. Open ComfyUI Manager → Custom Nodes → Search
2. Search for Video Frame Extractor
3. Click Install and restart ComfyUI

Manual

cd ComfyUI/custom_nodes
git clone https://github.com/comfyuiattic-989/ComfyUI-Video-Frame-Extractor
cd ComfyUI-Video-Frame-Extractor
pip install -r requirements.txt

Restart ComfyUI after installation.

---

Requirements

| Package | Version | | ------------- | --------------------- | | Python | ≥ 3.9 | | opencv-python | ≥ 4.7 | | Pillow | ≥ 9.0 | | numpy | ≥ 1.22 | | psutil | ≥ 5.9 (optional) | | torch | (provided by ComfyUI) |

psutil is optional — when installed, the memory-safety check auto-tunes its limit to 75 % of your system's available RAM. Without it, the limit falls back to a fixed 8 GB.

---

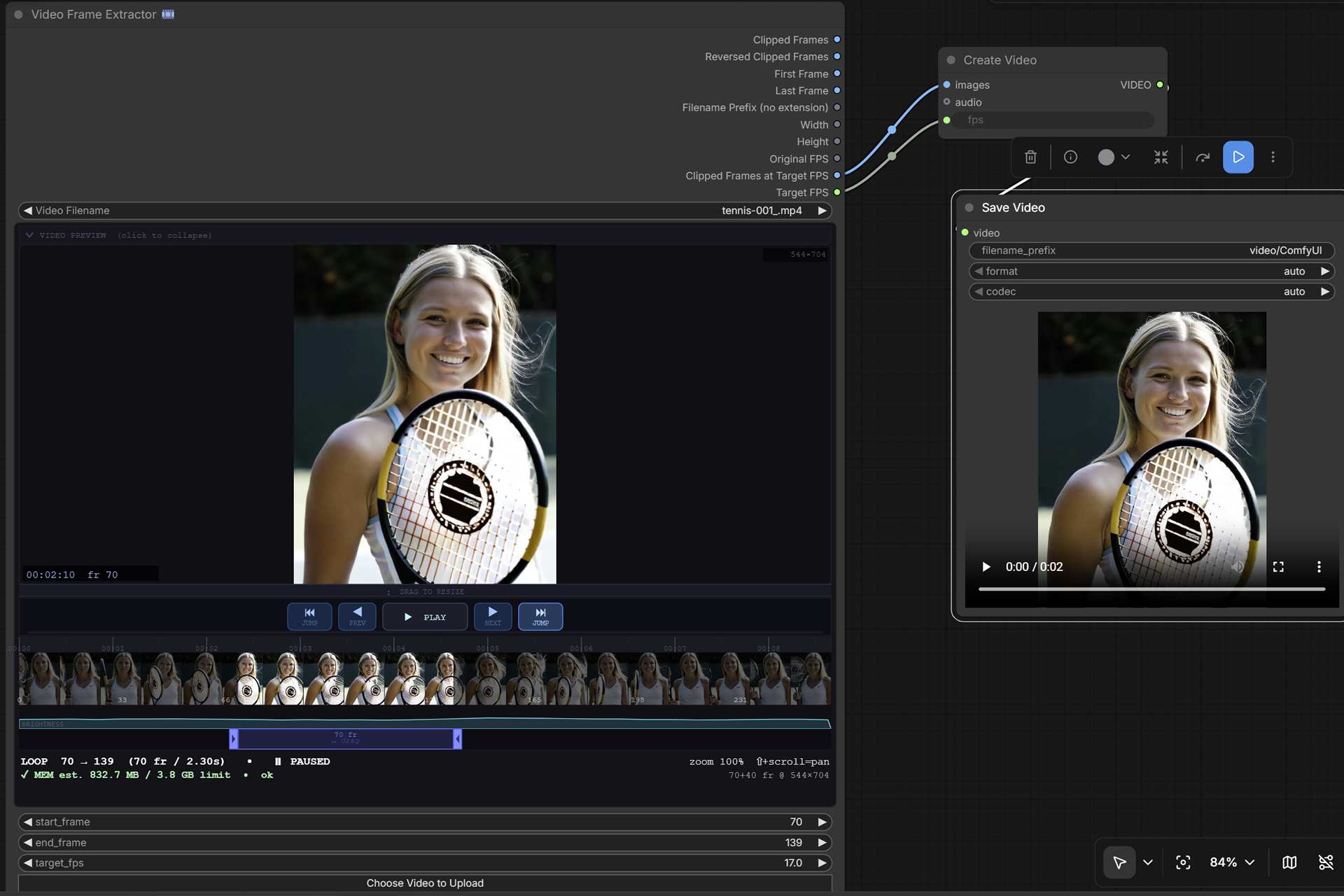

Usage

1. Place a video file in ComfyUI/input/ or upload one directly via the Choose Video to Upload button on the node
2. Add the Video Frame Extractor 🎞️ node to your graph (right-click canvas → Add Node → video)
3. Select your video from the dropdown — the timeline populates automatically
4. Drag the indigo loop handles to set the extraction window, or drag the loop body to pan the whole window
5. Connect the output pins to your workflow

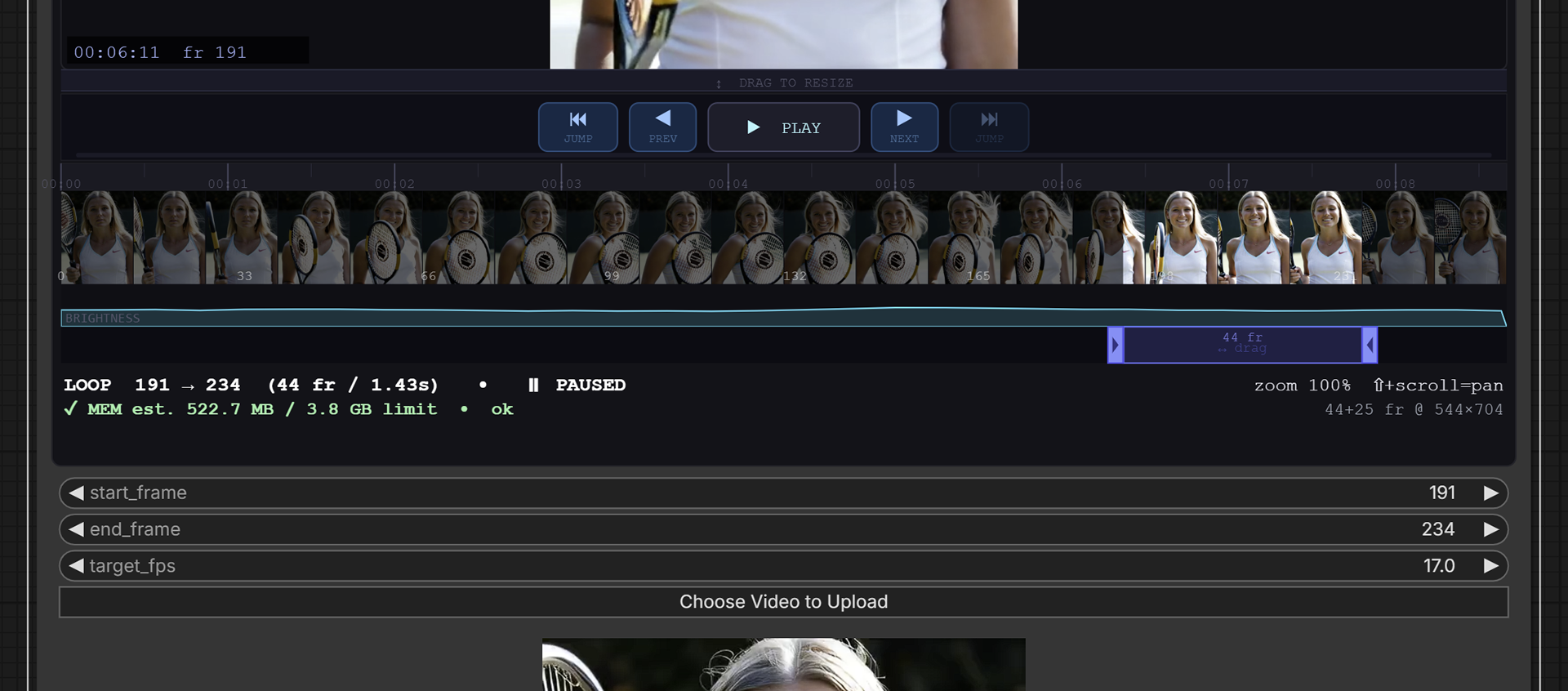

Timeline Controls

| Interaction | Action | | ---------------------- | ----------------------------------------------------- | | Drag loop handle (◀ ▶) | Resize the loop window | | Drag loop body | Slide the window without changing its span | | ▶ / ⏸ button | Play or pause the preview within the loop | | ◀ / ▶ step buttons | Shift the entire loop window one frame | | ⏮ / ⏭ jump buttons | Jump the loop window backward/forward by its own span | | Scroll wheel | Zoom the timeline centred on the cursor | | Shift + scroll | Pan the timeline left / right | | Drag resize bar | Adjust the height of the video preview | | Click collapse toggle | Show / hide the video preview and transport |

---

Node Reference

Inputs

| Name | Type | Description | | ------------- | ----------- | ------------------------------------------------------------------------------- | | video | File picker | MP4, AVI, MOV, MKV, or WebM file — upload via Choose Video to Upload button | | start_frame | INT | Loop region start (auto-set by timeline) | | end_frame | INT | Loop region end (auto-set by timeline) | | num_frames | INT | Auto-computed as end − start + 1; hidden on the node, synced internally | | target_fps | FLOAT | Target frame rate for the Clipped Frames at Target FPS output (default: 24.0) |

Outputs

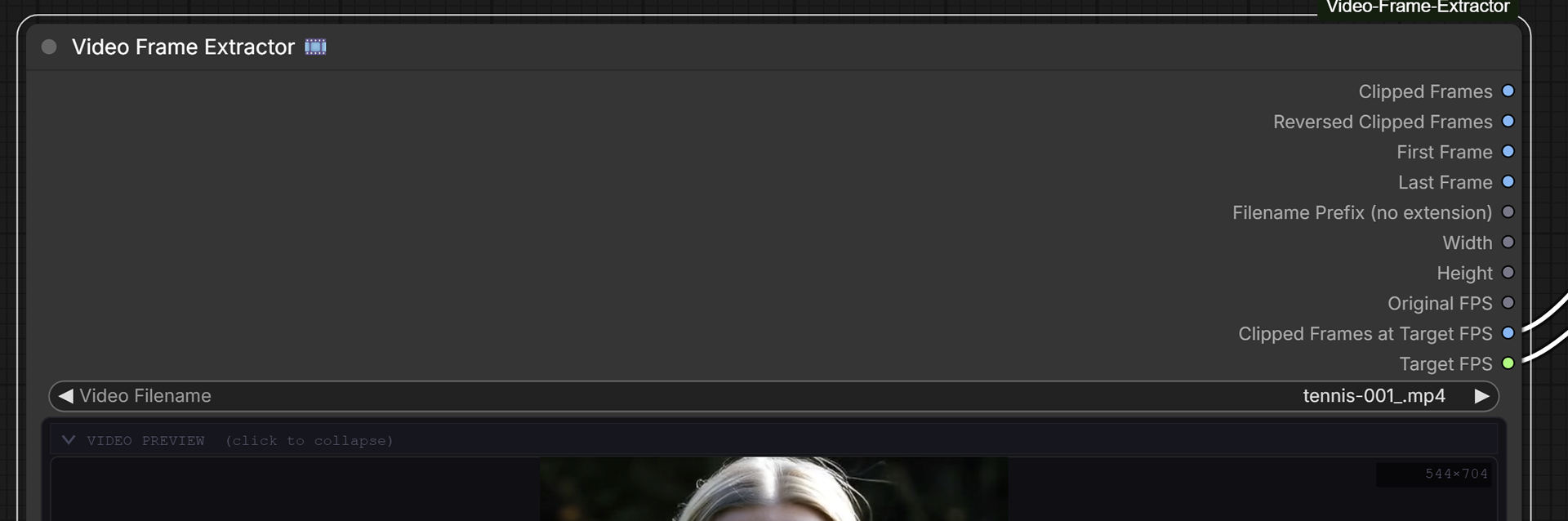

| Pin name | Type | Description | | -------------------------------- | ------ | ---------------------------------------------------------------------------------------------------- | | Clipped Frames | IMAGE | Batch of extracted frames, forward order (N, H, W, 3) | | Reversed Clipped Frames | IMAGE | Same batch in reverse order — useful for ping-pong effects | | First Frame | IMAGE | Single frame at the loop start (1, H, W, 3) | | Last Frame | IMAGE | Single frame at the loop end (1, H, W, 3) | | Filename Prefix (no extension) | STRING | Video filename without extension, e.g. my_clip | | Width | INT | Video width in pixels | | Height | INT | Video height in pixels | | Original FPS | FLOAT | Source frame rate of the video file | | Clipped Frames at Target FPS | IMAGE | Frame batch resampled to target_fps — count computed automatically from clip duration × target FPS | | Target FPS | FLOAT | Passes through the target_fps input value for use downstream |

---

Example Workflows

Basic frame extraction

Video Frame Extractor → VAE Encode → KSampler

Feed a batch of video frames directly into a KSampler for video-to-video workflows.

Ping-pong loop

Video Frame Extractor (frames) ──────────────→ ┐
                                               Batch Concat → Video Combine
Video Frame Extractor (frames_reversed) ──────→ ┘

Concatenate forward and reversed frame batches to create a seamless loop.

Use filename as save prefix

Video Frame Extractor (filename_prefix) → Save Image (filename_prefix input)

Automatically name saved frames after the source video.

---

Supported Formats

| Format | Extension | | ----------- | --------- | | MP4 / H.264 | .mp4 | | AVI | .avi | | QuickTime | .mov | | Matroska | .mkv | | WebM | .webm |

Any format supported by your OpenCV build will also work.

---

Changelog

1.0.0

• Initial release
• DAW-style timeline with filmstrip thumbnails and brightness waveform
• Loop region with drag handles and live video scrubbing
• Resizable / collapsible video preview
• Play / Pause toggle with frame-step buttons
• 8 output pins: frames, frames_reversed, first_frame, last_frame, filename_prefix, width, height, fps
• Zoom and pan on the timeline
• start_frame / end_frame spinners sync bidirectionally with the loop region

1.1.0

• Reduced video file opens from 6 → 2 per execution
• Halved peak memory during frame extraction by pre-allocating output buffer
• first_frame / last_frame now sliced from loaded batch instead of re-read from disk
• Fixed BytesIO buffer in thumbnail endpoint now explicitly closed after use

1.2.0

• Added target_fps input and frames_at_fps output — extracts a frame batch resampled to any target frame rate, independent of num_frames

1.3.0

• Reliable video loading — previous video is now fully stopped, unloaded, and its memory released before a new file begins loading; playing/looping videos no longer block new loads from completing
• Loading progress bar — the preview area shows a live progress bar (Loading video… N%) while the video buffers, an animated shimmer for indeterminate states (metadata fetch), and detailed status lines (elapsed time, buffered/total seconds, HTML5 readyState)
• Load health indicators — stalled downloads turn the bar amber with a "Stalled at N%" label; network errors, decode failures, and unsupported formats surface a red error overlay with the specific error reason; a 30-second watchdog flags videos that never become playable
• Memory estimation & safety guard — the info bar now shows a live peak-memory estimate (✓ MEM est. X GB / Y GB limit) that turns amber above 75% and red at the limit; the backend independently blocks execution with a clear RuntimeError before allocation to prevent ComfyUI from freezing on oversized clips. The limit adapts to 75 % of available system RAM when psutil is installed, falling back to 8 GB otherwise
• Single-output execution fix — the node is now marked OUTPUT_NODE = True, so workflows that only connect one pin (e.g. just Clipped Frames at Target FPS) no longer fail with "Prompt has no outputs"
• Jump buttons — ⏮ JUMP BACK and ⏭ JUMP FWD added to the transport bar; each press shifts the loop window by its own span so you can step through non-overlapping clips; buttons dim and disable when no full jump fits in that direction
• Dynamic filmstrip height — the filmstrip now scales its height based on the actual video aspect ratio so portrait footage is no longer squished; thumbnails also use the real aspect ratio instead of assuming 16:9
• Improved info bar — loop summary text is now larger (bold 13 px), white, and easier to read at a glance; a second row shows the memory estimate and the N+M fr @ WxH frame breakdown
• Cleaner output labels — all 10 output pins renamed to plain English: Clipped Frames, Reversed Clipped Frames, First Frame, Last Frame, Filename Prefix (no extension), Width, Height, Original FPS, Clipped Frames at Target FPS, Target FPS
• Target FPS output — added a 10th output pin that passes through the target_fps input value for use downstream
• Upload button label — renamed from "choose file to upload" to "Choose Video to Upload"
• Hidden num_frames widget — the auto-computed num_frames field is no longer shown on the node; its value is still synced internally so the backend receives the correct frame count

---

License

MIT © 2026
