ComfyUI-WanMoEScheduler

A ComfyUI scheduler that automatically finds the optimal shift value to align your high and low sampling steps with a target sigma boundary. This eliminates the guesswork and manual calculations, and allows for precise control of the transition step.

Core Sampling Concepts Explained

What are Sigmas?

Sigmas (σ) represent the level of noise in the image during the diffusion process. A high sigma value means there is a lot of noise (early in the sampling process), while a low sigma value means there is little noise (late in the sampling process). A scheduler generates a sequence of sigma values to guide the model from a noisy state to a clean image.

What is a Boundary?

The boundary is a specific sigma value that acts as a threshold between the high-noise and low-noise stages of your workflow. It determines where the initial high-noise stage ends and the low-noise stage begins.

For example:

• A boundary of 0.875 means that any sampling step with a sigma value greater than or equal to 0.875 is considered part of the "high-noise" stage. Steps with a sigma less than 0.875 are in the "low-noise" stage.
• WAN models, for instance, typically use a boundary of 0.90 for Image-to-Video (I2V) tasks and 0.875 for Text-to-Video (T2V) tasks.

The Shift Problem

Many schedulers include a shift parameter that pushes the entire sigma distribution higher or lower. Finding the correct shift value is crucial for aligning the boundary with your desired number of steps:

• Too low: The boundary may fall in the wrong place, giving you an incorrect number of high or low steps.
• Too high: You might waste steps or experience a drop in quality.
• Manual calculation: Finding the right shift value often requires complex math or tedious trial and error.

This node solves the shift problem by automating the calculations.

Features

• Automatic Shift Calculation: Automatically finds the optimal shift value to hit your target sigma boundary.
• Flexible Step Control: Use any combination of high and low steps without worrying about manual calculations.
• Multi-Stage Outputs: Provides separate sigma sequences for high-noise and low-noise sampling stages.
• Broad Sampler Compatibility: Works with most ComfyUI samplers.
• Smart Scheduler Filtering: Automatically excludes schedulers where the shift parameter has a minimal or no effect.
• Denoise Support: Fully compatible with partial denoising workflows.

Installation

Via ComfyUI Manager (Recommended)

1. Open ComfyUI Manager.
2. Search for "ComfyUI-WanMoEScheduler".
3. Click Install.

Manual Installation

1. Navigate to your ComfyUI custom_nodes directory:

   cd ComfyUI/custom_nodes


2. Clone this repository:

   git clone https://github.com/cmeka/ComfyUI-WanMoEScheduler.git


3. Restart ComfyUI.

Usage

Key Benefits

The WanMoEScheduler node simplifies experimenting with different step counts, allowing you to balance speed and quality effortlessly:

• Speed vs. Quality: Quickly test configurations like 4 high steps for speed and 10 low steps for quality.
• Experiment Freely: Try any combination of steps (e.g., 4+4, 2+10, 8+6) without needing to recalculate the shift value.
• Automatic Optimization: The node handles the complex calculations to find the perfect shift for your setup.

Node Overview

The WanMoEScheduler provides advanced sigma calculation for two-stage sampling workflows.

Input Parameters

• model: The model used for sigma calculations.
• scheduler: The sampling scheduler to use (the list is filtered to show only compatible schedulers).
• steps_high: The desired number of steps for the high-noise sampling stage (default: 4).
• steps_low: The desired number of steps for the low-noise sampling stage (default: 4).
• denoise: The amount of noise to remove, from 0.0 (no change) to 1.0 (full denoise) (default: 1.0).
• boundary: The target sigma value to separate the high and low stages (default: 0.875).
• interval: The step size for the shift search algorithm. A smaller value is more precise but slower (default: 0.01).

Output Parameters

• shift: The calculated optimal shift value.
• sigmas: The complete sigma sequence for all steps.
• sigmas_high: The sigma sequence for the high-noise steps.
• sigmas_low: The sigma sequence for the low-noise steps.
• steps_total: The total number of sampling steps (steps_high + steps_low).
• steps_high: The number of high-noise steps (passthrough).
• steps_low: The number of low-noise steps (passthrough).

Recommended Settings

For WAN Models

• Image-to-Video (I2V): boundary of 0.90 to 0.93.
• Text-to-Video (T2V): boundary of 0.875.

General Tips

• Use interval: 0.01 for high precision (slightly slower) or 0.1 for faster calculations (less precise).
• If using speed-enhancing LoRAs, you may need to lower their strength when increasing the number of steps_low.
• The default boundary of 0.875 is a good starting point for many general workflows.

Workflow Integration

There are two primary ways to use this node's outputs: by feeding the sigmas directly into a custom sampler or by using the shift and steps with advanced KSamplers.

Method 1: Using sigmas (for Custom Samplers)

1. Connect your model to the WanMoEScheduler node.
2. Route the sigmas_high output to your first sampler (high-noise pass).
3. Route the sigmas_low output to your second sampler (low-noise pass).
4. Apply any stage-specific conditioning or LoRAs as needed.

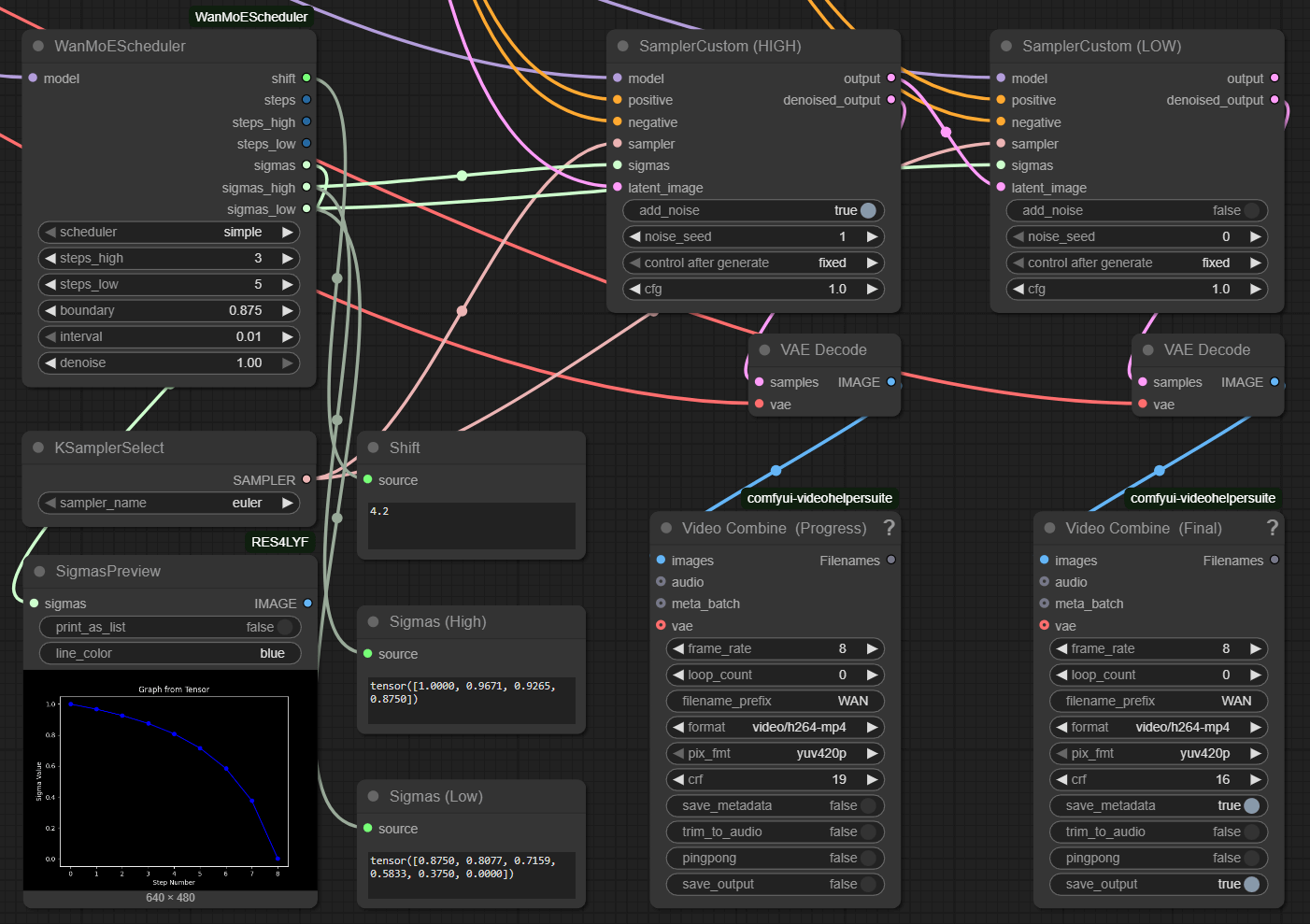

Method 1 Example (ComfyUI Core)

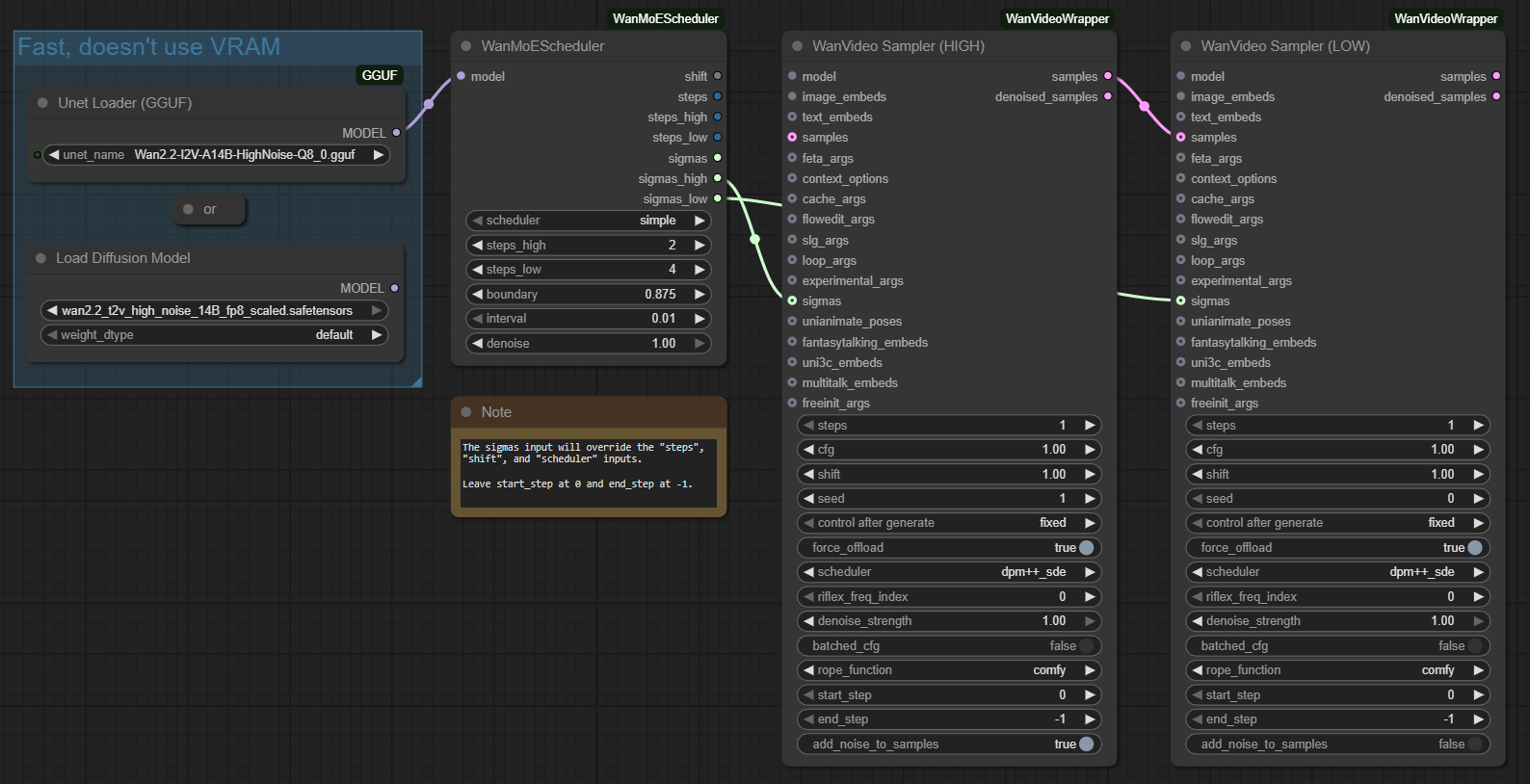

Method 1 Example (WanVideoWrapper)

For More Than Two Stages

You can further divide the sampling process. For example, to split the high-noise stage:

1. Follow the steps above.
2. Connect the sigmas_high output to a SplitSigmas node.
3. Set the step parameter on the SplitSigmas node to your desired split point. This will give you two separate sigma sequences from the original high-noise portion.

Method 2: Using shift and steps (with Advanced KSamplers)

This method is common for standard two-pass workflows.

1. Connect your model to the WanMoEScheduler node.
2. Connect the shift output to the ModelSamplingSD3 nodes (high and low)
3. In your first KSampler (Advanced) node (for the high-noise stage):
   • Connect steps_total to the steps input.
   • Connect steps_high to the end_at_step input.
4. In your second KSampler (Advanced) node (for the low-noise stage):
   • Connect steps_total to the steps input.
   • Connect steps_high to the start_at_step input.
5. Important: Ensure the scheduler selected in WanMoEScheduler is the same one selected in your KSampler (Advanced) nodes.

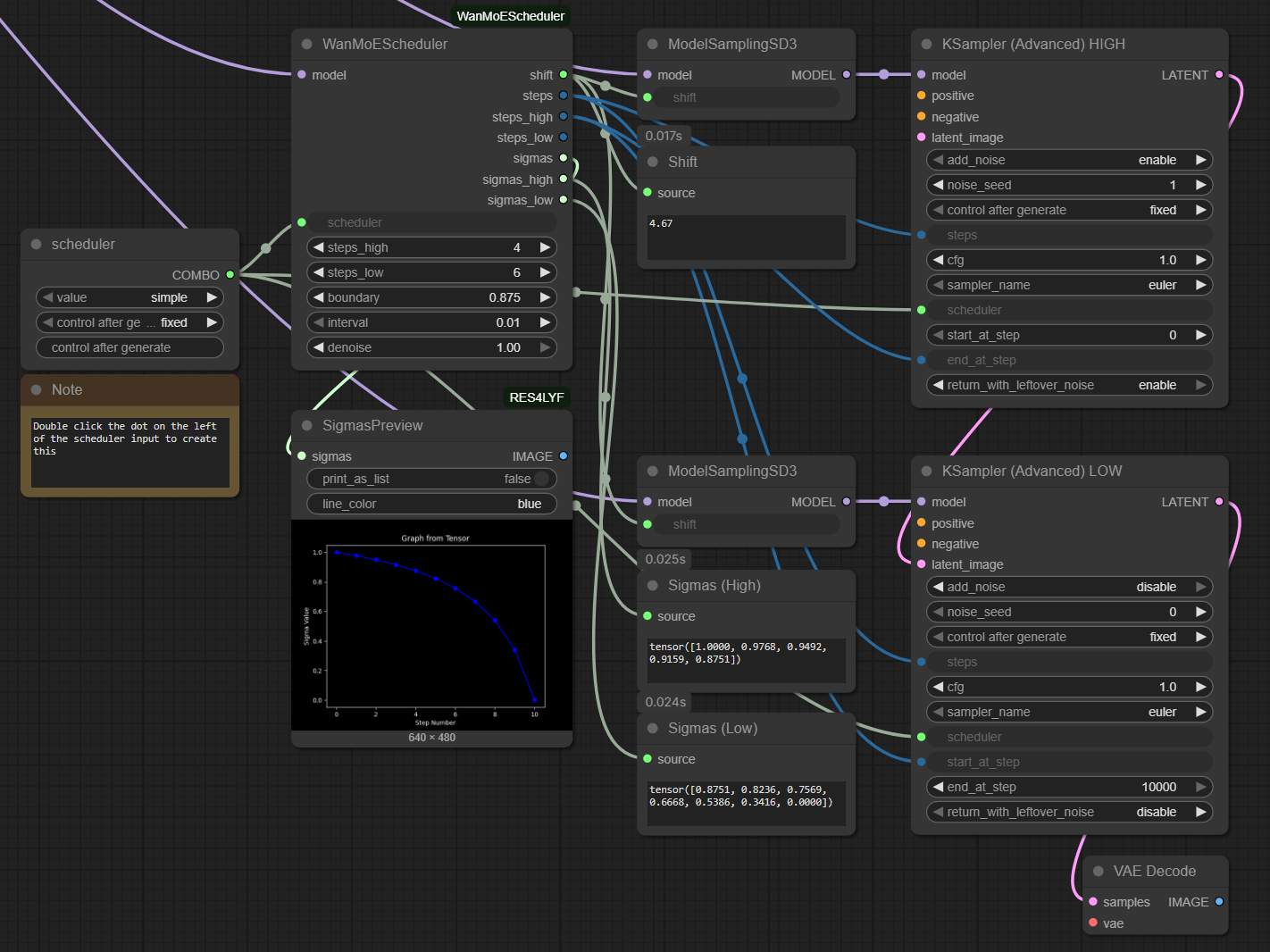

Method 2 Example (ComfyUI Core)

For More Than Two Stages

1. Follow the steps above.
2. Connect steps_high to end_at_step of the 2nd stage high noise KSampler (Advanced) node.

Technical Details

Supported Schedulers

The node automatically filters the scheduler list to include only those that are significantly affected by the shift parameter.

• Excluded: karras, exponential, linear_quadratic, kl_optimal, bong_tangent
• Included: All other standard ComfyUI schedulers.

Performance

• Search Time: The time it takes to find the optimal shift is proportional to the interval value. A smaller interval is more precise but takes longer.

Troubleshooting

"Could not find shift" Error

• Decrease the interval: A smaller interval may help find a valid shift value if the search space is narrow.
• Check the boundary: Your target boundary might be too high or low to be achievable with the given step counts. Try a value in the 0.875 to 0.93 range.
• Verify Model Compatibility: Ensure the selected model and scheduler work together as expected.

Poor Quality Results

• Adjust boundary: Experiment with different boundary values. The optimal value can depend on the model and desired outcome.
• Change Step Ratios: Try different combinations of steps_high and steps_low.
• Tune LoRA Strength: If using speed LoRAs, their strength may need to be adjusted to match the number of steps in each stage.
