Color Gel Pixel

Minimal, typed ComfyUI nodes to apply color gels from JSON palettes. Package (registry/manager) name: Color_Gel_Pixel

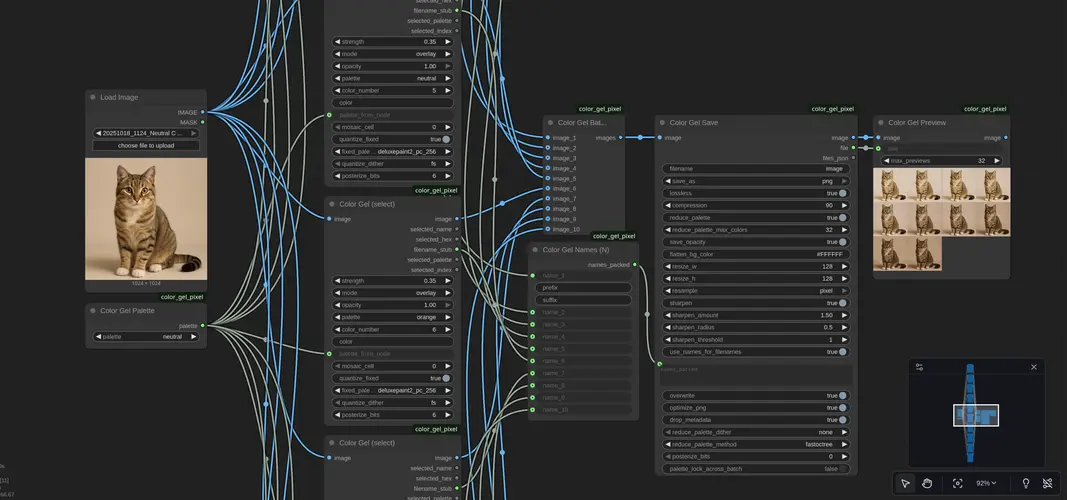

Preview

Changelog

• See CHANGELOG.md for release notes.

Example workflow

• See docs/workflow_color_gel_pixel.json for a ready-to-run example wiring:
  • Load two images → Color Gel (select) per image → Color Gel Batch (N) → Color Gel Save → Color Gel Preview
  • Color Gel Names (N) packs names to save files directly from node outputs
  • Uses the new generic palettes (e.g., neutral, blue, ...)

Highlights:

• Preloaded palettes (no I/O during node execution)
• Streamlined nodes: "Color Gel (select)", "Color Gel Save", "Color Gel Preview"
• Batch support: combine up to 10 images via "Color Gel Batch (N)" and name files with "Color Gel Names (N)"
• Utilities: central palette switch via "Color Gel Palette"; batch concat via "Color Gel Batch Flatten".

Usage:

• Place this folder under ComfyUI/custom_nodes/.
• In your graph, use:
  • Color Gel (select): choose palette and color_number (1-based). Optional opacity [0..1] to add/scale alpha for transparency.
  • Color Gel Palette: pick a palette once and wire its palette → Color Gel (select).palette_from_node for global switching.
  • Color Gel Save: save to PNG/WebP with options: resize, opacity flatten, background color, palette reduction, quality/compression.
  • Color Gel Preview: connect any IMAGE to show a dedicated preview window (OUTPUT node).

Menu categories:

• Nodes appear under Color Gel Pixel/Core, Color Gel Pixel/Batch, and Color Gel Pixel/Utils.

Detailed docs for every node and option: see docs/USAGE.md

Palettes:

• JSON files under comfy_plugin/palettes/ (name becomes palette id)
• Supports { "Name": "#RRGGBB", ... } or list of objects with name + hex/rgb.

License: MIT
