ComfyUI Extension: ComfyUI-PoseDirection

Authored by alessandrozonta

Created

Updated

0 stars

This custom node for ComfyUI analyzes OpenPose keypoints to determine if a person in an image is facing forward, showing their left side, or their right side.

Custom Nodes (0)

    README

    OpenPose - Get Direction Node

    This custom node for ComfyUI analyzes OpenPose keypoints to determine if a person in an image is facing forward, showing their left side, or their right side.

    Features

    • Robust direction detection using body (shoulders, nose) and face keypoints (if available)
    • Returns both a string ("forward", "left", "right") and an integer code (0 for forward, 1 for left, 2 for right)
    • Designed for use with OpenPose COCO-format keypoints (e.g., dw-ll_ucoco_384.onnx)

    How It Works

    • The node examines the position of the nose relative to the shoulders and, if available, the symmetry of face keypoints (eyes and mouth corners).
    • If the nose is centered between the shoulders and the face is symmetric, the person is considered to be facing forward.
    • If the nose is offset to one side and the face is not symmetric, the node determines if the person is showing their left or right side.

    Output

    • direction (string): One of "forward", "left", or "right"
    • direction_code (int):
      • 0 = forward
      • 1 = left
      • 2 = right

    Example Results

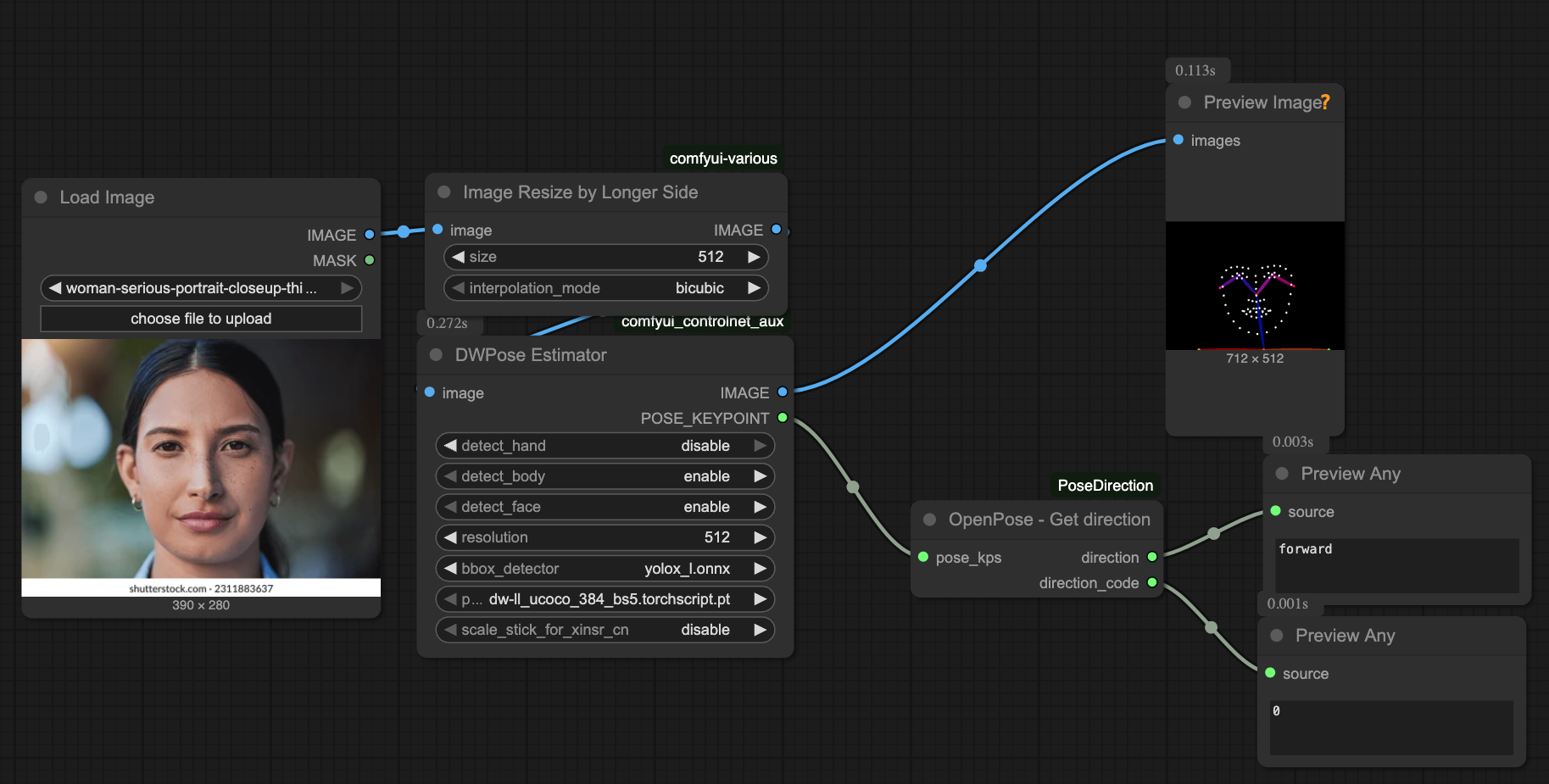

    Forward

    forward

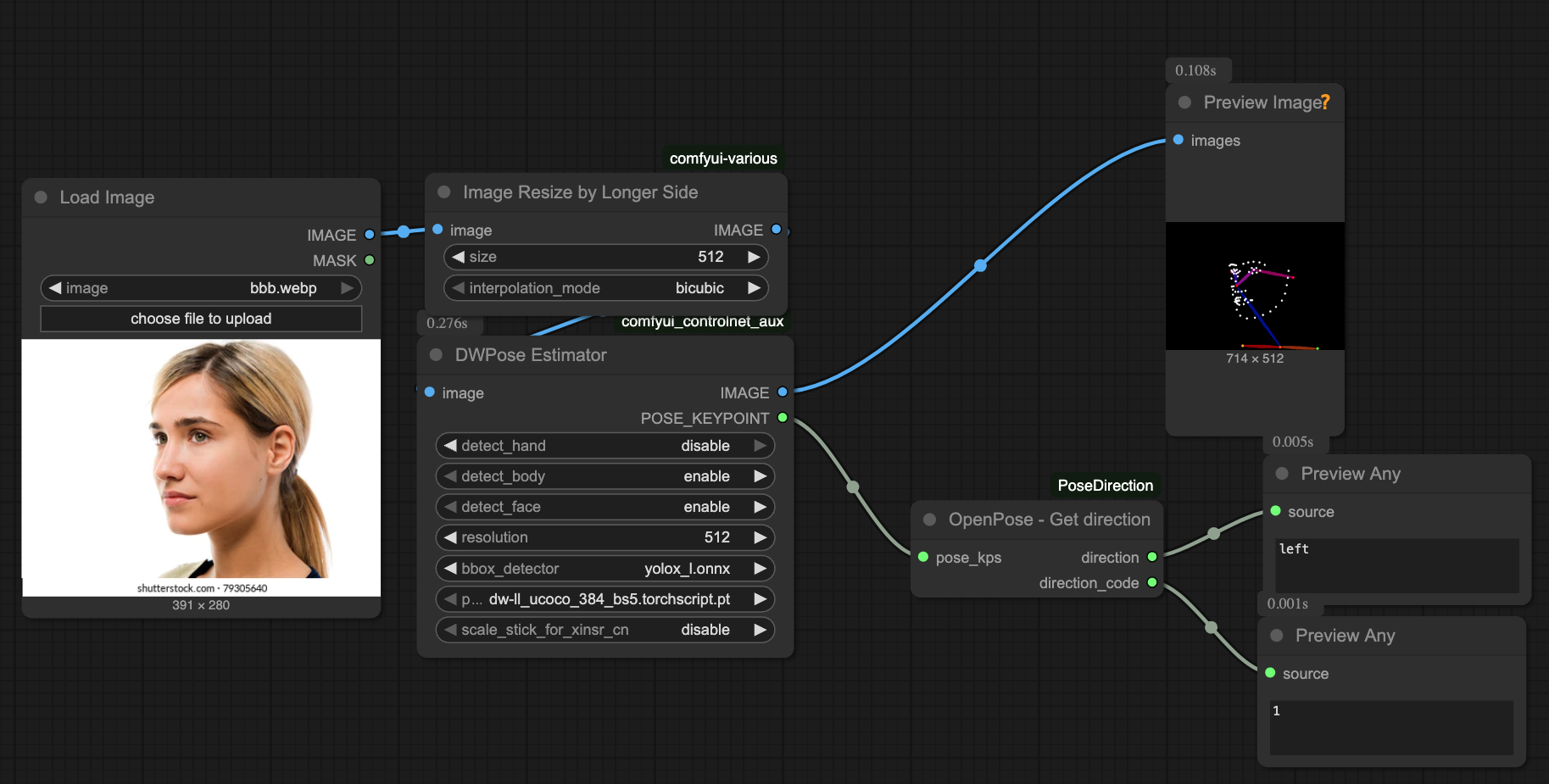

    Left

    left

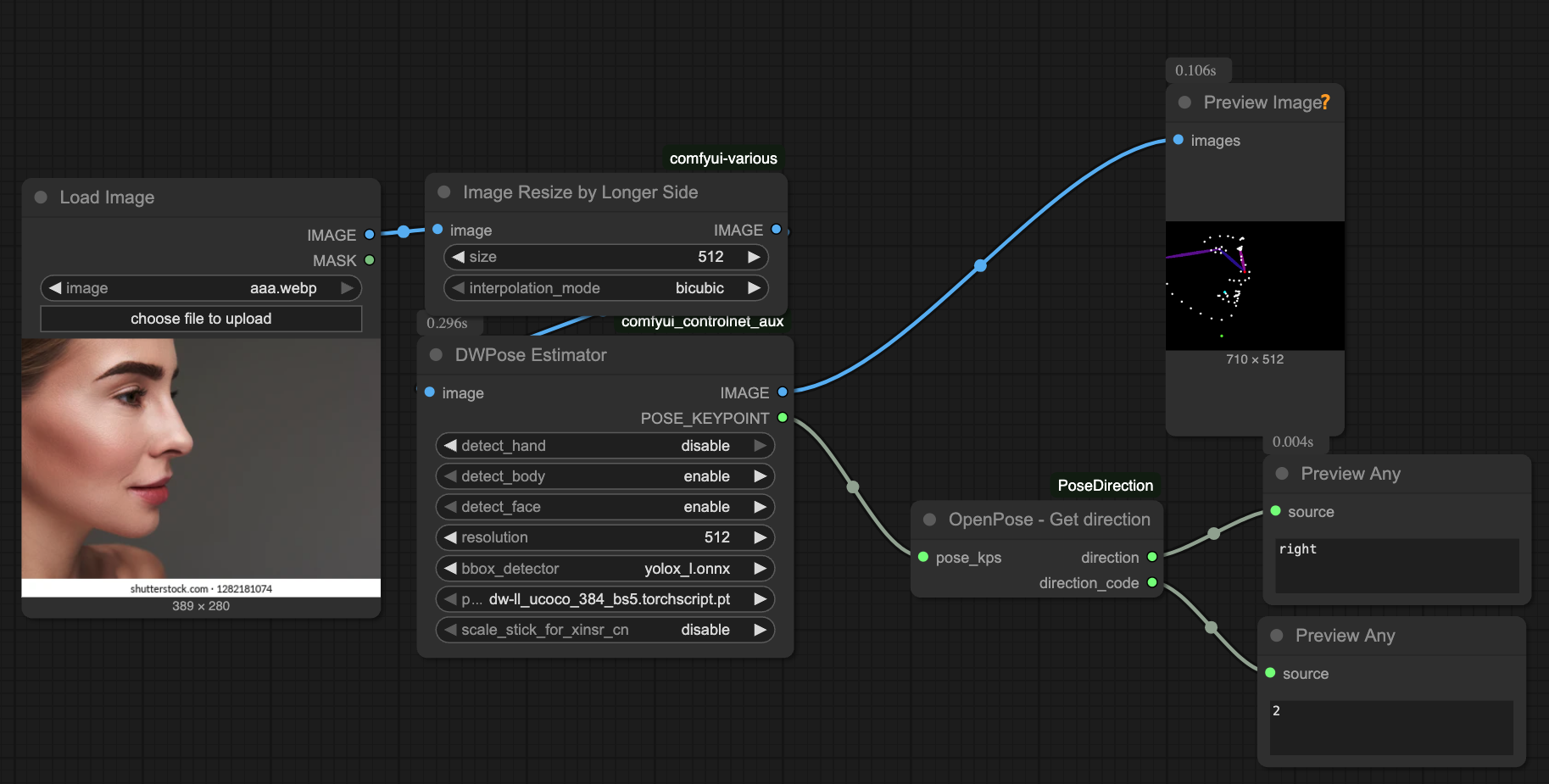

    Right

    right

    Usage

    1. Add the node to your ComfyUI workflow.
    2. Connect the output of your OpenPose node (with COCO-format keypoints) to the pose_kps input of this node.
    3. The node will output the direction as both a string and an integer code.

    Test Workflow

    A sample workflow is provided to test the node:

    You can load this workflow in ComfyUI to see the node in action with example images and keypoints.


    Author: Alessandro Zonta
