ComfyUI_AP_OpticalFlow

AP_OpticalFlow

AP_OpticalFlow is a RAFT-based optical flow node pack for ComfyUI focused on real workflow stability: correct input/output contracts, batch-safe behavior, and loop/index support.

Motivation

I got tired of incomplete optical flow packages that did not support correct configurations or reliable inputs/outputs in real ComfyUI graphs.

This pack exists to make optical-flow workflows practical for production-style use: temporal consistency, masked warping, index-driven loops, and clean handoff between nodes.

Recent Changes

• Added full index-aware loop support through current_frame_index on flow-application nodes.
• Added flow_skip and frames_skip controls to handle offset starts and delayed flow activation.
• Added explicit batch alignment modes for flow application:
  • auto
  • by_index
  • repeat_image
• Added AP Indexer (APIndexer) for persistent frame indexing in iterative pipelines.
• Added AP Select Flow By Index (APSelectFlowByIndex) to pick the correct flow entry for a frame.
• Added flow persistence nodes:
  • AP Save Optical Flow (APSaveOpticalFlow)
  • AP Load Optical Flow (APLoadOpticalFlow)
• Added frame-wise recursive loop nodes for image and latent pipelines:
  • AP Loop Open / AP Loop Close
  • AP Loop Open (Latent) / AP Loop Close (Latent)
• Added temporal-consistency blend nodes:
  • AP Temporal Blend Images
  • AP Temporal Blend Latents
• Added lockstep additional_data iteration support to image/latent loop nodes, allowing any parallel payload (for example LATENT with IMAGE loop).
• Added inpaint rectangle workflow nodes with batch support:
  • AP ImageMask InpaintCrop (AP_ImageMaskInpaintCrop)
  • AP ImageMask Stitch (AP_ImageMaskStitch)
• Added AP_STITCH metadata handoff type for reliable crop->inpaint->stitch roundtrips.
• Improved file path handling for load/save with output/input/current-dir resolution.
• Improved runtime robustness for some CUDA/cuDNN setups by retrying RAFT inference in float32 with cuDNN disabled when needed.

Included Nodes

• AP Get RAFT Optical Flow (APGetRAFTOpticalFlow)
• AP Apply RAFT Optical Flow (APApplyRAFTOpticalFlow)
• AP Flow Occlusion Mask (APFlowOcclusionMask)
• AP Apply RAFT Optical Flow (Masked) (APApplyRAFTOpticalFlowMasked)
• AP Apply RAFT Optical Flow (Latent) (APApplyRAFTOpticalFlowLatent)
• AP Apply RAFT Optical Flow (Latent, Masked) (APApplyRAFTOpticalFlowLatentMasked)
• AP Warp Image + Mask by RAFT Flow (APWarpImageAndMaskByRAFTFlow)
• AP Flow Composite (APFlowComposite)
• AP Warp Masked Composite Blend (Occlusion) (APWarpMaskedCompositeOcclusion)
• AP Loop Open (APImageLoopOpen)
• AP Loop Close (APImageLoopClose)
• AP Loop Open (Latent) (APLatentLoopOpen)
• AP Loop Close (Latent) (APLatentLoopClose)
• AP Temporal Blend Images (APTemporalBlendImages)
• AP Temporal Blend Latents (APTemporalBlendLatents)
• AP Indexer (APIndexer)
• AP Select Flow By Index (APSelectFlowByIndex)
• AP Save Optical Flow (APSaveOpticalFlow)
• AP Load Optical Flow (APLoadOpticalFlow)
• AP Image Mask Inpaint Crop (AP_ImageMaskInpaintCrop)
• AP Image Mask Stitch (AP_ImageMaskStitch)

Install

1. Put this folder in ComfyUI custom nodes (or symlink it) at:

custom_nodes/AP_OpticalFlow

2. Install dependencies in your ComfyUI environment:

python -m pip install -r custom_nodes/AP_OpticalFlow/requirements.txt

3. Restart ComfyUI.

Quick Workflows

A) Temporal warp and blend

1. APGetRAFTOpticalFlow with frame A and frame B.
2. AP Warp Masked Composite Blend (Occlusion) for one-step masked warp + occlusion + composite.
3. Set blend_images = true to output blended image, or false to return masked-warp output directly.

Manual chain equivalent (for advanced control / debugging):

1. APFlowOcclusionMask from flow_data.
2. APApplyRAFTOpticalFlowMasked (or APApplyRAFTOpticalFlow) to warp with flow.
3. APFlowComposite to blend warped result back using valid/occlusion masks.

Professional anti-blur compositing (recommended):

• Connect warped_mask output from APApplyRAFTOpticalFlowMasked to APFlowComposite.effect_mask.
• Set alpha_mode = flow_confidence_x_mask.
• Enable use_difference_gate = true with a low difference_threshold (for example 0.005 - 0.02).
• This prevents blending untouched background/non-masked areas and keeps changes focused on actually warped regions.

B) Loop/index pipeline

1. APIndexer to produce current_frame_index.
2. Feed current_frame_index into flow nodes that support it.
3. Use flow_skip and frames_skip to align flow timing with your loop start.
4. Optionally use APSelectFlowByIndex for explicit flow slicing.

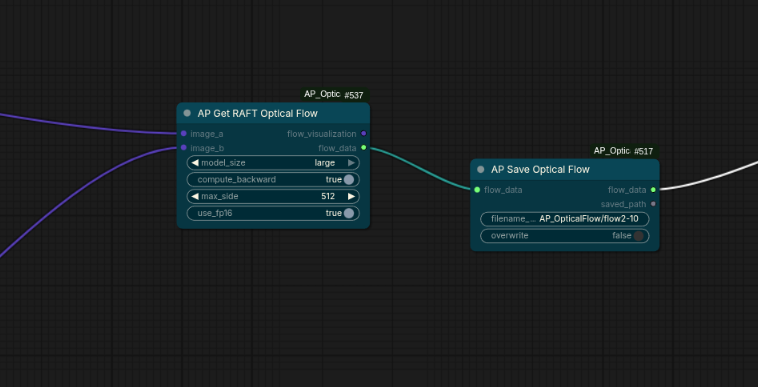

B.1) Save/Load flow cache

1. Use AP Save Optical Flow to write flow_data to .pt in your Comfy output path.

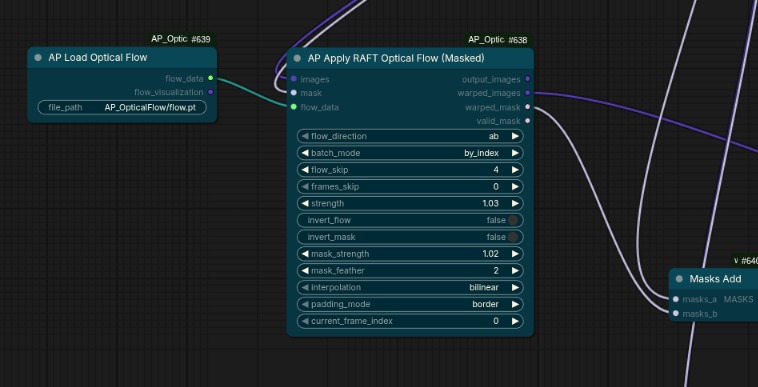

2. Reuse it later with AP Load Optical Flow to skip recomputing flow.

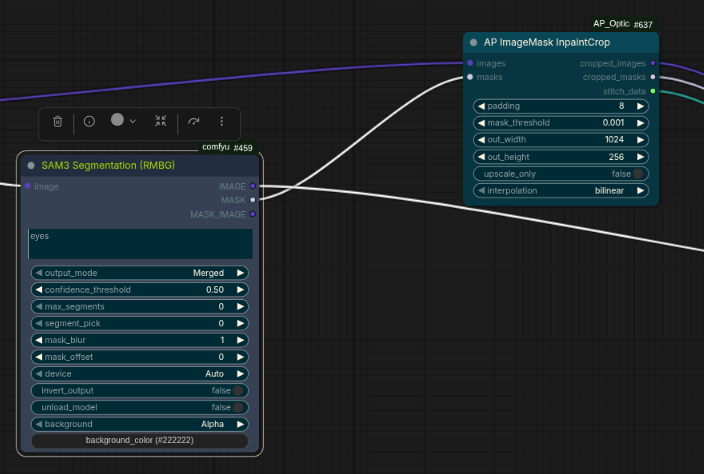

C) Inpaint crop/stitch pipeline

1. AP Image Mask Inpaint Crop to extract padded crop + crop mask + AP_STITCH data.
2. Run your inpaint model on the cropped image/mask.
3. AP Image Mask Stitch to place the inpainted crop back into the original frame.

D) Latent warp pipeline (with optional masking)

1. Build flow with APGetRAFTOpticalFlow from neighboring frames.
2. Warp latent directly with AP Apply RAFT Optical Flow (Latent).
3. For region-limited latent warping, use AP Apply RAFT Optical Flow (Latent, Masked) and provide your mask.
4. Use flow_skip / frames_skip / current_frame_index exactly like image-flow nodes for loop pipelines.

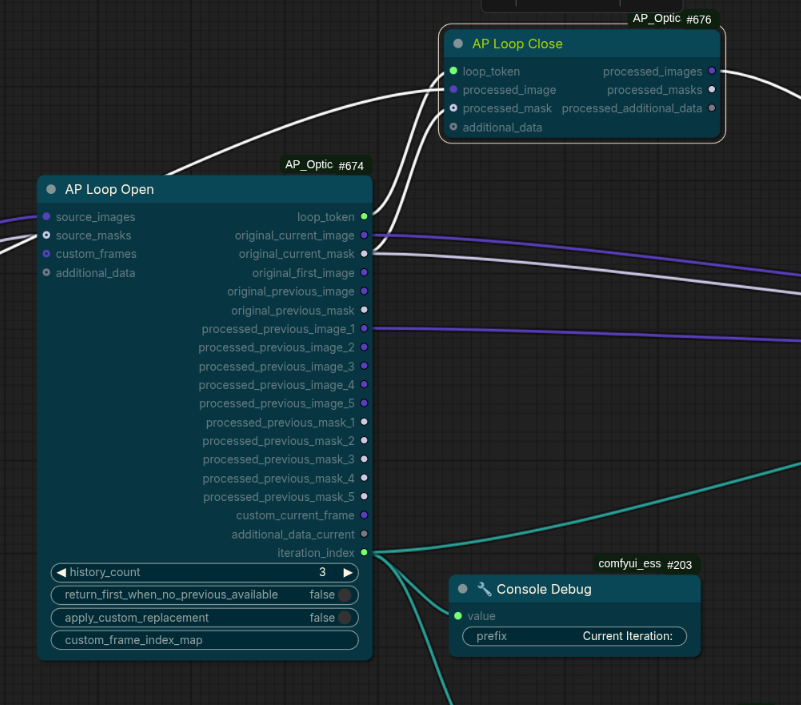

E) Recursive loop pipeline (images and latents)

AP Loop Open / AP Loop Close are made for frame-by-frame processing with feedback:

AP Loop Open outputs:

• current_image / current_mask
• first_image
• previous_image / previous_mask (unprocessed source timeline)
• previous_processed_image_1 .. previous_processed_image_5 and matching masks (history depth controlled by history_count)
• current_custom_frames (optional index-mapped custom sources for current iteration, can contain multiple matches)
• current_additional_data (optional wildcard payload iterated at the same index)
• iteration_index (current loop index for this iteration)

Loop Open fallback option:

• return_first_when_no_previous_available=true makes missing previous slots (previous_image / previous_mask and previous_processed_*) return the first frame (or first latent/mask in latent mode) instead of zeros.

AP Loop Close takes your processed result and feeds it into the next iteration automatically. AP Loop Close now reads iteration/history state from loop_token, so you do not need explicit iteration_index / iteration_count / history_count wiring between open and close. In the simplified API, AP Loop Close requires only loop_token plus your processed frame/latent (and optional mask/additional payload). It can also collect additional_data through the loop and output processed_additional_data at the end.

Custom frame replacement:

• Connect optional custom_frames and set custom_frame_index_map (comma-separated, e.g. 0,12,48).
• current_custom_frames output provides all mapped replacement frames for the current index.
• Enable apply_custom_replacement=true to force current_image to use this replacement.

Latents use the same pattern:

• AP Loop Open (Latent) / AP Loop Close (Latent)
• same iteration behavior
• same up-to-5 processed history concept
• same token-driven state model (loop_token carries iteration and history metadata)
• avoids repeated VAE encode/decode in iterative latent workflows

additional_data usage (both image and latent loops):

• Connect any type to additional_data on Loop Open.
• Loop Open emits current_additional_data aligned with the current internal loop index.
• Connect your per-iteration processed payload back to Loop Close additional_data.
• Final Loop Close output includes processed_additional_data aggregated over all iterations.
• Practical example: image loop + parallel latent loop payload in one recursion.

F) Temporal consistency blend nodes

AP Temporal Blend Images and AP Temporal Blend Latents accept up to 5 inputs and blend with temporal-robust modes:

• weighted_mean: stable baseline, fastest
• similarity_weighted: per-pixel/feature weighting against current frame; best default for flicker reduction
• median: strong outlier suppression (good for sporadic artifacts)
• trimmed_mean: robust against outliers while preserving smoother gradients than median
• robust_huber: adaptive robust weighting; helps in unstable inpaint regions

Mask-aware blending:

• Optional mask limits temporal blend to masked regions only.
• Outside mask, output stays at current frame/latent.

Recommended temporal-inpaint setup:

1. Use loop nodes to process one frame at a time.
2. Keep previous_processed_image_1..N (or latent equivalent) connected as blend history inputs.
3. Start with blend_mode=similarity_weighted and recency_decay=0.25 - 0.45.
4. Use mask-limited blending to prevent background drift.
5. Increase detail_preservation when blend becomes too soft.

G) Examples and tests

• Example workflows and dedicated test workflows are currently in progress.
• Existing screenshots in examples/ show core usage patterns, and JSON test graphs will be expanded next.

Recommended Settings

For better quality (faces/eyes):

• model_size: large
• compute_backward: true
• max_side: 1536 (or 2048 if VRAM allows)
• use_fp16: false for best precision, true for speed

For low VRAM / memory stability:

• model_residency: unload_after_use (prevents persistent VRAM allocation)
• compute_mode: sequential (processes batch one frame-pair at a time)
• compute_device: cpu (slowest, but minimizes GPU pressure)
• clear_cached_models_first: true if you suspect old cached models are still resident

For RAM/storage offloading of flow data:

• flow_offload: cpu_ram keeps flow tensors in system RAM (default)
• flow_offload: disk_storage writes flow tensors to .pt and passes a lightweight AP_FLOW handle
• disk_filename_prefix: choose output subpath/name for auto-saved flow files

For masked warping:

• strength: 0.6 - 1.0
• mask_feather: 3 - 8
• mask_strength: 0.8 - 1.0

For stitch blending:

• blend_with_mask: true
• feather: start low and increase only when seam is visible

Notes

• Flow direction matters: if motion looks reversed, switch ab/ba or toggle invert_flow.
• Occlusion handling is important for reducing ghosting and stretching.
• In auto batch mode, index-based behavior is preferred when current_frame_index is connected.
• For fast motion or heavy blur, flow quality can still degrade.
• If you had VRAM stuck from older runs, run one flow pass with model_residency=unload_after_use and clear_cached_models_first=true.

Known Limitations

• Depends on torchvision RAFT availability and compatible Torch/Torchvision versions.
• Very large inputs can be slow and VRAM-heavy.
• Not a replacement for full multi-shot tracking systems in extreme scenes.

License

This project is open source under the MIT License. See LICENSE.
