2.0.0 runs on Tripo API v3 and requires tripo3d>=1.0.0,<2.0.0. The v2 API is shut down on 2026-10-31, so 1.x of this extension (and tripo3d 0.x) stop working then. Update the extension and run pip install -r requirements.txt (ComfyUI-Manager does this for you). Saved workflows keep working: no node or input was renamed or removed. Refine and Stylize are no longer supported by Tripo: the nodes are kept as deprecated (hidden from search) so saved workflows still open, but running them stops with an explanation — remove them from the workflow. See CHANGELOG.md.

ChangeLog

20261015: 2.0.0 — migrate to Tripo API v3 (requires tripo3d>=1.0.0,<2.0.0); add Tripo: Smart UV node; Rig v2.5 / v3.0 and more skeleton specs; texture v3.5 (fast, delight); smart low poly v3.0 with Smart UV; mesh completion mode; deprecate Refine and Stylize (no longer supported by Tripo; the nodes stop with an explanation)
20260630: support Mesh Segmentation v2.0; support model_url for direct URL import
20260528: add import model
20250619: update to the newest api; add more nodes
20250331: use tripo3d package
20250224: remove glbviewer
20250201: adapt for new api; use preview3D for viewing models
20241111: adapt for new api
20241014: support convert
20240913: support model_version v2.0-20240919

Features

Generate 3D models from text prompts
Generate 3D models from images
Import models from URL (model_url)
Mesh Segmentation (v1 and v2.0) and mesh completion
Smart low poly (v2.0 / v3.0) and Smart UV
Animate 3D models
Convert format and retopologize

Refine and Stylize are no longer supported by Tripo. Their nodes are deprecated: hidden from the node search, still loadable in saved workflows, and they stop with an explanation instead of calling the API.

Smart UV

Tripo: Smart UV unwraps a model's UVs and outputs the model file, MODEL_INFO and the UV atlas as an IMAGE. The input must have at most 80,000 equivalent triangles (a quad counts as two); a freshly generated model is usually much larger, so connect it after Tripo: Smart low poly: Generate model → Smart low poly → Smart UV → Preview 3D / Preview Image.

Rigging notes

Measured on the Tripo API (2026-10-15). New Rig nodes default to v3.0-20260909.

| Rig version | Skeleton types it can rig | Humanoid presets | serpentine / aquatic presets | quadruped / hexapod / octopod presets | | --- | --- | --- | --- | --- | | v3.0-20260909 | all | ✓ | ✓ | ✗ | | v2.5-20260210 (and v2.0-20250506) | all | ✗ | ✓ | ✓ | | v1.0-20240301 | biped only | ✓ | — | — |

unity, unreal and vrm specs need v2.5-20260210 or v3.0-20260909. The Rig and Retarget nodes stop with an explanation, before sending anything, when a combination in the table is known to fail.

Installation

[method1] From Source

Clone or download this repository into your ComfyUI/custom_nodes/ directory.
Install the required dependencies by running pip install -r requirements.txt (installs tripo3d>=1.0.0,<2.0.0).
If ComfyUI prints ComfyUI-Tripo needs tripo3d>=1.0.0,<2.0.0, run that pip install command in the Python environment ComfyUI uses.

[method2] From ComfyUI-Manager

If you have ComfyUI-Manager, you can simply search "Tripo for ComfyUI" from Custom Nodes Manager and install these custom nodes

[method3] From Comfy Register using comfy-cli

If you have a comfy-cli, you can simply execute comfy node registry-install comfyui-tripo in command line.

Usage

How to get a key

Generate an api key from Tripo
Set your key by:
- [Method1] Set your Tripo API key as an environment variable named TRIPO_API_KEY in your env variables.
  - Windows
```
set TRIPO_API_KEY=tsk_XXXXXXX
python.exe main.py [--cpu]
```
  - Linux/Mac
```
TRIPO_API_KEY=tsk_XXXXXXX python main.py [--cpu]
```
- [Method2] Set your Tripo API key in node input field.
- [Method3] Set your Tripo API key in config.json.

Usually it will take 10~15s to generate a draft model.

How to use a workflow

Load the png sceenshot in comyfui by dragging or loading manually.

Workflows

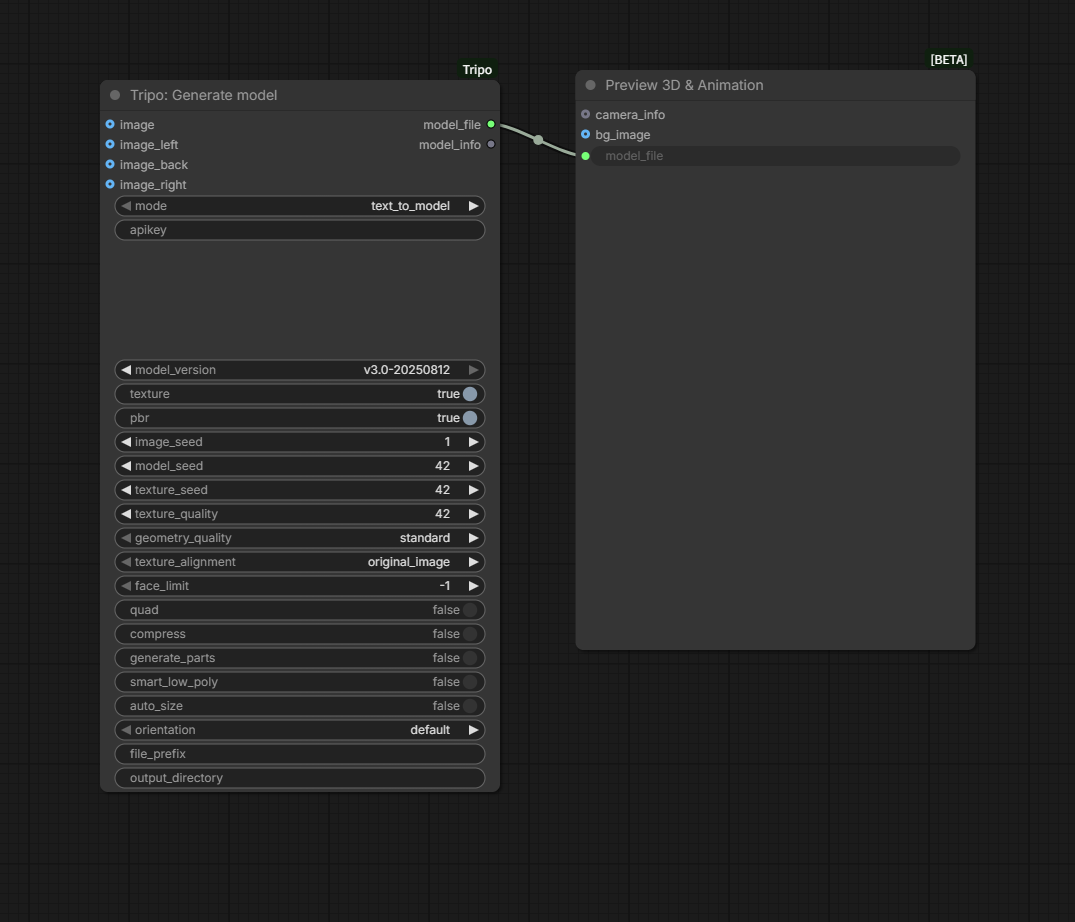

Text to Mesh

This node allows you to generate a 3D model from a text prompt.

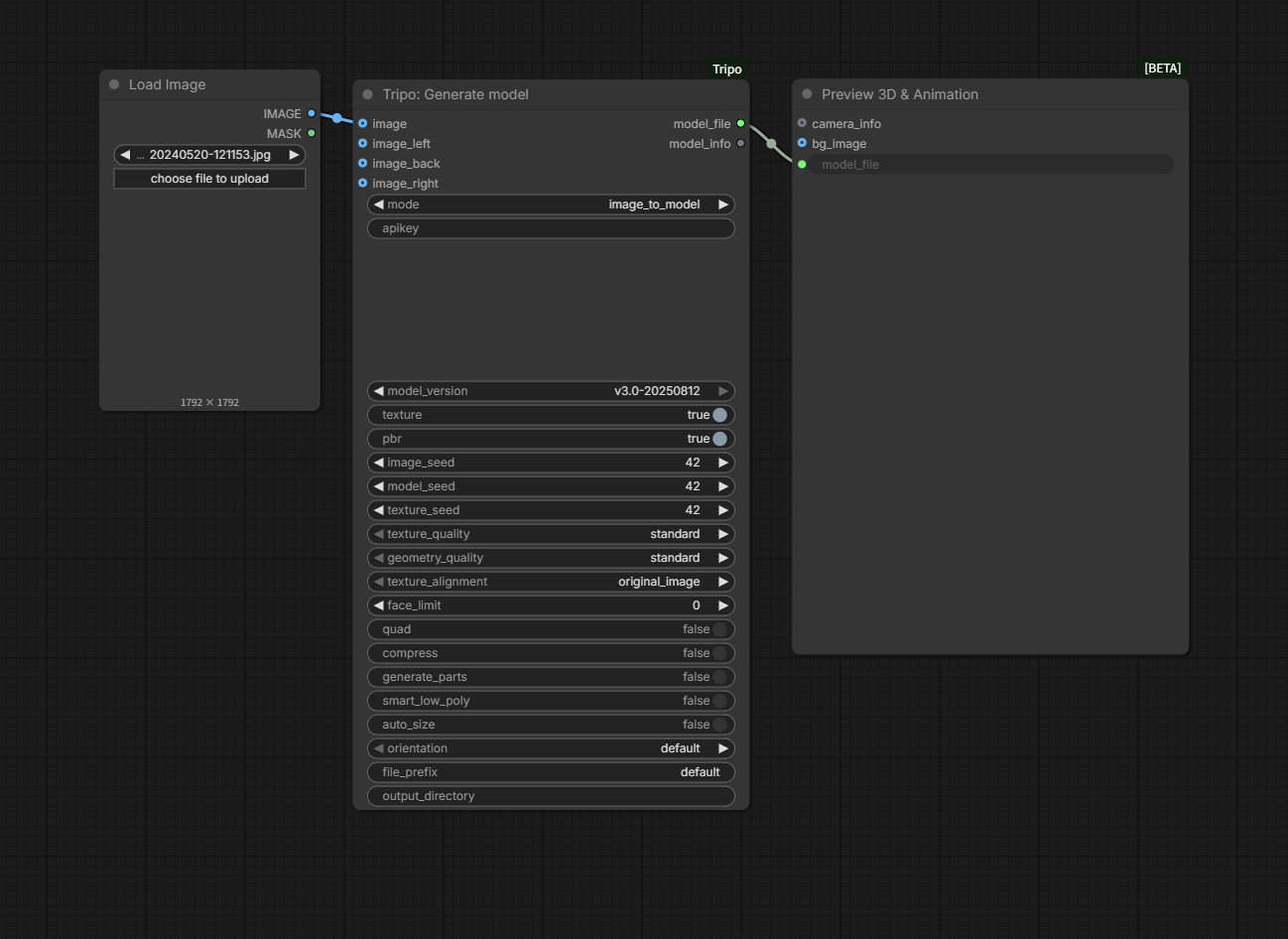

Image to Mesh

This node allows you to generate a 3D model from an input image.

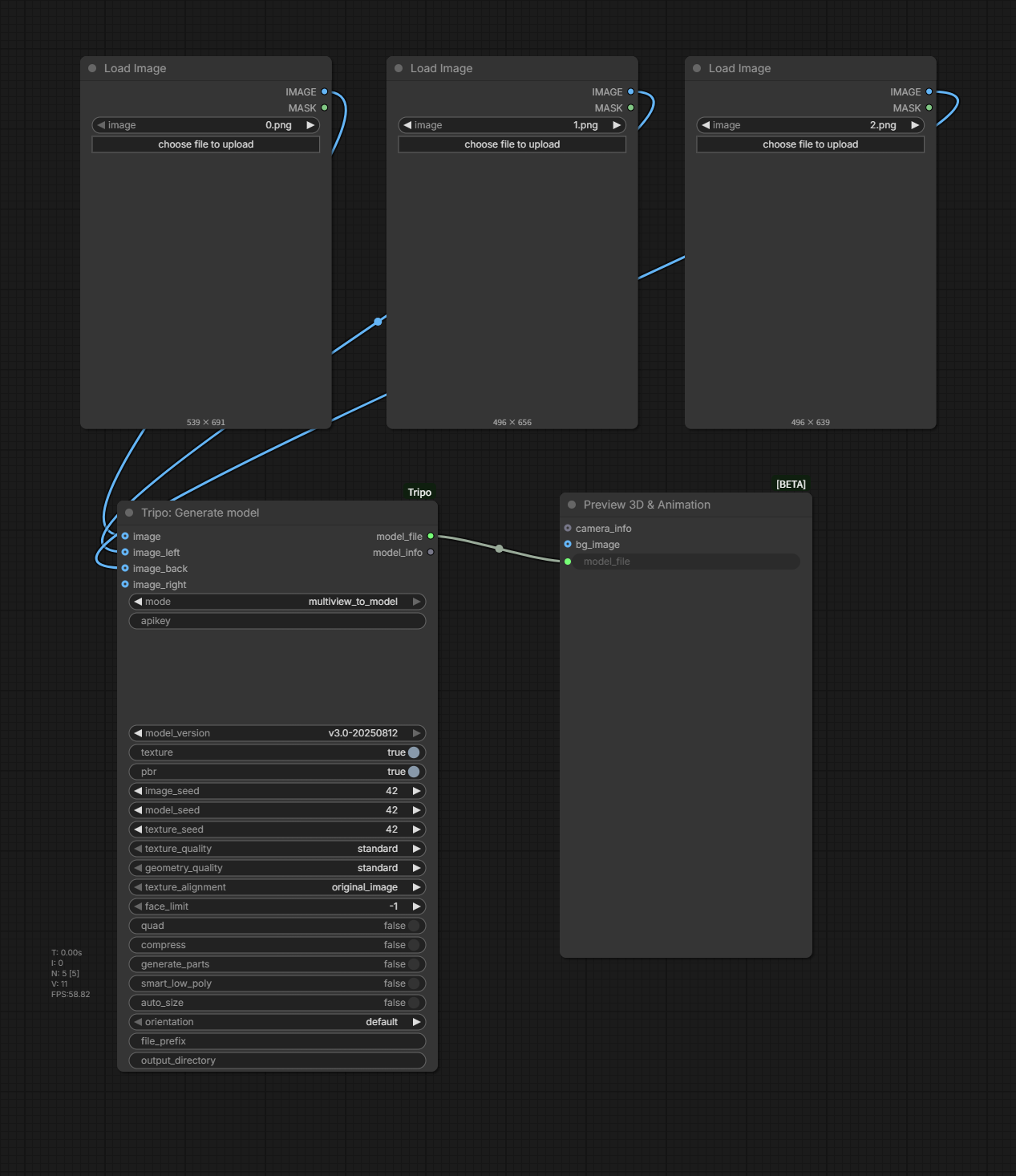

Multiview Images to Mesh

This node allows you to generate a 3D model from three multiview input images.

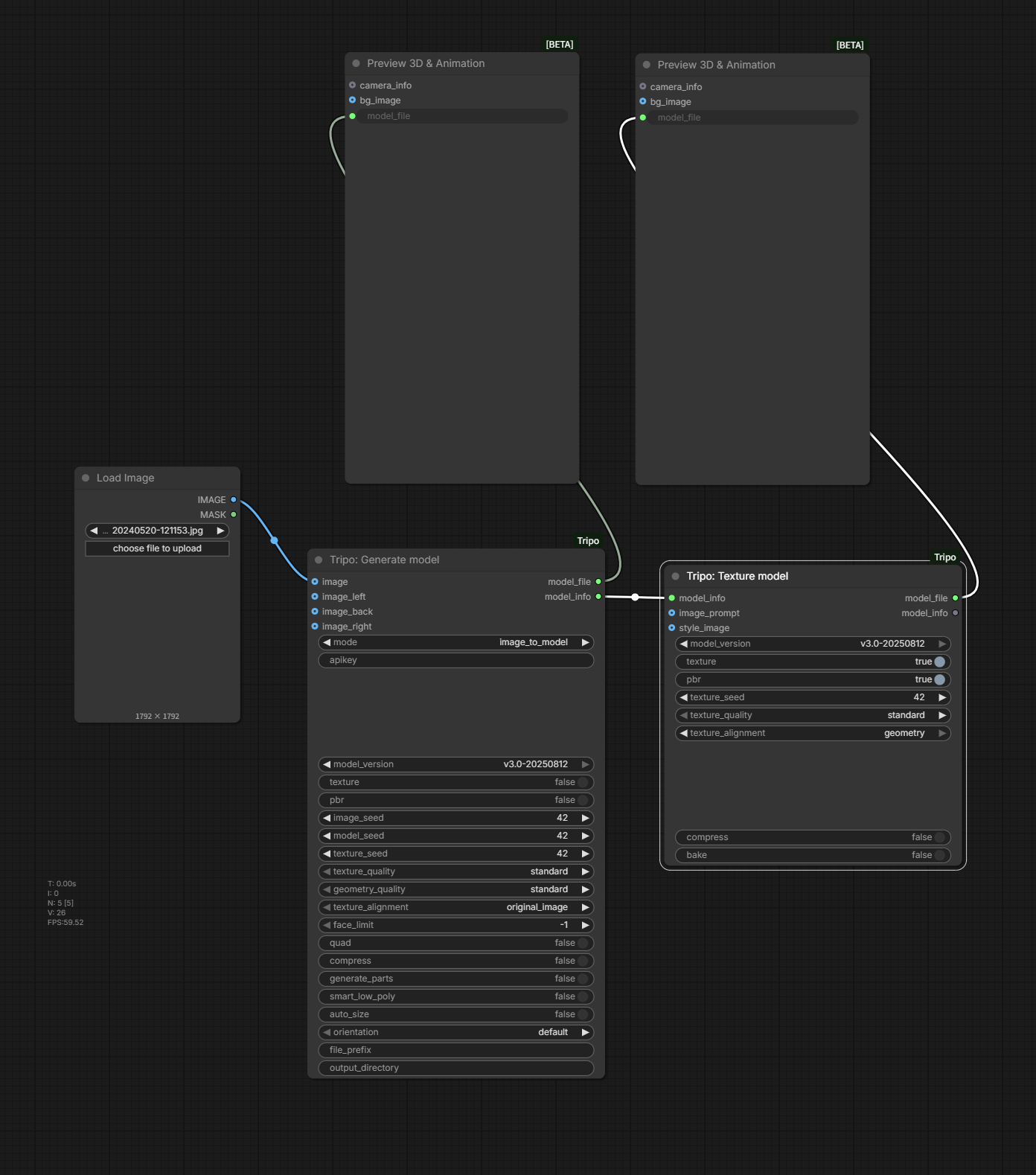

Texture a generated model

This node allows you to generate texture and pbr for a generated 3D model.

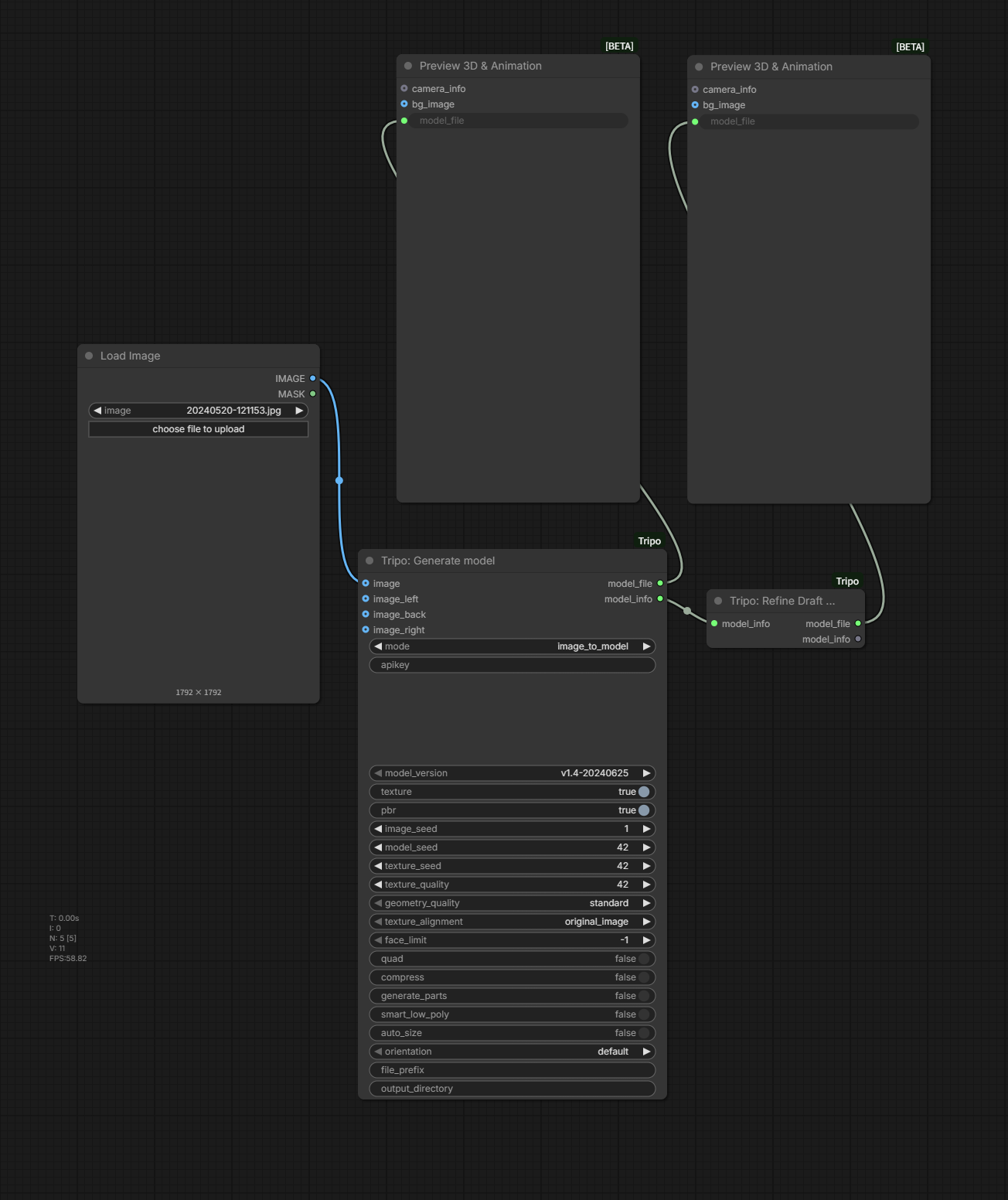

Refine a draft Mesh (deprecated, no longer runs)

Refine is no longer supported by Tripo; this example is kept for reference only.

Animation

This node allows you to generate a 3D model with skeleton and animation.

Download Model

Models will be automatically downloaded after generation in ComfyUI\output folder.

License

This project is licensed under the MIT License. See the LICENSE file for details.

Credit

Thanks for initial repo from Tripo-API-ZHO
