Diffusion-Pipe In ComfyUI Custom Node is a powerful extension plugin that provides complete Diffusion model training and fine-tuning capabilities for ComfyUI. This project allows users to configure and launch training for various advanced AI models within ComfyUI's graphical interface, supporting both LoRA and full fine-tuning, covering the most popular image generation and video generation models available today.You can train Qwen lora with 16g Vram

Video Demo: https://www.bilibili.com/video/BV1CRk9BYErw/?vd_source=7fd137e57a445e84bd9ffea9b632c98d

update

20260117: flux2 support, and follow the super huge update of the original project，deepspeed updated，comfyui submodules updated
20260103: add qwen2512 support, same as qwen_image
20260102: qwen2511 support, supports both Diffusers and ComfyUI format models
20251231, Zimage FP8 Comfy format training, supported by hunyuan-video_15 model.
20251130: Z-Image support, supports both Diffusers and ComfyUI format models

You need to download the latest diffusers development version to support training, e.g.:

E:\comfyui\ComfyUI_windows_portable\python_embeded_DP\python.exe -m pip install git+https://github.com/huggingface/diffusers

训练 Z-Image-Turbo 时使用

merge_adapters = ['/data2/imagegen_models/comfyui-models/zimage_turbo_training_adapter_v1.safetensors']

Model files support using the ComfyUI version.

Also supports diffusers

If training Z-Image-Turbo, make sure to merge the adapter.

Credit to Ostris and AI Toolkit for making this adapter.

Z-Image LoRAs are saved in ComfyUI format. This is different from Diffusers format.

20251026:support eval
20251030:Supports training Aura models
20251103:support MultiImage Edit (qwen2509)
20251105:support mask trainning,Fix off-by-one error in plots when using examples as x-axis,Allow using captions.json without tar files,add reset_optimizer flag,--reset_optimizer_params flag（Reset optimizer parameters, which allows resetting the optimizer during resuming training）,Fix datasets issue,Cast to float16 in dataset caching to cut size on disk in half

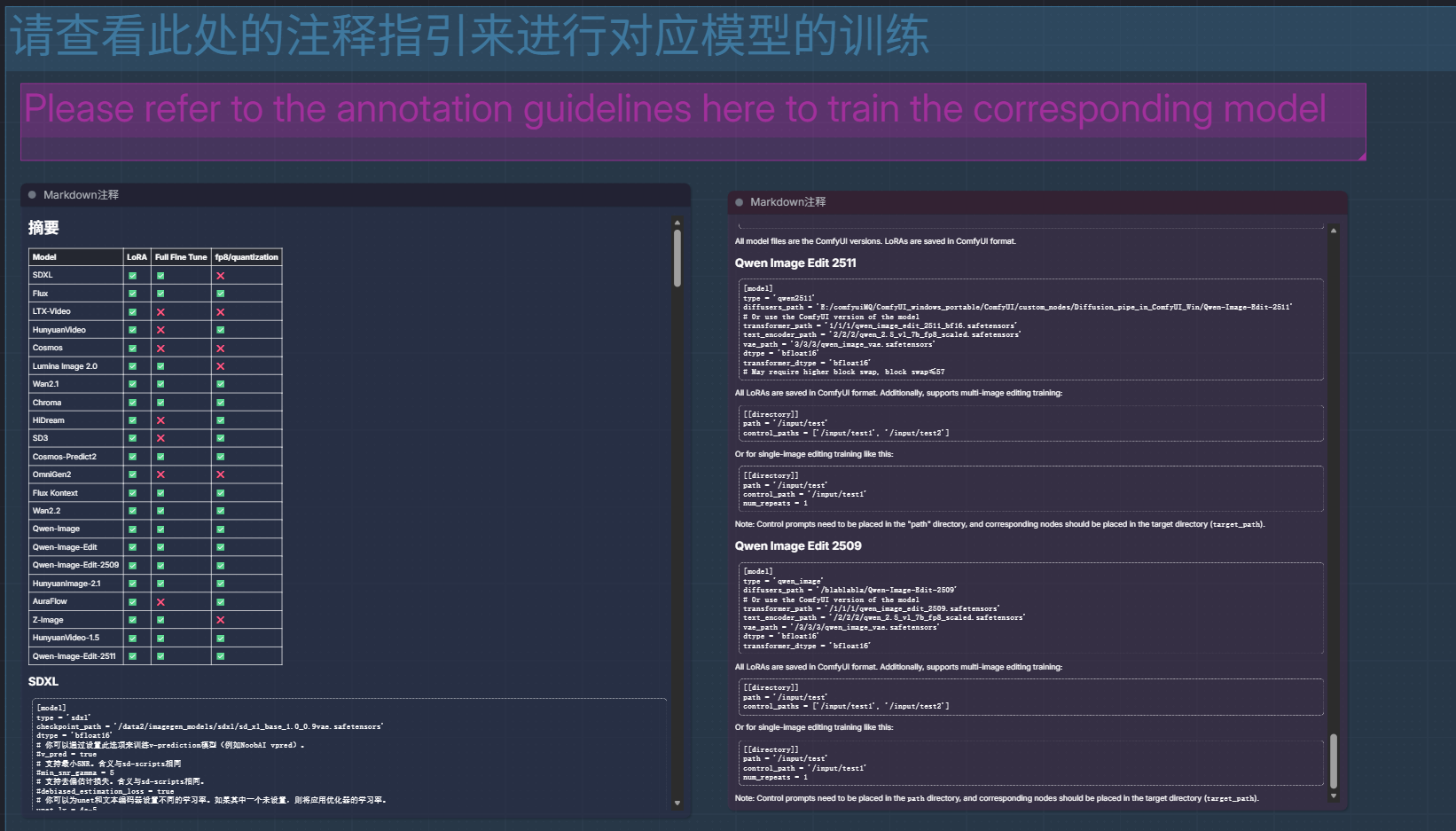

Please read the notice in the workflow before training

notice

Quick Start

You can use my pre configured portable environment pack

https://huggingface.co/TianDongL/DiffusionPipeInComfyUI_Win

You still need to download Microsoft MPI to prepare the deepspeed environment for Windows: https://www.microsoft.com/en-us/download/details.aspx?id=105289

Download and restart the computer

git clone --recurse-submodules https://github.com/TianDongL/Diffusion_pipe_in_ComfyUI_Win.git

If you haven't installed the submodules, follow these steps
If you don't complete this step, training will not work

git submodule init

git submodule update

Conda Environment Installation Guide

conda create -n comfyui_DP python=3.11

conda activate comfyui_DP

pip install torch==2.7.1 torchvision==0.22.1 torchaudio==2.7.1 --index-url https://download.pytorch.org/whl/cu128

You need to install pre-compiled wheels for Windows. You can find the compiled wheels in my Releases. This project requires deepspeed==0.18.4 https://github.com/TianDongL/Diffusion_pipe_in_ComfyUI_Win/releases

pip install E:/ComfyUI/deepspeed-0.18.4+b35d9eb0-cp311-cp311-win_amd64.whl

And flash-attn==2.8.1

pip install E:/ComfyUI/flash_attn-2.8.1-cp311-cp311-win_amd64.whl

Also bitsandbytes compiled for Windows

pip install bitsandbytes --prefer-binary --extra-index-url=https://jllllll.github.io/bitsandbytes-wheels/windows/index.html

cd /ComfyUI/custom_nodes/Diffusion_pipe_in_ComfyUI_Win

pip install -r requirements.txt

Portable Environment Installation Guide

You are responsible for backing up your portable environment
My wheels are all compiled under Torch 2.7.1+cu128-cp311

Skip this step if you already meet the requirements

E:/ComfyUI_windows_portable/python_embeded/python.exe -m pip install torch==2.7.1 torchvision==0.22.1 torchaudio==2.7.1 --index-url https://download.pytorch.org/whl/cu128

Install necessary dependencies directly

You need to install pre-compiled wheels for Windows. You can find the compiled wheels in my Releases. This project requires deepspeed==0.17.0 https://github.com/TianDongL/Diffusion_pipe_in_ComfyUI_Win/releases

E:/ComfyUI_windows_portable/python_embeded/python.exe -m pip install E:/ComfyUI_windows_portable/python_embeded_DP/deepspeed-0.17.0+720787e7-cp311-cp311-win_amd64.whl

And flash-attn==2.8.1

E:/ComfyUI_windows_portable/python_embeded/python.exe -m pip install E:/ComfyUI_windows_portable/python_embeded_DP/flash_attn-2.8.1-cp311-cp311-win_amd64.whl

And bitsandbytes compiled for Windows

E:/ComfyUI_windows_portable/python_embeded/python.exe -m pip install bitsandbytes --prefer-binary --extra-index-url=https://jllllll.github.io/bitsandbytes-wheels/windows/index.html

cd /ComfyUI/custom_nodes/Diffusion_pipe_in_ComfyUI_Win.git

E:/ComfyUI_windows_portable/python_embeded/python.exe -m pip install -r requirements.txt

🚀 One-Click Workflow Import

To get you started quickly, I've provided a pre-configured ComfyUI workflow file:

📋 Click to Import Complete Workflow

Simply drag this file into the ComfyUI interface to import the complete training workflow with all necessary node configurations.

Please read the prompts in the workflow carefully, as they can help you build your dataset

📷 Workflow Interface Preview

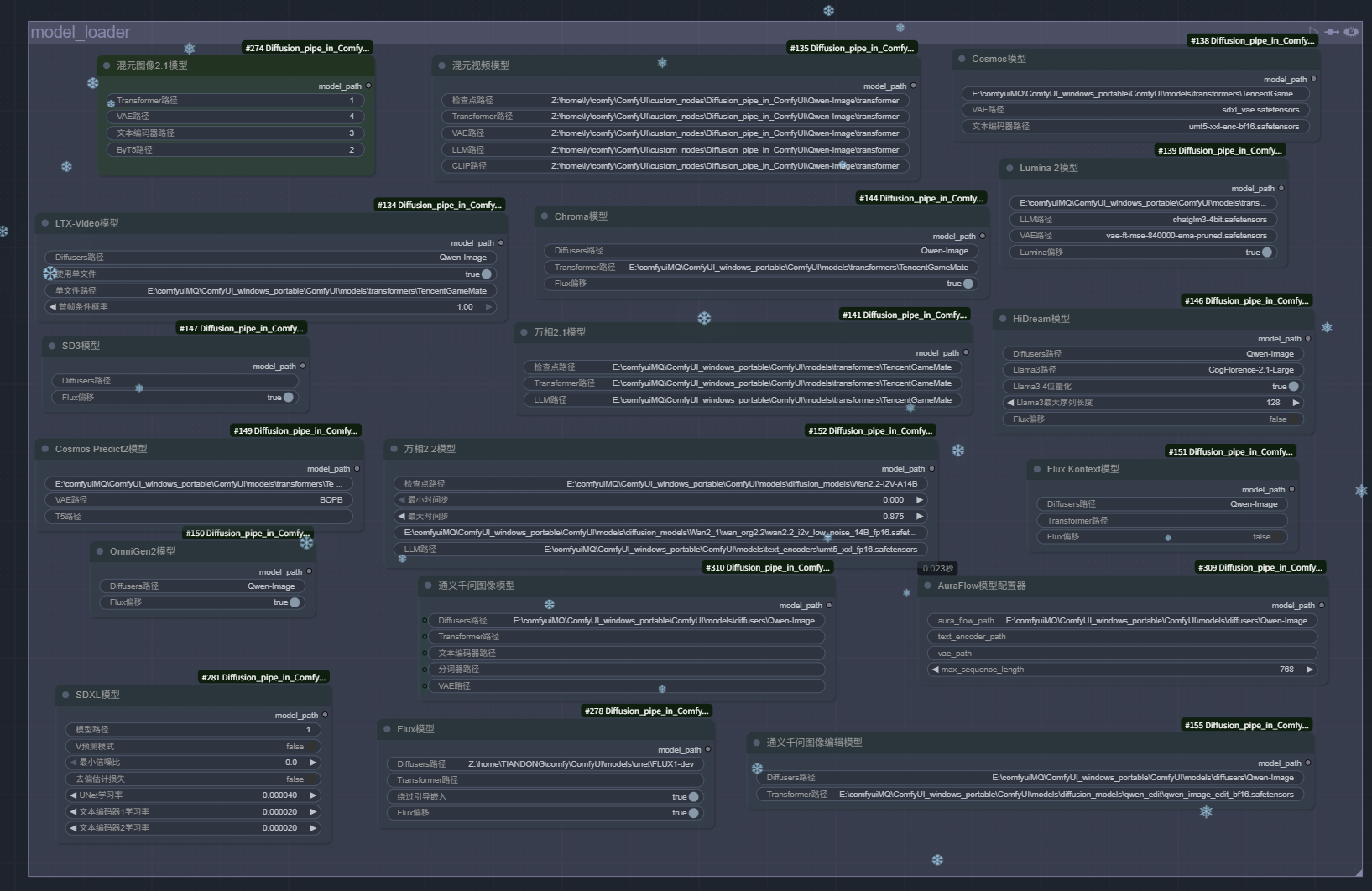

Model Loading Node Models can be stored in the ComfyUI model directory

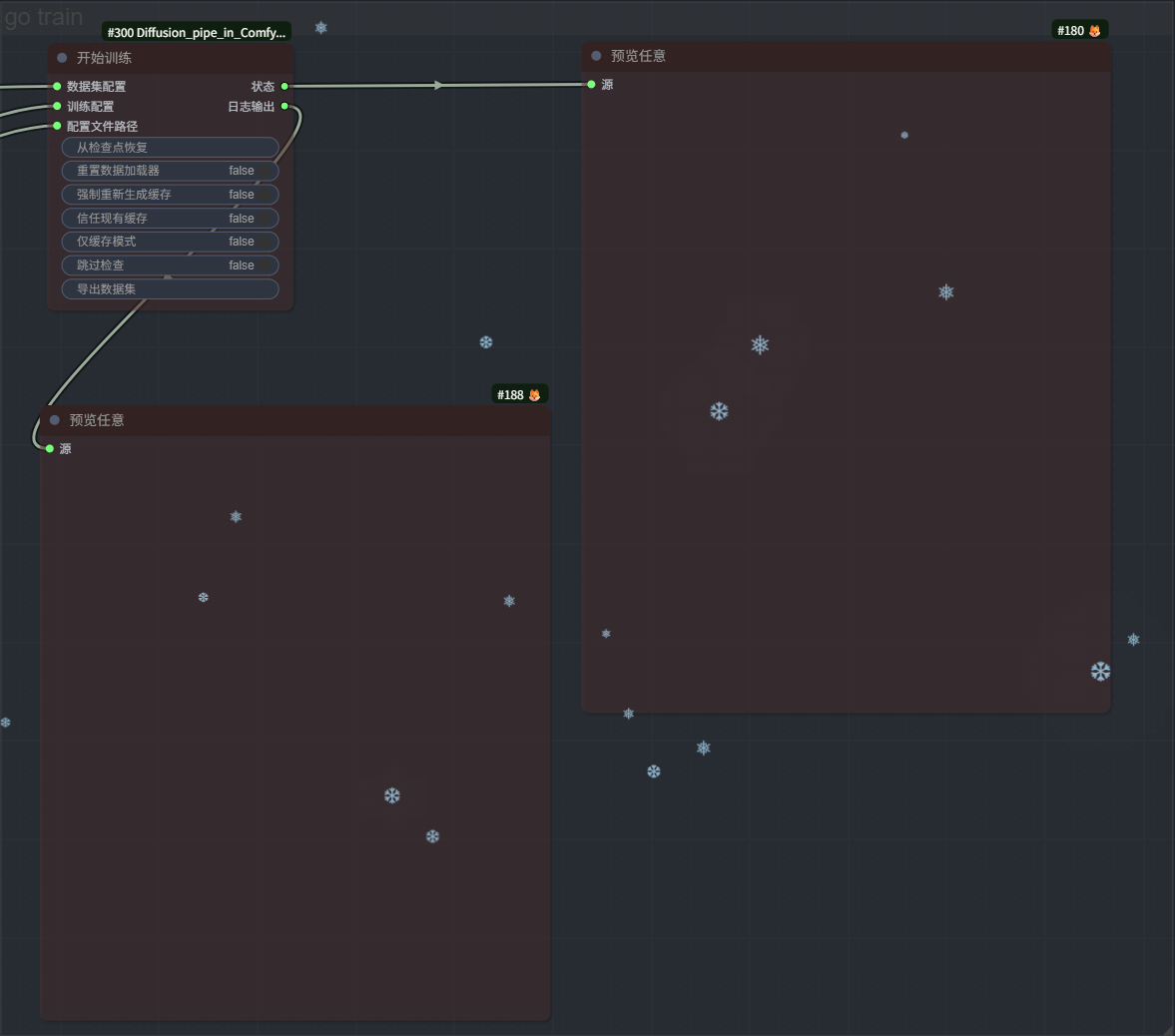

Launch Training and Monitoring Disable the Train node when debugging

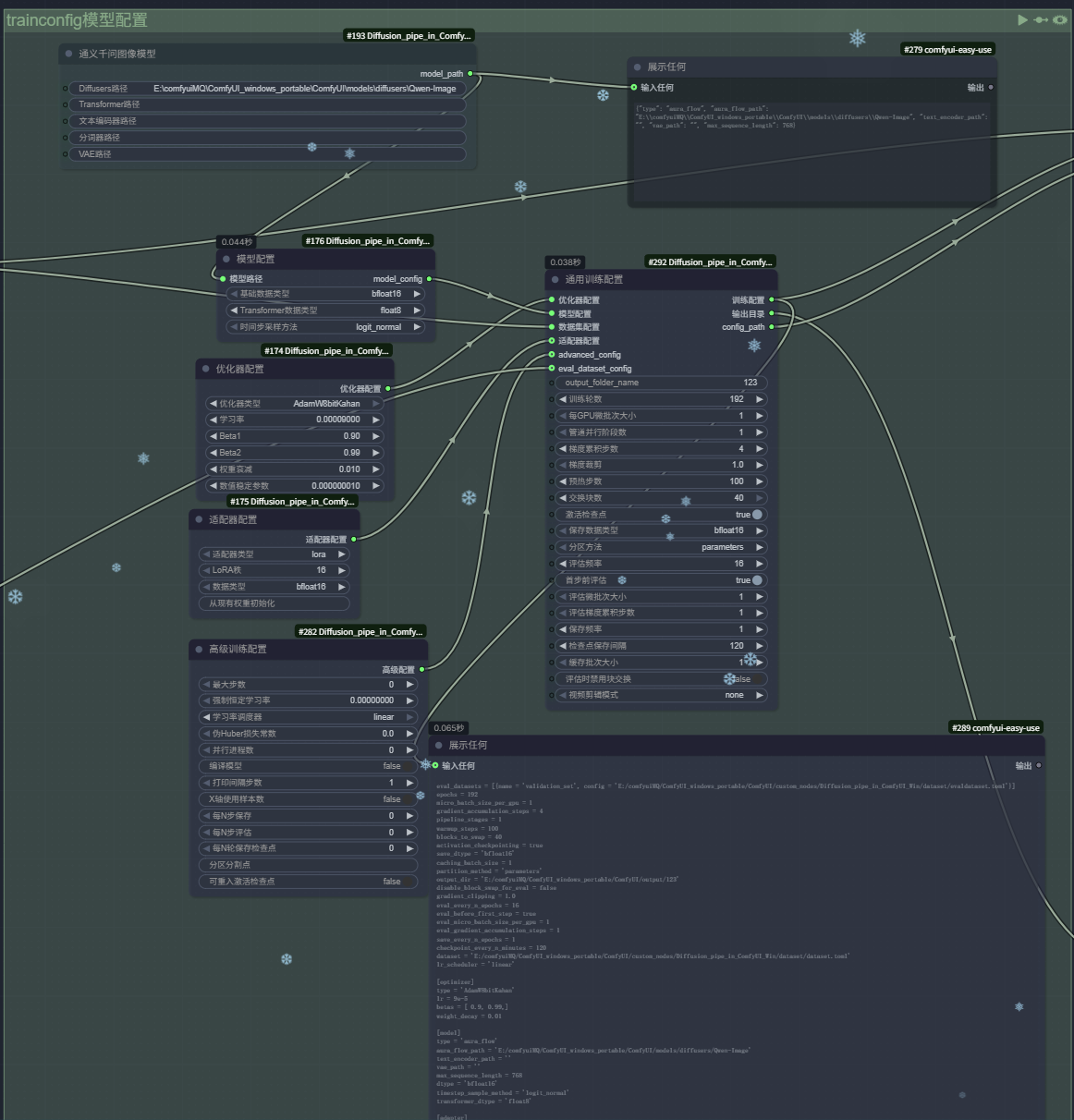

Model Configuration

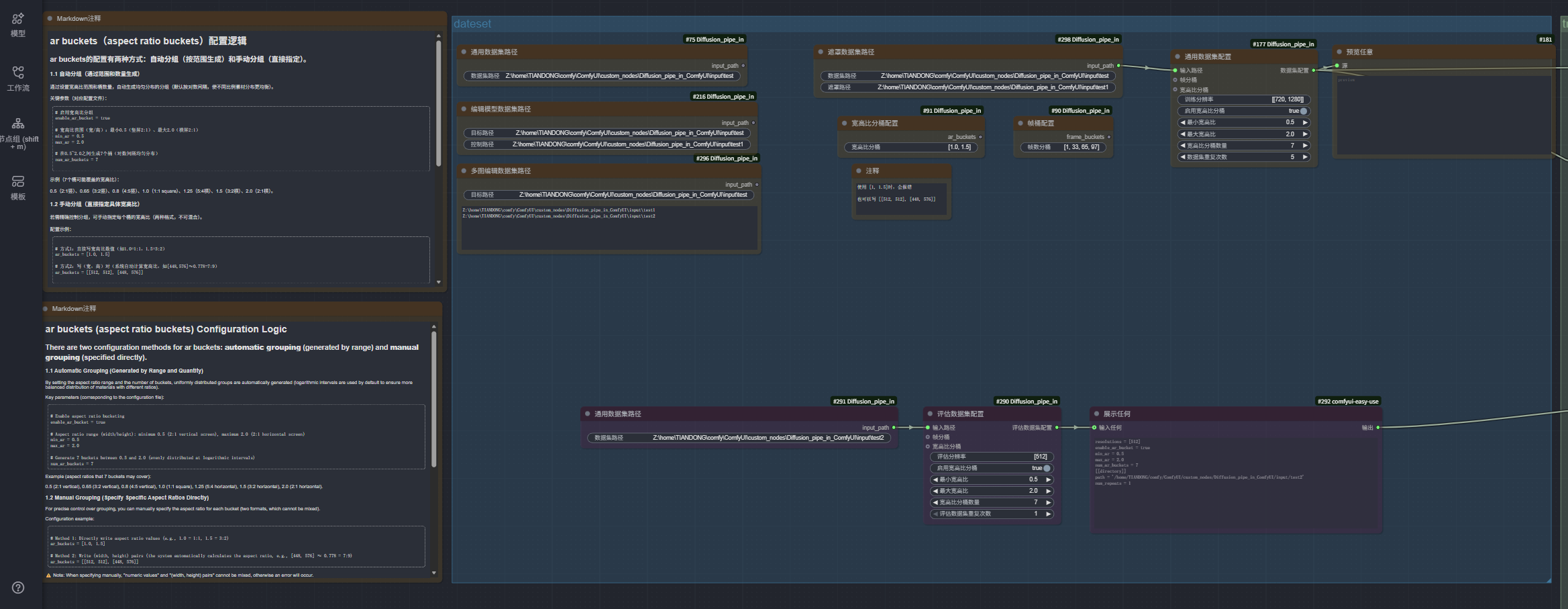

Dataset Configuration

Workflow Overview

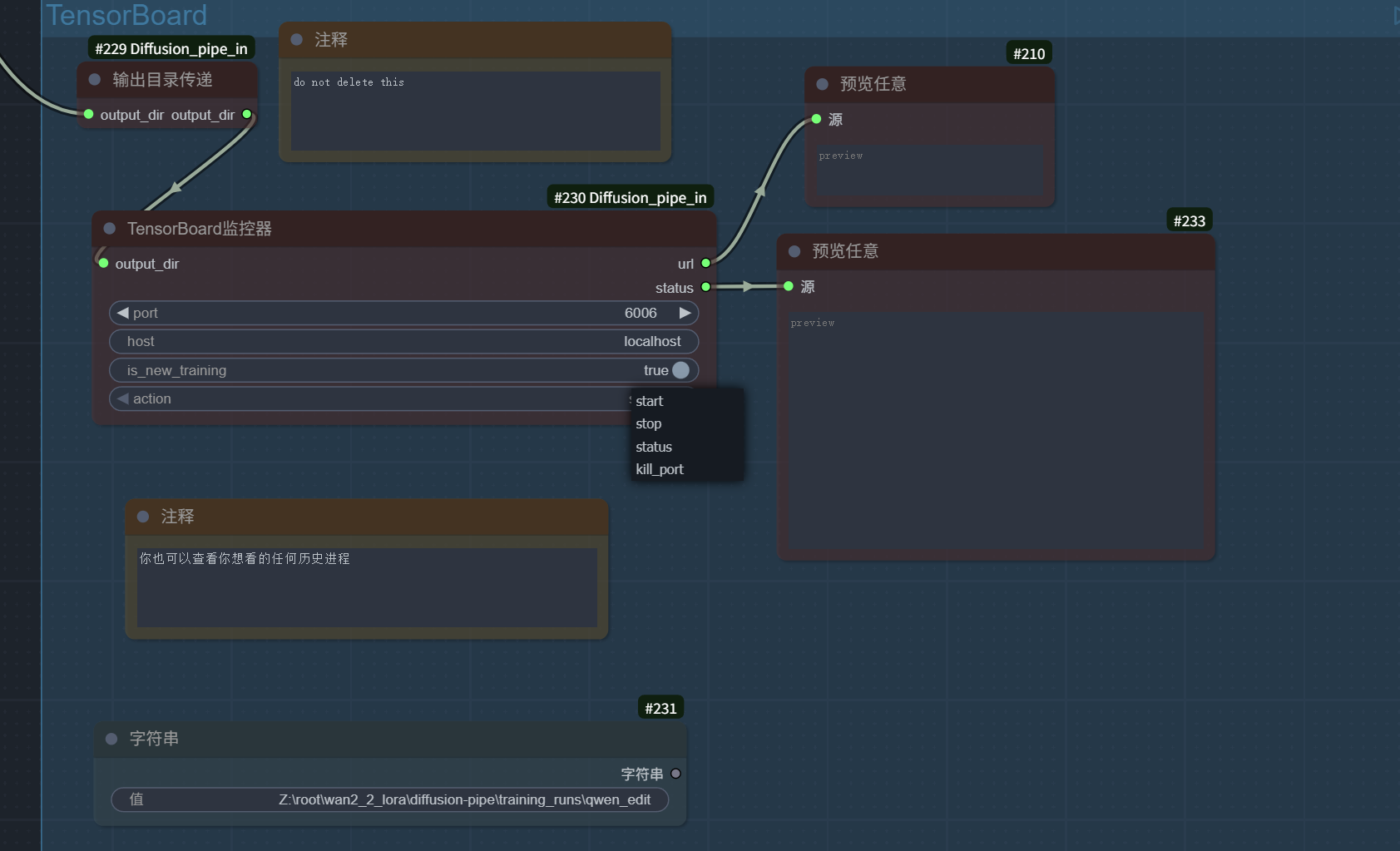

Monitoring Options kill port will stop all monitoring processes on the current port

</div>

Core Features

🎯 Visual Training Configuration: Graphically configure training parameters through ComfyUI nodes
🚀 Multi-Model Support: Support for 20+ latest Diffusion models
💾 Flexible Training Methods: Support for both LoRA training and full fine-tuning
⚡ High-Performance Training: Distributed training support based on DeepSpeed
📊 Real-Time Monitoring: Integrated TensorBoard for monitoring training progress
🎥 Video Training: Support for training video generation models
🖼️ Image Editing: Support for training image editing models

System Requirements

Hardware Requirements

On Windows, it seems 16GB VRAM can train Qwen, which is quite Confusing

Software Requirements

Operating System: Windows 10/11
ComfyUI: Latest version

Supported Models

This plugin supports over 20 of the latest Diffusion models, including:

| Model | LoRA | Full Fine Tune | fp8/quantization | |----------------|------|----------------|------------------| |SDXL |✅ |✅ |❌ | |Flux |✅ |✅ |✅ | |LTX-Video |✅ |❌ |❌ | |HunyuanVideo |✅ |❌ |✅ | |Cosmos |✅ |❌ |❌ | |Lumina Image 2.0|✅ |✅ |❌ | |Wan2.1 |✅ |✅ |✅ | |Chroma |✅ |✅ |✅ | |HiDream |✅ |❌ |✅ | |SD3 |✅ |❌ |✅ | |Cosmos-Predict2 |✅ |✅ |✅ | |OmniGen2 |✅ |❌ |❌ | |Flux Kontext |✅ |✅ |✅ | |Wan2.2 |✅ |✅ |✅ | |Qwen-Image |✅ |✅ |✅ | |Qwen-Image-Edit-2509 |✅ |✅ |✅ | |HunyuanImage-2.1|✅ |✅ |✅ | |AuraFlow |✅ |❌ |✅ | |Z-Image |✅ |✅ |❌ | |HunyuanVideo-1.5|✅ |✅ |✅ | |Qwen-Image-Edit-2511 |✅ |✅ |✅ | |Flux 2（both dev and klein） |✅ |✅ |✅ |

License

This project is open-sourced under the GPL License

Contributing

Issues and Pull Requests are welcome!

Fork the project
Create a feature branch
Commit your changes
Submit a Pull Request

Acknowledgments

Thanks to the following projects and teams:

ComfyUI team
@tdrussell, the original author of Diffusion_Pipe
Hugging Face Diffusers
DeepSpeed team
Original authors of all models

Diffusion_pipe_in_ComfyUI_Win
