ComfyUI-FaceChain

The official ComfyUI version of facechain greatly improves the speed of reasoning and has great custom process controls.

By THtianhao·Created 3 years ago·Updated about a year ago· 147
THtianhao/ComfyUI-FaceChain
Nodes19
On cloudLocal install
Categoryfacechain/crop, facechain/mask
Stars147
Updatedabout a year ago

Nodes (19)

FC CropAndPaste

FC CropAndPaste — warp one person's pose onto another's body

facechain/crop
FC CropBottom

FC CropBottom — the boring, dependable resize-and-trim utility

facechain/crop
FC CropBottom

FC CropBottom (the underscore version) — what it is and why it's an alias

facechain/crop
FC CropMask

FC CropMask — cut a face region out and get its mask in one shot

facechain/mask
FC CropToOrigin

Putting the face back where it came from — FCCropToOrigin explained

facechain/mask
FC FaceDetectCrop

The node that finds the face and cuts it out — FC FaceDetectCrop

facechain/model
FC FaceDetection

FC FaceDetection — the box finder, without the crop

facechain/model
FC FaceFusion

FC FaceFusion — the ModelScope UNet face swap, minus the InsightFace baggage

facechain/model
FC FaceFusion

The face swap in FaceChain that doesn't use InsightFace's 128px swapper

facechain/model
FC FaceSegAndReplace

Face swap plus a clean paste-back mask, in one pass — FC FaceSegAndReplace

facechain/model
FC FaceSegment

Getting a clean face mask — FC FaceSegment and its two mask outputs

facechain/model
FC FCCropFace

FC FCCropFace — the lean face crop, box included

facechain/crop
FC MaskOP

FC MaskOP — blur, erode, or dilate any mask before it wrecks your composite

facechain/mask
FC RemoveCannyFace

Erasing the face from a Canny map — FC RemoveCannyFace

facechain/model
FC ReplaceByMask

FC ReplaceByMask — the paste node that respects your mask exactly

facechain/crop
FC ReplaceImage

FC ReplaceImage — swap a face region in, box and mask driven

facechain/model
FC_Segment

FC Segment — the plain face mask, no options attached

facechain/model
FC StyleLoraLoad

FC StyleLoraLoad — same style loader, dash-slug edition

facechain/lora
FC StyleLoraLoad

75 preset styles in one dropdown — the FaceChain checkpoint + LoRA loader

facechain/lora
Readme

ComfyUI-FaceChain

This project is adapted from facechain and involves the breakdown and improvement of the processes of facechain.


English | 简体中文

Contact

If you have any questions or suggestions, you can reach us through the following channels:

  • Email: [email protected]
  • Telegram: https://t.me/+JoFE2vqHU4phZjg1
  • WeChat Group: <img src="./images/wechat.jpg" width="300">

Steps

  1. Install ComfyUI first.

  2. After a successful installation of ComfyUI, navigate to the custom_nodes directory at ComfyUI/custom_nodes/.

cd custom_nodes
  1. Clone this project into the custom_nodes directory.
git clone https://github.com/THtianhao/ComfyUI-FaceChain
  1. Restart ComfyUI.

ComfyUI Workflow

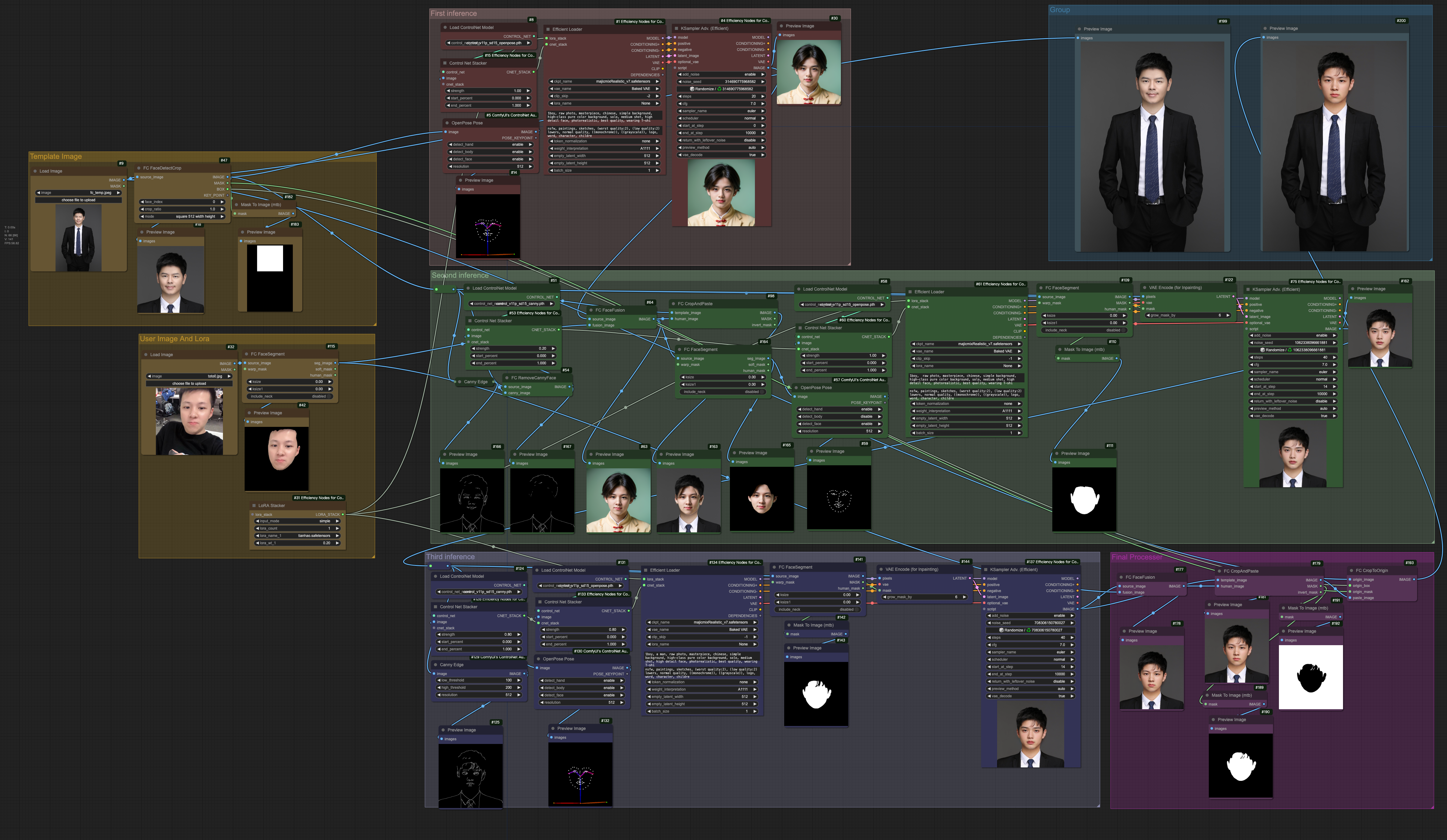

Facechain Workflow Location: workflow_inpaiting_inference.png Drag the workflow directly into ComfyUI.

Node Introduction

FC StyleLoraLoad

The workflow can load the checkpoints and style Lora used by facechain, download them first, and then merge them, providing relevant prompts. Workflow: ./workflow/workflow_inference.json

FC FaceDetectCrop

Detects faces and crops them.

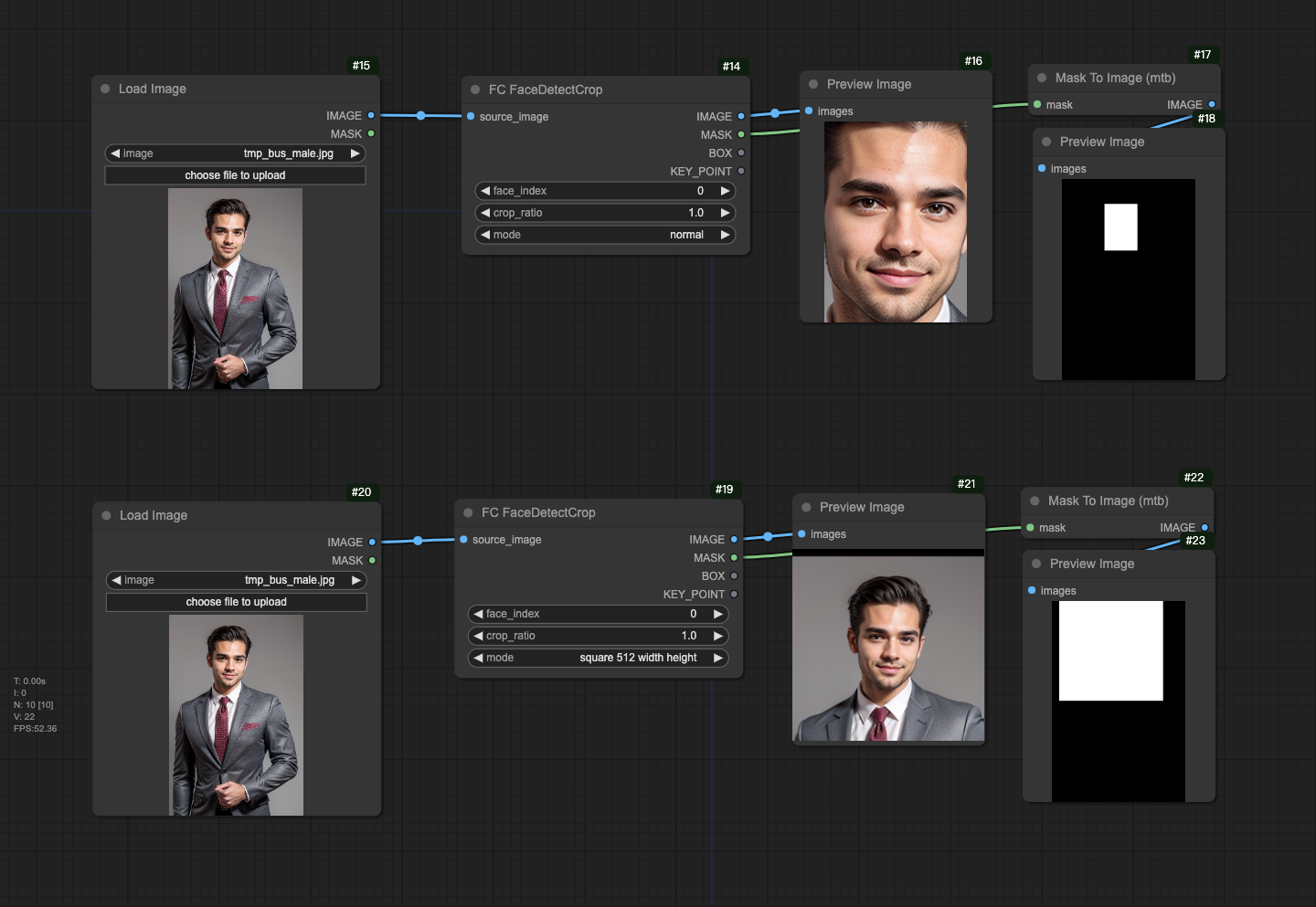

workflow_face_detect_crop.png Parameter Description:

  1. mode: Cropping mode, normal mode crops according to the face, square 512 width height will scale the face to 512.
  2. face_index: Index of the face, if there are multiple faces, retrieve them based on the index.
  3. crop_ratio: Only effective in normal mode, crops the face proportionally, 1.0 is 1x the face.

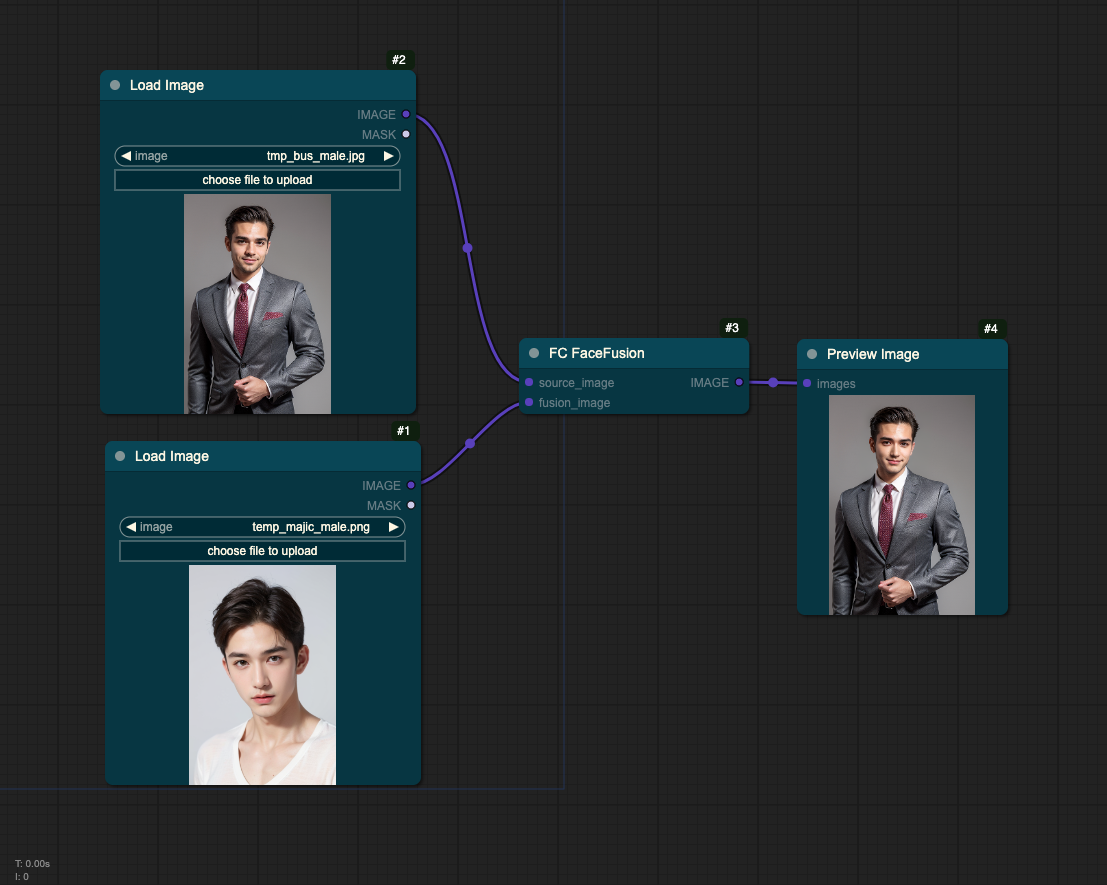

FC FaceFusion

Fusion using model scope model.

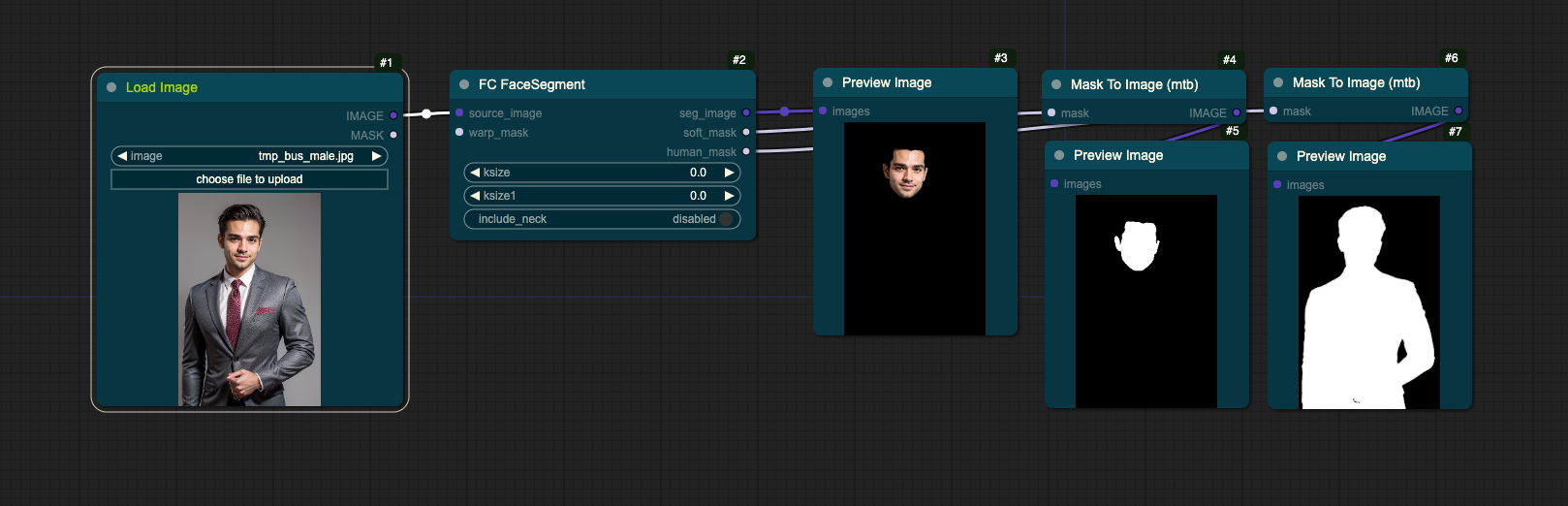

FC FaceSegment

Segmentation using model scope model to obtain masks for the face and body.


Parameter Description:

  1. ksize: Expansion parameter for segmenting the edges of the face.
  2. ksize1: Expansion parameter for segmenting the edges of the face.
  3. include_neck: Whether the segmented image includes the neck.

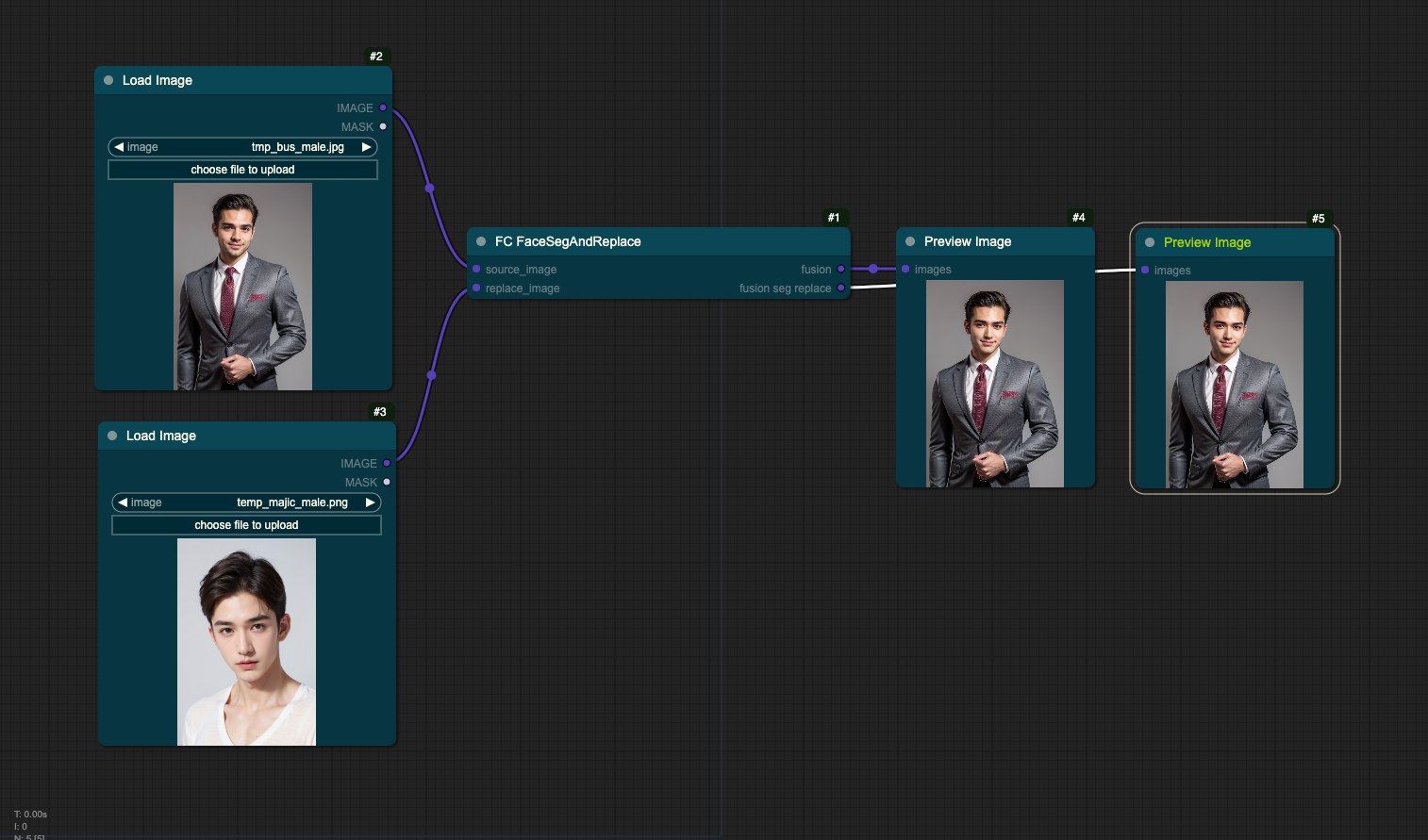

FC FaceSegAndReplace

Performs face fusion and replaces the original image, similar to facefusion but mainly used for multiple people.

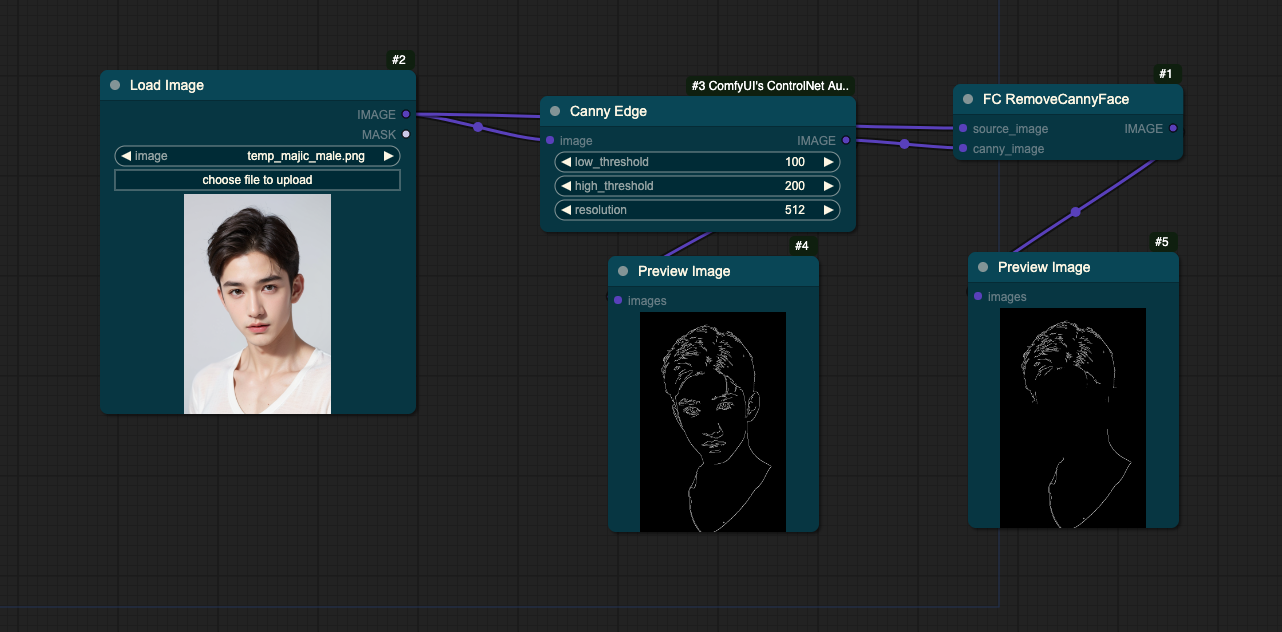

FC RemoveCannyFace

Removes the Canny-detected parts of the face.

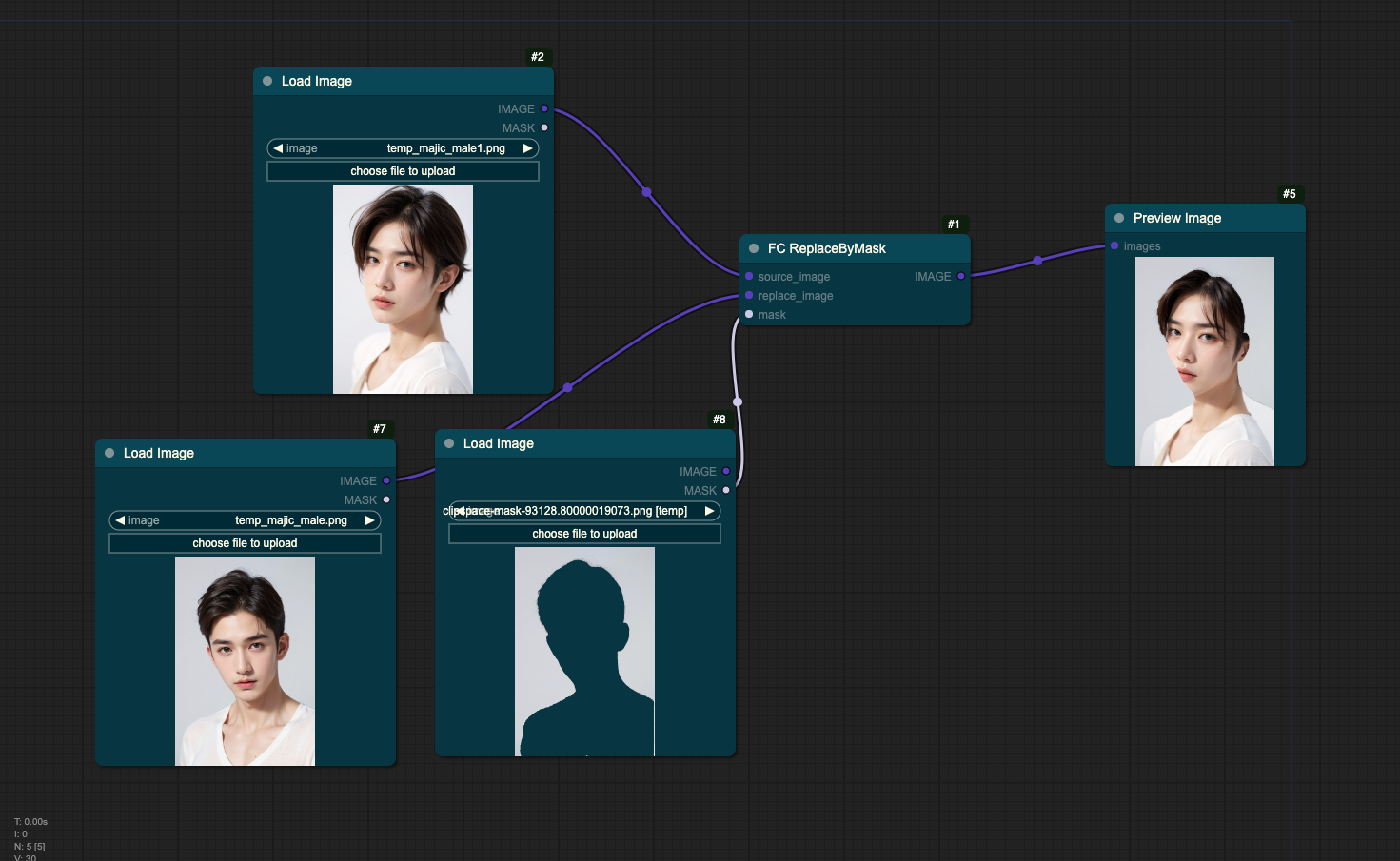

FC ReplaceByMask

Replaces the image based on the mask.

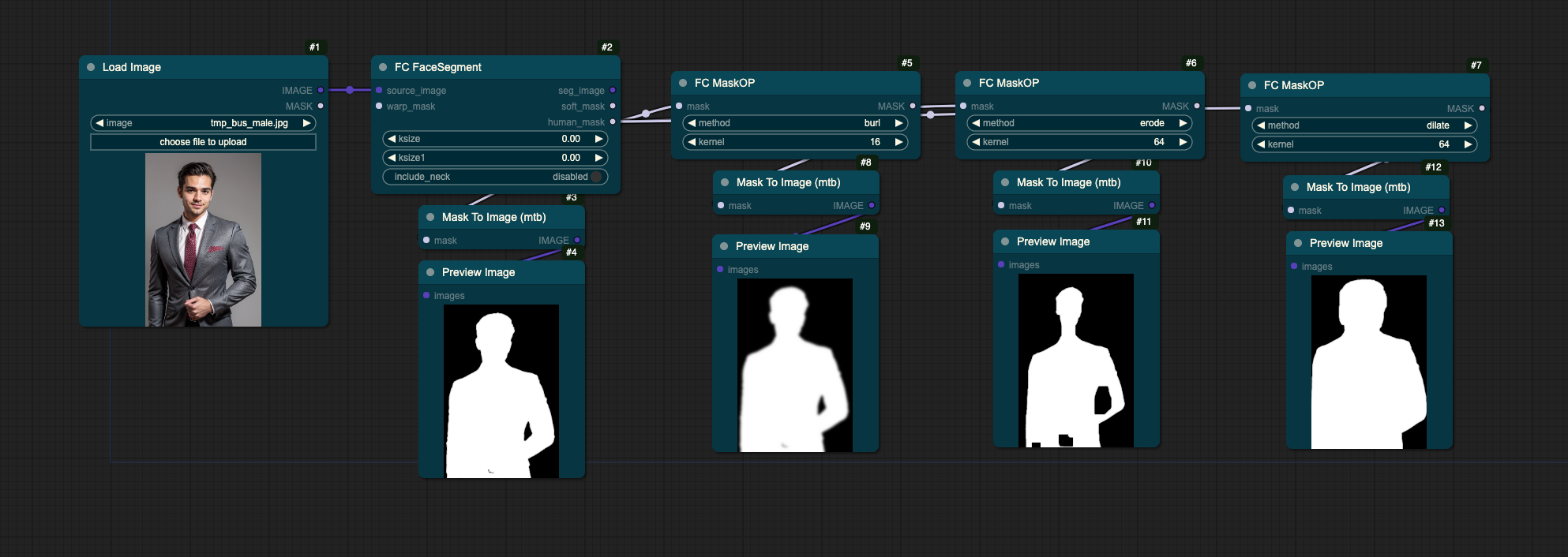

  • FC MaskOP

    Operations on the mask.

Parameter Description:

  1. mode: Provides three operations, blur, erosion, dilation.
  2. kernel: The kernel used for the operation, the larger the kernel, the stronger the operation.


  • FC FCCropToOrigin

    Currently, it can only be used in conjunction with FC FaceDetectCrop in square 512 width height mode. Pastes the cropped image onto the target image based on the mask.

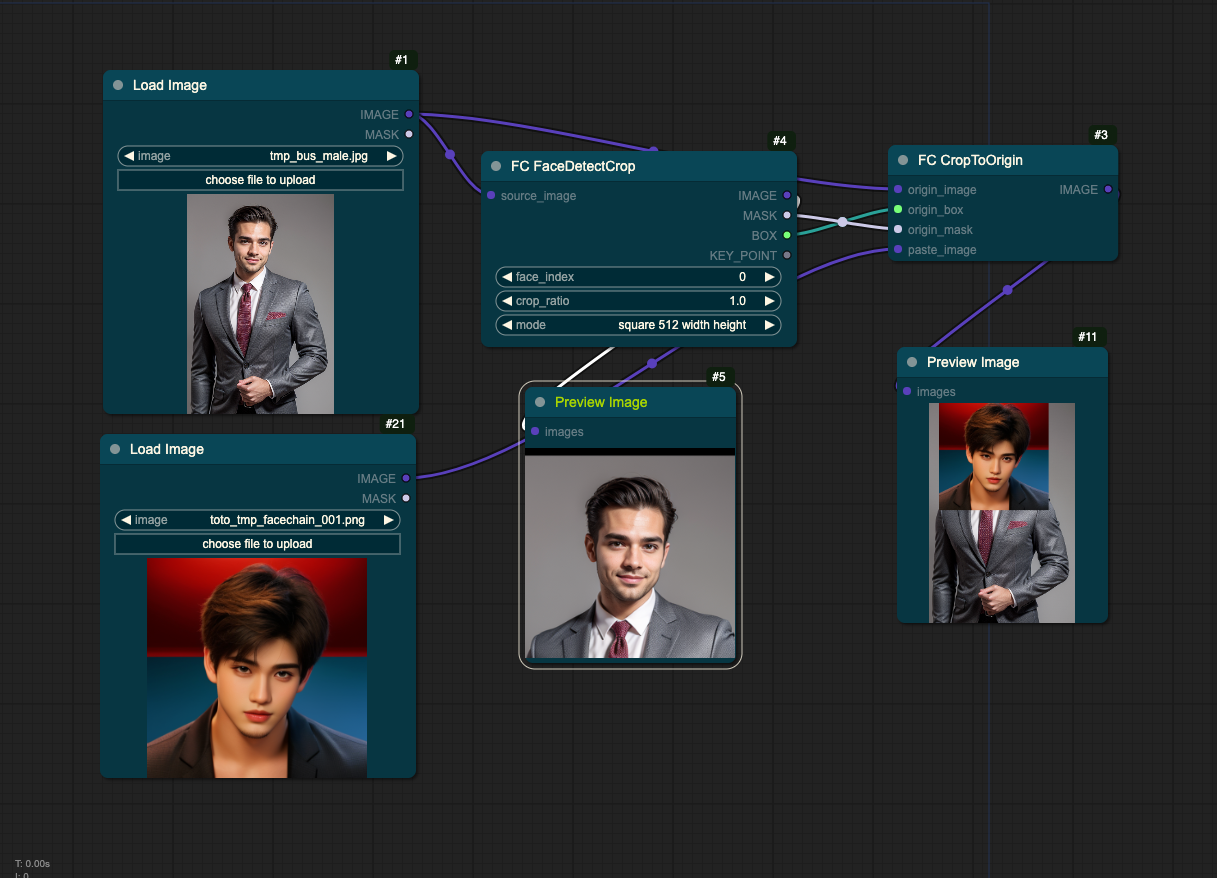

workflow_crop_to_origin.png Parameter Description:

  1. origin_image: Original image.
  2. origin_box: Bounding box of the original image.
  3. origin_mask: Mask cropped from the original image.
  4. paste_image: Pasting image, must be consistent with the origin_mask, hence the need for FC FaceDetectCrop in square 512 width height mode.

Contribution

If you find any issues or have suggestions for improvement, feel free to contribute. Follow these steps:

  1. Branch out a new feature branch: git checkout -b feature/your-feature-name
  2. Make your changes and commit: git commit -m "Add new feature"
  3. Push to your remote branch: git push origin feature/your-feature-name
  4. Create a Pull Request (PR).

License

This project is licensed under the MIT License. See the LICENSE file for details.

Join us and contribute to the development of EasyPhoto ComfyUI Plugin!
