Size Presets

ComfyUI Size Presets

Save and load image sizes — and named INT/FLOAT values — with categories.

Two nodes, one local SQLite library: classic width/height presets, plus dynamic Value Presets for any named numbers (cfg, steps, denoise, …) with typed sockets.

MIT — see LICENSE

---

Screenshots

Value Presets · 2.0

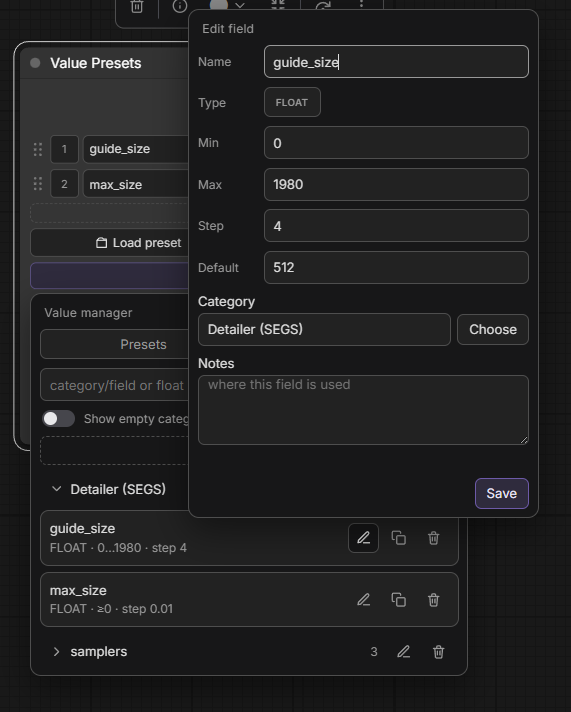

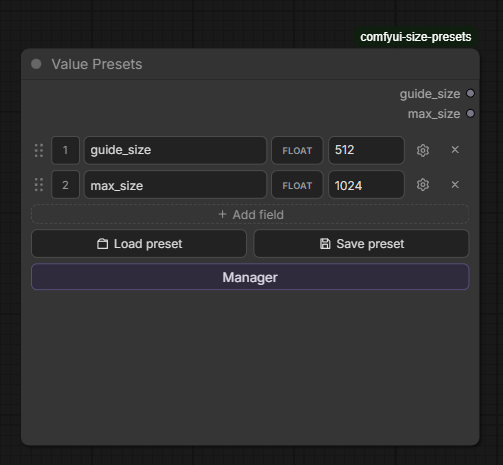

| Node | Field library | | ---- | ------------- | | | |

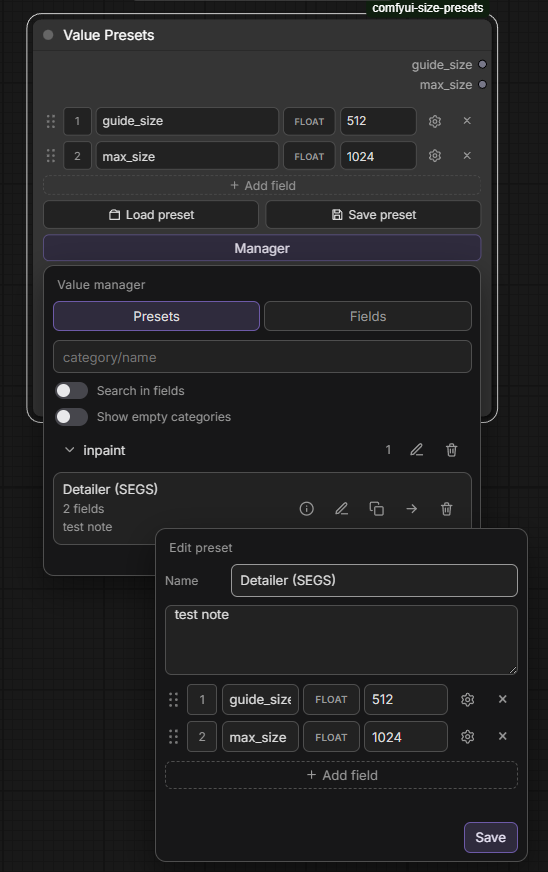

| Manager · edit preset | | --------------------- | | |

Size Presets

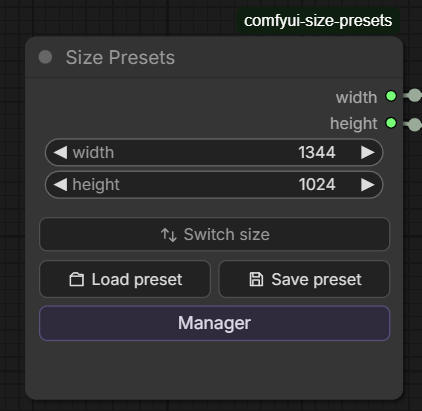

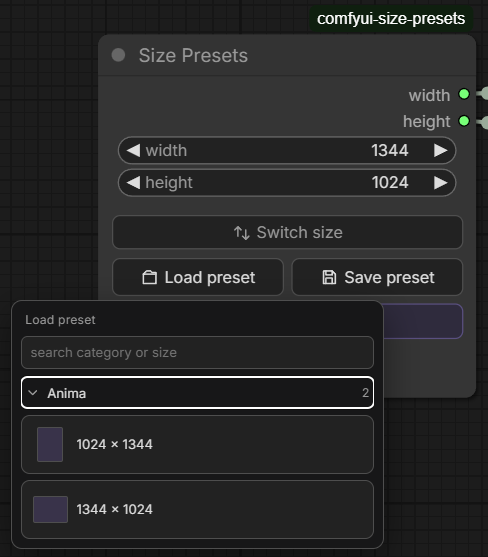

| Node | Load preset | | ---- | ----------- | | | |

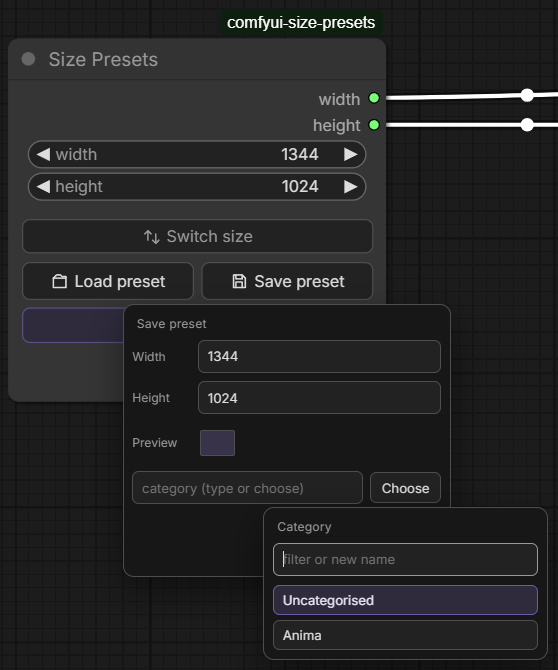

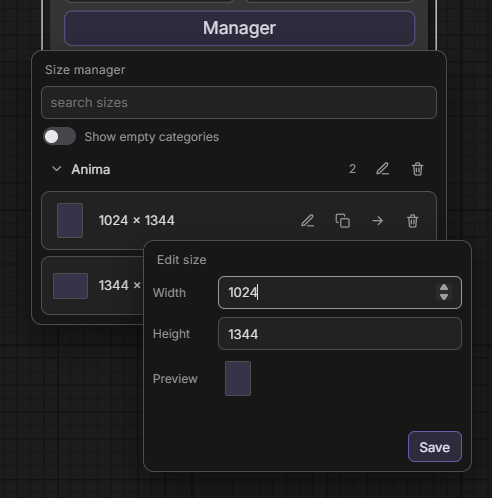

| Save preset | Manager | | ----------- | ------- | | | |

---

Features

Size Presets

• Native width / height — INT widgets you can pin and wire to Empty Latent Image, etc.
• Save / Load / Manager — categories, search, copy/move
• Switch size — swap width ↔ height
• Size = identity — 1024 × 768 (no extra naming)

Value Presets

• Dynamic fields — name + INT/FLOAT + value (up to 16); empty node allowed
• Typed outputs — each field is an INT or FLOAT socket (type fixed after create; replace via type badge)
• Reorder — drag handle + position number
• Field library — reusable defs with min / max / step, category, notes; gear → Save to library
• Same library UX — Load / Save / Manager with categories and notes
• Search — category/… · category:… · category\…, then AND tokens; optional Search in fields
• Manager — Presets + Fields tabs; edit / copy / move / delete

---

Install

1. Clone into ComfyUI/custom_nodes/:

   git clone https://github.com/StoneZol/comfyui-size-presets.git


2. Restart ComfyUI (or refresh the browser after a hot reload).

3. Add node: Size Presets or Value Presets

No pip dependencies — Python 3.8+ stdlib + SQLite only.

---

Size Presets layout

      │ width  ──→
      │ height ──→
width  [____512____]
height [____512____]
[   Switch size   ]
[Load preset] [Save preset]
[     Manager     ]

Value Presets layout

      │ guide_size ──→ FLOAT
      │ max_size   ──→ FLOAT
[≡] [1] [name] [FLOAT] [value] [⚙] [×]
[        + Add field        ]
[Load preset] [Save preset]
[        Manager          ]

---

Quick start

Sizes

1. Add Size Presets, set width/height (or connect inputs).
2. Save preset → pick a category.
3. Load preset → click a size card.
4. Wire width / height to latent or resize nodes.

Values

1. Add Value Presets.
2. Add field → blank (pick INT/FLOAT) or from the field library.
3. Name fields, set values; gear for limits / save to library.
4. Save/load presets; outputs match field types.

---

Library

Presets are stored in db/presets.sqlite (auto-created on first use).

• Sizes: unique (category, width, height)
• Values: unique (category, preset name)
• Field defs: unique by name (shared library)

Default bucket: Uncategorised. Size, value, and field categories are separate tables.

---

File layout

comfyui-size-presets/
├── nodes.py              # SizePresets + ValuePresets
├── routes.py             # REST API
├── db/
│   ├── db.py             # size tables + SQLite
│   ├── values.py         # value preset + field-def CRUD
│   └── presets.sqlite    # created at runtime
├── docs/screenshots/     # README images (incl. 2.0.0/)
└── js/
    ├── size_presets.js   # Size node UI
    ├── value_presets.js  # Value node UI
    ├── sp/               # Shared popups / search / size dialogs
    └── vp/               # Value dialogs + field config + API

---

API routes

| Method | Path | Purpose | | --------------------- | --------------------------- | ------------------------ | | GET/POST/PATCH/DELETE | /size_presets/sizes | Size presets | | GET/PATCH/DELETE | /size_presets/categories | Size categories | | GET/POST/PATCH/DELETE | /value_presets/presets | Value presets | | GET/PATCH/DELETE | /value_presets/categories | Value categories | | GET/POST/PATCH/DELETE | /value_presets/fields | Shared field definitions | | GET/PATCH/DELETE | /value_presets/field_categories | Field categories |
