ComfyUI AP Tools

A set of useful custom nodes for ComfyUI that improve convenience when working with images, file paths, and execution time.

📦 Installation

Navigate to the custom_nodes folder of your ComfyUI installation
Clone the repository:

git clone https://github.com/your-username/comfyui-ap-tools.git

Restart ComfyUI
Use Manager for installation

✨ Features

The module contains 4 nodes with rich user interface:

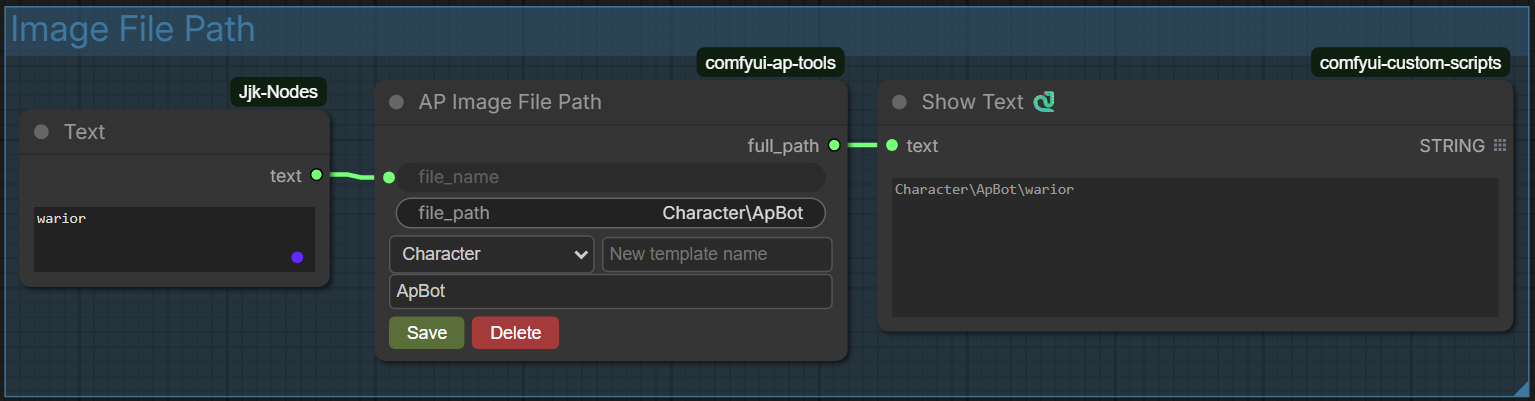

🔧 AP Image File Path

Category: ap-tools

Convenient file path constructor with template support. Allows saving frequently used paths and quickly switching between them.

Inputs:

file_name (STRING): File name without extension
file_path (STRING): Base path (hidden field, controlled by UI)

Outputs:

full_path (STRING): Full assembled path in Windows format (with backslashes)

Features:

✅ Path template manager (save/delete)
✅ Automatic combination of base path and file name
✅ Relative paths support
✅ Settings are saved in node properties
✅ Minimum node size: 350x170 pixels

Usage:

Enter the output file name in the file_name field
In the templates section select an existing template or create a new one
Enter relative path in the path field (it will be added to the selected template)
Full path is automatically assembled and passed to output

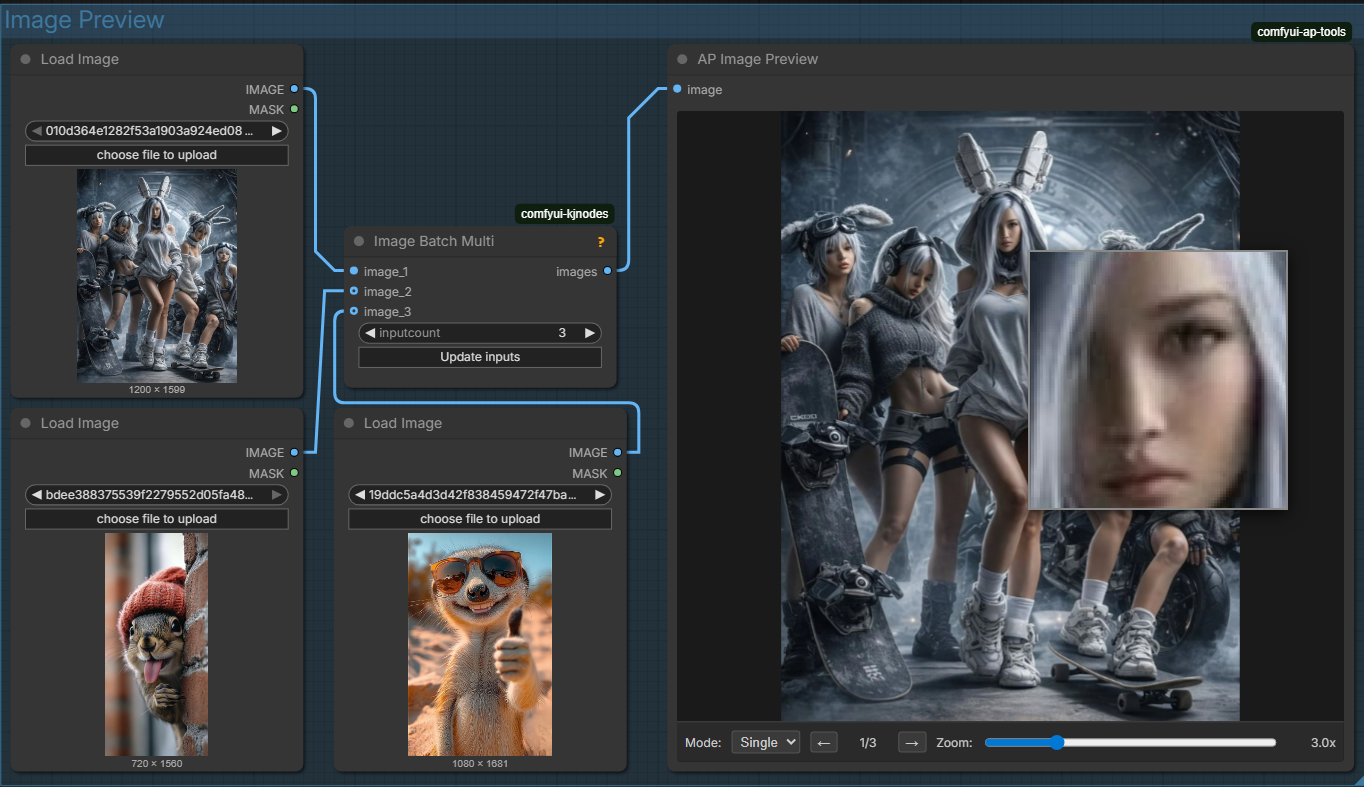

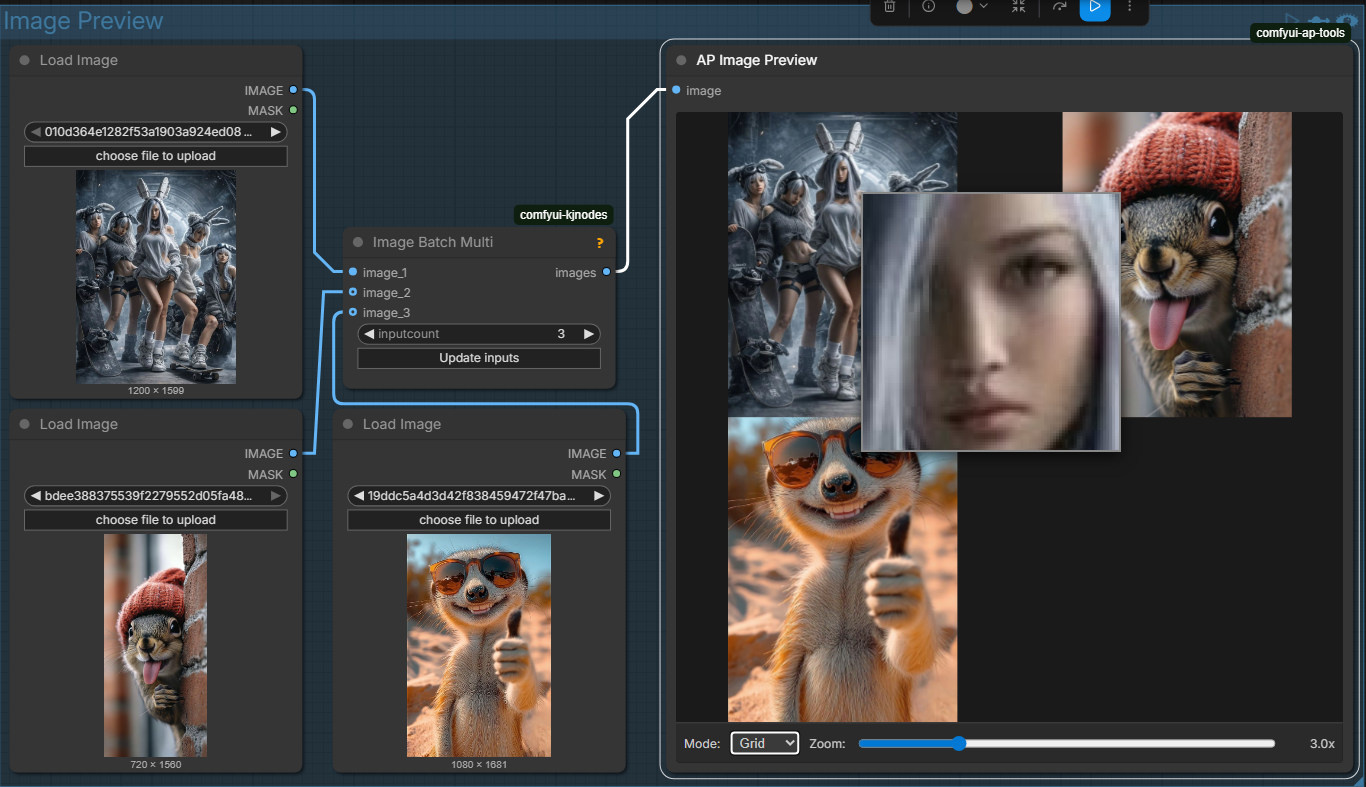

🖼️ AP Image Preview

Category: ap-tools

Improved image previewer with zoom, loupe, and grid mode support.

Inputs:

image (IMAGE): Image or image batch for preview

Outputs:

No outputs (display only)

Features:

✅ Display modes: Single and Grid
✅ Batch image navigation (← → arrows)
✅ Scalable loupe (zoom 1.5x - 8.0x)
✅ Automatic size fitting to node
✅ Browser DPI scaling support
✅ Minimum node size: 420x460 pixels
✅ Hides standard ComfyUI output

Controls:

Mode: Switch between single and grid display
Zoom: Change loupe magnification level
← →: Navigate through images in batch
Mouse hover: Shows loupe with magnified fragment

🔍 AP Image Compare

Category: ap-tools

https://github.com/user-attachments/assets/95954dc6-0af3-4eb9-930e-3bb57473aa06

Tool for comparing two or more images with different modes.

Inputs:

image_1 (IMAGE): First image (required)
image_2 (IMAGE): Second image (required)
image_3 (IMAGE): Third image (optional)
image_4 (IMAGE): Fourth image (optional)

Outputs:

No outputs (display only)

Features:

✅ Two comparison modes: Overlay and Split
✅ Select any two images for comparison from 4 inputs
✅ Transparency adjustment in overlay mode
✅ Interactive splitter (draggable with mouse)
✅ Zooming and panning
✅ Center and Reset buttons for quick view reset
✅ Minimum node size: 520x500 pixels
✅ Mouse wheel for quick zoom

Modes:

Overlay: First image over second with adjustable transparency
Split: Vertical splitter that can be dragged to compare details

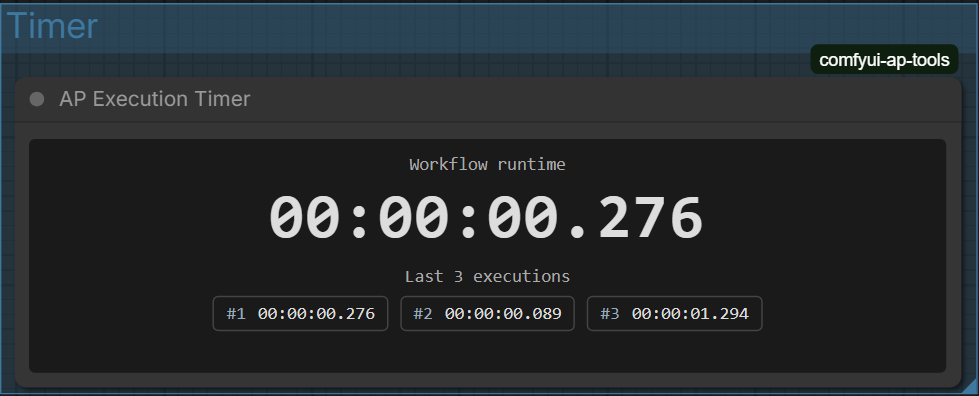

⏱️ AP Execution Timer

Category: ap-tools

Workflow execution timer with history of recent runs.

Inputs:

No inputs

Outputs:

No outputs (display only)

Features:

✅ Real-time from execution start to end
✅ History of last 3 runs
✅ Time format: HH:MM:SS.ms
✅ Automatic start/stop when queue runs
✅ Preserves state on page reload
✅ Minimum node size: 440x160 pixels
✅ Monospace font for easy reading

Display:

Main counter with millisecond precision
List of last 3 executions with number and time

📂 Project Structure

comfyui-ap-tools/
├── __init__.py                # Node registration and API endpoints
├── templates.json             # Saved path templates storage
├── nodes/
│   ├── ap_image_file_path.py  # AP Image File Path node logic
│   ├── ap_image_preview.py    # AP Image Preview node logic
│   ├── ap_image_compare.py    # AP Image Compare node logic
│   └── ap_execution_timer.py  # AP Execution Timer node logic
└── web/js/
    ├── ap_image_file_path.js  # Template manager frontend
    ├── ap_image_preview.js    # Previewer with loupe frontend
    ├── ap_image_compare.js    # Image comparison frontend
    └── ap_execution_timer.js  # Timer frontend

🔌 API Endpoints

Module provides following API methods for working with templates:

| Method | Path | Description |--------|-------------------------------|------------------------------------- | GET | /ap-tools/templates | Get list of all template names | GET | /ap-tools/templates/all | Get all templates with paths | POST | /ap-tools/templates | Save new template | DELETE | /ap-tools/templates/{name} | Delete template by name | GET | /ap-tools/execution-timer/uptime | Get ComfyUI uptime

💡 Usage Tips

AP Image File Path works great with image save nodes — use the full_path output as input for filename_prefix
For comparing different generation variants use AP Image Compare — it's much faster than opening images in separate programs
AP Execution Timer helps optimize workflows — notice execution time grew? Means something can be optimized
All nodes automatically adapt to ComfyUI interface scale

🛠️ Technical Details

All nodes use native ComfyUI extension mechanisms
Frontend written in pure JavaScript without external dependencies
Path templates are stored in templates.json file in module root
Timer history is stored locally in browser localStorage
Only Windows path style is supported (backslashes \)
Preview and comparison images are saved in ComfyUI temp folder

📋 Requirements

ComfyUI version 0.1.0 or higher
Python 3.8+
Compatible with all operating systems (Windows, Linux, macOS)

🤝 Support

If you found a bug or want to suggest an improvement, create an issue in the repository.
