RenderRift Node Pack

Welcome to the RenderRift Custom Node Pack for the ComfyUI. This was created as I need a couple of extra nodes to help in my Animatediff workflow. Below you'll find detailed explanations of each node and their respective functionalities.

Nodes Description

RR_VideoPathMetaExtraction

• Purpose: Works in conjunction with VHS_LoadVideoPath to set the file_path for a video and extracts the metadata from the file to send to RR_Image_metadata_overlay.
• Functionality:
  • Provides metadata to RR_Image_Metadata_Overlay
  • Provides file path to VHS_LoadVideoPath

RR_Image_Metadata_Overlay

• Purpose: Main node for displaying video and metadata in a grid format.
• Features:
  • Supports 2-6 videos & their corresponding metadatas.
  • Optional support for an "original video" for comparison in vid2vid workflows.
  • Grid format display with data overlay options.
• Predefined Options for Overlay:
  • checkpoint, ksampler, controlnets, animatediff, ipadapter, loras.
  • search_query: Enter a class_type from metadata to output all related values.
• Usage: Central to creating comparative video overlays with metadata insights.

RR_Date_Folder_Format Node

• Purpose: Outputs a string for saving images/videos in a specific format. To be used as an input to the filename_prefix
• Output Format:
  • {todays_date}/1lq_
  • {todays_date}/1_lq/lqimg_
  • {todays_date}/1hq_
  • {todays_date}/1_hq/hqimg_
  • {todays_date}/1facedetailer_
  • {todays_date}/1_facedetailer/facedetailerimg_

Workflows

Workflow file here

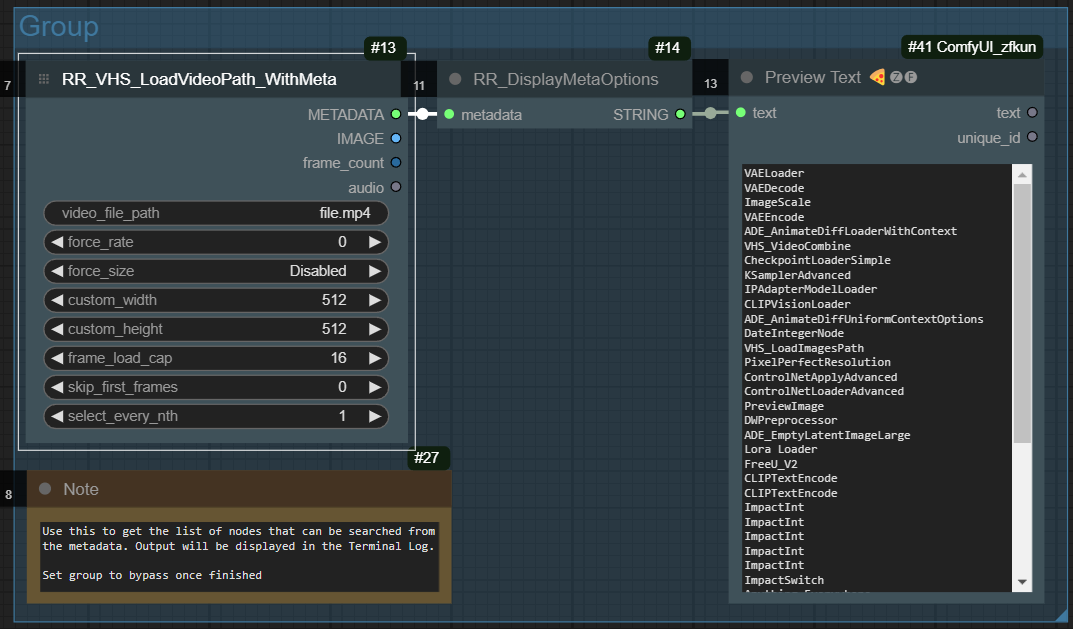

Workflow 1: Node Type Listing

• Description: Retrieves a list of node types from your video.
• Steps:
  • Run the first group in the workflow to obtain the node types.

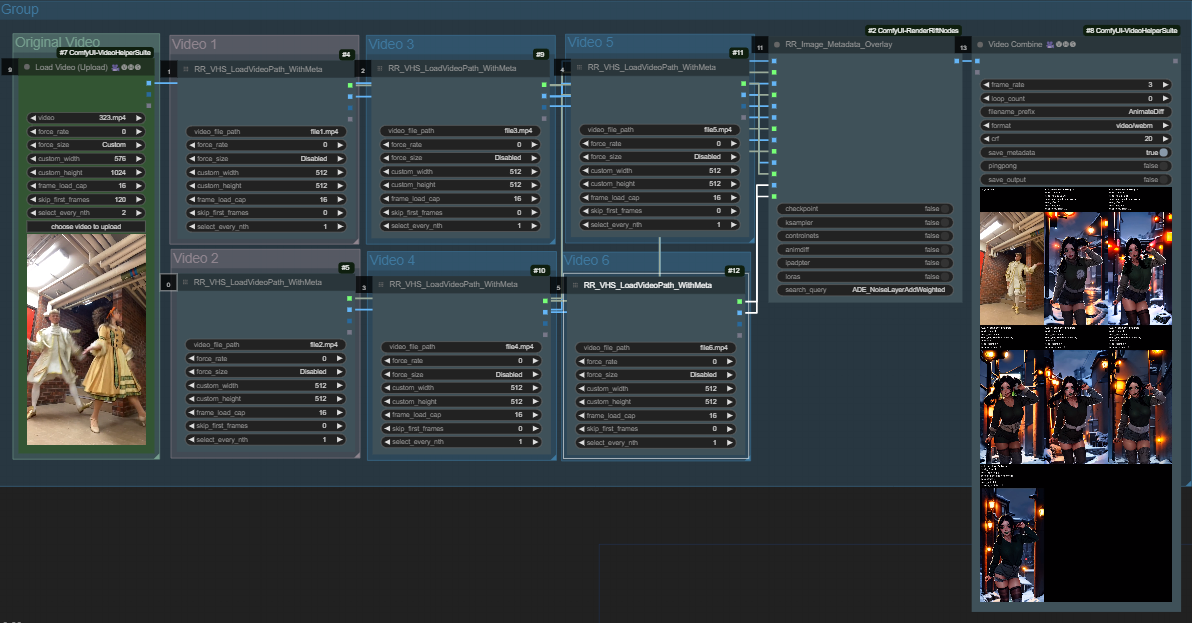

Workflow 2: Video Comparison Setup

• Description: Sets up video paths for comparison and overlay selection in RR_Image_Metadata_Overlay.
• Requirements: Ensure videos have been saved using VHS_VideoCombine with metadata enabled.
• Steps:
  • Bypass the first group if node types are known.
  • Select video paths for comparison.
  • Choose overlays for the RR_Image_Metadata_Overlay.
  • Save the output as a comparison video.
