A ComfyUI custom node extension for generating printable D&D 5th Edition NPC character sheets as card-sized (63.5mm × 88.9mm) front-and-back images.

Features

Front side: NPC illustration, name, race, Challenge Rating (CR), Armor Class (AC), and Hit Points (HP)
Back side: Full stat block with ability modifiers, skill proficiencies, resistances, immunities, weaknesses, spellcasting info, and custom actions/abilities
Scalable layout: All positions use parts-per-thousand (ppt) coordinates, making layouts resolution-independent
Multi-language layouts: English and Italian layout files included
Mask overlays: Front and back mask images for visual styling (opacity adjustable)
Print-ready output: Configurable DPI (default 300) and card dimensions

Installation

Place this extension in your ComfyUI custom nodes directory:

ComfyUI/custom_nodes/comfyui-orso-character-sheet-generator/

Restart ComfyUI.

Nodes

1. D&D5E NPC Sheet Generator

The main node that combines all inputs into a final character sheet image.

| Input | Type | Default | Description | |-------|------|---------|-------------| | i_w_card_width_mm | FLOAT | 63.5 | Card width in millimeters | | i_h_card_height_mm | FLOAT | 88.9 | Card height in millimeters | | i_n_dots_per_inch | INT | 300 | Output DPI for print quality | | image | IMAGE | — | NPC illustration (from any image generation workflow) | | i_s_npc_json | STRING | — | NPC stat block data as JSON (multiline) | | i_ls_layout_file_path | STRING | layout/npc_layout_en.json | Layout JSON file defining text/attribute positions | | i_ls_mask_front_path | STRING | mask/front_mask.png | Front overlay mask image | | i_ls_mask_back_path | STRING | mask/back_mask.png | Back overlay mask image |

Output:

card_image (IMAGE) — Combined front/back character sheet tensor

2. D&D5E NPC STAT BLOCK

Generates the NPC JSON data from individual input fields. Use this to define your NPC's stats, skills, and flavor text.

| Input | Type | Default | Description | |-------|------|---------|-------------| | name | STRING | "Olivia Prezzo" | NPC name | | race | STRING | "Halfling - Lightfoot" | Species | | cr | STRING | "5" | Challenge Rating | | hp | INT | 50 | Hit Points | | ac | INT | 16 | Armor Class | | speed | STRING | "Walk: 6sq" | Movement speed | | image_prompt | STRING | — | Prompt used to generate the NPC illustration | | description | STRING | — | NPC background/flavor text | | resources | STRING | — | Action economy (Actions, Bonus Actions, etc.) | | spellcasting | STRING | — | Spellcasting info (ability, list, DC, slots) | | immunity | STRING | "Poison" | Damage immunities | | resistance | STRING | "Acid" | Damage resistances | | weakness | STRING | "Holy, Blunt, Fire" | Damage vulnerabilities | | proficiency | INT | 3 | Proficiency bonus | | initiative | INT | 3 | Initiative modifier | | All 6 ability scores + saves + skills | INT | — | Strength, Dexterity, Constitution, Intelligence, Wisdom, Charisma with saves and skill modifiers | | ability (optional) | STRING | — | Pre-existing abilities JSON to append to |

Output:

STRING — Complete NPC JSON

3. D&D5E NPC ABILITY

Appends a single ability/action to the NPC's ACTIONS list. Chain multiple instances together to build up the full ability list.

| Input | Type | Default | Description | |-------|------|---------|-------------| | action_name | STRING | "Master Alchemist" | Name of the ability | | action_text | STRING | — | Effect description | | action_flavor | STRING | — | Flavor text / lore | | abilities_in (optional) | STRING | — | Previous abilities JSON (for chaining) |

Output:

abilities_out (STRING) — Updated abilities JSON

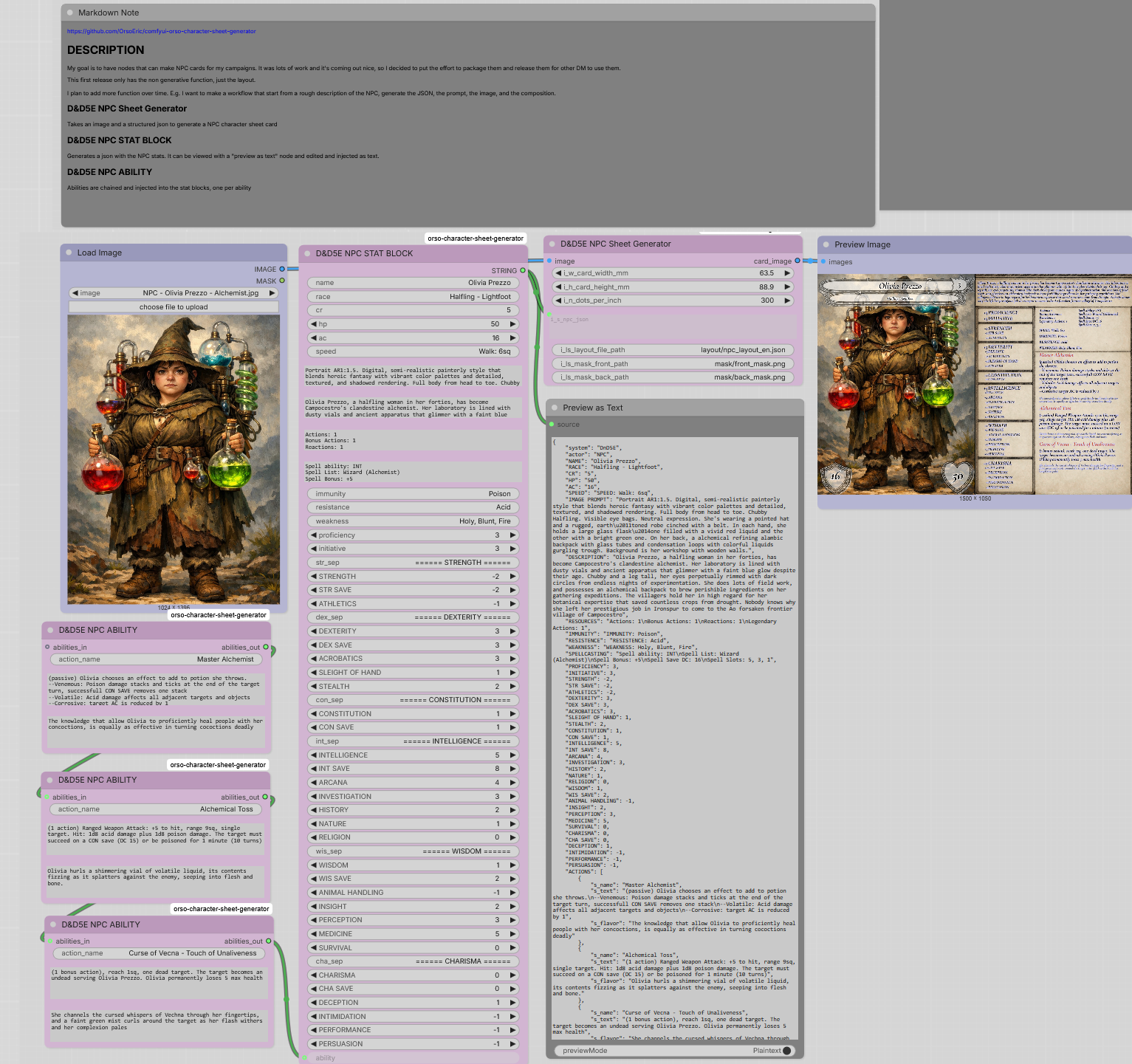

Workflow

┌─────────────────────────┐
│  D&D5E NPC STAT BLOCK   │
│  (define NPC stats)      │
└───────────┬─────────────┘
            │ STRING (JSON)
            │
            ▼
┌─────────────────────────┐       ┌─────────────────────────┐
│  D&D5E NPC ABILITY ×N   │──────▶│    (chain as needed)     │
│  (add abilities/actions) │       └───────────┬─────────────┘
└─────────────────────────┘                   │ STRING (JSON)
                                              │
┌─────────────────────────┐                   │
│   Image Generation      │                   │
│   (any workflow)        │                   │
│   NPC illustration      │                   │
└───────────┬─────────────┘                   │
            │ IMAGE                           │
            │                                 │
            ▼                                 ▼
┌─────────────────────────────────────────────────────────┐
│          D&D5E NPC Sheet Generator                      │
│                                                         │
│  Inputs:                                                │
│    • IMAGE  — NPC illustration                          │
│    • STRING — NPC JSON (stats + abilities)              │
│    • STRING — Layout file path                          │
│    • STRING — Front mask path                           │
│    • STRING — Back mask path                            │
│    • FLOAT  — Card width (mm)                           │
│    • FLOAT  — Card height (mm)                          │
│    • INT    — DPI                                       │
└─────────────────────────┬───────────────────────────────┘
                          │
                          ▼
                  ┌───────────────┐
                  │  card_image   │
                  │  (IMAGE)      │
                  └───────────────┘
                          │
                          ▼
                  ┌───────────────┐
                  │  Save Image   │
                  │  (printable)  │
                  └───────────────┘

Step-by-step

Define your NPC using the D&D5E NPC STAT BLOCK node — fill in name, race, stats, skills, resistances, description, etc.
Add abilities/actions using one or more D&D5E NPC ABILITY nodes — chain them together to build up the ACTIONS list. Feed the output of one into the abilities_in input of the next.
Generate an NPC illustration using any image generation workflow (AnimateDiff, SDXL, etc.). The illustration should be a full-body portrait suitable for a card front.
Feed everything into the Sheet Generator node along with:
- The layout JSON file (defines where text and stats appear on each side)
- Front and back mask images (visual overlays for styling)
- Card dimensions and DPI settings
Save the output — the result is a combined front/back character sheet ready for printing.

Project Structure

comfyui-orso-character-sheet-generator/
├── __init__.py                          # Node registration
├── cl_orso_character_sheet_generator_comfyui_bindings.py   # ComfyUI node classes
├── pyproject.toml                       # Project metadata
├── font/
│   └── CormorantGaramond-BoldItalic.ttf # Fantasy-style font
├── layout/
│   ├── npc_layout_en.json               # English layout definition
│   └── npc_layout_it.json               # Italian layout definition
├── mask/
│   ├── front_mask.png                   # Front overlay mask
│   └── back_mask.png                    # Back overlay mask
└── lib/
    ├── cl_generator.py                  # Core sheet generation logic
    ├── cl_npc.py                        # NPC JSON data loader
    ├── cl_multiline_text.py             # Text wrapping & rendering
    ├── cl_pil_tensor_convert.py         # PIL ↔ Tensor conversion
    ├── cl_utility_path.py               # Cross-platform path utilities
    ├── st_image.py                      # Image container (mm/px/dpi metadata)
    └── st_attribute_ability.py          # Attribute/ability dataclass

Layout JSON Format

Layout files define the appearance of each character sheet. They use parts-per-thousand (ppt) coordinates for resolution-independent positioning.

Key sections:

| Section | Purpose | |---------|---------| | FRONT_TEXT_BOXES | Text fields on the front (name, race, CR, AC, HP) | | text_boxes | Text fields on the back (description, resources, spellcasting, etc.) | | attributes_and_abilities | Ability scores, saves, and skill modifiers on the back | | ACTIONS | Configuration for rendering the actions/abilities section |

Field properties:

s_name: Key name matching the NPC JSON field
w_top_left_ppt / h_top_left_ppt: Position as ppt of card size
w_size_ppt / h_size_ppt: Box dimensions as ppt (0 = auto-height)
h_font_ppt: Font size as ppt of card height
t_text_color: RGB text color tuple

Dependencies

ComfyUI
Pillow (PIL)
PyTorch / torchvision
