comfyui-prometheus-exporter

ComfyUI Prometheus Exporter (custom node)

This is a standalone ComfyUI custom node that creates a Prometheus-compatible metrics endpoint within the ComfyUI installation.

<u>Requirements</u>

The only requirement for basic functionality is to have the API on your installation enabled.

Optional dependencies

The exporter works without extra dependencies, but it will export more metrics if these are available:

• psutil (better process + system metrics)
• pynvml (NVIDIA GPU metrics via NVML)

<u>Installation</u>

1. Clone this repository into your ComfyUIcustom_nodesfolder.

2. Restart ComfyUI.

3. Open in a browser:http://<comfyui-host>:8188/metrics

<u>Environment Variables</u>

You can create a .env file in the same folder as exporter.py (next to __init__.py).

An example is included as .env.example.

Optionally, point to a custom env file path with:

• COMFY_PROM_ENV_FILE=/absolute/path/to/file.env

The exporter will not override variables already present in the process environment.

• COMFY_PROM_METRICS_PATH (default: /metrics)
• COMFY_PROM_API_BASE (default: http://127.0.0.1:8188) Used for API fallbacks like /api/queue and /api/system_stats. If you do not set this, the exporter will try to auto-detect the correct base from the incoming /metrics request host/port.
• COMFY_API_KEY Optional header for those API calls (X-API-Key).
• COMFY_PROM_CACHE_TTL_SECONDS (default: 2.0) Cache for fast-changing metrics.
• COMFY_PROM_SYSSTATS_TTL_SECONDS (default: 10.0) Cache for /api/system_stats.
• COMFY_PROM_LOG_LEVEL (default: info) One of debug, info, warn, error.

<u>Prometheus Config</u>

scrape_configs:
  - job_name: 'comfyui'
    static_configs:
      - targets:
        - 127.0.0.1:8188  # ComfyUI URL and Port.
    metrics_path: /metrics

<u>List of Metrics</u>

| Metric | Recommended Grafana panel style | Description | | ------------------------------------------------------------------------ | ------------------------------- | ---------------------------------------------------------------------------------------------------- | | comfyui_exporter_info{version,path} | Stat | Exporter build info (value 1). | | comfyui_uptime_seconds | Time series | Uptime of the ComfyUI process. | | comfyui_queue_pending | Stat | Number of pending prompts (queue). | | comfyui_queue_running | Stat | Number of running prompts (queue). | | comfyui_queue_remaining | Stat | Queue remaining from WS status events (best-effort). | | comfyui_active_prompts | Stat | Prompts currently executing (best-effort; typically 0/1). | | comfyui_active_nodes | Stat | Whether a node is currently executing (best-effort; 0/1). | | comfyui_queue_age_seconds | Time series | Age of the oldest queued prompt that has not started executing. | | comfyui_queue_throughput_prompts_per_min | Time series | Prompt completions per minute (scrape-to-scrape estimate). | | comfyui_ws_messages_total{type} | Time series (rate) | WS messages observed by message type. | | comfyui_ws_progress_events_total | Time series (rate) | Number of progress events observed. | | comfyui_ws_execution_cached_nodes_total | Time series (rate) | Nodes reported as cached by ComfyUI. | | comfyui_prompt_in_flight | Stat | Whether a prompt is currently executing (1/0). | | comfyui_node_in_flight | Stat | Whether a node is currently executing (1/0). | | comfyui_progress_value | Time series | Current progress value. | | comfyui_progress_max | Time series | Current progress max. | | comfyui_progress_ratio | Time series | Current progress ratio (0..1). | | comfyui_prompt_completions_total | Time series (rate) | Prompt completions observed (best-effort). | | comfyui_prompt_executions_total | Time series (rate) | Prompt executions observed (best-effort). | | comfyui_prompt_execution_failures_total | Time series (rate) | Prompt executions that ended in error/interruption (best-effort). | | comfyui_prompt_execution_last_seconds | Stat | Execution duration of the last completed prompt. | | comfyui_prompt_execution_max_seconds | Stat | Max prompt execution duration observed. | | comfyui_prompt_execution_seconds_sum | Time series | (Legacy) Sum of observed prompt execution durations. | | | | | | comfyui_node_executions_total | Time series (rate) | Node executions observed (via executing transitions). | | comfyui_node_execution_last_seconds | Stat | Duration of the last observed node execution. | | comfyui_node_execution_max_seconds | Stat | Max node duration observed. | | comfyui_node_execution_seconds_sum | Time series | Sum of observed node execution durations. | | comfyui_node_duration_seconds_sum{class_type} | Time series (rate) | Sum of node durations by node class_type (best-effort mapping). | | comfyui_node_duration_seconds_count{class_type} | Time series (rate) | Count of node durations by node class_type. | | comfyui_node_failures_total{class_type} | Time series (rate) | Node failures by node class_type (best-effort, only when node id is detectable). | | comfyui_last_prompt_images | Stat | Images observed for the last completed prompt. | | comfyui_last_prompt_output_bytes | Stat | Output bytes observed for the last completed prompt (best-effort). | | comfyui_images_generated_total{type} | Time series (rate) | Images generated (from executed outputs) by output type. | | comfyui_output_bytes_total{type} | Time series (rate) | Output bytes (best-effort file size) by output type. | | comfyui_last_prompt_width | Stat | Width (px) detected for the last completed prompt. | | comfyui_last_prompt_height | Stat | Height (px) detected for the last completed prompt. | | comfyui_last_prompt_pixels | Stat | Pixels (width*height*batch) detected for the last completed prompt. | | comfyui_last_prompt_batch_size | Stat | Batch size detected for the last completed prompt. | | comfyui_last_prompt_steps | Stat | Steps detected for the last completed prompt. | | comfyui_last_prompt_cfg | Stat | CFG detected for the last completed prompt. | | comfyui_last_prompt_loras | Stat | Number of LoRA loader nodes detected for the last completed prompt. | | comfyui_last_prompt_controlnets | Stat | Number of ControlNet-related nodes detected for the last completed prompt. | | comfyui_prompt_requested_width_sum | Time series (rate) | Sum of requested width (px) observed on enqueue. | | comfyui_prompt_requested_width_count | Time series (rate) | Count of requested width observations. | | comfyui_prompt_requested_height_sum | Time series (rate) | Sum of requested height (px) observed on enqueue. | | comfyui_prompt_requested_height_count | Time series (rate) | Count of requested height observations. | | comfyui_prompt_requested_pixels_sum | Time series (rate) | Sum of requested pixels observed on enqueue. | | comfyui_prompt_requested_pixels_count | Time series (rate) | Count of requested pixels observations. | | comfyui_prompt_batch_size_sum | Time series (rate) | Sum of requested batch size observed on enqueue. | | comfyui_prompt_batch_size_count | Time series (rate) | Count of requested batch size observations. | | comfyui_prompt_steps_sum | Time series (rate) | Sum of requested steps observed on enqueue. | | comfyui_prompt_steps_count | Time series (rate) | Count of requested steps observations. | | comfyui_prompt_cfg_sum | Time series (rate) | Sum of requested CFG observed on enqueue. | | comfyui_prompt_cfg_count | Time series (rate) | Count of requested CFG observations. | | comfyui_prompt_loras_sum | Time series (rate) | Sum of LoRA-loader-node count observed on enqueue. | | comfyui_prompt_loras_count | Time series (rate) | Count of LoRA-loader-node count observations. | | comfyui_prompt_controlnets_sum | Time series (rate) | Sum of ControlNet-node count observed on enqueue. | | comfyui_prompt_controlnets_count | Time series (rate) | Count of ControlNet-node count observations. | | comfyui_sampler_requests_total{sampler} | Time series (rate) | Prompts observed by sampler name. | | comfyui_scheduler_requests_total{scheduler} | Time series (rate) | Prompts observed by scheduler. | | comfyui_model_family_requests_total{family} | Time series (rate) | Prompts observed by coarse model family (e.g. sdxl, sd15, flux). | | comfyui_checkpoint_requests_total{ckpt} | Time series (rate) | Prompts observed by checkpoint name (best-effort). | | comfyui_lora_requests_total{lora} | Time series (rate) | Prompts observed by LoRA name (best-effort). | | comfyui_controlnet_requests_total{model} | Time series (rate) | Prompts observed by ControlNet model name (best-effort). | | comfyui_prompt_queue_wait_seconds_sum | Time series (rate) | Sum of queue wait time (enqueue → execution_start). | | comfyui_prompt_queue_wait_seconds_count | Time series (rate) | Count of queue wait observations. | | comfyui_prompt_queue_wait_last_seconds | Stat | Last observed queue wait time. | | comfyui_prompt_queue_wait_max_seconds | Stat | Max observed queue wait time. | | comfyui_prompt_execution_seconds_sum | Time series (rate) | Sum of prompt execution time (execution_start → completion). | | comfyui_prompt_execution_seconds_count | Time series (rate) | Count of prompt execution time observations. | | comfyui_prompt_end_to_end_seconds_sum | Time series (rate) | Sum of end-to-end time (enqueue → completion). | | comfyui_prompt_end_to_end_seconds_count | Time series (rate) | Count of end-to-end observations. | | comfyui_prompt_end_to_end_last_seconds | Stat | Last observed end-to-end time. | | comfyui_prompt_end_to_end_max_seconds | Stat | Max observed end-to-end time. | | comfyui_prompt_failures_total{reason} | Time series (rate) | Prompt failures by classified reason (oom, cuda, model_load, graph, interrupted, other). | | comfyui_prompt_oom_failures_total | Time series (rate) | Prompt failures classified as out-of-memory. | | comfyui_prompt_cuda_failures_total | Time series (rate) | Prompt failures classified as CUDA/runtime errors (non-OOM). | | comfyui_prompt_model_load_failures_total | Time series (rate) | Prompt failures classified as model/checkpoint load failures. | | comfyui_prompt_graph_failures_total | Time series (rate) | Prompt failures classified as graph/workflow validation errors. | | comfyui_last_failure_reason{reason} | Stat | Last observed failure reason (value 1 with reason label). | | comfyui_prompt_cuda_max_memory_allocated_bytes | Stat | Torch per-prompt peak max_memory_allocated (reset at execution_start, captured at completion). | | comfyui_prompt_cuda_max_memory_reserved_bytes | Stat | Torch per-prompt peak max_memory_reserved (reset at execution_start, captured at completion). | | comfyui_prompt_nvml_vram_peak_bytes{gpu} | Time series | NVML per-prompt peak VRAM used by GPU index (best-effort sampling). | | process_resident_memory_bytes | Time series | Process RSS (bytes). | | process_cpu_seconds_total | Time series (rate) | Process CPU seconds (user+system). | | process_threads | Stat | Number of process threads. | | node_memory_total_bytes | Time series | Total system memory (bytes) (psutil if available). | | node_memory_available_bytes | Time series | Available system memory (bytes) (psutil if available). | | node_memory_used_bytes | Time series | Used system memory (bytes) (psutil if available). | | node_cpu_count_logical | Stat | Logical CPU count (psutil if available). | | node_load1 | Time series | 1-minute load average (psutil if available). | | comfyui_torch_info{version} | Stat | Torch version info (value 1). | | comfyui_cuda_available | Stat | Whether CUDA is available (1/0). | | comfyui_cuda_device_count | Stat | CUDA device count. | | comfyui_cuda_device_info{index,name} | Stat | Current CUDA device info (value 1). | | comfyui_cuda_mem_allocated_bytes | Time series | Torch allocated CUDA memory (bytes). | | comfyui_cuda_mem_reserved_bytes | Time series | Torch reserved CUDA memory (bytes). | | comfyui_cuda_max_mem_allocated_bytes | Time series | Torch max allocated CUDA memory (bytes) (process lifetime). | | comfyui_cuda_max_mem_reserved_bytes | Time series | Torch max reserved CUDA memory (bytes) (process lifetime). | | comfyui_gpu_memory_used_bytes{gpu,name} | Time series | NVML GPU memory used (bytes). | | comfyui_gpu_memory_total_bytes{gpu,name} | Stat | NVML GPU memory total (bytes). | | comfyui_gpu_utilization_percent{gpu,name} | Time series | NVML GPU utilization (%). | | comfyui_gpu_temperature_c{gpu,name} | Time series | NVML GPU temperature (°C). | | comfyui_system_info{os,python_version,comfyui_version,pytorch_version} | Stat | Build/system info from /api/system_stats (value 1). | | comfyui_system_ram_total_bytes | Stat | Total RAM (bytes) from /api/system_stats. | | comfyui_system_ram_free_bytes | Time series | Free RAM (bytes) from /api/system_stats. | | comfyui_device_vram_total_bytes{type,name} | Stat | Device VRAM total (bytes) from /api/system_stats. | | comfyui_device_vram_free_bytes{type,name} | Time series | Device VRAM free (bytes) from /api/system_stats. |

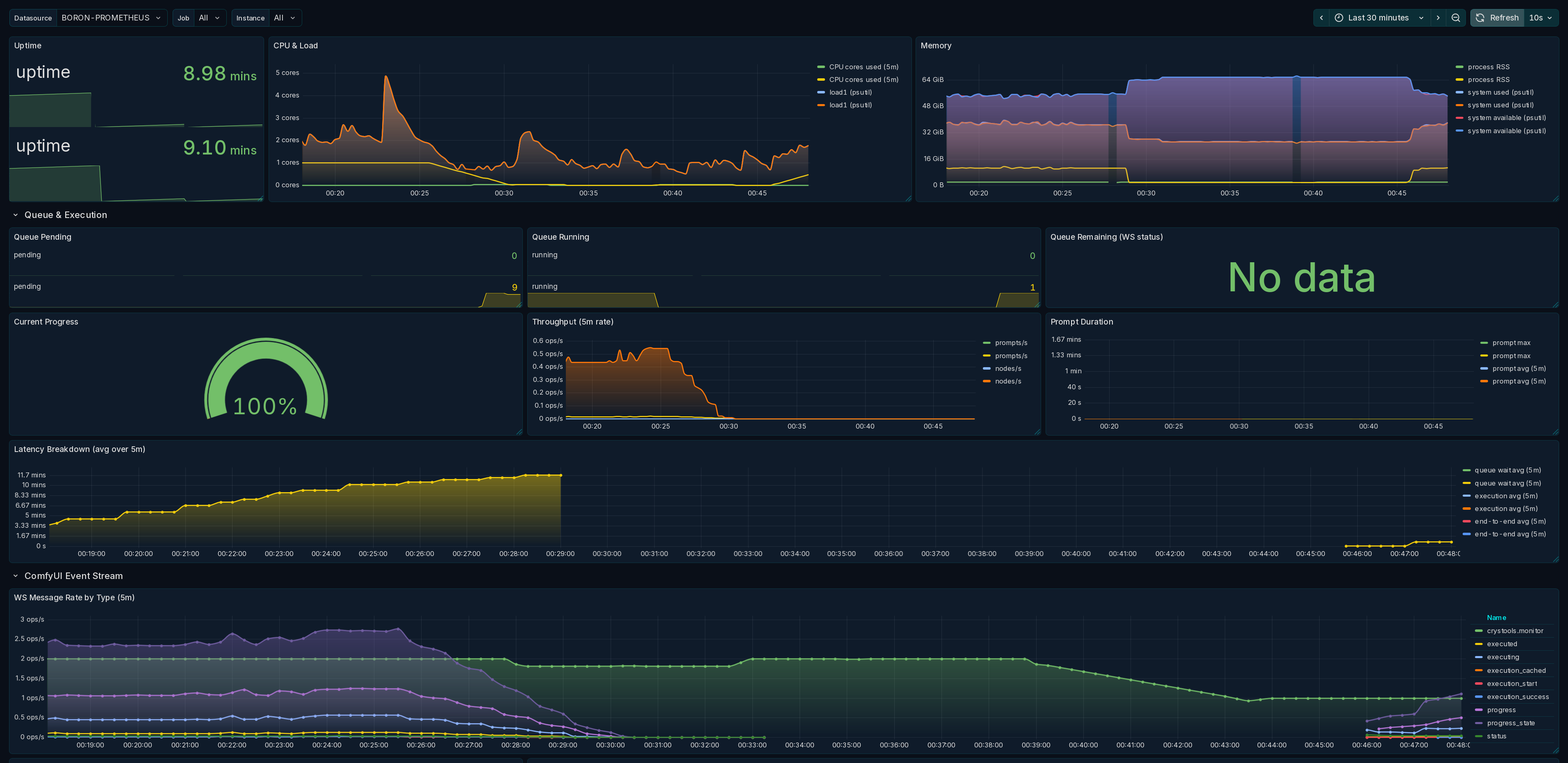

<u>Grafana Dashboard</u>

This repository includes an example Grafana Dashboard to help you get started with visualisation.
