ComfyUI-AI2Go-Utils

ComfyUI nodepack by AIKnowledge2Go

ℹ️ Published for reference. Issues are disabled and pull requests are closed automatically — this repo doesn't accept contributions, and no support is provided. You're welcome to fork and adapt it under the GPL-3.0 license.

Contact

⚠️ YouTube: My YouTube channel is dead: Read a bout it here: AIKnowledge2Go IS DEAD

I'm building a new one. Please give me a little time. ❤️ I won't upload the old ❌📹 videos. They are available for patreon members.

• 📹 YouTube: Into The Latent
• 📬 Newsletter: AI News
• 🌐 Website: Into The Latent
• ❤️ Patreon: AIKnowledgeCentral
• 📆 Book a 1-on-1 Session: Stable Diffusion Coaching
• ✉️ Email: [email protected]
• 🎨 Civitai: AIKnowledge2Go

Installation

Clone into your ComfyUI custom_nodes directory and restart ComfyUI:

cd ComfyUI/custom_nodes
git clone https://github.com/Little-God1983/ComfyUI-AI2Go-Utils

No extra dependencies (it uses Pillow, already shipped with ComfyUI). It can coexist with ComfyUI-KJNodes — both Ideogram 4 nodes run side by side without conflict.

Nodes

AI2Go Ideogram 4 Prompt Builder

A visual prompt builder for Ideogram 4's structured JSON caption format. Draw bounding-box regions on a canvas, describe each one, and the node assembles the caption — with a full scene-graph Overview, region parenting, and named groups layered on top.

Outputs: prompt (the caption JSON), preview (a rendered overlay image), bboxes (pixel-space boxes for SAM3 / crop nodes), width, height.

Region editor (canvas)

• Draw by dragging; move and resize with handles; Ctrl-drag to force-draw over an existing box.
• Per-region type (object / text), description, verbatim text, and a color palette; editable bbox fields (pixels + the 0–1000 grid).
• Multi-select — shift-drag marquee, shift-click toggle; Alt-click cycles overlapping boxes; Del / Ctrl+C·V·D to remove / copy / paste / duplicate.
• Lock regions, composition guides (thirds / grid / golden ratio / spiral), snap-to-grid, and adjustable label & box styling.
• Background: a connected reference image, the last generated image ("Grab BG"), or the live sampling preview — with a brightness control.
• Dockable / pinnable / fullscreen panel, a live token estimate, and output settings (compact/pretty JSON, normalized/absolute coords, yx/xy bbox order).

Overview (scene tree)

• A persistent, collapsible panel listing every region — click a row to select it (synced both ways with the canvas), so you can pick and edit a region without nudging it.
• Ctrl/Cmd-click to multi-select, Shift-click for a range.
• Lock, duplicate, and delete from the list; drag a row — or a whole multi-selection — onto another to nest it; drop on the header to send back to root.

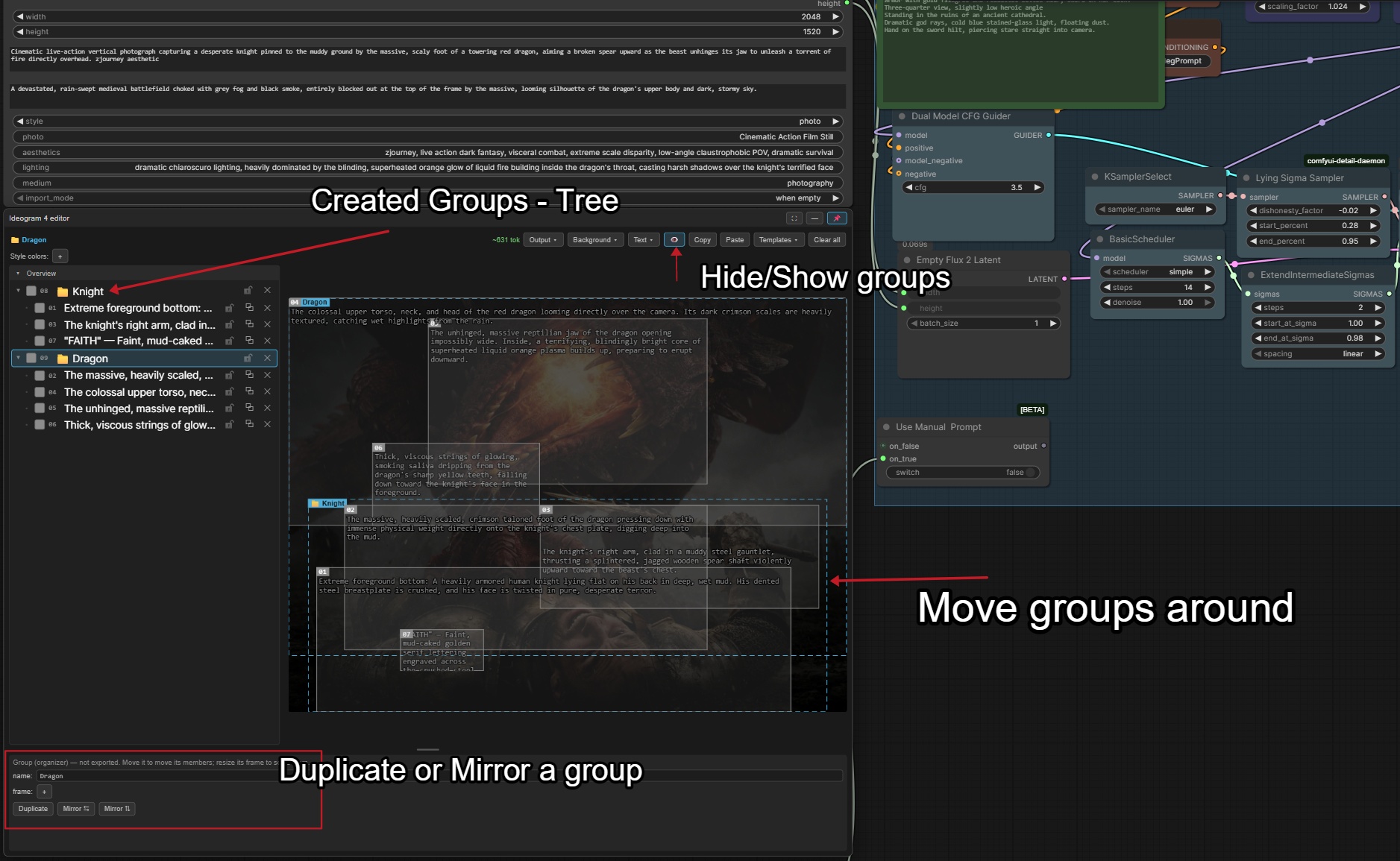

Parenting & groups

• Parent any region under another: move a parent on the canvas and its children follow. Deleting a parent promotes its children to the grandparent (no surprise subtree wipe).
• Groups — right-click the Overview → Create group from selection to wrap regions in a named container:
  • Move the group → everything moves; resize the group → its members scale.
  • Duplicate the whole group, or mirror its members horizontally / vertically.
  • Deleting a group keeps its children.
  • Groups are editor-only organizers — never part of the exported prompt. Toggle their frames on the canvas with 👁️ (hidden by default; always listed in the Overview).

Copy / paste & interop

• Copy / Paste the caption JSON, and save/load named Templates (stored server-side). Each template can carry an optional preview image — click 📷 in the Templates menu to pick one (it's center-cropped to a 200×200 webp), or just drop a matching <template-name>.{webp,png,jpg,jpeg} next to the template file and it's picked up automatically.
• Copies carry a small _ai2go sidecar that preserves the full layout (groups + hierarchy) for a lossless AI2Go → AI2Go round-trip, while staying two-way compatible with ComfyUI-KJNodes: KJNodes ignores the extra data and loads the flat scene, and KJNodes captions load here flat too. The sidecar never reaches the model prompt.

AI2Go Ideogram 4 Style Wizard

A "click-together" helper for the style fields of an Ideogram 4 caption — so you don't have to type aesthetics / lighting / medium / photo / art_style by hand.

• Wire the wizard's style output into a Prompt Builder's import_json input (the link just tells the wizard which builder to fill).
• Click 🪄 Open Style Wizard to open a two-tab modal. On the Pick styles tab, toggle one or many chips per category (they're comma-joined) or type your own; a search box filters chips, a live JSON preview shows the assembled style_description, and a status line names the builder you're writing to (or warns if nothing's connected).
• Photo vs. art_style are both selectable; if you set both, a warning notes that only photo is applied (Ideogram allows only one).
• Apply pushes the picks to the connected builder without closing (handy for tweaking); Apply & close (and Esc / clicking the backdrop) does the same and closes. Either way the picks are written straight into the builder's style widgets — your bounding boxes, color palette, and high_level_description are left untouched, and the node emits an empty string at run time so the import_json wire never overwrites the builder's regions.

Editable chip presets. The chip lists live in ComfyUI/user/default/ai2go/ideogram4/WizardStylesDefault.json. Edit them right in the wizard on the Edit presets tab — add, rename, or delete chips per category, then Save to file (or Discard / Restore defaults). You can also hand-edit the JSON (each entry's key must be one of aesthetics, lighting, medium, photo, art_style). If the file is missing or malformed, the wizard falls back to the built-in defaults and shows a warning (with the exact parse error) plus a Restore defaults button that (re)creates the file.

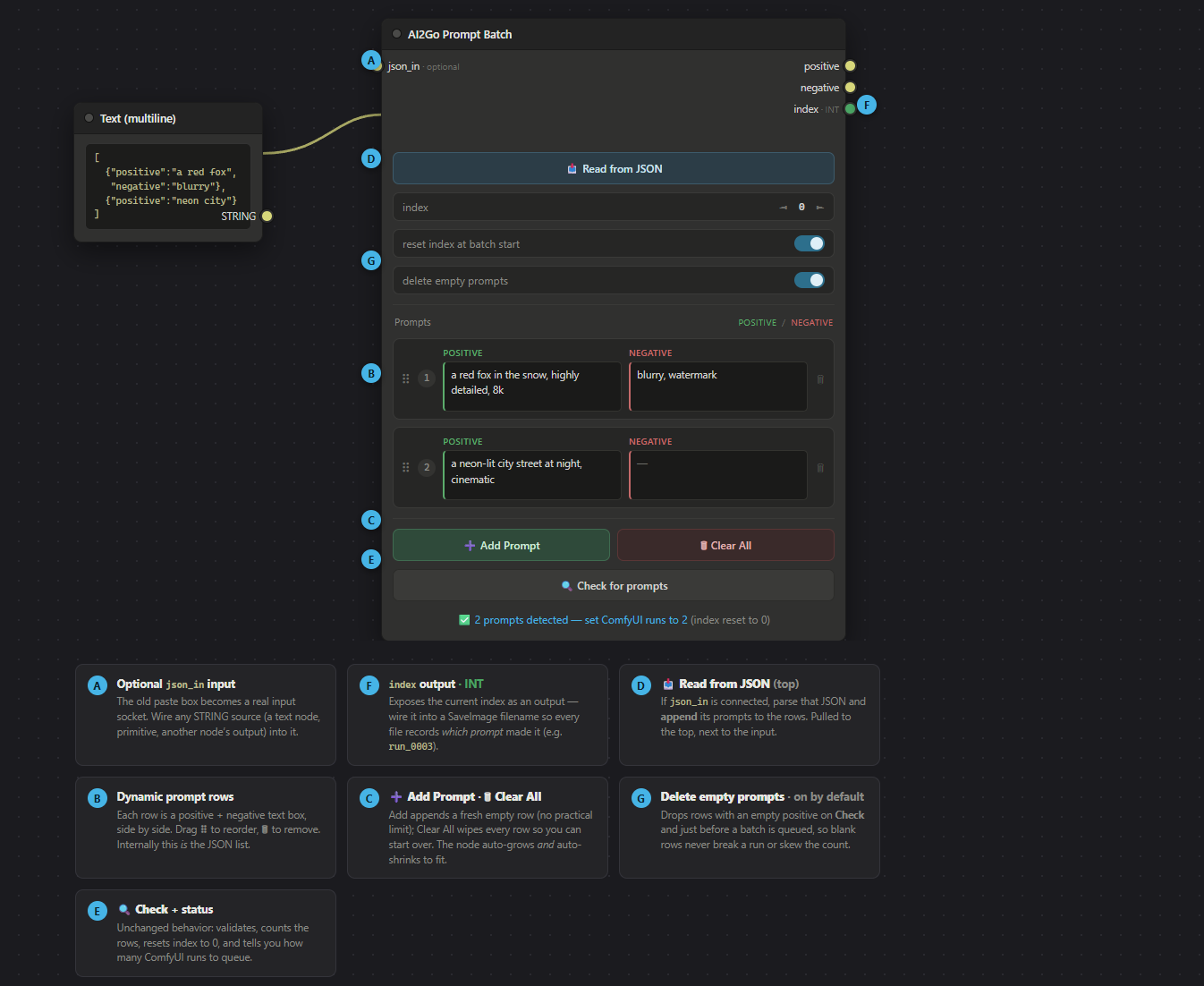

AI2Go Prompt Batch

Run a list of prompts one at a time across a queued batch — the text analog of the classic "Load Image Batch + increment index" trick. ComfyUI has no real for-loop, so you queue N runs by hand and this node walks the list, emitting one prompt per run.

Outputs: positive, negative, index (the 0-based index used this run — wire it into a SaveImage filename so each file records which prompt made it).

Editing prompts

• A dynamic row editor (in the spirit of rgthree's Power Lora Loader): each row is a positive and negative text box side by side. ➕ Add Prompt appends a row, 🗑 removes one, and the ⠿ handle drag-reorders. The node auto-grows and auto-shrinks to fit; stretch it wider for roomier boxes.
• 📥 Read from JSON — wire a text/primitive node holding a JSON prompt list into the optional json_in socket, then click to append it to the rows.
• 🗑 Clear All (directly under Read from JSON) wipes the list — click once to arm ("⚠ Sure? Click again"), click again within 4 s to confirm; it disarms itself otherwise.
• The rows are the source of truth; internally they serialize to the JSON array [{"positive": "...", "negative": "..."}, ...] (a bare string is treated as positive-only), stored in a hidden field that both saves with the workflow and drives execution.

JSON structure

The prompt list — whether typed into the rows or imported via 📥 Read from JSON — is a JSON array, one entry per queued run:

[
  { "positive": "a red fox in the snow, highly detailed, 8k", "negative": "blurry, watermark" },
  { "positive": "a neon-lit city street at night, cinematic" }
]

• positive (required) — the prompt text; must be non-empty.
• negative (optional) — defaults to "" when omitted or null.

The importer also accepts these convenience forms:

• A bare string entry is treated as positive-only — ["a red fox", "a neon city"].
• prompt works as an alias for positive.
• The array may be wrapped in an object — { "prompts": [ ... ] }.

Each run emits the entry at index (0-based) and the batch walks 0, 1, 2, …. Entries with an empty positive are dropped when Delete empty prompts is on; otherwise they raise a "positive is empty" error at run time.

Running a batch

1. Build the list, then click 🔍 Check for prompts — it validates, counts N, resets the index to 0, and tells you how many runs to queue.
2. Set ComfyUI's queue/run count to N and run. The node advances index by 1 after each run (immune to the "Widget Value Control Mode" setting), walking 0, 1, 2… across the batch.

Toggles.

• Reset index at batch start (default on) — zero the index when a new batch is queued, so every batch starts from the first prompt.
• Delete empty prompts (default on) — drop rows with an empty positive on Check and just before a batch is queued, so blank rows never break a run or skew the count.

If the index ever overshoots the list (more runs than prompts), it clamps to the last prompt instead of erroring.

AI2Go Resolution Selector

Pick a model-valid width/height by aspect ratio and mode, and (optionally) push it straight into a connected Ideogram 4 Prompt Builder.

• Profiles — default does no clamping (it just snaps each side to the snap_multiple field, default 8, which is what most diffusion samplers require). Model profiles like Ideogram 4 enforce their own rules (multiples of 16, 256–2048 px) and show a "clamped to keep aspect" warning when a request exceeds the cap. default is the default so the node is safe to drop into any workflow.
• Modes — raw (type width/height), auto (pick a ratio; edit one side, the other follows), megapixel (target megapixels + ratio; both computed).
• Aspect ratios — named presets from 1:1 (Square) to 3:1 (Wide Panorama), including 21:9 (Cinemascope). The list is square + landscape only; the ⟷ flip button transposes to portrait (16:9 → 9:16) and swaps width/height, so there's no duplicated 1:1.
• The readout shows the resulting W × H, megapixels, and the effective ratio + orientation. Wire width/height into a Prompt Builder; edits push into its canvas live and also apply on execution.

AI2Go Save Metadata (Civitai)

Two output nodes that save PNG(s) with an A1111-style parameters text chunk — the flat, human-readable format Civitai actually parses to show the prompt and auto-link the checkpoint and LoRAs. ComfyUI's stock Save Image embeds the raw workflow/prompt graph instead, which Civitai can't reliably read back into a prompt — and for a dynamic workflow (our own AI2Go Prompt Batch is the worst case: one graph, N prompts, disambiguated only by a run index) it's actively misleading. These nodes trace the graph at save time to capture the real prompt used on this specific run.

AI2Go Save Metadata (Civitai) (Basic) auto-traces everything — positive, negative, steps, CFG, seed, sampler, scheduler, model, and LoRAs — by walking backward from the KSampler feeding the saved image (falling back to "the only sampler in the graph" if that walk doesn't land on one). When the positive/negative text comes from an AI2Go Prompt Batch node, the trace reads that node's current index and resolves the exact line that ran for this queue item, not the whole batch list.

AI2Go Save Metadata (Civitai) Advanced adds optional override sockets — positive, negative, steps, cfg, seed, sampler_name, scheduler — that win over the trace when wired. Wiring a Prompt Batch node's positive/negative outputs straight into these sockets is the reliable path for dynamic/batch prompts: no static-graph guessing, just the string that actually ran. Model and LoRAs are always auto-traced on both nodes — a variable-length LoRA chain isn't practical to socket, and it's static graph data regardless of which prompt ran.

The model/LoRA walk recognizes checkpoints and standalone diffusion models (Load Diffusion Model / GGUF unet loaders), and picks up LoRAs from ComfyUI's stock Load LoRA (LoraLoader / LoraLoaderModelOnly) as well as rgthree's Power Lora Loader and Lora Loader Stack — including several LoRAs in one node. Disabled rows and empty (None) / zero-strength slots are skipped, matching what actually loads.

What gets written

One parameters chunk, A1111 order:

{positive} <lora:name:weight> ...
Negative prompt: {negative}
Steps: …, Sampler: …, CFG scale: …, Seed: …, Size: …, Model hash: …, Model: …, Lora hashes: "...", Version: ComfyUI

Each traced LoRA is appended to the positive line as a <lora:name:weight> tag and listed again in Lora hashes: — both signals Civitai uses to auto-link the resource. Unknown/unresolved fields are omitted, never guessed; if something can't be traced (e.g. two KSamplers in the graph, or a dynamic prompt source the tracer doesn't recognize), a warning names the unresolved field(s) in the ComfyUI log / node progress text, so you know to wire the Advanced node's sockets.

Test button

Both nodes have a 🔎 Test detection button that runs the same trace against the live editor graph and previews positive/negative, steps/cfg/sampler/seed, model, LoRAs, and any unresolved fields — so you can check exactly what will be saved before queuing a run.

save_workflow

Off by default. Off — the PNG carries only the Civitai parameters chunk. On — it also embeds the ComfyUI workflow/prompt chunks, the same as the stock Save Image, if you still want the graph recoverable from the file.

Model & LoRA hashing

Civitai matches a checkpoint/LoRA to its resource page by AutoV2 — the first 10 hex characters of the file's full SHA-256. Hashing a multi-GB checkpoint is slow, so hashes are cached in .hash_cache.json (in the pack folder, git-ignored) keyed by path + size + mtime: the first save of a new checkpoint or LoRA pays the hashing cost once; every save after that is instant.

Verification pending: the AutoV2 hash flavor is the one Civitai's own docs index against, but end-to-end confirmation — uploading a real image and watching Civitai auto-link the checkpoint and LoRA(s) — is still a pending manual check.

Assumption

Both nodes assume one KSampler in the workflow. Multi-sampler graphs (e.g. a hires-fix pass with two KSamplers) aren't disambiguated by the trace; wire the Advanced node's override sockets in that case.

Credits & License

Licensed under GPL-3.0 — see LICENSE.

Only the Ideogram 4 Prompt Builder node and its canvas editor are derived from ComfyUI-KJNodes by Kijai (GPL-3.0). Huge thanks to Kijai for that original work — the derived files retain their attribution.

Everything else in this pack — the Ideogram 4 Style Wizard, the Resolution Selector, the Prompt Batch node, and the Save Metadata (Civitai) nodes — is original development by AIKnowledge2Go.

Because the pack includes Kijai's GPL-3.0 code, the whole pack is released under GPL-3.0 as well.
