ComfyUI Extension: Light-x02 Nodes

Authored by Light-x02

Created

Updated

4 stars

Custom nodes for ComfyUI by Light-x02. Optimize and simplify workflows, adding utilities, samplers, schedulers and various tools (Flux, images, etc.) to enrich and extend ComfyUI’s capabilities.

Custom Nodes (0)

    README

    ⭐ Give a star, it shines and keeps us motivated! ✨

    ComfyUI-Lightx02-Nodes

    ComfyUI License: MIT Status

    Description: Custom nodes for ComfyUI by Light-x02. Optimize and simplify workflows, adding utilities, samplers, schedulers and various tools (Flux, images, etc.) to enrich and extend ComfyUI’s capabilities.

    This repository brings together several custom nodes developed to make ComfyUI more powerful and modular.

    🌐 Links & Support

    🧩 Installation

    Method 1: Install via ComfyUI Manager

    1. Go to the Custom Nodes section in the interface.
    2. Search for "ComfyUI-Lightx02-Nodes" and install it directly from the ComfyUI Manager.
    3. Restart ComfyUI
      Restart ComfyUI to load the node.

    Method 2: Clone the Repository

    1. Open a terminal or command prompt.
    2. Run the following command to clone the repository:
      git clone https://github.com/Light-x02/ComfyUI-Lightx02-Nodes.git
    3. Restart ComfyUI
      Once the files are in place, restart ComfyUI to load the node.

    Compatibility

    Compatible with the extension ComfyUI-ImageMetadataExtension. This integration ensures metadata compatibility with Civitai, allowing details such as sampler, steps, guidance, prompt, and seed to be correctly captured and displayed on the Civitai platform.

    🧩 Custom Nodes

    <details> <summary>⚙️ Flux/SDXL Settings Pipe & 📤 Settings Pipe Unpack</summary>

    ComfyUI — ⚙️ Flux/SDXL Settings Pipe & 📤 Settings Pipe Unpack

    These two nodes are designed to simplify Flux and SDXL workflows: a single node to configure resolution and sampling parameters, and a second node to unpack fields from the pipe.

    ⚙️ Flux/SDXL Settings Pipe

    Description

    Central node that prepares settings for Flux or SDXL. It offers two lists of model-specific resolutions (Flux vs SDXL) and a switch (mode_resolution) to toggle between them. It computes and outputs a pipe (structured object) containing everything needed for proper sampling, along with individual outputs (latent, width/height, sampler, sigmas, etc.).

    Main Features

    • Flux/SDXL switchable mode (mode_resolution) with resolutions adapted to each model family.
    • Preset resolutions + overrides (width_override, height_override) and flip orientation (swap W/H) for faster setup.
    • Sampler & Scheduler: select from ComfyUI’s official samplers and schedulers.
    • Steps & Denoise: fine control over iteration count and denoising strength.
    • Guidance & CFG: manage guidance (written into conditioning) and expose a dedicated CFG.
    • Seed & Noise: generates a reusable custom noise generator and exposes the seed.
    • Colored Section Headers: section titles in the node are clickable; you can change their background color.
      • Colors are saved locally in your web browser (via localStorage).
      • Each header keeps its chosen color between ComfyUI sessions.
    • Pipe Output: returns a full FLUX_PIPE, ideal for keeping workflows clean and modular.

    Example Usage

    1. Place ⚙️ Flux/SDXL Settings Pipe and select Flux or SDXL using mode_resolution.
    2. Choose sampler_name, scheduler, steps, denoise. Adjust guidance or cfg as needed.
    3. Click on the colored section headers to adjust their background color if desired (saved in your browser).
    4. Connect the pipe output to 📤 Settings Pipe Unpack (to access clean individual outputs).

    📤 Settings Pipe Unpack

    Description

    Unpacks a FLUX_PIPE to retrieve all useful outputs without cluttering the workflow. The first PIPE output allows you to extend the chain from the same object if needed (best practice to keep the graph clean and modular).

    Why Use It?

    • Centralize: a single cable from the main node to the unpack → fewer wires everywhere.
    • Extendable: keeps pipe as the first output to chain other compatible nodes.
    • Readable: results in cleaner, more maintainable workflows.

    Presets — Management and Best Practices

    These nodes include a preset system (UI button Manage presets) that lets you save/load the state of the ⚙️ Flux/SDXL Settings Pipe node.

    What Gets Saved

    • The main widget values of the node (resolution, Flux/SDXL mode, steps, denoise, sampler, scheduler, guidance, cfg, etc.).
    • Purely UI elements (colored headers, management button) are not saved.

    Available Operations

    • Apply to node: apply the selected preset to the current node.
    • Save (overwrite): overwrite the selected preset with the node’s current values.
    • Save As…: create a new preset.
    • Rename…: rename a preset.
    • Delete: remove a preset.
    • Export / Import: exchange presets via JSON files.

    Where Are Presets Stored?

    • One JSON file per preset in the extension’s presets/ subfolder.

    Compatibility

    • Compatible with Flux and SDXL (resolution lists designed for each model family).
    • The pipe is designed to remain stable and extendable, preventing cable clutter.

    Example Workflow

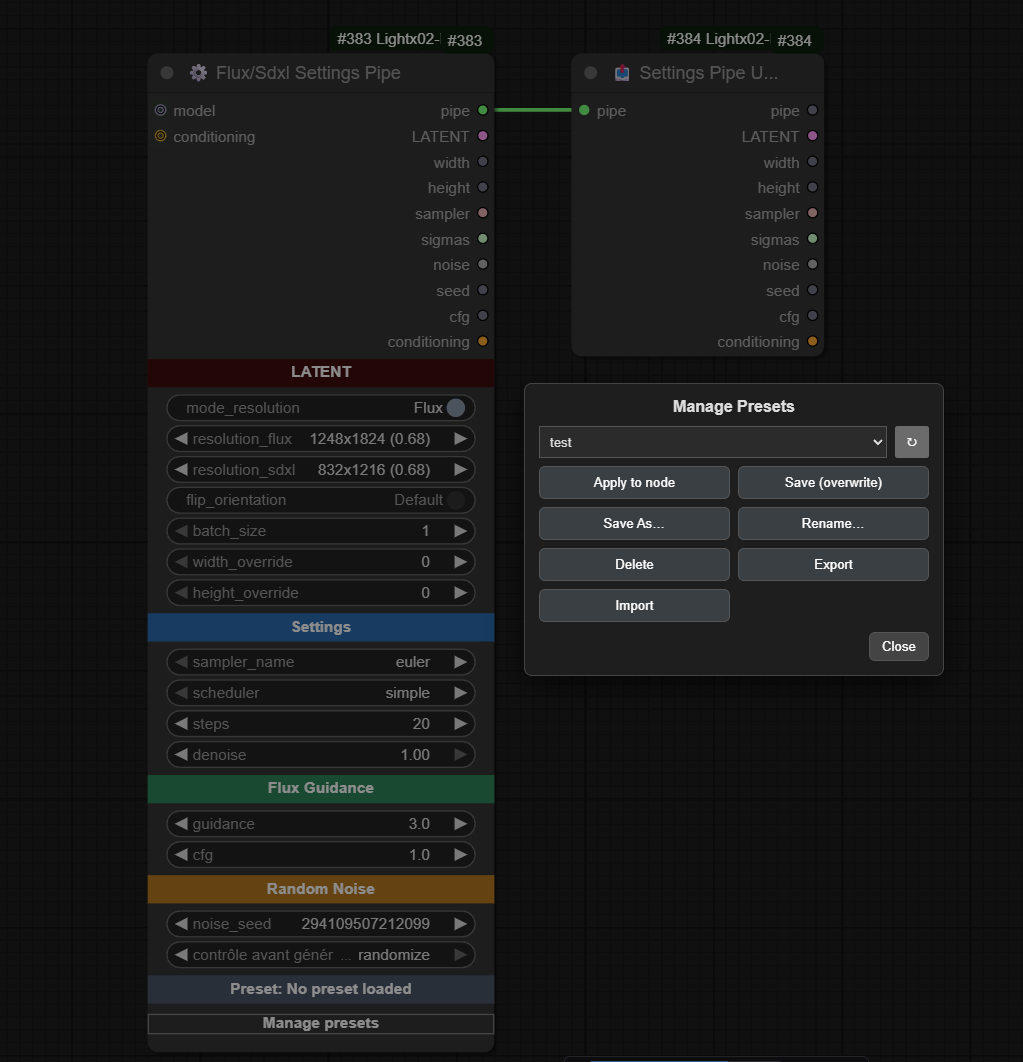

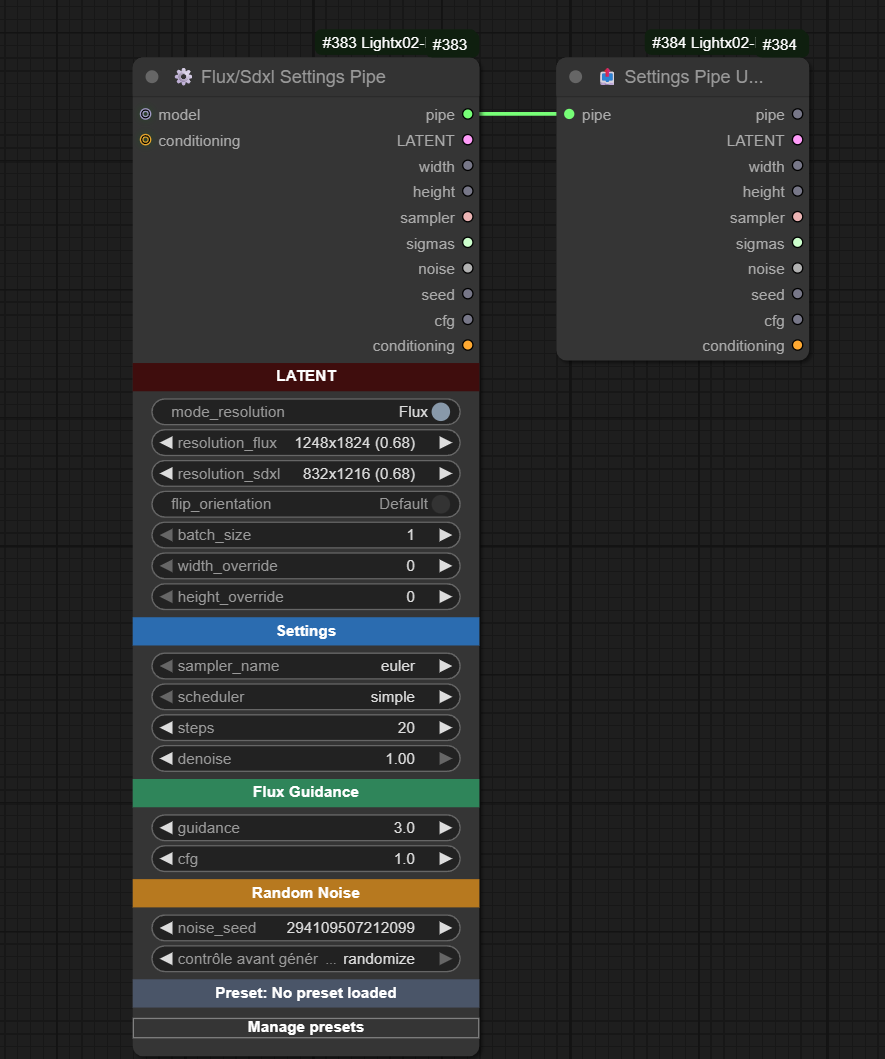

    Flux/SDXL Workflow 1 Flux/SDXL Workflow 2

    </details>
    <details> <summary>⚙️ Node Presets Universal</summary>

    Node Presets Universal

    Description

    Node Presets Universal is a ComfyUI extension that allows you to save, load, rename, delete, export, and import presets for any node directly via the right-click context menu.

    Unlike node-specific preset systems, this extension is universal: it works on almost all nodes without requiring code modifications.

    ⚠️ Limitation: Some nodes that rely heavily on JavaScript for dynamic UI (e.g., Power Lora Loader) may not be fully compatible.

    Features

    Context Menu Integration

    • Adds a "Presets" submenu to all nodes in ComfyUI.
    • Accessed by right-clicking a node → Presets.

    Preset Management

    • Save Preset…: Save the current widget values of the node as a preset.
    • Load Preset…: Load a previously saved preset into the node.
    • Delete Preset…: Permanently delete a saved preset.
    • Manage…: Open a dedicated management dialog with advanced options.

    Manage Dialog

    A lightweight UI that lets you:

    • Apply to node: Load the selected preset onto the node.
    • Save (overwrite): Overwrite the current preset with the node’s values.
    • Save As…: Save the current configuration under a new preset name.
    • Rename…: Rename a preset without losing its values.
    • Delete: Remove the selected preset.
    • Export (selected): Export one preset to JSON.
    • Export (all): Export all presets of a node type to JSON.
    • Import: Import presets from JSON files.

    Storage System

    • One file per node type: presets are stored per node type in a .json file.
    • Location: stored under ComfyUI\User\default\preset_nodes.
    • Presets are saved differently depending on ComfyUI’s storage mode:
      • Server mode → stored via API.
      • Local mode → stored in browser localStorage.

    Current Preset Tracking

    • The currently applied preset name is stored per node ID in localStorage.
    • This is cosmetic: it helps you remember which preset was last used.

    Example Workflow

    1. Right-click on any node → Presets → Save preset….
    2. Give it a name (e.g., High Quality Sampling).
    3. Later, right-click the node → Presets → Load preset… → High Quality Sampling.
    4. Use Manage… for advanced actions like renaming, exporting, or batch importing presets.

    Limitations

    • Some JavaScript-based nodes with dynamic UIs (e.g. Power Lora Loader) may not correctly serialize/restore all widget values.
    • Only widgets with standard serializable values (combo, int, float, text, checkbox, etc.) are supported. Buttons, separators, and UI-only widgets are ignored.
    </details>
    <details> <summary>🎨 Link Colors (I/O)</summary>

    🎨 Link Colors (I/O) — Quick Explanation

    What does it do?

    This extension colors the workflow links based on the type of the output and input, then falls back to ComfyUI’s default color if nothing is defined. The rendering remains faithful to the ComfyUI/LiteGraph color palette.

    How the color is chosen

    Order of resolution (from most specific to most generic):

    1. Color of the output type (global mapping LGraphCanvas.link_type_colors).
    2. Color of the input type (same mapping).
    3. Color provided by the renderer (renderLink, if present) as a fallback.
    4. LiteGraph.LINK_COLOR: default color (green) if nothing else is found.

    Note: “generic” types (*, ANY, etc.) are not blended; the most specific available color is preferred.

    Why this extension?

    In some graphs, the link color stayed stuck with the default color when the path passed through “generic” nodes (e.g. Reroute, Any Switch/Any), even if the actual source was a specific type (e.g. VAE). This extension fixes that by evaluating the actual output and input of each link, prioritizing specific types, and avoiding mixing with generic ones. This way, the link correctly inherits a color consistent with its real type instead of staying on the fallback.

    On/Off without side effects

    • A context menu item (right-click anywhere) "🎨 Enable Link Colors (I/O)" allows you to toggle the feature.
    • ON: the patch attaches to renderLink and applies the logic above.
    • OFF: the patch detaches and ComfyUI returns to its original rendering.

    The state is saved in localStorage (linkcolors_enabled) and persists between sessions.

    Summary

    • Respects the global ComfyUI palette (including the default green).
    • I/O-aware: considers both input and output types.
    • Reversible: toggle that restores native behavior when disabled.
    • Persistent: your preference is automatically saved.

    Example Before/After

    🎥 Watch the demo on YouTube

    </details>
    <details> <summary>📝 ComfyUI Image Metadata Nodes</summary>

    ComfyUI Image Metadata Nodes

    Version: 1.1.0

    Description

    Two complementary nodes for ComfyUI to load and save images while preserving metadata. Ideal for workflows like upscaling without altering original metadata.

    How It Works

    • Image Metadata Loader imports an image and extracts its metadata. Optional MASK output.
    • Image Metadata Saver saves an image with original, unchanged metadata embedded in the PNG.

    Connect the loader’s METADATA output to the saver’s METADATA input to preserve metadata across transformations.

    Features

    • Supported formats: PNG (metadata embedded).
    • Optional Mask Output from the loader.
    • Dynamic metadata management for complex workflows.
    • Advanced compatibility: metadata correctly embedded in the final PNG file.
    • Dynamic pathing with date/time placeholders.

    Supported Prefixes

    | Placeholder | Description | Scope | |---------------------|--------------------------|----------------------| | %date:yyyy% | Year (e.g. 2025) | ✅ Filename / Subdir | | %date:yy% | Year short (e.g. 25) | ✅ Filename / Subdir | | %date:MM% | Month (01–12) | ✅ Filename / Subdir | | %date:dd% | Day (01–31) | ✅ Filename / Subdir | | %date:yyyy-MM% | Year-Month | ✅ Filename / Subdir | | %date:yyyy-MM-dd% | Full Date | ✅ Filename / Subdir | | %time:HH% | Hour (24h) | ✅ Filename / Subdir | | %time:mm% | Minute | ✅ Filename / Subdir | | %time:ss% | Second | ✅ Filename / Subdir | | %time:HH-mm-ss% | Full Time | ✅ Filename / Subdir | | %datetime:full% | Full datetime | ✅ Filename only ⚠️ |

    ⚠️ %datetime:full% is not allowed in subdirectory_name.

    Usage

    Image Metadata Loader

    • Outputs:
      • IMAGE: The loaded image.
      • METADATA: The raw metadata.
      • MASK: Optional mask output.

    Image Metadata Saver

    • Inputs:
      • IMAGE: The image to save.
      • METADATA: The metadata to include (optional).
    • Options:
      • Filename Prefix (e.g., %date:yyyy-MM-dd%).
      • Subdirectory Name (can be dynamically generated).

    Example Workflow

    1. Load image & metadata with Image Metadata Loader.
    2. Process image (e.g., upscale).
    3. Connect METADATA (loader) → METADATA (saver).
    4. Save with Image Metadata Saver.

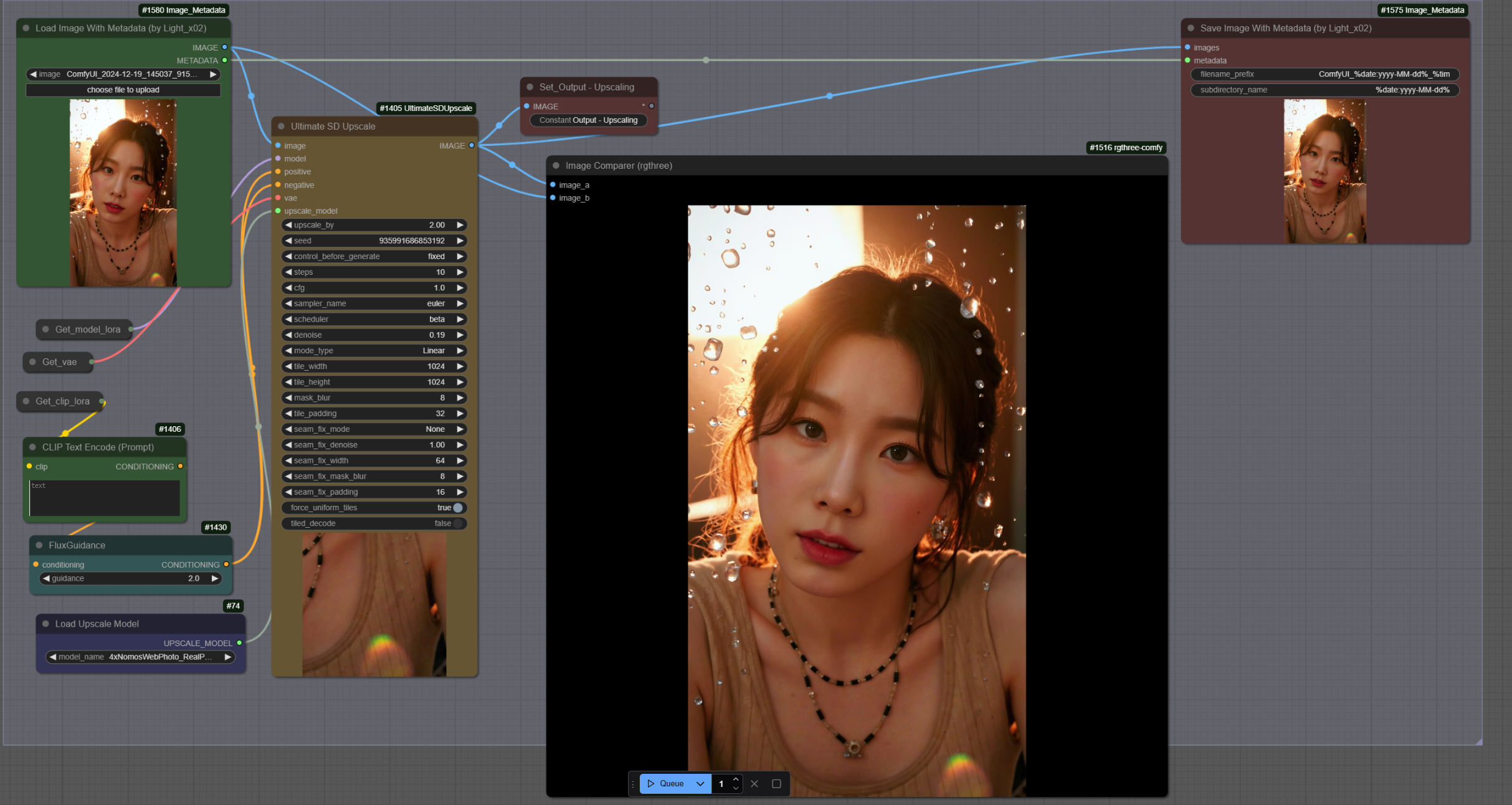

    Metadata Workflow Example

    Additional Notes

    For txt2img metadata in PNG, I use ComfyUI-ImageMetadataExtension:
    https://github.com/edelvarden/ComfyUI-ImageMetadataExtension

    Contribution

    Issues/PRs welcome:
    https://github.com/Light-x02/ComfyUI-Image-Metadata-Nodes

    </details>
    <details> <summary>✂️ Crop Image</summary>

    Crop Image

    CropImage is a ComfyUI node to crop an image (and optionally its mask) using pixel values.

    Features

    • Crop from all 4 sides: crop_top, crop_bottom, crop_left, crop_right
    • Values are given directly in pixels
    • Supports images and masks
    • Optional rotation with automatic white fill (255 for masks)
    • No automatic resizing → output keeps the exact cropped size

    Parameters

    • crop_top: pixels to crop from the top
    • crop_bottom: pixels to crop from the bottom
    • crop_left: pixels to crop from the left
    • crop_right: pixels to crop from the right
    • rotation: rotation angle in degrees (clockwise), with expansion and white fill

    Returns

    • image: the cropped (and rotated) image
    • mask: the cropped mask (if provided)

    Example usage

    Crop an image of 2600×1104 to keep only the area x=1352, y=136, width=1248, height=832:

    • crop_left = 1352
    • crop_right = 0
    • crop_top = 136
    • crop_bottom = 136

    Output will be 1248×832.

    ✦ Category: lightx02
    ✦ Display name in ComfyUI: Crop Image

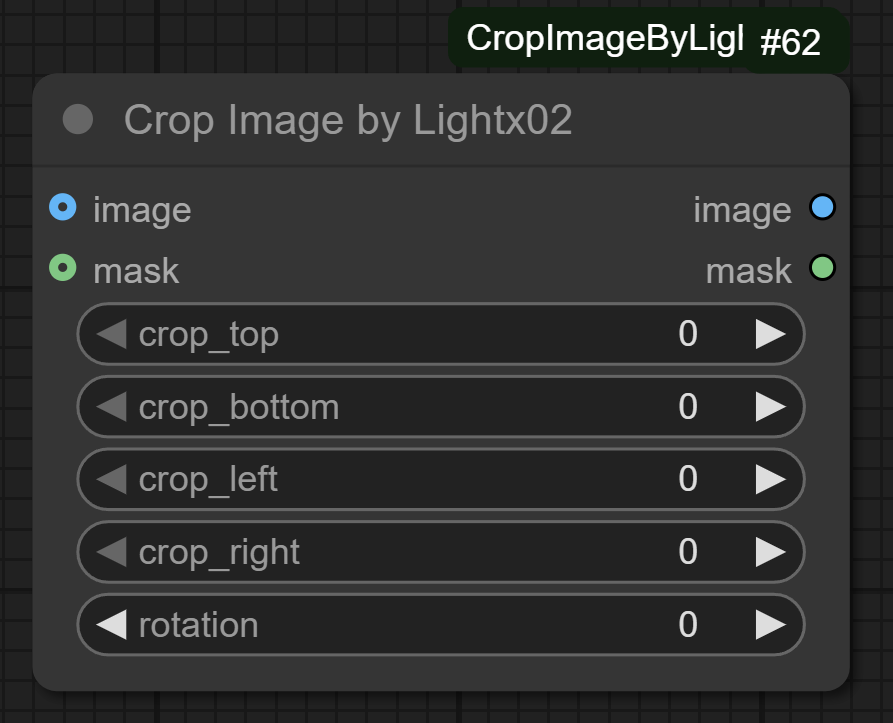

    Node preview

    </details>
    <details> <summary>🔗 Pipe Hub</summary>

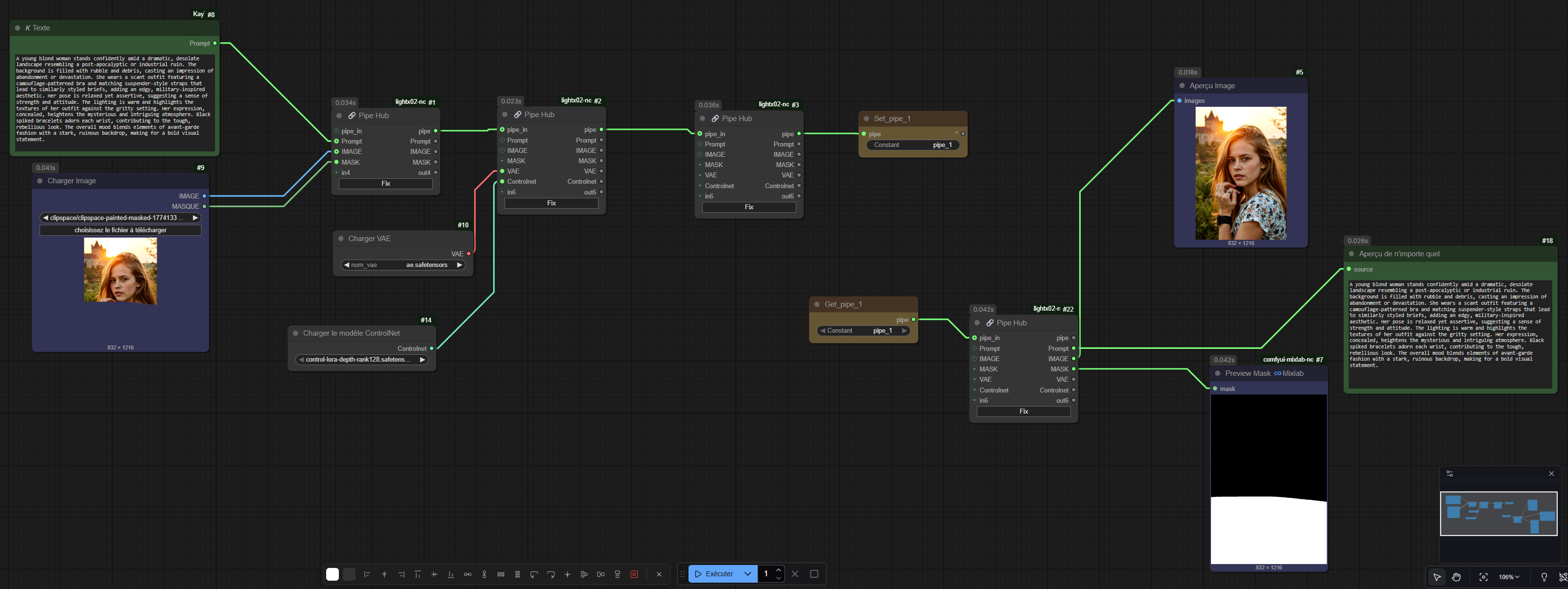

    🔗 Pipe Hub

    Video: 🔗 Pipe Hub 🔗 Pipe Hub

    🧩 Description

    The 🔗 Pipe Hub is a universal node designed to carry and merge any type of data within ComfyUI.
    It acts as an intelligent multiplexer, capable of linking multiple data streams — IMAGE, MASK, LATENT, VAE, MODEL, etc. — inside a single, unified “pipe.”
    It helps to keep workflows clean and readable, avoiding messy wires crossing the workspace by grouping everything into a single organized flow.

    Both inputs and outputs of the Pipe Hub accept any connection type (AnyType("*")).
    This allows you to freely connect heterogeneous nodes without worrying about data types.

    ⚙️ Functionality

    Each Pipe Hub includes:

    • A special input `` (connection from another Pipe Hub),
    • A main output `` (to transmit data to other Pipe Hubs or nodes),
    • Multiple dynamic input/output pairs (in1/out1, in2/out2, etc.),
    • A `` button to resynchronize structure and port labels.

    When a link is connected to an input (inX), a new pair is automatically added.
    Conversely, when an input becomes unused, the extra port disappears.

    🧤 Automatic Naming

    The Pipe Hub automatically copies the names of upstream connections.
    For example:

    • If an IMAGE output is connected, the input will be renamed IMAGE.
    • If multiple links of the same type are added, the names become IMAGE, IMAGE_1, IMAGE_2, etc.

    🔁 Serial Usage

    Pipe Hubs can be chained in series:

    [Pipe Hub 1] → [Pipe Hub 2] → [Pipe Hub 3]

    Each hub inherits names and types from the previous one, allowing data signals to flow seamlessly through an entire network.
    You can even insert new links anywhere in the chain — downstream Pipe Hubs will update automatically.

    🧱 The “Fix” Button

    The Fix button recalculates and synchronizes the entire connected network:

    • Fixes missing or extra ports,
    • Restores input and output names,
    • Updates connected Pipe Hubs upstream and downstream.

    ⚠️ Current Limitation

    The Fix button does not propagate beyond a Set/Get Node (see below).
    In other words:

    If your network contains a SetNode and a GetNode, you must click Fix on both sides of this pair to fully refresh the network.

    🔌 Compatibility with SetNode / GetNode (rgthree)

    The 🔗 Pipe Hub is fully compatible with the
    SetNode and GetNode nodes from the rgthree-comfy project.

    Thanks to this compatibility:

    • You can store a pipe using SetNode under a name (e.g., pipe),
    • Then retrieve it later in the workflow using GetNode,
    • While keeping the full structure and naming of the Pipe Hub intact.

    🔄 Example Flow

    [Pipe Hub A] → [SetNode (pipe)] → [GetNode (pipe)] → [Pipe Hub B]

    • Data flows correctly between A and B through Set/Get.\

    • When the flow changes, click Fix on A and on B to refresh all ports.

    🧠 Usage Tips

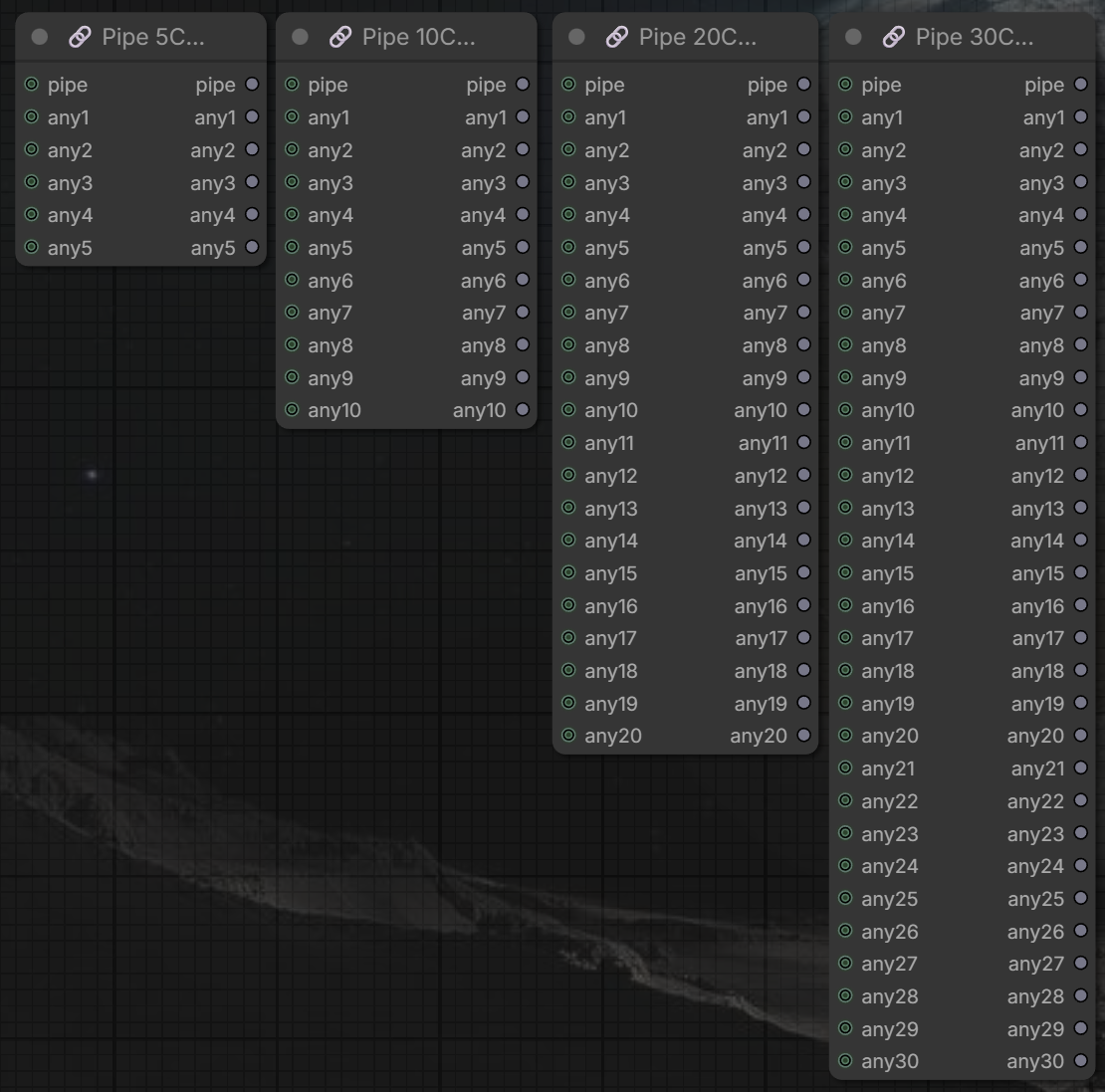

    • The Pipe Hub supports up to 30 input/output pairs per node.\

    • You can insert intermediate nodes (Reroute, ControlNet, etc.) without breaking the chain.\

    • Use Fix after moving or deleting pipes to keep the network clean.\

    • Avoid connecting multiple Pipe Hubs to the same SetNode key — this may cause naming conflicts.

    🧩 Summary

    | Function | Description | | ----------------- | ---------------------------------------------------------------- | | pipe_in | Main input, receives a flow from another Pipe Hub | | pipe | Main output, sends the complete flow to other Pipe Hubs or nodes | | inN / outN | Dynamic port pairs accepting any type | | Fix | Synchronizes ports and labels across the network | | Compatibility | Reroute, Set/GetNode (rgthree), multi-chains, auto-naming | | Limitation | Fix does not yet automatically traverse Set/GetNodes |

    🔗 Resources

    </details>
    <details> <summary>📝 LMM Extract Prompts</summary>

    Purpose
    ComfyUI node that interfaces with Local Media Manager by Firetheft to extract:

    • positive_prompt (with <lora:...> tags removed),
    • negative_prompt (with <lora:...> tags removed),
    • info (only <lora:...> tags + the section starting at Steps:).

    Connects to Firetheft’s Local Media Manager node:
    https://github.com/Firetheft/ComfyUI_Local_Media_Manager

    Connection

    • Input: paths (connect the paths output from the Local Media Manager node).
    • Outputs:
      • positive_prompt : STRING
      • negative_prompt : STRING
      • info : STRING

    Behavior

    • Removes all <lora:...> tags from positive/negative prompts.
    • info keeps <lora:...> tags and includes only the Steps: ... block (sampler, steps, cfg, seed, model, VAE, hashes, etc.).
    • Multi-selection: concatenates prompts from multiple images.
    • Ignores non-image items.

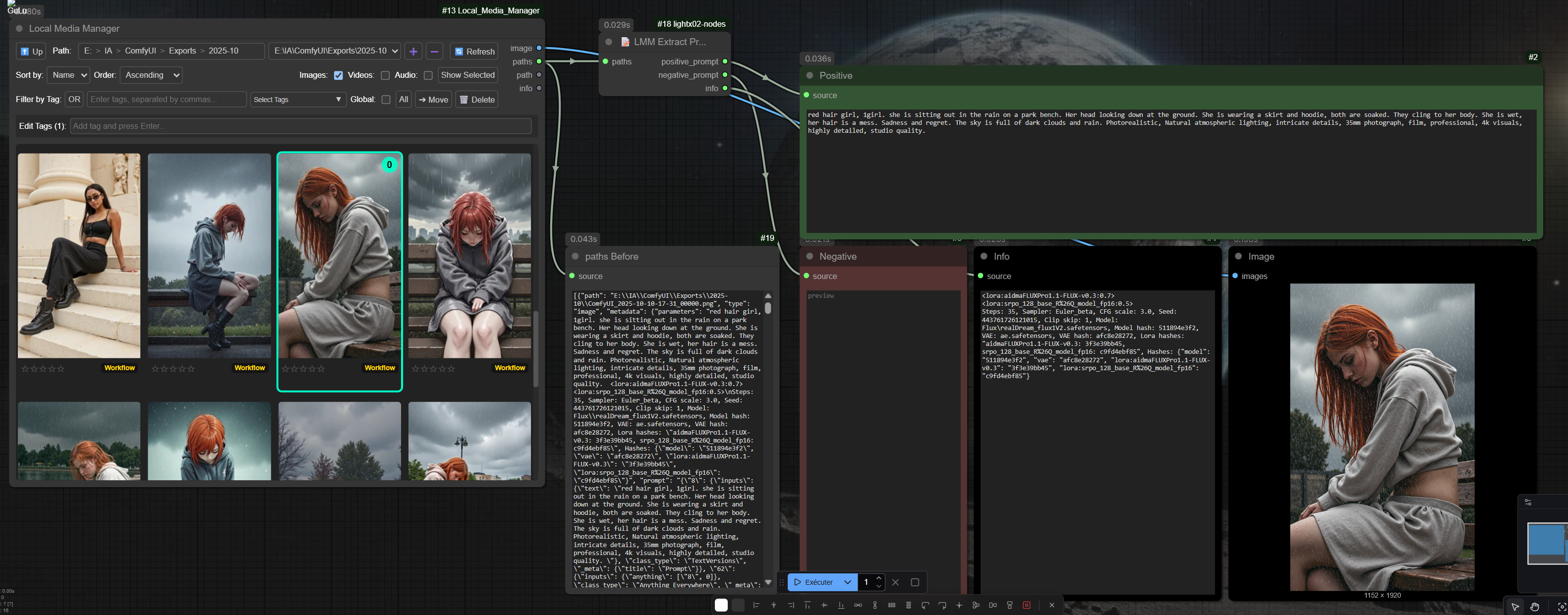

    Node preview

    </details>

    ⚠️ Notes — Avoid Duplicate Installations

    If you already installed the standalone versions of these nodes from my other repositories, please uninstall those standalones to prevent duplicate registration and conflicts:

    • ✂️ Crop Image — standalone repo: https://github.com/Light-x02/ComfyUI_Crop_Image_By_Lightx02
    • 📝 ComfyUI Image Metadata Nodes — standalone repo: https://github.com/Light-x02/ComfyUI-Image-Metadata-Nodes

    How to remove duplicates

    1. Go to your ComfyUI/custom_nodes/ folder.
    2. Delete the folders for the standalone versions listed above (if present).
    3. Restart ComfyUI.

    Symptoms of duplicates: nodes appearing twice, “node already registered” errors, or import failures when starting ComfyUI.

    📄 License

    Unless otherwise stated in the repository, this project is released under the MIT License.
