ComfyUI-BarCensor

ComfyUI-BarCensor

Censor a region with parallel solid-color bars (black / white / custom) instead of mosaic.

A companion to — and derivative of — 1038lab/ComfyUI-Mosaic: that project does mosaic detection / creation, this one replaces the mosaic with proper censor bars.

中文说明：使用说明.txt ｜ README_CN.md

Why

• Mosaic looks like mosaic. A bar censor looks like a bar — straight edges, sharp corners.
• All bars are parallel by construction. Bar #1 defines the direction; every other bar is generated by translating bar #1 along its own normal. Measured angle spread across bars: 0.000 deg.
• The angle can be read from the mask automatically (minimum area rectangle / PCA).
• Bar thickness auto-scales with the bar count, so the covered block keeps its size.

Nodes

Menu: 🧪AILab → ▬BarCensor

BarCensor — Bar Censor (Parallel Bars)

image + optional mask → image + censor_mask + info

| Parameter | Values | Meaning | |---|---|---| | bar_count | 1–32 | 1 = solid block; >1 = evenly spaced parallel bars | | angle_mode | auto_rect (default), auto_pca, horizontal, vertical, diagonal_down, diagonal_up, manual | source of the base angle. auto_rect fits a minimum area rectangle to the mask and uses its long side | | angle | -180–180 | only used by manual (0 = horizontal, 90 = vertical) | | bar_orientation | along_axis (default), across_axis, axis_plus_offset | bars along / across / offset from the region axis | | axis_offset | -180–180 | offset used by axis_plus_offset | | bar_shape | rectangle (default), conform_mask | straight-edged rotated rectangle, or follow the mask outline | | thickness_mode | auto (default), manual | auto: thickness = period × ratio, rescales with bar_count | | thickness_ratio | 0.05–1.0 | thickness / period (auto), or its upper bound (manual) | | bar_thickness | px | fixed thickness for manual | | length_mode | fit_region (default), full_image | bar length = region span, or span the whole image | | length_overflow | px | extra length at both ends | | color | black, white, gray, custom | bar color | | custom_color | hex, e.g. #1a1a1a | used when color = custom | | opacity | 0–1 | bar opacity | | feather | px | edge softening (0 = hard, 1 ≈ anti-aliased) | | mask (optional) | MASK | region to censor; without it the whole image is striped | | invert_mask | bool | invert the mask | | region_expand | px | grow the block (rectangle) or dilate the mask (conform_mask) |

MaskMerge — Mask Merge (Combine Overlaps)

mask_a + up to 7 more → mask + info

Merge several detector masks into one before censoring, so you only need a single censor pass and never stack a second layer on already covered pixels.

| Parameter | Values | Meaning | |---|---|---| | operation | union (default), intersection, add, average | max / min / clamped sum / mean | | batch_mode | flatten (default), elementwise | flatten: every frame of every input collapses into one mask. elementwise: frame i merges with frame i (video) | | threshold | 0–1 | 0 = off; e.g. 0.5 binarizes soft masks | | mask_b … mask_h | MASK | up to 8 slots total; cascade nodes for more |

Typical wiring

detector A ─┐
detector B ─┼─> MaskMerge ──> one merged mask ──> BarCensor ──> censored image
detector C ─┘                                        ↑
image ───────────────────────────────────────────────┘

Installation

cd ComfyUI/custom_nodes
git clone https://github.com/InfinityTechnology/ComfyUI-BarCensor.git

Restart ComfyUI. Dependencies (torch, numpy, opencv-python) ship with ComfyUI.

Relation to ComfyUI-Mosaic

This project is not a fork of 1038lab/ComfyUI-Mosaic — no code was copied from it. It follows the same node interface convention (image + optional mask → image + mask) so the two can be swapped inside a workflow, and it exists because that project covers mosaic while this one covers bar censor.

Upstream: https://github.com/1038lab/ComfyUI-Mosaic

Tips

• For video, avoid the auto angle modes: per-frame estimation jitters. Use manual or horizontal.

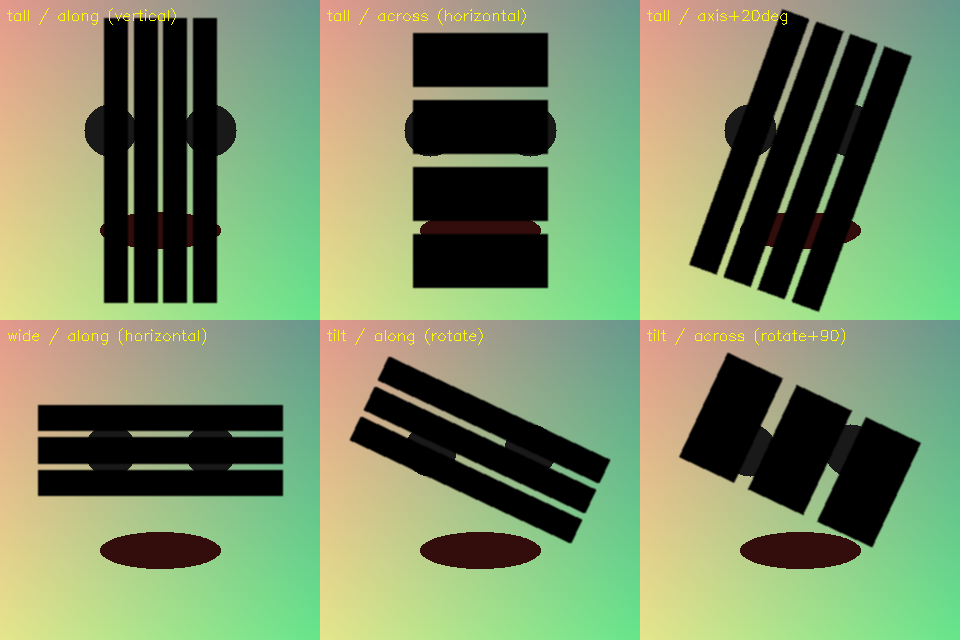

• Tall regions (a standing person) give vertical bars with along_axis; switch to across_axis if you want horizontal bars.
• BarCensor treats the whole mask as one region. If the merged mask holds several separate blobs, it builds one bounding block that covers all of them (gaps included).

License

GPL-3.0 — same as the upstream project, so the two stay compatible.
