ComfyUI_Pixel_Snapper

ComfyUI — Pixel Snapper

Turn any image into clean, grid-aligned pixel art inside ComfyUI, using the compiled SpriteFusion Pixel Snapper engine — plus color controls, classic video-game palettes, a pixel-perfect resizer, and an interactive preview with a magnifier.

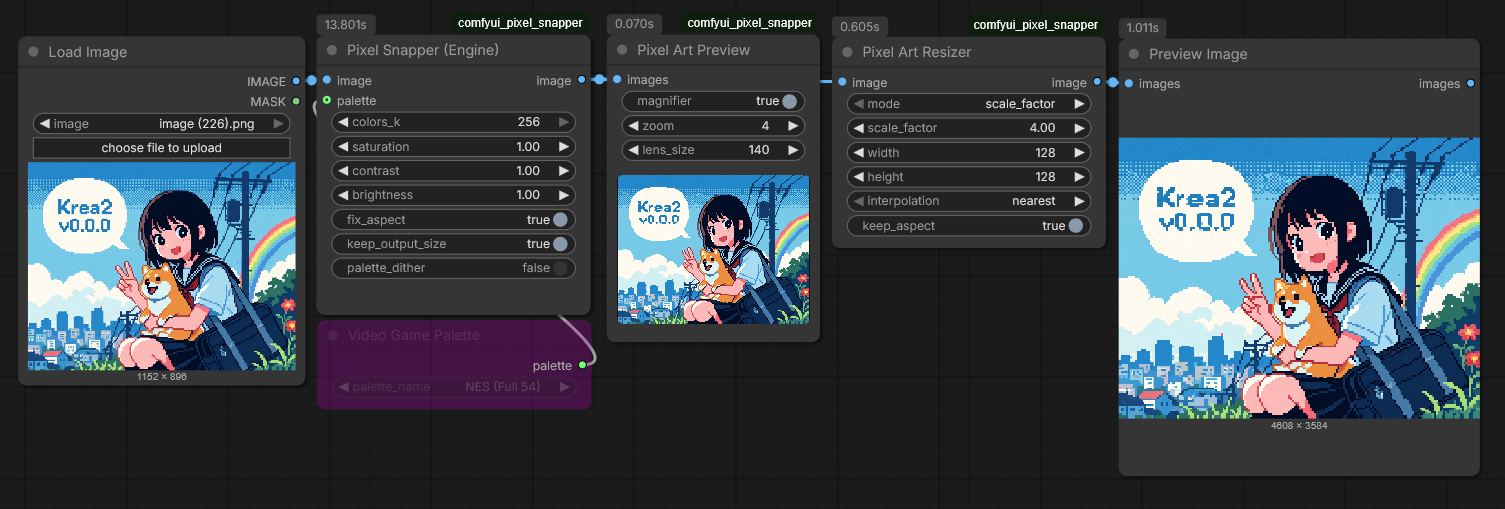

Example workflow: Load Image → Pixel Snapper (Engine) → Pixel Art Preview → Pixel Art Resizer → Preview Image, with a Video Game Palette node.

---

✨ Features

• Real snapping engine — detects the native pixel grid and downscales via majority-color voting (not a naive resize).
• Color controls — saturation / contrast / brightness applied before the snap.
• 21 video-game palettes — Game Boy, NES, PICO-8, C64, ZX Spectrum, DawnBringer, and more, in a dedicated node.
• Aspect-ratio fix — corrects the engine's occasional "flattening" so output keeps the source proportions.
• Pixel Art Resizer — scale up crisp (nearest) or shrink down to pixel-art resolution.
• Pixel Art Preview — crisp nearest-neighbor rendering with an interactive magnifier lens that follows your cursor.

---

🧩 Nodes

All nodes live under Add Node → image → pixel_art.

Pixel Snapper (Engine)

Runs the compiled engine, then layers optional color and palette processing around it.

| Input | Description | |-------|-------------| | image | Input image | | colors_k | Number of output colors (ignored when a palette is connected) | | saturation / contrast / brightness | Color tweaks applied before the snap (they influence the engine's k-means) | | fix_aspect | Corrects the engine's aspect-ratio flattening (trims the over-represented axis, nearest). On by default | | keep_output_size | Upscales the result back to the original size (nearest) | | palette (optional) | A fixed palette from the Video Game Palette node | | palette_dither (optional) | Floyd–Steinberg dithering during palette remap |

Video Game Palette

Dropdown of classic palettes → outputs a GAME_PALETTE. Connect it to the Pixel Snapper's palette input. When connected, the engine's k becomes the palette size and the output is remapped to the exact palette colors.

Pixel Art Resizer

Resizes pixel art without blurring.

| Input | Description | |-------|-------------| | mode | scale_factor (multiply) or target_size (width/height) | | scale_factor | Factor in scale_factor mode (e.g. 4.0 = 4×) | | width / height | Target size in target_size mode | | interpolation | nearest (crisp upscale), or box/lanczos/bicubic/bilinear/hamming (downscale) | | keep_aspect | Preserve aspect ratio in target_size mode |

Tip: use nearest to enlarge pixel art; use box to shrink a large image down to a pixel-art resolution.

Pixel Art Preview (output node)

Displays the image with crisp (nearest-neighbor) rendering and an interactive magnifier — hover the image to zoom in on individual pixels.

| Input | Description | |-------|-------------| | magnifier | Toggle the lens on/off | | zoom | Magnification (2–32×) | | lens_size | Lens diameter in pixels |

---

⚙️ How it works

1. Grid detection — the engine analyzes intensity peaks to estimate the pixel step size on each axis, then an edge-following "walker" places grid cuts.
2. Downscale — each grid cell is collapsed to its most frequent color (majority voting), producing a small, crisp pixel-art image.
3. Color quantization — colors are reduced to k via k-means (or to a fixed palette when one is connected).
4. Wrapper layer (this repo) — the ComfyUI nodes handle image ↔ tensor conversion, pre-snap color adjustments, the fix_aspect correction, palette remapping, resizing, and the crisp magnifier preview (a small front-end widget in web/pixelart_preview.js).

The engine runs as a bundled .exe invoked per image:

spritefusion-pixel-snapper.exe <input.png> <output.png> <k>

---

📦 Installation

1. Copy the comfyui_pixel_snapper folder into ComfyUI/custom_nodes/. The spritefusion-pixel-snapper.exe binary is included, so it works standalone on any Windows machine — no path setup required.
2. (Optional) To use your own build of the engine, simply replace spritefusion-pixel-snapper.exe in the node folder with your binary (same name).
3. Restart ComfyUI, then hard-refresh the browser (Ctrl+F5) so the preview widget's JavaScript loads.

Dependencies (torch, numpy, Pillow) ship with ComfyUI.

⚠️ Windows only — the engine is shipped as a .exe. On Linux/macOS you would need to build the engine from source (see credits).

🔒 Binary safety

The bundled spritefusion-pixel-snapper.exe is the compiled open-source engine. You can verify it yourself on VirusTotal:

VirusTotal scan report

Prefer full trust? Build the engine from source (see credits) and replace the spritefusion-pixel-snapper.exe in the node folder with your own binary.

---

🎨 Included palettes (21)

Game Boy (DMG / Pocket) · NES (Full 54) · PICO-8 · CGA (Palette 1 / EGA 16) · Sweetie 16 · DawnBringer 16 · DawnBringer 32 · Commodore 64 · ZX Spectrum · Endesga 32 · Resurrect 64 · SLSO8 · Oil 6 · 1-Bit Monitor Glow · 2-Bit Demichrome · Ice Cream GB · Kirokaze Gameboy · Rustic GB · Mist GB

---

🙏 Credits

• Pixel-snapping engine — SpriteFusion Pixel Snapper by Hugo Duprez. All credit for the core snapping algorithm and the compiled binary goes to the original author; please refer to the upstream repository for its license and terms.
• ComfyUI custom node & integration — implemented by HexaDucket. The nodes, palettes, aspect-ratio fix, resizer, and the magnifier preview widget in this repository are my own work wrapping the engine for ComfyUI.

---
