ComfyUI Extension: Emu35-Comfyui-Nodes

Authored by EricRollei

Created about a month ago

Updated 10 days ago

3 stars

ComfyUI integration for BAAI's Emu3.5 multimodal models for text-to-image generation and multimodal understanding. (Description by CC)

Custom Nodes (0)

README

Emu3.5 ComfyUI Nodes

ComfyUI integration for BAAI's Emu3.5 multimodal models

✅ STATUS: ALL NODES FULLY WORKING - Verified December 19, 2025

Complete Workflow

Overview

This repository provides ComfyUI custom nodes for running BAAI's Emu3.5 models for:

Text-to-Image (T2I) - Generate images from text descriptions ✅
Image Editing (X2I) - Transform/edit existing images ✅
Interleaved Generation (Story Mode) - Create illustrated stories with text and images ✅
Visual Q&A - Answer questions about images, OCR, image comparison ✅

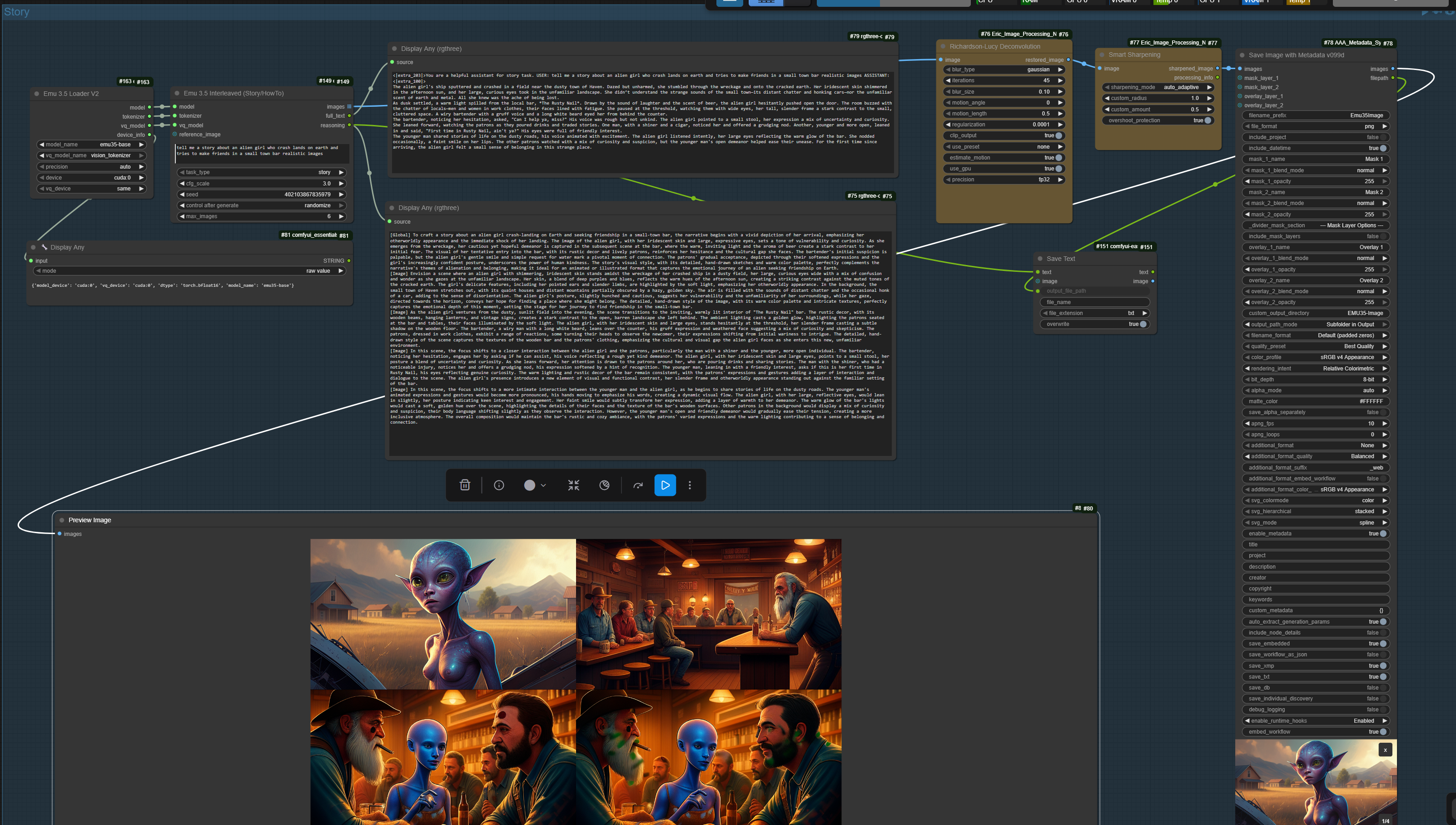

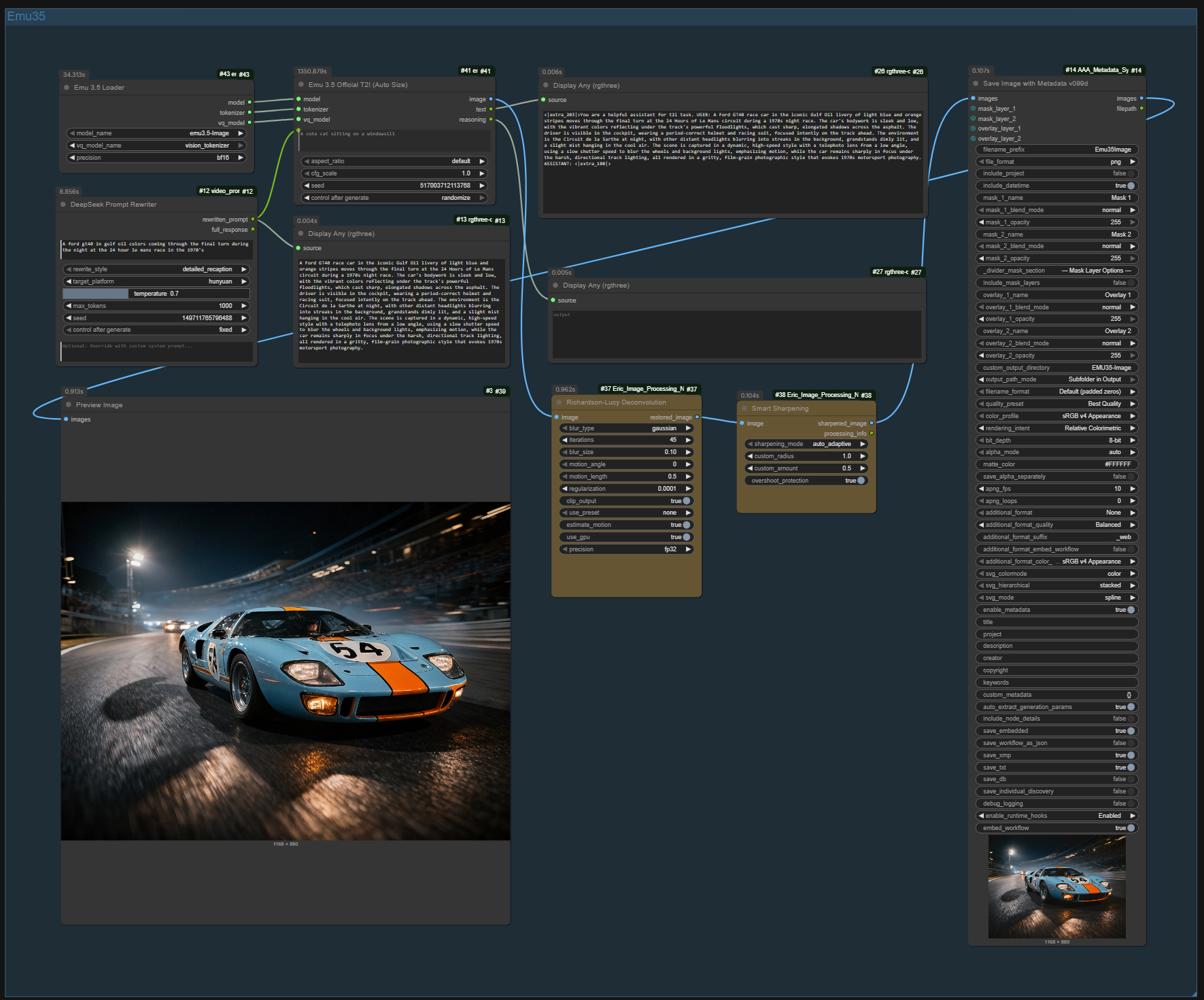

Workflow Screenshots

| T2I / Basic Workflow | X2I (Image Edit) | Story Mode | |:---:|:---:|:---:| | T2I | X2I | Story |

Models Supported:

Emu3.5-Image (34B params - T2I/X2I) - ✅ Working
Emu3.5-Base (65B params - Story/Interleaved/VQA) - ✅ Working
Vision Tokenizer (VQ-VAE for image encoding/decoding) - ✅ Working

What's New (December 2025)

V2 Nodes Released! 🎉

Emu 3.5 Loader V2 - Improved model loading with memory management
Emu 3.5 T2I Sampler V2 - Text-to-image with tiled decoding for large images
Emu 3.5 X2I (Image Edit) - Transform/edit images with text prompts
Emu 3.5 Interleaved - Generate stories/tutorials with multiple images
Emu 3.5 VQA - Visual question answering
Emu 3.5 Memory Manager - VRAM management utilities

Credits & Attribution

This project is built upon:

BAAI Emu3.5 - Original model and codebase
- Paper: Emu3.5: Native Multimodal Models are World Learners
- Authors: Emu3.5 Team, Beijing Academy of Artificial Intelligence
- License: Apache 2.0

Development Contributors:

Eric Rollei - ComfyUI node development and integration
Claude Opus 4.5 (Anthropic) - AI pair programming assistant for debugging, compatibility fixes, and feature implementation

Technical Contributions:

Transformers 4.57+ compatibility patches (DynamicCache API changes)
Blackwell GPU (sm_120) eager attention workaround
VQA task presets and multi-image comparison support
Memory management and VRAM optimization

All model weights and architecture remain property of BAAI under Apache 2.0 license.

Installation

Prerequisites

ComfyUI installed
Python 3.10+
CUDA-capable GPU:
- Full BF16: 48GB+ VRAM (RTX A6000, RTX 6000 Ada/Blackwell)
- NF4 Quantized: 24GB+ VRAM (RTX 4090, RTX A5000)
100GB+ disk space for model weights

Method 1: Git Clone (Recommended)

cd ComfyUI/custom_nodes
git clone --recursive https://github.com/EricRollei/Emu35-Comfyui-Nodes.git emu35
cd emu35

# Install dependencies
pip install -r requirements.txt

Note: The --recursive flag automatically clones the patched Emu3.5 submodule with transformers 4.57+ compatibility fixes.

Method 2: Manual Download

Download this repository
Extract to ComfyUI/custom_nodes/emu35/
Download Emu3.5 repo and place in emu35/Emu3_5_repo/
Install requirements: pip install -r requirements.txt

Download Model Weights

Place models in ComfyUI/models/emu35/:

Option A: Full BF16 (48GB+ VRAM - Best Quality)

huggingface-cli download BAAI/Emu3.5-Image --local-dir models/emu35/Emu3.5-Image
huggingface-cli download BAAI/Emu3.5-VisionTokenizer --local-dir models/emu35/vision_tokenizer

Option B: NF4 Quantized (24GB+ VRAM)

huggingface-cli download wikeeyang/Emu35-Image-NF4 --local-dir models/emu35/Emu3.5-Image-NF4
huggingface-cli download BAAI/Emu3.5-VisionTokenizer --local-dir models/emu35/vision_tokenizer

Directory structure:

ComfyUI/
├── custom_nodes/
│   └── emu35/
│       ├── nodes.py
│       ├── nodes_v2.py        # New V2 nodes
│       ├── __init__.py
│       ├── patched_tokenization_emu3.py
│       └── Emu3_5_repo/       # Official repo
└── models/
    └── emu35/
        ├── Emu3.5-Image/      # (or Emu3.5-Image-NF4/)
        └── vision_tokenizer/

Nodes Reference

V2 Nodes (Recommended)

1. Emu 3.5 Loader V2

Loads the Emu3.5 model with improved memory management.

| Input | Type | Description | |-------|------|-------------| | model_name | dropdown | Model folder (e.g., "Emu3.5-Image") | | vq_model_name | dropdown | Vision tokenizer folder | | precision | dropdown | bf16, fp16, fp32, or nf4 | | device | dropdown | cuda:0, cuda:1, cpu | | vq_device | dropdown | Device for VQ model | | attention_implementation | dropdown | eager (recommended), sdpa |

| Output | Type | Description | |--------|------|-------------| | EMU35_MODEL | model | Loaded language model | | EMU35_TOKENIZER | tokenizer | Text tokenizer | | EMU35_VQ | model | Vision tokenizer |

2. Emu 3.5 T2I Sampler V2

Text-to-image generation with improved quality and tiled decoding.

| Input | Type | Description | |-------|------|-------------| | model/tokenizer/vq_model | - | From loader | | prompt | string | Text description | | aspect_ratio | dropdown | 1:1, 4:3, 3:4, 16:9, 9:16, etc. | | cfg_scale | float | Guidance scale (default: 5.0) | | seed | int | Random seed | | image_top_k | int | Sampling top-k (default: 5120) | | image_temperature | float | Sampling temperature (default: 1.0) | | tiled_decode | bool | Use tiled VQ decoding (faster for large images) | | tile_size | int | Tile size for decoding (default: 32) |

| Output | Type | Description | |--------|------|-------------| | IMAGE | image | Generated image | | TEXT_RESPONSE | string | Any text response | | REASONING | string | Chain-of-thought reasoning (if any) |

3. Emu 3.5 X2I (Image Edit) ⭐ NEW

Transform or edit existing images based on text instructions.

| Input | Type | Description | |-------|------|-------------| | model/tokenizer/vq_model | - | From loader | | prompt | string | Edit instruction (e.g., "Make the background a sunset") | | reference_image_1 | image | Primary reference image | | image_area | dropdown | Token resolution: 256x256 to 1024x1024 | | cfg_scale | float | Guidance (default: 2.0 for X2I) | | seed | int | Random seed | | reference_image_2 | image | Optional second reference | | reference_image_3 | image | Optional third reference | | tiled_decode | bool | Use tiled VQ decoding |

Example Prompts for X2I:

"Transform this image into a realistic photo"
"Change the background to a beach sunset"
"Add sunglasses to the person"
"Replace the dog with a cat"
With 2+ images: "Replace the [object] in first image with [object] from second image"

| Output | Type | Description | |--------|------|-------------| | IMAGE | image | Edited image | | TEXT_RESPONSE | string | Any text response | | REASONING | string | Chain-of-thought reasoning |

4. Emu 3.5 Interleaved (Story/HowTo)

Generate text with multiple embedded images (stories, tutorials).

| Input | Type | Description | |-------|------|-------------| | model/tokenizer/vq_model | - | From loader | | prompt | string | Topic/story to generate | | task_type | dropdown | story, howto, explore | | max_images | int | Number of images to generate (1-10) | | cfg_scale | float | Guidance scale | | seed | int | Random seed | | reference_image | image | Optional reference for context |

| Output | Type | Description | |--------|------|-------------| | IMAGES | image batch | Generated images | | TEXT_RESPONSE | string | Full text with [IMAGE_N] markers | | REASONING | string | Reasoning if present |

5. Emu 3.5 VQA (Visual Question Answering)

Analyze images, answer questions, describe content, and read text (OCR).

⚠️ Important: Use the emu35-base model for VQA tasks, not emu35-image!

| Input | Type | Description | |-------|------|-------------| | model/tokenizer/vq_model | - | From loader (use emu35-base) | | image | image | Image to analyze | | question | string | Question about the image | | max_tokens | int | Max response length (default: 512) | | task_type | dropdown | Preset task types (see below) | | temperature | float | Response creativity (0.1-0.3 for accuracy, 0.5-0.7 for creativity) | | image2 | image | Optional second image for comparison tasks |

| Output | Type | Description | |--------|------|-------------| | response | string | Model's answer |

Task Types:

| Task Type | Description | Best For | |-----------|-------------|----------| | caption | One-sentence summary | Quick descriptions | | describe | Detailed description of subjects, background, colors, composition | Comprehensive analysis | | analyze | Context, mood, artistic style analysis | Art/photo critique | | ocr | Read and transcribe text from images | Screenshots, signs, documents | | question | Free-form Q&A | Specific questions | | custom | Use your own question directly | Any task |

Example Questions for VQA:

Basic Understanding:

"Describe this image in detail."
"What is the main subject of this image?"
"What colors are dominant in this image?"

Object Identification:

"What objects are visible in this image?"
"Is there a person in this image? What are they doing?"
"What type of animal is in the photo?"

Counting & Spatial:

"How many people are in this image?"
"What is to the left of the car?"
"Where is the sun in this scene?"

OCR (Text Reading):

"What text appears in this image?"
"Read the sign in the background."
"What does the label say?"

Analysis & Style:

"What artistic style is this image?"
"What time of day is shown?"
"What emotion does this scene convey?"
"Is this image indoor or outdoor?"

Comparison (with 2 images):

"What's different between these two images?"
"Which image shows more people?"
"Compare the lighting in both photos."

Tips for Best Results:

Use emu35-base model - The Image model is optimized for generation, not understanding
Lower temperature (0.1-0.3) for factual answers like counting, OCR, or identification
Higher temperature (0.5-0.7) for creative descriptions or artistic analysis
Be specific - "What brand is the laptop?" works better than "What's in the image?"
For OCR, use task_type="ocr" which has an optimized prompt
For comparisons, connect both images (image + image2)

6. Emu 3.5 Memory Manager

Utilities for VRAM management.

| Input | Type | Description | |-------|------|-------------| | action | dropdown | clear_cache, report_memory, gc_collect | | any_input | any | Pass-through connection |

| Output | Type | Description | |--------|------|-------------| | any_output | any | Pass-through | | memory_info | string | Memory status report |

Legacy Nodes (V1)

The original nodes are still available for compatibility:

Emu35Loader - Original loader
Emu35Sampler - Original T2I sampler
Emu35VQA - Original VQA node
Emu35ClearCache - Cache clearing

Performance

Tested Configurations

| Configuration | GPU | VRAM Used | Speed | |---------------|-----|-----------|-------| | Full BF16 + T2I | RTX 6000 Blackwell 96GB | ~65GB | ~5-6 tok/s | | Full BF16 + X2I (1 image) | RTX 6000 Blackwell 96GB | ~82GB | ~5.4 tok/s | | NF4 + X2I (2 images @ 1024) | RTX 6000 Blackwell 96GB | ~50GB | ~4-5 tok/s | | NF4 + T2I | RTX 4090 24GB | ~22GB | ~3-4 tok/s |

Generation Times

| Task | Resolution | Tokens | Time | |------|------------|--------|------| | T2I 1:1 | 1024x1024 | ~4096 | ~12 min | | T2I 4:3 | 1168x880 | ~4000 | ~11 min | | X2I | Same as input | ~4000 | ~13 min |

Technical Details

Architecture

Model Size: 34B parameters
Training: 10T+ multimodal tokens
Image Tokenization: VQ-VAE (IBQ) with 262,144 codebook
Visual Tokens: Token IDs 151855-413998
Max Resolution: 2048x2048 (128x128 latents)

Special Token IDs

BOS = 151849  # <|extra_203|> Begin generation
EOS = 151850  # <|extra_204|> End generation
IMG = 151851  # <|image token|>
BOI = 151852  # <|image start|>
EOI = 151853  # <|image end|>
EOL = 151846  # <|extra_200|> End of line
VISUAL_START = 151854  # First visual token

Task Templates

T2I (Text-to-Image):

<|extra_203|>You are a helpful assistant for t2i task. USER: {prompt} ASSISTANT: <|extra_100|>

X2I (Image Edit):

<|extra_203|>You are a helpful assistant for x2i task. USER: <|IMAGE|>{prompt} ASSISTANT: <|extra_100|>

Known Issues & Solutions

1. SDPA Attention on Blackwell GPUs

Issue: SDPA attention produces noise/garbage on Blackwell (sm_120) with CUDA 12.8. Solution: Use attention_implementation="eager" (default in V2 loader).

2. Tokenizer Crashes

Issue: Missing visual tokens in tokenizer. Solution: Patched tokenizer auto-synthesizes missing tokens.

3. Out of Memory

Solutions:

Use NF4 quantization (24GB VRAM)
Reduce image_area in X2I node
Use smaller aspect ratios
Enable tiled decoding

4. X2I Generates Only 1 Token

Issue: Stopping criteria triggered by reference image tokens. Solution: Fixed in V2 - stopping criteria now ignores input tokens.

GPU Compatibility

| GPU Architecture | SDPA | Eager | Recommended | |-----------------|------|-------|-------------| | Ampere (sm_80) | ✅ | ✅ | SDPA | | Ada Lovelace (sm_89) | ✅ | ✅ | SDPA | | Blackwell (sm_120) | ❌ | ✅ | Eager |

Example Workflows

Basic T2I

[Emu 3.5 Loader V2] → [Emu 3.5 T2I Sampler V2] → [Preview Image]
                              ↑
                    prompt: "a red apple on a wooden table,
                             studio lighting, photorealistic"

Image Editing (X2I)

[Load Image] → [Emu 3.5 X2I] → [Preview Image]
                    ↑
[Emu 3.5 Loader V2]
                    ↑
          prompt: "Transform into an oil painting"

Multi-Image Edit

[Load Image 1] →
                  [Emu 3.5 X2I] → [Preview Image]
[Load Image 2] →        ↑
                        prompt: "Replace the background
                                 from image 1 with the
                                 scene from image 2"

Development

File Structure

emu35/
├── nodes.py           # V1 nodes (legacy)
├── nodes_v2.py        # V2 nodes (recommended)
├── __init__.py        # ComfyUI registration
├── patched_tokenization_emu3.py  # Fixed tokenizer
├── download_nf4.py    # NF4 download helper
├── Emu3_5_repo/       # Official Emu3.5 code
└── dev/               # Development/test scripts

Testing

cd ComfyUI/custom_nodes/emu35/dev

# Test tokenizer
python test_tokenizer.py

# Test minimal generation
python test_minimal.py

Contributing

Contributions welcome! Priority areas:

vLLM integration for faster generation
Additional sampling strategies
Workflow examples
Documentation improvements

License

This integration code: MIT License
Emu3.5 models and code: Apache 2.0 (BAAI)

Citation

@article{emu3.5,
  title={Emu3.5: Native Multimodal Models are World Learners},
  author={Emu3.5 Team},
  journal={arXiv preprint arXiv:2510.26583},
  year={2024}
}
