ComfyUI Functional

Functional programming primitives for ComfyUI graphs: define functions inline, call them multiple times, and build loops, recursion, and other control-flow constructs without leaving the node editor.

⚠️ This extension leans on a few hacky ComfyUI internals (scheduler hooks, coroutine runners, cache invalidation). Expect sharp edges and test workflows before relying on them in production pipelines.

• English docs: docs/usage.md · docs/node-reference.md
• 中文使用说明： https://duanyll.com/2025/9/25/ComfyUI-Functional/

Why ComfyUI-Functional?

• Function definitions inside graphs – Drop Function Parameter and Function End nodes to encapsulate any node subgraph. Call it repeatedly or pass it to other nodes just like a Python closure.
• Reusable, composable control flow – Map, Fold, Nest, Select, and friends let you describe loops and branching logic without custom Python code. Bring your own functions as inputs.
• Side-effect helpers – Sow, Reap, Inspect, and Sleep make it possible to log data, accumulate results, and debug execution order when building complex flows.
• Interop with other packs – Pairs especially well with Basic Data Handling; use its LIST values whenever you pass arrays through the functional nodes.

Installation

1. Install ComfyUI and (optionally) ComfyUI-Manager.
2. Search for Duanyll/comfyui_functional inside ComfyUI-Manager and click install.
3. Manual alternative: clone this repository into ComfyUI/custom_nodes and restart ComfyUI.
4. Install Basic Data Handling; convert ComfyUI Data Lists to LIST before feeding them into these nodes.
5. Load one of the JSON files under example_workflows/ to see the nodes in action.

💡 example_workflows/functional-nested-calls.json mirrors the blog's nested function demo and is a great starting point for understanding how functions call other functions.

Core Concepts

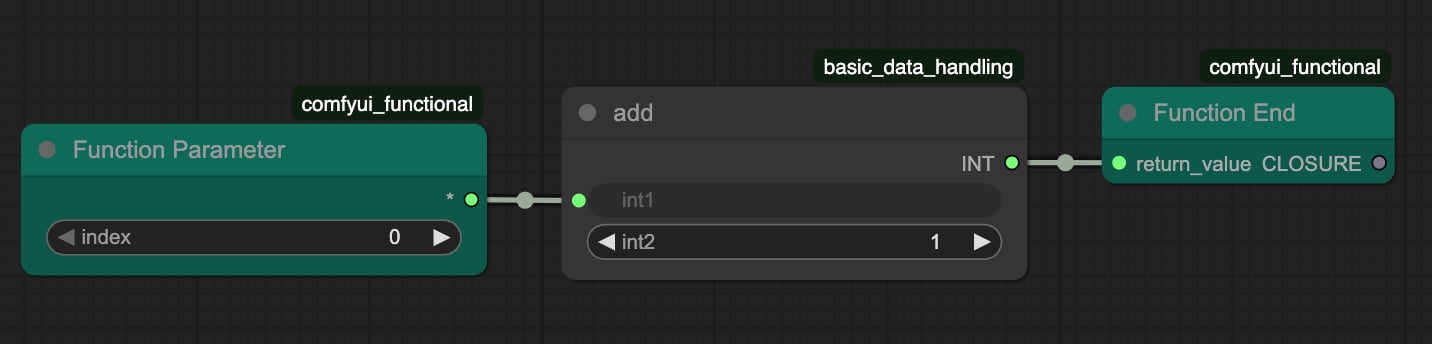

Define a function

1. Add one Function Parameter node per argument. Rename them so the order is obvious.
2. Build any graph using those parameters.
3. Finish the graph with a Function End node. Each function returns exactly one value—wrap multiple outputs into a LIST.

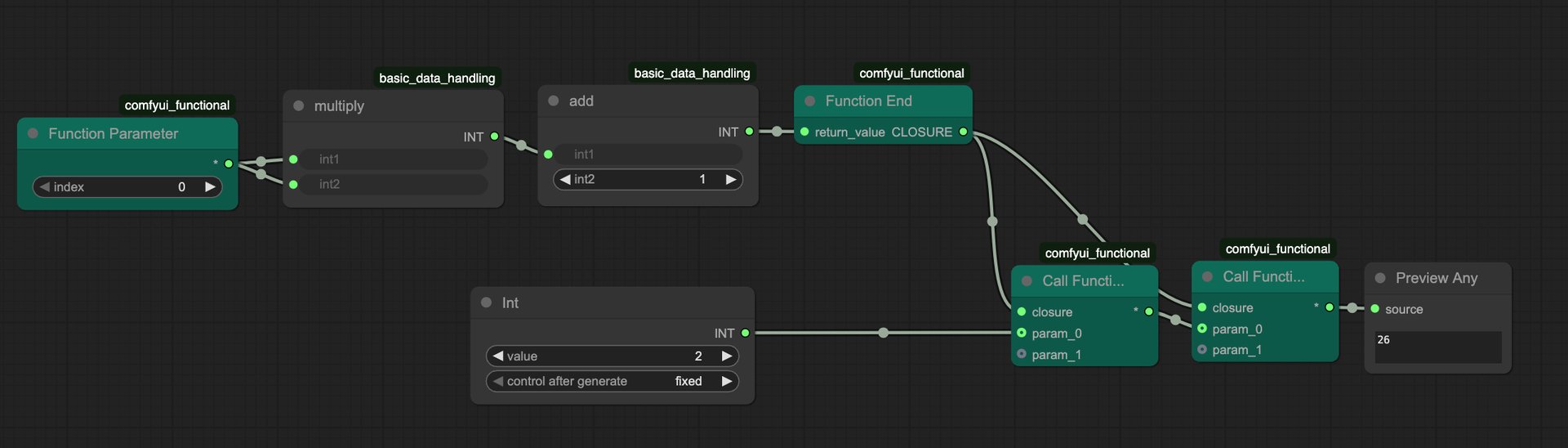

Call a function

Connect the Function End output into a Call Function node, wire its inputs in the same order, and use the return value anywhere in your workflow. You can reuse the same function instance across multiple Call Function nodes, or even feed the function back into itself for recursion. Always guard recursion with a termination condition to avoid infinite loops.

Looping and branching with high-order nodes

Use the high-order nodes under duanyll/functional/high_order to iterate over lists or control execution:

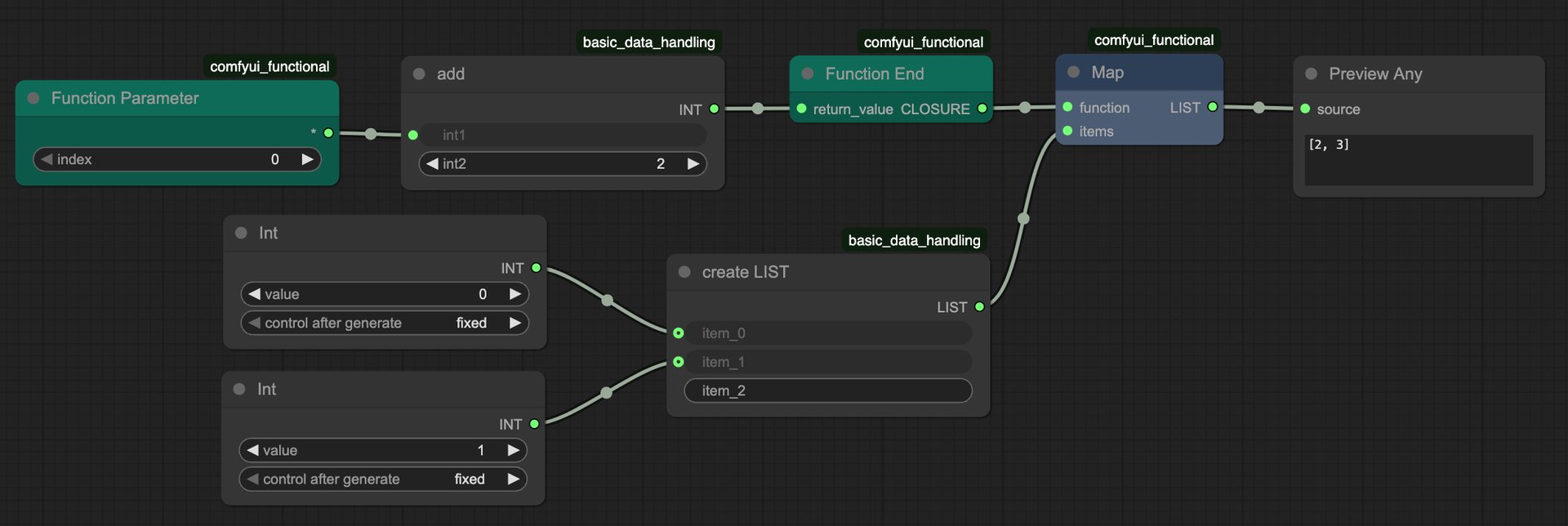

• Map/MapIndexed to transform lists.
• Fold to accumulate state across a list.
• Nest/NestWhile to repeat a function a fixed number of times or until a predicate fails.
• Select/TakeWhile to filter values.
• Comap to fan a single input into multiple processing branches.

See docs/node-reference.md for the full signature cheat sheet.

Side effects and debugging

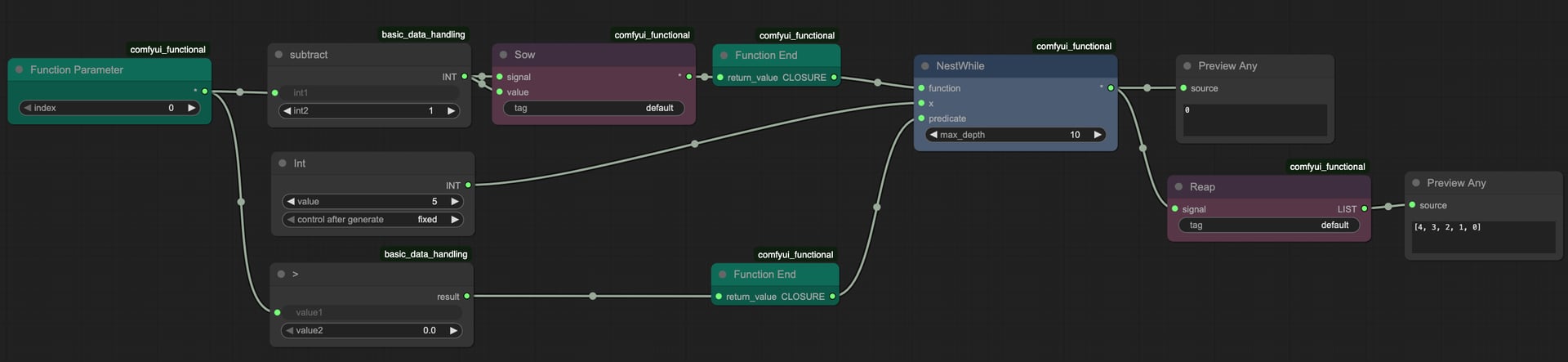

• Sow/Reap collect intermediate results during a run. Chain the signal sockets to enforce ordering whenever side effects matter.
• Inspect reads any value in the middle of the function body without forcing the graph to evaluate eagerly. Pair with Sleep if the output blinks too fast in the viewer.
• Whenever side effects are detected the extension disables ComfyUI's caching to keep the results honest; expect reruns to take longer than pure functional graphs.

Troubleshooting Cheatsheet

• "Prompt has no outputs" – You either forgot to call the function or an output still depends on Function Parameter without being routed through Function End.
• Graph freezes – Make sure you are passing LIST values (from Basic Data Handling) rather than ComfyUI's built-in Data List sockets.
• Infinite loops – Configure NestWhile predicates and max_depth caps, or add counters into your Fold bodies.
• Stale debug output – Ensure something depends on the signal coming out of Inspect; otherwise it will never execute.

Example Workflows

example_workflows/
├── functional-map.json            # Mapping numeric transforms across a LIST
├── functional-list-param.json     # Multiple parameter inputs + LIST handling
├── functional-nested-calls.json   # Functions calling other functions
├── functional-recursion.json      # Recursive calls with a guard
├── functional-sow-reap.json       # Collecting values with Sow/Reap + Inspect
└── functional-inspect.json        # Inspect/Sleep techniques for debugging

Feel free to copy these into your own projects and adapt the prompt data to match your checkpoints and samplers.

Development

To hack on the nodes locally:

cd comfyui_functional
pip install -e .[dev]
pre-commit install

The editable (-e) install allows ComfyUI to pick up changes immediately. Run the Ruff + pytest hooks via pre-commit run --all-files before submitting patches.

Tests

Pytest suites live under tests/. Run them with pytest or rely on the GitHub Actions workflows that ship with this template (build-pipeline.yml for lint/tests, validate.yml for node-diff checks).

Publishing to the Registry

Double-check the metadata under [tool.comfy] in pyproject.toml, set up an account on https://registry.comfy.org, and configure REGISTRY_ACCESS_TOKEN in your repo settings before enabling the provided publish workflow. See the official instructions for the full process.
