ComfyStereo - Stereoscopic 3D Toolkit for ComfyUI

A stereoscopic 3D toolkit for ComfyUI that combines three solutions into one unified package:

1. Stereo Image Generation - Depth-based stereo conversion with GPU acceleration
2. Native VR Viewing - PyOpenXR viewer for direct VR headset viewing
3. StereoDiffusion - AI-powered stereo generation using diffusion models

Features Overview

Core Stereo Generation

• GPU-Accelerated Processing - 5-20x faster depth processing with CUDA, but lower quality
• Advanced Fill Techniques - Multiple interpolation methods (Polylines, Naive, Hybrid Edge, GPU Warp)
• Edge-Aware Depth Blurring - Reduces artifacts at high divergence settings

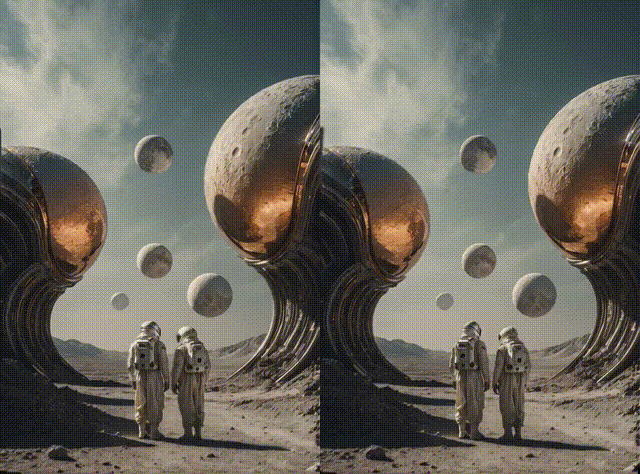

• Multiple Output Formats - Side-by-Side, Top-Bottom, Red-Cyan Anaglyph
• Batch Video Processing - Memory-efficient video frame processing

Native VR Viewing

• Auto-Launch to Headset - Direct VR viewing without browser
• Multiple Stereo Formats - Side-by-Side, Over-Under, Mono
• Projection Options - Flat, Curved, 180° Dome, 360° Sphere
• Image & Video Support - View both stereo images and videos
• All VR Headsets - Quest, Vive, Index, WMR, and more

StereoDiffusion AI

• AI-Powered Generation - Uses diffusion models for stereo creation
• DDIM Inversion - Null-text optimization for high-quality reconstruction
• Bilateral Neighbor Attention - Stereo-consistent diffusion
• ComfyUI Native Models - Works with MODEL/CLIP/VAE inputs
• Diffusers Support - Also works with HuggingFace model IDs

Installation

Method 1: ComfyUI Manager (Recommended)

1. Open ComfyUI Manager
2. Search for "ComfyStereo"
3. Click Install
4. Restart ComfyUI

Method 2: Manual Installation

1. Clone the repository:

cd ComfyUI/custom_nodes/
git clone https://github.com/Dobidop/ComfyStereo.git
cd ComfyStereo

2. Install dependencies (choose one):

Option A: Using requirements.txt (traditional)

# Base only (stereo generation + DeoVR)
pip install -r requirements.txt

# Or install all features at once
pip install -r requirements.txt

Option B: Using pip with optional dependencies (recommended)

# Base only
pip install -e .

# Base + VR viewing
pip install -e ".[vr]"

# Base + AI stereo generation
pip install -e ".[ai]"

# Everything (all features)
pip install -e ".[all]"

3. Restart ComfyUI

Available Nodes

Stereo Image Generation Nodes

1. Stereo Image Node

The main node for depth-based stereo conversion.

Inputs:

• image (IMAGE) - Source image
• depth_map (IMAGE) - Depth map (grayscale)
• divergence (FLOAT) - Stereo effect strength (0.05-15.0, default: 3.5)
• separation (FLOAT) - Additional horizontal shift (-5.0 to 5.0)
• stereo_balance (FLOAT) - Effect distribution between eyes (-0.95 to 0.95)
• convergence_point (FLOAT) - Depth level at screen plane (0.0-1.0, default: 0.5)
• modes - Output format: left-right, right-left, top-bottom, bottom-top, red-cyan-anaglyph
• fill_technique - Infill method (see Infill Methods)
• depth_map_blur (BOOLEAN) - Enable edge-aware depth blurring
• depth_blur_edge_threshold (FLOAT) - Gradient sharpness cutoff (0.1-15.0)
• batch_size (INT) - Frames per memory cleanup cycle

Outputs:

• stereoscope (IMAGE) - Final stereo image
• blurred_depthmap_left (IMAGE) - Processed left depth map
• blurred_depthmap_right (IMAGE) - Processed right depth map
• no_fill_imperfect_mask (MASK) - Unfilled region mask

2. DeoVR View Node

Launch and view stereo content in DeoVR.

Inputs:

• file_name (STRING) - File or video path
• projection_type - Display mode (Flat, 180°, 360°, Fisheye variants)
• eye_location - Side-by-Side or Top-Bottom
• file_location - Output folder, Input folder, or Other

Setup Required: Edit config.json to set your DeoVR.exe path. Enable "Remote control" in DeoVR developer settings.

Native VR Viewer Nodes

Requires pip install -r requirements-native.txt and a VR runtime (SteamVR, Oculus, or WMR).

3. Native Stereo Image Viewer

Auto-launches images directly into VR headset.

Inputs:

• image (IMAGE) - Stereo image
• stereo_format - Side-by-Side, Over-Under, Mono
• projection_type - Flat Screen, Curved Screen, 180° Dome, 360° Sphere
• screen_size (FLOAT) - Virtual screen size (1.0-10.0)
• screen_distance (FLOAT) - Distance from viewer (1.0-10.0)
• swap_eyes (BOOLEAN) - Swap left/right
• auto_launch (BOOLEAN) - Launch into headset
• background_color - Black, Dark Gray, Gray, White
• right_image (IMAGE, optional) - Separate right eye image

Outputs:

• passthrough (IMAGE) - Original image

4. Native Stereo Video Viewer

Play stereo videos in VR with keyboard controls.

Inputs:

• video_path (STRING) - Path to stereo video
• stereo_format - Side-by-Side, Over-Under, Mono
• projection_type - Flat Screen, Curved Screen, 180° Dome, 360° Sphere
• screen_size (FLOAT) - Virtual screen size
• screen_distance (FLOAT) - Distance from viewer
• swap_eyes (BOOLEAN)
• loop_video (BOOLEAN)
• auto_launch (BOOLEAN)
• background_color

5. Native VR Status

Check PyOpenXR installation and VR runtime availability.

Outputs:

• status_message (STRING) - Diagnostic information
• is_available (BOOLEAN) - VR readiness

StereoDiffusion AI Nodes

Requires pip install -r requirements-diffusion.txt and 8GB+ VRAM.

6. StereoDiffusion Node

AI-powered stereo generation using diffusion models.

Inputs:

• image (IMAGE) - Source image
• depth_map (IMAGE) - Depth map
• scale_factor (FLOAT) - Disparity strength (1.0-20.0, default: 9.0)
• direction - "uni" (unidirectional) or "bi" (bidirectional) attention
• deblur (BOOLEAN) - Add noise to unfilled regions
• num_ddim_steps (INT) - DDIM steps (10-100, default: 50)
• null_text_optimization (BOOLEAN) - Enable for better quality (slower)
• guidance_scale (FLOAT) - CFG scale (1.0-20.0, default: 7.5)
• model_id (STRING) - HuggingFace model ID (fallback if MODEL/CLIP/VAE not provided)

Outputs:

• stereo_pair (IMAGE) - Side-by-side stereo image
• left_image (IMAGE) - Left eye view
• right_image (IMAGE) - Right eye view

Supports: SD1.x and SD2.x models (SDXL/FLUX planned)

Key Parameters Explained

Divergence

Controls the strength of the 3D effect. Higher values = more depth perception.

• Low (1-3): Subtle depth
• Medium (3-7): Balanced effect
• High (7-15): Extreme pop-out

Convergence Point

Controls which depth appears at screen plane (zero parallax).

• 0.0 = Nearest depth at screen → Content recedes behind screen
• 0.5 = Mid-depth at screen → Balanced (default)
• 1.0 = Furthest depth at screen → Content pops toward viewer

Use cases:

• Pop-out mode (1.0): Product displays, comics
• Window mode (0.0): Subtle depth, natural recession
• Portrait mode (0.6-0.7): Face at screen, background recedes
• Landscape mode (0.3-0.4): Foreground pops, horizon recedes

Stereo Balance

Distributes divergence between eyes.

• 0.0 = Even distribution
• Positive/negative = Shift effect toward one eye

Separation

Additional horizontal shift percentage (independent of depth).

Infill Methods

| Method | Speed | Quality | Description | |--------|-------|---------|-------------| | GPU Warp (Fast) | ⚡⚡⚡ | ⭐⭐⭐ | GPU-accelerated warping with border padding | | Polylines Soft | ⚡⚡ | ⭐⭐⭐⭐ | Best general filler, maintains structure | | Polylines Sharp | ⚡⚡ | ⭐⭐⭐⭐ | Similar to Soft but sharper transitions | | Hybrid Edge | ⚡⚡ | ⭐⭐⭐ | Mix of Polylines and Reverse Projection | | Naive Interpolating | ⚡⚡⚡ | ⭐⭐ | Fast interpolation, some stretching | | Naive | ⚡⚡⚡ | ⭐⭐ | Fast fill, nearest pixel copy | | Reverse Projection | ⚡⚡ | ⭐⭐⭐ | Works backward, leaves some gaps | | No Fill | ⚡⚡⚡ | ⭐ | Shifts only, shows gaps |

Recommended: Polylines Soft for quality, GPU Warp (Fast) for speed.

GPU Acceleration

Depth processing is automatically GPU-accelerated when CUDA is available:

• 5-20x faster blur operations
• Automatic fallback to CPU if GPU unavailable
• Zero configuration - works out of the box

Native VR Setup

Requirements

1. Install PyOpenXR dependencies:

pip install -r requirements.txt

2. Install a VR runtime:

   • SteamVR (recommended) - Supports most headsets
   • Oculus Runtime - For Meta Quest headsets
   • Windows Mixed Reality - Built into Windows 10/11

3. Connect your VR headset

Supported Headsets

• Meta Quest (1, 2, 3, Pro)
• HTC Vive / Vive Pro
• Valve Index
• Windows Mixed Reality headsets
• Any OpenXR-compatible device

Troubleshooting VR

• Use Native VR Status node to check setup
• Ensure VR runtime is running before launching ComfyUI (will probably autostart though)
• Check that headset is properly connected
• Try restarting SteamVR/Oculus if viewer doesn't launch

StereoDiffusion Setup

Requirements

• CUDA-capable GPU with 8GB+ VRAM (16GB recommended)
• Python 3.8+
• PyTorch 2.0+

First Run

• Downloads Stable Diffusion model (releaseversion SD1.5) (~4GB) if not cached
• Null-text optimization takes ~2-3 minutes on modern GPU
• Model is cached for faster subsequent runs

Performance Tips

• Lower num_ddim_steps to 30 for faster processing
• Disable null_text_optimization for 3x speed (lower quality)
• Use guidance_scale 3-5 to reduce "burned" look

Troubleshooting StereoDiffusion

• Out of Memory: Reduce num_ddim_steps, close other apps
• Black Output: Check depth map is valid grayscale
• Poor Quality: Enable null_text_optimization, increase num_ddim_steps

License

MIT License - see LICENSE file for details.

Note: This project includes code from multiple sources:

• StereoDiffusion components are based on StereoDiffusion (MIT License)
• Diffusion utilities derived from prompt-to-prompt (Apache 2.0)
• See NOTICE file for full attribution

Credits

Created by Dobidop

Acknowledgments

StereoDiffusion

@inproceedings{wang2024stereodiffusion,
  title={StereoDiffusion: Training-Free Stereo Image Generation Using Latent Diffusion Models},
  author={Wang, Lezhong and Frisvad, Jeppe Revall and Jensen, Mark Bo and Bigdeli, Siavash Arjomand},
  booktitle={CVPR},
  year={2024}
}

Prompt-to-Prompt

@article{hertz2022prompt,
  title={Prompt-to-prompt image editing with cross attention control},
  author={Hertz, Amir and Mokady, Ron and Tenenbaum, Jay and Aberman, Kfir and Pritch, Yael and Cohen-Or, Daniel},
  year={2022}
}
