ComfyUI Extension: NVIDIA FLUX NIM

Authored by Comfy-Org

Created 8 months ago

Updated about 15 hours ago

23 stars

Provides nodes to utilise NVIDIA NIM, a set of accelerated inference microservices that allow you to run AI models on NVIDIA GPUs anywhere.

Custom Nodes (0)

README

NVIDIA NIM Nodes

What are NIMs?

NIMs are NVIDIA Microservices containers designed to run models in the most optimal manner for NVIDIA GPUs. This NIM provides support for the following models from Black Forest Lab's: Flux.1 dev, Flux.1-Depth-dev, Flux.1-Canny-dev,Flux.1-Schnell, and Flux.1-Kontext-Dev.

Experimental support is also provided for Stability AI SD3.5 Large, SD3.5 Large-controlnet-canny, and SD3.5 Large-controlnet-depth on GPUs with 32GB or more VRAM.

Getting Started with the FLUX NIM in ComfyUI

Before installing, ensure your system meets the following requirements:
Operating System: Windows 11 (22H1 or later)
GPU Compatibility information can be found here: NVIDIA NIM for Visual Generative AI (GenAI) GPU Support Matrix

GPU Driver: Version 572.83 or later
Virtualization Settings: Enabled in SBIOS - Instructions to enable virtualization if it is not enabled

The node can automatically detect if you have already set up NVIDIA NIM, if not, it will navigate to the NIMsetup.exe download page where you can download and install NIMs.
However it is recommended to installer from here and run NIMSetup.exe.

After the NIM setup has completed, please perform the following steps to start NIMs in Comfy UI:

Install ComfyUI
Open ComfyUI folder, clone this repo and put it under ...\ComfyUI\custom_nodes\
Go to ...\ComfyUI\custom_nodes\NIMNodes\and install the dependencies with the following command: pip install -r requirements.txt
If using the windows standalone ComfyUI install use this command ..\..\..\python_embeded\python -m pip install -r requirements.txt
A HuggingFace API token is required to access the Flux models. For information on how to create an access token see here
To avoid having to input your token into the NIM everytime you can set the HF_TOKEN environment variable.
Open a command prompt and type setx HF_TOKEN <hftoken_info> where <hftoken_info> represents your actual Hugging Face Token string.
Accept the use agreement for the FLUX models on Hugging Face
1. Login into Hugging Face using the account associated with your access token

Navigate to: https://huggingface.co/black-forest-labs/FLUX.1-dev

Accept the license agreement.

Start ComfyUI

Run ComfyUI APP with python main.py under ...\ComfyUI\
For ComfyUI standalone, run ComfyUI using the run_nvidia_gpu.bat file.

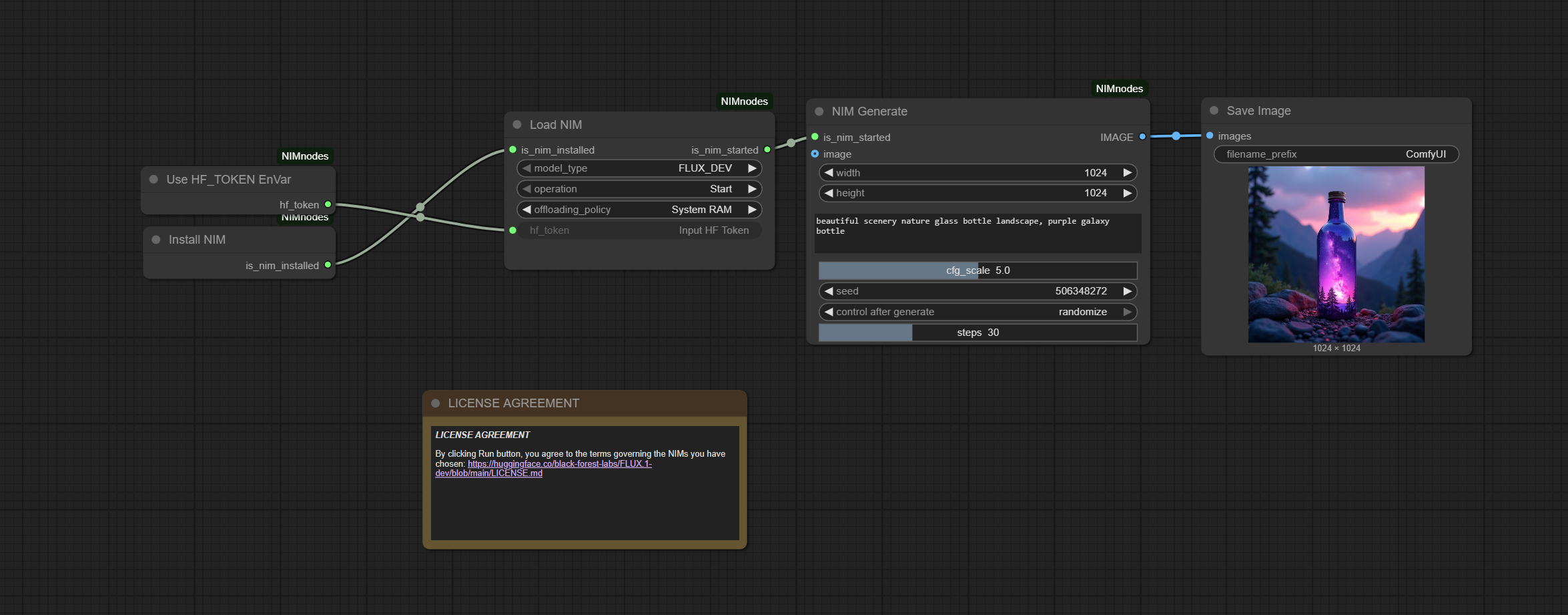

Open ComfyUI in browser, and import workflow ...\ComfyUI\custom_nodes\comfyui_nim\example_workflows\FLUX_Dev_NIM_Workflow.json
Run the workflow. The first time you run this it will download and configure the container, this may take a while.
When ComfyUI is shutdown, the running NIMs will also be stopped

Install node in ComfyUI

The recommended way to install these nodes is to use the ComfyUI Manager to easily install them to your ComfyUI instance.
You can also manually install them by git cloning the repo to your ComfyUI/custom_nodes folder.

Node Details

Install NIM Node

The Install NIM Node checks to verify that the NIMs have been setup on the system, if the NIM setup has been completed this node returns TRUE. If NIM setup has not be completed, this node returns FALSE and will download the NIMSetup package.

This node must be connected to the is_nim_installed input on the Load NIM Node

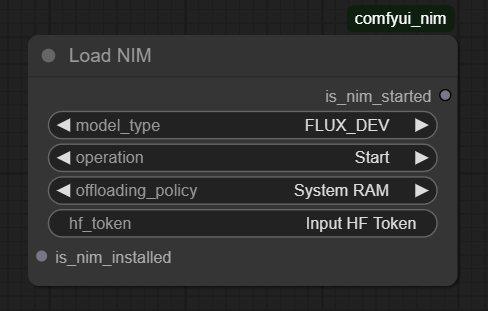

Load NIM Node

The Load NIM Node is responsible for loading the requested NIM.

Inputs:

model_type: [Flux Dev, Flux Canny, or Flux Depth] Determines which Flux model is loaded.

operation: [Start, Stop]. Start is used to load and start the requested model in the NIM. Stop will stop the NIM and unload loaded models, when switching between NIM models, any running models should be stopped before starting a new model.

offloading_policy: [None, System RAM, Disk, Default]. The offloading policy determine how models should be offloaded from VRAM.

None indicates that models will not be offloaded, if the models exceed the available VRAM then generation will fail, it is recommended to only use None on GPUs with 24GB or more VRAM. If supported by the GPU, None offers the best performance.

System RAM will move models to System RAM. The System RAM option provides a good mix of performance and flexibility, but may not be the best option for systems with limited system RAM.

Disk will move offloaded models to disk. Offloading to disk impacts the overall performance but provides a viable option for GPUs with less than 24GB on systems with limited system RAM.

Default will attempt to keep as much of the image generation pipeline in GPU VRAM as possible.

hf_token: This field is used to provide the users Hugging Face API token, it is recommended to store the Hugging Face API token to the HF_TOKEN environment variable and use the Use HF_TOKEN EnVar Node to provide this input. This field is required and must provide a valid HF API Token.

is_nim_installed: This input takes the output from the Install NIM Node is_nim_install output.

Outputs:

is_nim_started: This output sends information on whether the NIM has been started and is ready to recieved input. If the NIM has started and is ready it will return True. If the NIM fails to start it will return False.

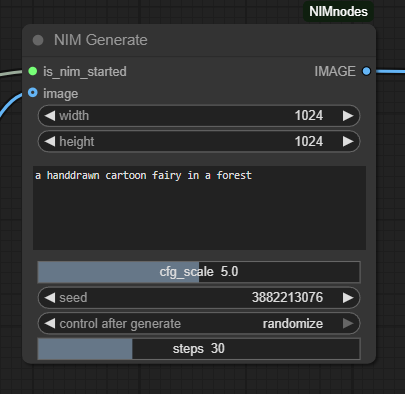

FLUX NIM Node

The NIM FLUX NODE allows the user to configure the options used by the FLUX NIM to generate images.

Inputs:

image: When the FLUX Canny, FLUX Depth or FLUX Kontext models are used, an image needs to be used to guide the image output. The Image input takes regular images as input. When using Depth or Canny the input image be converted to Depth or Canny images within the NIM.

is_nim_started: This input takes the output from the is_nim_started output from the Load NIM Node.

width: The image width. Valid ranges are [672, 704, 736, 768, 800, 832, 864, 896, 928, 960, 992, 1024, 1056, 1088 ,1120, 1152, 1184, 1216, 1248, 1280, 1312, 1344, 1376, 1408, 1440, 1472, 1504, 1536, 1568]

height: The image height. Valid ranges are [672, 704, 736, 768, 800, 832, 864, 896, 928, 960, 992, 1024, 1056, 1088 ,1120, 1152, 1184, 1216, 1248, 1280, 1312, 1344, 1376, 1408, 1440, 1472, 1504, 1536, 1568]

prompt: The text description of the desired image output

cfg_scale: The cfg scale determines how closely the output adheres to the prompt input, higher values will cause more adherence.

seed: The seed used for noise generation.

control after generate: [fixed, increment, decrement, randomize]

steps: The number of generation steps used per image.

Output:

image: The generated image, this output should be connected to a Preview Image Node or Save Image Node.

HF_TOKEN Node

The Use HF_TOKEN Node willread the HF_TOKEN environment variable and pass it as an output which can be connected to the hf_token input on the Load NIM Node

Inputs:

NONE

Output:

hf_token: Outputs the contents of the HF_TOKEN environment variable, will generate a failure if the environment variable does not exist.

FLUX.1 Kontext Dev

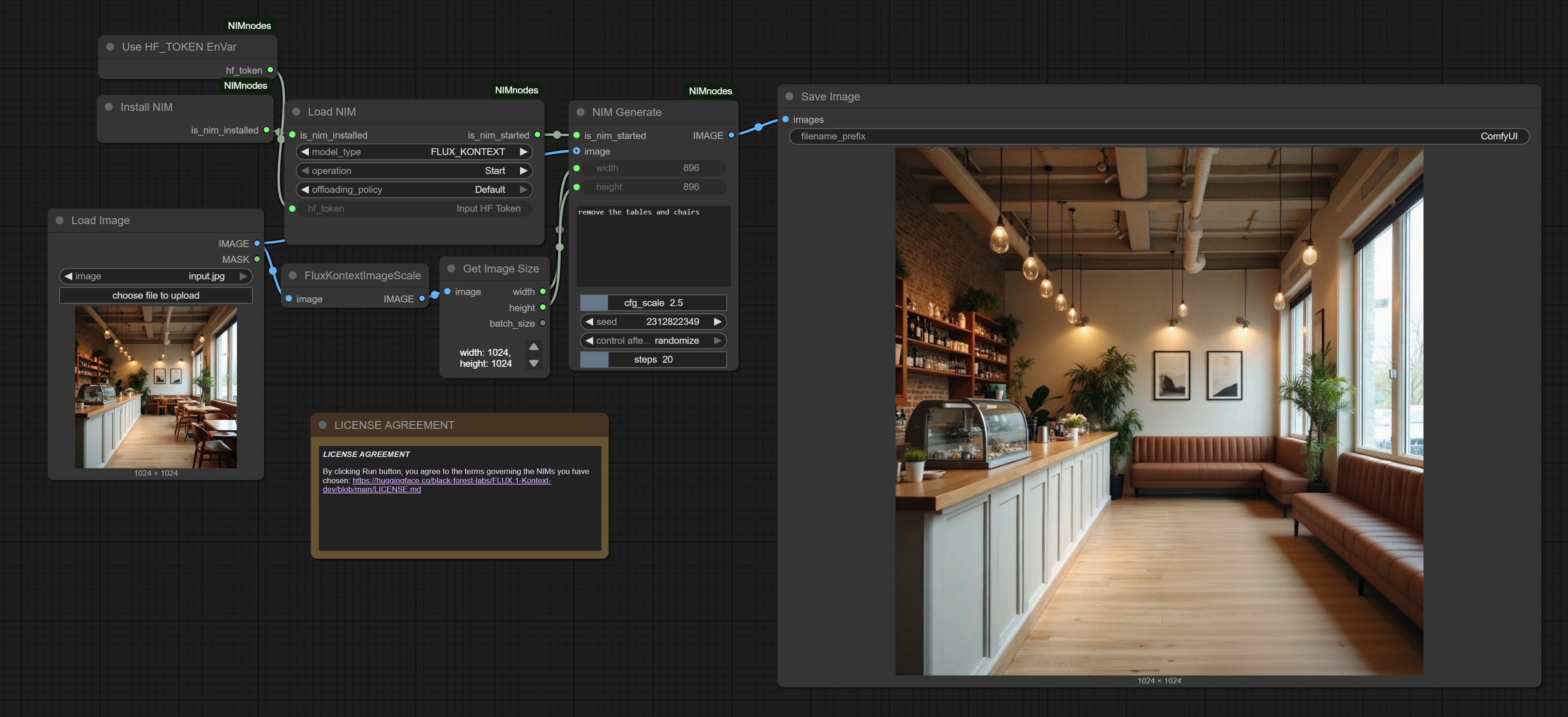

The FLUX Kontext model has specific image generation ratio/resolutions which must be used. To make sure that the input image matches these ratio/resolutions the output of the input image should be passed into a FluxKontextImageScale node which will automatically scale the input image to a supported size, by feeding the output of this node into a GetImageSize node, we can use these values as inputs for the FLUX NIM Node Height and Width values to make sure they will work properly with FLUX Kontext. flux_kontext_dev nim workflow
