Animated Mask Editor

ComfyUI – Animated Mask Editor 🎨

A ComfyUI custom node for drawing animated, keyframed masks directly on your video / image batch — with a full-screen, Roto-style editor that launches right from the node. Draw circles, rectangles and bézier shapes, move them across frames to keyframe them automatically, and export a frame-accurate mask sequence for inpainting, effects, compositing or video editing.

Shapes are persistent: they serialize into your workflow (and a disk backup), so your roto survives restarts and travels with the .json.

---

✨ Features

• 🖌️ Interactive editor — Circle, Rectangle and Bézier (free-form) shapes on a zoomable, pannable canvas overlaid on your real video frames.
• 🎞️ Automatic keyframing — move/resize/rotate a shape on a different frame and a keyframe is created; values interpolate smoothly in between.
• 🟦🟧 Readable timeline — position/size/rotation keyframes are blue, opacity-only keyframes are orange.
• 🌫️ Feathering & invert — soft edges and one-click mask inversion.
• 💾 Persistent masks — stored in the workflow + a per-node disk backup, so nothing is lost on restart.
• 🔌 Three outputs — the mask sequence plus two ready-to-view preview overlays.

---

🧩 The Node

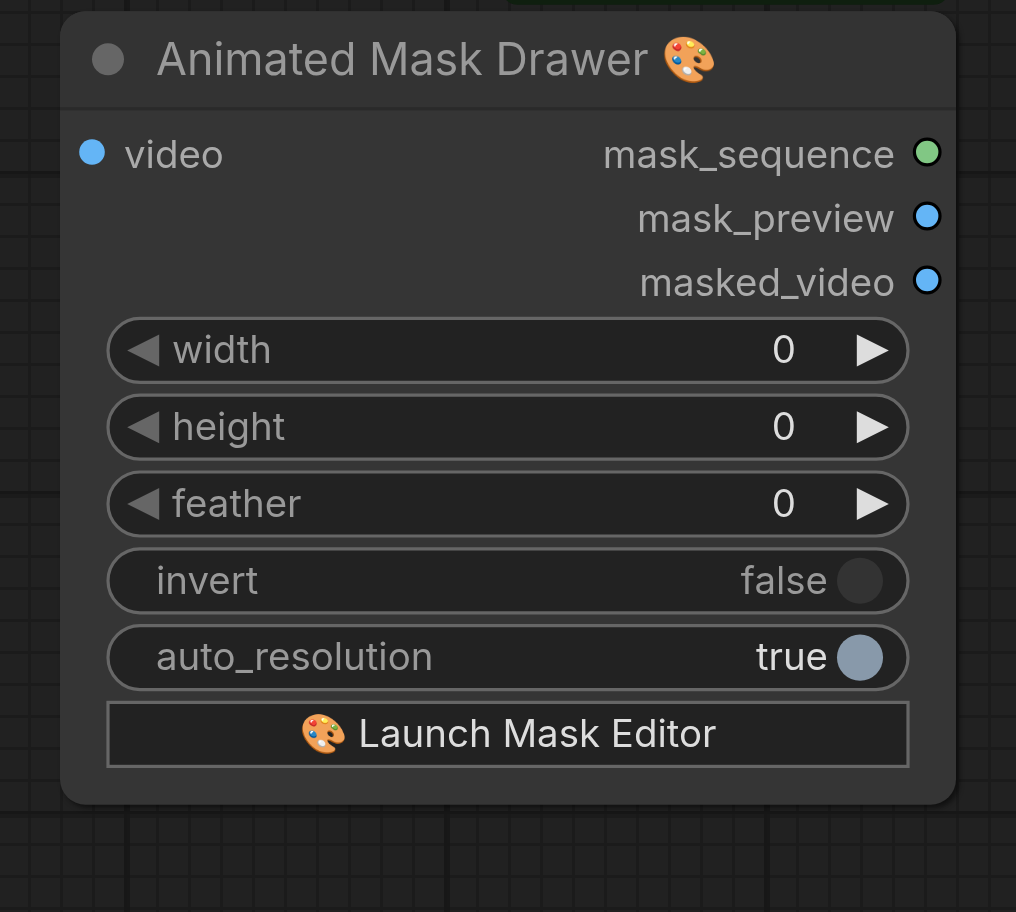

Drop in the node, connect a video/image batch to video, and hit 🎨 Launch Mask Editor. It outputs the mask_sequence plus two preview overlays.

---

🖥️ The Editor

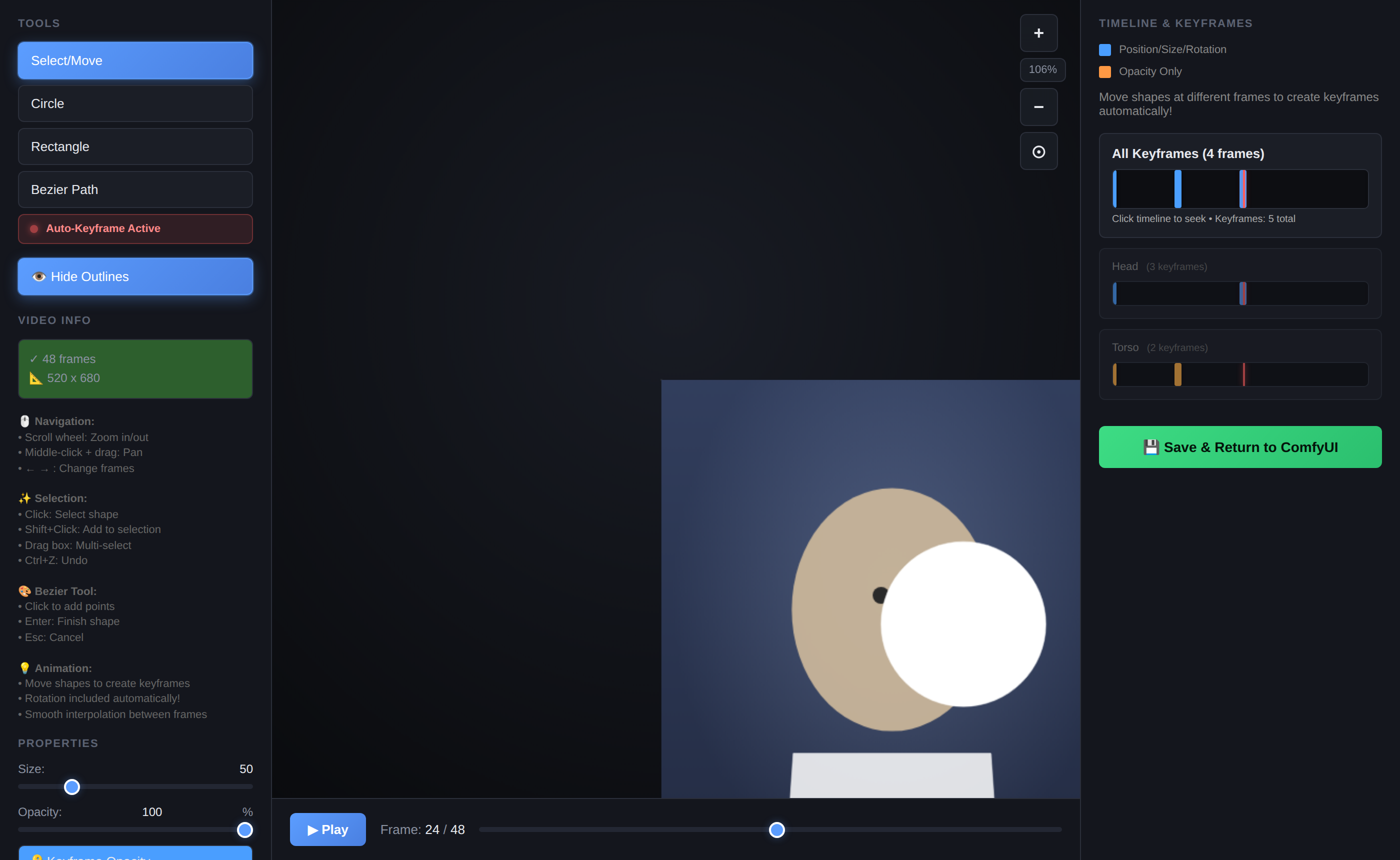

The editor opens in its own window: tools on the left, your video frame with mask overlays in the center, and the keyframe timeline on the right. Scrub frames along the bottom; move a shape on a new frame and it keyframes automatically.

---

📦 Installation

Clone into your ComfyUI custom_nodes folder and restart ComfyUI:

cd ComfyUI/custom_nodes
git clone https://github.com/BISAM20/ComfyUI-AnimatedMaskEditor.git

Dependencies: torch, numpy, Pillow (already present in ComfyUI). scipy is optional — it's only used for feathering; without it, feather is a no-op.

After restarting, the node appears under Add Node → mask → animation → Animated Mask Drawer 🎨.

---

🚀 Quick Start

1. Add the node Animated Mask Drawer 🎨 and connect an IMAGE (a video / image batch) to its video input.
2. Queue the prompt once. This hands the frames to the node so the editor can display them. (The editor will say "⚠️ No video loaded" until you've queued at least once.)
3. Click 🎨 Launch Mask Editor on the node. The editor opens in a new window. (Allow pop-ups for ComfyUI if prompted.)
4. Draw your masks (see below), scrubbing frames and moving shapes to animate them.
5. Click 💾 Save & Return to ComfyUI. The shapes are saved back into the node.
6. Queue the prompt again to generate the final mask sequence.

---

✍️ Drawing & Animating

| Tool | What it does | |------|--------------| | Select / Move | Select, drag, resize and rotate existing shapes. | | Circle | Click-drag to create a circular mask. | | Rectangle | Click-drag to create a rectangular mask. | | Bézier Path | Click to add points, Enter to close the shape, Esc to cancel. |

To animate: with Auto-Keyframe on, go to a new frame and move/resize/rotate a shape — a keyframe is created automatically and the motion interpolates between keyframes. Adjust Opacity on different frames to create fades (these show as orange keyframes).

⌨️ Shortcuts

| Key | Action | |-----|--------| | ← / → | Previous / next frame | | Ctrl+Z | Undo | | Shift+Click | Add to selection (multi-select) | | Delete | Delete selected shape / keyframe | | Enter | Finish bézier path | | Esc | Cancel current bézier | | Scroll wheel | Zoom · Middle-drag (or Shift+drag) | Pan · ⊙ | Fit & center |

---

🔧 Node Reference

Inputs

| Input | Type | Default | Description | |-------|------|---------|-------------| | video | IMAGE | — | Input video / image batch to mask. (required) | | width | INT | 512 | Output mask width. Leave at 512 to auto-detect from the video. | | height | INT | 512 | Output mask height. Leave at 512 to auto-detect from the video. | | feather | INT | 0 | Gaussian blur radius for soft edges (≈10–20 for smooth masks; needs scipy). | | invert | BOOLEAN | False | Swap masked / unmasked areas. | | refresh | INT | 0 | Increment to force mask regeneration. | | mask_data | STRING | — | Hidden — managed by the editor; stores your shapes/keyframes in the workflow. |

Outputs

| Output | Type | Description | |--------|------|-------------| | mask_sequence | MASK | The animated mask batch — feed to inpainting, effects, compositing. | | mask_preview | IMAGE | Your video with a red mask overlay — connect to Preview Image to check masks. | | masked_video | IMAGE | Your video with the mask burned in white (100% opacity). |

---

💾 Persistence

Your shapes and keyframes are stored in two places, so they're never lost:

• In the workflow — via a hidden mask_data widget, so they survive restarts and travel with the saved .json.
• On disk — a per-node backup under roto_data/ next to the node (git-ignored, regenerated by the editor).

---

🩹 Troubleshooting

• "⚠️ No video loaded" in the editor → queue the workflow once first so the frames reach the node.
• Editor window doesn't open → allow pop-ups for the ComfyUI site.
• Masks didn't update → bump the refresh input, or re-queue after saving in the editor.
• feather has no effect → install scipy (pip install scipy).

---

📄 License

Released under the MIT License. See LICENSE if present, otherwise treat as MIT.
