Better-Gemini

A better node for using Google Gemini models, supporting the latest API endpoints with a v3 ComfyUI node interface.

By ttulttul·Created 8 months ago·Updated 7 days ago· 1
ttulttul/Better-Gemini
Nodes3
On cloudLocal install
Categoryapi node/image/BetterGemini, api node/image/BetterGrok
Stars1
Updated7 days ago

Nodes (3)

Better Gemini

The Better Gemini node

api node/image/BetterGemini
Better Grok

Grok draws, edits, and chats — from one ComfyUI node

api node/image/BetterGrok
Better OpenRouter

Hosted image models inside your graph, billed per image — Better OpenRouter

api node/image/BetterOpenRouter
Readme

ComfyUI Better Gemini

ComfyUI V3 nodes for generating images and text with Google Gemini and xAI Grok, plus image generation and editing through OpenRouter.

This repo provides three nodes:

  • Better Gemini for Gemini image and text generation
  • Better Grok for Grok image generation, image editing, and text chat
  • Better OpenRouter for OpenRouter image generation and reference-guided editing

Install

  1. Clone into your ComfyUI custom_nodes directory:
    • cd /path/to/ComfyUI/custom_nodes
    • git clone https://github.com/<you>/ComfyUI-Better-Gemini.git
  2. Install Python deps with uv:
    • uv sync
    • uv pip install --python /path/to/ComfyUI/python/bin/python -e ./ComfyUI-Better-Gemini
  3. Set API keys as needed:
    • export GOOGLE_API_KEY="..." or export GEMINI_API_KEY="..."
    • export XAI_API_KEY="..." (optional for Grok Imagine after OAuth login)
    • export OPENROUTER_API_KEY="..."
  4. Restart ComfyUI.

Nodes

Better Gemini

  • Inputs: prompt, model, response_modalities (IMAGE, IMAGE+TEXT, TEXT), optional prompt images, aspect ratio, resolution or width+height, temperature, top_p, top_k, max tokens, thinking controls, seed, optional output caching
  • Outputs: IMAGE, STRING
  • Use it when you want one node that can handle both Gemini image models and Gemini text-only models

Better Grok

  • Inputs: prompt, model, authentication mode (auto, oauth, api_key), response_modalities (IMAGE, IMAGE+TEXT, TEXT), reasoning effort (none, low, medium, high), optional prompt images, aspect ratio, resolution, n, optional output caching
  • Outputs: IMAGE, STRING
  • Use it when you want Grok image generation, image editing, or a text-only Grok call from the same node

xAI OAuth Login

Better Grok can use xAI device authorization for Imagine image generation and editing without storing an API key in the workflow:

  1. Add or open a Better Grok node with ComfyUI's V3 node renderer.
  2. Click Login in the node header.
  3. Open the xAI verification page, sign in, enter the displayed code if requested, and approve access.
  4. Leave ComfyUI running while the node polls for approval. The button changes to Logout when authorization completes, and the initiating node switches to auth_mode=oauth.

Authentication modes:

  • auto preserves existing workflows: an inline API key wins, then a saved OAuth login is used for Imagine requests, then XAI_API_KEY remains the fallback.
  • oauth requires a completed node-header login and never uses the API-key field.
  • api_key uses the inline key or XAI_API_KEY and ignores saved OAuth credentials.

OAuth credentials are stored server-side under ComfyUI's protected system-user directory (user/__better_gemini/xai_oauth.json), not in workflows or browser storage. The directory and token file use private permissions where the platform supports them. Each workflow run checks token expiry asynchronously; near-expiry credentials refresh in the background, while an already expired token is refreshed before the xAI request is sent. Logout cancels pending login/refresh work and deletes the stored credentials.

The OAuth client follows xAI's Grok-compatible device endpoints at auth.x.ai and sends the resulting bearer only to xAI's public Imagine image endpoints. Better Grok TEXT mode continues to require an API key because xAI OAuth chat traffic uses a separate CLI-proxy wire contract. This OAuth surface is not documented as a stable public xAI integration API and may require maintenance if xAI changes it.

xAI Rate Limiting

All Better Grok calls in one ComfyUI process share a thread-safe, per-model request coordinator. By default it starts no more than 5 requests per second and allows no more than 5 logical requests for the same model in flight. Starts are evenly spaced instead of released in one burst. The coordinator retains one minute of attempt timestamps for accounting and removes active entries in a finally block after success, terminal failure, retry exhaustion, or eventual completion of a cancelled coroutine's worker thread.

An xAI 429 Too Many Requests response pauses the whole model bucket, then retries with exponential backoff and jitter. Retry-After is honored when xAI supplies it. The default is five retries after the initial attempt, with delays based on 1, 2, 4, 8, and 16 seconds and a 30-second cap.

Restart ComfyUI after changing any of these optional environment settings:

  • BETTER_GROK_MAX_RPS (default 5)
  • BETTER_GROK_MAX_IN_FLIGHT (default 5)
  • BETTER_GROK_MAX_RETRIES (default 5)
  • BETTER_GROK_BACKOFF_BASE_SECONDS (default 1)
  • BETTER_GROK_BACKOFF_MAX_SECONDS (default 30)

Keep the configured RPS below the personalized per-model limit shown in the xAI Console. Coordination is process-local; separate ComfyUI processes or other clients using the same xAI team can still consume the team's shared capacity and trigger adaptive 429 backoff.

Better OpenRouter

  • Inputs: prompt, OpenRouter image model, optional reference images, aspect ratio, resolution tier or explicit width+height, quality, raster output format, background, compression, image count, seed, optional output caching
  • Outputs: IMAGE, STRING
  • Calls OpenRouter's dedicated POST /api/v1/images endpoint and supports local ComfyUI images through input_references
  • Use it when you want one ComfyUI node for the image-generation and editing models available through OpenRouter

Output Behavior

  • In TEXT mode, the usable model output is returned through STRING.
  • In TEXT mode, the IMAGE output is a minimal blank 1x1 tensor so ComfyUI graphs can stay connected without allocating a large placeholder.
  • In IMAGE+TEXT mode, image generation still runs and any returned notes or revised prompt text are placed in STRING.
  • If Gemini, Grok, or OpenRouter returns no images when image output was requested, the node emits a blank placeholder image and includes a note in STRING.
  • If cache_outputs is enabled, model outputs are stored under .cache/ and identical future requests reuse the cached IMAGE/STRING outputs without calling the provider.

Model Dropdowns

  • Gemini model options are populated via client.models.list() without action-based filtering, so both image-capable and text-only Gemini models can appear in the same dropdown.
  • Grok model options merge xAI /v1/image-generation-models and /v1/language-models, so image and language models can appear in the same dropdown.
  • OpenRouter model options are populated from /api/v1/images/models, which returns image-model capability metadata. The node uses the selected model slug while OpenRouter routes the request to an eligible provider.
  • If an API key is unavailable or model listing fails, each node falls back to bundled default model names.

Bundled fallback models:

  • Gemini: gemini-3.1-flash-lite-image, gemini-3-flash-preview, gemini-3.1-flash-image-preview, gemini-3.1-flash-lite-preview, gemini-3-pro-image-preview, gemini-3.1-pro-preview, imagen-4.0-generate-001, imagen-4.0-ultra-generate-001
  • Grok: grok-imagine-image, grok-imagine-image-2.0, grok-imagine-image-pro, grok-imagine-image-quality, grok-latest, grok-4, grok-4-fast-non-reasoning, grok-3-mini, grok-code-fast-1
  • OpenRouter: openai/gpt-image-2, openai/gpt-image-1, openai/gpt-image-1-mini, google/gemini-3.1-flash-image, google/gemini-3-pro-image, bytedance-seed/seedream-4.5, black-forest-labs/flux.2-pro

Recommended text-only examples:

  • Gemini: gemini-3-flash-preview, gemini-3.1-flash-lite-preview, gemini-3.1-pro-preview
  • Grok: grok-latest, grok-4, grok-4-fast-non-reasoning, grok-3-mini, grok-code-fast-1

Example Workflow

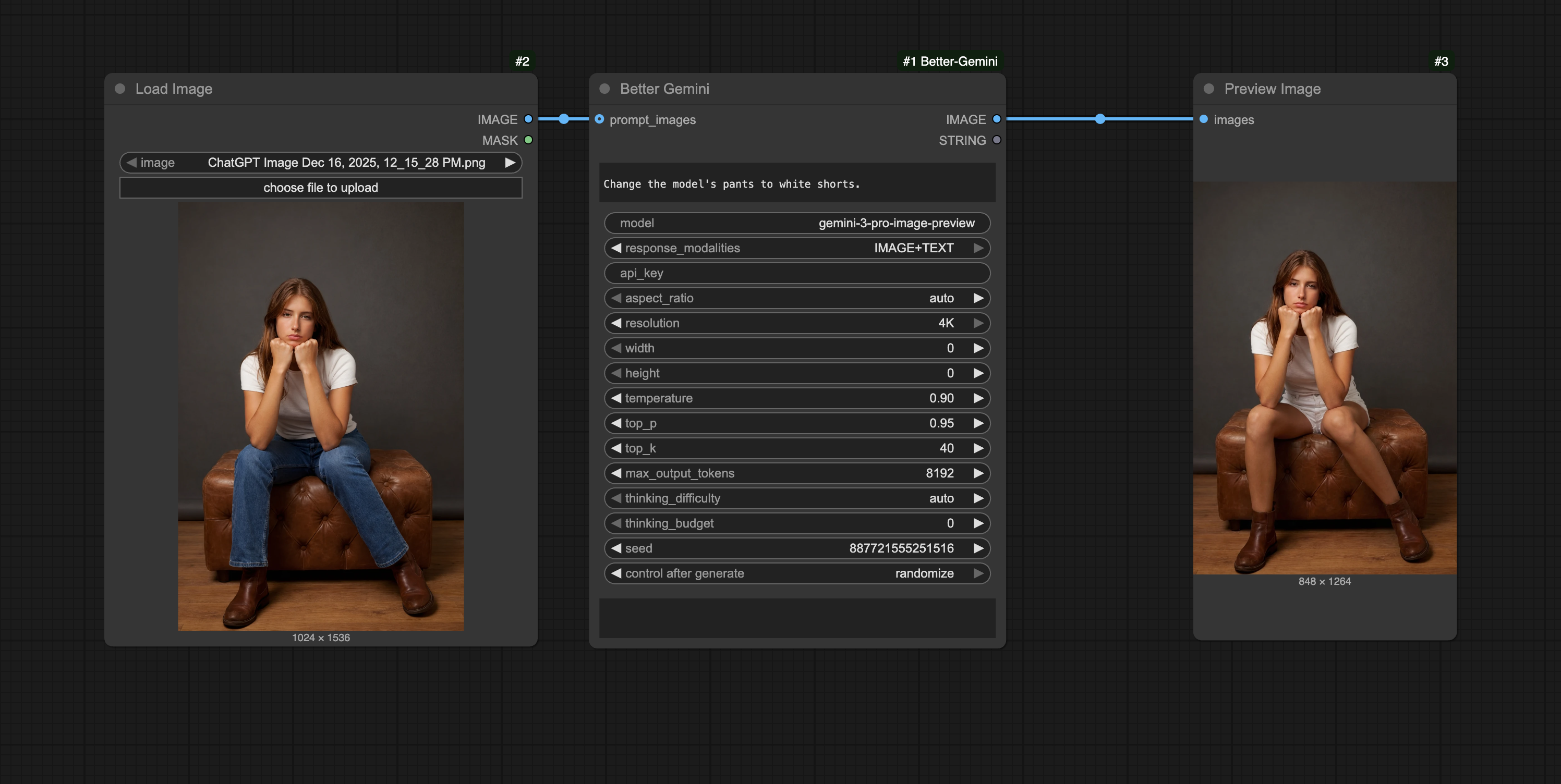

Better Gemini example workflow

Implementation Notes

  • The Gemini node imports google-genai lazily so ComfyUI can still boot even if dependencies are not installed yet; execution raises a clear error until installed.
  • This extension uses ComfyUI's V3 extension loader via comfy_entrypoint.
  • Gemini requires seed to fit in an int32; larger ComfyUI seeds are deterministically folded via seed % 2**31.
  • When response_modalities=TEXT, Gemini requests omit image-specific config.
  • Grok image generation is wired against xAI's documented image endpoints and requests response_format="b64_json", so the node can return image tensors directly instead of downloading temporary URLs.
  • The Grok HTTP client sends an explicit application User-Agent because api.x.ai can reject the default Python-urllib signature with Cloudflare 1010.
  • Grok image edits use xAI's JSON-based /v1/images/edits API and send ComfyUI IMAGE inputs as PNG data URIs. Multiple prompt images are supported for edit and merge workflows.
  • Grok inference calls share a process-wide, thread-safe per-model coordinator that spaces request starts, caps in-flight work, tracks recent attempts, and coordinates bounded 429 retries across parallel ComfyUI executions.
  • Better Grok's Login button uses xAI device authorization at auth.x.ai; the browser sees only the verification URL and user code, while access and refresh tokens stay in ComfyUI's protected server-side system-user storage.
  • The OAuth frontend initializes during ComfyUI's early init lifecycle (with an idempotent setup fallback), so an unrelated malformed node definition cannot prevent the Login button from being installed. Nodes 2.0 places it in the DOM title bar; the canvas renderer receives an equivalent ComfyUI button widget in the node body.
  • OAuth refresh is deduplicated across concurrent workflow runs. Near-expiry tokens refresh in an asynchronous background task; expired tokens block only until the refresh completes, preventing an avoidable request with an expired bearer.
  • Grok TEXT mode uses xAI's /v1/responses endpoint with configurable reasoning effort and store=false, since node calls are not reused as xAI chat sessions. If prompt images are attached, the node sends them as response image inputs and returns the model's text through STRING.
  • OpenRouter returns generated images as base64 in data[].b64_json; the node decodes raster outputs directly into ComfyUI tensors and reports API cost in STRING when usage.cost is present.
  • OpenRouter reference images are encoded as PNG data URLs under input_references. The selected model determines how many references and which settings are supported.
  • OpenRouter explicit width+height values are sent as size and take precedence over resolution and aspect_ratio, matching the API's mutually exclusive sizing rules.
  • OpenRouter SVG generation is not exposed because ComfyUI IMAGE outputs require raster data; select a raster model and PNG, JPEG, or WebP output.
  • Output caching uses the SHA-256 checksum of canonical Gemini, Grok, or OpenRouter request data as the manifest filename, with string and image payloads stored as separate content-addressed files.
  • resolution and aspect_ratio are best-effort, model-dependent settings. The node logs a warning if the returned size does not match the request.

Dev

  • Sync dev environment: uv sync --dev
  • Run unit tests: uv run python -m unittest discover -s tests -p 'test_*.py' -v
