ComfyUI Extension: ComfyUI-WanVideoWrapper_QQ

Authored by siraxe

Created

Updated

44 stars

A collection of custom nodes for ComfyUI providing video manipulation, LoRA loading, path animation, and visual drawing tools for WanVideo workflows.

Custom Nodes (0)

    README

    ComfyUI-WanVideoWrapper_QQ

    Version 1.2.1 - 2025-12-11

    <table> <tr> <td width="50%">

    https://github.com/user-attachments/assets/119824e7-e309-4f00-9cc8-1404f10d91c9

    </td> <td width="50%">

    https://github.com/user-attachments/assets/881f887d-d930-43d2-b197-ac44668a36e5

    </td> </tr> </table>

    Version 1.2.0 - 2025-12-01

    https://github.com/user-attachments/assets/dffe5da8-7626-45cf-ad22-777b5a14879f

    Version 1.1.0 - 2025-11-26

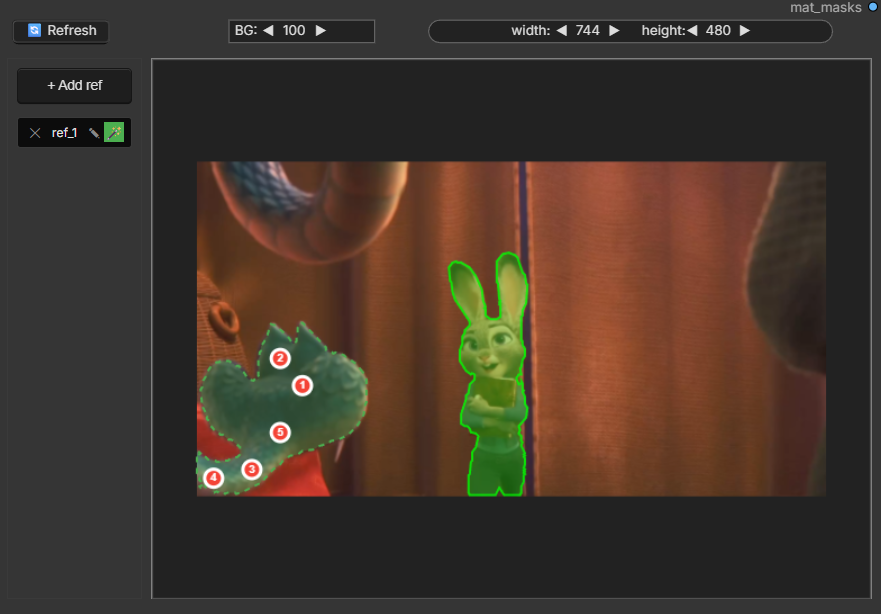

    • Added Prepare Refs (needs cv2) to cut out parts for Power Spline Editor Example
    • Power Spline Editor can trigger ref preparation with Canvas button in backend without starting comfyui run
    <table> <tr> <td width="40%">

    https://github.com/user-attachments/assets/7c3d1c3a-4777-432b-997e-eafa678f7e64

    </td> <td width="60%">

    https://github.com/user-attachments/assets/72f46a94-a3f3-4f66-9962-c87c5c02c987

    </td> </tr> </table>

    Version 1.0.92 - 2025-11-25

    • Optional color match added to Create Image List batch node (if no ref_image connected it's not used)
    • Bugfixes , Canvas refresh now can read ImageResizeKJv2 resize and match its parameters to be able to draw on same aspect ratio/crop etc.

    https://github.com/user-attachments/assets/e1b70e5a-71af-4d01-9034-f80c9172811f

    Version 1.0.9 - 2025-11-24

    • Proper keyframes control in editor + TTM sample: Cleaned up keyframe layer , added ref pull and animation to later be used with ttm WF Example
    • From https://github.com/time-to-move/TTM , ty https://github.com/kijai/ComfyUI-WanVideoWrapper for wrapper implementation.
    • Power Spline Editor - keyframe hotkey usage

    https://github.com/user-attachments/assets/41974029-4935-4952-92b6-d2d69a8873d9

    Version 1.0.8 - 2025-11-17

    • Refactor + better ATI driver control: Slight messy refactor + proper ati point output with pause Example

    https://github.com/user-attachments/assets/c945432c-fe58-4783-a1c3-565e61868245

    Version 1.0.6 - 2025-11-13

    • New Wan22FMLF: A better way to add midframe control from https://github.com/wallen0322/ComfyUI-Wan22FMLF + amplitude test in one node
    • Lora high.low filter: Clicking the circle icon cycles through: ◎ → ◐ → ◑ → ◎ + right icon right click options (low/high only / both)
    • Mp4 muulti cache: save/load steps between samplers

    Version 1.0.3 - 2025-11-07

    • New Hand-Drawn Spline Layer: Added freeform path drawing with full animation controls. Special thanks to filliptm for the implementation example
    • Enhanced Spline Editor Fixes: Improved coordinate parsing, multi-spline handling, and UI fixes across canvas, context menus, and layer rendering
    • Independent Layer Point Control: Layer points now drive independently for better animation path control

    A collection of custom nodes for ComfyUI providing video manipulation, LoRA loading, path animation, and visual drawing tools for WanVideo workflows.

    <table> <tr> <td width="50%">

    https://github.com/user-attachments/assets/16f0da4c-38f1-4789-97dc-c331ad8a6d92

    </td> <td width="50%">

    https://github.com/user-attachments/assets/5689c666-924a-4362-9788-d8f662c0d925

    </td> </tr> </table>

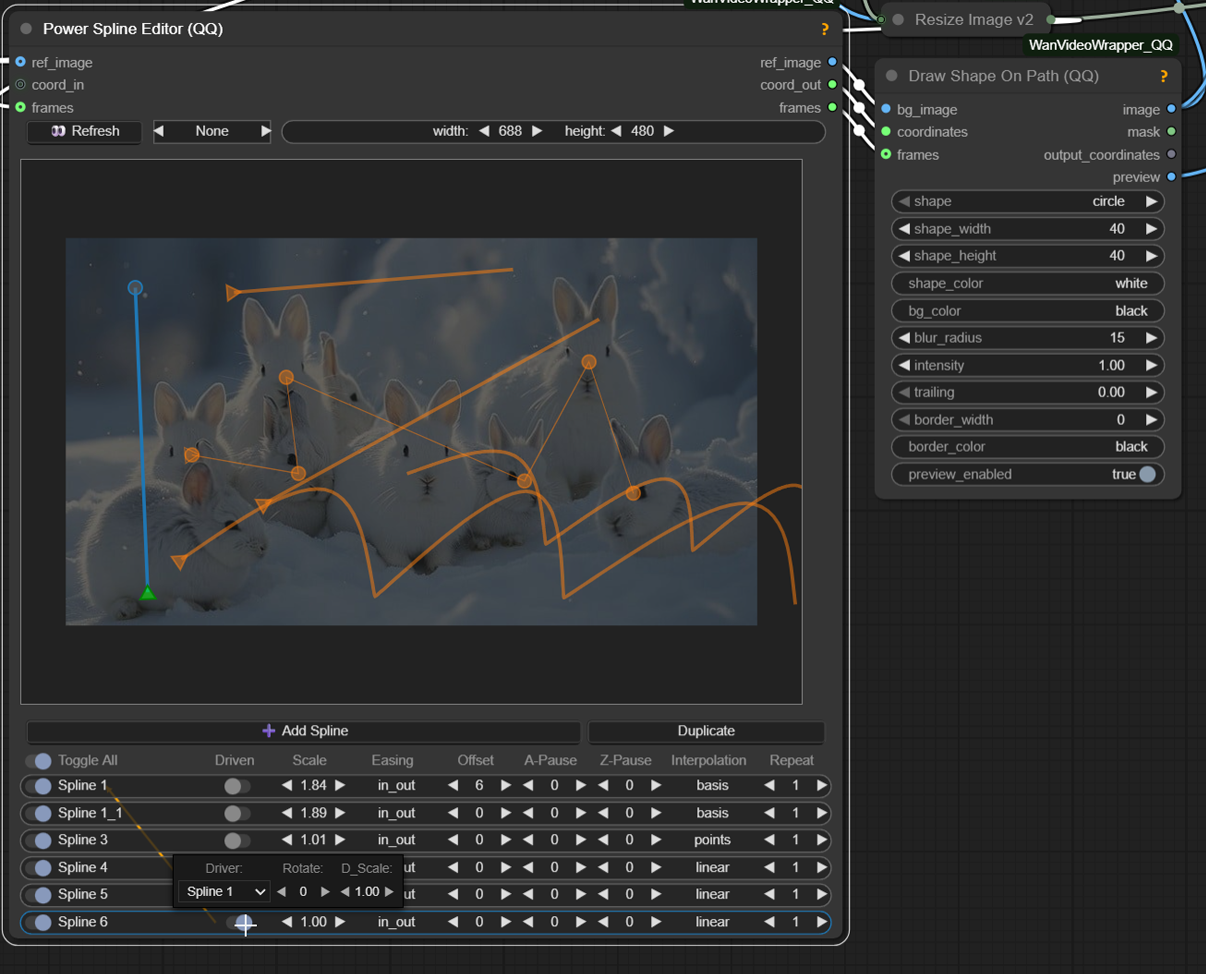

    Power Spline Editor

    <table> <tr> <td width="50%">


    </td> <td width="50%" valign="top">

    Power Spline Editor - usage

    • Multi-layer canvas: Draw unlimited paths with per-layer controls
    • Interpolation modes: linear, cardinal (Catmull-Rom), basis (B-spline), points (static)
    • Repeat system: Loop animations with automatic closed-path handling
    • Driver/driven: One path controls another with rotation, scaling, and smoothing
    • Easing functions: Smooth transitions with various easing curves for path animation
    • Right-click controls: Context menu for driver path with additional options
    • Offset timing: Positive/negative timing shifts with pause frame control
    • Pause frames: Start/end pause per layer for precise animation timing
    </td> </tr> </table>

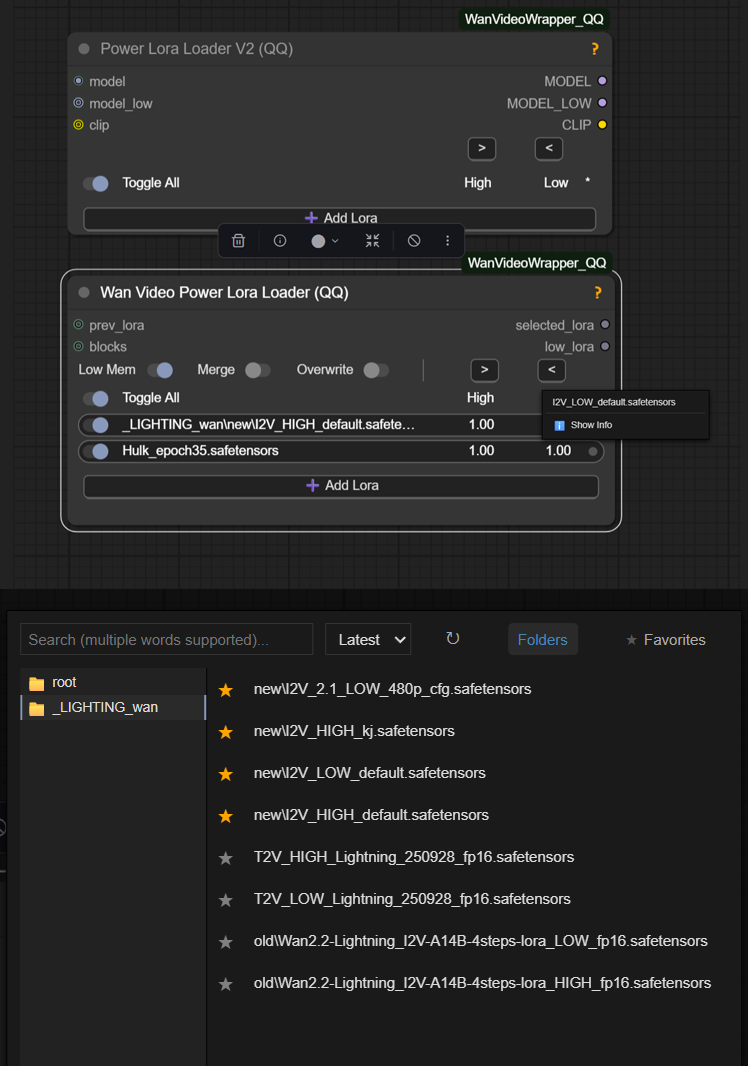

    Power Lora Loader

    <table> <tr> <td width="50%">


    </td> <td width="50%" valign="top">
    • LoRAs: Dynamic UI with rgthree-style interface
    • Auto-detection: Finds Low variant pairs from High LoRAs automatically
    • Smart patterns: -, _, separators at prefix/suffix/infix positions
    • Case variations: High/high/HIGH/H/h → Low/low/LOW/L/l
    • Dual strength: Separate High (H) and Low (L) sliders with copy buttons
    • Block selection: Per-LoRA layer control with merge and memory options
    </td> </tr> </table>

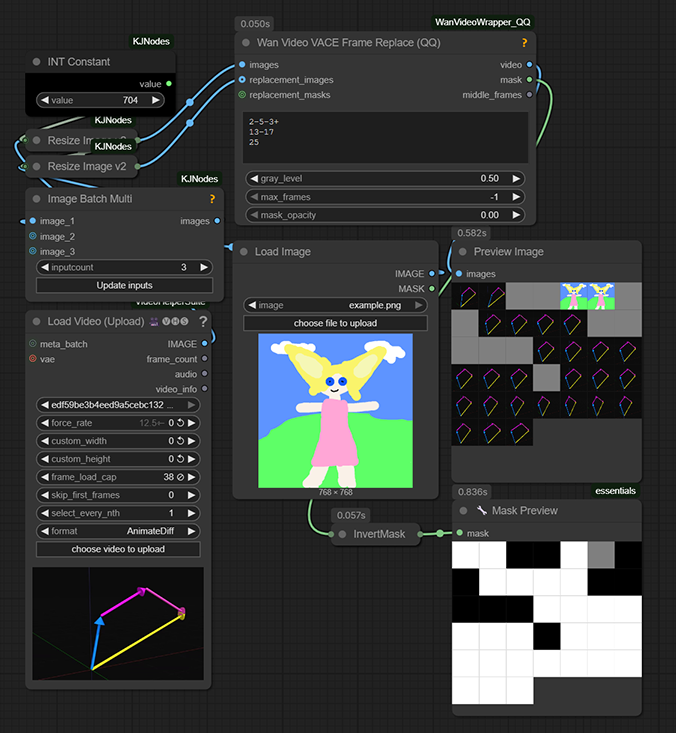

    Wan Video VACE Frame Replace

    <table> <tr> <td width="50%">


    </td> <td width="50%" valign="top">

    Wan Video VACE Frame Replace - example

    • Single frames: 5 (gray), 5+ (replacement image)
    • Ranges: 22-26 (gray), *1-5 (keep start), 1-5* (keep end)
    • a-b-c patterns: Middle frame b with a left/c right context
    • Multiple +: ++a-b-c++ creates gradual duplicates on both sides
    • Custom opacity: ++a-b-c++ 0.8 for blend strength control
    • Custom masks: Auto-scaled replacement masks with opacity blending
    </td> </tr> </table>

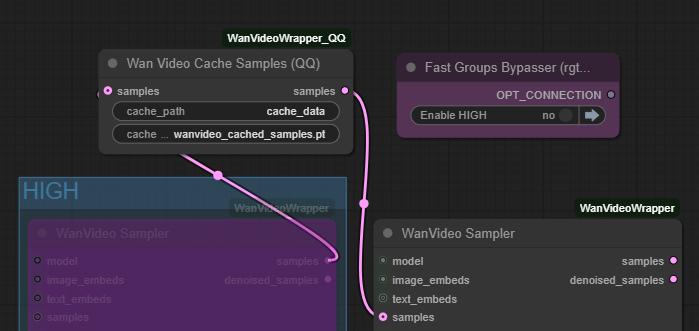

    Wan Video Cache Samples

    <table> <tr> <td width="35%">


    </td> <td width="65%" valign="top">
    • Cache/Load workflow: Save latent samples to disk for faster workflow iteration
    • Dual mode: With input → cache and passthrough; Without input → load from cache
    • Auto-path handling: Saves to node directory with customizable cache names
    • Workflow speedup: Skip HIGH sampling steps during prompt/parameter testing to resample LOW
    </td> </tr> </table>

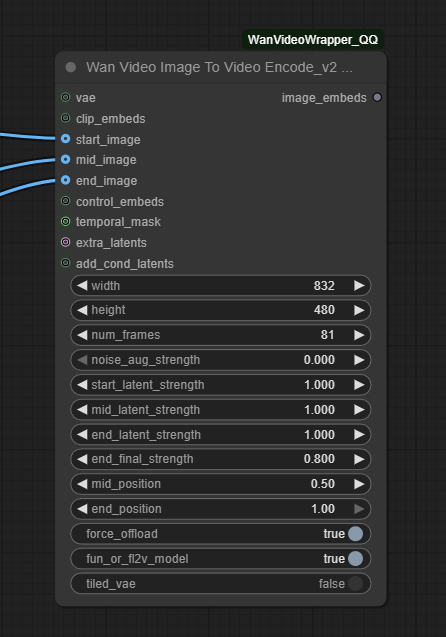

    Wan Video Image To Video Encode_v2

    <table> <tr> <td width="35%">


    </td> <td width="65%" valign="top">
    • (EXPERIMENTAL) Maybe there's native ways to do this , but it seems to work
    • Multi-frame I2V: Start/mid/end image conditioning with position control
    • Temporal feathering: Cosine interpolation for smooth frame transitions
    • Latent strength: Per-frame multipliers (start/mid/end) for motion control (default setting work but can be adjusted)
    </td> </tr> </table>

    Control only vs Control + I2V

    <table> <tr> <td width="50%">

    https://github.com/user-attachments/assets/d65bb9d7-962a-4e1f-bc5d-be90adc9e311

    </td> <td width="50%">

    https://github.com/user-attachments/assets/c4b70388-54a8-4b08-8f37-6028e1f2f471

    </td> </tr> </table>

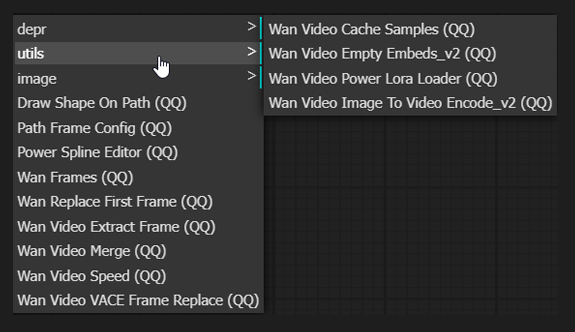

    Other Experimental Node List

    Node List

    Features

    • Power LoRA Loader: Advanced LoRA loading with High/Low pair detection, block selection, and custom UI
    • Power Spline Editors: Multi-layer canvas-based path drawing with interpolation modes (linear, cardinal, basis, points)
    • Video Manipulation: Speed adjustment, frame extraction, video merging, and frame replacement
    • Path Animation: Draw shapes (circle/square/triangle) along animated paths with easing functions
    • Image-to-Video Encoding: TAEHV (Tiny AutoEncoder for Hunyuan Video) with temporal feathering and memory-efficient modes
    • Cache Management: Sample caching for faster workflow iteration
    • VAE Frame Replacement: Replace specific frames in VAE-encoded video latents

    Installation

    1. Navigate to your ComfyUI custom nodes directory:
    cd ComfyUI/custom_nodes/
    1. Clone this repository:
    git clone https://github.com/siraxe/ComfyUI-WanVideoWrapper_QQ.git
    1. Restart ComfyUI

    Requirements

    • ComfyUI (latest version recommended)
    • PyTorch with CUDA support (for GPU acceleration)
    • Standard ComfyUI dependencies

    Credits

    Experimental node package for WanVideo workflows in ComfyUI.

    Special Thanks
